120 Controls in detailSeatsRaising rear head restraints
1Rear seat head restraint
Pull head restraint1 to its highest
position.Lowering rear head restraints with
switch in the center console
1Rear head restraint lowering switch

Switch on the ignition (
page 34).

Push the rear head restraints lowering
switch1.
The rear head restraints are lowered.
iThe rear head restraints cannot be low-
ered using the switch1 when the roll
bars have been released. The roll bars
need to be lowered before the rear
head restraints can be operated again
using switch1.

If the roll bars have released and
the soft top is closed, contact an
authorized Mercedes-Benz Center
to have the roll bars lowered. Do
not attempt to lower the roll bars
manually with the soft top closed.
Lowering the roll bars manually
with the soft top closed may impair
the function of the roll bars.


If the roll bars have released and
the soft top is open, you can lower
the roll bars manually (
page 424)
or contact an authorized
Mercedes-Benz Center to have the
roll bars lowered.

121 Controls in detailSeats
Multicontour seat*
The multicontour seat has a movable seat
cushion and inflatable air cushions built
into the backrest to provide additional
lumbar and side support.
The seat cushion movement, backrest
cushion height and curvature can be
continuously varied with switches on the
side of the seat after switching on ignition.
1Seat cushion depth
2Backrest bottom
3Backrest center
4Side bolster adjustment

Switch on the ignition (
page 36).Seat cushion depth

Adjust the seat cushion depth to the
length of your upper leg using
switch1.
Backrest contour

Adjust the contour of the backrest to
the desired position using switches2
and3.
Backrest side bolsters

Adjust the backrest side bolsters so
that they provide good lateral support
using switch4.

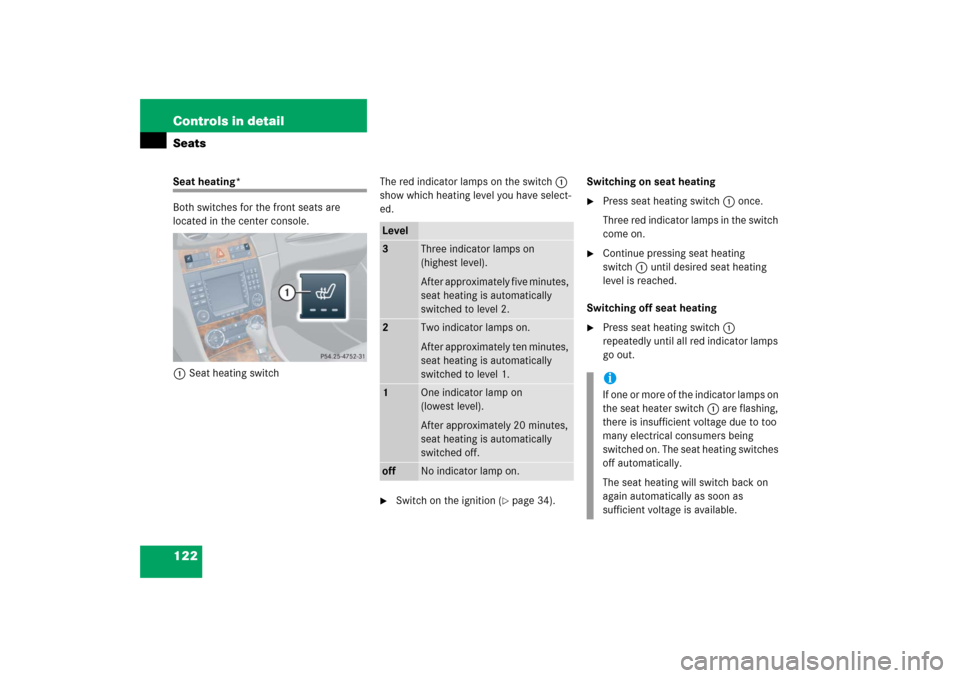

122 Controls in detailSeatsSeat heating*
Both switches for the front seats are
located in the center console.
1Seat heating switchThe red indicator lamps on the switch1
show which heating level you have select-
ed.

Switch on the ignition (
page 34).Switching on seat heating

Press seat heating switch1 once.
Three red indicator lamps in the switch
come on.

Continue pressing seat heating
switch1 until desired seat heating
level is reached.
Switching off seat heating

Press seat heating switch1
repeatedly until all red indicator lamps
go out.
Level3
Three indicator lamps on
(highest level).
After approximately five minutes,
seat heating is automatically
switched to level 2.
2
Two indicator lamps on.
After approximately ten minutes,
seat heating is automatically
switched to level 1.
1
One indicator lamp on
(lowest level).
After approximately 20 minutes,
seat heating is automatically
switched off.
off
No indicator lamp on.
iIf one or more of the indicator lamps on
the seat heater switch1 are flashing,
there is insufficient voltage due to too
many electrical consumers being
switched on. The seat heating switches
off automatically.
The seat heating will switch back on
again automatically as soon as
sufficient voltage is available.

123 Controls in detailSeats

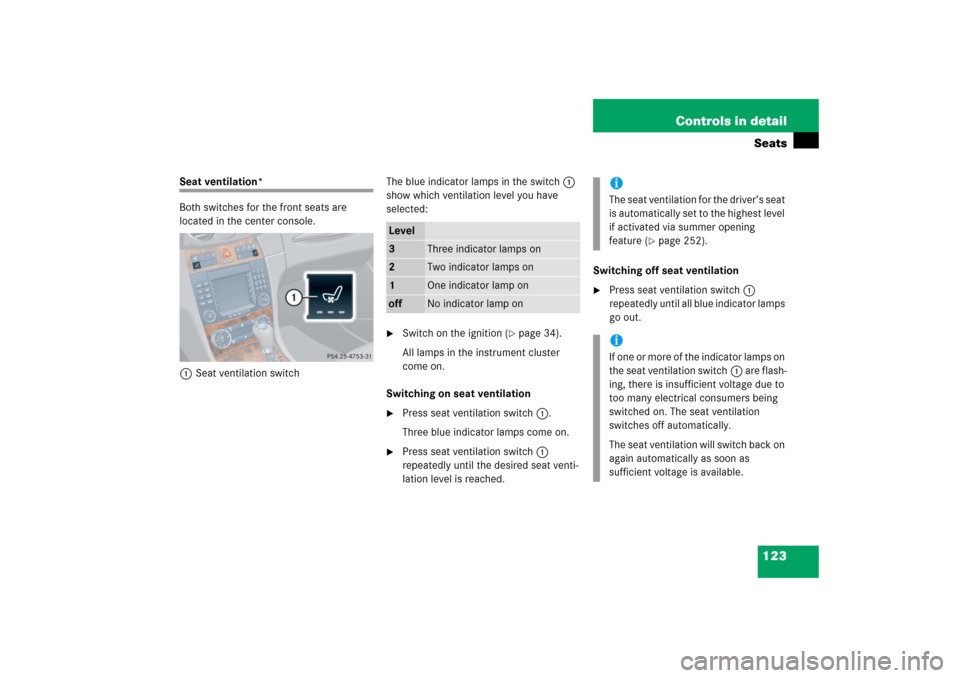

Seat ventilation*
Both switches for the front seats are
located in the center console.
1Seat ventilation switchThe blue indicator lamps in the switch1
show which ventilation level you have
selected:

Switch on the ignition (
page 34).
All lamps in the instrument cluster
come on.
Switching on seat ventilation

Press seat ventilation switch1.
Three blue indicator lamps come on.

Press seat ventilation switch1
repeatedly until the desired seat venti-
lation level is reached.Switching off seat ventilation

Press seat ventilation switch1
repeatedly until all blue indicator lamps
go out.
Level3
Three indicator lamps on
2
Two indicator lamps on
1
One indicator lamp on
off
No indicator lamp on
iThe seat ventilation for the driver’s seat
is automatically set to the highest level
if activated via summer opening
feature (
page 252).
iIf one or more of the indicator lamps on
the seat ventilation switch1 are flash-
ing, there is insufficient voltage due to
too many electrical consumers being
switched on. The seat ventilation
switches off automatically.
The seat ventilation will switch back on
again automatically as soon as
sufficient voltage is available.

124 Controls in detailMemory functionPrior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach and comfort. The head
restraint should also be adjusted for
proper height. See also the section on
air bags (
page 63) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the interior and exterior
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and
Canadian Motor Vehicle Safety Standards
213 and 210.2.The following settings are stored when
using the buttons on the driver’s door:


Driver’s seat, backrest and head
restraint position


Steering wheel position


Exterior rear view mirror position
The following settings are stored when
using the buttons on the passenger door:


Front passenger seat, backrest and

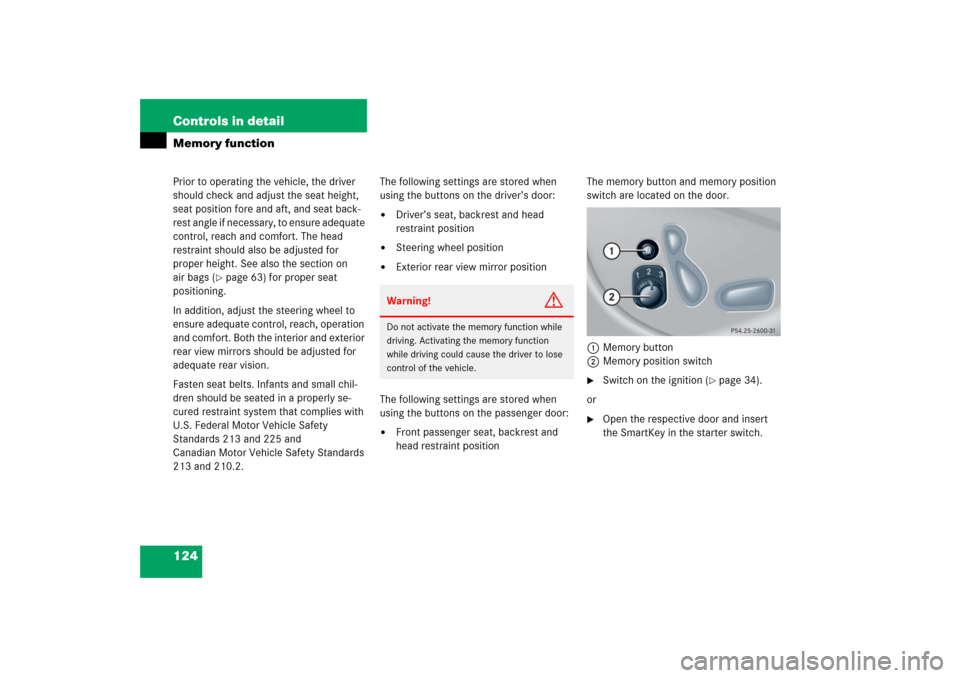

head restraint positionThe memory button and memory position
switch are located on the door.
1Memory button
2Memory position switch

Switch on the ignition (
page 34).
or

Open the respective door and insert
the SmartKey in the starter switch.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

125 Controls in detail
Memory function
Storing positions into memory
Adjust the seats, steering wheel and
exterior rear view mirrors to the
desired position (
page 37).

Turn memory position switch2 to the
desired memory position.

Press memory button1.

Release memory button1 and press
memory position switch2 within
three seconds.
All settings are stored to the selected
position.
Recalling positions from memory
Turn memory position switch2 to the
desired memory position.

Press and hold memory position
switch2 until the seat, steering wheel
and exterior rear view mirrors have
completely moved to the stored
positions.!Do not operate the seats using the
memory button if the seat backrest is
in an excessively reclined position.
Doing so could cause damage to front
or rear seats.
First move the seat backrest to an
upright position.
iReleasing the memory position switch
stops movement to the stored
positions immediately.

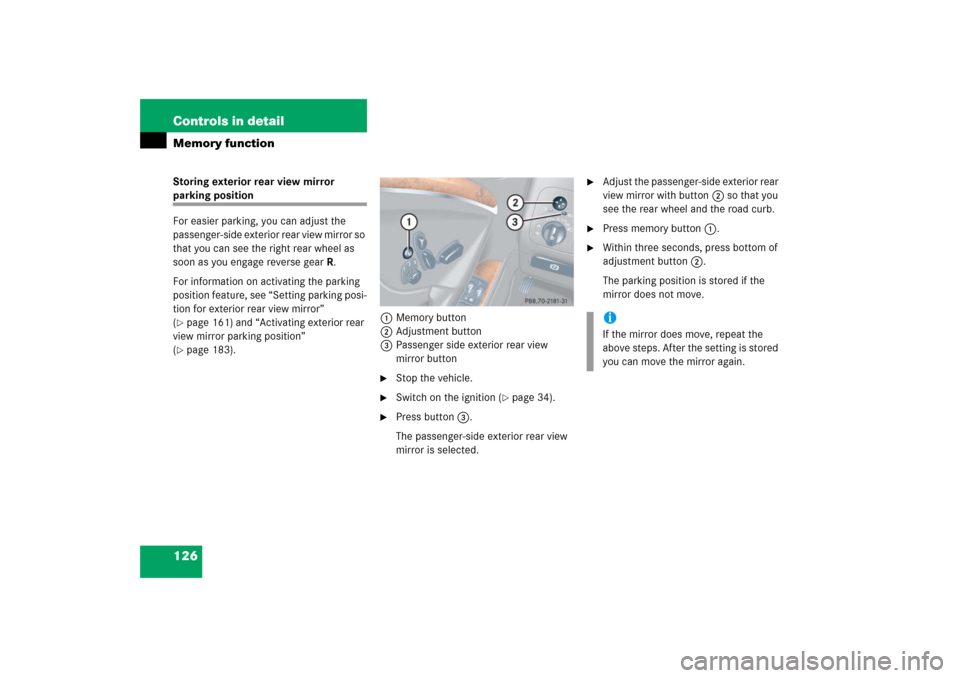

126 Controls in detailMemory functionStoring exterior rear view mirror parking position
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position feature, see “Setting parking posi-
tion for exterior rear view mirror”
(page 161) and “Activating exterior rear
view mirror parking position”
(page 183).1Memory button
2Adjustment button
3Passenger side exterior rear view
mirror button

Stop the vehicle.

Switch on the ignition (
page 34).

Press button3.
The passenger-side exterior rear view
mirror is selected.

Adjust the passenger-side exterior rear
view mirror with button2 so that you
see the rear wheel and the road curb.

Press memory button1.

Within three seconds, press bottom of
adjustment button2.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

127 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 52)
and “Turn signals” (
page 53).

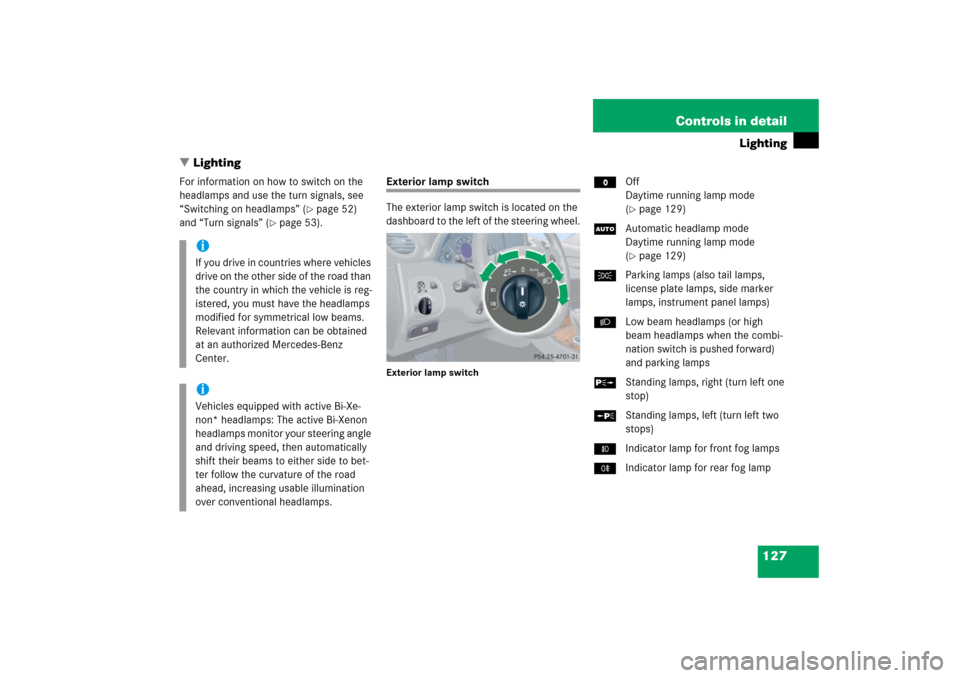

Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch
MOff
Daytime running lamp mode
(
page 129)
UAutomatic headlamp mode
Daytime running lamp mode
(page 129)
CParking lamps (also tail lamps,
license plate lamps, side marker
lamps, instrument panel lamps)
BLow beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
‡Indicator lamp for front fog lamps
†Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles
drive on the other side of the road than
the country in which the vehicle is reg-
istered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at an authorized Mercedes-Benz
Center.iVehicles equipped with active Bi-Xe-
non* headlamps: The active Bi-Xenon
headlamps monitor your steering angle
and driving speed, then automatically
shift their beams to either side to bet-
ter follow the curvature of the road
ahead, increasing usable illumination
over conventional headlamps.

128 Controls in detailLightingManual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
exterior lamp switch.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:

Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps

Turn the exterior lamp switch to
positionU.
With the SmartKey in starter switch
position1 or the KEYLESS-GO*
start/stop button pressed once, only
the parking lamps will switch on and off
automatically.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off automatically.
iWith the SmartKey removed from the
starter switch or the engine turned off
with KEYLESS-GO* and the driver’s
door open, a warning sounds if the
parking lamps or low beam headlamps
are switched on.
The message
Turn off lamps
appears
in the multifunction display.

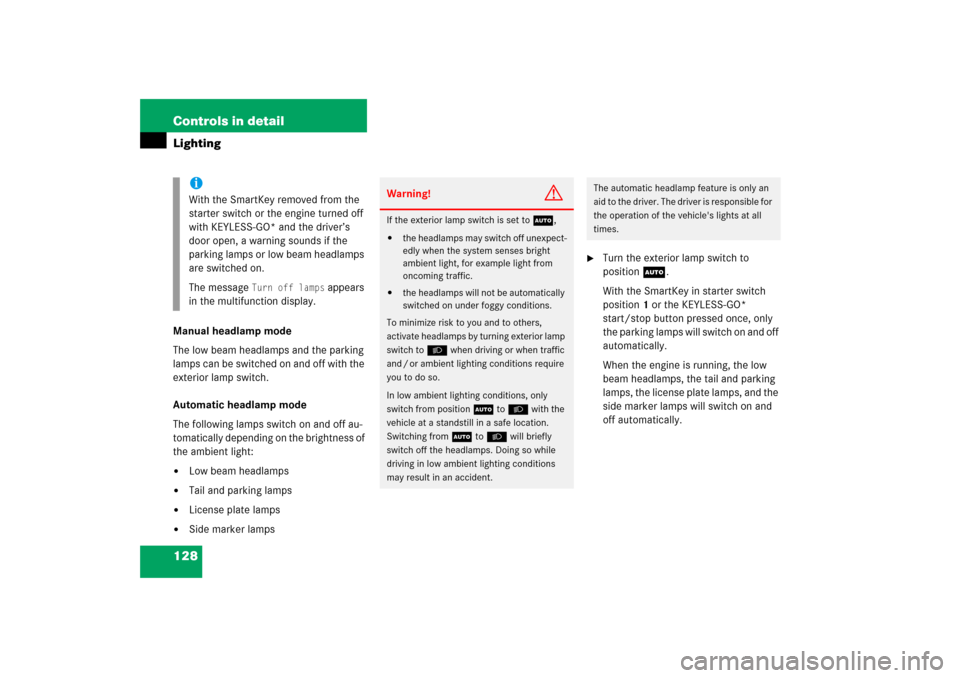

Warning!
G
If the exterior lamp switch is set toU,

the headlamps may switch off unexpect-
edly when the system senses bright
ambient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others,
activate headlamps by turning exterior lamp
switch to B when driving or when traffic
and / or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position U to B with the
vehicle at a standstill in a safe location.
Switching from U to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle's lights at all
times.

129 Controls in detail
Lighting
Daytime running lamp mode
Turn the exterior lamp switch to
positionM orU.
When the engine is running, the low beam
headlamps are switched on.
In low ambient light conditions, the
following lamps will switch on additionally:


Tail and parking lamps


License plate lamps


Side marker lamps
For nighttime driving you should turn the
exterior lamp switch to positionB to
permit activation of the high beam head-
lamps.Canada only
The daytime running lamp mode is manda-
tory and therefore in a constant mode.
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three-minute delay.
When the engine is running, and you


turn the exterior lamp switch to
positionC, the parking lamps
switch on additionally.


turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime
running lamp mode.
The corresponding exterior lamps
switch on (
page 127).USA only
By default, the daytime running lamp mode
is deactivated. Activate the daytime run-
ning lamp mode using the control system,
see “Setting daytime running lamp mode
(USA only)” (
page 156).
When the engine is running, and you turn
the exterior lamp switch to positionC
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 127).
Locator lighting and night security
illumination
The locator lighting and the night security
illumination are described in the “Control
system” section, see “Setting locator light-
ing” (page 157) and “Setting night secu-
rity illumination” (
page 158).
iWith the daytime running lamp mode
activated and the exterior lamp switch
in positionM, the high beam head-
lamps cannot be switched on.
The high beam flasher is available at all
times.
