200 Controls in detailAutomatic climate control (CLK 500/CLK 55 AMG)Setting the temperature
Use temperature controls3 andd for
the left side or6 andb for the right side
(page 197) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The automatic climate control will adjust
to the set temperature as fast as possible.
Increasing

Press and hold temperature button3
and/or6 (
page 197) until the de-
sired temperature appears in the dis-
play of the control panel4
(
page 197).
The automatic climate control system
will correspondingly adjust the interior
air temperature.Decreasing

Press and hold temperature buttonb
and/ord (
page 197) until the de-
sired temperature appears in the dis-
play of the control panel4
(
page 197).
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Adjusting air distribution
Use the air distribution controls1 and8
(page 197) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
located on the controls:Symbol
Function
Z
Directs air to the windshield
and the side defroster vents
b
Directs air into the entire
vehicle interior
Y
Directs air to the footwells
a
Directs air through the center,
side and rear passenger
compartment air vents

201 Controls in detail
Automatic climate control (CLK 500/CLK 55 AMG)

Turn air distribution control1 or8
(page 197) to the desired symbol.
The indicator lamp on the buttonU
goes out.
The automatic air distribution is
switched off. The air distribution is
controlled according to the selected
control setting.
Opening center and side air vents

Turn thumbwheels 2, 6 and 7
(page 196) upward.
The center air vents 5 and 8 and side
air vents 1 and 3 (
page 196) are
open.Closing center and side air vents

Turn thumbwheels 2, 6 and 7
(page 196) downward.
The center air vents 5 and 8 and side
air vents 1 and 3 (
page 196) are
closed.
Adjusting air volume
Use buttonU (
page 197) for auto-
matic mode or air volume controls

orQ (
page 197) to adjust air volume
manually.
Seven blower speeds are available.

Press button
to decrease
orQ (
page 197) to increase air
volume to the desired level.
The indicator lamp on the buttonU
goes out.
The automatic air distribution remains
switched on.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.
Activating
Press buttonP or0
(page 197).
The indicator lamp on the button
comes on.
iYou can also turn the air distribution
control to a position between two
symbols
iKeep this setting selected only until the
windshield or the side windows are
clear again.

202 Controls in detailAutomatic climate control (CLK 500/CLK 55 AMG)The air conditioning switches
automatically to the following functions:


cooling on the dehumidify


maximum blowing and heating
power


air flows onto the windshield and
the front side windows


the air recirculation mode is
switched off
Deactivating

Press buttonP or0
(page 197) again.
The indicator lamp on the button goes
out.
The previous settings are once again in
effect.Windshield fogged on the outside

Switch the windshield wipers on
(page 54).
If the automatic mode of the automatic cli-
mate control is switched off:

Turn air distribution control1 or8
toa orY (
page 197).
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set toU (
page 197) and there is a
high need for cooling, the display
“MAXCOOL” appears.
This provides the fastest possible cooling
of the vehicle interior (when side windows
and soft top are closed).
iThe cooling remains switched on.
iKeep this setting selected only until the
windshield is clear again.

203 Controls in detail
Automatic climate control (CLK 500/CLK 55 AMG)
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press button, (
page 197).
The indicator lamp on the button
comes on.
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 206) is activated, or
press buttonP or 0.
iThe air recirculation mode is activated
automatically at high outside tempera-
tures.
The indicator lamp on the button,
is not lit when the air recirculation
mode is automatically switched on.
A quantity of outside air is added after
approximately 30 minutes.
Warning!
G
Never operate the side windows if there is
the possibility of anyone being harmed by
the closing procedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by
releasing the, button or by pressing or
pulling the respective window switch.iIf you press and hold button,, the
side windows will close.

204 Controls in detailAutomatic climate control (CLK 500/CLK 55 AMG)Deactivating
Press button, (
page 197).
The indicator lamp on the button goes
out.
Charcoal filter
An activated charcoal filter markedly
reduces bad odors and removes pollutants
from air entering the passenger compart-
ment. The charcoal filter can be activated
or deactivated.
The system switches automatically to the
air recirculation mode, if the

charcoal filter is switched on.


carbon monoxide (CO) or nitrogen
oxide (NO
X) concentration of the out-
side air increases beyond a predeter-
mined level.
iThe air recirculation mode is deactivat-
ed automatically:

after 5 minutes if the outside
temperature is below
approximately 41°F (5 °C)


after 5 minutes if the air condition-
ing is turned off


after 30 minutes if the outside
temperature is above
approximately 41°F (5 °C)
iIf you press and hold button,, the
side windows will return to their previ-
ous position.
A side window will only return to its pre-
vious position if it has not been moved
to another position using the respec-
tive side window switch after it was
closed with button,. A side win-
dow that was moved will remain in its
current position if button, is used
to re-open the remaining side windows.
iThe automatic air recirculation mode
does not function if theA/C (indicator
lamp on button2 or 9 not lit)
mode is deactivated, or if the outside
temperature has fallen below 41°F
(5°C).

205 Controls in detail
Automatic climate control (CLK 500/CLK 55 AMG)
Activating
Press buttone (
page 197).
The indicator lamp on the button
comes on.Deactivating

Press buttone (
page 197).
The indicator lamp on the button goes
out.
iIf you press and hold buttone, the
side windows will close.iThe activated charcoal filter should be
switched off when windows fog up on
the inside, or if the passenger compart-
ment needs to be quickly heated or
cooled down.
Warning!
G
Never operate the side windows if there is
the possibility of anyone being harmed by
the closing procedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by
releasing thee button or by pressing or
pulling the respective window switch.
iIf you press and hold buttone, the
side windows will return to their previ-
ous position.
A side window will only return to its pre-
vious position if it has not been moved
to another position using the respec-
tive side window switch after it was
closed with buttone. A side win-
dow that was moved will remain in its
current position if button e is used
to re-open the remaining side windows.

206 Controls in detailAutomatic climate control (CLK 500/CLK 55 AMG)Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the
vehicle will then no longer be cooled or
dehumidified.

Press button2or9
(page 197).
The indicator lamp on the button goes
out.
The cooling function switches off after
a short delay.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condi-
tioning.

Press button2or9
(page 197) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.
!If the air conditioning cannot be turned
on again, this indicates that the air
conditioning is losing refrigerant. The
compressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

207 Controls in detail
Automatic climate control (CLK 500/CLK 55 AMG)
Residual heat and ventilation* (Canada only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.Activating

Switch off the ignition (
page 36).

Press button9(
page 197).
The indicator lamp on the button
comes on.Deactivating

Press button9(
page 197).
The indicator lamp on the button goes
out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
iHow long the system will provide
heating depends on

the coolant temperature


the temperature set by the operator
The blower will run at speed setting 1
regardless of the air distribution
control setting.

208 Controls in detailAutomatic climate control (CLK 500/CLK 55 AMG)Rear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 197).The air vents for the rear passenger
compartment are located in the rear
center console.
1Thumbwheel for air volume control for
center air vents
2Left center air vent
3Right center air ventAdjusting air distribution

Push the slide for the left center
vent2 or right center vent3 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume

Turn thumbwheel1 to the left or right.
The air volume is increased or de-
creased.
iThe temperature at the center air vents
for the rear passenger
compartment2 and3 (
page 208)
is the same as at the dashboard center
air vents.
iFor draft-free ventilation, push
slides2 and3 upward.

209 Controls in detail
Audio system
Audio system
Audio and telephone*, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.
Operating safety

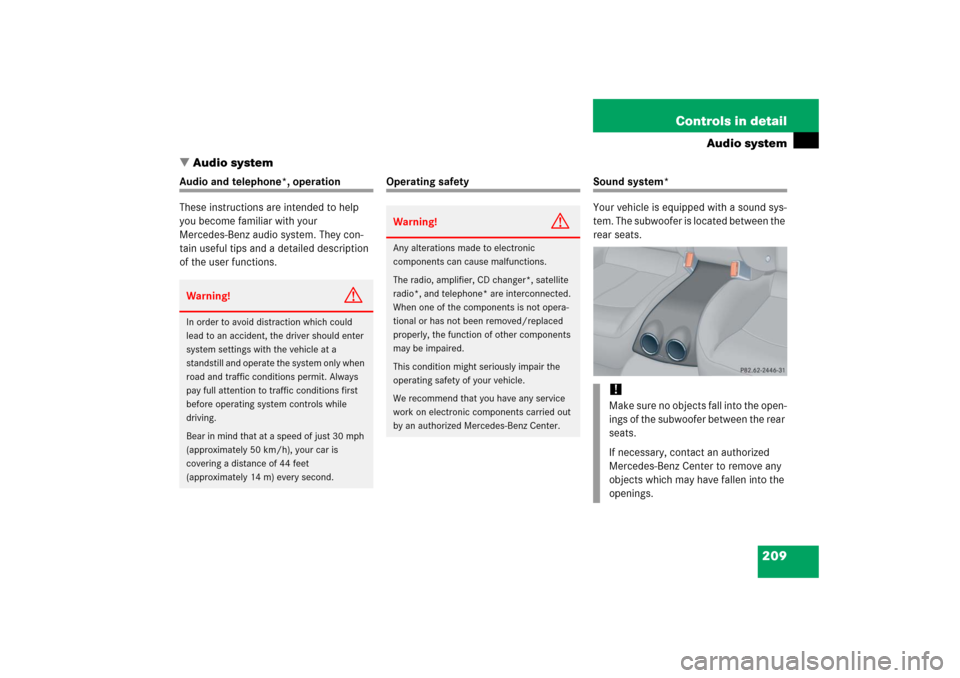

Sound system*
Your vehicle is equipped with a sound sys-
tem. The subwoofer is located between the
rear seats.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
Warning!
G
Any alterations made to electronic
components can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio*, and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.
!Make sure no objects fall into the open-
ings of the subwoofer between the rear
seats.
If necessary, contact an authorized
Mercedes-Benz Center to remove any
objects which may have fallen into the
openings.
