300 Controls in detailUseful featuresStep 12:
Confirm the garage door operation by
pressing the programmed signal trans-
mitter button (2, 3 or4).
Step 13:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the
integrated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following:
Step 4:

Press and hold the signal transmitter
button (2, 3 or4). Do not release
this button until it has been successful-
ly trained.

While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this se-
quence on the hand-held remote con-
trol until the frequency signal has been
learned. Upon successful training, the
indicator lamp1 will flash slowly and
then rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.
iSome garage door openers (or other
rolling code equipped devices) may
require you to press, hold for 2 seconds
and release the same signal transmit-
ter button a third time to complete the
training process.


301 Controls in detail
Useful features
Reprogramming a single signal trans-
mitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:
Switch on the ignition (
page 36).

Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.

The indicator lamp1 will begin to
flash after 20 seconds. Without releas-
ing the signal transmitter button, pro-
ceed with programming starting with
step 3.Operation of integrated remote control

Switch on the ignition (
page 36).

Select and press the appropriate
integrated signal transmitter button
(2, 3 or4) to activate the remote
controlled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
iUpon completion of programming the
integrated remote control, make sure
you retain the hand-held remote con-
trol that came with the garage door
opener, gate operator or other device.
You may need it for use in other vehi-
cles, for future programming of an
integrated remote control, or simply for
continued use as a hand-held remote
control to operate the respective
device in other situations.

302 Controls in detailUseful featuresErasing the integrated remote control
memory
Switch on the ignition (
page 36).

Simultaneously press and hold down
the outer signal transmitter buttons2
and 4, for approximately 20 seconds,
until the indicator lamp1 flashes rap-
idly. Do not hold for longer than
30 seconds.
The codes of all three channels are
erased.Programming tips
If you are having difficulty programming
the integrated remote control, here are
some helpful tips:


Check the frequency of the hand-held
remote control5 (typically located on
the reverse side of the remote). The in-
tegrated remote control is compatible
with radio-frequency devices operating
between 288-399 MHz.


Put a new battery in the hand-held re-
mote control5. This will increase the
likelihood of the hand-held remote con-
trol sending a faster and more accurate
signal to the integrated remote control.


While performing step 3, hold the
hand-held remote control6 at differ-
ent lengths and angles from the signal
transmitter button (2, 3 or4) you
are programming. Attempt varying an-
gles at the distance of 2 to 5 inches
(5 to 12 cm) away or the same angle at
varying distances.


If another hand-held remote control is
available for the same device, try the
programming steps again using that
other hand-held remote control. Make
sure new batteries are in the hand-held
remote control before beginning the
procedure.


Straighten the antenna wire from the
garage door opener assembly. This
may help improve transmitting and/or
receiving signals.
iIf you sell your vehicle, erase the codes
of all three channels.

303 Controls in detail
Useful features
iCertain types of garage door openers
are incompatible with the integrated
remote control. If you should experi-
ence further difficulties with program-
ming the integrated remote control,
contact an authorized Mercedes-Benz
Center, or call Mercedes-Benz
Customer Assistance Center (in the
USA only) at 1-800-FOR-MERCedes, or
Customer Service (in Canada) at
1-800-387-0100.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

304

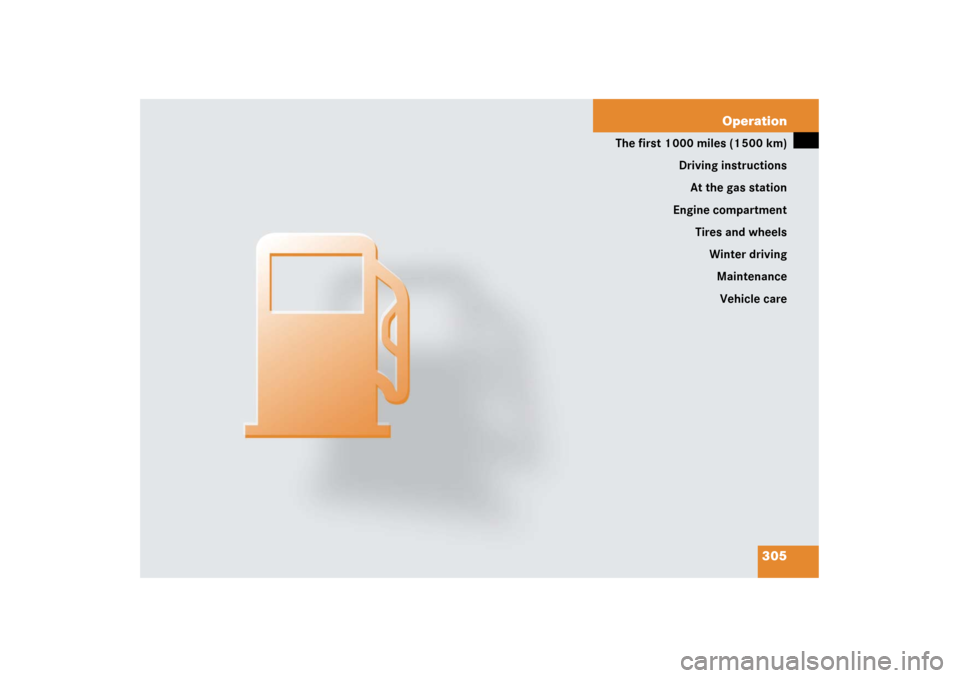

305 Operation
The first 1 000 miles (1 500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

306 OperationIn the “Operation” section you will find de-
tailed information on operating, maintain-
ing and caring for your vehicle.The first 1 000 miles (1 500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1 000 miles (1 500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive
engine speeds (no more than
2/3 of
maximum rpm in each gear).


Shift gears in a timely manner.


Avoid accelerating by kickdown.


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.


Select positions3,2or1 only when
driving at moderate speeds (for hill
driving).


Select modeC as the preferred shift
program (
page 172) for the first
1 000 miles (1 500 km).After 1 000 miles (1 500 km), you may
gradually increase vehicle and engine
speeds to the permissible maximum.
All of the above instructions, as may apply
to your vehicle type, also apply when
driving the first 1 000 miles (1 500 km)
after the engine or the rear differential has
been replaced.
!Additional instructions for AMG
vehicles:

During the first 1 000 miles
(1 500 km), do not exceed a speed
of 85 mph (140 km / h).


During this period, avoid engine
speeds above 4500 rpm in each
gear.
iAlways obey applicable speed limits.

307 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended tire
inflation pressures.


Remove unnecessary loads.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the Maintenance System (U.S. vehi-
cles) or FSS (Canada vehicles). Contact
an authorized Mercedes-Benz Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and driving
PedalsPower assistance
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Keep driver’s foot area clear at all times. Ob-
jects stored in this area may impair pedal
movement.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.

308 OperationDriving instructionsBrakesTo help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
ject to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.
Refer to the description of the Brake Assist
System (BAS) (
page 88).If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on, the brake fluid level in the res-
ervoir is too low.
Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected immedi-
ately. Contact an authorized
Mercedes-Benz Center.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Center.
Only install brake pads and brake fluid rec-
ommended by Mercedes-Benz.
Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking ef-
fect. Maintain a safe distance from vehicles
in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.

309 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
park, so that the air stream can cool down
the brakes faster.High-performance brake system
(CLK 55 AMG only)
The high-performance brake system is de-
signed to operate under the extremely high
operating demands required to accommo-
date the performance capabilities of the
vehicle. The brakes may produce a squeak-
ing-type noise depending on the


vehicle speed


brake force applied


ambient conditions, e.g. temperature
and humidity
As with any brake system, the wear of indi-
vidual brake system components such as
brake pads or discs strongly depends on
your driving style and the conditions under
which you operate the vehicle. Thus, a driv-
ing style calling for high demand braking
will cause your vehicle’s brakes to wear
more quickly.
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!When driving down long and steep
grades, relieve the load on the brakes
by shifting into a lower gear to use the
engine’s braking power. This helps pre-
vent overheating of the brakes and re-
duces brake pad wear.
Warning!
G
New vehicle brake pads and discs, and re-
placement brake pads and discs may take
several hundred miles of driving until they
provide optimum braking efficiency. Until
that time, you may need to use increased
brake pedal pressure while braking. Please
be aware of this and adjust your driving and
braking accordingly during this break-in
period.
Excessive high demand braking will cause
correspondingly high brake wear. Please be
attentive to the brake warning lamp in the
instrument cluster and brake condition mes-
sages in the multifunction display. Especial-
ly for high performance driving, it is
important to maintain the brake system and
have it checked regularly.
