MERCEDES-BENZ CLK500 2006 C209 Owner's Manual

370 OperationVehicle careCleaning the windows and the wiper
blades
Fold the wiper arms forward until they
snapes into place.

Clean the wiper blade inserts with a
clean cloth and detergent solution.

Use a soft, clean cloth and a mild win-
dow cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is
recommended.Light alloy wheels
If possible, clean wheels once a week.

Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light al-
loy wheels.
Warning!
G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle's on-board electronics have status 0) before cleaning the windshield and/or
the wiper blades. Otherwise, the wiper mo-
tor could suddenly turn on and cause injury.
!Fold the windshield wiper arms back
onto the windshield before turning the
SmartKey in the starter switch or
pressing the KEYLESS-GO start/stop
button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.!To clean the window interior, do not
use a dry cloth, abrasives, solvents or
cleaners containing solvents. Do not
touch the inside of the front, rear or
side windows with hard objects such as
an ice scraper or ring. Doing so may
damage the windows.
!Only use acid-free cleaning materials.
Acid may cause corrosion or damage
the clear coat.!The vehicle should not be parked for an
extended period of time immediately
after it has been cleaned, especially not
after the wheel rims have been cleaned
with wheel rim cleaner. Wheel rim
cleaners can lead to increased corro-
sion of the brake disks and brake pads.
Therefore, the vehicle’s brake system
should always be warmed-up before it
is parked after cleaning. To do so,
please drive your vehicle for several
minutes to allow the brakes to dry.

371 Operation
Vehicle care
Plastic and rubber parts
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.
Instrument cluster and cup holders

Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.

Wipe with a cloth moistened in a luke-
warm solution.Hard plastic trim items

Use Mercedes-Benz approved Interior
Care, a soft, lint-free cloth and apply
with light pressure.
Steering wheel and gear selector lever

Wipe with a damp cloth and dry thor-
oughly or clean with Mercedes-Benz
approved Leather Care.
Carpets

Use Mercedes-Benz approved Carpet
and Fabric Care for cleaning the car-
pets.Headliner and shelf below rear window

Use a soft bristle brush or a dry-sham-
poo cleaner in case of excessive dirt.
Seat belts

Only use clear, lukewarm water and
soap. When applying Mercedes-Benz ap-
proved Tire Care and Mercedes-Benz
approved Wheel Care products, take
care not to spray them on the brake
disks.
!Do not use oil or wax on these parts.!To prevent scratches, do not use scour-
ing agents.
!To prevent scratches, do not use scour-
ing agents.
!The webbing must not be treated with
chemical cleaning agents. Do not dry
the webbing at temperatures above
176°F (80°C) or in direct sunlight.Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.

372 OperationVehicle careUpholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.
Leather upholstery
Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning per-
forated leather as its underside should not
become wet.Nubuck leather upholstery (only for
CLK 55 AMG)
The nubuck leather upholstery is treated
with a protective coating.

Wipe nubuck leather upholstery with
damp microfiber cloth to remove dust
and other light stains.

Carefully dab nubuck leather uphol-
stery with a dry microfiber cloth to re-
move oil stains.Wood trims

Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.
!Do not use Mercedes-Benz approved
Leather Care or any solvents to clean
nubuck leather upholstery.
Avoid hard scrubbing on nubuck leath-
er upholstery.
!Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as
these may be abrasive.

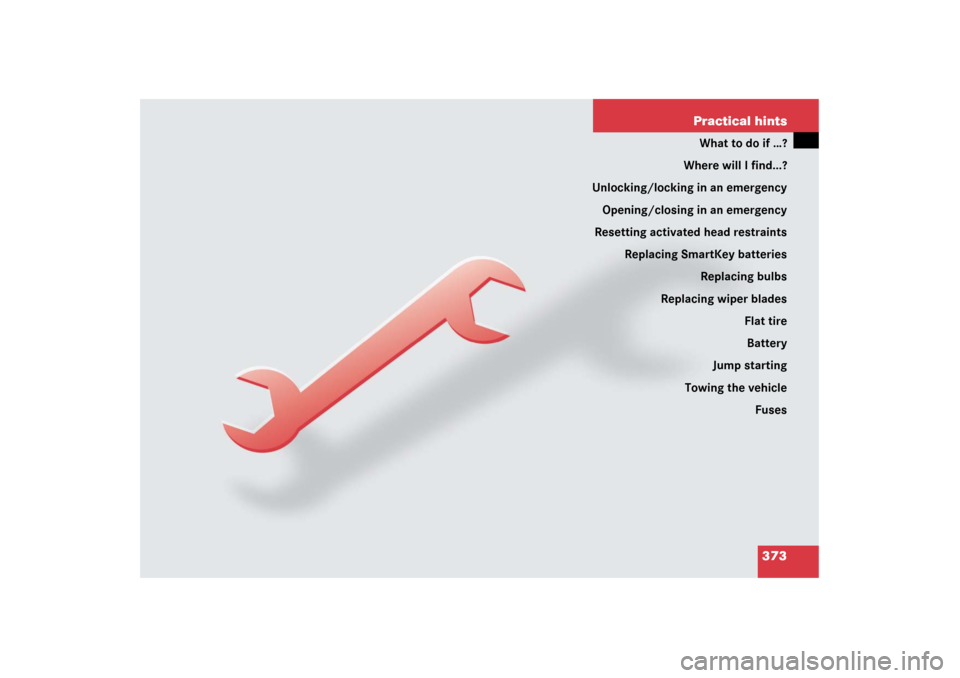

373 Practical hints
What to do if …?
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Resetting activated head restraints
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

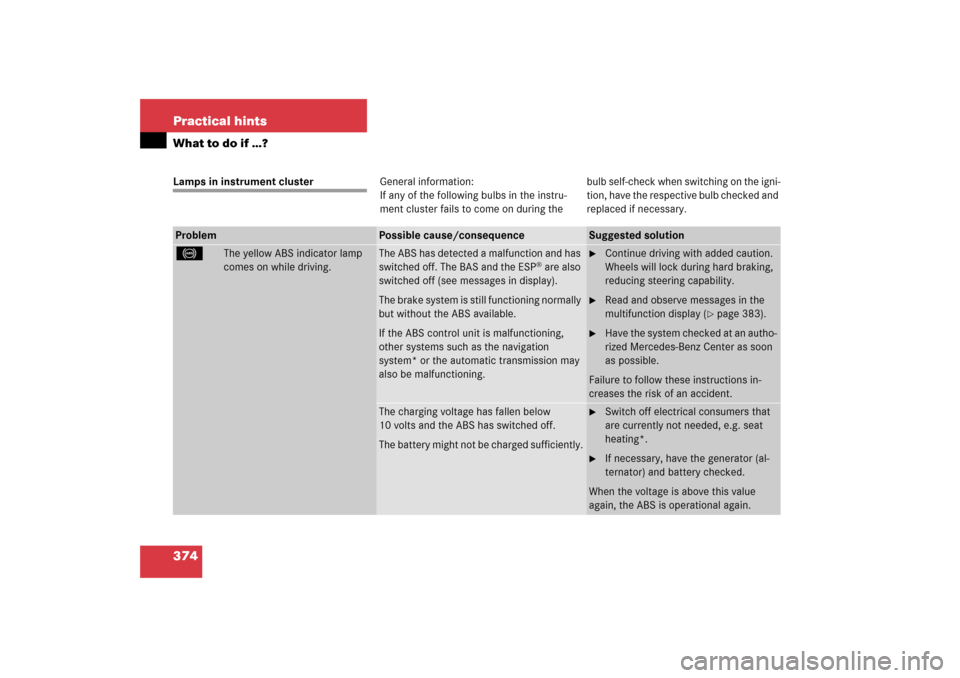

374 Practical hintsWhat to do if …?Lamps in instrument clusterGeneral information:
If any of the following bulbs in the instru-
ment cluster fails to come on during thebulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow ABS indicator lamp
comes on while driving.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP
® are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission may
also be malfunctioning.

Continue driving with added caution.
Wheels will lock during hard braking,
reducing steering capability.

Read and observe messages in the
multifunction display (
page 383).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched off.
The battery might not be charged sufficiently.

Switch off electrical consumers that
are currently not needed, e.g. seat
heating*.

If necessary, have the generator (al-
ternator) and battery checked.
When the voltage is above this value
again, the ABS is operational again.

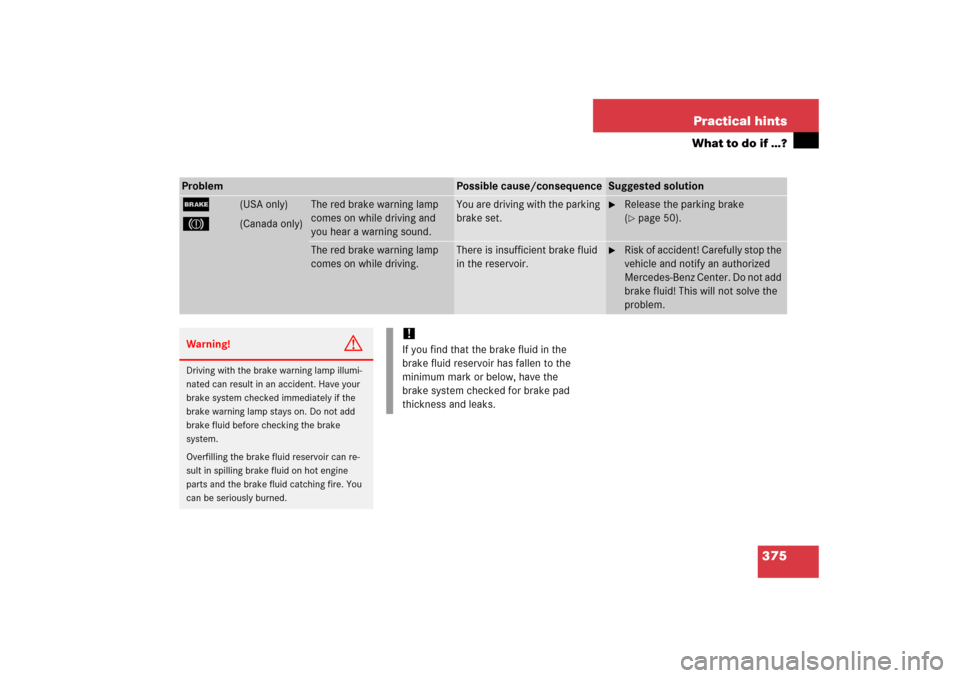

375 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
;
3
(USA only)
(Canada only)
The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the parking
brake set.

Release the parking brake
(page 50).
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid
in the reservoir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

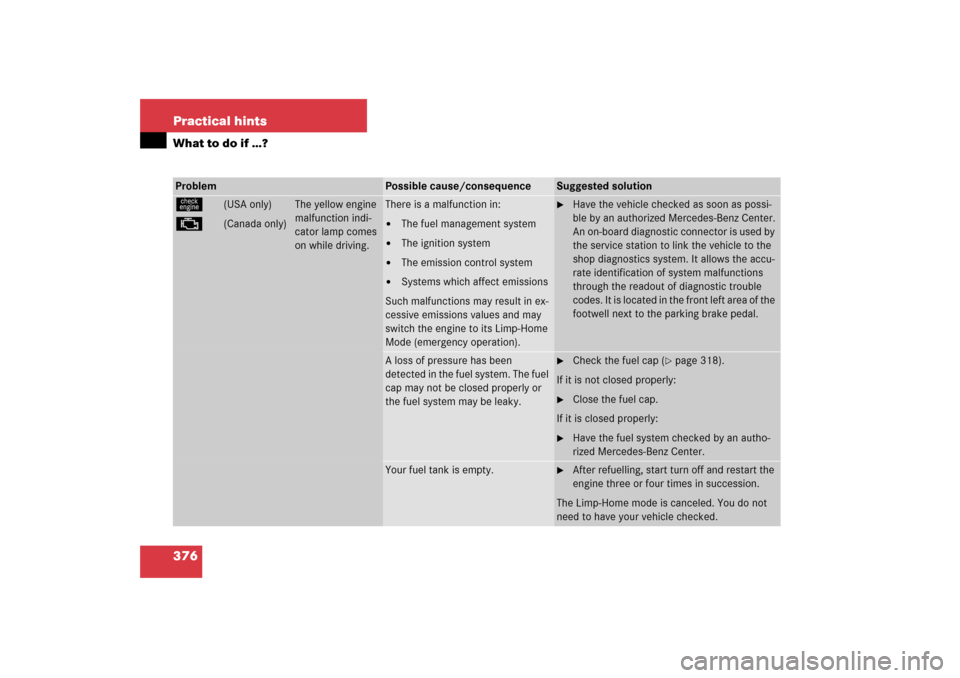

376 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
ú
±
(USA only)
(Canada only)
The yellow engine
malfunction indi-
cator lamp comes
on while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in ex-
cessive emissions values and may
switch the engine to its Limp-Home
Mode (emergency operation).

Have the vehicle checked as soon as possi-
ble by an authorized Mercedes-Benz Center.
An on-board diagnostic connector is used by
the service station to link the vehicle to the
shop diagnostics system. It allows the accu-
rate identification of system malfunctions
through the readout of diagnostic trouble
codes. It is located in the front left area of the
footwell next to the parking brake pedal.
A loss of pressure has been
detected in the fuel system. The fuel
cap may not be closed properly or
the fuel system may be leaky.

Check the fuel cap (
page 318).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an autho-
rized Mercedes-Benz Center.
Your fuel tank is empty.

After refuelling, start turn off and restart the
engine three or four times in succession.
The Limp-Home mode is canceled. You do not
need to have your vehicle checked.

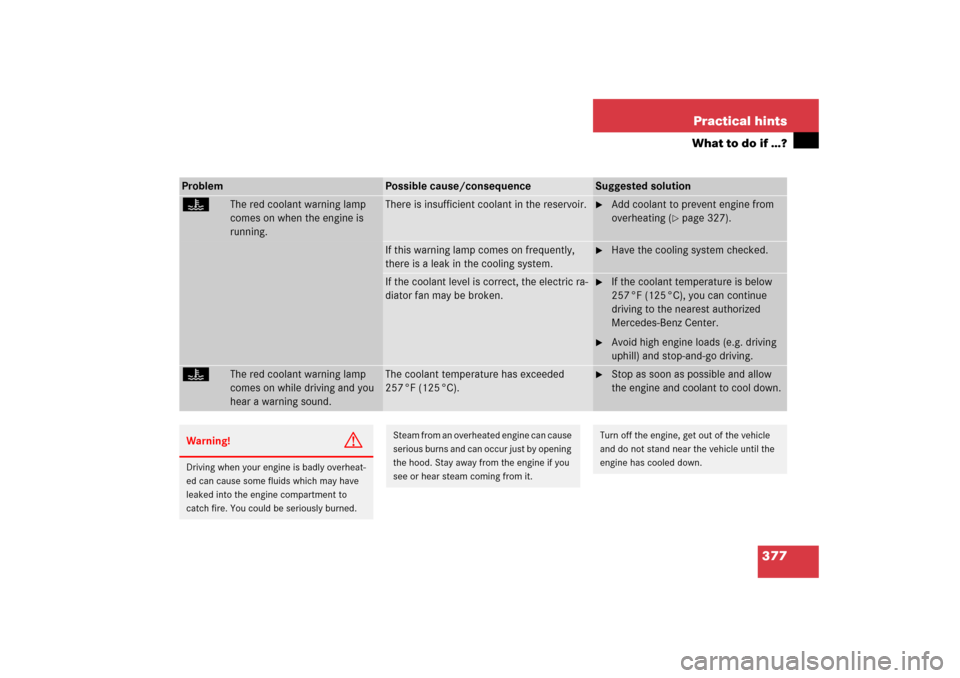

377 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
•
The red coolant warning lamp
comes on when the engine is
running.
There is insufficient coolant in the reservoir.

Add coolant to prevent engine from
overheating (
page 327).
If this warning lamp comes on frequently,
there is a leak in the cooling system.

Have the cooling system checked.
If the coolant level is correct, the electric ra-
diator fan may be broken.

If the coolant temperature is below
257 °F (125 °C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.

Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
•
The red coolant warning lamp
comes on while driving and you
hear a warning sound.
The coolant temperature has exceeded
257 °F (125 °C).

Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

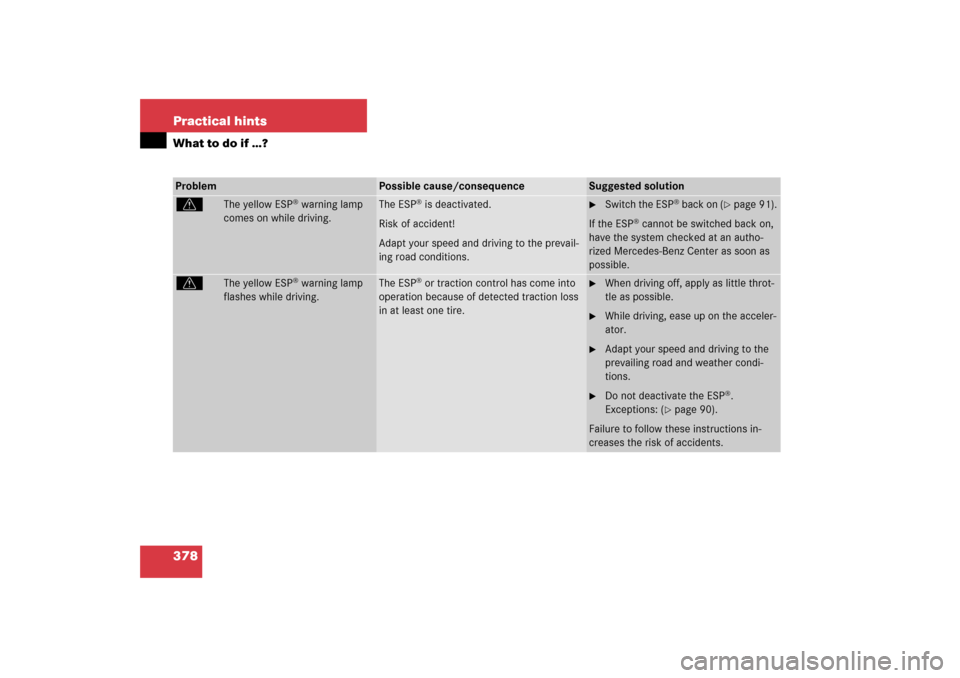

378 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
v
The yellow ESP
® warning lamp
comes on while driving.
The ESP
® is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.

Switch the ESP
® back on (
page 91).
If the ESP
® cannot be switched back on,
have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
v
The yellow ESP
® warning lamp
flashes while driving.
The ESP
® or traction control has come into
operation because of detected traction loss
in at least one tire.

When driving off, apply as little throt-
tle as possible.

While driving, ease up on the acceler-
ator.

Adapt your speed and driving to the
prevailing road and weather condi-
tions.

Do not deactivate the ESP
®.
Exceptions: (
page 90).
Failure to follow these instructions in-
creases the risk of accidents.

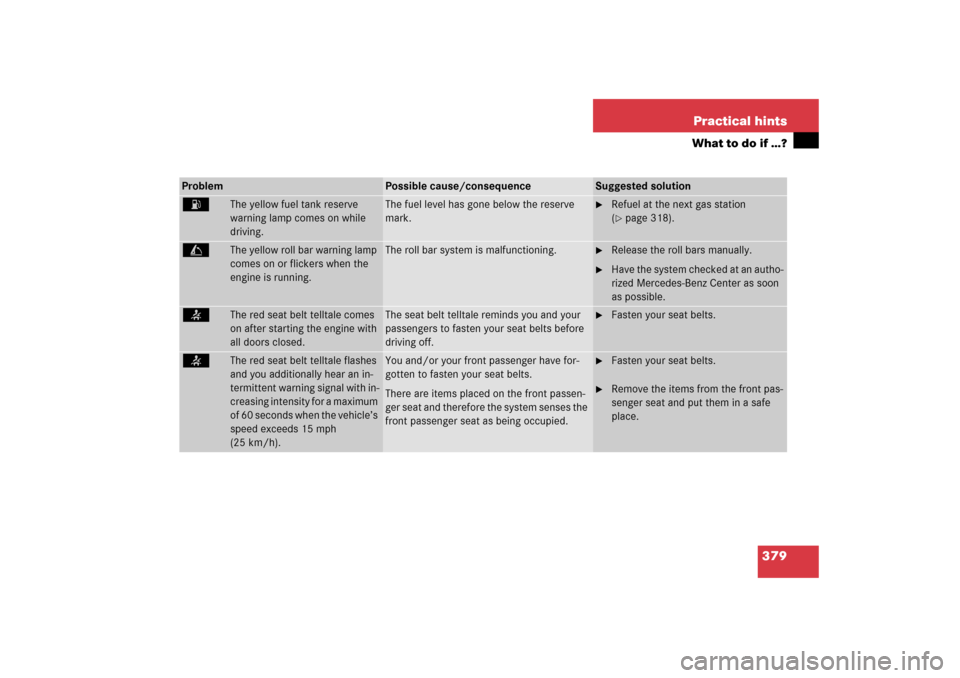

379 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
A
The yellow fuel tank reserve
warning lamp comes on while
driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station
(page 318).
C
The yellow roll bar warning lamp
comes on or flickers when the
engine is running.
The roll bar system is malfunctioning.

Release the roll bars manually.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
<
The red seat belt telltale comes
on after starting the engine with
all doors closed.
The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.

Fasten your seat belts.
<
The red seat belt telltale flashes
and you additionally hear an in-
termittent warning signal with in-
creasing intensity for a maximum
of 60 seconds when the vehicle’s
speed exceeds 15 mph
(25 km/h).
You and/or your front passenger have for-
gotten to fasten your seat belts.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.

Fasten your seat belts.

Remove the items from the front pas-
senger seat and put them in a safe
place.
