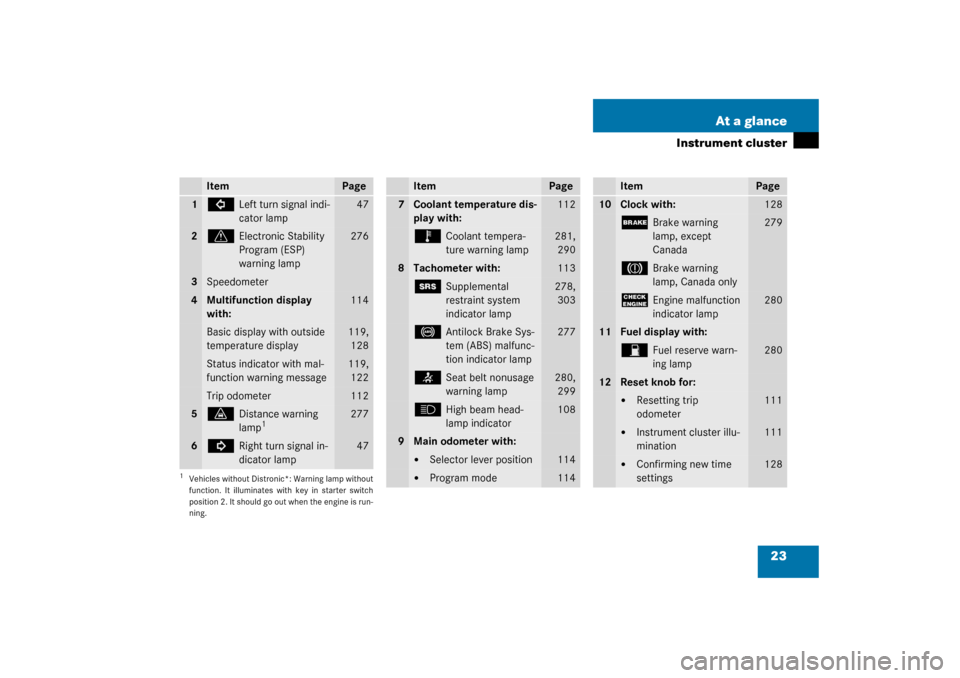

23 At a glance
Instrument cluster
Item
Page
1
L
Left turn signal indi-
cator lamp
47
2
v
Electronic Stability
Program (ESP)
warning lamp
276
3
Speedometer
4
Multifunction display
with:
114
Basic display with outside
temperature display
119,
128
Status indicator with mal-
function warning message
119,
122
Trip odometer
112
5
l
Distance warning
lamp
1
1Vehicles without Distronic*: Warning lamp without
function. It illuminates with key in starter switch
position 2. It should go out when the engine is run-
ning.
277
6
K
Right turn signal in-
dicator lamp
47
Item
Page
7
Coolant temperature dis-
play with:
112
Ï
Coolant tempera-
ture warning lamp
281,
290
8
Tachometer with:
113
1
Supplemental
restraint system
indicator lamp
278,
303
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
277
<
Seat belt nonusage
warning lamp
280,
299
A
High beam head-
lamp indicator
108
9
Main odometer with:

Selector lever position
114


Program mode
114
Item
Page
10
Clock with:
128
;
Brake warning
lamp, except
Canada
279
3
Brake warning
lamp, Canada only
?
Engine malfunction
indicator lamp
280
11
Fuel display with:W
Fuel reserve warn-
ing lamp
280
12
Reset knob for:

Resetting trip
odometer
111


Instrument cluster illu-
mination
111


Confirming new time
settings
128

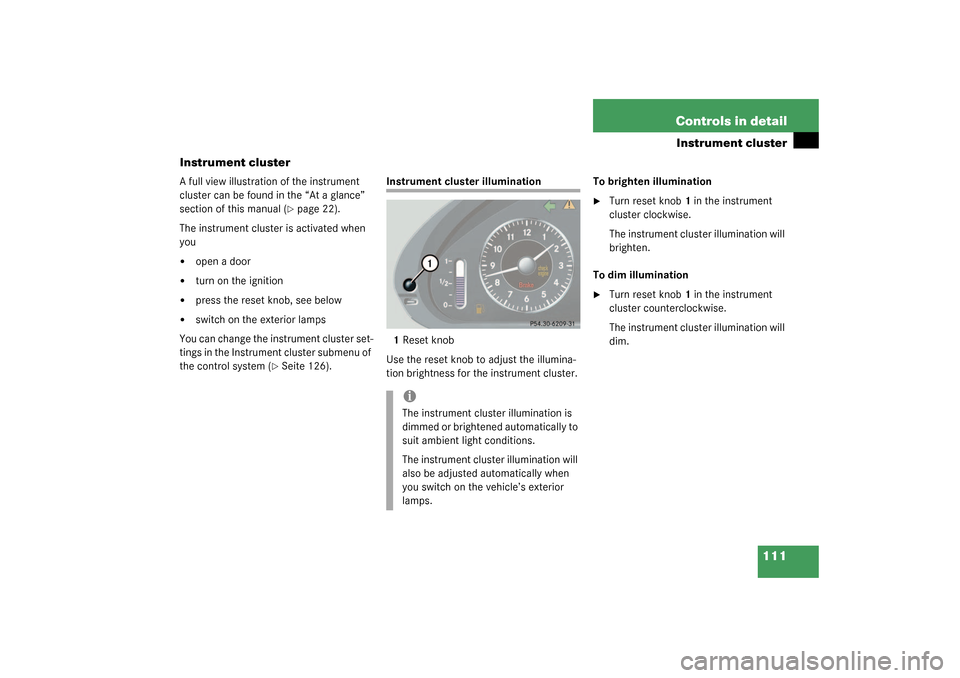

111 Controls in detail
Instrument cluster
Instrument cluster
A full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 22).
The instrument cluster is activated when
you


open a door


turn on the ignition


press the reset knob, see below


switch on the exterior lamps
You can change the instrument cluster set-
tings in the Instrument cluster submenu of
the control system (
Seite 126).
Instrument cluster illumination
1Reset knob
Use the reset knob to adjust the illumina-
tion brightness for the instrument cluster.To brighten illumination

Turn reset knob1 in the instrument
cluster clockwise.
The instrument cluster illumination will
brighten.
To dim illumination

Turn reset knob1 in the instrument
cluster counterclockwise.
The instrument cluster illumination will
dim.
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.

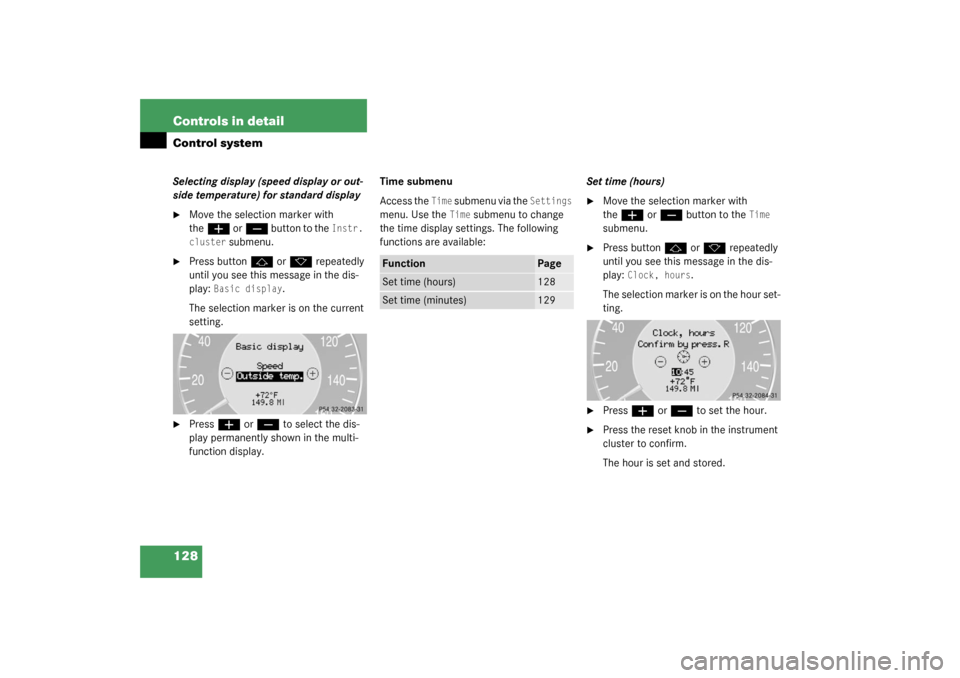

128 Controls in detailControl systemSelecting display (speed display or out-
side temperature) for standard display
Move the selection marker with
the
æ
or
ç
button to the
Instr.
cluster
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Basic display
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the dis-
play permanently shown in the multi-
function display.Time submenu
Access the
Time
submenu via the
Settings

menu. Use the
Time
submenu to change
the time display settings. The following
functions are available:Set time (hours)

Move the selection marker with
the
æ
or
ç
button to the
Time

submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Clock, hours
.
The selection marker is on the hour set-
ting.

Press
æ
or
ç
to set the hour.

Press the reset knob in the instrument
cluster to confirm.
The hour is set and stored.
Function
Page
Set time (hours)
128
Set time (minutes)
129

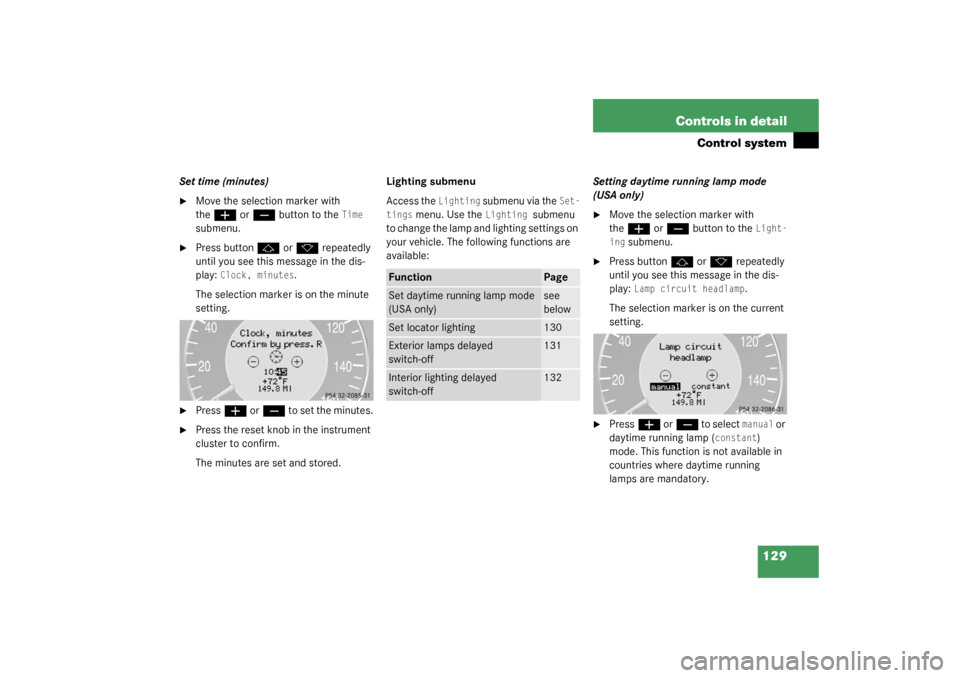

129 Controls in detail
Control system
Set time (minutes)
Move the selection marker with
the
æ
or
ç
button to the
Time

submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Clock, minutes
.
The selection marker is on the minute
setting.

Press
æ
or
ç
to set the minutes.

Press the reset knob in the instrument
cluster to confirm.
The minutes are set and stored.Lighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
the
æ
or
ç
button to the
Light-
ing
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Lamp circuit headlamp
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select
manual
or
daytime running lamp (
constant
)
mode. This function is not available in
countries where daytime running
lamps are mandatory.
Function
Page
Set daytime running lamp mode
(USA only)
see
below
Set locator lighting
130
Exterior lamps delayed
switch-off
131
Interior lighting delayed
switch-off
132

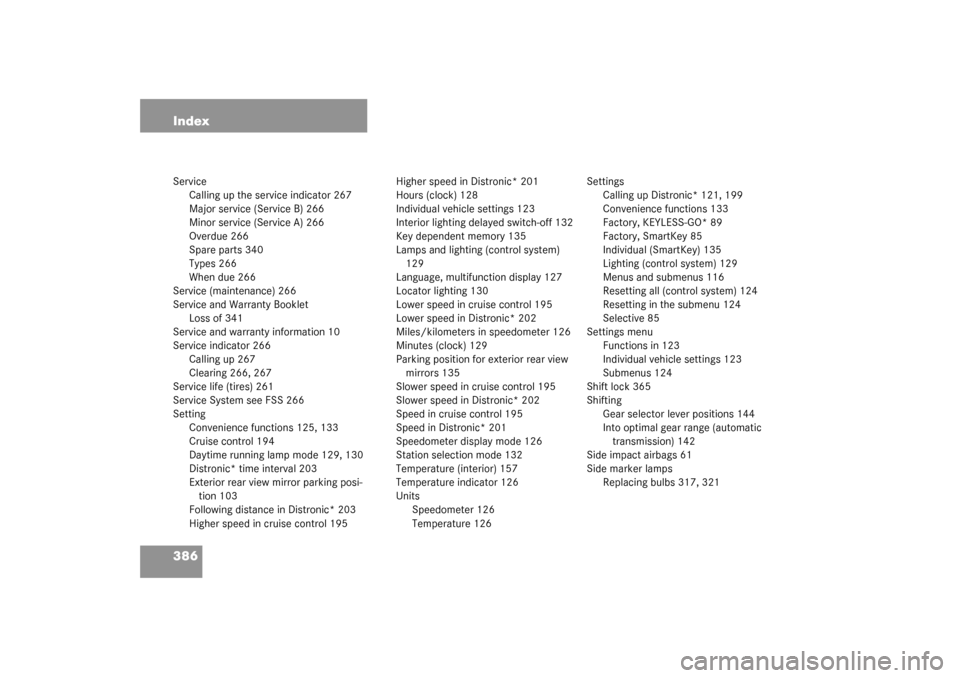

386 IndexService
Calling up the service indicator 267
Major service (Service B) 266
Minor service (Service A) 266
Overdue 266
Spare parts 340
Types 266
When due 266
Service (maintenance) 266
Service and Warranty Booklet
Loss of 341
Service and warranty information 10
Service indicator 266
Calling up 267
Clearing 266, 267
Service life (tires) 261
Service System see FSS 266
Setting
Convenience functions 125, 133
Cruise control 194
Daytime running lamp mode 129, 130
Distronic* time interval 203
Exterior rear view mirror parking posi-
tion 103
Following distance in Distronic* 203
Higher speed in cruise control 195Higher speed in Distronic* 201
Hours (clock) 128
Individual vehicle settings 123
Interior lighting delayed switch-off 132
Key dependent memory 135
Lamps and lighting (control system)
129
Language, multifunction display 127
Locator lighting 130
Lower speed in cruise control 195
Lower speed in Distronic* 202
Miles/kilometers in speedometer 126
Minutes (clock) 129
Parking position for exterior rear view
mirrors 135
Slower speed in cruise control 195
Slower speed in Distronic* 202
Speed in cruise control 195
Speed in Distronic* 201
Speedometer display mode 126
Station selection mode 132
Temperature (interior) 157
Temperature indicator 126
Units
Speedometer 126
Temperature 126Settings
Calling up Distronic* 121, 199
Convenience functions 133
Factory, KEYLESS-GO* 89
Factory, SmartKey 85
Individual (SmartKey) 135
Lighting (control system) 129
Menus and submenus 116
Resetting all (control system) 124
Resetting in the submenu 124
Selective 85
Settings menu
Functions in 123
Individual vehicle settings 123
Submenus 124
Shift lock 365
Shifting
Gear selector lever positions 144
Into optimal gear range (automatic
transmission) 142
Side impact airbags 61
Side marker lamps
Replacing bulbs 317, 321
