15 Introduction
Symbols
Symbols
Trademarks:

ESP® is a registered trademark of
DaimlerChrysler.

HomeLink® is a registered trademark
of Prince, a Johnson Controls
Company.

SIRIUS and related marks are trade-
marks of SIRIUS Satellite Radio Inc.The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your
vehicle.
This symbol points to instructions for
you to follow.
A number of these symbols appearing
in succession indicates a multiple-step
procedure.
 page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
a warning which is continued on
the next page.
This continuation symbol marks
a procedure which is continued
on the next page.
-> This symbol is used to indicate
cross-references to term defini-
tions.
DisplayWords appearing in the multi-
function display and Audio dis-
play are printed in the type
shown here.
Warning!G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.
!Highlights hazards that may result in dam-
age to your vehicle.
iHelpful hints or further information you may
find useful.

141 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1 or as soon as the
KEYLESS-GO* start/stop button is in
position1. The control system enables you
to

call up information about your vehicle

change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster dis-
play, and much more.
The control system relays information to
the multifunction display.
Multifunction display
1Outside temperature
2Trip odometer
3Current shift program mode
4Main odometer
5Current gear selector lever posi-
tion/gear range
For more information on menus displayed
in the multifunction display, see “Menus”
(
page 144).
iThe displays for the audio systems (radio,
CD player etc.) will appear in English, regardless
of the language selected.
Warning!G
A driver’s attention to the road and traffic
conditions must always be his /her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approxi-
mately 14 m) every second.

143 Controls in detail
Control system
Depending on the selected menu
(
page 144), pressing the buttons on the
multifunction steering wheel will alter what
is shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, and ac-
companying functions or submenus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
Audio, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.It is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.

If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings... menu, instead of func-
tions you will find a number of submenus
for calling up and changing settings. For
instructions on using these submenus, see
“Submenus in the Settings menu”
(
page 156).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.

145 Controls in detail
Control system

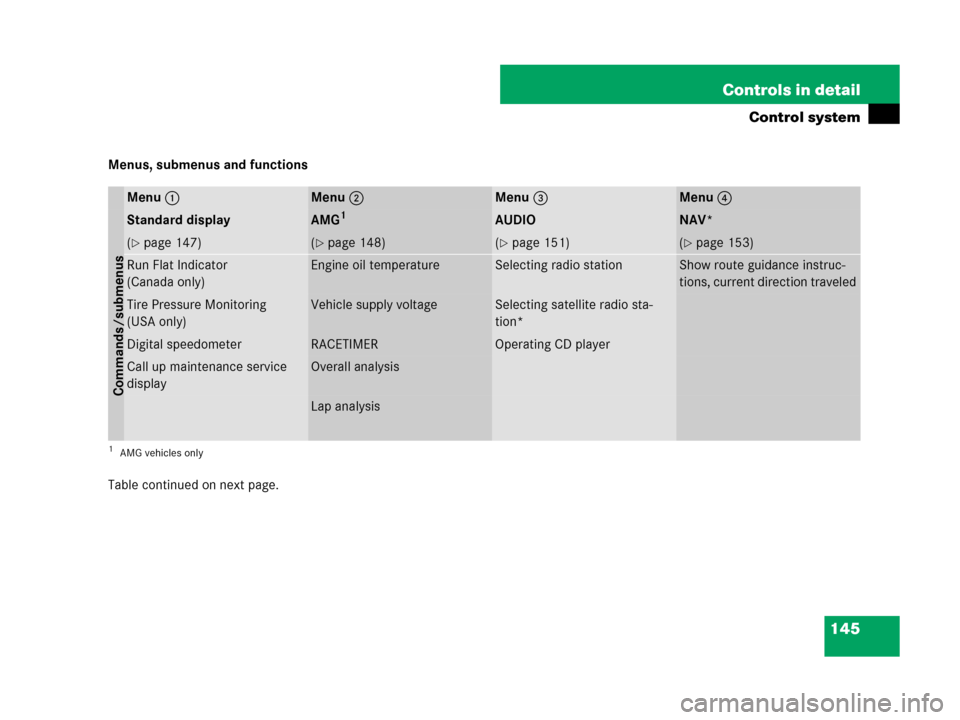

Menus, submenus and functions
Table continued on next page.
Menu1Menu2Menu3Menu4
Commands/submenus
Standard displayAMG1
1AMG vehicles only
AUDIONAV*
(page 147)(page 148)(page 151)(page 153)
Run Flat Indicator
(Canada only)Engine oil temperatureSelecting radio stationShow route guidance instruc-
tions, current direction traveled
Tire Pressure Monitoring
(USA only)Vehicle supply voltageSelecting satellite radio sta-
tion*
Digital speedometerRACETIMEROperating CD player
Call up maintenance service
displayOverall analysis
Lap analysis

151 Controls in detail
Control system
Lap analysis
Press buttonè orÿ repeatedly
until the AMG menu appears in the
multifunction display.
Press buttonj repeatedly until the
lap analysis appears in the
multifunction display.
1Lap number
2Lap time
3Maximum speed
4Lap length
5Average speed during lap
Press buttonk orj to see oth-
er lap analysis.
AUDIO menu
The functions in the
Audio menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
Audio Off appears in the
multifunction display.
The following functions are available:
Selecting radio station
Turn on the radio (page 216) and se-
lect radio. Vehicles with COMAND*:
Refer to separate operating instruc-
tions.
Press buttonè orÿ repeatedly
until the currently tuned station
appears in the multifunction display.
1Waveband setting
2Station frequency
Press buttonk orj repeatedly
until the desired station or the desired
stored station is found.
The station search depends on the se-
lected setting in the
Vehicle submenu
of the control system (
page 165).
Pressing buttonk orj will ei-
ther start a frequency scan or select
the next stored radio station.
iThese functions are only available if you
have saved at least two laps and have stopped
the RACETIMER.
iEach lap is shown in its own submenu. The
fastest lap is indicated by flashing symbol1.
FunctionPage
Selecting radio station151
Selecting satellite radio
station*152
Operating CD player152

152 Controls in detail
Control system
Selecting satellite radio station*
The satellite radio is treated as a radio
application.
Select satellite radio with the
corresponding soft key (SAT) in the
radio menu.
1SAT mode and preset number
2Setting for station selection using
memory
3Channel name or number
Press buttonk orj repeatedly
until the desired channel is found.
Operating the CD player
Selecting CD track
Turn on the radio and select CD
(
page 233) or CD changer*
(
page 233). Vehicles with
COMAND*: Refer to separate
operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.1Current CD (with additional number
from 1 to 6 when running from
CD changer*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
For more information on CD operation, see
“CD mode” (
page 229) and for the
CD changer*, see “CD changer*”
(
page 233).
iYou can only store new stations using the
corresponding feature on the radio
(
page 223).
Vehicles with COMAND*:
Refer to separate operating instructions.
You can also operate the radio in the usual
manner.iFor more information on satellite radio oper-
ation, see “Satellite radio*” (
page 225).
Vehicles with COMAND*:
Refer to separate operating instructions.
iThe COMAND* system and the
CD changer* can play audio CDs as well as CDs
with MP3 files.
iTo select a CD from the CD changer* maga-
zine, press a number on the audio system or the
COMAND* system key pad located in the center
console.

153 Controls in detail
Control system
Selecting CD MP3-track (vehicles with
COMAND* and/or CD changer*)
Turn on the radio and select the CD
changer* (
page 233) or turn on
COMAND* and select CD or
CD changer*. Vehicles with
COMAND*: Refer to separate
operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.1MP3 mode (vehicles with COMAND*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
For more information on MP3, see “MP3
notes” (
page 230), and for operating,
see “MP3 playback” (
page 231)
Navi* menu
The
Navi menu contains the functions
needed to operate your navigation system.
Press buttonè orÿ repeatedly
until the message
Navi appears in the
multifunction display.

If COMAND* is switched off, the mes-
sage
Navi off appears in the multi-
function display.

With COMAND* switched on but route
guidance not activated, the direction of
travel and, if available, the name of the
street currently traveled on appear in
the multifunction display.

With COMAND* switched on and route
guidance activated, the direction of
travel and maneuver instructions ap-
pear in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iA CD with MP3 files insert in the
CD changer* is handled by the
audio/COMAND* system like an audio CD. In-
formation contained on the CD with MP3 files
will not shown in the multifunction display or in
the audio/COMAND* display.
iLevel of information displayed will vary de-
pending on the information contained on the CD
with MP3 files insert in the single CD player of
the COMAND* system.
To select a CD from the CD changer* magazine,
press a number on the audio system or the
COMAND* system key pad located in the center
console.

165 Controls in detail
Control system
Setting interior lighting delayed shut-off
Use this function to set whether you would
like the interior lighting to remain on for
10 seconds during darkness after you have
removed the SmartKey from the starter
switch.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until the message
Interior Lighting
Delayed Shut-off
appears in the
multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the interior lighting delayed shut-off
feature
On or Off.Vehicle submenu
Access the
Vehicle submenu via the
Settings... menu. Use the Vehicle sub-
menu to make general vehicle settings.
The following functions are available:
Selecting audio search function
Use of the
Audio Search Function to
select a radio station (
page 151) will
enable you to start a frequency scan
(
Frequenc.) or select a radio station stored
in memory (
Memory).
Move the selection marker with
buttonæ orç to the
Vehicle
submenu.
Press buttonj ork repeatedly
until the message
Audio Search Function appears in the
multifunction display.The selection marker is on the current
setting.
Press buttonæ or ç to set the
audio search function to
Frequenc.
or
Memory.
To select a radio station, see “Selecting ra-
dio station” (
page 151).
FunctionPage
Selecting audio search function165
Setting automatic locking166

169 Controls in detail
Control system
TEL* menuYou can use the functions in the Tel menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.
Switch on the telephone and audio or
COMAND*.
Press buttonÿ orè on the
steering wheel repeatedly until the
message
Tel appears in the
multifunction display.
Which messages will appear in the
multifunction display depends on whether
your telephone is switched on or off:

If the telephone is off, the message
Tel Off appears in the multifunction
display.
Warning!G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call. If you choose to use the
telephone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic
conditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a
vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system,
possibly resulting in an accident and /or
personal injury.

213 Controls in detail
Audio system
Audio system
Audio and telephone*, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.Operating safetySound system*
Your vehicle is equipped with a sound sys-
tem. The subwoofer in the CLK cabriolet is
located between the rear seats.
Warning!G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
Warning!G
Any alterations made to electronic
components can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio*, and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
at an authorized Mercedes-Benz Center.
!Make sure no objects fall into the openings
of the subwoofer between the rear seats.
If necessary, contact an authorized
Mercedes-Benz Center to remove any objects
which may have fallen into the openings.
