440 Technical data

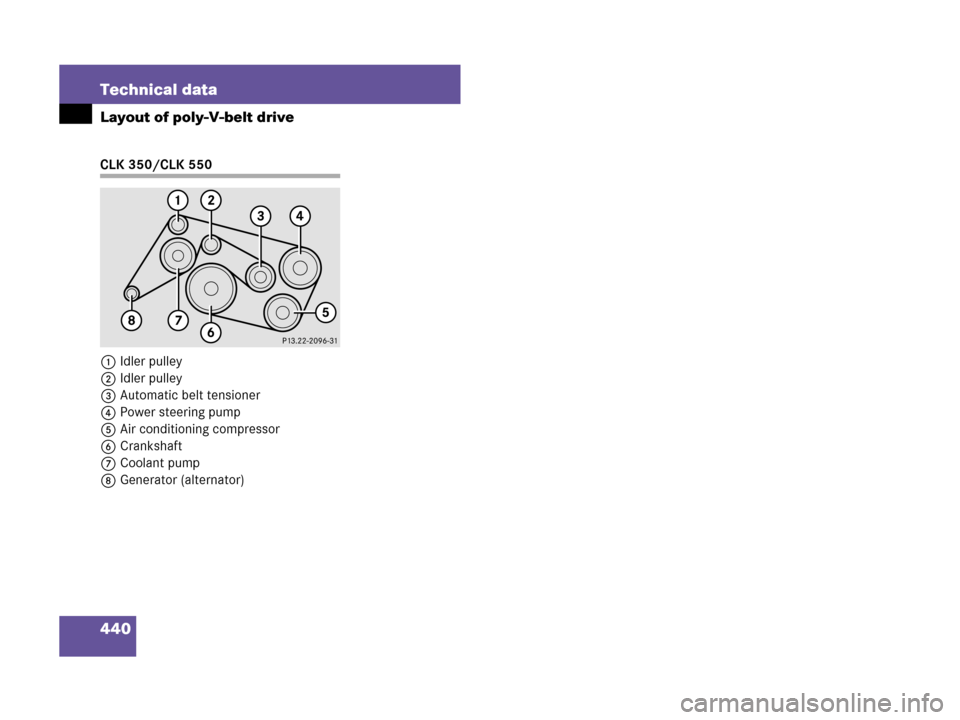

Layout of poly-V-belt drive
CLK 350/CLK 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)

441 Technical data

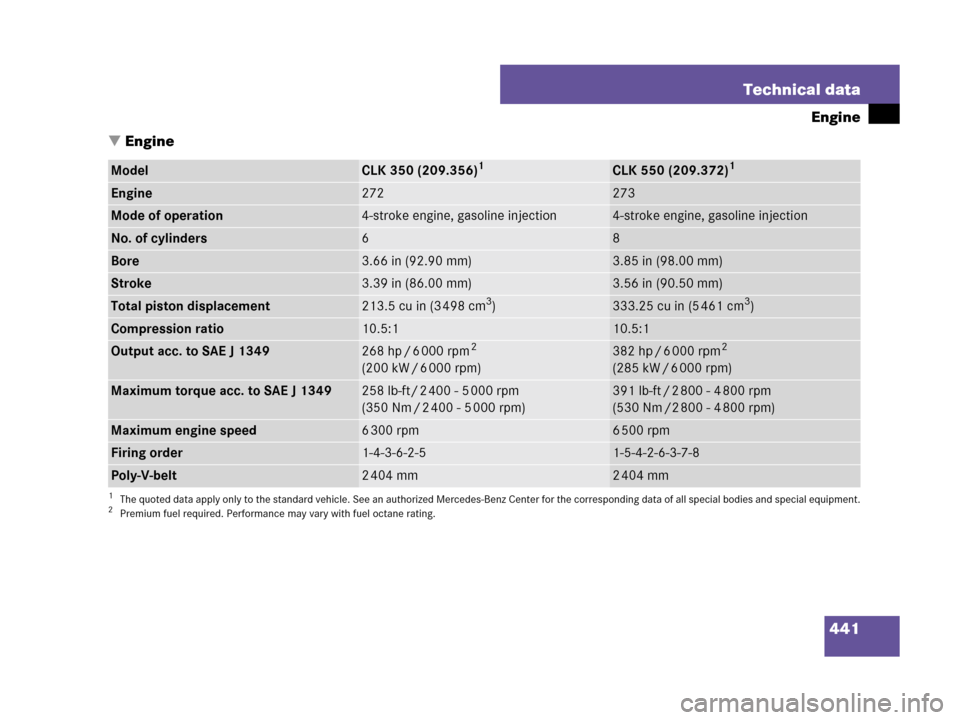

Engine
Engine
ModelCLK 350 (209.356)1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 550 (209.372)1
Engine272273
Mode of operation4-stroke engine, gasoline injection4-stroke engine, gasoline injection
No. of cylinders68
Bore3.66 in (92.90 mm)3.85 in (98.00 mm)
Stroke3.39 in (86.00 mm)3.56 in (90.50 mm)
Total piston displacement213.5 cu in (3 498 cm3)333.25 cu in (5 461 cm3)
Compression ratio10.5:110.5:1
Output acc. to SAE J 1349268 hp / 6 000 rpm2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
382 hp / 6 000 rpm2
(285 kW / 6 000 rpm)
Maximum torque acc. to SAE J 1349258 lb-ft/ 2 400 - 5 000 rpm
(350 Nm / 2 400 - 5 000 rpm)391 lb-ft / 2 800 - 4 800 rpm
(530 Nm /2 800 - 4 800 rpm)
Maximum engine speed6 300 rpm6500 rpm
Firing order1-4-3-6-2-51-5-4-2-6-3-7-8
Poly-V-belt2 404 mm2 404 mm

442 Technical data

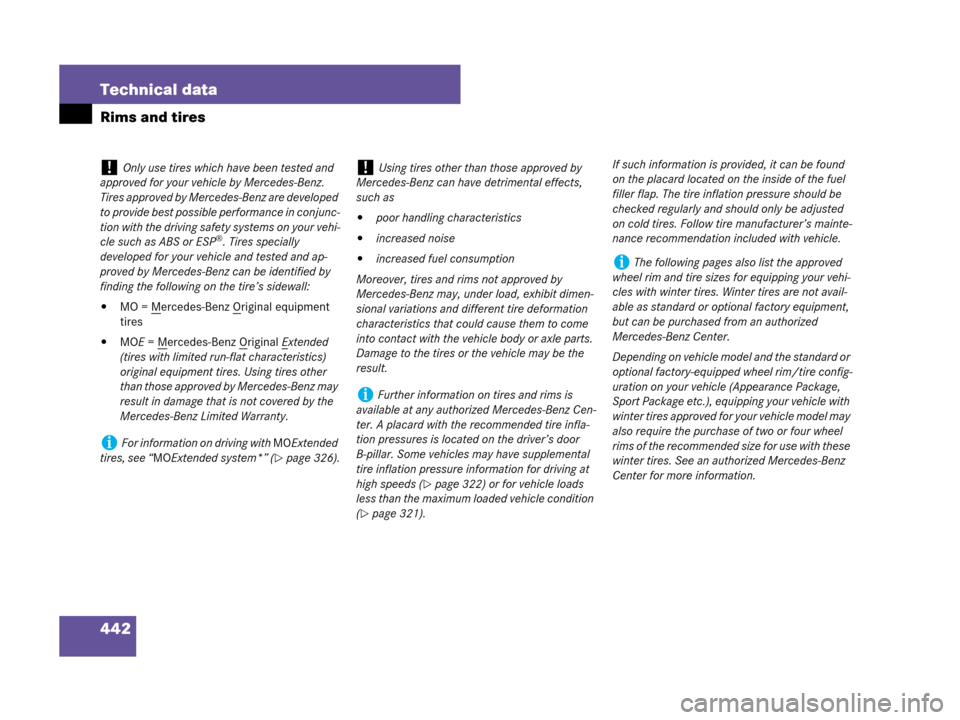

Rims and tires
!Only use tires which have been tested and
approved for your vehicle by Mercedes-Benz.
Tires approved by Mercedes-Benz are developed
to provide best possible performance in conjunc-
tion with the driving safety systems on your vehi-
cle such as ABS or ESP
®. Tires specially
developed for your vehicle and tested and ap-
proved by Mercedes-Benz can be identified by
finding the following on the tire’s sidewall:

MO = Mercedes-Benz Original equipment
tires

MOE = Mercedes-Benz Original Extended
(tires with limited run-flat characteristics)
original equipment tires. Using tires other
than those approved by Mercedes-Benz may
result in damage that is not covered by the
Mercedes-Benz Limited Warranty.
iFor information on driving with MOExtended
tires, see “MOExtended system*” (
page 326).
!Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as

poor handling characteristics

increased noise

increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
Damage to the tires or the vehicle may be the
result.
iFurther information on tires and rims is
available at any authorized Mercedes-Benz Cen-
ter. A placard with the recommended tire infla-
tion pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire inflation pressure information for driving at
high speeds (
page 322) or for vehicle loads
less than the maximum loaded vehicle condition
(
page 321).If such information is provided, it can be found
on the placard located on the inside of the fuel
filler flap. The tire inflation pressure should be
checked regularly and should only be adjusted
on cold tires. Follow tire manufacturer’s mainte-
nance recommendation included with vehicle.
iThe following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Appearance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. See an authorized Mercedes-Benz
Center for more information.

443 Technical data
Rims and tires

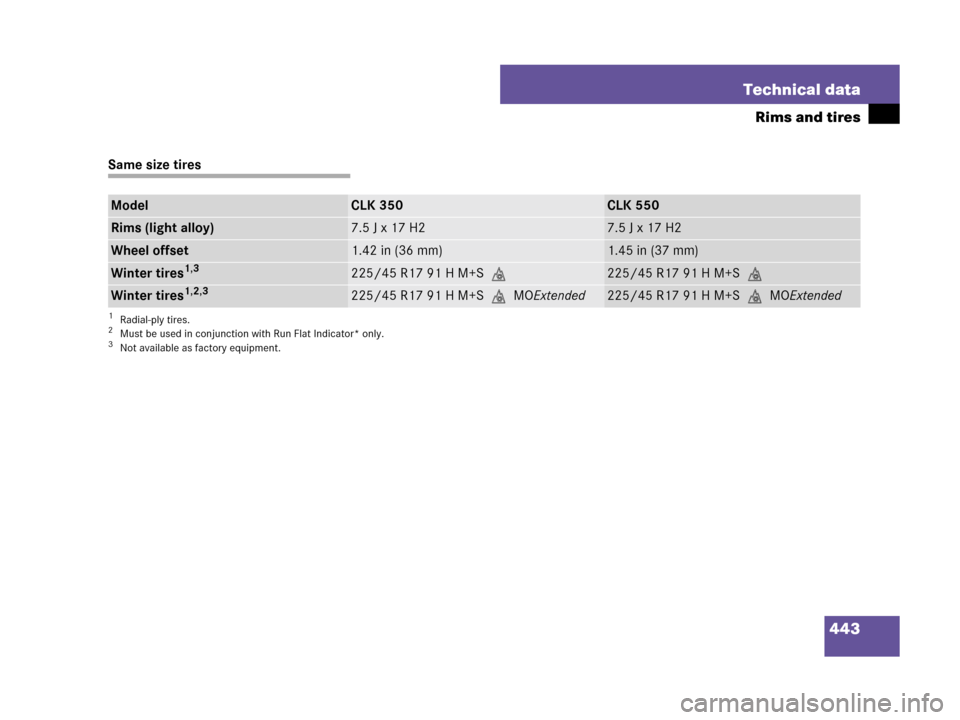

Same size tires
ModelCLK 350CLK 550
Rims (light alloy)7.5 J x 17 H27.5 J x 17 H2
Wheel offset1.42 in (36 mm)1.45 in (37 mm)
Winter tires1,3
1Radial-ply tires.
225/45 R17 91 H M+S.225/45 R17 91 H M+S.
Winter tires1,2,3
2Must be used in conjunction with Run Flat Indicator* only. 3Not available as factory equipment.
225/45 R17 91 H M+S.MOExtended225/45 R17 91 H M+S.MOExtended

444 Technical data
Rims and tires

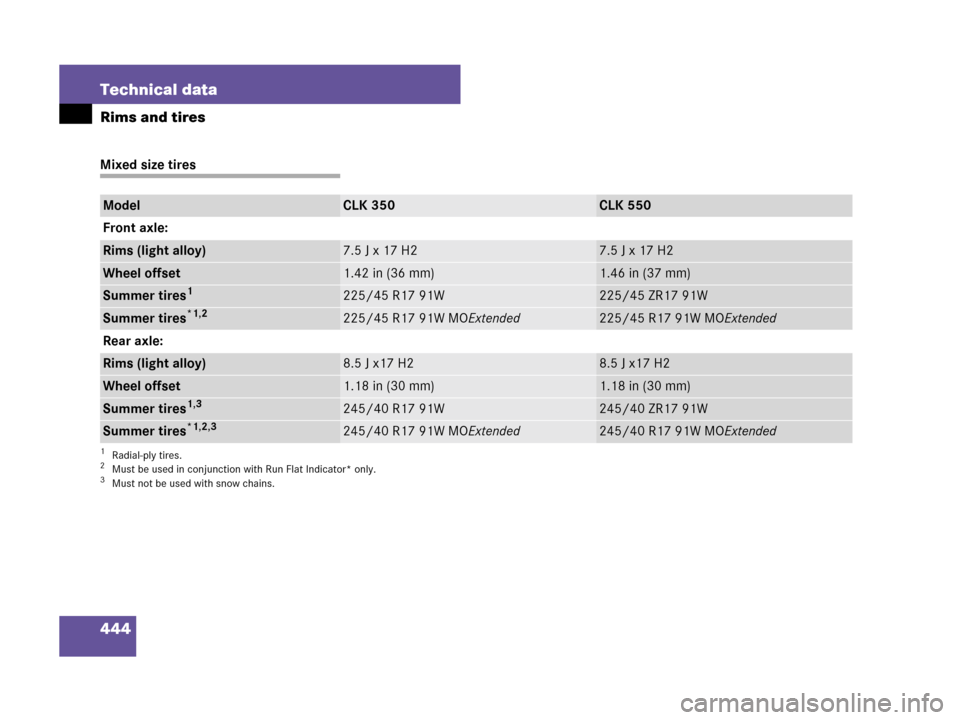

Mixed size tires
ModelCLK 350CLK 550
Front axle:
Rims (light alloy)7.5 J x 17 H27.5 J x 17 H2
Wheel offset1.42 in (36 mm)1.46 in (37 mm)
Summer tires1
1Radial-ply tires.
225/45 R17 91W225/45 ZR17 91W
Summer tires*1,2
2Must be used in conjunction with Run Flat Indicator* only.
225/45 R17 91W MOExtended225/45 R17 91W MOExtended
Rear axle:
Rims (light alloy)8.5 J x17 H28.5 J x17 H2
Wheel offset1.18 in (30 mm)1.18 in (30 mm)
Summer tires1,3
3Must not be used with snow chains.
245/40 R17 91W245/40 ZR17 91W
Summer tires*1,2,3245/40 R17 91W MOExtended245/40 R17 91W MOExtended

445 Technical data
Rims and tires

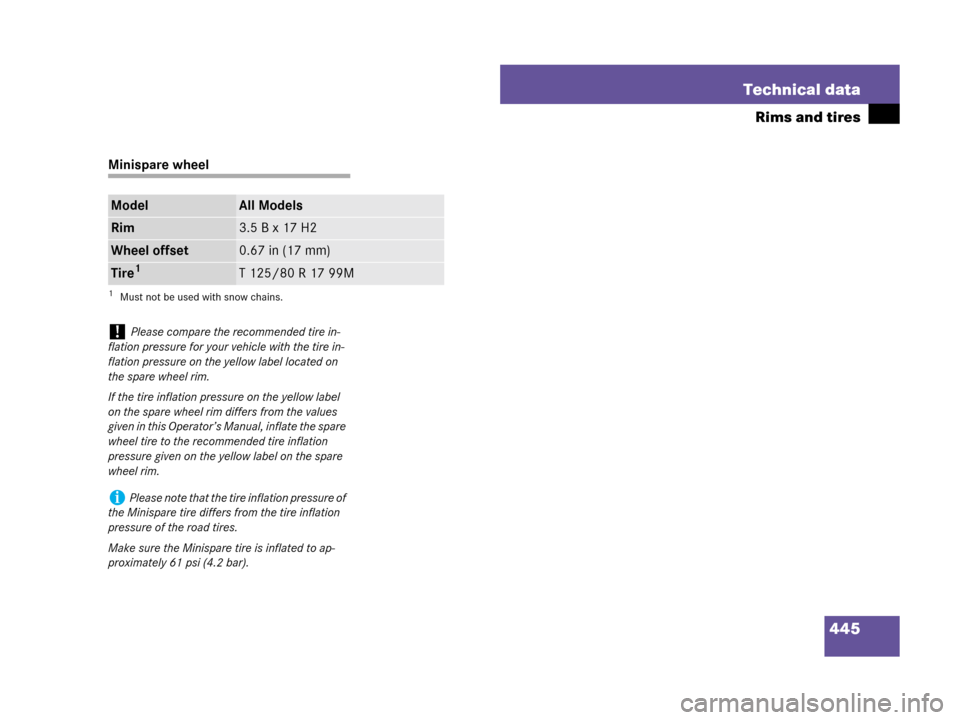

Minispare wheel
ModelAll Models
Rim3.5 B x 17 H2
Wheel offset0.67 in (17 mm)
Tire1
1Must not be used with snow chains.
T 125/80 R 17 99M
!Please compare the recommended tire in-
flation pressure for your vehicle with the tire in-
flation pressure on the yellow label located on
the spare wheel rim.
If the tire inflation pressure on the yellow label
on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the spare
wheel tire to the recommended tire inflation
pressure given on the yellow label on the spare
wheel rim.
iPlease note that the tire inflation pressure of
the Minispare tire differs from the tire inflation
pressure of the road tires.
Make sure the Minispare tire is inflated to ap-
proximately 61 psi (4.2 bar).

446 Technical data
Electrical system
ModelCLK 350CLK 550
Generator (alternator)14 V/150 A14 V/180 A
Starter motor14 V/1.4 KW14 V/1.7 KW
Battery12 V/100 Ah12 V/100 Ah
Spark plugsBosch Platin Y 7 MPP 33
NGK PLKR 6ABosch F8 DPP 332
NGK PFR 5R-11
Electrode gap0.031 in (0.8 mm)0.039 in (1.00 mm)
Tightening torque15 - 22 lb-ft (20 - 30 Nm)18.5 - 22 lb-ft (25 - 30 Nm)

447 Technical data
Main dimensions and weights
Main dimensions and weights
Main dimensions
Weights
ModelCLK 350CLK 550
Overall vehicle length183.3 in (4 657 mm)183.3 in (4 657 mm)
Overall vehicle width (exterior rear view
mirrors folded out)78.4 in (1 991 mm)78.4 in (1 991 mm)
Overall vehicle height55.4 in (1 408 mm)55.4 in (1 408 mm)
Wheelbase106.9 in (2 715 mm)106.9 in (2 715 mm)
Track, front58.8 in (1 493 mm)58.9 in (1 497 mm)
Track, rear58.0 in (1 474 mm)58.2 in (1 478 mm)
Roof load max.220 lbs (100 kg)
Trunk load max.220 lbs (100 kg)

448 Technical data
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Warning!G
Comply with all valid regulations with
respect to handling, storing, and disposing
of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your eyes or any open wounds.
If a service fluid is swallowed, contact a
physician immediately.
ModelCapacityFuels, coolants, lubricants, etc.
Engine with oil filterCLK 350
CLK 5508.5 US qt (8.0 l)
9.0 US qt (8.5 l)Approved engine oils
Automatic transmissionCLK 350
CLK 5509.0 US qt (8.5 l)
9.5 US qt (9.0 l)MB Automatic Transmission Fluid
Rear axleCLK 350
CLK 5501.16 US qt (1.1 l)
1.27 US qt (1.2 l)Hypoid gear oil SAE 85 W 90
Power steeringapprox. 1.1 US qt (1.0 l)MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubsapprox. 3.0 oz (85 g) eachHigh temperature roller bearing grease
Brake system0.64 US qt (0.6 l)MB Brake Fluid (DOT 4+)

449 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Cooling systemCLK 350
CLK 550approx. 7.8 US qt (7.4 l)
approx. 9.7 US qt (9.2 l)MB 325.0 Anticorrosion/Antifreeze
Agent
Fuel tank
including a reserve of16.35 US gal (62.0 l)
2.11 US gal (8.0 l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
Air conditioning systemR-134a refrigerant and special PAG lu-
bricant oil (never R-12)
Windshield washer and
headlamp cleaning system*6.4 US qt (6.0 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent / antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 455).
