MERCEDES-BENZ CLK55AMG 2001 C208 Owner's Guide

18 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Instruments and controls

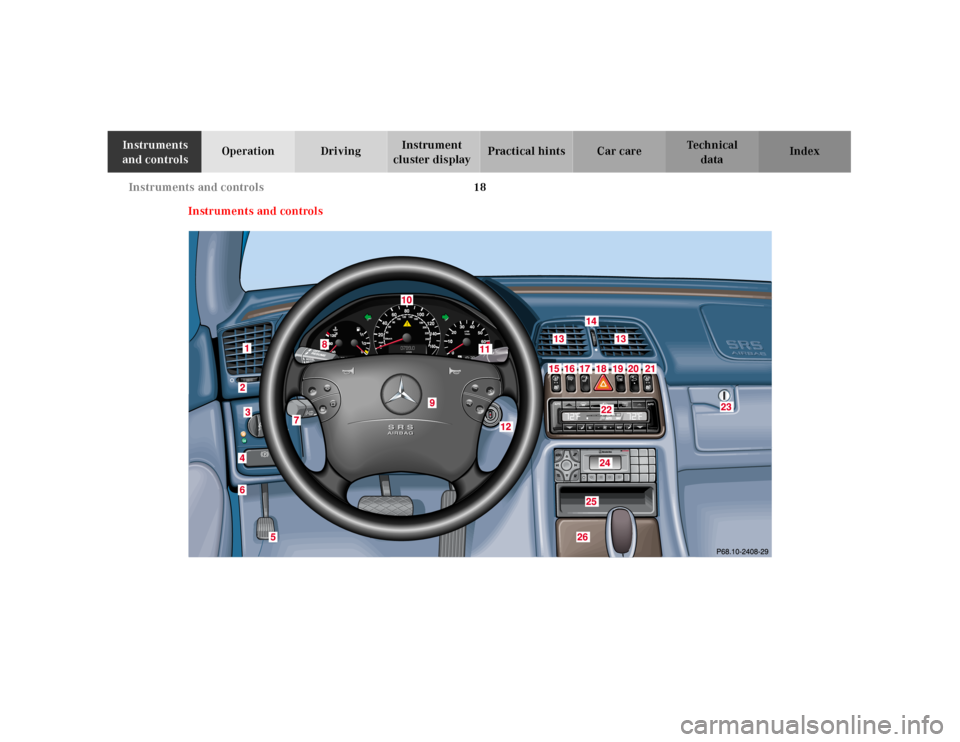

19 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index For more detailed descriptions see index on page 313.
For adjustment of air outlets, refer to automatic climate
control, see page 122.
1Side air outlet, adjustable
2Air volume control for side air outlet
3Exterior lamp switch, see page 116
4Parking brake release, see page 202
5Parking brake pedal, see page 202
6Hood lock release, see page 251
7Combination switch, see page 119
8Cruise control switch, see page 212
9Multifunction steering wheel, see page 90
Horn (with electronic key in steering lock
position 1 or 2)
10Instrument cluster, see page 84
11Voice recognition system switch, see separate
operating instructions
12Steering lock with ignition/starter
switch, see page 19013Center air outlets, adjustable
14Air volume control for center air outlets
15Left front seat heater switch, see page 56
16Headlamp washer switch, see page 118
17Switch for rear seat head restraints, see page 52
18Hazard warning flasher switch, see page 121
19Central locking switch, see page 36
20Switch for tow-away alarm, see page 44
Indicator lamp for antitheft alarm system, see
page 42
21Right front seat heater switch, see page 56
22Automatic climate control, see page 122
Rear window defroster switch, see page 126
23Glove box (illuminated with electronic key in
steering lock position 1 or 2), see page 154
24Audio system, see page 129
25Storage compartment
26Ashtray with lighter, see page 157

20 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Center console1ESP control switch, see page 221
2Program mode selector switch, see page 200
3Switch for rear window sunshade, see page 152
4Airbag Off indicator lamp, see page 232
5Left power window switch, see page 147
6Trunk lid release switch, see page 40
7Mirror adjustment switch, see page 80
8Right power window switch, see page 147
P68.10-2192-27
2
5
1
6
7
8
43

21 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Overhead control panel1Interior lighting, see page 151
2Sliding/pop-up roof, see page 149
3Tele Aid (emergency call system), see page 180
4Hands-free microphone for Tele Aid, telephone and
voice recognition system.
5Rear view mirror, see page 79
6Garage door opener, see page 166
1
1
6
P82.00-2049-27
5
2
3
4

22 Contents – Operation
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
OperationVehicle keys ...................................... 24
Start lock-out .................................... 27
General notes on the
central locking system ............... 27
Central locking system ................... 28
Radio frequency and infrared
remote control .............................. 28
Opening and closing windows
and sliding/pop-up roof from
outside ........................................... 32
Panic button .................................. 33
Mechanical keys ........................... 33
Doors .................................................. 34
Central locking switch .................... 36
Automatic central locking .......... 37
Emergency unlocking in
case of accident ........................... 37
Trunk ................................................. 38
Trunk lid release switch ................. 40
Trunk lid emergency
release .......................................... 41
Antitheft alarm system ................... 42
Tow-away alarm ................................ 44Power seats, front ............................ 45
Front head restraints ...................51
Rear head restraints .................... 52
Backrest ............................................ 54
Multicontour seat ............................ 55
Heated seats ..................................... 56
Seat belts and integrated
restraint system .......................... 58
Seat belts .......................................... 58
Seat belt nonusage
warning system ............................ 59
BabySmart
TM airbag
deactivation system ................... 65
Self-test BabySmart
TM without
special child seat installed ......... 65
Supplemental restraint
system (SRS) ............................... 66
Emergency tensioning
retractor (ETR) ............................ 66
Airbags .............................................. 67
Safety guidelines for the
seat belt, emergency
tensioning retractor
and airbag ..................................... 73Infant and child
restraint systems .......................... 75
Adjusting telescoping
steering column .......................... 78
Inside rear view mirror .................. 79
Exterior rear view mirrors ............. 80
Instrument cluster ........................... 84
Indicator lamps in the
instrument cluster ...................... 86
Multifunction steering wheel,
multifunction display ................. 90
Trip and main odometer,
vehicle speed, FSS and
engine oil level indicator ........... 94
Audio systems .................................. 95
Radio .............................................. 95
CD player ....................................... 96
Cassette player ............................. 97
Telephone .......................................... 98
Telephone book ............................ 98
Redialing ..................................... 100
Incoming call .............................. 102
Navigation system .......................... 103
Trip computer ................................. 104

23 Contents – Operation
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Malfunction message
memory ...................................... 106
Individual settings ......................... 108
Setting the audio volume ...............110
Flexible service system
(FSS) .............................................111
Engine oil level indicator ...............114
Engine oil consumption .................115
Exterior lamp switch ......................116
Night security illumination ..........117
Headlamp cleaning system ...........118
Combination switch .......................119
Hazard warning flasher
switch .......................................... 121
Automatic climate control ............ 122
Display and controls .................. 124
Basic setting -
automatic mode .......................... 124Economy ...................................... 125
Special settings .......................... 125
Rear window defroster .............. 126
Air recirculation ........................ 127
Residual engine heat
utilization .................................... 127
Dust filter .................................... 128
Audio and telephone,
operation .................................... 129
Power windows .............................. 147
Sliding/pop-up roof ....................... 149
Interior lighting ..............................151
Rear window sunshade .................152
Sun visors ........................................152
Illuminated vanity mirrors ...........153
Interior .............................................153Storage compartments,
armrest and cup holder ........... 153
Glove box ..................................... 154
Ashtrays .......................................... 157
Lighter ............................................. 159
Enlarged cargo area –
split folding rear
seat backrest .............................. 160
Loading instructions ..................... 162
Cargo tie down rings ..................... 163
Parcel net in front
passenger footwell .................... 164
Telephone, general ........................ 164
Cellular telephone ......................... 165
Garage door opener ....................... 166
Ski sack ........................................... 170

24 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Ve h i c l e k ey s
Included with your vehicle are:
•2 electronic main keys with integrated radio
frequency and infrared remote controls plus
removable mechanical key.
The locking tabs for the mechanical key portion of
the two electronic main keys are a different color to
help distinguish it.
•1 electronic reserve key without remote control
functions, plus removable mechanical key.
Wa r n i n g !
When leaving the vehicle always remove the
electronic key from the steering lock, and lock your
vehicle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.

25 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Electronic main key
The electronic main key has an integrated radio
frequency and infrared remote control, plus removable
mechanical key.
The remote control (1) operates all locks on the vehicle.
The mechanical key (2) works only in the driver’s door,
trunk, and storage compartment locks.When using the mechanical key (2) for lock operations,
it can be removed by sliding it out of the remote control.
To do so, move locking tab (3) to the right and slide the
mechanical key (2) in direction of arrow(4).
The remote control transmitter is located in the
electronic main key.
The infrared receivers are located in the door handles.
Notes:
Remove the mechanical key from the electronic main
key when using valet parking service. To prevent access
to trunk or storage compartments lock them separately
and retain the mechanical key.
See page 38 for separate locking of trunk and page 154
for locking of glove box.
P80.35-2031-26
1
3
4
2

26 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Electronic reserve key
The electronic reserve key is without remote control
functions, but with removable mechanical key.The electronic reserve key (1) works only in the steering
lock. There are no batteries inside the electronic reserve
ke y.
The mechanical key (2) works only in the driver’s door,
trunk, and storage compartment locks.
To use the mechanical key (2), remove it from its
electronic reserve key (1).
Note:
We recommend that you carry the electronic reserve
key plus mechanical key with you and keep it in a safe
place (e.g. your wallet) so that it is always handy. Never
leave the electronic reserve key in the vehicle.
Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be
obtained from your authorized Mercedes-Benz Center.
P80.35-2036-26
1

27 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Start lock-out
Important!
Removing the electronic key from the steering lock
activates the start lock-out. The engine cannot be
started.
Inserting the electronic key in the steering lock
deactivates the start lock-out.
Note:
In case the engine cannot be started (vehicle’s battery is
in order), the system is not operational. Contact an
authorized Mercedes-Benz Center or call 1-800-FOR-
MERCedes (in the USA) or 1-800-387-0100 (in Canada).General notes on the central locking system
If the electronic key is inserted in the steering lock, the
vehicle cannot be locked or unlocked with the remote
control.
If the vehicle cannot be locked or unlocked:
•Aim transmitter eye at a receiver of either door
handle. Check the batteries of the electronic main
key, see page 283 or to synchronize the remote
control, see page 285.
•Use the mechanical key to unlock the driver’s door.
To start th e engine, insert t he el ectronic main key in
the steering lock. There could be a slight delay until
the electronic main key can be turned in the
steering lock.
Important!
When unlocking the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound.
To cancel the alarm, insert the electronic key in the
steering lock or press buttonŒ or‹ on the
electronic main key.
