coolant MERCEDES-BENZ CLK55AMG CABRIOLET 2005 A209 Owner's Manual

ContentsSafety and Security........................... 59
Occupant safety................................... 60
Air bags .......................................... 61
Seat belts ....................................... 67
Roll bars ......................................... 71
Children in the vehicle .................... 72
Blocking of rear side
window operation ........................... 82
Panic alarm .......................................... 83
Activating ....................................... 83
Deactivating ................................... 83
Driving safety systems ......................... 84
ABS ................................................ 84
BAS ................................................ 85
ESP ................................................. 86
Anti-theft systems................................ 89
Immobilizer..................................... 89
Anti-theft alarm system .................. 89
Tow-away alarm ............................. 91
Controls in detail............................... 93
Locking and unlocking ......................... 94
SmartKey ....................................... 94
SmartKey with KEYLESS-GO* ........ 98
Opening the doors
from the inside ............................. 105
Opening the trunk ........................ 106
Closing the trunk.......................... 107
Trunk lid emergency release ........ 109
Automatic central locking ............ 110
Locking and unlocking
from the inside ............................. 110
Seats ................................................. 112
Easy-entry/exit feature ................ 112
Removing and installing
front seat head restraints............. 113
Rear seat head restraints ............. 114
Multicontour seat* ....................... 116
Seat heating* ............................... 117
Seat ventilation* .......................... 118Memory function ............................... 119
Storing positions into memory ..... 120
Recalling positions from memory . 120
Storing exterior rear view
mirror parking position ................ 121
Lighting ............................................. 122
Exterior lamp switch .................... 122
Combination switch ..................... 126
Cornering fog lamps*
(CLK 320 with
Bi-Xenon* headlamps) ................. 126
Hazard warning flasher ................ 127
Interior lighting ............................ 128
Door entry lamps ......................... 129
Trunk lamp ................................... 129
Instrument cluster ............................. 130
Instrument cluster illumination .... 130
Coolant temperature indicator ..... 131
Trip odometer .............................. 131
Tachometer .................................. 132
Outside temperature indicator ..... 132

ContentsSoft top .............................................. 244
Opening and closing the soft top . 244
Driving systems ................................. 255
Cruise control............................... 255
Parktronic system
(Parking assist)* ........................... 260
Loading .............................................. 264
Ski sack* ...................................... 264
Loading instructions ..................... 268
Useful features .................................. 269
Storage compartments................. 269
Ashtrays ....................................... 273
Cigarette lighter ........................... 274
Electrical outlet in the
rear passenger compartment ....... 275
Floormats* ................................... 275
Telephone*................................... 276
Tele Aid ........................................ 277
Garage door opener ..................... 284
Operation......................................... 289
The first 1 000 miles (1 500 km)......... 290
Driving instructions............................ 291
Drive sensibly – save fuel ............. 291
Drinking and driving ..................... 291
Pedals .......................................... 291
Power assistance ......................... 291
Brakes .......................................... 292
Driving off .................................... 294
Parking ......................................... 294
Tires ............................................. 295
Hydroplaning ................................ 295
Tire traction.................................. 296
Tire speed rating .......................... 296
Winter driving instructions ........... 297
Standing water ............................. 298
Passenger compartment .............. 299
Driving abroad.............................. 299
Control and operation
of radio transmitters .................... 299
Catalytic converter ....................... 300
Emission control .......................... 300
Coolant temperature .................... 301At the gas station .............................. 302
Refueling ...................................... 302
Check regularly and
before a long trip ......................... 304
Engine compartment ......................... 305
Hood ............................................ 305
Engine oil ..................................... 306
Transmission fluid level ................ 309
Coolant ........................................ 310
Battery ......................................... 311
Windshield washer system and
headlamp cleaning system*......... 312
Tires and wheels................................ 313
Important guidelines .................... 313
Tire care and maintenance........... 314
Direction of rotation..................... 316
Loading the vehicle ...................... 316
Recommended
tire inflation pressure ................... 322
Checking tire inflation pressure ... 324
Tire labeling ................................. 326
Load identification ....................... 330
DOT, Tire Identification Number
(TIN) ............................................. 330
Maximum tire load ....................... 332
Maximum tire inflation pressure .. 332

ContentsTechnical data.................................. 439
Parts service ...................................... 440
Warranty coverage ............................. 441
Loss of Service and Warranty
Information Booklet...................... 441
Identification labels............................ 442
Layout of poly-V-belt drive ................. 443
CLK 320/CLK 500/CLK 55 AMG . 443
Engine ................................................ 444
Rims and tires .................................... 445
Same size tires ............................. 446
Mixed size tires ............................ 447
Minispare wheel ........................... 449
Electrical system................................ 450
Main dimensions................................ 451
Weights .............................................. 452Fuels, coolants, lubricants, etc. ......... 453
Capacities .................................... 453
Engine oils.................................... 455
Engine oil additives ...................... 455
Air conditioning refrigerant .......... 456
Brake fluid .................................... 456
Premium unleaded gasoline ......... 456
Fuel requirements ........................ 457
Gasoline additives ........................ 457
Coolants....................................... 458
Windshield washer system and
headlamp cleaning system* ......... 460
Technical terms............................... 461Index................................................. 467

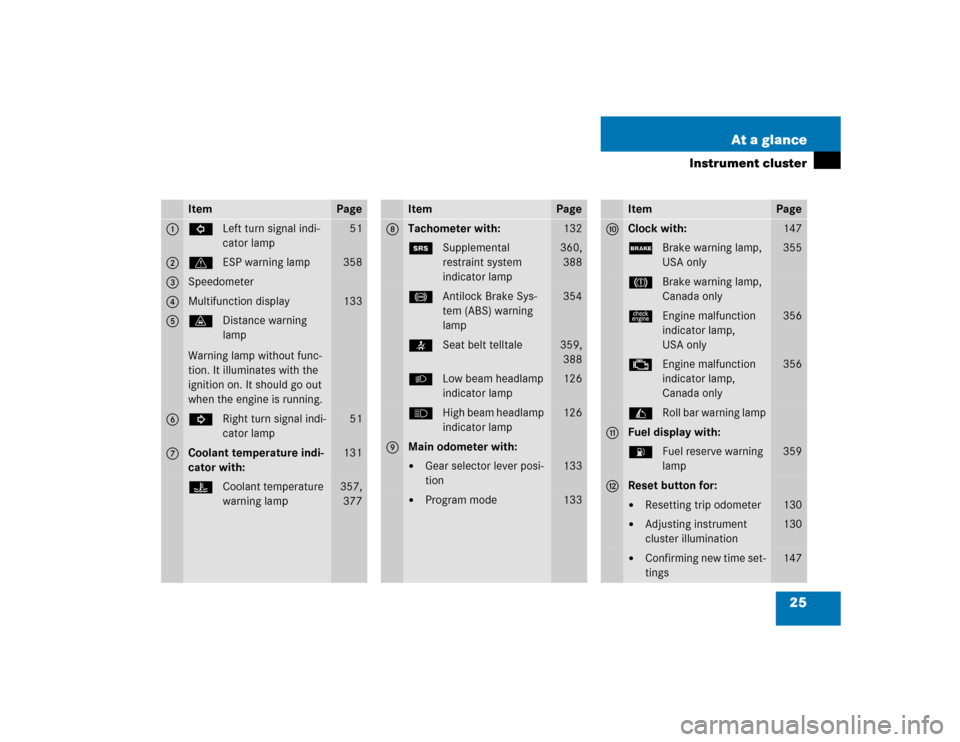

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal indi-
cator lamp
51
2
vESP warning lamp
358
3
Speedometer
4
Multifunction display
133
5
lDistance warning
lamp
Warning lamp without func-
tion. It illuminates with the
ignition on. It should go out
when the engine is running.
6
KRight turn signal indi-
cator lamp
51
7
Coolant temperature indi-
cator with:
131
•Coolant temperature
warning lamp
357,
377
Item
Page
8
Tachometer with:
132
1Supplemental
restraint system
indicator lamp
360,
388
-Antilock Brake Sys-
tem (ABS) warning
lamp
354
359,
388
BLow beam headlamp
indicator lamp
126
AHigh beam headlamp
indicator lamp
126
9
Main odometer with:

Gear selector lever posi-
tion
133


Program mode
133
Item
Page
a
Clock with:
147
;Brake warning lamp,
USA only
355
3Brake warning lamp,
Canada onlyúEngine malfunction
indicator lamp,
USA only
356
±Engine malfunction
indicator lamp,
Canada only
356
CRoll bar warning lamp
b
Fuel display with:AFuel reserve warning
lamp
359
c
Reset button for:

Resetting trip odometer
130


Adjusting instrument
cluster illumination
130


Confirming new time set-
tings
147

54 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add
coolant if necessary (
page 310).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

131 Controls in detail
Instrument cluster
Coolant temperature indicator
The coolant temperature indicator is on
the right side in the instrument cluster
(page 24).
During severe operating conditions, e.g.
stop-and-go traffic, the coolant tempera-
ture may rise close to 120°C.
The engine should not be operated with
the coolant temperature above 120°C.
Doing so may cause serious engine
damage which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Make sure you are viewing the stan-
dard display in the multifunction dis-
play (
page 138).

If it is not displayed, press buttonè
orÿ on the multifunction steering
wheel repeatedly until the standard dis-
play appears (
page 134).

Press and hold the reset button on the
instrument cluster (
page 130) until
the trip odometer is reset.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
iExcessive coolant temperature triggers
a warning in the multifunction display
(page 377) and the red coolant warn-
ing lamp in the instrument cluster
comes on (
page 357).

199 Controls in detail
Automatic climate control (CLK 500/CLK 55 AMG)
Residual heat and ventilation*
(available on Automatic climate control panel design A only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Switch off the ignition (
page 36).

Press button°(
page 191).
The indicator lamp on the button
comes on.Deactivating

Press button°(
page 191).
The indicator lamp on the button goes
out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
!If the air conditioning cannot be turned
on again, this indicates that the air
conditioning is losing refrigerant. The
compressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.
iHow long the system will provide
heating depends on

the coolant temperature


the temperature set by the operator
The blower will run at speed setting 1
regardless of the air distribution
control setting.

301 Operation
Driving instructions
Coolant temperature
During severe operating conditions and
stop-and-go city traffic, the coolant
temperature may rise close to
approximately 248°F (120°C).
The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open at all times.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids, which
may have leaked into the engine com-
partment, to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

304 OperationAt the gas stationCheck regularly and before a long trip
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*
Coolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant” (
page 310) and see “Fu-
els, coolants, lubricants, etc.”
(
page 453).Brake fluid
Removing fuse box cover (
page 437).
Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(
page 312).Engine oil level
For more information on engine oil, see
“Engine oil” (
page 306).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 414).
For more information, see “Exterior lamp
switch” (
page 50).
Tire inflation pressure
For more information, see “Recommended
tire inflation pressure” (
page 322).
iOpening the hood, see (
page 305).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see also “Practi-
cal hints” (
page 355).

306 OperationEngine compartment
Closing
Let the hood drop from a height of
approximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components
(ignition coils, spark plug sockets, diagnos-
tic socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
More information on this subject is
available at any Mercedes-Benz
Center.
