MERCEDES-BENZ CLK55AMG COUPE 2004 C209 Owner's Manual

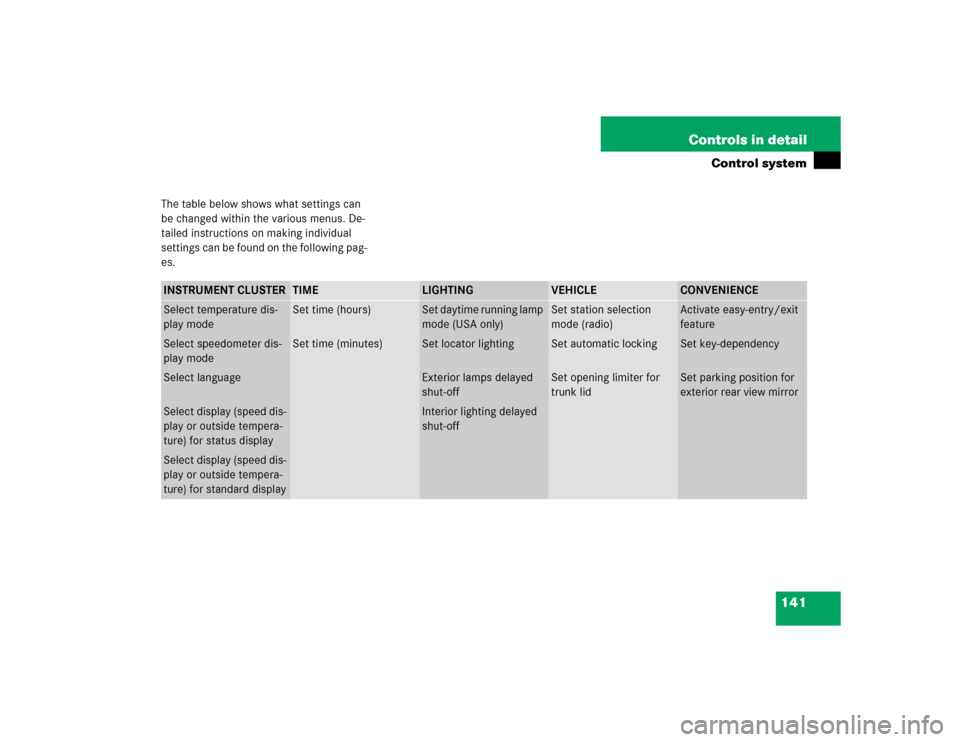

141 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
TIME
LIGHTING
VEHICLE
CONVENIENCE
Select temperature dis-
play mode
Set time (hours)
Set daytime running lamp
mode (USA only)
Set station selection
mode (radio)
Activate easy-entry/exit
feature
Select speedometer dis-
play mode
Set time (minutes)
Set locator lighting
Set automatic locking
Set key-dependency
Select language
Exterior lamps delayed
shut-off
Set opening limiter for
trunk lid
Set parking position for
exterior rear view mirror
Select display (speed dis-
play or outside tempera-
ture) for status display
Interior lighting delayed
shut-off
Select display (speed dis-
play or outside tempera-
ture) for standard display

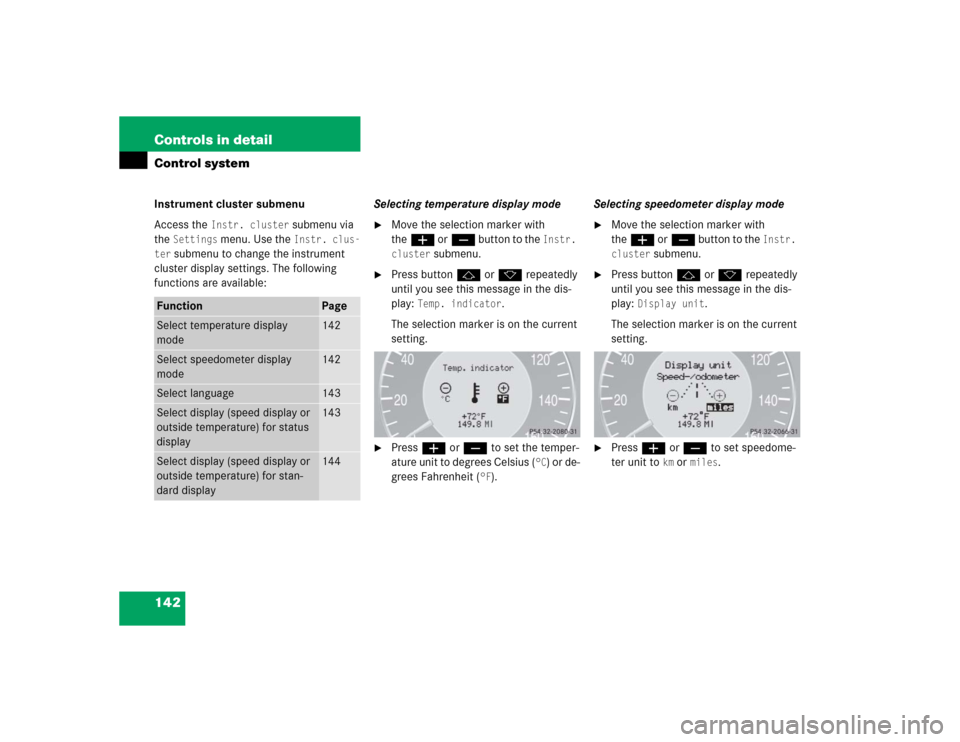

142 Controls in detailControl systemInstrument cluster submenu
Access the
Instr. cluster
submenu via
the
Settings
menu. Use the
Instr. clus-
ter
submenu to change the instrument
cluster display settings. The following
functions are available:Selecting temperature display mode

Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Temp. indicator
.
The selection marker is on the current
setting.

Pressæ orç to set the temper-
ature unit to degrees Celsius (
°C) or de-
grees Fahrenheit (
°F).Selecting speedometer display mode

Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Display unit
.
The selection marker is on the current
setting.

Press æ or ç to set speedome-
ter unit to
km or
miles
.
Function
Page
Select temperature display
mode
142
Select speedometer display
mode
142
Select language
143
Select display (speed display or
outside temperature) for status
display
143
Select display (speed display or
outside temperature) for stan-
dard display
144

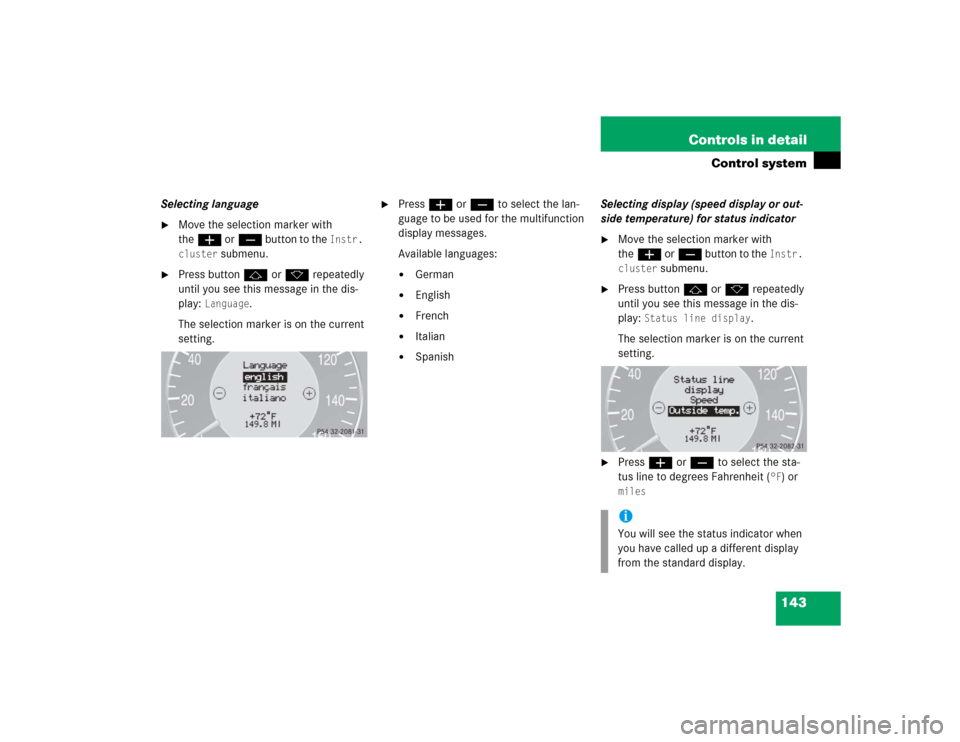

143 Controls in detail
Control system
Selecting language
Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Language
.
The selection marker is on the current
setting.

Pressæ orç to select the lan-
guage to be used for the multifunction
display messages.
Available languages:

German


English


French


Italian


SpanishSelecting display (speed display or out-
side temperature) for status indicator

Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Status line display
.
The selection marker is on the current
setting.

Pressæ orç to select the sta-
tus line to degrees Fahrenheit (
°F) or
milesiYou will see the status indicator when
you have called up a different display
from the standard display.

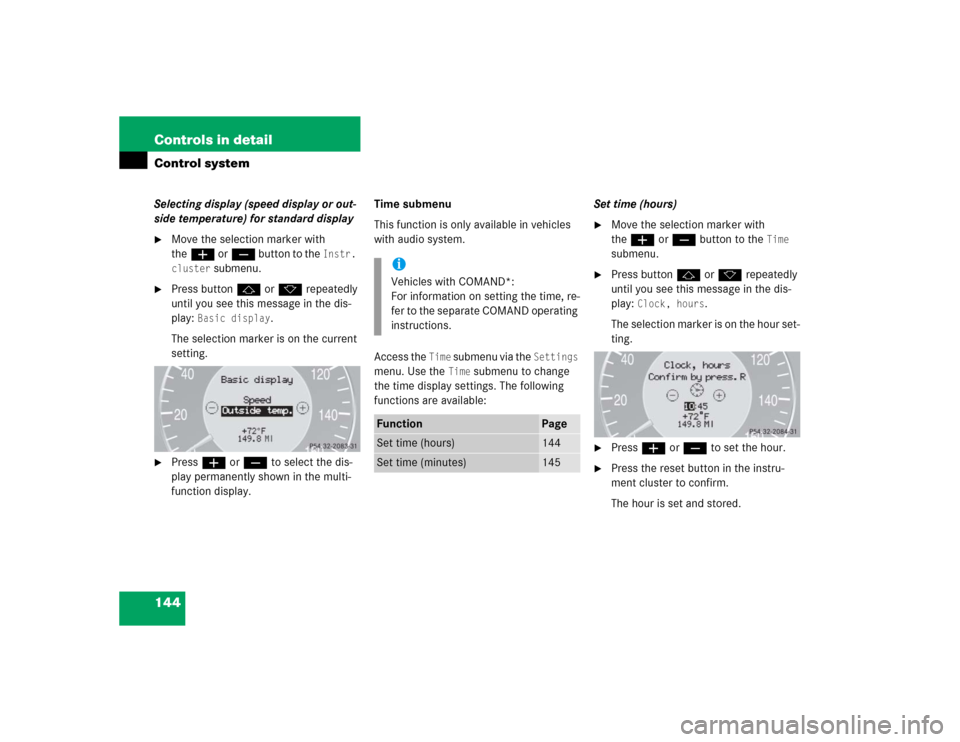

144 Controls in detailControl systemSelecting display (speed display or out-
side temperature) for standard display
Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Basic display
.
The selection marker is on the current
setting.

Pressæ orç to select the dis-
play permanently shown in the multi-
function display.Time submenu
This function is only available in vehicles
with audio system.
Access the
Time
submenu via the
Settings

menu. Use the
Time
submenu to change
the time display settings. The following
functions are available:Set time (hours)

Move the selection marker with
theæ orç button to the
Time

submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Clock, hours
.
The selection marker is on the hour set-
ting.

Pressæ orç to set the hour.

Press the reset button in the instru-
ment cluster to confirm.
The hour is set and stored.
iVehicles with COMAND*:
For information on setting the time, re-
fer to the separate COMAND operating
instructions.
Function
Page
Set time (hours)
144
Set time (minutes)
145

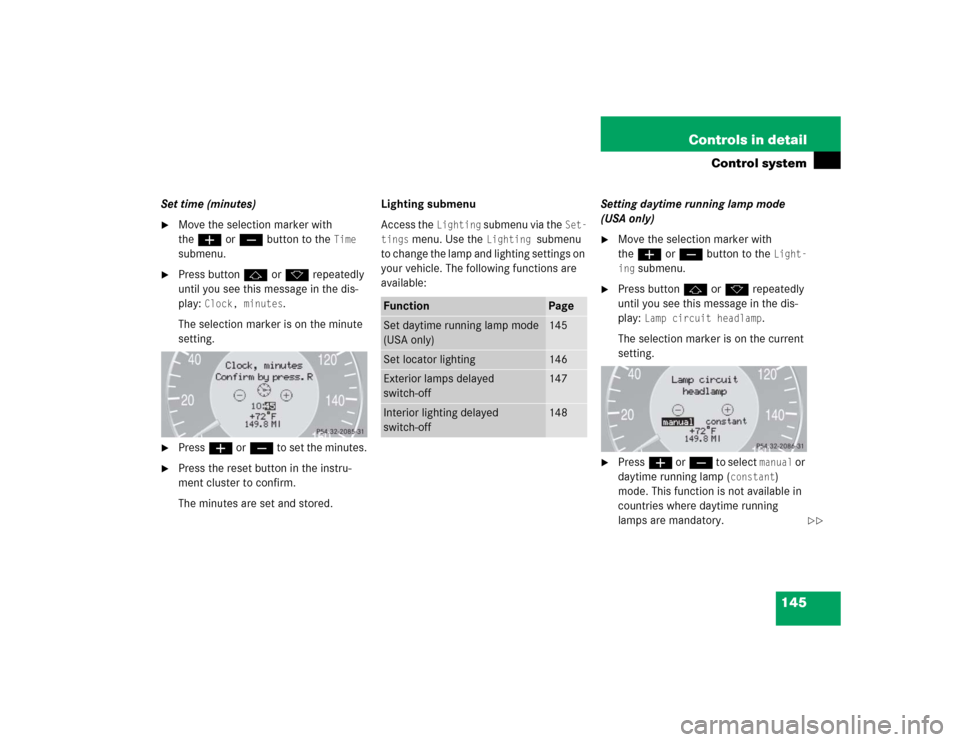

145 Controls in detail
Control system
Set time (minutes)
Move the selection marker with
theæ orç button to the
Time

submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Clock, minutes
.
The selection marker is on the minute
setting.

Pressæ orç to set the minutes.

Press the reset button in the instru-
ment cluster to confirm.
The minutes are set and stored.Lighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Lamp circuit headlamp
.
The selection marker is on the current
setting.

Pressæ orç to select
manual
or
daytime running lamp (
constant
)
mode. This function is not available in
countries where daytime running
lamps are mandatory.
Function
Page
Set daytime running lamp mode
(USA only)
145
Set locator lighting
146
Exterior lamps delayed
switch-off
147
Interior lighting delayed
switch-off
148

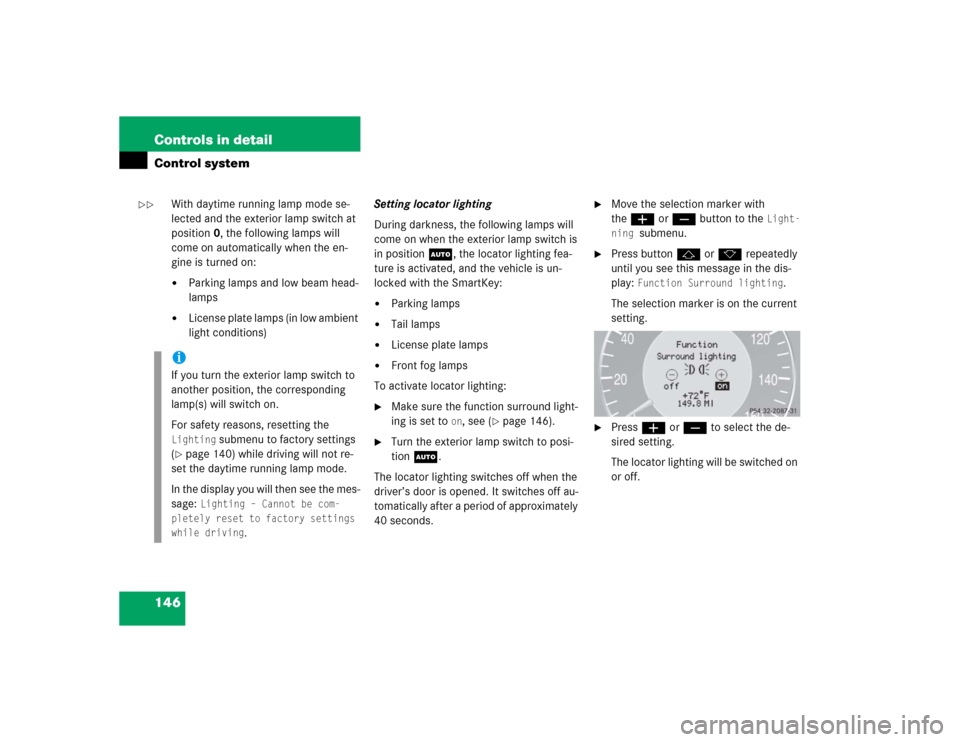

146 Controls in detailControl system
With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:

Parking lamps and low beam head-
lamps


License plate lamps (in low ambient
light conditions) Setting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position U, the locator lighting fea-
ture is activated, and the vehicle is un-
locked with the SmartKey:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
To activate locator lighting:

Make sure the function surround light-
ing is set to
on, see (
page 146).

Turn the exterior lamp switch to posi-
tion U.
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
theæ orç button to the
Light-
ning
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Function Surround lighting
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired setting.
The locator lighting will be switched on
or off.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the Lighting
submenu to factory settings
(
page 140) while driving will not re-
set the daytime running lamp mode.
In the display you will then see the mes-
sage:
Lighting – Cannot be com-
pletely reset to factory settings
while driving
.

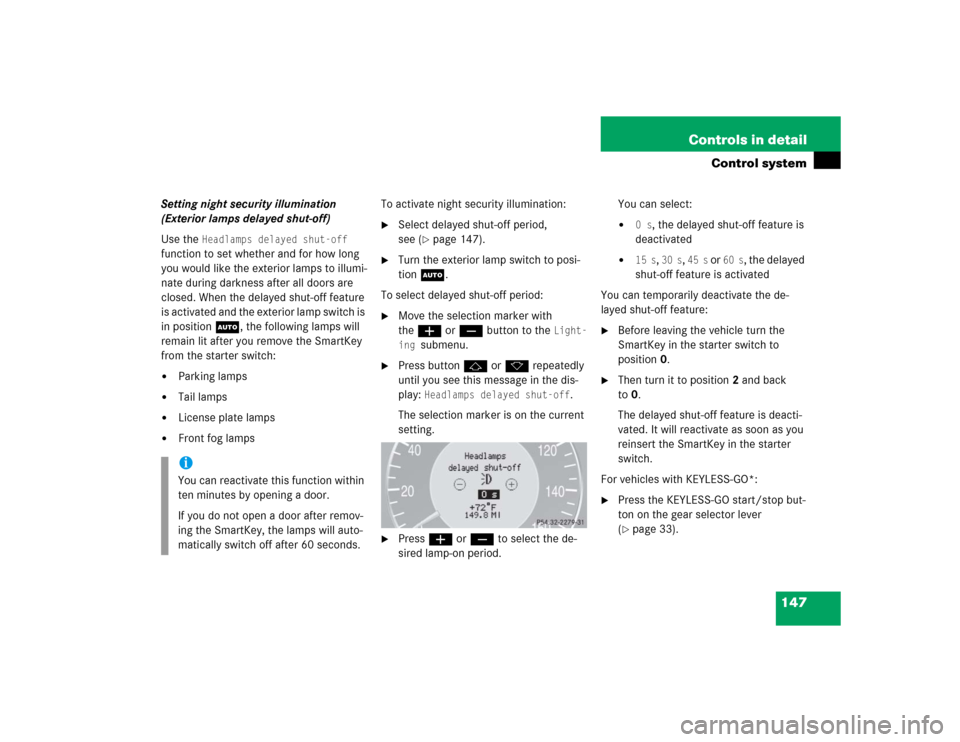

147 Controls in detail
Control system
Setting night security illumination
(Exterior lamps delayed shut-off)
Use the
Headlamps delayed shut-off

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position U, the following lamps will
remain lit after you remove the SmartKey
from the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lampsTo activate night security illumination:

Select delayed shut-off period,
see (
page 147).

Turn the exterior lamp switch to posi-
tion U.
To select delayed shut-off period:

Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Headlamps delayed shut-off
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on period.You can select:


0 s
, the delayed shut-off feature is
deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
shut-off feature is activated
You can temporarily deactivate the de-
layed shut-off feature:

Before leaving the vehicle turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back
to0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.
For vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start/stop but-
ton on the gear selector lever
(page 33).
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the SmartKey, the lamps will auto-
matically switch off after 60 seconds.

148 Controls in detailControl systemInterior lighting delayed shut-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
SmartKey is removed from the starter
switch.
Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Interior lamp delayed
shut-off
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on time period. You can se-
lect:

0 s
, the delayed shut-off feature is
deactivated.


5 s
, 10 s
, 15 s
or
20 s
, the delayed
shut-off feature is activated.
Vehicle submenu
Access the
Vehicle
submenu via the
Set-
tings
menu. Use the
Vehicle
submenu to
make general vehicle settings. The follow-
ing functions are available:Setting station selection mode
Use the
Audio Search function
to select
the manual or memory station selection
mode for the radio (
page 135).

Move the selection marker with
theæ orç button to the
Vehi-
cle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Audio Search function
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired station selection mode. You can
select:

freq.


memory
selects next stored station
Function
Page
Set station selection mode
(radio)
148
Set automatic locking
149
Set opening limiter for trunk lid
149

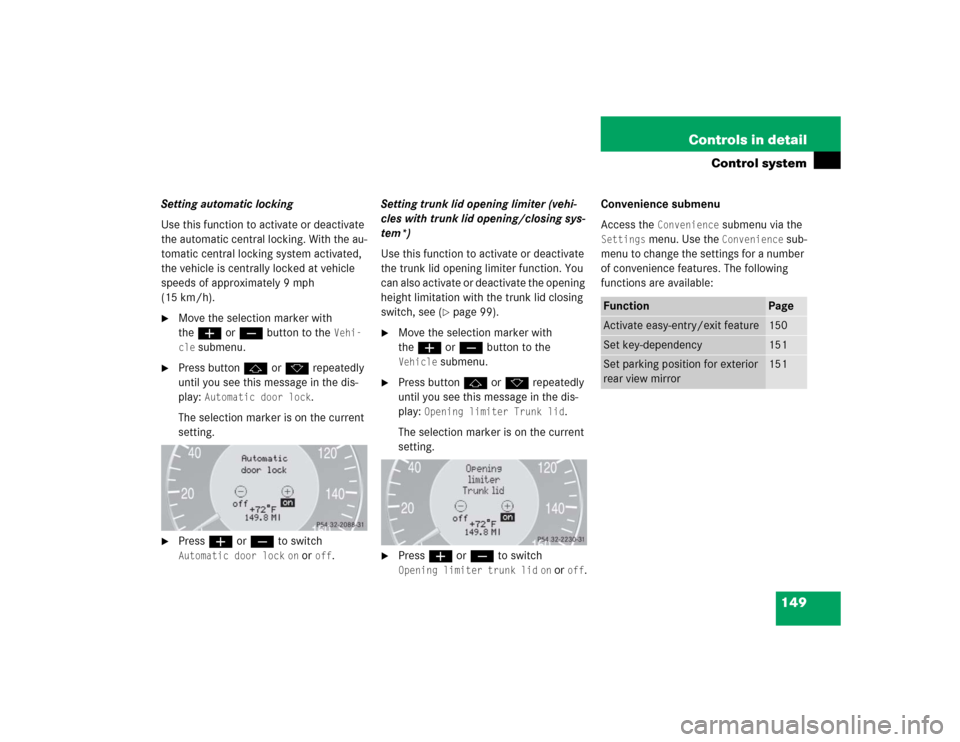

149 Controls in detail
Control system
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).
Move the selection marker with
theæ orç button to the
Vehi-
cle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Automatic door lock
.
The selection marker is on the current
setting.

Pressæ orç to switch Automatic door lock
on or
off
.Setting trunk lid opening limiter (vehi-
cles with trunk lid opening/closing sys-
tem*)
Use this function to activate or deactivate
the trunk lid opening limiter function. You
can also activate or deactivate the opening
height limitation with the trunk lid closing
switch, see (
page 99).

Move the selection marker with
theæ orç button to the Vehicle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Opening limiter Trunk lid
.
The selection marker is on the current
setting.

Pressæ orç to switch Opening limiter trunk lid
on or
off
.Convenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Function
Page
Activate easy-entry/exit feature
150
Set key-dependency
151
Set parking position for exterior
rear view mirror
151

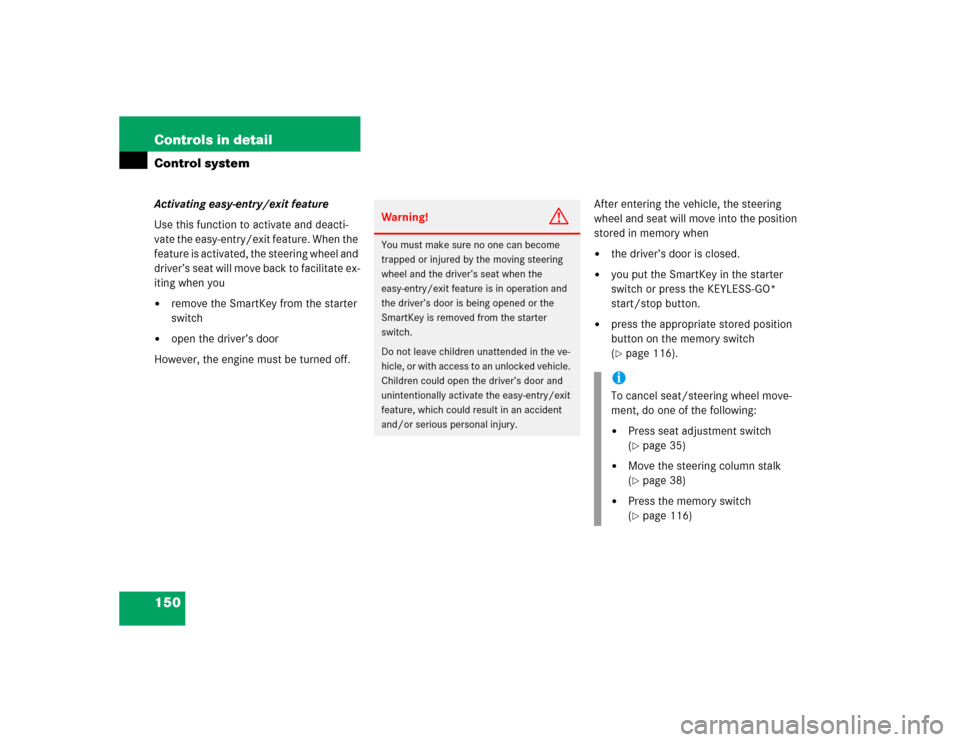

150 Controls in detailControl systemActivating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you

remove the SmartKey from the starter
switch


open the driver’s door
However, the engine must be turned off.After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when


the driver’s door is closed.


you put the SmartKey in the starter
switch or press the KEYLESS-GO*
start/stop button.


press the appropriate stored position
button on the memory switch
(page 116).
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and the driver’s seat when the
easy-entry/exit feature is in operation and
the driver’s door is being opened or the
SmartKey is removed from the starter
switch.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press seat adjustment switch
(page 35)


Move the steering column stalk
(page 38)


Press the memory switch
(page 116)
