51 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows:Warning!
G
Wait until the vehicle is stationary before re-
moving the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of inadvertent vehicle movement, be-
fore turning off the engine and leaving the
vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
start / stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

52 Getting startedParking and lockingParking brake
1Parking brake
2Release handle
Step firmly on parking brake1.
When the engine is running, the indica-
tor lamp ;(USA only)
or3(Canada only) in the instru-
ment cluster will be illuminated.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever from positionP, either of which
could result in an accident and/or serious
personal injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 159).
When parked on an incline, turn front wheels
towards the road curb.

53 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch toM
(page 47).
For more information, see “Lighting”
(
page 119).
Turning off the engine
Place the gear selector lever in
positionP.Turning off the engine with the
SmartKey

Turn the SmartKey in the starter switch
(page 31) to position0 and remove
it.
The immobilizer is activated.

Press the seat belt release button
(page 42).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
iAlways set the parking brake in addi-
tion to shifting to positionP.
On steep slopes, turn the front wheels
towards the curb.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.!With the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.


54 Getting startedParking and locking

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 30).
All turn signal lamps flash three times.
The locking knobs in the doors move
down.
For more information, see “Locking and
unlocking” (
page 86).Turning off the engine with
KEYLESS-GO*

Place the gear selector lever inP.

Press the KEYLESS-GO start/stop but-
ton to shut off the engine.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 31).

Press the seat belt release button
(page 42).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
your vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle may cause an accident and/or serious
personal injury.


55 Getting started
Parking and locking
1Lock button on the door handle
After exiting the vehicle, press lock
button1 on the door handle or on the
trunk lid.
All turn signal lamps flash three times.
The locking knobs in the doors move
down. For more information, see “Locking and
unlocking” (
page 86).
!If you hear a warning signal you have
either

forgotten to switch off the vehi-
cles’s exterior lamps before open-
ing the driver’s door, or


tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

56

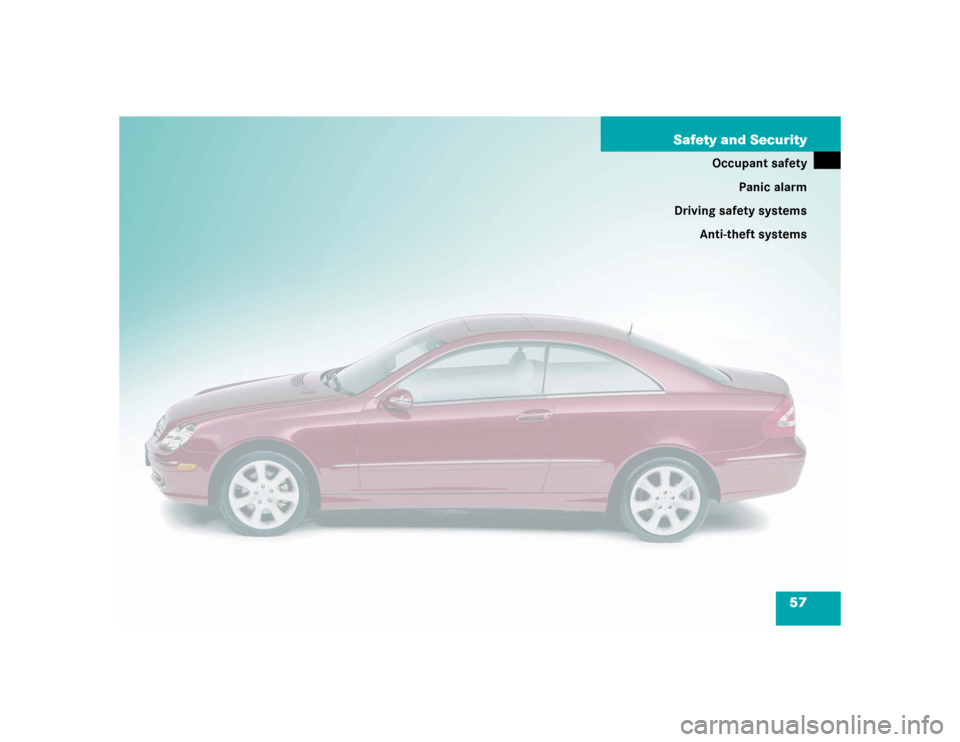

57 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

58 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems, their protective
effects work in conjunction with each oth-
er.The 1 indicator lamp in the instrument
cluster comes on:


for about 4 seconds when you turn the
SmartKey in the starter switch to
position1 or press the KEYLESS-GO*
start/stop button once.


for about 4 seconds when you start the
engine by turning the SmartKey or
pressing the KEYLESS-GO* start/stop
button.The 1 indicator lamp goes out shortly
after you start the engine. This shows that
the restraint systems are operational.
A malfunction in the system has been de-
tected if the 1 indicator lamp:


fails to extinguish after approximately
4 seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
More information can be found in the
“Practical hints” section (
page 312).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 68).
iThe 1 indicator lamp remains lit if
the SmartKey is turned to position2
and left there or if the KEYLESS-GO*
start/stop button is pressed twice. The
1 indicator lamp will go out when
you start the engine.

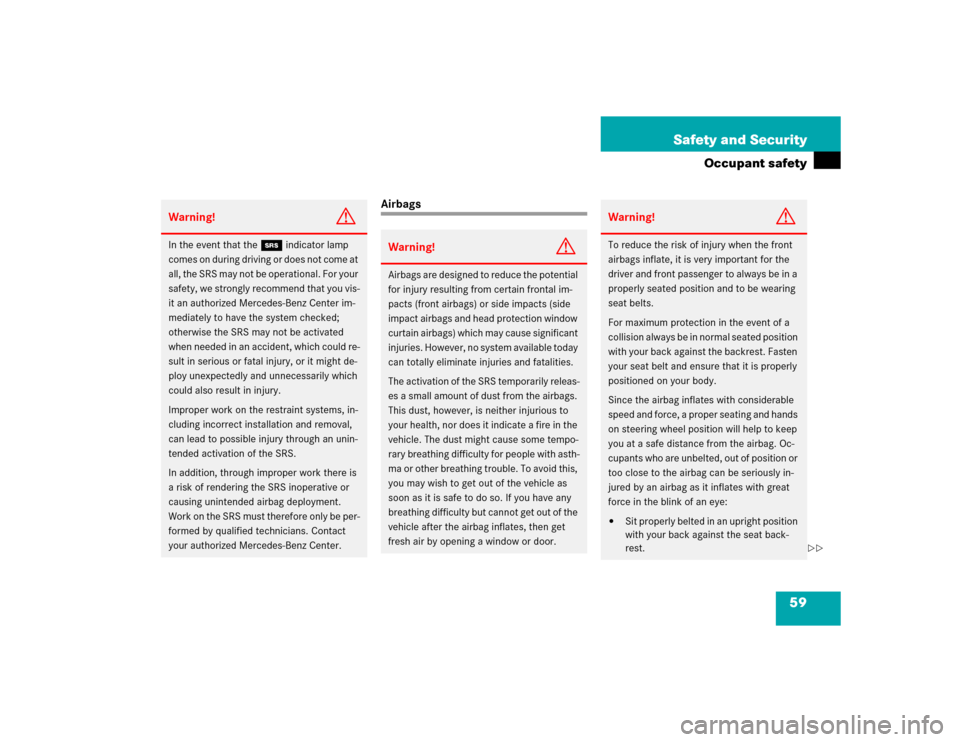

59 Safety and Security
Occupant safety
Airbags
Warning!
G
In the event that the 1 indicator lamp
comes on during driving or does not come at
all, the SRS may not be operational. For your
safety, we strongly recommend that you vis-
it an authorized Mercedes-Benz Center im-
mediately to have the system checked;
otherwise the SRS may not be activated
when needed in an accident, which could re-
sult in serious or fatal injury, or it might de-
ploy unexpectedly and unnecessarily which
could also result in injury.
Improper work on the restraint systems, in-
cluding incorrect installation and removal,
can lead to possible injury through an unin-
tended activation of the SRS.
In addition, through improper work there is
a risk of rendering the SRS inoperative or
causing unintended airbag deployment.
Work on the SRS must therefore only be per-
formed by qualified technicians. Contact
your authorized Mercedes-Benz Center.
Warning!
G
Airbags are designed to reduce the potential
for injury resulting from certain frontal im-
pacts (front airbags) or side impacts (side
impact airbags and head protection window
curtain airbags) which may cause significant
injuries. However, no system available today
can totally eliminate injuries and fatalities.
The activation of the SRS temporarily releas-
es a small amount of dust from the airbags.
This dust, however, is neither injurious to
your health, nor does it indicate a fire in the
vehicle. The dust might cause some tempo-
rary breathing difficulty for people with asth-
ma or other breathing trouble. To avoid this,
you may wish to get out of the vehicle as
soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the airbag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
airbags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to be wearing
seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and ensure that it is properly
positioned on your body.
Since the airbag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the airbag. Oc-
cupants who are unbelted, out of position or
too close to the airbag can be seriously in-
jured by an airbag as it inflates with great
force in the blink of an eye:

Sit properly belted in an upright position
with your back against the seat back-
rest.


60 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door or the side where the side airbag
inflates. This could result in serious inju-
ries or death should the airbag be trig-
gered. Always sit upright, properly use
the seat belts and appropriate size in-
fant or child restraint system.


Children 12 years old and under must
never ride in the front seat, except in a
Mercedes-Benz authorized
BabySmart
TM1 compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front airbag when it
is properly installed. Otherwise they will
be struck by the airbag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle you are responsible
to make the buyer aware of these points. Be
sure to give the buyer this Operator’s Manu-
al.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat. Should you choose to place a child
12 years old or under in the passenger front
seat of your vehicle, you must properly use
a BabySmart
TM child restraint which will
turn off the passenger front airbag.
BabySmart
TM will not, however, turn off any
side impact airbag.
It should be noted that with respect to both
front and rear side impact airbags there is a
possibility for a side airbag related injury if
occupants, especially children, are not prop-
erly seated or restrained when next to a side
airbag which needs to deploy rapidly in a
side impact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the side
where the side airbag inflates.
