ContentsPower tilt/sliding sunroof* ................ 251
Opening and closing
the power tilt/sliding sunroof ...... 251
Synchronizing
the power tilt/sliding sunroof ...... 254
Driving systems ................................. 255
Cruise control............................... 255
Parktronic system
(Parking assist)* ........................... 260
Loading .............................................. 264
Roof rack ...................................... 264
Ski sack* ...................................... 264
Split rear bench seat .................... 267
Loading instructions ..................... 269
Cargo tie-down rings .................... 271
Useful features .................................. 272
Storage compartments................. 272
Cup holders .................................. 275
Ashtrays ....................................... 276
Cigarette lighter ........................... 277
Electrical outlet in the
rear passenger compartment ....... 278
Floormats* ................................... 278
Telephone*................................... 279
Tele Aid ........................................ 280
Garage door opener ..................... 287
Operation......................................... 293
The first 1 000 miles (1 500 km)......... 294
Driving instructions............................ 295
Drive sensibly – save fuel ............. 295
Drinking and driving ..................... 295
Pedals .......................................... 295
Power assistance ......................... 295
Brakes .......................................... 296
Driving off .................................... 297
Parking ......................................... 297
Tires ............................................. 298
Hydroplaning ................................ 299
Tire traction.................................. 299
Tire speed rating .......................... 300
Winter driving instructions ........... 301
Standing water ............................. 302
Passenger compartment .............. 302
Driving abroad.............................. 302
Control and operation
of radio transmitters .................... 302
Catalytic converter ....................... 303
Emission control .......................... 304
Coolant temperature .................... 304At the gas station .............................. 305
Refueling ...................................... 305
Check regularly and
before a long trip ......................... 307
Engine compartment ......................... 308
Hood ............................................ 308
Engine oil ..................................... 309
Transmission fluid level ................ 312
Coolant ........................................ 313
Battery ......................................... 314
Windshield washer system and
headlamp cleaning system*......... 315
Tires and wheels................................ 316
Important guidelines .................... 316
Tire care and maintenance........... 317
Direction of rotation..................... 319
Loading the vehicle ...................... 319
Recommended
tire inflation pressure ................... 325
Checking tire inflation pressure ... 327
Tire labeling ................................. 328
Load identification ....................... 332
DOT, Tire Identification Number
(TIN) ............................................. 333
Maximum tire load ....................... 334
Maximum tire inflation pressure .. 335

90 Safety and SecurityAnti-theft systemsAnti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk


the hood.
The alarm system will also be triggered
when


someone attempts to raise the vehicle
(page 91)


opening the vehicle with the
mechanical key.Arming the alarm system
The indicator lamp is in the switch for the
tow-away alarm in the center console.
1Indicator lamp

Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is
activated. Indicator lamp1 begins to
flash after approximately 30 seconds
after arming the alarm system.
iThe alarm will stay on, even if the
activating element (a door, for
example) is immediately closed.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 280) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps do not flash
three times, one of the following
elements may not be properly closed:

a door


the trunk lid


the hood
Close the respective element and lock
the vehicle again.

135 Controls in detail
Instrument cluster
Coolant temperature indicator
The coolant temperature indicator is on
the right side in the instrument cluster
(page 24).
During severe operating conditions, e.g.
stop-and-go traffic, the coolant tempera-
ture may rise close to 120°C.
The engine should not be operated with
the coolant temperature above 120°C.
Doing so may cause serious engine
damage which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Make sure you are viewing the stan-
dard display in the multifunction dis-
play (
page 142).

If it is not displayed, press buttonè
orÿ on the multifunction steering
wheel repeatedly until the standard dis-
play appears (
page 138).

Press and hold reset button on the in-
strument cluster (
page 134) until the
trip odometer is reset.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

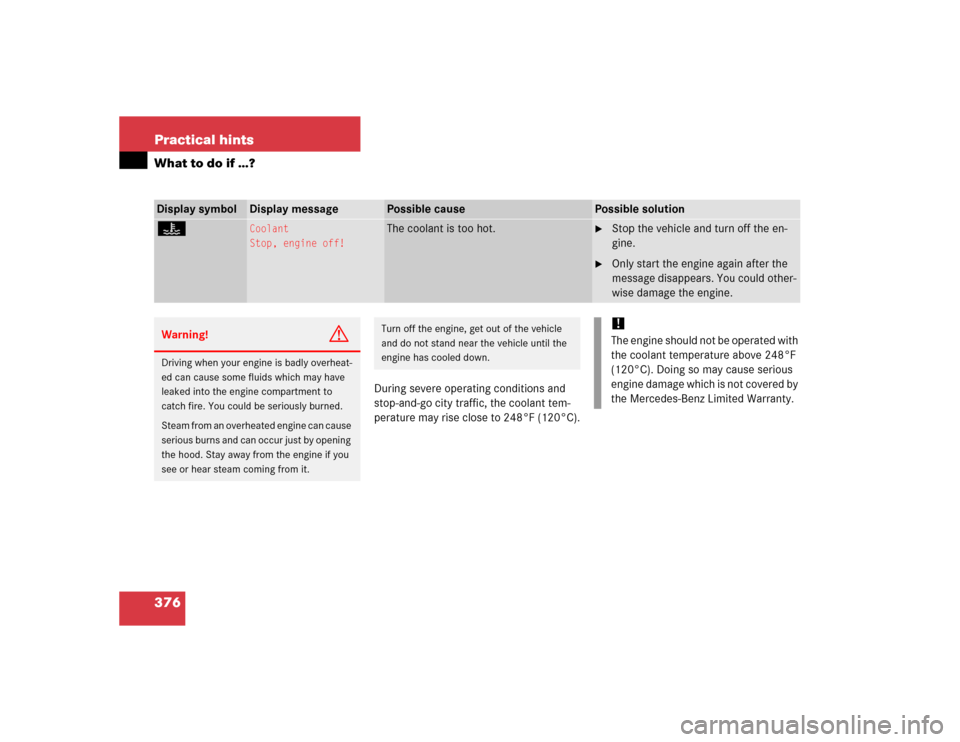

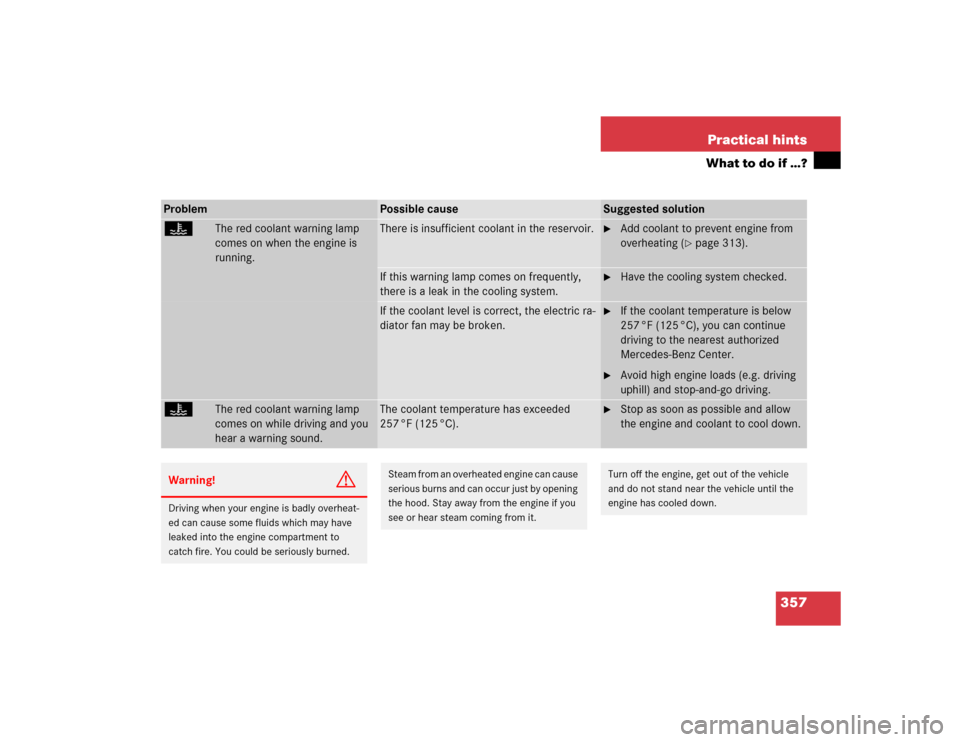

iExcessive coolant temperature triggers
a warning in the multifunction display
(page 376) and the red coolant warn-
ing lamp in the instrument cluster
comes on (
page 357).

304 OperationDriving instructionsEmission control
Certain systems of the engine serve to
keep the toxic components of the exhaust
gases within permissible limits required by
law.
These systems, of course, will function
properly only when maintained strictly ac-
cording to factory specifications. Any ad-
justments to the engine should therefore
be carried out only by qualified
Mercedes-Benz Center authorized techni-
cians.
Engine adjustments should not be altered
in any way. Moreover, the specified service
jobs must be carried out regularly accord-
ing to Mercedes-Benz servicing require-
ments. For details refer to the
Maintenance Booklet.
Coolant temperature
During severe operating conditions and
stop-and-go city traffic, the coolant
temperature may rise close to
approximately 248°F (120°C).The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by the
Mercedes-Benz Limited Warranty.Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open at all times.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids, which
may have leaked into the engine com-
partment, to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

307 Operation
At the gas station
Check regularly and before a long trip
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*
Coolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant” (
page 313) and see “Fu-
els, coolants, lubricants, etc.”
(
page 447).Brake fluid
Removing fuse box cover (
page 431).
Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(
page 315).Engine oil level
For more information on engine oil, see
“Engine oil” (
page 309).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 404).
For more information, see “Exterior lamp
switch” (
page 50).
Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 327).
iOpening the hood, see (
page 308).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see also “Practi-
cal hints” (
page 355).

308 OperationEngine compartmentHood
Opening
The hood lock release lever is located to
the left of the steering wheel under the
dashboard.
1Hood lock release lever

Pull lever 1 downwards.
The hood is unlocked.
2Lever for opening the hood

Push lever2 under the hood upwards.

Pull up on the hood and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for
approximately 30 seconds or even restart
after the engine has been turned off. Stay
clear of fan blades.

309 Operation
Engine compartment
Closing
Let the hood drop from a height of
approximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components
(ignition coils, spark plug sockets, diagnos-
tic socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
More information on this subject is
available at any Mercedes-Benz
Center.

313 Operation
Engine compartment
Coolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine
compartment.
1Coolant expansion tank
2Cap

Using a rag, turn cap 2 slowly
approximately one half turn to the left
to release any excess pressure.

Continue turning the cap 2 to the left
and remove it.
The coolant level is correct if the level


for cold coolant: reaches the black top
part of the reservoir


for warm coolant: is approx. 0.6 in
(1.5 cm) higher

Add coolant as required.

Replace and tighten cap 2.
More information on coolant can be found
in the “Technical data” section
(
page 452).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if the coolant temperature is
above 158°F (70°C). Allow the coolant
to cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

357 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
•
The red coolant warning lamp
comes on when the engine is
running.
There is insufficient coolant in the reservoir.

Add coolant to prevent engine from
overheating (
page 313).
If this warning lamp comes on frequently,
there is a leak in the cooling system.

Have the cooling system checked.
If the coolant level is correct, the electric ra-
diator fan may be broken.

If the coolant temperature is below
257 °F (125 °C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.

Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
•
The red coolant warning lamp
comes on while driving and you
hear a warning sound.
The coolant temperature has exceeded
257 °F (125 °C).

Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

376 Practical hintsWhat to do if …?
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbol
Display message
Possible cause
Possible solution
•
Coolant
Stop, engine off!
The coolant is too hot.

Stop the vehicle and turn off the en-
gine.

Only start the engine again after the
message disappears. You could other-
wise damage the engine.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.
