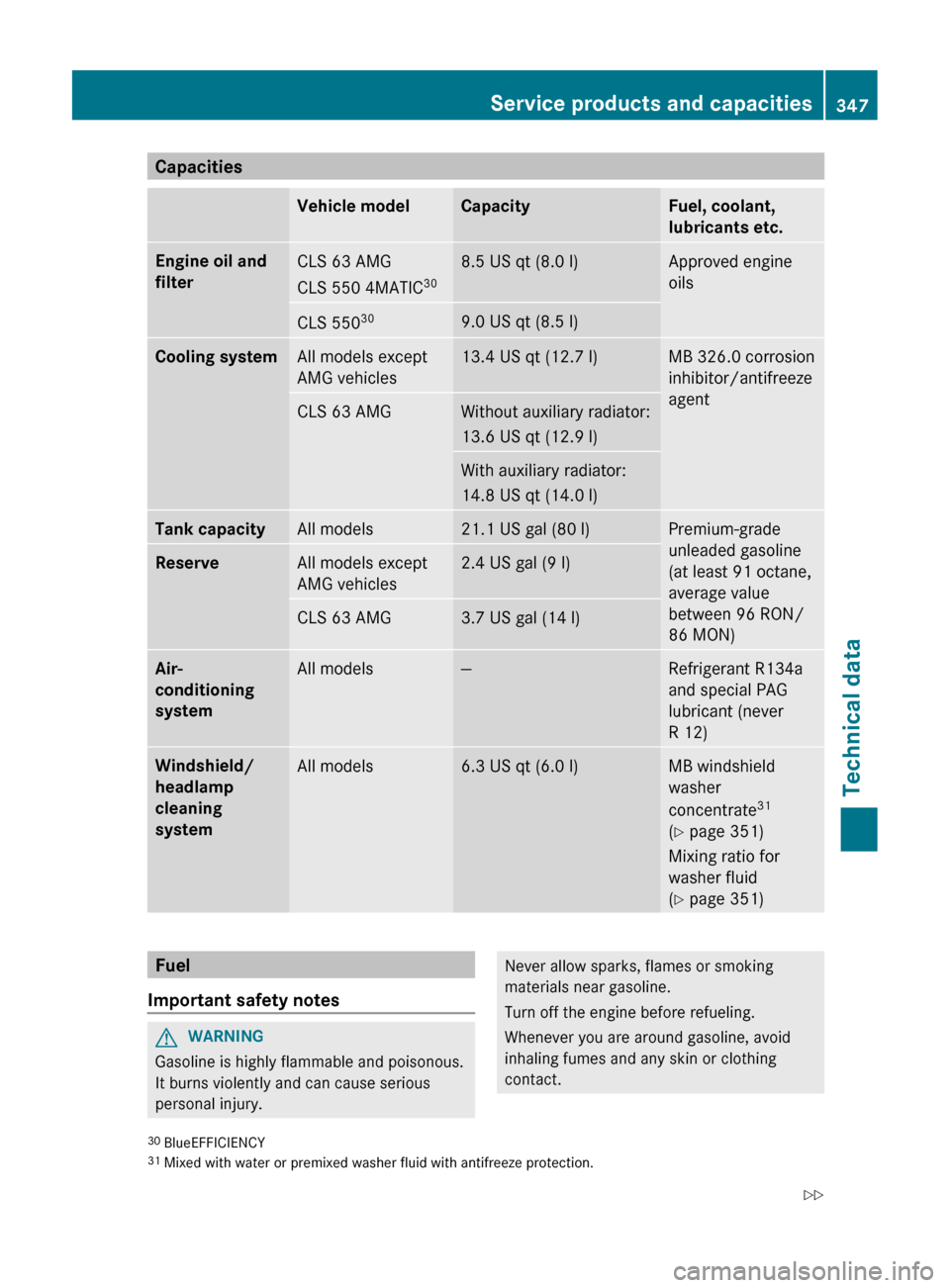

Page 349 of 356
CapacitiesVehicle modelCapacityFuel, coolant,
lubricants etc.Engine oil and
filterCLS 63 AMG
CLS 550 4MATIC 308.5 US qt (8.0 l)Approved engine
oilsCLS 550 309.0 US qt (8.5 l)Cooling systemAll models except
AMG vehicles13.4 US qt (12.7 l)MB 326.0 corrosion
inhibitor/antifreeze
agentCLS 63 AMGWithout auxiliary radiator:
13.6 US qt (12.9 l)With auxiliary radiator:
14.8 US qt (14.0 l)Tank capacityAll models21.1 US gal (80 l)Premium-grade
unleaded gasoline
(at least 91 octane,
average value
between 96 RON/
86 MON)ReserveAll models except
AMG vehicles2.4 US gal (9 l)CLS 63 AMG3.7 US gal (14 l)Air-
conditioning
systemAll models—Refrigerant R134a
and special PAG
lubricant (never
R 12)Windshield/
headlamp
cleaning
systemAll models6.3 US qt (6.0 l)MB windshield
washer
concentrate 31
( Y page 351)
Mixing ratio for
washer fluid
( Y page 351)Fuel
Important safety notesGWARNING
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flames or smoking
materials near gasoline.
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and any skin or clothing
contact.30 BlueEFFICIENCY
31 Mixed with water or premixed washer fluid with antifreeze protection.Service products and capacities347Technical dataZ

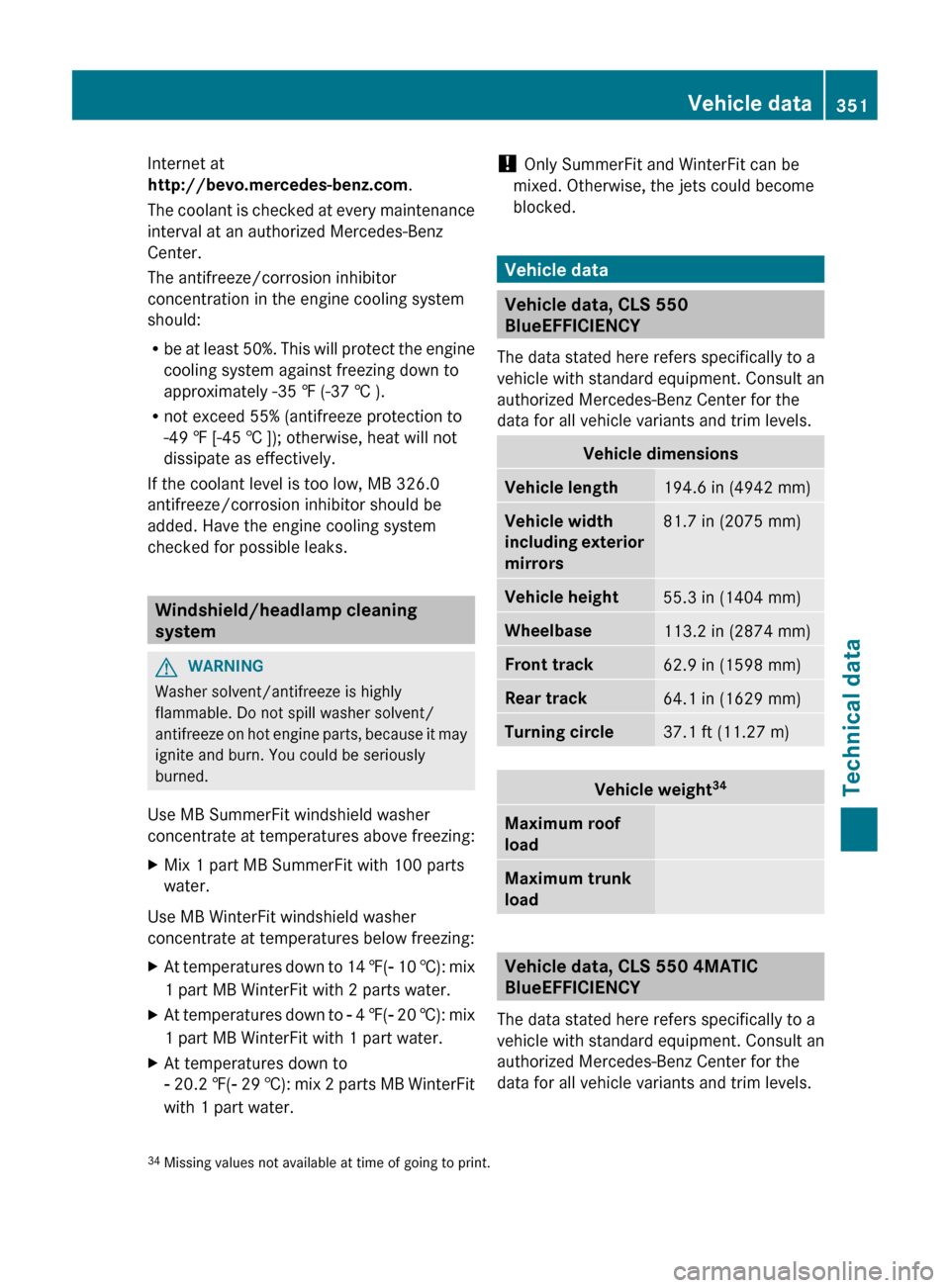

Page 353 of 356
Internet at
http://bevo.mercedes-benz.com .
The coolant is checked at every maintenance
interval at an authorized Mercedes-Benz
Center.
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 † ).
R not exceed 55% (antifreeze protection to
-49 ‡ [-45 † ]); otherwise, heat will not
dissipate as effectively.
If the coolant level is too low, MB 326.0
antifreeze/corrosion inhibitor should be
added. Have the engine cooling system
checked for possible leaks.
Windshield/headlamp cleaning
system
GWARNING
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
Use MB SummerFit windshield washer
concentrate at temperatures above freezing:
XMix 1 part MB SummerFit with 100 parts
water.
Use MB WinterFit windshield washer
concentrate at temperatures below freezing:
XAt temperatures down to 14 ‡(Ò 10 †): mix
1 part MB WinterFit with 2 parts water.XAt temperatures down to Ò 4 ‡( Ò 20 †): mix
1 part MB WinterFit with 1 part water.XAt temperatures down to
Ò 20.2 ‡(Ò 29 †): mix 2 parts MB WinterFit
with 1 part water.! Only SummerFit and WinterFit can be
mixed. Otherwise, the jets could become
blocked.
Vehicle data
Vehicle data, CLS 550
BlueEFFICIENCY
The data stated here refers specifically to a
vehicle with standard equipment. Consult an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle dimensionsVehicle length194.6 in (4942 mm)Vehicle width
including exterior
mirrors81.7 in (2075 mm)Vehicle height55.3 in (1404 mm)Wheelbase113.2 in (2874 mm)Front track62.9 in (1598 mm)Rear track64.1 in (1629 mm)Turning circle37.1 ft (11.27 m)Vehicle weight 34Maximum roof
loadMaximum trunk
load
Vehicle data, CLS 550 4MATIC
BlueEFFICIENCY
The data stated here refers specifically to a
vehicle with standard equipment. Consult an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
34 Missing values not available at time of going to print.Vehicle data351Technical dataZ
