Page 11 of 376
Driving in winter ............................. 164
Driving on flooded roads
................164
Driving on wet roads ...................... 164
Exhaust check
............................... 160
Fuel ................................................ 159
General .......................................... 159
Hydroplaning ................................. 164
Icy road surfaces ........................... 164
Limited braking efficiency on
salted roads ................................... 162
Pedals ............................................ 160
Snow chains .................................. 329
Symmetrical low beam .................. 110
Wet road surface ........................... 162
Drowsiness detection assistance
system
see ATTENTION ASSIST
DVD audio
Operating (on-board computer) ..... 215
DVD video
Operating (on-board computer) ..... 216E
EASY-ENTRY feature Activating/deactivating
.................223
Function/notes ............................. 104
EASY-EXIT feature
Crash-responsive ........................... 105
Function/notes ............................. 104
Switching on/off ........................... 223
EBD (electronic brake force
distribution)
Display message ............................ 231
Function/notes ................................ 69
ECO display
Function/notes ............................. 160
On-board computer ....................... 213
ECO start/stop function
Deactivating/activating ................. 143
General information ....................... 142
Electronic Stability Program
see ESP ®
(Electronic Stability Program)
Electronic Traction System
see ETS/4ETS (Electronic
Traction System) Emergency release
Driver's door .................................... 82
Fuel filler flap
................................. 155
Trunk ............................................... 86
Vehicle ............................................. 82
Emergency spare wheel
Important safety notes .................. 357
Points to remember .......................358
Removing ....................................... 358
Storage location ............................ 358
Stowing .......................................... 359
Technical data ............................... 361
Emergency Tensioning Devices
Function ........................................... 57
Safety guidelines ............................. 40
Emissions control
Service and warranty information .... 21
Engine
Check Engine warning lamp ........... 264
Display message ............................ 239
ECO start/stop function ................ 142
Engine number ............................... 366
Irregular running ............................ 145
Jump-starting ................................. 317
Starting problems .......................... 145
Starting the engine with the
SmartKey ....................................... 141
Starting with KEYLESS-GO ............. 141
Switching off .................................. 158
Tow-starting (vehicle) ..................... 321
Engine electronics
Problem (malfunction) ...................145
Engine oil
Adding ........................................... 300
Additives ........................................ 369
Checking the oil level ..................... 299
Checking the oil level using the
dipstick .......................................... 299
Display message ............................ 241
Filling capacity ............................... 369
Notes about oil grades ................... 368
Notes on oil level/consumption .... 299
Temperature (on-board computer) . 224
Viscosity ........................................ 369 Index
9
Page 19 of 376
Stowage space
Center console (rear) ..................... 272
Stowage well beneath the trunk
floor .................................................... 275
Summer tires ..................................... 328
Sun visor ............................................ 278
Supplement Restraint System see SRS (Supplemental Restraint
System)
Surround lighting (on-board
computer) .......................................... 221
Suspension tuning AIRMATIC ...................................... 181
AMG adaptive sport suspension
system ........................................... 182
SETUP (on-board computer) .......... 225
Switching air-recirculation mode
on/off ................................................. 132
Switching off the alarm (ATA) ............71 T
Tachometer ........................................ 209
Tail lamps Display message
............................ 237
Tank content
Fuel gauge ............................... 29, 209
Technical data
Emergency spare wheel ................. 361
Information .................................... 364
Tires/wheels ................................. 353
Vehicle data ................................... 371
TELEAID
Call priority .................................... 286
Downloading destinations
(COMAND) ..................................... 287
Downloading routes .......................290
Emergency call .............................. 284
Geo fencing ................................... 290
Important safety notes .................. 282
Locating a stolen vehicle ............... 289
MB info call button ........................ 286
Remote vehicle locking .................. 288
Roadside Assistance button .......... 285
Search & Send ............................... 287
Self-test ......................................... 283
Speed alert .................................... 290
System .......................................... 283Triggering the vehicle alarm ........... 291
Vehicle remote malfunction
diagnosis
....................................... 289
Vehicle remote unlocking .............. 288
Telephone
Accepting a call ............................. 216
Display message
............................ 253
Menu (on-board computer) ............ 216
Number from the phone book ........ 217
Redialing ........................................ 217
Rejecting/ending a call ................. 216
Temperature
Coolant .......................................... 209
Coolant (on-board computer) ......... 224
Engine oil (on-board computer) ...... 224
Outside temperature ...................... 210
Setting (climate control) ................ 130
Theft deterrent systems
ATA (Anti-Theft Alarm system) .........71
Immobilizer ...................................... 71
Through-loading feature ...................273
Timing (RACETIMER) .........................225
Tire pressure Calling up (on-board computer) ..... 334
Checking manually ........................333
Display message ............................ 248
Maximum ....................................... 332
Notes ............................................. 331
Recommended ............................... 329
Tire pressure loss warning system
Important safety notes .................. 333
Restarting ...................................... 333
Tire pressure monitor
Checking the tire pressure
electronically ................................. 336
Warning message .......................... 336
Tire pressure monitoring system
Function/notes ............................. 334
Restarting ...................................... 336
Warning lamp ................................. 267
Tires
Aspect ratio (definition) ................. 347
Average weight of the vehicle
occupants (definition) .................... 346
Bar (definition) ............................... 345
Changing a wheel .......................... 348
Characteristics .............................. 345
Checking ........................................ 327 Index
17
Page 301 of 376

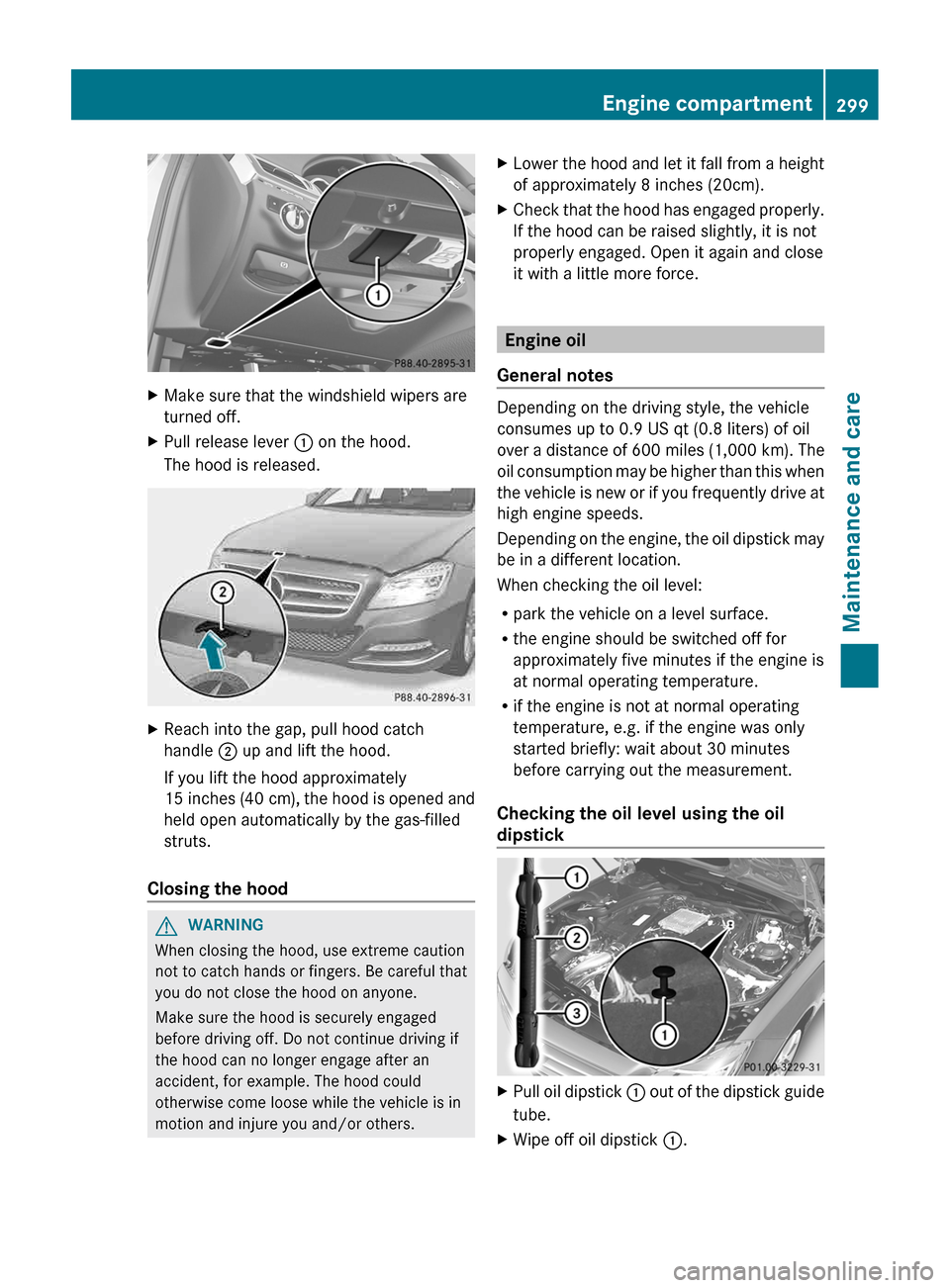

X
Make sure that the windshield wipers are
turned off.
X Pull release lever : on the hood.
The hood is released. X
Reach into the gap, pull hood catch
handle ; up and lift the hood.
If you lift the hood approximately
15 inches
(40 cm), the hood is opened and
held open automatically by the gas-filled
struts.
Closing the hood G
WARNING
When closing the hood, use extreme caution
not to catch hands or fingers. Be careful that
you do not close the hood on anyone.
Make sure the hood is securely engaged
before driving off. Do not continue driving if
the hood can no longer engage after an
accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and injure you and/or others. X
Lower the hood and let it fall from a height
of approximately
8 inches (20cm).
X Check that the hood has engaged properly.
If the hood can be raised slightly, it is not
properly engaged. Open it again and close
it with a little more force. Engine oil
General notes Depending on the driving style, the vehicle
consumes up to 0.9 US qt
(0.8 liters) of oil
over a distance of 600 miles (1,000 km). The
oil consumption may be higher than this when
the vehicle is new or if you frequently drive at
high engine speeds.
Depending on the engine, the oil dipstick may
be in a different location.
When checking the oil level:
R park the vehicle on a level surface.
R the engine should be switched off for
approximately five minutes if the engine is
at normal operating temperature.
R if the engine is not at normal operating
temperature, e.g. if the engine was only
started briefly: wait about 30 minutes
before carrying out the measurement.
Checking the oil level using the oil
dipstick X
Pull oil dipstick :
out of the dipstick guide
tube.
X Wipe off oil dipstick :. Engine compartment
299
Maintenance and care Z
Page 302 of 376

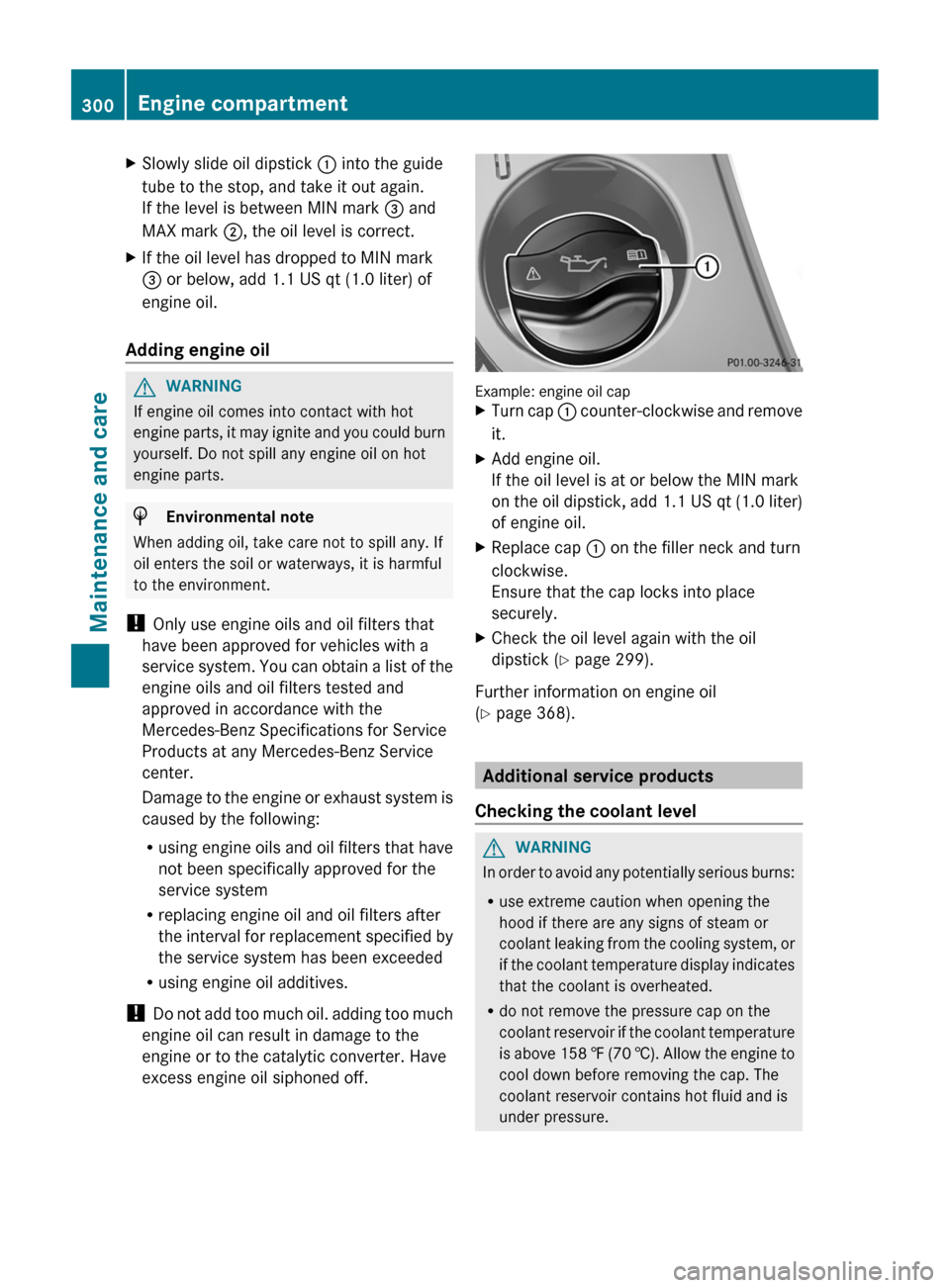

X
Slowly slide oil dipstick : into the guide
tube to the stop, and take it out again.
If the level is between MIN mark = and
MAX mark ;, the oil level is correct.
X If the oil level has dropped to MIN mark
= or below, add
1.1 US qt (1.0 liter) of
engine oil.
Adding engine oil G
WARNING
If engine oil comes into contact with hot
engine
parts, it may ignite and you could burn
yourself. Do not spill any engine oil on hot
engine parts. H
Environmental note
When adding oil, take care not to spill any. If
oil enters the soil or waterways, it is harmful
to the environment.
! Only use engine oils and oil filters that
have been approved for vehicles with a
service
system. You can obtain a list of the
engine oils and oil filters tested and
approved in accordance with the
Mercedes-Benz Specifications for Service
Products at any Mercedes-Benz Service
center.
Damage to the engine or exhaust system is
caused by the following:
R using engine oils and oil filters that have
not been specifically approved for the
service system
R replacing engine oil and oil filters after
the interval for replacement specified by
the service system has been exceeded
R using engine oil additives.
! Do not add too much oil. adding too much
engine oil can result in damage to the
engine or to the catalytic converter. Have
excess engine oil siphoned off. Example: engine oil cap
X
Turn cap :
counter-clockwise and remove
it.
X Add engine oil.
If the oil level is at or below the MIN mark
on
the oil dipstick, add 1.1 US qt (1.0 liter)
of engine oil.
X Replace cap : on the filler neck and turn
clockwise.
Ensure that the cap locks into place
securely.
X Check the oil level again with the oil
dipstick (Y page 299).
Further information on engine oil
(Y page 368). Additional service products
Checking the coolant level G
WARNING
In order to avoid any potentially serious burns:
R use extreme caution when opening the
hood if there are any signs of steam or
coolant
leaking from the cooling system, or
if the coolant temperature display indicates
that the coolant is overheated.
R do not remove the pressure cap on the
coolant reservoir if the coolant temperature
is above 158 ‡ (70 †). Allow the engine to
cool down before removing the cap. The
coolant reservoir contains hot fluid and is
under pressure.300
Engine compartment
Maintenance and care
