Buttons (on-board computer) ......... 227
Cleaning ........................................ .323
Important safety notes .................. 113
Paddle shifters ............................... 163
Steering wheel heating .................. 114
Storing settings (memory func-
tion) ............................................... 119
Steering wheel heating
Problem (malfunction) ................... 115
Switching on/off ........................... 114
Steering wheel paddle shifters ........163
Stopwatch (RACETIMER) ................... 242
Stowage areas ................................... 286
Stowage compartments
Armrest (under) ............................ .288
Center console .............................. 288
Center console (rear) ..................... 289
Cup holders ................................... 293
Eyeglasses compartment .............. .287
Glove box ....................................... 287
Important safety information ......... 286
Rear ............................................... 289
Stowage net ................................... 289
Under driver's seat/front-
passenger sea t.............................. 288
Stowage net ....................................... 289
Stowage well beneath the trunk
floor .................................................... 292
Summer tires ..................................... 346
Sun visor ............................................ 295
Surround lighting (on-board com-
puter) .................................................. 239
Suspension tuning
AIRMATIC ...................................... 194
AMG adaptive sport suspension
system ........................................... 195
SETUP (on-board computer) .......... 242
Switching air-recirculation mode
on/off ................................................. 144 T
Tachometer ........................................ 226
Tail lamps
Display message ............................ 256
Tank
see Fuel tank Tank content
Fuel gauge ....................................... 33
Technical data
Capacities ...................................... 387
Emergency spare wheel ................. 382
Information .................................... 384
Tires/wheels ................................. 372
Vehicle data ................................... 392
Telephone
Accepting a cal l............................. 234
Display message ............................ 272
Menu (on-board computer) ............ 233
Number from the phone book ........ 234
Redialing ........................................ 234
Rejecting/ending a call ................. 234
Temperature
Coolant .......................................... 226
Coolant (on-board computer,
AMG vehicles) ................................ 242
Engine oil (on-board computer,
AMG vehicles) ................................ 242
Outside temperature ...................... 227
Setting (climate control )................ 141
Timing (RACETIMER) ......................... 242
Tire pressure
Calling up (on-board computer) ..... 352
Checking manually ........................ 351
Display message ............................ 267
Maximum ....................................... 350
Not reached (TIREFIT) .................... 330
Note s............................................. 349
Reached (TIREFIT) .......................... 330
Recommended ............................... 348
Tire pressure loss warning system
General notes ................................ 351
Important safety notes .................. 351
Restarting ...................................... 352
Tire pressure monitor
Checking the tire pressure elec-
tronically ........................................ 354
Function/note s............................. 352
General notes ................................ 352
Important safety notes .................. 352
Radio type approval for the tire
pressure monitor ........................... 355
Restarting ...................................... 355
Warning lamp ................................. 283
Warning message .......................... 354 18
Index

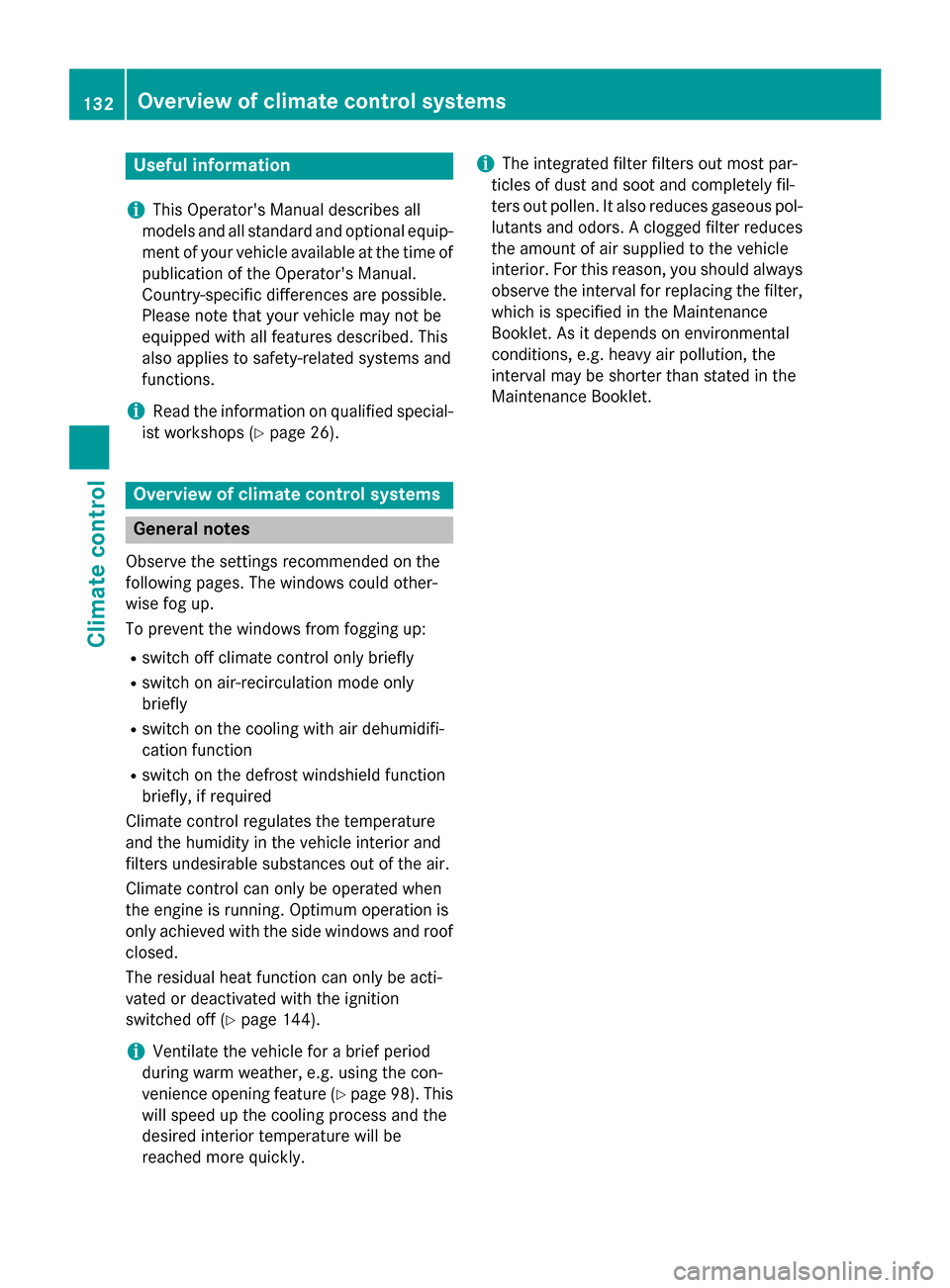

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 26). Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 144).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (Y page 98). This
will speed up the cooling process and the
desired interior temperature will be
reached more quickly. i
The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces the amount of air supplied to the vehicle
interior. For this reason, you should alwaysobserve the interval for replacing the filter,which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet. 132
Overview of climate control systemsClimate control

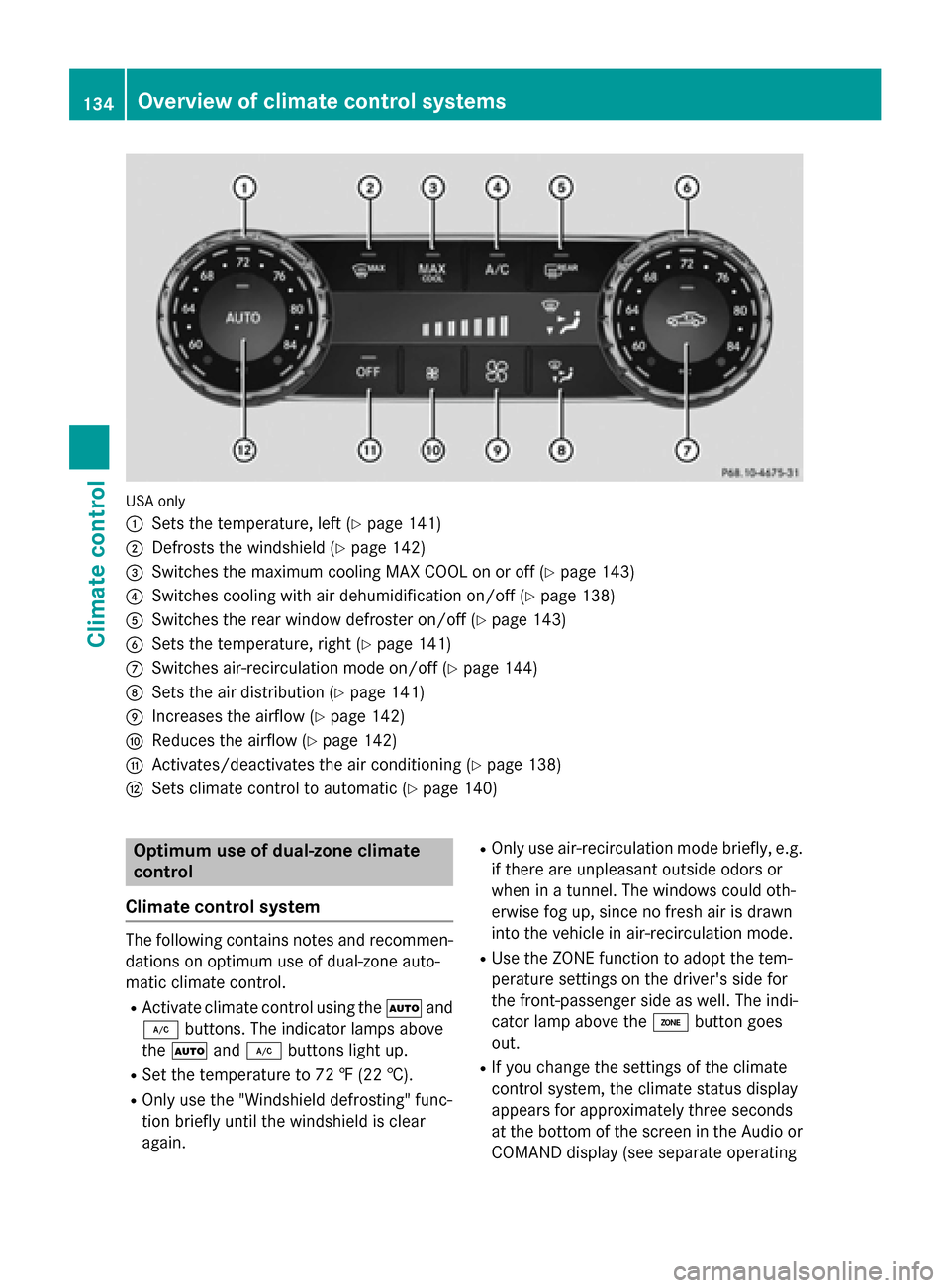

USA only
:
Sets the temperature, left (Y page 141)
; Defrosts the windshield (Y page 142)
= Switches the maximum cooling MAX COOL on or off (Y page 143)
? Switches cooling with air dehumidification on/off (Y page 138)
A Switches the rear window defroster on/off (Y page 143)
B Sets the temperature, right (Y page 141)
C Switches air-recirculation mode on/off (Y page 144)
D Sets the air distribution (Y page 141)
E Increases the airflow (Y page 142)
F Reduces the airflow (Y page 142)
G Activates/deactivates the air conditioning (Y page 138)
H Sets climate control to automatic (Y page 140)Optimum use of dual-zone climate
control
Climate control system The following contains notes and recommen-
dations on optimum use of dual-zone auto-
matic climate control.
R Activate climate control using the Ãand
¿ buttons. The indicator lamps above
the à and¿ buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again. R
Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp above the ábutton goes
out.
R If you change the settings of the climate
control system, the climate status display
appears for approximately three seconds
at the bottom of the screen in the Audio or
COMAND display (see separate operating 134
Overview of climate control systemsClimate control

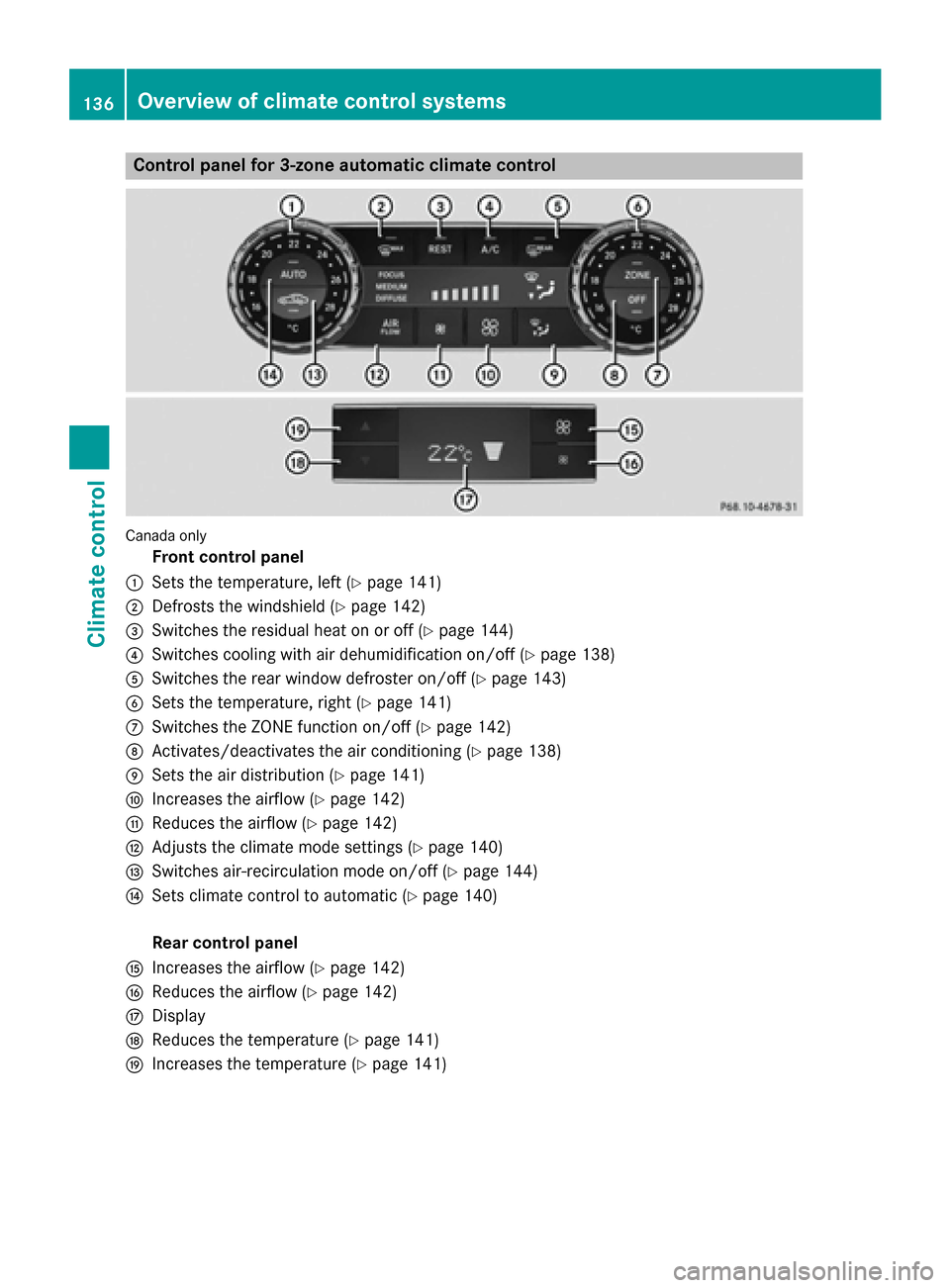

Control panel for 3-zone automatic climate control
Canada only
Front control panel
: Sets the temperature, left (Y page 141)
; Defrosts the windshield (Y page 142)
= Switches the residual heat on or off (Y page 144)
? Switches cooling with air dehumidification on/off (Y page 138)
A Switches the rear window defroster on/off (Y page 143)
B Sets the temperature, right (Y page 141)
C Switches the ZONE function on/off (Y page 142)
D Activates/deactivates the air conditioning (Y page 138)
E Sets the air distribution (Y page 141)
F Increases the airflow (Y page 142)
G Reduces the airflow (Y page 142)
H Adjusts the climate mode settings (Y page 140)
I Switches air-recirculation mode on/off (Y page 144)
J Sets climate control to automatic (Y page 140)
Rear control panel
K Increases the airflow (Y page 142)
L Reduces the airflow (Y page 142)
M Display
N Reduces the temperature (Y page 141)
O Increases the temperature (Y page 141)136
Overview of climate control systemsClimate control

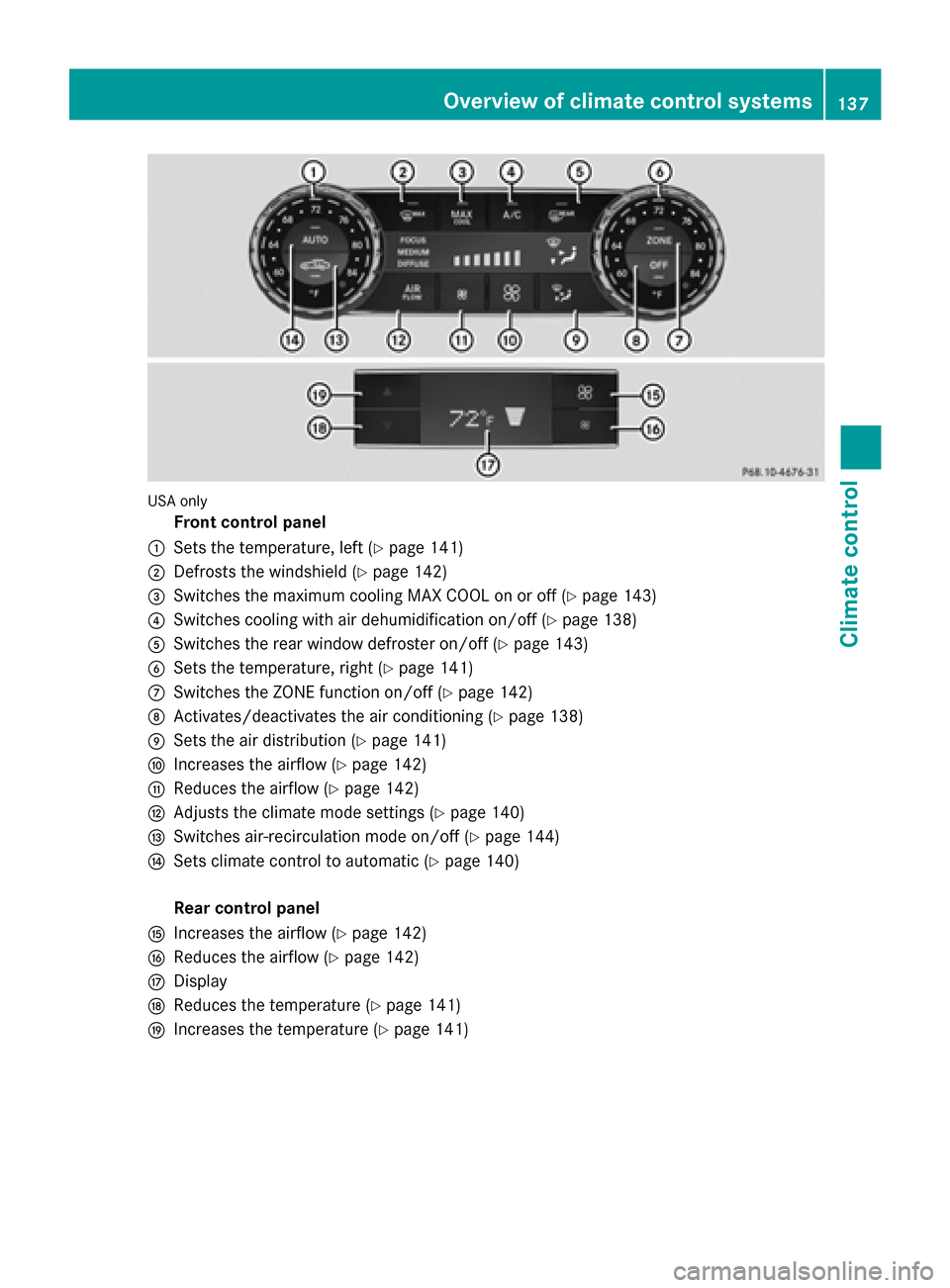

USA only
Front control panel
: Sets the temperature, left (Y page 141)
; Defrosts the windshield (Y page 142)
= Switches the maximum cooling MAX COOL on or off (Y page 143)
? Switches cooling with air dehumidification on/off (Y page 138)
A Switches the rear window defroster on/off (Y page 143)
B Sets the temperature, right (Y page 141)
C Switches the ZONE function on/off (Y page 142)
D Activates/deactivates the air conditioning (Y page 138)
E Sets the air distribution (Y page 141)
F Increases the airflow (Y page 142)
G Reduces the airflow (Y page 142)
H Adjusts the climate mode settings (Y page 140)
I Switches air-recirculation mode on/off (Y page 144)
J Sets climate control to automatic (Y page 140)
Rear control panel
K Increases the airflow (Y page 142)
L Reduces the airflow (Y page 142)
M Display
N Reduces the temperature (Y page 141)
O Increases the temperature (Y page 141) Overview of climate control systems
137Climate control

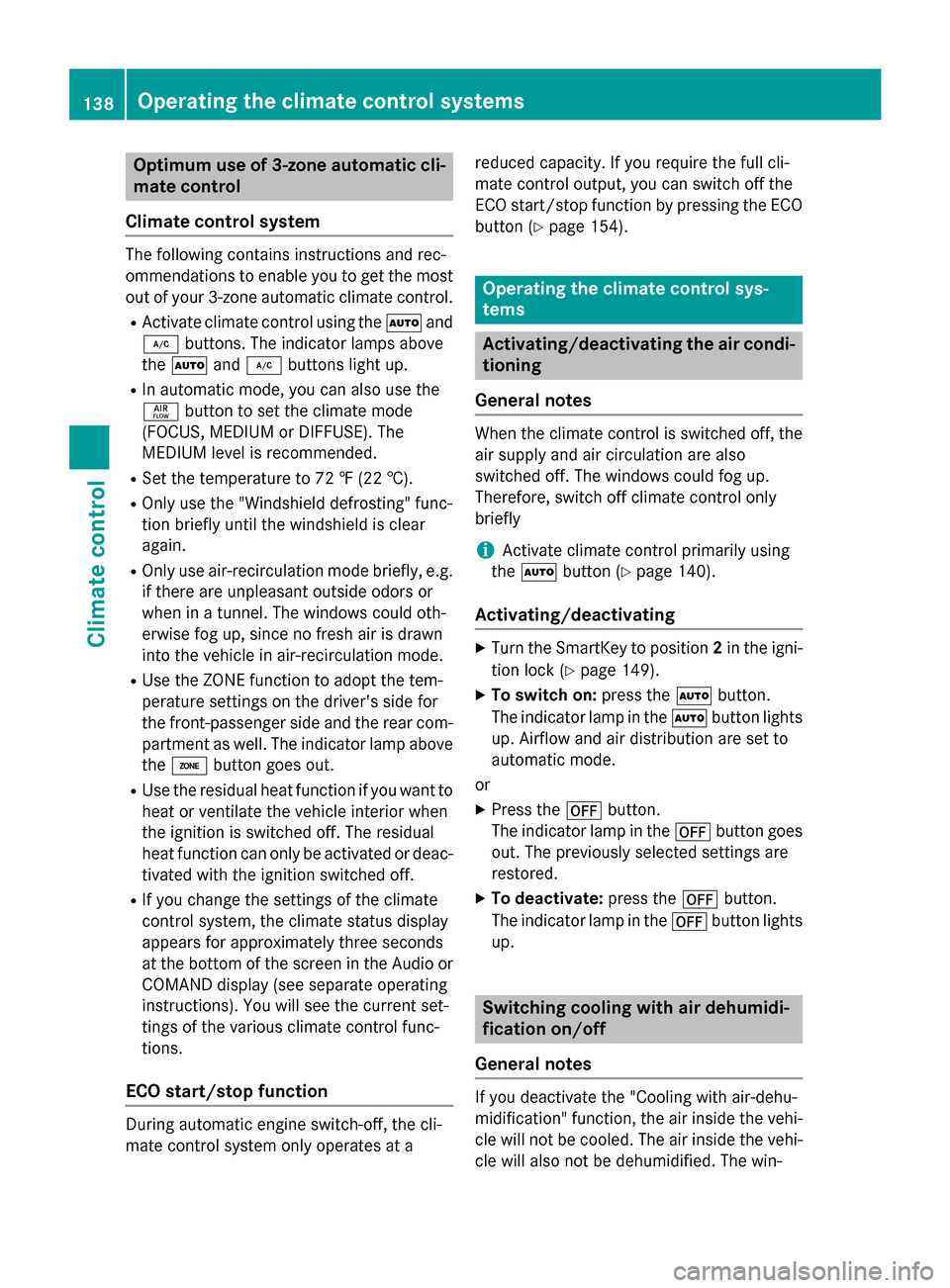

Optimum use of 3-zone automatic cli-
mate control
Climate control system The following contains instructions and rec-
ommendations to enable you to get the most
out of your 3-zone automatic climate control.
R Activate climate control using the Ãand
¿ buttons. The indicator lamps above
the à and¿ buttons light up.
R In automatic mode, you can also use the
ñ button to set the climate mode
(FOCUS, MEDIUM or DIFFUSE). The
MEDIUM level is recommended.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side and the rear com- partment as well. The indicator lamp above
the á button goes out.
R Use the residual heat function if you want to
heat or ventilate the vehicle interior when
the ignition is switched off. The residual
heat function can only be activated or deac-
tivated with the ignition switched off.
R If you change the settings of the climate
control system, the climate status display
appears for approximately three seconds
at the bottom of the screen in the Audio or
COMAND display (see separate operating
instructions). You will see the current set-
tings of the various climate control func-
tions.
ECO start/stop function During automatic engine switch-off, the cli-
mate control system only operates at a reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 154). Operating the climate control sys-
tems Activating/deactivating the air condi-
tioning
General notes When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
i Activate climate control primarily using
the à button (Y page 140).
Activating/deactivating X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X To switch on: press theÃbutton.
The indicator lamp in the Ãbutton lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^button.
The indicator lamp in the ^button goes
out. The previously selected settings are
restored.
X To deactivate: press the^button.
The indicator lamp in the ^button lights
up. Switching cooling with air dehumidi-
fication on/off
General notes If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi- cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win- 138
Operating the climate control systemsClimate control

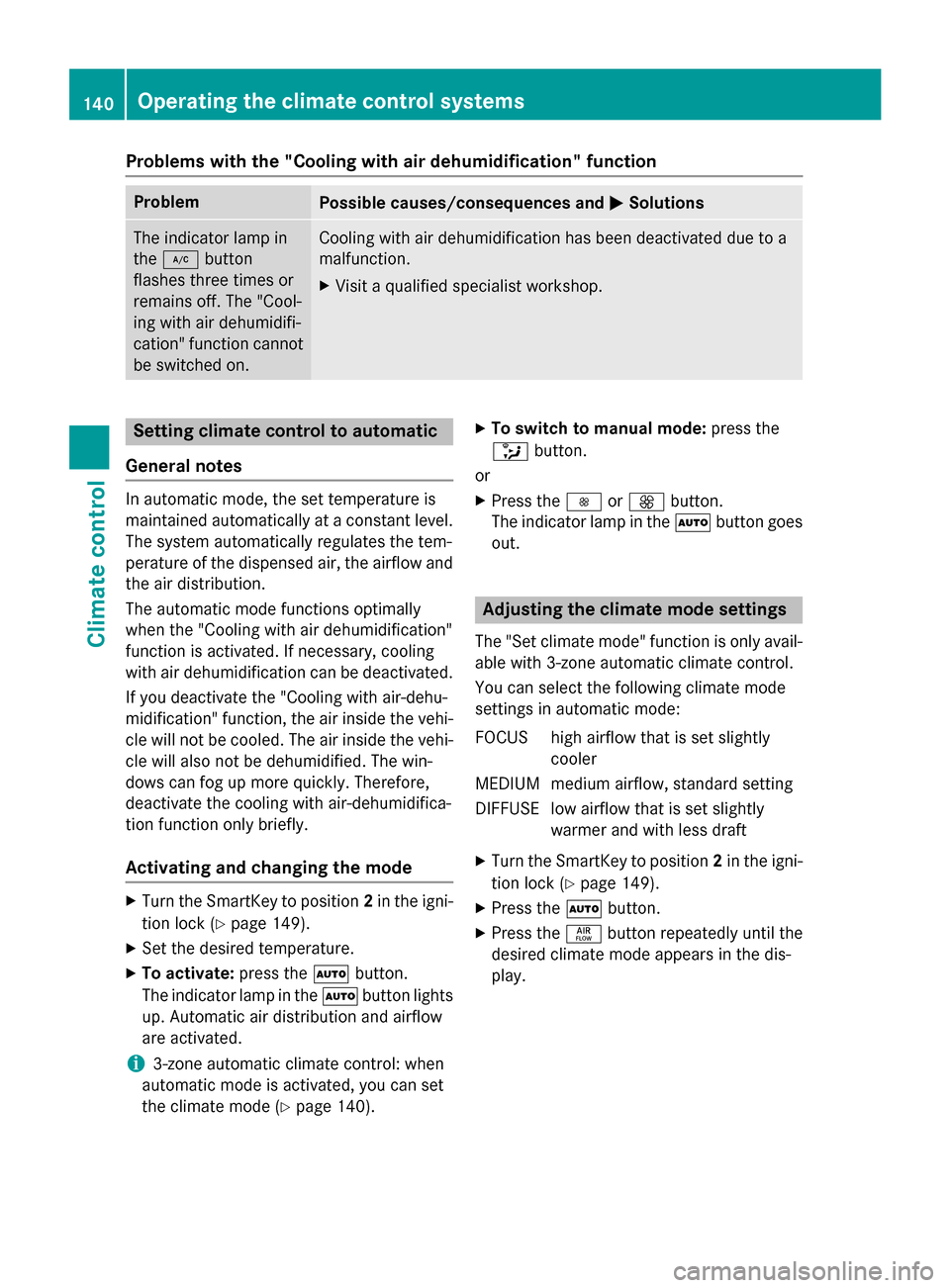

Problems with the "Cooling with air dehumidification" function
Problem
Possible causes/consequences and
M
MSolutions The indicator lamp in
the
¿ button
flashes three times or
remains off. The "Cool-
ing with air dehumidifi-
cation" function cannot
be switched on. Cooling with air dehumidification has been deactivated due to a
malfunction.
X Visit a qualified specialist workshop. Setting climate control to automatic
General notes In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. If necessary, cooling
with air dehumidification can be deactivated.
If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi-
cle will not be cooled. The air inside the vehi- cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore,
deactivate the cooling with air-dehumidifica-
tion function only briefly.
Activating and changing the mode X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X Set the desired temperature.
X To activate: press theÃbutton.
The indicator lamp in the Ãbutton lights
up. Automatic air distribution and airflow
are activated.
i 3-zone automatic climate control: when
automatic mode is activated, you can set
the climate mode (Y page 140). X
To switch to manual mode: press the
_ button.
or X Press the IorK button.
The indicator lamp in the Ãbutton goes
out. Adjusting the climate mode settings
The "Set climate mode" function is only avail-
able with 3-zone automatic climate control.
You can select the following climate mode
settings in automatic mode:
FOCUS high airflow that is set slightly cooler
MEDIUM medium airflow, standard setting
DIFFUSE low airflow that is set slightly warmer and with less draft
X Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X Press the Ãbutton.
X Press the ñbutton repeatedly until the
desired climate mode appears in the dis-
play. 140
Operating the climate control systemsClimate control

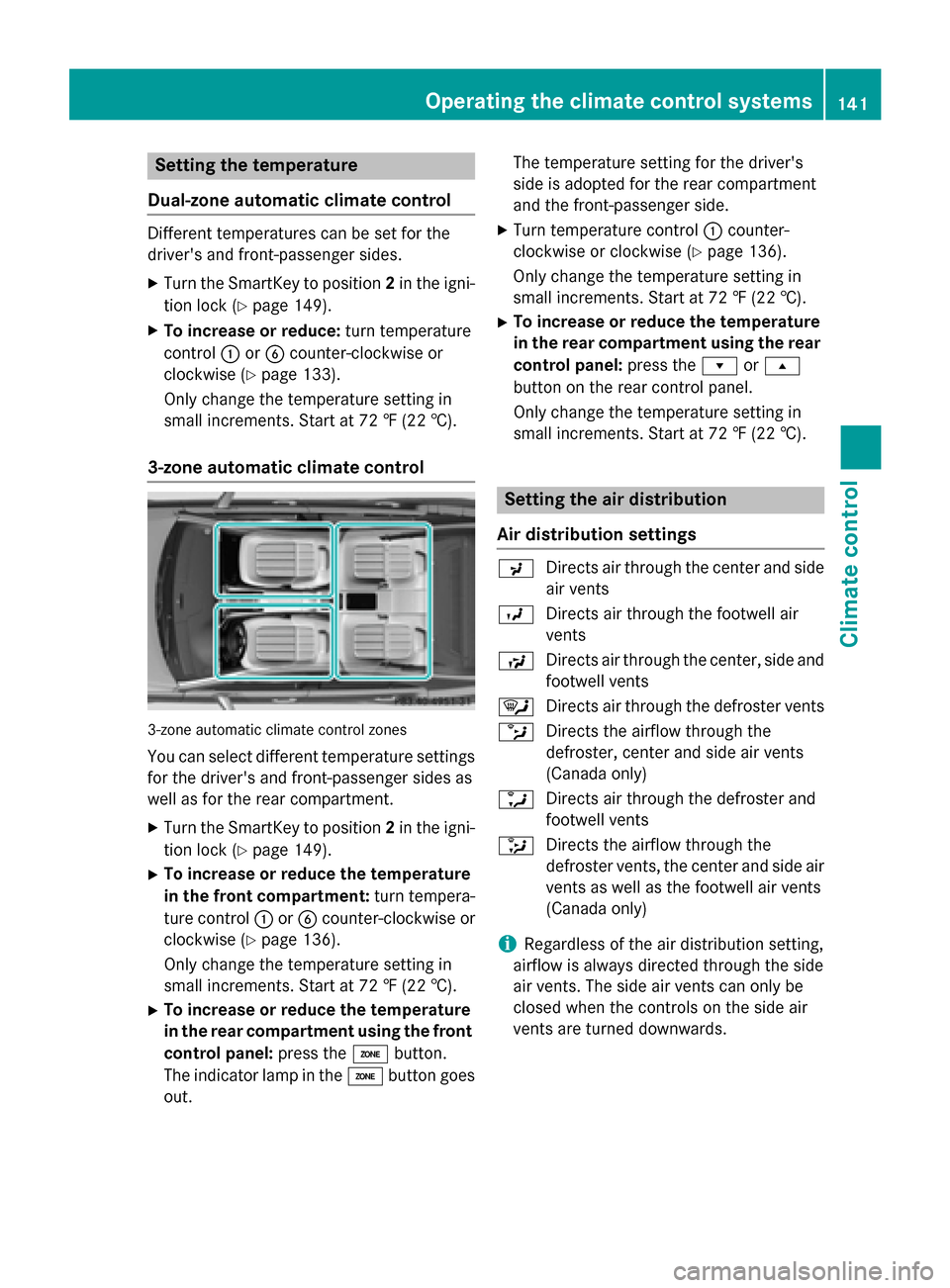

Setting the temperature
Dual-zone automatic climate control Different temperatures can be set for the
driver's and front-passenger sides.
X Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X To increase or reduce: turn temperature
control :orB counter-clockwise or
clockwise (Y page 133).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
3-zone automatic climate control 3-zone automatic climate control zones
You can select different temperature settings for the driver's and front-passenger sides as
well as for the rear compartment.
X Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X To increase or reduce the temperature
in the front compartment: turn tempera-
ture control :orB counter-clockwise or
clockwise (Y page 136).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
X To increase or reduce the temperature
in the rear compartment using the front
control panel: press theábutton.
The indicator lamp in the ábutton goes
out. The temperature setting for the driver's
side is adopted for the rear compartment
and the front-passenger side.
X Turn temperature control :counter-
clockwise or clockwise (Y page 136).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
X To increase or reduce the temperature
in the rear compartment using the rear
control panel: press therors
button on the rear control panel.
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †). Setting the air distribution
Air distribution settings P
Directs air through the center and side
air vents
O Directs air through the footwell air
vents
S Directs air through the center, side and
footwell vents
¯ Directs air through the defroster vents
b Directs the airflow through the
defroster, center and side air vents
(Canada only)
a Directs air through the defroster and
footwell vents
_ Directs the airflow through the
defroster vents, the center and side air
vents as well as the footwell air vents
(Canada only)
i Regardless of the air distribution setting,
airflow is always directed through the side
air vents. The side air vents can only be
closed when the controls on the side air
vents are turned downwards. Operating the climate control systems
141Climate control

Setting the air distribution
X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X Press the _button repeatedly until the
desired symbol appears in the display. Setting the airflow
X Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X To increase: press theKbutton.
X To reduce: press theIbutton.
i You can use 3-zone automatic climate
control to set the airflow in the rear com-
partment separately.
If the battery is not sufficiently charged,
blower output may be reduced. As soon as
the battery is sufficiently charged, full blower output will be available. Switching the ZONE function on/off
X To activate: press theábutton.
The indicator lamp in the ábutton lights
up.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side.
3-zone automatic climate control: the tem-
perature setting for the driver's side is not
adopted for the front-passenger side and
the rear compartment.
X To deactivate: press theábutton.
The indicator lamp in the ábutton goes
out.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side.
3-zone automatic climate control: the tem- perature setting for the driver's side is
adopted for the front-passenger side and
the rear compartment. Defrosting the windshield
You can use this function to defrost the wind-
shield or to defrost the inside of the wind-
shield and the side windows.
Switch off the "Windshield defrosting" func-
tion as soon as the windshield is clear again.
X Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X To activate: press the¬button.
The indicator lamp in the ¬button lights
up.
The climate control system switches to the
following functions:
R high airflow
R high temperature
R air distribution to the windshield and
front side windows
R air-recirculation mode off
If the battery is not sufficiently charged,
blower output may be reduced. Once the bat- tery is sufficiently charged again, full blower
output will be available again.
X To deactivate: press the¬button.
The indicator lamp in the ¬button goes
out. The previously selected settings are
restored. Air-recirculation mode remains
deactivated.
or X Press the Ãbutton.
The indicator lamp in the ¬button goes
out. Airflow and air distribution are set to
automatic mode.
or
X Dual-zone automatic climate control: turn
temperature control :orB counter-
clockwise or clockwise (Y page 133).
3-zone automatic climate control: turn tem- perature control :orB counter-clock-
wise or clockwise (Y page 136).
or
X Press the KorI button. 142
Operating the climate control systemsClimate control

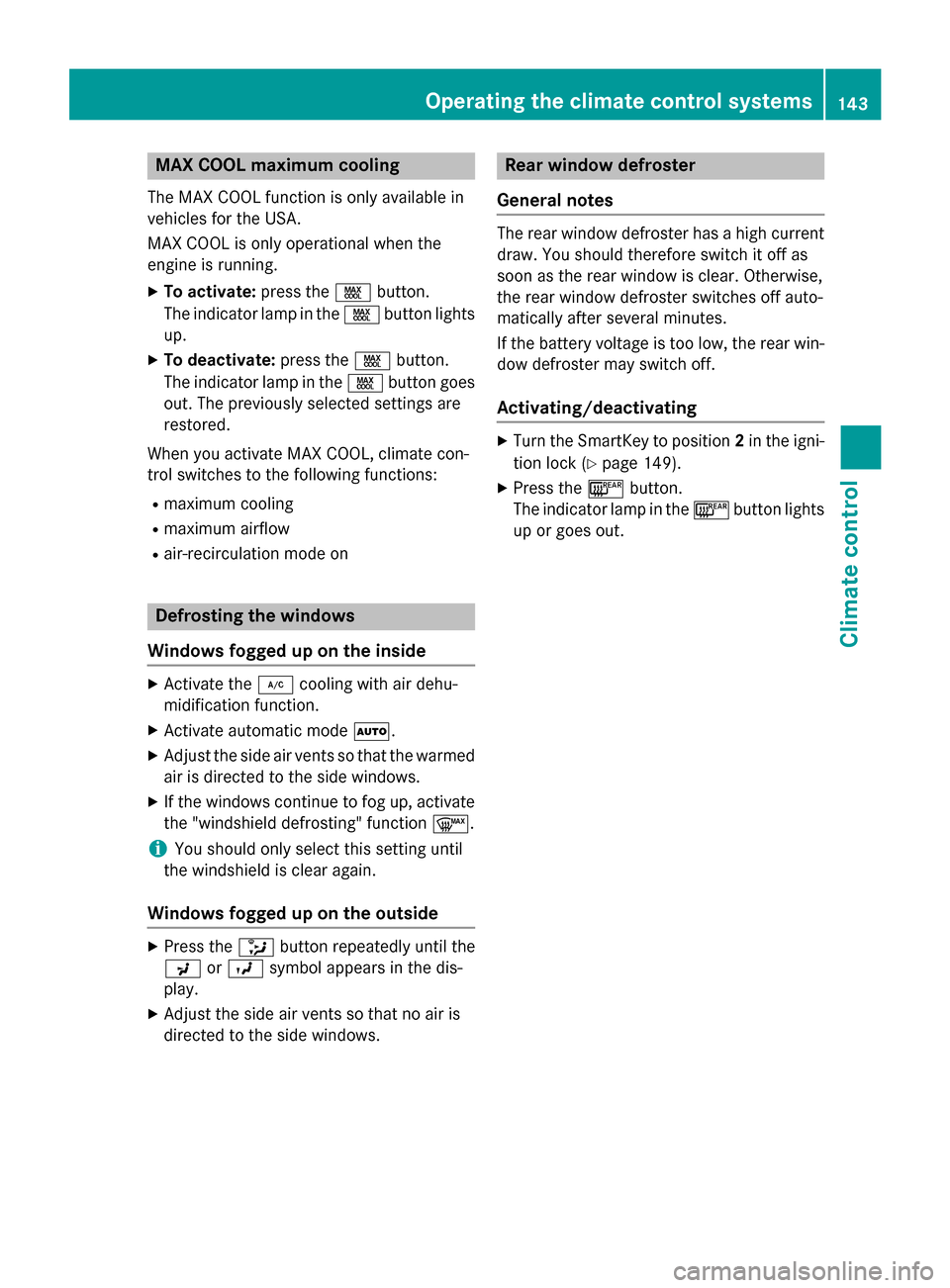

MAX COOL maximum cooling
The MAX COOL function is only available in
vehicles for the USA.
MAX COOL is only operational when the
engine is running. X To activate: press theÙbutton.
The indicator lamp in the Ùbutton lights
up.
X To deactivate: press theÙbutton.
The indicator lamp in the Ùbutton goes
out. The previously selected settings are
restored.
When you activate MAX COOL, climate con-
trol switches to the following functions: R maximum cooling
R maximum airflow
R air-recirculation mode on Defrosting the windows
Windows fogged up on the inside X
Activate the ¿cooling with air dehu-
midification function.
X Activate automatic mode Ã.
X Adjust the side air vents so that the warmed
air is directed to the side windows.
X If the windows continue to fog up, activate
the "windshield defrosting" function ¬.
i You should only select this setting until
the windshield is clear again.
Windows fogged up on the outside X
Press the _button repeatedly until the
P orO symbol appears in the dis-
play.
X Adjust the side air vents so that no air is
directed to the side windows. Rear window defroster
General notes The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the rear window is clear. Otherwise,
the rear window defroster switches off auto-
matically after several minutes.
If the battery voltage is too low, the rear win-
dow defroster may switch off.
Activating/deactivating X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 149).
X Press the ¤button.
The indicator lamp in the ¤button lights
up or goes out. Operating the climate control systems
143Climate control
