290 OperationAt the gas stationRefueling
The fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking / unlocking the vehicle with
the remote control automatically
locks / unlocks the fuel filler flap.1To open the fuel filler flap
2Fuel filler cap
3To insert the fuel filler cap

Turn the engine off

by turning the SmartKey to
position0.


by pressing the KEYLESS-GO*
start/stop button. Open the driv-
er’s door (with the driver’s door
open, starter switch is now in
position0, same as SmartKey
removed from starter switch).

Remove the SmartKey from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow1.
The fuel filler flap springs open.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in direction
of arrow2 in the recess3 on the fuel
filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.

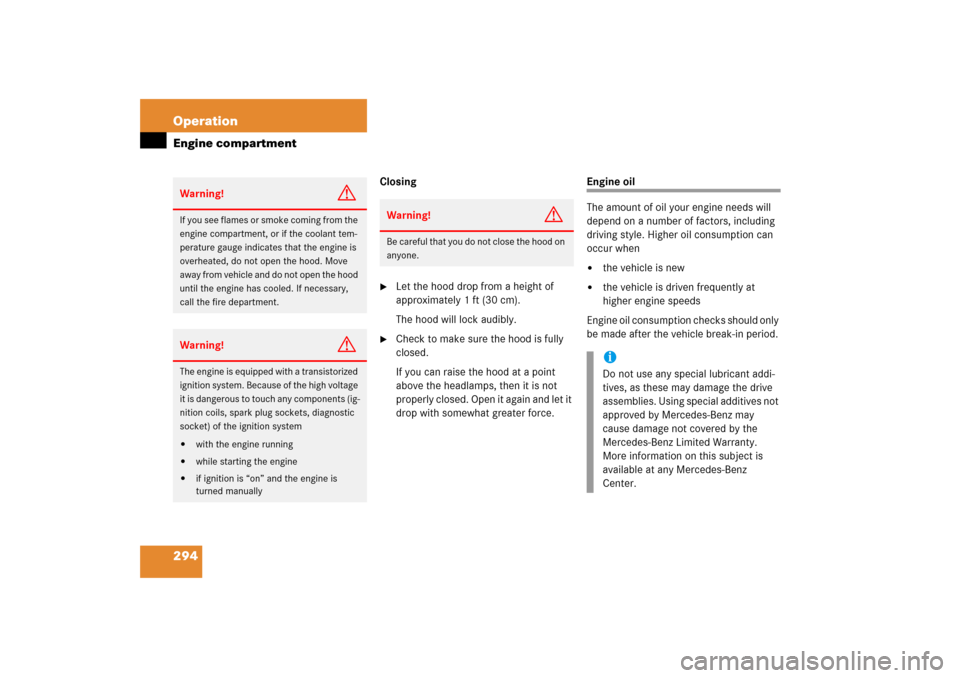

Warning!
G
Gasoline fuel is highly flammable and poi-
sonous. It burns violently and can cause
serious injury. Whenever you are around
gasoline fuel, avoid inhaling fumes and skin
contact, extinguish all smoking materials.
Never allow sparks, flame or smoking mate-
rials near gasoline fuel!

291 Operation
At the gas station

Replace fuel cap by turning it clockwise
until it audibly engages.

Close the fuel filler flap.

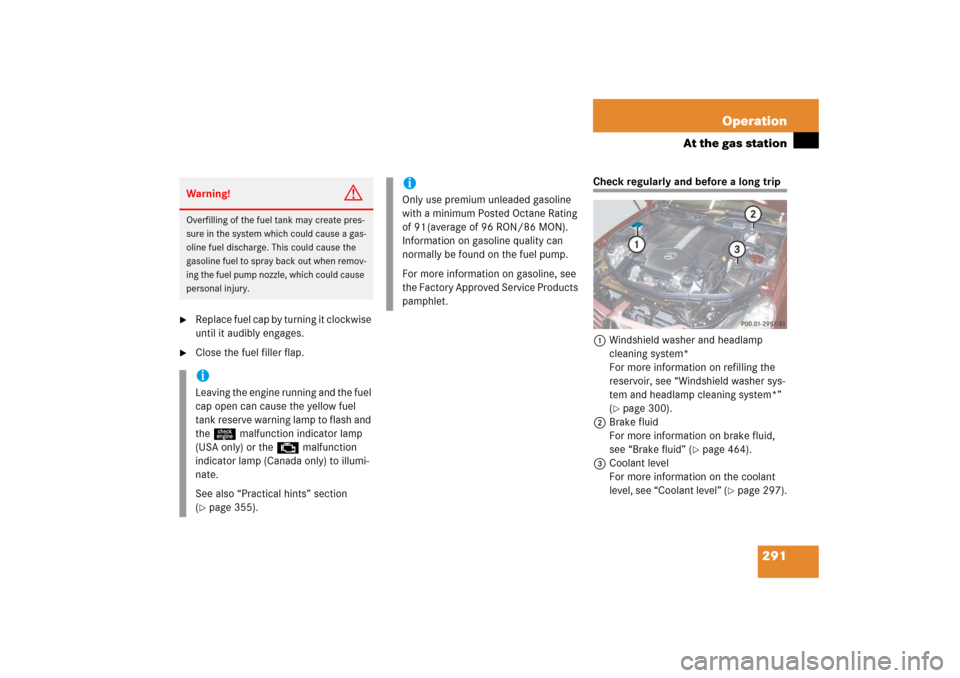

Check regularly and before a long trip
1Windshield washer and headlamp
cleaning system*
For more information on refilling the
reservoir, see “Windshield washer sys-
tem and headlamp cleaning system*”
(
page 300).
2Brake fluid
For more information on brake fluid,
see “Brake fluid” (
page 464).
3Coolant level
For more information on the coolant
level, see “Coolant level” (
page 297).
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas-
oline fuel discharge. This could cause the
gasoline fuel to spray back out when remov-
ing the fuel pump nozzle, which could cause
personal injury.iLeaving the engine running and the fuel
cap open can cause the yellow fuel
tank reserve warning lamp to flash and
the úmalfunction indicator lamp
(USA only) or the ±malfunction
indicator lamp (Canada only) to illumi-
nate.
See also “Practical hints” section
(page 355).
iOnly use premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON/86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
For more information on gasoline, see
the Factory Approved Service Products
pamphlet.

292 OperationAt the gas station
Engine oil level
For more information on engine oil level,
see “Engine oil” (
page 294).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
the “Practical hints” section (
page 411).
For more information, see “Exterior lamp
switch” (
page 134).Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 313).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 354).

293 Operation
Engine compartment
Engine compartment

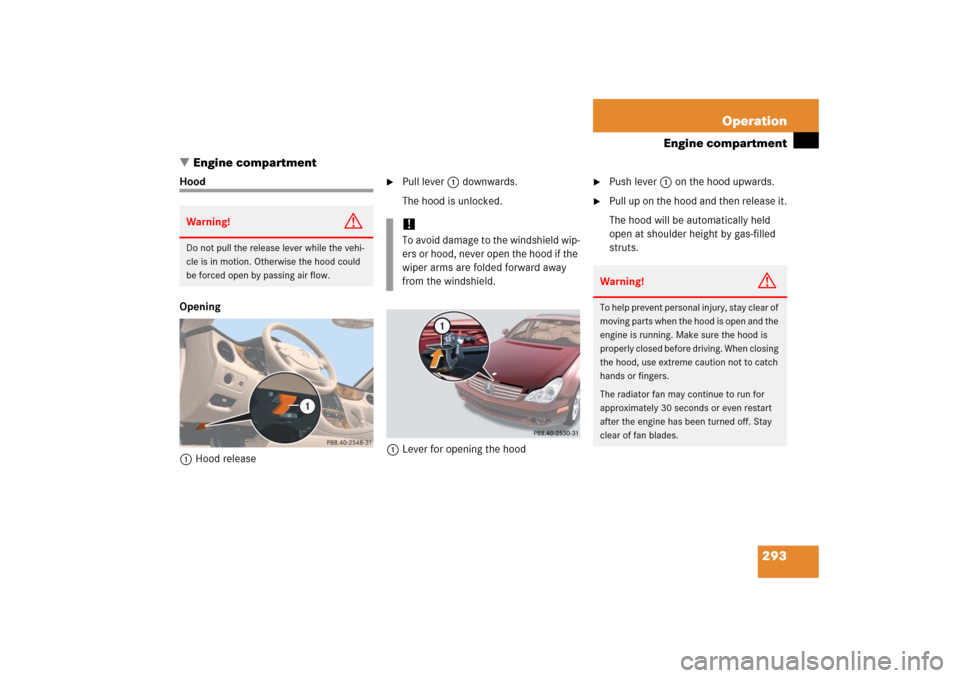

Hood
Opening
1Hood release

Pull lever1 downwards.
The hood is unlocked.
1Lever for opening the hood

Push lever1 on the hood upwards.

Pull up on the hood and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for
approximately 30 seconds or even restart
after the engine has been turned off. Stay
clear of fan blades.

294 OperationEngine compartment
Closing
Let the hood drop from a height of
approximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
More information on this subject is
available at any Mercedes-Benz
Center.

295 Operation
Engine compartment
Checking engine oil level with the
control system
When checking the oil level

the vehicle must be parked on level
ground


with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least 5 minutes with
the engine turned off


with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned off
To check the engine oil level via the multi-
function display, do the following:

Switch on the ignition (
page 36).
The standard display (
page 147) should
appear in the multifunction display.

Press buttonk or j, on the
multifunction steering wheel until the
following message is seen in the multi-
function display:One of the following messages will
subsequently appear in the multifunc-
tion display:


Engine oil level ok


Add 1.0 Qt.to reach max. oil level
(Canada:
1.0 Liter
)


Add 1.5 Qts.
to reach max. oil level
to reach
max. oil level
(Canada:
1.5 Liters
)


Add 2.0 Qts.
to reach max. oil level
to reach
max. oil level
(Canada:
2.0 Liters
)

If necessary, add engine oil.
For adding engine oil, see (
page 296).
For more information on engine oil, see the
“Technical data” section (
page 461) and
(
page 464).
Other display messages
If the SmartKey or KEYLESS-GO start/stop
button* is not in position2, the following
message will appear:
Switch on ignition
to check engine oil level
Switch on the ignition (
page 36).
If you see the message:
Observe waiting period
iIf you want to interrupt the checking
procedure, press thek orj
button on the multifunction steering
wheel.

296 OperationEngine compartment
If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message:
Engine oil level
Not when engine on
Turn off the engine.

If the engine is at normal operating
temperature, wait 5 minutes before
checking oil.

If the engine is not yet at normal
operating temperature, you must wait
30 minutes before checking oil.If there is excess engine oil with the engine
at normal operating temperature, the
following message will appear:
Engine oil level
Reduce oil level
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 382). Adding engine oil!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Only use approved engine oils and oil
filters required for vehicles with Main-
tenance System (U.S. vehicles) or
FSS PLUS (Canada vehicles). For a list-
ing of approved engine oils and oil fil-
ters, refer to the Factory Approved
Service Products pamphlet in your
vehicle literature portfolio, or contact
an authorized Mercedes-Benz Center.
Using engine oils and oil filters of spec-
ification other than those expressly
required for the Maintenance System
(U.S. vehicles) or FSS PLUS (Canada
vehicles), or changing of oil and oil filter
at change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS PLUS (Canada
vehicles) will result in engine damage
not covered by the Mercedes-Benz
Limited Warranty.

297 Operation
Engine compartment
CLS 500, CLS 55 AMG1Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 461) and
(
page 464).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

298 OperationEngine compartment

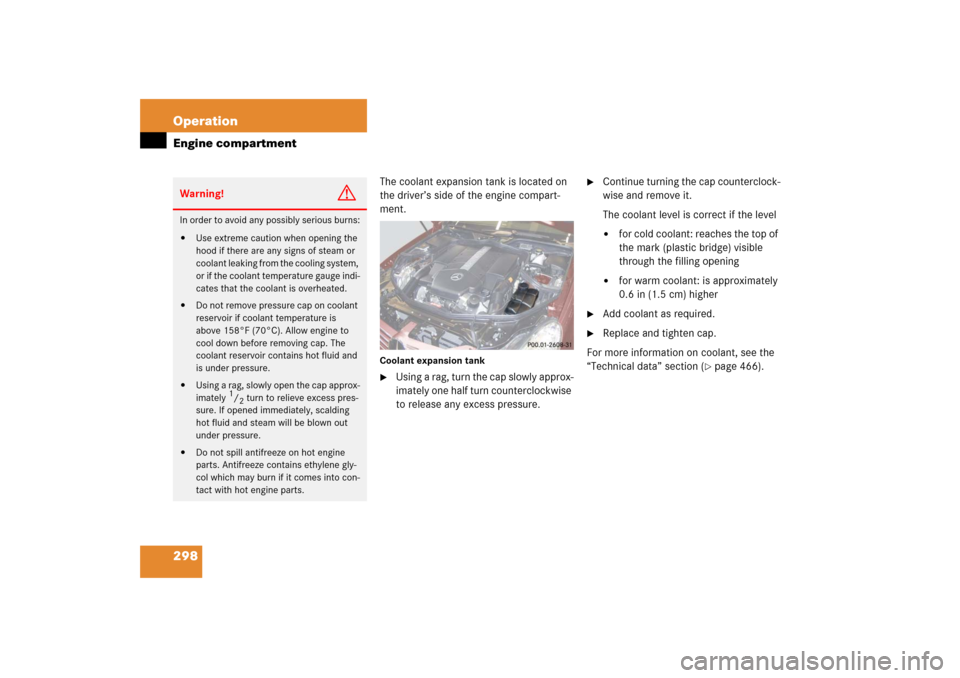

The coolant expansion tank is located on
the driver’s side of the engine compart-
ment.Coolant expansion tank
Using a rag, turn the cap slowly approx-
imately one half turn counterclockwise
to release any excess pressure.

Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level

for cold coolant: reaches the top of
the mark (plastic bridge) visible
through the filling opening


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information on coolant, see the
“Technical data” section (
page 466).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out
under pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

299 Operation
Engine compartment
Battery
Your vehicle is equipped with two batter-
ies:

Auxiliary battery (located in the engine
compartment).


Main battery (starter and electrical
consumers; located in the trunk)
(page 431).
The batteries should always be sufficiently
charged in order to achieve their rated ser-
vice life. Refer to Maintenance Booklet for
battery maintenance intervals.
If you use your vehicle mostly for short-dis-
tance trips, you will need to have the bat-
tery charge checked more frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
G

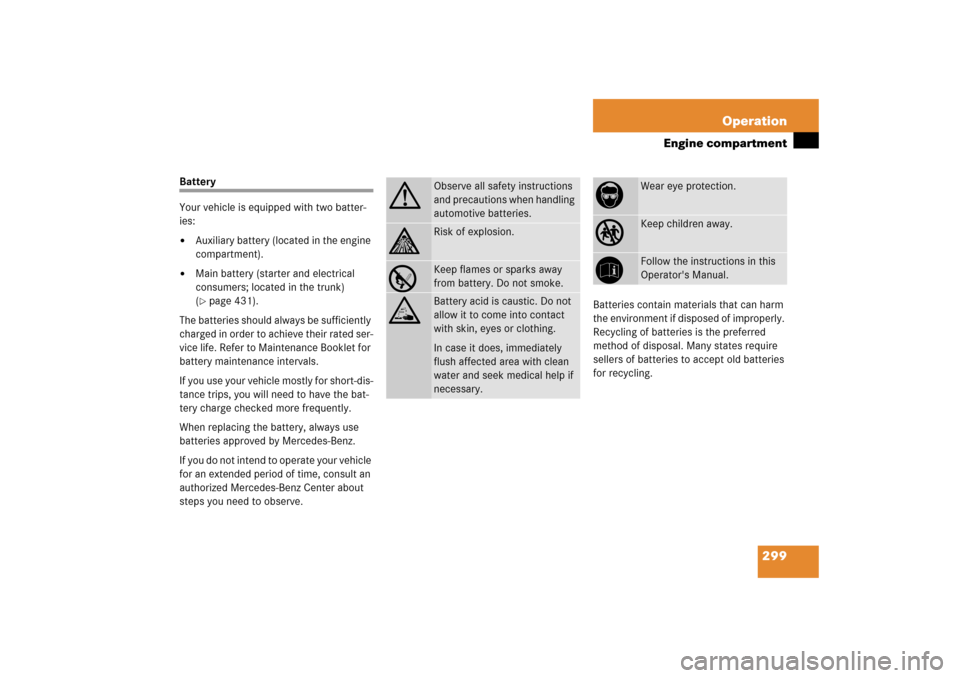

Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion.
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clean
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.
