MERCEDES-BENZ CLS500 2008 W219 Owner's Manual

200 Controls in detail
4-zone automatic climate control
Convenience closing
Press button, (page 190) or
(
page 191) for approximately
2 seconds.
The windows and tilt/sliding sunroof
will close. You can release button,
once the closing procedure has begun.
The windows and tilt/sliding sunroof
continue closing until they are fully
closed. The indicator lamp on the but-
ton comes on. The air recirculation
mode is activated.Convenience opening
Press button, for approximately
2 seconds.
The windows and tilt/sliding sunroof
will return to their previous position.
You can release button, once the open-
ing procedure has begun. The windows
and tilt/sliding sunroof continue open-
ing until they have reached their previ-
ous position. The indicator lamp on the
button goes out. The air recirculation
mode is deactivated.Combination filter with
pollutant-sensitive air-recirculation
mode
The combination filter reduces pollutants
and unpleasant odors in the outside air.
The pollutant-sensitive air-recirculation
mode automatically switches off the
supply of outside air when pollutants are
detected in the air.
iA window or tilt/sliding sunroof will only re-
turn to its previous position if it has not been
moved to another position using the respective
window switch or tilt/sliding sunroof switch af-
ter it was closed with button,.
A window or tilt/sliding sunroof that has been
moved will remain in its current position if
button, is used to re-open the remaining
windows or tilt/sliding sunroof.
iThe pollutant-sensitive air-recirculation
mode is not possible if you have switched off the
air conditioning or if the temperature falls below
41°F (5°C).

201 Controls in detail
4-zone automatic climate control
Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.
Press button2 (page 190) or
(
page 191).
The indicator lamp on the button goes
out.
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Press button2 (page 190) or
(
page 191) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.Residual heat and ventilation
(Canada only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
iCondensation may drip out from underneath
the vehicle. This is normal and not an indication
of a malfunction.
Warning!G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.
!If the air conditioning cannot be turned on
again, this indicates that the air conditioning is
losing refrigerant. The compressor has turned it-
self off.
Have the air conditioning checked at the nearest
authorized Mercedes-Benz Center.
iIf you switch on the residual heat function
when temperatures are high, only the ventilation
will be switched on.
iRegardless of the selected air volume, the
blower operates at low speed.

202 Controls in detail
4-zone automatic climate control
Activating
Switch off the ignition.
Press buttonT (page 191).
REST in display4 (page 191) comes
on.
Deactivating
Press buttonT (page 191) again.
REST in display4 (page 191) goes
out.
Rear climate control
The rear climate control is adjusted via the
front climate control panel (
page 190) or
(
page 191) or the rear climate control
panel.
The rear climate control panel is located in
the rear center console.
iHow long the system will provide heating de-
pends on

the coolant temperature

the temperature set by the operator
The blower will run at speed setting1 regardless
of the air distribution control setting.
iThe residual heat is automatically turned off:

when the ignition is switched on

after about 30 minutes

if the battery voltage drops

if the coolant temperature is too low
1Left rear center air vent, adjustable
2Right rear center air vent, adjustable
3Thumbwheel for air volume control
for right rear center air vent
4Temperature rocker switch, right
5Display
6Temperature rocker switch, left
7Thumbwheel for air volume control
for left rear center air vent

203 Controls in detail
4-zone automatic climate control
Setting the temperature
Use temperature control rocker
switches4 and6 to separately adjust
the air temperature on each side of the
rear passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C). The adjusted tem-
perature appears in display5. The rear
climate control will adjust to the set tem-
perature as fast as possible.
1Temperature, left
2Temperature, rightAdjust the temperature to the desired
setting for each side of the passenger
compartment using the left and right
temperature control rocker switches.
The temperature in the rear passenger
compartment is adjusted automatical-
ly.
Adjusting air distribution
Move the slider for the left center
vent1 or right center vent2 to the
left, right, up, or down.
The air flow is directed in the
corresponding direction.Adjusting air volume
Turn thumbwheel3 or7
(
page 202) up or down.
The air volume is increased or
decreased.
Adjusting the rear settings with the
front control panel
You can adjust the temperature for the
rear climate control from the front climate
control panel.
Press button™ or 5
(
page 190) or (page 191).
The display switches over.
1Rear climate control display
iYou can also adjust the rear temperature us-
ing the front climate control panel (
page 190)
or (
page 191).iThe rear climate control will not cool the air
when the air conditioning is switched off
(
page 201).
iFor draft-free ventilation, push slides1
and2 (
page 202) upward.


204 Controls in detail
4-zone automatic climate control
Set the desired temperature for the
rear passenger compartment using the
temperature rocker switches
(
page 190) or (page 191).
After approximately 5 seconds after
the last adjustment, the display switch-
es back to its standard display.Front center console storage compart-
ment ventilation
The front center console storage compart-
ment under the armrest has its own air
vent. The air temperature is about the
same as that of the dashboard air vents.
The lever is located in the front center
vent.
1Lever
To open air vent slide the lever1 up.
To close air vent slide the lever1
down.
iYou can also press button™ or5
(
page 190) or (page 191) once more to
switch back to the standard display.
iThe compartment can get very warm due to
its confined space. When storing heat sensitive
objects (e.g. groceries) in the compartment,
close the air vent while heating the passenger
compartment.

205 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. The switches for all of the side
windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
doors.
1Rear window override switch
(
page 87)
2Right front window
3Right rear window
4Left rear window
5Left front window
Warning!G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the door windows can be
immediately halted by releasing the switch
or, if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
The door windows are equipped with the
express-close and automatic reversal func-
tion. If the window encounters an obstruc-
tion that blocks its path in a circumstance
where you pulled the switch past the resis-
tance point and released it to close the win-
dow, the automatic reversal function will
stop the window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button‹ on the SmartKey, by pressing
and holding the lock button (vehicles with
KEYLESS-GO*) on an outside door handle,
the automatic reversal function will not op-
erate.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.

206 Controls in detail
Power windows
Switch on the ignition (page 38).
Opening the windows
Press switch2 to 5 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.Closing the windows
Pull switch2 to 5 to the resistance
point.
The corresponding window will move
upwards until you release the switch.
iYou can also open or close the windows us-
ing the SmartKey, see “Summer opening fea-
ture” (
page 208) and “Convenience closing
feature” (
page 208).
Depending on current position, the windows may
also open or close when the air recirculation
button, in the automatic climate control
(
page 191) or (page 190) is pressed and
held.
iOperating the windows from the rear is not
possible if you activate the override switch
(
page 87).
iWith the SmartKey in starter switch
position0 or removed from the starter switch,
the power windows can be operated:

until you open the driver’s or front passen-
ger’s door

for at least 5 minutes if no door was opened
Warning!G
If you pull and hold the switch up when clos-
ing the window, and upward movement of
the window is blocked by some obstruction
including but not limited to arms, hands, fin-
gers, etc., the automatic reversal will not op-
erate.

207 Controls in detail
Power windows
Fully opening the windows
(Express-open)
Press switch2 to 5 past the resis-
tance point and release.
The corresponding window opens com-
pletely.
Fully closing the windows
(Express-close)
Pull switch2 to 5 past the resis-
tance point and release.
The corresponding window closes com-
pletely.Stopping windows during Express-op-
eration
Press or pull the respective power win-
dow switch again.
Synchronizing power windows
The power windows must be synchronized

after the battery has been disconnect-
ed

if the power windows cannot be fully
opened (Express-open) or closed
(Express-close)
Synchronizing
Close all doors.
Switch on the ignition (page 38).
Pull switch2 to 5 until the side win-
dows are completely closed.
Hold on to switches2 to 5 for
approximately 1 second.
The power windows are synchronized.Warning!G
Driver’s door only:
If within 5 seconds switch is again pulled
past the resistance point and released, the
automatic reversal will not operate.
!If the upward movement of the window is
blocked during the closing procedure, the win-
dow will stop and open slightly.
Remove the obstruction, pull the respective pow-
er window switch again past the resistance point
and release.
If the window still does not close when there is
no obstruction, pull and hold the respective pow-
er window switch. The side window will then
close without the obstruction sensor function.

208 Controls in detail
Power windows
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the tilt/sliding sunroof

turning on the seat ventilation* for the
driver’s seat
SmartKey
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s outside door handle.
Press and hold buttonΠuntil the
windows and the tilt/sliding sunroof
have reached the desired position.
Release buttonΠto interrupt pro-
cedure.
Convenience closing feature
When you lock the vehicle, you can close
the windows, tilt/sliding sunroof simulta-
neously.
Aim transmitter eye of the SmartKey at
the driver’s outside door handle
(
page 208). The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s out-
side door handle.
Press and hold button‹ until the
windows, the tilt/sliding sunroof are
completely closed.
iThe seat ventilation* for the driver’s seat is
automatically set to the highest level if activated
via summer opening feature.

209 Controls in detail
Power windows

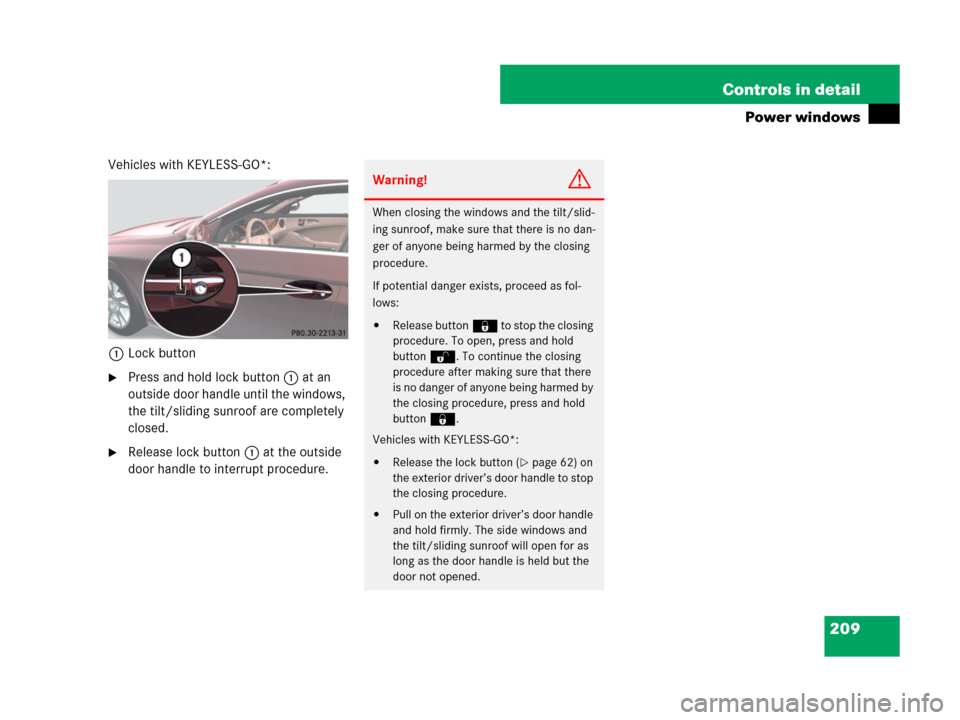

Vehicles with KEYLESS-GO*:
1Lock button
Press and hold lock button1 at an
outside door handle until the windows,
the tilt/sliding sunroof are completely
closed.
Release lock button1 at the outside
door handle to interrupt procedure.
Warning!G
When closing the windows and the tilt/slid-
ing sunroof, make sure that there is no dan-
ger of anyone being harmed by the closing
procedure.
If potential danger exists, proceed as fol-
lows:

Release button‹ to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button‹.
Vehicles with KEYLESS-GO*:

Release the lock button (page 62) on
the exterior driver’s door handle to stop
the closing procedure.

Pull on the exterior driver’s door handle
and hold firmly. The side windows and
the tilt/sliding sunroof will open for as
long as the door handle is held but the
door not opened.
