MERCEDES-BENZ CLS63AMG 2007 W219 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2007, Model line: CLS63AMG, Model: MERCEDES-BENZ CLS63AMG 2007 W219Pages: 481
Page 101 of 481
100 Safety and SecurityAnti-theft systemsArming the alarm system
The indicator lamp located in the central
locking switch in the center console.
1Indicator lamp
Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is
armed. The indicator lamp1 begins to
flash after approximately 30 seconds
after arming the alarm system.
Disarming the alarm system
Unlock the vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey
Insert the SmartKey in the starter
switch.
or
Press button Œ or ‹ on the
SmartKey.
With KEYLESS-GO*
Pull an outside door handle.
The SmartKey with KEYLESS-GO* must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO* start/stop
button (
page 39).
The SmartKey with KEYLESS-GO* must
be inside the vehicle.
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 257) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.
i
If the turn signal lamps do not flash three
times, one of the following elements may not be
properly closed:
a door
the trunk
Close the respective element and lock the vehi-
cle again.
i
The alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the trunk was opened.
Page 102 of 481

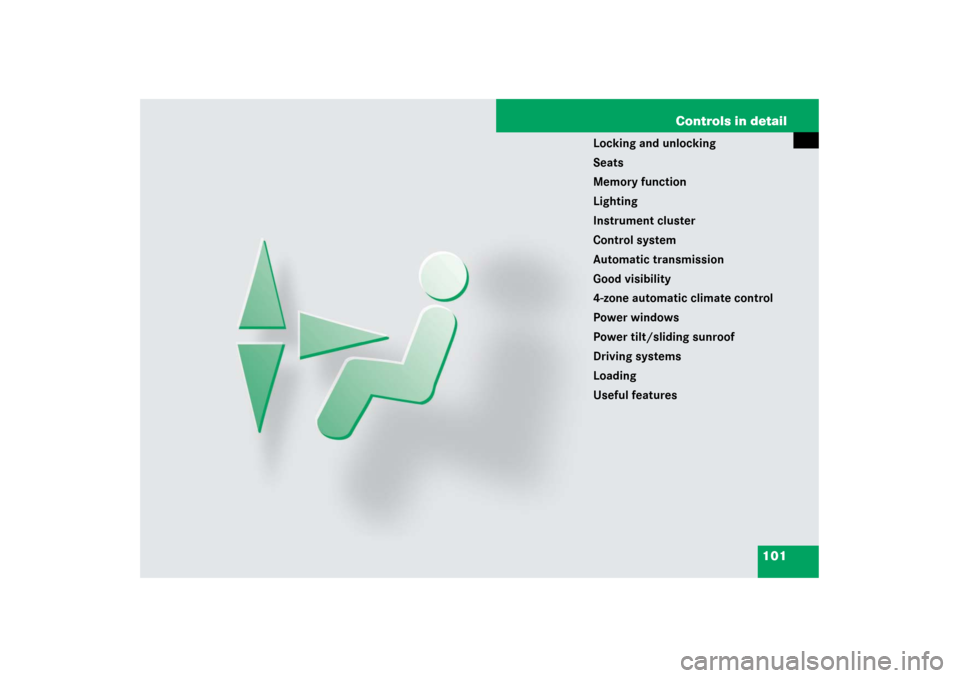

101 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
4-zone automatic climate control
Power windows
Power tilt/sliding sunroof
Driving systems
Loading
Useful features
Page 103 of 481
102 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
For more information on locking and
unlocking, see “Getting started”
(page 36) and (
page 59).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a differ-
ent color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:
the doors
the trunk
the fuel filler flap
SmartKey with remote control1‹Lock button
2ŠOpening button for trunk
(
page 112)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 90)
!
To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.
Page 104 of 481
103 Controls in detail
Locking and unlocking
Factory setting
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.i
When you open a door, the side window on
that side lowers slightly. Once you close the
door, the window moves up again.
!
The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
You can also open and close the windows
and tilt/sliding sunroof or tilt/sliding panel* us-
ing the SmartKey (
page 210).
!
If you can no longer lock or unlock the vehi-
cle with the SmartKey, then the batteries in the
SmartKey are discharged, the SmartKey is mal-
functioning or the vehicle battery is drained.
Check the batteries in the SmartKey
(page 105) and replace them if necessary
(page 402).
Use the mechanical key to unlock the driv-
er’s door (
page 396) and the trunk
(
page 397).
Have the vehicle battery checked by an au-
thorized Mercedes-Benz Center.
If the SmartKey is malfunctioning, contact an au-
thorized Mercedes-Benz Center.
i
When unlocking or locking the vehicle with
the SmartKey an acoustic signal sounds. The
acoustic signal is activated at the factory. If you
wish to deactivate the feature, or adjust its signal
volume, contact an authorized Mercedes-Benz
Center.
Page 105 of 481
104 Controls in detailLocking and unlockingGlobal unlocking
Press buttonŒ.
All turn signal lamps flash once.
An acoustic signal sounds once.
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of un-
locking if:
neither door nor trunk is opened
the SmartKey is not inserted in the
starter switch
the central locking switch is not
activatedGlobal locking
Press button‹.
With the trunk and all doors closed:
All turn signal lamps flash three
times.
An acoustic signal sounds three
times.
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing buttonŒ only unlocks the driver’s
door, the storage compartment under the
armrest, the glove box, and the fuel filler
flap.
Press and hold buttonsŒand‹
simultaneously for about 5 seconds un-
til battery check lamp5 flashes twice.The SmartKey will then function as
follows:
Unlocking driver’s door and fuel filler
flap
Press buttonΠonce.
All turn signal lamps flash once.
An acoustic signal sounds once.
The locking knob on the driver’s
door move up.
The anti-theft alarm system is dis-
armed.
Global unlocking
Press buttonΠtwice.
All turn signal lamps flash once.
An acoustic signal sounds once.
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
Page 106 of 481
105 Controls in detail
Locking and unlocking
Global locking
Press button‹.
With the trunk and all doors closed:
All turn signal lamps flash three
times.
An acoustic signal sounds three
times.
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 flashes twice.
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are a different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you pull an outside
door handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks
the doors
the trunk
the fuel filler flap
SmartKey with KEYLESS-GO 1‹ Lock button
2Š Opening button for trunk
(
page 112)
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 90)
!
To prevent possible malfunction, avoid ex-
posing the SmartKey with KEYLESS-GO to high
levels of electromagnetic radiation.
Page 107 of 481
106 Controls in detailLocking and unlockingWarning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. It is possible for children
to open a locked door from the inside, which
could result in an accident and/or serious
personal injury.i
When you open a door, the side window on
that side lowers slightly. Once you close the
door, the window moves up again.
!
The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
You can also open and close the windows
and tilt/sliding sunroof or tilt/sliding panel* us-
ing the SmartKey with KEYLESS-GO
(
page 210).
!
If you can no longer lock or unlock the vehi-
cle with the SmartKey with KEYLESS-GO, then
the batteries in the SmartKey are discharged,
the SmartKey with KEYLESS-GO is malfunction-
ing or the vehicle battery is drained.
Check the batteries in the SmartKey with
KEYLESS-GO (
page 105) and replace
them if necessary (page 402).
Use the mechanical key to unlock the driv-
er’s door (
page 396) and the trunk
(
page 397).
Have the vehicle battery checked by an au-
thorized Mercedes-Benz Center.
If the SmartKey with KEYLESS-GO is malfunc-
tioning, contact an authorized Mercedes-Benz
Center.
Page 108 of 481
107 Controls in detail
Locking and unlocking
Important notes on using KEYLESS-GO
You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey
(page 102).
You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with button ‹).
Always carry the SmartKey with
KEYLESS-GO with you.
Never store the SmartKey with
KEYLESS-GO together with:
Electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO
Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.
To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft (1 m) of a door or the
trunk lid.
In order to start the engine with the
SmartKey with KEYLESS-GO:
The SmartKey with KEYLESS-GO
must be located in the vehicle.
The brake pedal must be firmly de-
pressed. Do not depress the accel-
erator.
If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle, the system may no longer recog-
nize the SmartKey with KEYLESS-GO.
The vehicle cannot be locked or the
engine started via the KEYLESS-GO
system.
If the SmartKey with KEYLESS-GO is re-
moved from the vehicle (e.g. if passen-
ger exits the vehicle with the SmartKey
with KEYLESS-GO)
when pressing the KEYLESS-GO
start/stop button or trying to lock
the vehicle with the outside door
handle the message
Key not rec-
ognized
appears in the multifunc-
tion display
with the engine running, the mes-
sage
Key not recognized
appears
in the multifunction display while
driving off.
Find the SmartKey with KEYLESS-GO or
change its present location immediate-
ly (e.g. place it on the front passenger
seat or insert it in shirt pocket).
If you have started the engine with the
KEYLESS-GO start/stop button, you
can turn it off again with:
the KEYLESS-GO start/stop button
the SmartKey with KEYLESS-GO in-
serted in the starter switch, when
the automatic transmission is in
positionP
Page 109 of 481
108 Controls in detailLocking and unlocking
Remember that the engine can be
started by anyone with a SmartKey
with KEYLESS-GO that is left inside the
vehicle.
Possibility 1: (One SmartKey with
KEYLESS-GO in the vehicle, one
SmartKey with KEYLESS-GO outside
the vehicle):
If you leave the SmartKey with
KEYLESS-GO behind when exiting and
locking the vehicle, no message
appears in the multifunction display.
Possibility 2: (One SmartKey with
KEYLESS-GO in the vehicle, no
SmartKey with KEYLESS-GO outside
the vehicle):
When exiting and trying to lock the ve-
hicle, the message
Key still in ve-
hicle
appears in the multifunction
display. The vehicle will not be locked.Factory setting
Global unlocking
Pull an outside door handle.
All turn signal lamps flash once.
An acoustic signal sounds once.
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds if:
neither a door nor the trunk is opened
the central locking switch is not acti-
vatedGlobal locking
Press lock button on an outside door
handle (
page 62).
With the trunk and all doors closed:
All turn signal lamps flash three
times.
An acoustic signal sounds three
times.
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
i
When unlocking or locking the vehicle with
the SmartKey or with the KEYLESS-GO function
an acoustic signal sounds. The acoustic signal is
activated at the factory. If you wish to deactivate
the feature, or adjust its signal volume, contact
an authorized Mercedes-Benz Center.
Page 110 of 481
109 Controls in detail
Locking and unlocking
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey with
KEYLESS-GO so when you pull the driver’s
outside door handle, only the driver’s door
and the fuel filler flap unlocks.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 105)
flashes twice.
The SmartKey with KEYLESS-GO will
then function as follows:
Unlocking driver’s door and fuel filler
flap
Pull the driver’s outside door handle.
All turn signal lamps flash once.
An acoustic signal sounds once.
The locking knob in the driver’s
door moves up.
The anti-theft alarm system is dis-
armed.Global unlocking
Pull any outside door handle other than
the driver’s outside door handle.
All turn signal lamps flash once.
An acoustic signal sounds once.
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
Global locking
Press lock button on an outside door
handle (
page 62).
With the trunk and all doors closed:
All turn signal lamps flash three
times.
An acoustic signal sounds three
times.
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 105)
flashes twice.
Global locking using the KEYLESS-GO*
lock button on the trunk lid*
Depending on production date, your vehi-
cle may be equipped with the KEYLESS-GO
lock button on trunk lid.
1Lock button on trunk lid
