21 At a glance
Exterior view
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Storage compartments
Door control panel
Page 23 of 481
22 At a glance

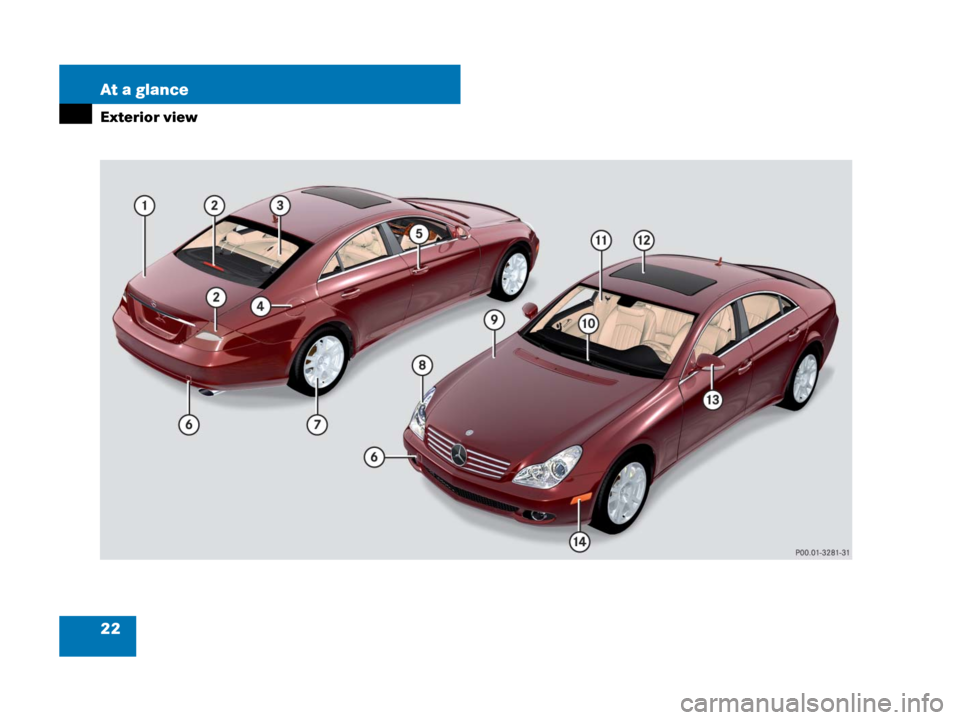

Exterior view
Page 24 of 481
23 At a glance
Exterior view

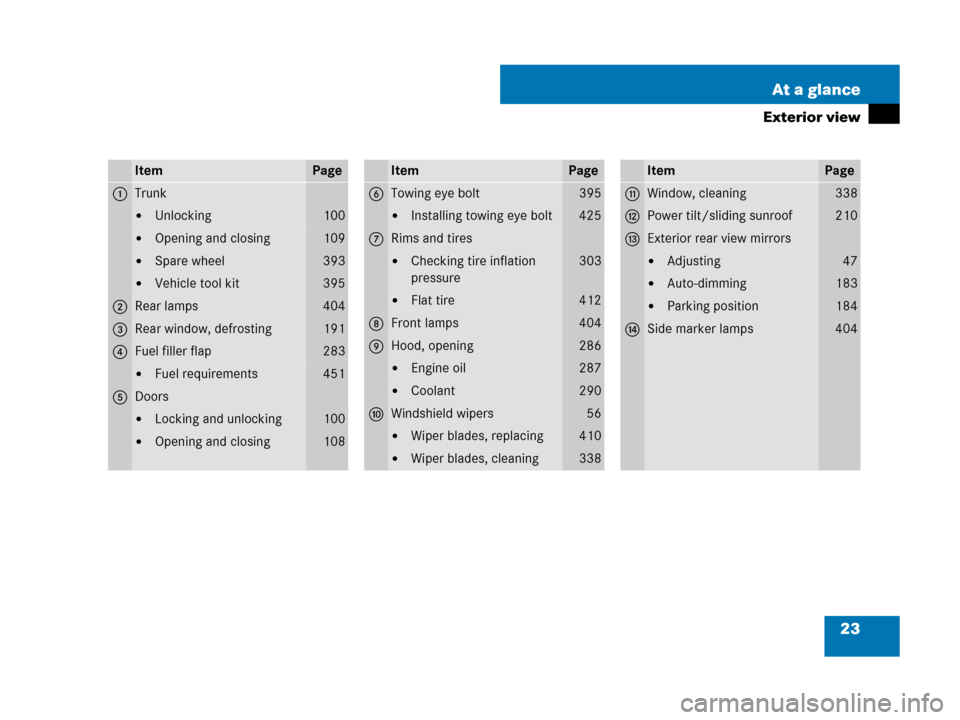

ItemPage
1Trunk
Unlocking100
Opening and closing109
Spare wheel393
Vehicle tool kit395
2Rear lamps404
3Rear window, defrosting191
4Fuel filler flap283
Fuel requirements451
5Doors
Locking and unlocking100
Opening and closing108
ItemPage
6Towing eye bolt395
Installing towing eye bolt425
7Rims and tires
Checking tire inflation
pressure303
Flat tire412
8Front lamps404
9Hood, opening286
Engine oil287
Coolant290
aWindshield wipers56
Wiper blades, replacing410
Wiper blades, cleaning338
ItemPage
bWindow, cleaning338
cPower tilt/sliding sunroof210
dExterior rear view mirrors
Adjusting47
Auto-dimming183
Parking position184
eSide marker lamps404
Page 25 of 481
24 At a glance

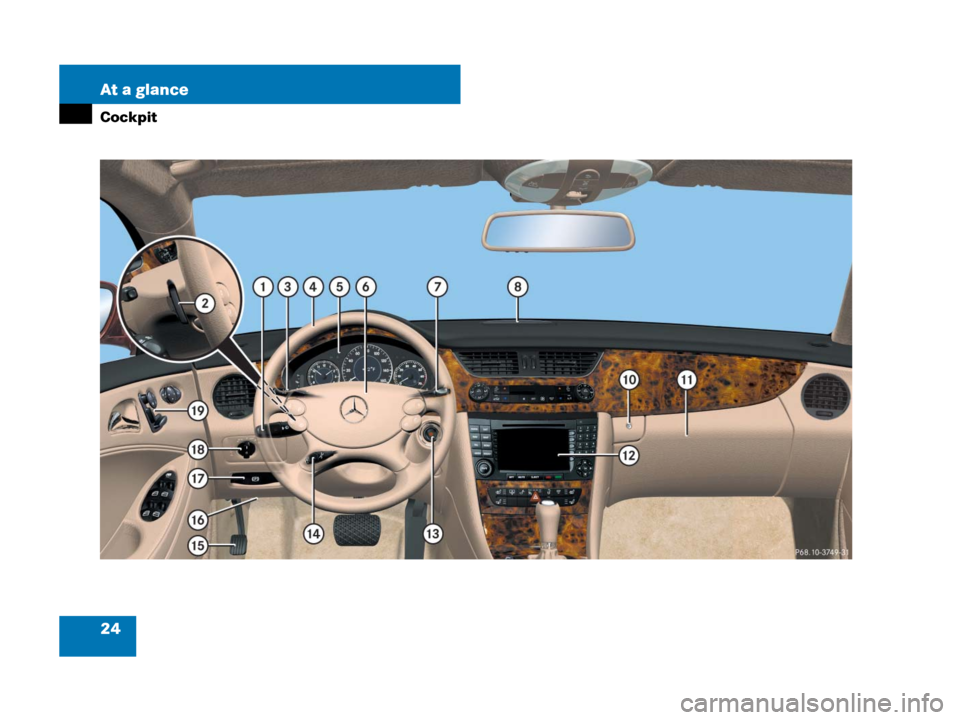

Cockpit
Page 26 of 481
25 At a glance
Cockpit

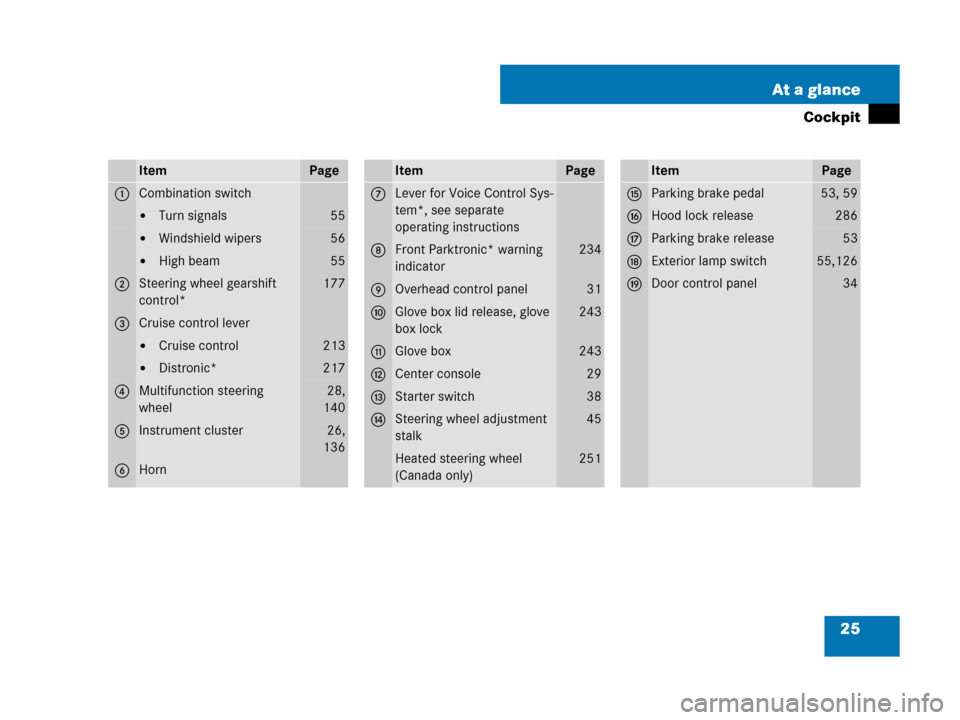

ItemPage
1Combination switch
Turn signals55
Windshield wipers56
High beam55
2Steering wheel gearshift
control* 177
3Cruise control lever
Cruise control213
Distronic*217
4Multifunction steering
wheel28,
140
5Instrument cluster26,
136
6Horn
ItemPage
7Lever for Voice Control Sys-
tem*, see separate
operating instructions
8Front Parktronic* warning
indicator234
9Overhead control panel31
aGlove box lid release, glove
box lock243
bGlove box243
cCenter console29
dStarter switch38
eSteering wheel adjustment
stalk 45
Heated steering wheel
(Canada only)251
ItemPage
fParking brake pedal53, 59
gHood lock release 286
hParking brake release 53
jExterior lamp switch55,126
kDoor control panel34
Page 27 of 481
26 At a glance

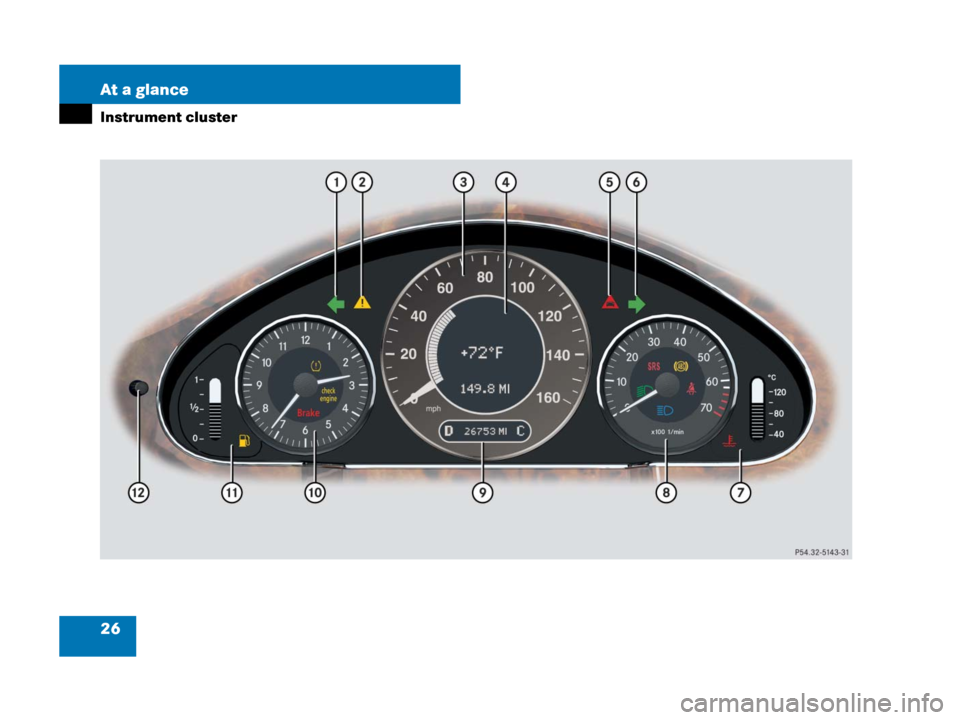

Instrument cluster
Page 28 of 481
27 At a glance
Instrument cluster

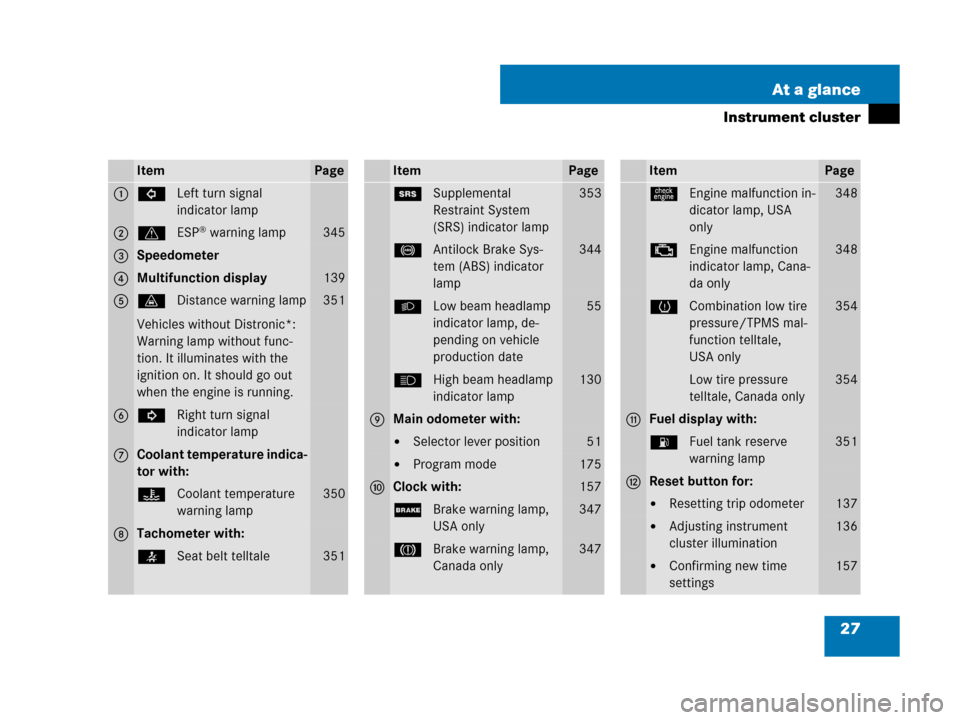

ItemPage
1LLeft turn signal
indicator lamp
2vESP® warning lamp345
3Speedometer
4Multifunction display139
5lDistance warning lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates with the
ignition on. It should go out
when the engine is running.351
6KRight turn signal
indicator lamp
7Coolant temperature indica-
tor with:
•Coolant temperature
warning lamp350
8Tachometer with:
1Supplemental
Restraint System
(SRS) indicator lamp 353
-Antilock Brake Sys-
tem (ABS) indicator
lamp344
BLow beam headlamp
indicator lamp, de-
pending on vehicle
production date55
AHigh beam headlamp
indicator lamp130
9Main odometer with:
Selector lever position51
Program mode175
aClock with:157
;Brake warning lamp,
USA only347
3Brake warning lamp,
Canada only347
ItemPage
úEngine malfunction in-
dicator lamp, USA
only348
±Engine malfunction
indicator lamp, Cana-
da only348
HCombination low tire
pressure/TPMS mal-
function telltale,
USA only354
Low tire pressure
telltale, Canada only354
bFuel display with:
AFuel tank reserve
warning lamp351
cReset button for:
Resetting trip odometer137
Adjusting instrument
cluster illumination136
Confirming new time
settings157
Page 29 of 481
28 At a glance

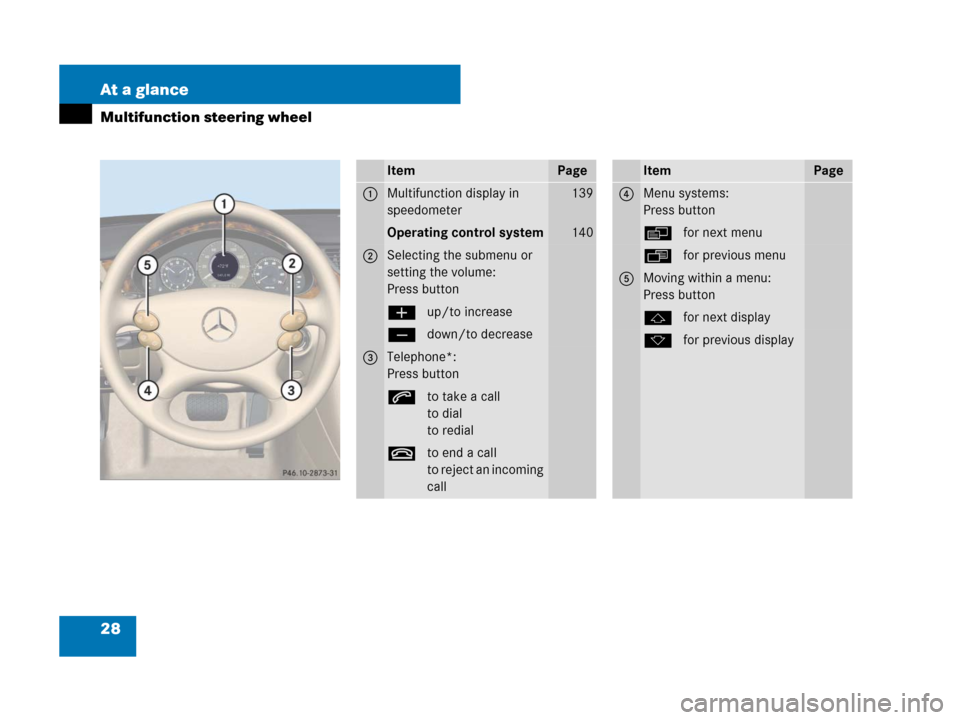

Multifunction steering wheel
ItemPage
1Multifunction display in
speedometer139
Operating control system140
2Selecting the submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
3Telephone*:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an incoming
call
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display
Page 30 of 481
29 At a glance

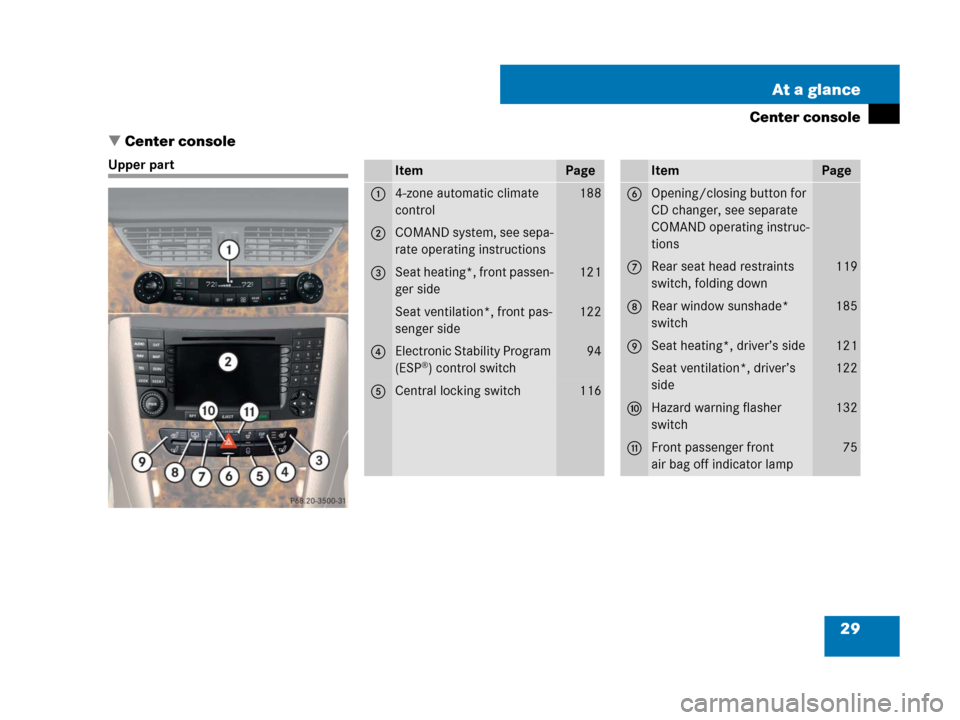

Center console
Center console
Upper partItemPage
14-zone automatic climate
control188
2COMAND system, see sepa-
rate operating instructions
3Seat heating*, front passen-
ger side121
Seat ventilation*, front pas-
senger side122
4Electronic Stability Program
(ESP®) control switch
94
5Central locking switch116
ItemPage
6Opening/closing button for
CD changer, see separate
COMAND operating instruc-
tions
7Rear seat head restraints
switch, folding down119
8Rear window sunshade*
switch185
9Seat heating*, driver’s side121
Seat ventilation*, driver’s
side122
aHazard warning flasher
switch132
bFront passenger front
air bag off indicator lamp75
