MERCEDES-BENZ CLS63AMG 2008 W219 Owner's Manual

290 Operation
Engine compartment

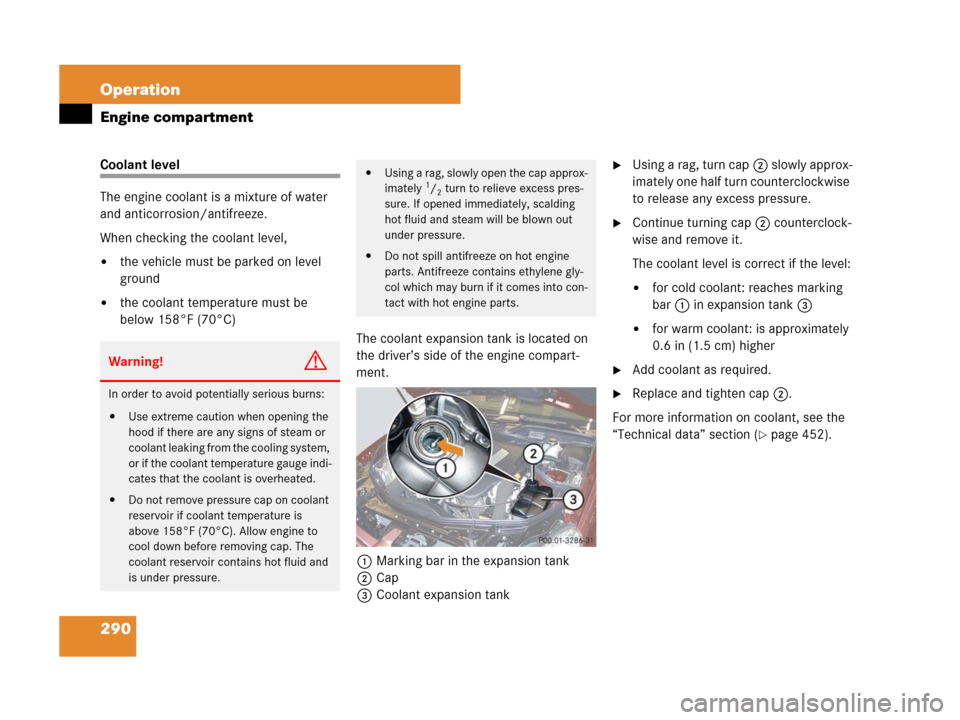

Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground

the coolant temperature must be
below 158°F (70°C)
The coolant expansion tank is located on
the driver’s side of the engine compart-
ment.
1Marking bar in the expansion tank
2Cap
3Coolant expansion tank
Using a rag, turn cap2 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning cap2 counterclock-
wise and remove it.
The coolant level is correct if the level:

for cold coolant: reaches marking
bar1 in expansion tank3

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace and tighten cap2.
For more information on coolant, see the
“Technical data” section (
page 452).
Warning!G
In order to avoid potentially serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.

Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

Using a rag, slowly open the cap approx-
imately 1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out
under pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

291 Operation
Engine compartment
Battery
Your vehicle’s battery is located in the
trunk on the right hand side (
page 420).
The battery should always be sufficiently
charged in order to achieve their rated ser-
vice life. Refer to Maintenance Booklet for
battery maintenance intervals.
If you use your vehicle mostly for short-dis-
tance trips, you will need to have the bat-
tery charge checked more frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.

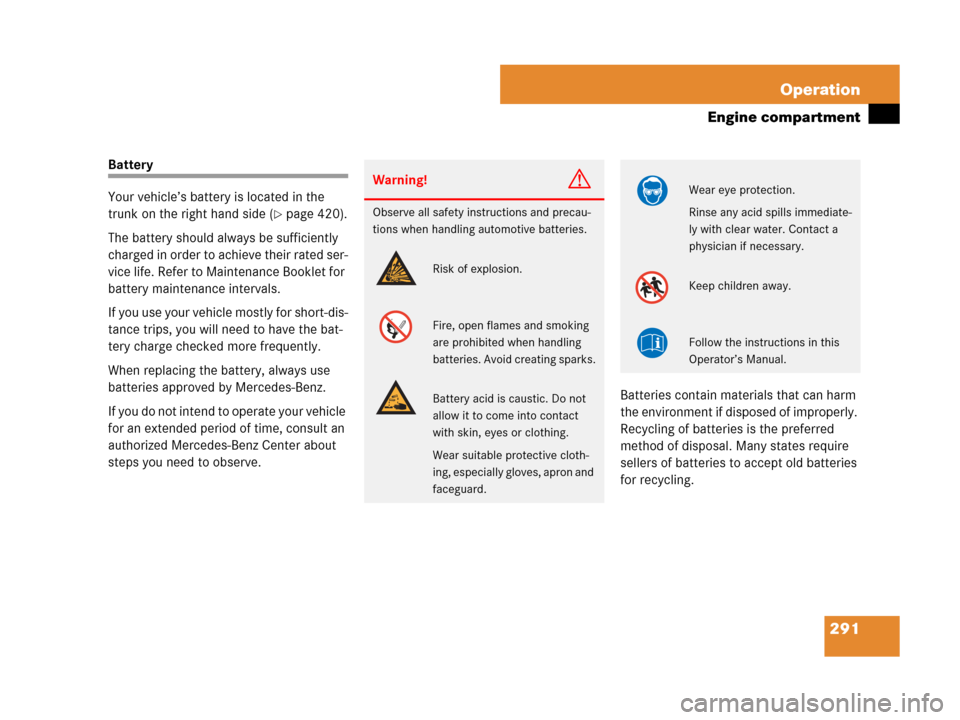

Warning!G
Observe all safety instructions and precau-
tions when handling automotive batteries.
Risk of explosion.
Fire, open flames and smoking
are prohibited when handling
batteries. Avoid creating sparks.
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
Wear suitable protective cloth-
ing, especially gloves, apron and
faceguard.
Wear eye protection.
Rinse any acid spills immediate-
ly with clear water. Contact a
physician if necessary.
Keep children away.
Follow the instructions in this
Operator’s Manual.

292 Operation
Engine compartment

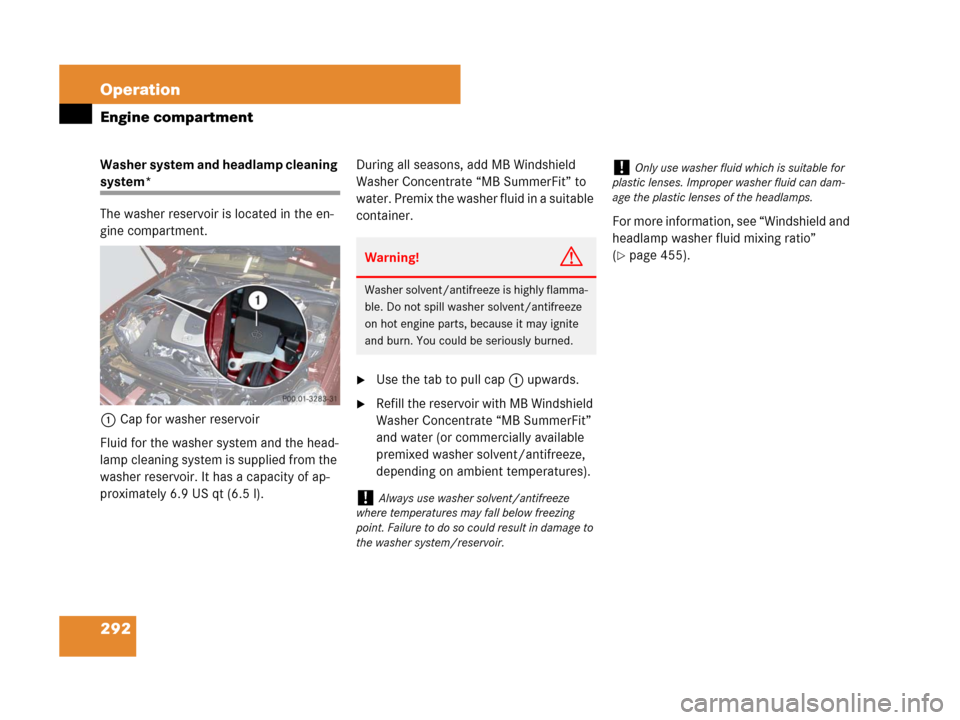

Washer system and headlamp cleaning
system*
The washer reservoir is located in the en-
gine compartment.
1Cap for washer reservoir
Fluid for the washer system and the head-
lamp cleaning system is supplied from the
washer reservoir. It has a capacity of ap-
proximately 6.9 US qt (6.5 l).During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the washer fluid in a suitable
container.
Use the tab to pull cap1 upwards.
Refill the reservoir with MB Windshield
Washer Concentrate “MB SummerFit”
and water (or commercially available
premixed washer solvent/antifreeze,
depending on ambient temperatures).For more information, see “Windshield and
headlamp washer fluid mixing ratio”
(
page 455).Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Always use washer solvent/antifreeze
where temperatures may fall below freezing
point. Failure to do so could result in damage to
the washer system/reservoir.
!Only use washer fluid which is suitable for
plastic lenses. Improper washer fluid can dam-
age the plastic lenses of the headlamps.

293 Operation
Tires and wheels
Tires and wheels
Contact an authorized Mercedes-Benz
Center for information on tested and rec-
ommended rims and tires for summer and
winter operation. They can also offer ad-
vice concerning tire service and purchase.
Important guidelines

Only use sets of tires and rims of the
same type and make.

Tires must be of the correct size for the
rim.

Break in new tires for approximately
60 miles (100 km) at moderate
speeds.

Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.

If vehicle is heavily loaded, check tire
inflation pressure and correct as re-
quired.

Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths of less than
1/8in (3 mm).

The wheels on the front and rear axles
are different. For this reason, pay at-
tention to the markings on the inside of
the wheel rims. Wheels marked “REAR
AXLE ONLY” on the inside of the rim
may only be fitted on the rear axle.

When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).

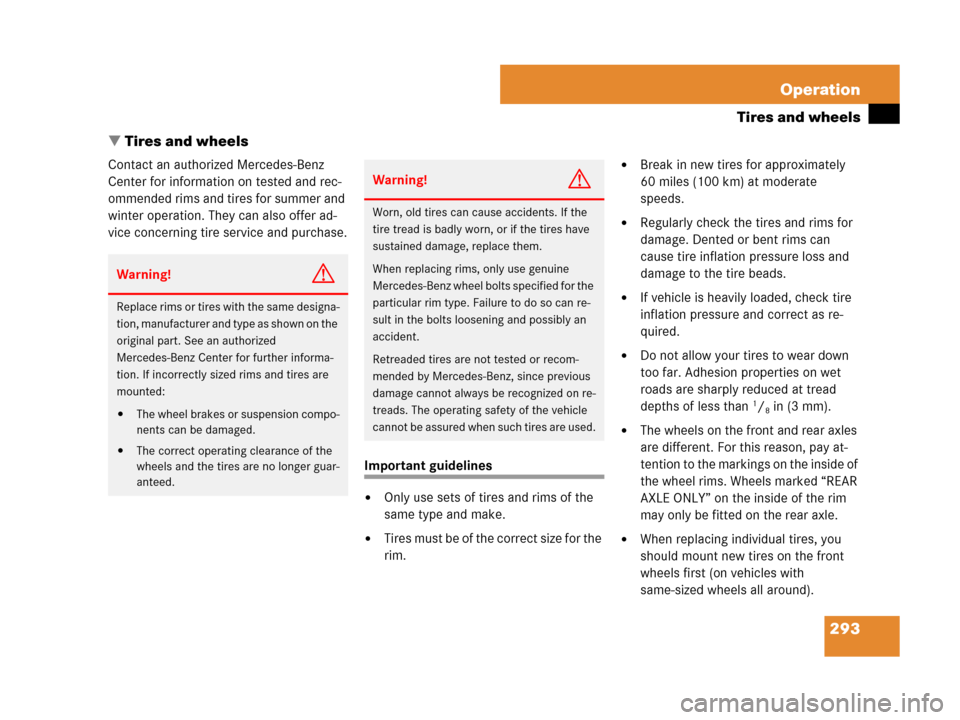

Warning!G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension compo-
nents can be damaged.

The correct operating clearance of the
wheels and the tires are no longer guar-
anteed.
Warning!G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can re-
sult in the bolts loosening and possibly an
accident.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on re-
treads. The operating safety of the vehicle
cannot be assured when such tires are used.

294 Operation
Tires and wheels
Tire care and maintenance
Regularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure see
“Recommended tire inflation pressure”
(
page 301).
Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:

excessive treadwear (page 294)

cord or fabric showing through the
tire’s rubber

bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and become worn over
time even if never used, and thus should be
inspected and replaced when necessary.
Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:

Driving style

Tire inflation pressure

Distance drivenTread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths of less
than
1⁄8in (3 mm).
Tread wear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16in (1.6 mm), at which point the
tire is considered worn and should be re-
placed.
Recommended minimum tire tread depth:

Summer tires 1/8in (3 mm)

Winter tires 1/6in (4 mm)
Warning!G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!G
Tires and spare tire should be replaced after
6 years, regardless of the remaining tread.
Warning!G
Although the applicable federal motor safety
laws consider a tire to be worn when the
treadwear indicators (TWI) become visible at
approximately
1/16in (1.6 mm), we recom-
mend that you do not allow your tires

295 Operation
Tires and wheels

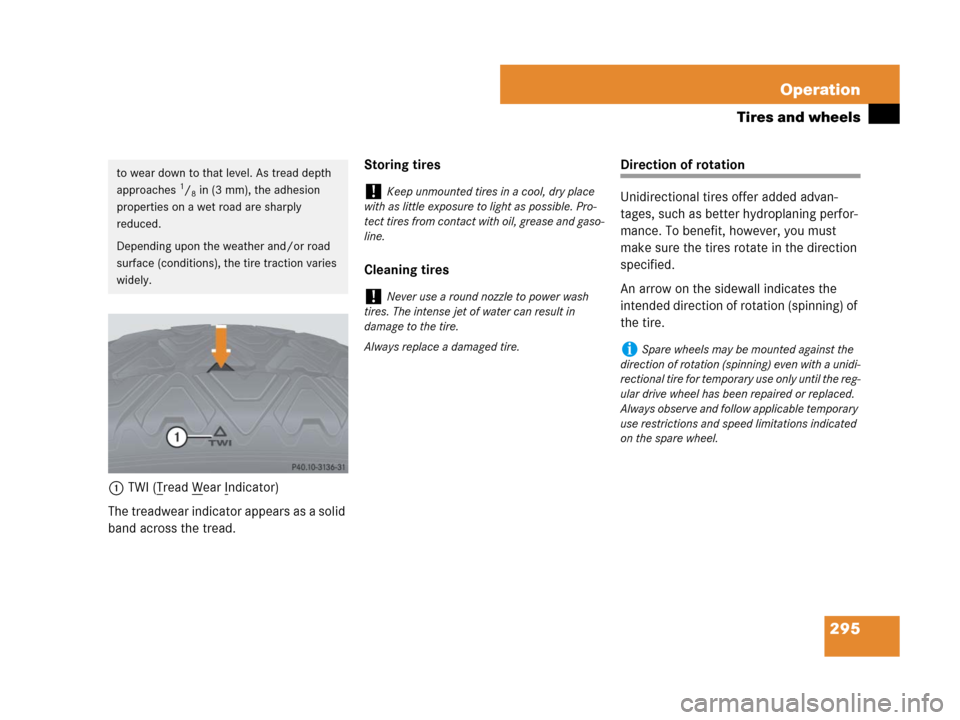

1TWI (Tread Wear Indicator)
The treadwear indicator appears as a solid
band across the tread.Storing tires
Cleaning tires
Direction of rotation
Unidirectional tires offer added advan-
tages, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.to wear down to that level. As tread depth
approaches 1/8in (3 mm), the adhesion
properties on a wet road are sharply
reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.!Keep unmounted tires in a cool, dry place
with as little exposure to light as possible. Pro-
tect tires from contact with oil, grease and gaso-
line.
!Never use a round nozzle to power wash
tires. The intense jet of water can result in
damage to the tire.
Always replace a damaged tire.
iSpare wheels may be mounted against the
direction of rotation (spinning) even with a unidi-
rectional tire for temporary use only until the reg-
ular drive wheel has been repaired or replaced.
Always observe and follow applicable temporary
use restrictions and speed limitations indicated
on the spare wheel.

296 Operation
Tires and wheels
Loading the vehicle

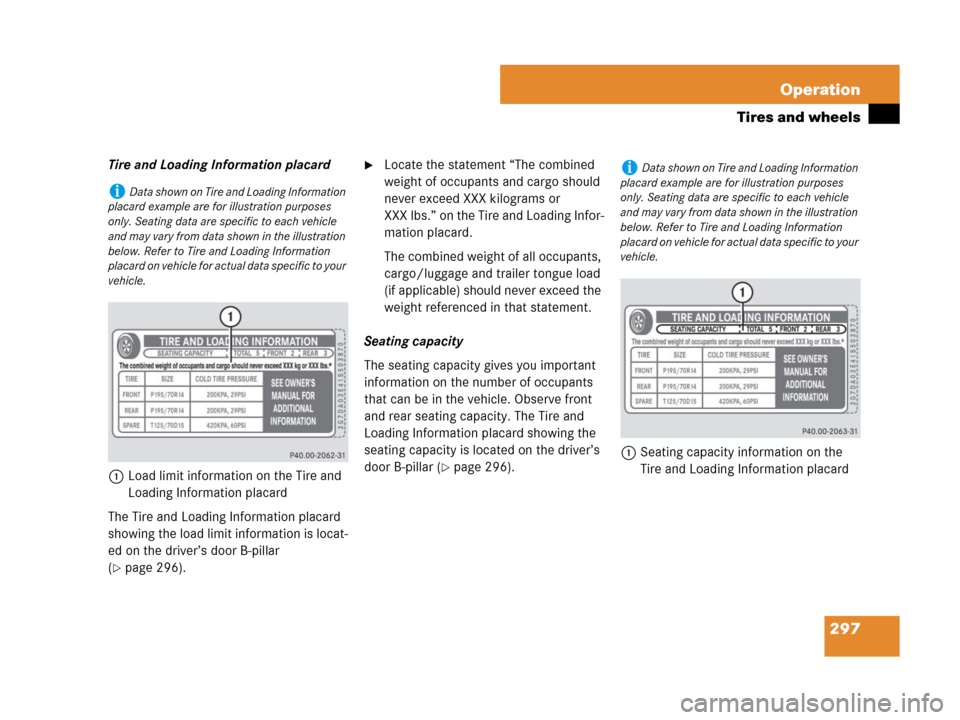

Two labels on your vehicle show how much
weight it may properly carry.
1) The Tire and Loading Information
placard can be found on the driver’s
door B-pillar. This placard tells you im-
portant information about the number
of people that can be in the vehicle and
the total weight that can be carried in
the vehicle. It also contains information
on the proper size and recommended
tire inflation pressures for the original
equipment tires on your vehicle.2) The certification label, also found on
the driver’s door B-pillar tells you about
the gross weight capacity of your vehi-
cle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants,
fuel and cargo. The certification label
also tells you about the front and rear
axle weight capacity, called the Gross
Axle Weight Rating (GAWR). The GAWR
is the total allowable weight that can be
carried by a single axle (front or rear).
Never exceed the GVWR or GAWR for
either the front axle or rear axle.

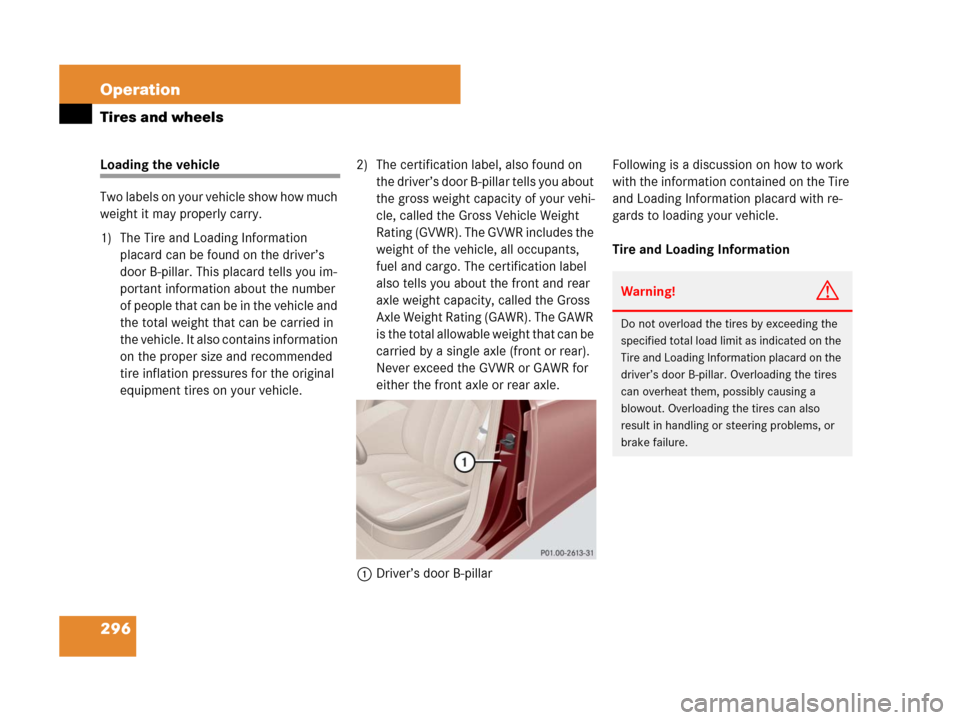

1Driver’s door B-pillarFollowing is a discussion on how to work
with the information contained on the Tire
and Loading Information placard with re-
gards to loading your vehicle.
Tire and Loading Information
Warning!G
Do not overload the tires by exceeding the
specified total load limit as indicated on the
Tire and Loading Information placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.

297 Operation
Tires and wheels
Tire and Loading Information placard
1Load limit information on the Tire and
Loading Information placard
The Tire and Loading Information placard
showing the load limit information is locat-
ed on the driver’s door B-pillar
(
page 296).
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kilograms or
XXX lbs.” on the Tire and Loading Infor-
mation placard.
The combined weight of all occupants,
cargo/luggage and trailer tongue load
(if applicable) should never exceed the
weight referenced in that statement.
Seating capacity
The seating capacity gives you important
information on the number of occupants
that can be in the vehicle. Observe front
and rear seating capacity. The Tire and
Loading Information placard showing the
seating capacity is located on the driver’s
door B-pillar (
page 296).1Seating capacity information on the
Tire and Loading Information placard
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Seating data are specific to each vehicle
and may vary from data shown in the illustration
below. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Seating data are specific to each vehicle
and may vary from data shown in the illustration
below. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.

298 Operation
Tires and wheels
Steps for determining correct load limit
The following steps have been developed
as required of all manufacturers under Title
49, Code of U.S. Federal Regulations, Part
575 pursuant to the “National Traffic and
Motor Vehicle Safety Act of 1966”.
Step 1
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on
your vehicle’s Tire and Loading Infor-
mation placard.
Step 2
Determine the combined weight of the
driver and passengers that will be
riding in your vehicle.
Step 3
Subtract the combined weight of the
driver and passengers from
XXX kilograms or XXX lbs.Step 4
The resulting figure equals the avail-
able amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 1400 lbs. and there will
be five 150 lbs. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5 x150) = 650 lbs.)
Step 5
Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4.Step 6 (if applicable)
If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this reduces
the available cargo and luggage load
capacity of your vehicle (
page 300).

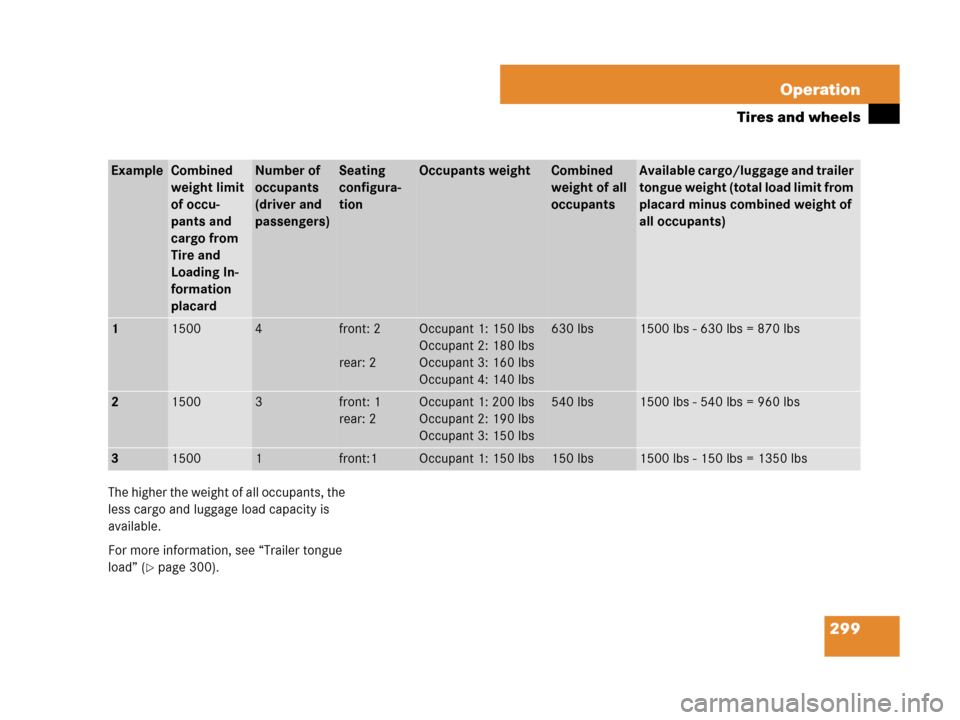

The following table shows examples on
how to calculate total and cargo load
capacities with varying seating configura-
tions and number and size of occupants.
The following examples use a load limit
of 1500 lbs. This is for illustration
purposes only. Make sure you are using
the actual load limit for your vehicle stated
on the vehicle’s Tire and Loading Informa-
tion placard (
page 297).

299 Operation
Tires and wheels
The higher the weight of all occupants, the
less cargo and luggage load capacity is
available.
For more information, see “Trailer tongue
load” (
page 300).
ExampleCombined
weight limit
of occu-
pants and
cargo from
Tire and
Loading In-
formation
placardNumber of
occupants
(driver and
passengers)Seating
configura-
tionOccupants weight Combined
weight of all
occupantsAvailable cargo/luggage and trailer
tongue weight (total load limit from
placard minus combined weight of
all occupants)
115004front: 2
rear: 2Occupant 1: 150 lbs
Occupant 2: 180 lbs
Occupant 3: 160 lbs
Occupant 4: 140 lbs630 lbs1500 lbs - 630 lbs = 870 lbs
215003front: 1
rear: 2Occupant 1: 200 lbs
Occupant 2: 190 lbs
Occupant 3: 150 lbs540 lbs1500 lbs - 540 lbs = 960 lbs
315001front:1Occupant 1: 150 lbs150 lbs1500 lbs - 150 lbs = 1350 lbs
