MERCEDES-BENZ CLS63AMG 2008 W219 Owner's Manual

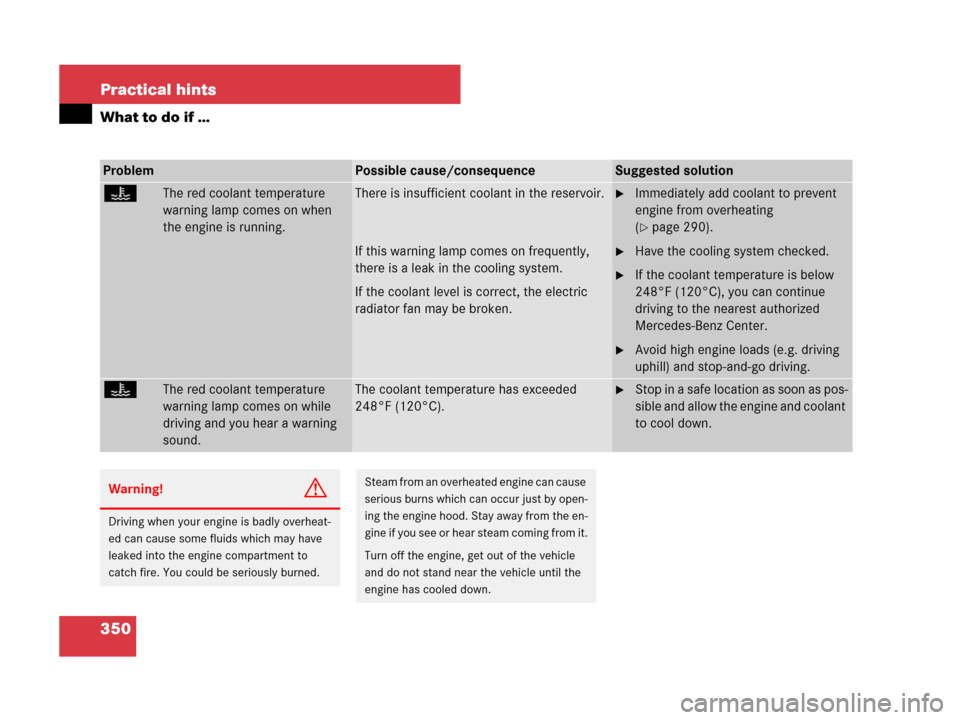

350 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
DThe red coolant temperature
warning lamp comes on when
the engine is running.There is insufficient coolant in the reservoir.
If this warning lamp comes on frequently,
there is a leak in the cooling system.
If the coolant level is correct, the electric
radiator fan may be broken.Immediately add coolant to prevent
engine from overheating
(
page 290).
Have the cooling system checked.
If the coolant temperature is below
248°F (120°C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.
Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
DThe red coolant temperature
warning lamp comes on while
driving and you hear a warning
sound.The coolant temperature has exceeded
248°F (120°C).Stop in a safe location as soon as pos-
sible and allow the engine and coolant
to cool down.
Warning!G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns which can occur just by open-
ing the engine hood. Stay away from the en-
gine if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

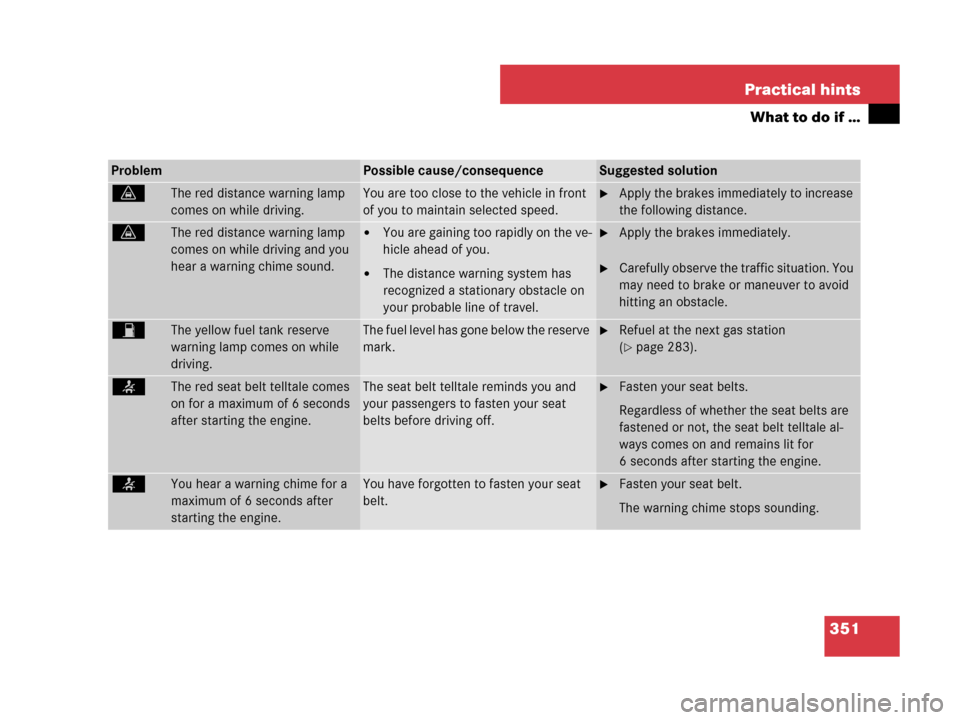

351 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
lThe red distance warning lamp
comes on while driving.You are too close to the vehicle in front
of you to maintain selected speed.Apply the brakes immediately to increase
the following distance.
lThe red distance warning lamp
comes on while driving and you
hear a warning chime sound.
You are gaining too rapidly on the ve-
hicle ahead of you.

The distance warning system has
recognized a stationary obstacle on
your probable line of travel.
Apply the brakes immediately.
Carefully observe the traffic situation. You
may need to brake or maneuver to avoid
hitting an obstacle.
WThe yellow fuel tank reserve
warning lamp comes on while
driving.The fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 283).
on for a maximum of 6 seconds
after starting the engine.The seat belt telltale reminds you and
your passengers to fasten your seat
belts before driving off.Fasten your seat belts.
Regardless of whether the seat belts are
fastened or not, the seat belt telltale al-
ways comes on and remains lit for
6 seconds after starting the engine.
maximum of 6 seconds after
starting the engine.You have forgotten to fasten your seat
belt.Fasten your seat belt.
The warning chime stops sounding.

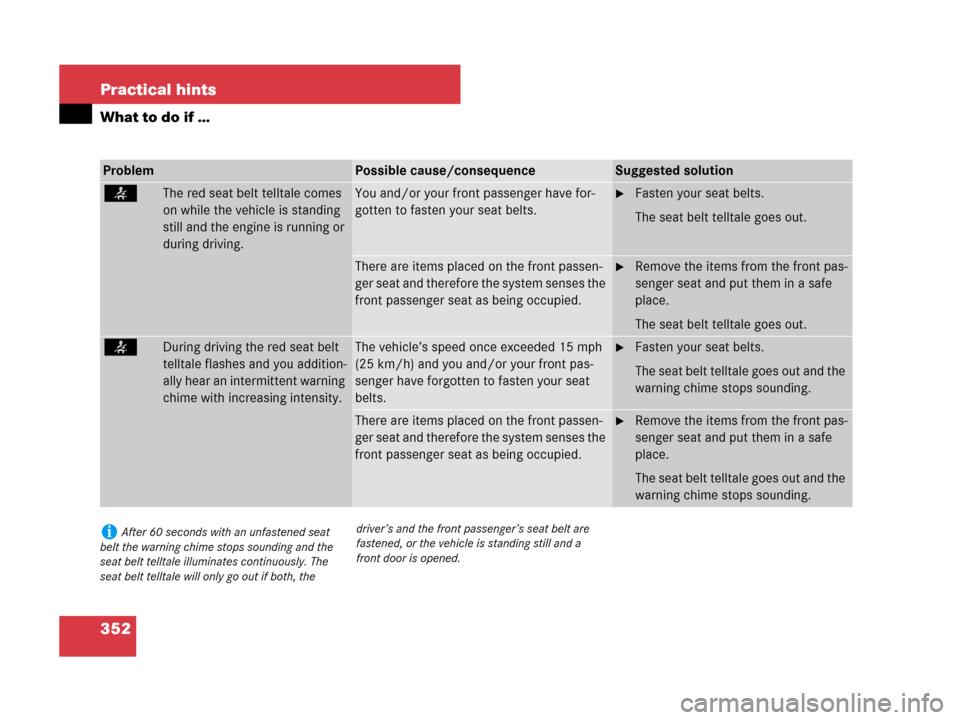

352 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
on while the vehicle is standing
still and the engine is running or
during driving.You and/or your front passenger have for-
gotten to fasten your seat belts.Fasten your seat belts.
The seat belt telltale goes out.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out.
telltale flashes and you addition-
ally hear an intermittent warning
chime with increasing intensity.The vehicle’s speed once exceeded 15 mph
(25 km/h) and you and/or your front pas-
senger have forgotten to fasten your seat
belts.Fasten your seat belts.
The seat belt telltale goes out and the
warning chime stops sounding.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out and the
warning chime stops sounding.
iAfter 60 seconds with an unfastened seat
belt the warning chime stops sounding and the
seat belt telltale illuminates continuously. The
seat belt telltale will only go out if both, thedriver’s and the front passenger’s seat belt are
fastened, or the vehicle is standing still and a
front door is opened.

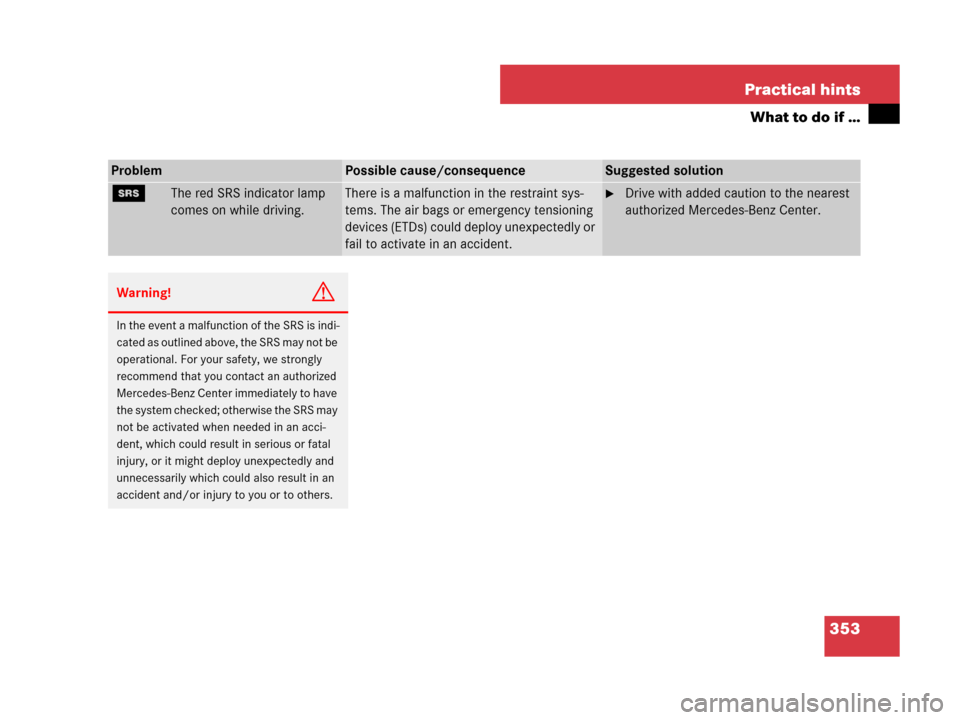

353 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
1The red SRS indicator lamp
comes on while driving.There is a malfunction in the restraint sys-
tems. The air bags or emergency tensioning
devices (ETDs) could deploy unexpectedly or
fail to activate in an accident.Drive with added caution to the nearest
authorized Mercedes-Benz Center.
Warning!G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in an
accident and/or injury to you or to others.

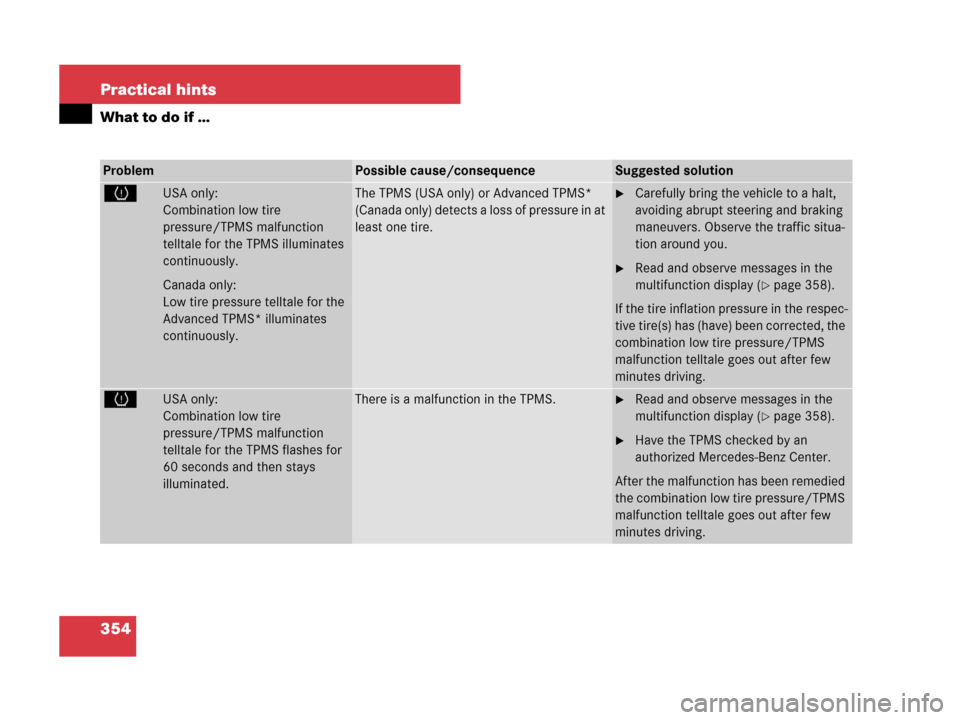

354 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
HUSA only:
Combination low tire
pressure/TPMS malfunction
telltale for the TPMS illuminates
continuously.
Canada only:
Low tire pressure telltale for the
Advanced TPMS* illuminates
continuously.The TPMS (USA only) or Advanced TPMS*
(Canada only) detects a loss of pressure in at
least one tire.Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers. Observe the traffic situa-
tion around you.
Read and observe messages in the
multifunction display (
page 358).
If the tire inflation pressure in the respec-
tive tire(s) has (have) been corrected, the
combination low tire pressure/TPMS
malfunction telltale goes out after few
minutes driving.
HUSA only:
Combination low tire
pressure/TPMS malfunction
telltale for the TPMS flashes for
60 seconds and then stays
illuminated.There is a malfunction in the TPMS.Read and observe messages in the
multifunction display (
page 358).
Have the TPMS checked by an
authorized Mercedes-Benz Center.
After the malfunction has been remedied
the combination low tire pressure/TPMS
malfunction telltale goes out after few
minutes driving.

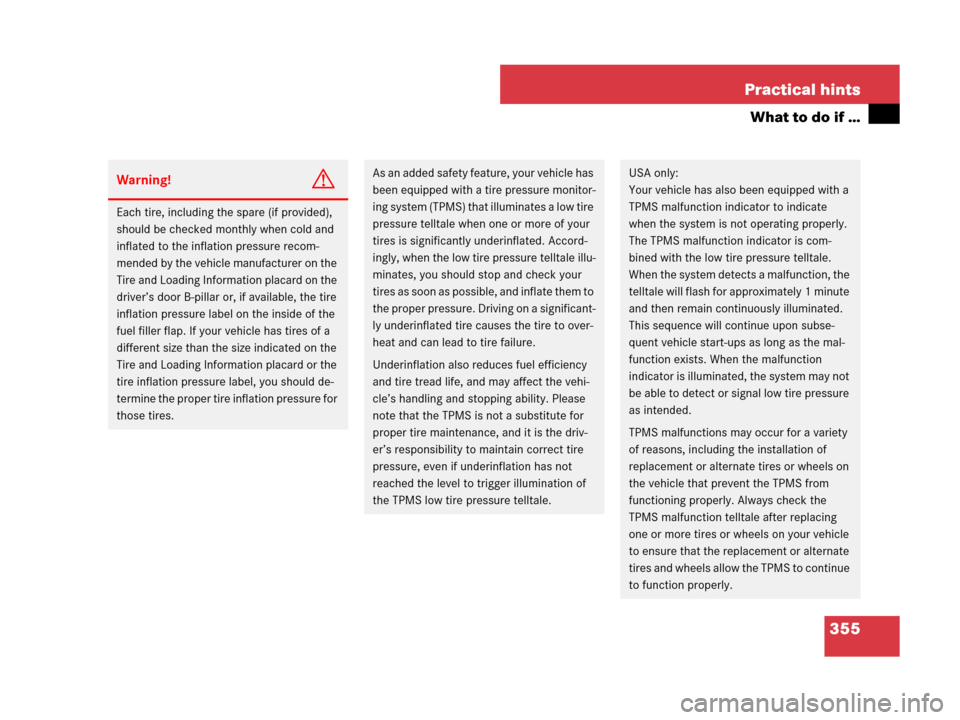

355 Practical hints
What to do if …
Warning!G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
Tire and Loading Information placard on the
driver’s door B-pillar or, if available, the tire
inflation pressure label on the inside of the
fuel filler flap. If your vehicle has tires of a
different size than the size indicated on the
Tire and Loading Information placard or the
tire inflation pressure label, you should de-
termine the proper tire inflation pressure for
those tires.
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significant-
ly underinflated tire causes the tire to over-
heat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.USA only:
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately 1 minute
and then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the mal-
function exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of
replacement or alternate tires or wheels on
the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.

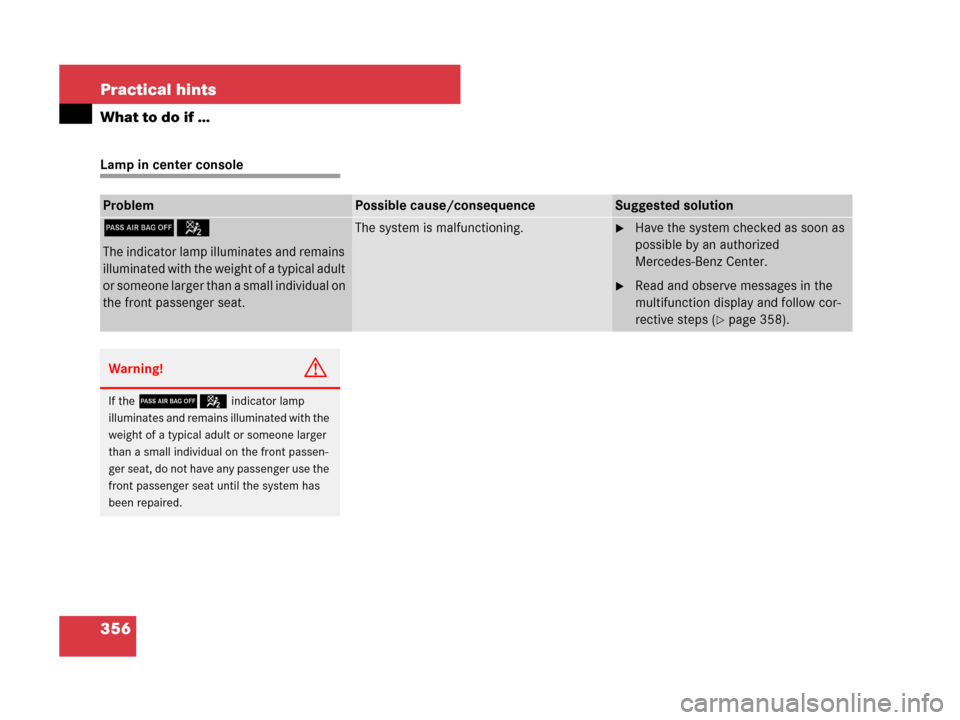

356 Practical hints
What to do if …
Lamp in center console
ProblemPossible cause/consequenceSuggested solution
75
The indicator lamp illuminates and remains
illuminated with the weight of a typical adult
or someone larger than a small individual on
the front passenger seat.
The system is malfunctioning.Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.
Read and observe messages in the
multifunction display and follow cor-
rective steps (
page 358).
Warning!G
If the 75 indicator lamp
illuminates and remains illuminated with the
weight of a typical adult or someone larger
than a small individual on the front passen-
ger seat, do not have any passenger use the
front passenger seat until the system has
been repaired.

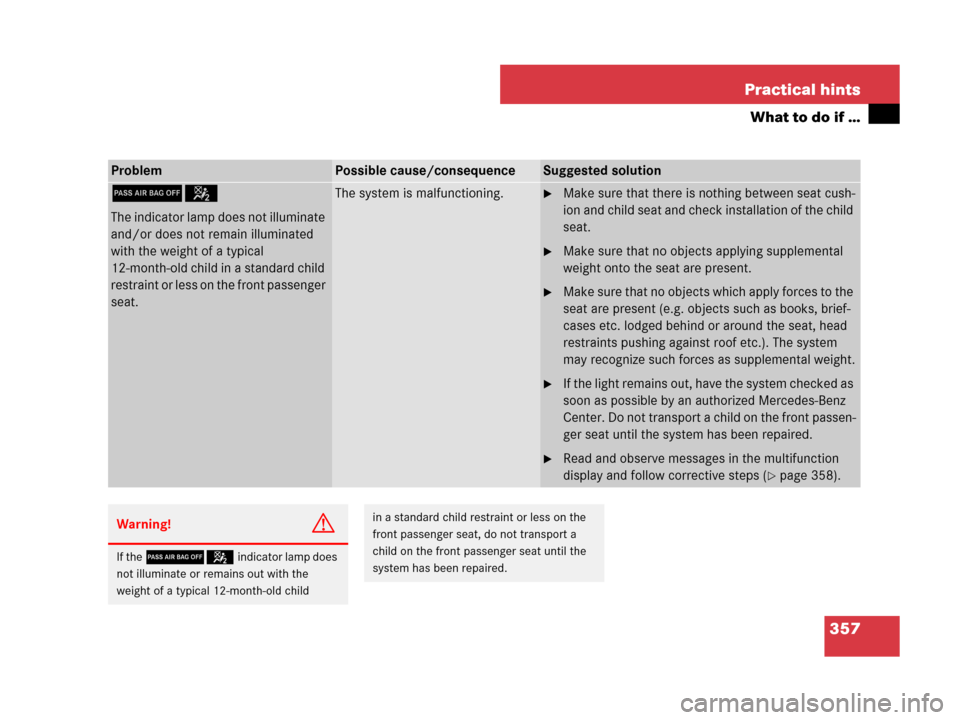

357 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
75
The indicator lamp does not illuminate
and/or does not remain illuminated
with the weight of a typical
12-month-old child in a standard child
restraint or less on the front passenger
seat.
The system is malfunctioning.Make sure that there is nothing between seat cush-
ion and child seat and check installation of the child
seat.
Make sure that no objects applying supplemental
weight onto the seat are present.
Make sure that no objects which apply forces to the
seat are present (e.g. objects such as books, brief-
cases etc. lodged behind or around the seat, head
restraints pushing against roof etc.). The system
may recognize such forces as supplemental weight.
If the light remains out, have the system checked as
soon as possible by an authorized Mercedes-Benz
Center. Do not transport a child on the front passen-
ger seat until the system has been repaired.
Read and observe messages in the multifunction
display and follow corrective steps (
page 358).
Warning!G
If the 75 indicator lamp does
not illuminate or remains out with the
weight of a typical 12-month-old child
in a standard child restraint or less on the
front passenger seat, do not transport a
child on the front passenger seat until the
system has been repaired.

358 Practical hints
What to do if …
Vehicle status messages in the multi-
function display
Warning and malfunction messages ap-
pear in the multifunction display located in
the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(
page 139) displays both cleared and
uncleared messages.
High-priority messages appear in the
multifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 26) or
buttonj, k, è orÿ on the
multifunction steering wheel.
Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display
using the reset button or buttonj,
k, è orÿ on the multifunction
steering wheel. They are then stored in the
vehicle status message memory
(
page 151). Remember that clearing a
message will only make the message
disappear. Clearing a message will not
correct the condition that caused the mes-
sage to appear.
Warning!G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated,
addressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.

359 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (page 360)

Symbol messages (page 372)
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Contact an authorized
Mercedes-Benz Center as soon as possible.
iSwitching on the ignition causes all
instrument cluster lamps (except high beam
headlamp indicator lamp and turn signal indica-
tor lamps unless activated) as well as the multi-
function display to come on. Make sure the
lamps and multifunction display are in working
order before starting your journey.
