MERCEDES-BENZ CLS63AMG 2008 W219 Owner's Manual

420 Practical hints
Battery
The battery is located on the right hand
side of the trunk under the luggage box
(
page 397).
1Positive terminal cover
2Negative terminal
Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
Warning!G
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 291).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
!The battery is a Valve-Regulated Lead Acid
(VRLA) battery, also referred to as “fleece” bat-
tery. Such batteries do not require topping-up of
the electrolyte level. VRLA batteries therefore do
not have cell caps and the battery cover is
non-removable. Do not attempt to open the bat-
tery as otherwise the battery will be damaged.
Even though VRLA batteries do not require top-
ping-up of the electrolyte level and cannot be
opened to check the electrolyte level, the bat-
tery condition must be checked periodically by
performing a battery conductance test. Refer to
Maintenance Booklet for battery condition test-
ing intervals.
The factory-equipped VRLA battery is
leak-proofed. Only use a battery as replacement
that has the same security features and is of
identical size, voltage, and capacity as the facto-
ry-equipped battery.

421 Practical hints
Battery
Disconnecting the battery
Depress parking brake firmly or move
gear selector lever to positionP.
Turn off all electrical consumers.
Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Press the start/stop button until
the engine shuts off.
Open the driver’s door.
Open the trunk.
Read and observe safety instructions
and precautions (
page 420).
Remove the luggage box (page 397).
Disconnect battery negative lead2.
Remove cover1 from the positive ter-
minal.
Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.
Remove the battery bracket.
Pull out the battery ventilation tube
from the battery (depending on battery
arrangement in your vehicle model, the
battery ventilation tube is located on
the left or right side of the battery).
Take out the battery.
!As with any other battery, disconnect the
battery if you do not intend to operate your vehi-
cle for an extended period of time to prevent bat-
tery discharge or connect an accessory battery
charge unit expressly approved by
Mercedes-Benz for your vehicle model to main-
tain the battery charge. Contact an authorized
Mercedes-Benz Center for further information.
The battery, the battery ventilation hose and the
lateral plug must always be securely installed
when the vehicle is in operation.
!Never loosen or detach battery terminal
clamps while the engine is running or the
SmartKey is in the starter switch. Otherwise the
alternator and other electronic components
could be severely damaged.
Have the battery checked regularly by an autho-
rized Mercedes-Benz Center.
Refer to Maintenance Booklet for maintenance
intervals or contact your authorized
Mercedes-Benz Center for further information.
Warning!G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button on the gear selector lever will
have no effect

the gear selector lever will remain
locked in positionP

422 Practical hints
Battery
Charging and reinstalling the batteryCharge battery in accordance with the
instructions of the battery charger
manufacturer.
Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Reconnecting the battery
Turn off all electrical consumers.
Remove the SmartKey from the starter
switch.
Connect the positive lead and fasten its
cover.
Connect the negative lead.
Install the luggage box (page 397).Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12 volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
Warning!G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit* approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit* specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the
battery in its installed position. Contact an
authorized Mercedes-Benz Center for infor-
mation and availability. Charge battery in
accordance with the separate instructions
for the accessory battery charger*.
!The battery, its filler caps and the battery
ventilation tube must always be securely in-
stalled when the vehicle is in operation.
!Never invert the terminal connections!
iThe following procedures must be carried
out following any interruption of battery power
(e.g. due to reconnection):

Set the clock (page 157) (see COMAND
operator’s manual).

Synchronize the side windows
(
page 207).

Synchronize the tilt/sliding sunroof
(
page 212).

423 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.

Do not start the engine if the battery is
frozen. Let the battery thaw out first.

Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a higher voltage battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.

Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.

Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when the engine is
started or running.
Warning!G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Do not tow-start the vehicle.
!Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine using a bat-
tery quick charge unit.
If the engine does not run after several unsuc-
cessful starting attempts, have it checked at the
nearest authorized Mercedes-Benz Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter and may present a fire risk.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 291).

424 Practical hints
Jump starting
The battery is located in the trunk under-
neath the luggage box (
page 397). Only
jump start the vehicle from the battery in
the trunk.
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake (page 59).
Make sure the gear selector lever is set
to positionP.
Open the trunk.1Positive terminal of discharged battery
2Negative terminal of discharged bat-
tery
3Positive terminal of charged battery
4Negative terminal of charged battery
Connect positive terminals1 and3
of the batteries with the jumper cable.
Clamp cable to charged battery3
first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminals4 and2
of the batteries with the jumper cable.
Clamp cable to charged battery4
first.
Start the engine of the disabled vehi-
cle.
You can now turn on the electrical con-
sumers. Do not switch on the headlamps
under any circumstances.
Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
You can now switch on the headlamps.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
!Never invert the terminal connections!

425 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.
When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front wheels raised only so
far as necessary to have the vehicle moved
to a safe location where the recommended
towing methods can be employed.
!Do not tow-start the vehicle.
!Use flatbed or wheel lift/dolly equipment
with SmartKey in starter switch turned to
position0.
Do not tow with sling-type equipment. Towing
with sling-type equipment over bumpy roads will
damage radiator and supports.
To prevent damage during transport, do not tie
down vehicle by its chassis or suspension parts.
Switch off the automatic central (
page 163)
locking.

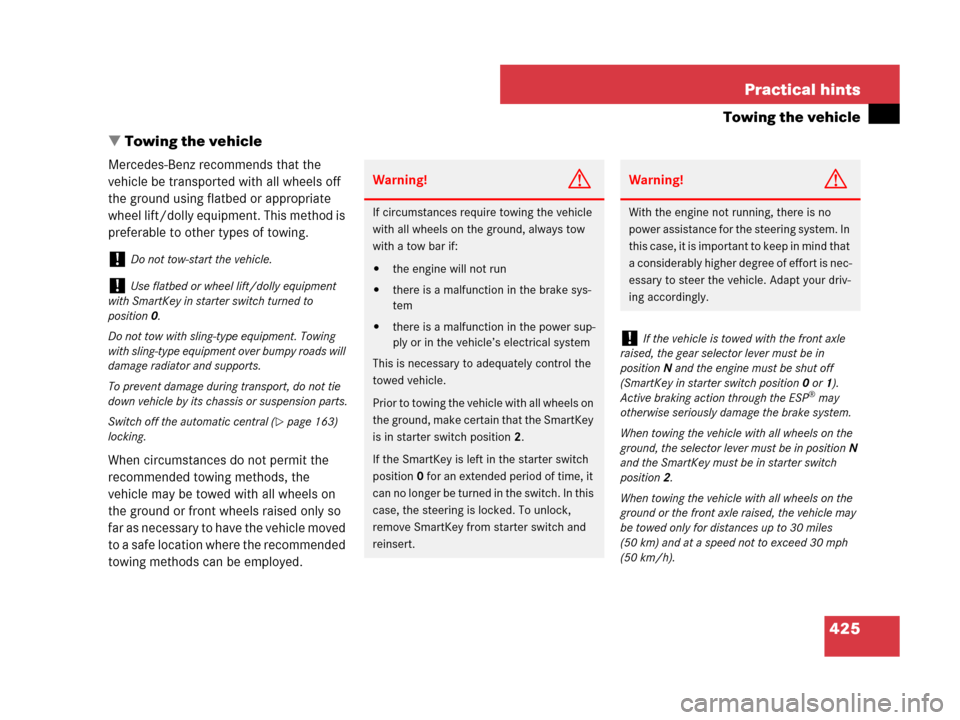

Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run

there is a malfunction in the brake sys-
tem

there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
This is necessary to adequately control the
towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position2.
If the SmartKey is left in the starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
Warning!G
With the engine not running, there is no
power assistance for the steering system. In
this case, it is important to keep in mind that
a considerably higher degree of effort is nec-
essary to steer the vehicle. Adapt your driv-
ing accordingly.
!If the vehicle is towed with the front axle
raised, the gear selector lever must be in
positionN and the engine must be shut off
(SmartKey in starter switch position0 or1).
Active braking action through the ESP
® may
otherwise seriously damage the brake system.
When towing the vehicle with all wheels on the
ground, the selector lever must be in positionN
and the SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels on the
ground or the front axle raised, the vehicle may
be towed only for distances up to 30 miles
(50 km) and at a speed not to exceed 30 mph
(50 km/h).

426 Practical hints
Towing the vehicle
Installing towing eye bolt
Front of vehicle
1Cover on right side of front bumper
To remove cover:
Press mark on cover1 in direction of
arrow.
Lift cover off to reveal the threaded
hole for towing eye bolt.
!Towing of the vehicle should only be done
using the properly installed towing eye bolt. Nev-
er attach tow cable, tow rope or tow rod to the
vehicle chassis, frame or suspension parts.
iWhen towing the vehicle with all wheels on
the ground, please note the following:
With the automatic central locking activated and
the SmartKey in starter switch position2, or
KEYLESS-GO
* start/stop button in position2,
the vehicle doors lock if the left front wheel as
well as the right rear wheel are turning at vehicle
speeds of approximately 9 mph (15 km/h) or
more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking
(
page 116).
iTo signal turns while being towed with the
hazard warning flasher in use, turn SmartKey in
starter switch to position2 and activate the
combination switch for the left or right turn
signal in the usual manner – only the selected
turn signal will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.
iThe selector lever will remain locked in park
positionP and the SmartKey will not turn in the
starter switch if the battery is disconnected or
discharged. For more information see “Battery”
(
page 420) or “Jump starting” (page 423).
For information on manual unlocking of the gear
selector lever, see (
page 400).

427 Practical hints
Towing the vehicle
The towing eye bolt is supplied with the
tool kit (located in the storage compart-
ment under the trunk floor).
Screw towing eye bolt in to its stop and
tighten with wheel wrench.
To reinstall cover:
Fit cover and snap into place.

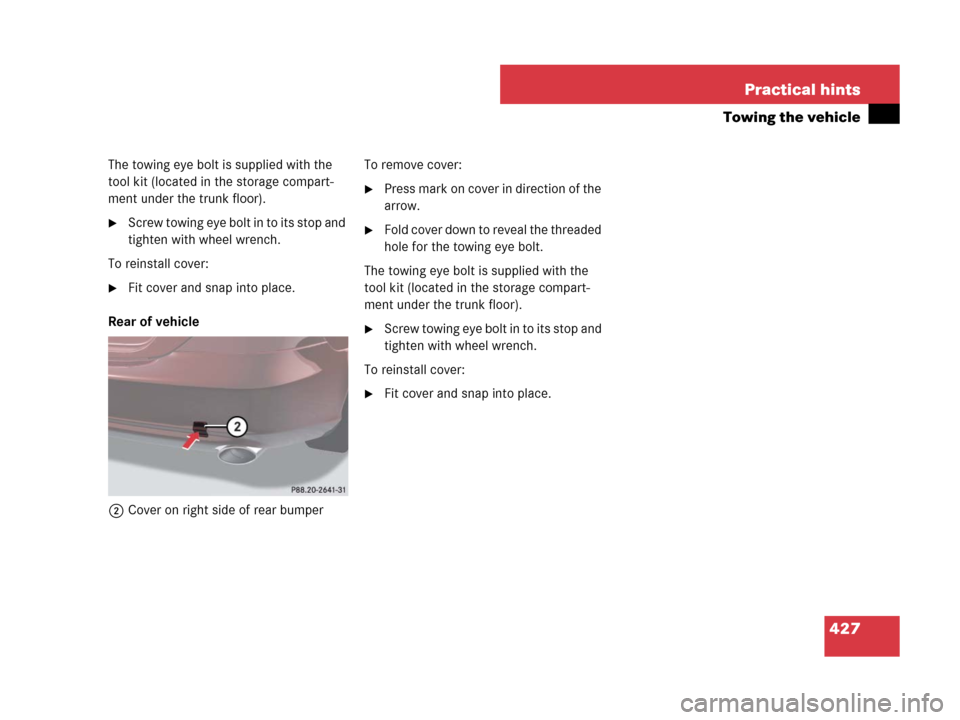

Rear of vehicle
2Cover on right side of rear bumperTo remove cover:
Press mark on cover in direction of the
arrow.
Fold cover down to reveal the threaded
hole for the towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the storage compart-
ment under the trunk floor).
Screw towing eye bolt in to its stop and
tighten with wheel wrench.
To reinstall cover:
Fit cover and snap into place.

428 Practical hints
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and sys-
tems secured by that fuse will stop operat-
ing.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Center.
A fuse chart is located in the fuse box in
the passenger compartment. The fuse
chart explains the fuse allocation and fuse
amperages.
The electrical fuses are located in different
fuse boxes:

Fuse box in passenger compartment
(
page 429)

Fuse box in trunk (page 429)Before replacing fuses:
Apply the parking brake (page 59).
Make sure the gear selector lever is set
to positionP (
page 169).
Turn off all electrical consumers.
Turn off the engine (page 60).
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Open the driver’s door.

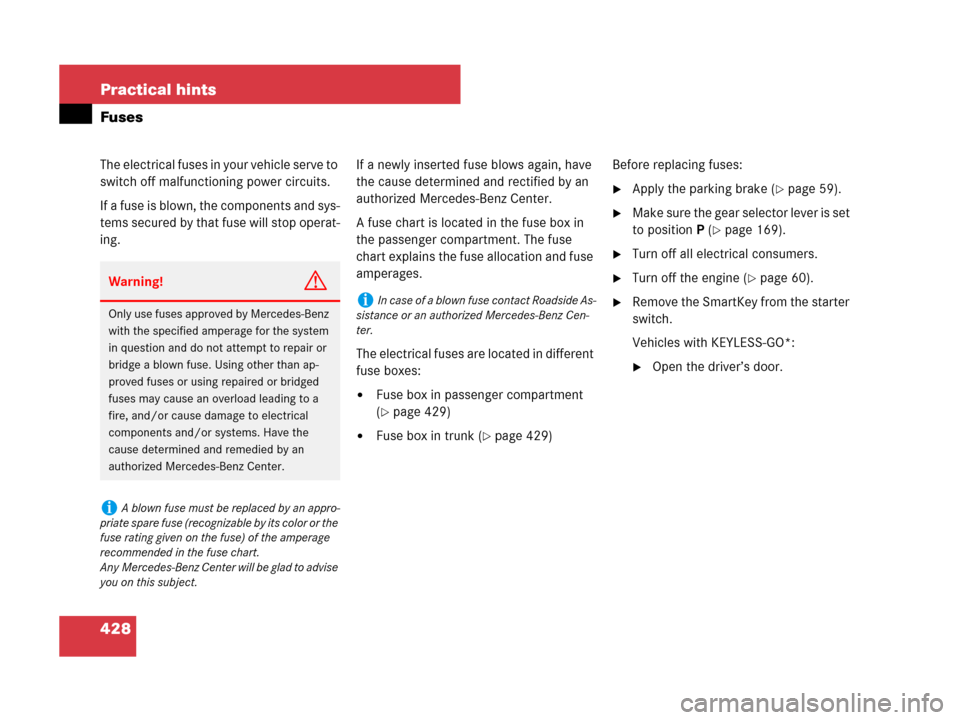

Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an
authorized Mercedes-Benz Center.
iA blown fuse must be replaced by an appro-
priate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.
iIn case of a blown fuse contact Roadside As-
sistance or an authorized Mercedes-Benz Cen-
ter.

429 Practical hints
Fuses

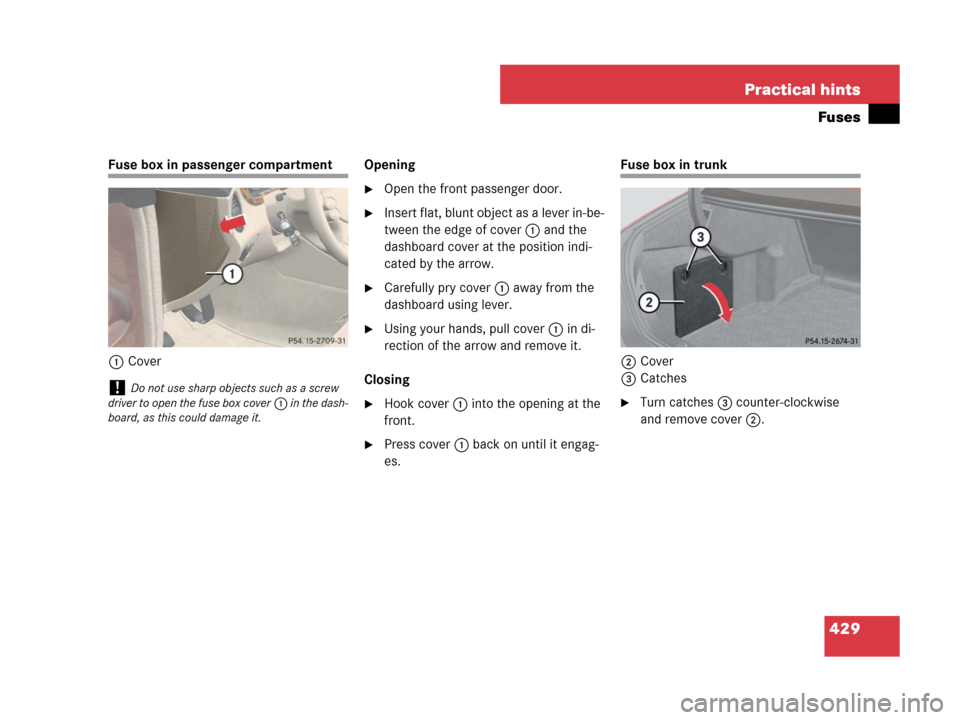

Fuse box in passenger compartment
1CoverOpening
Open the front passenger door.
Insert flat, blunt object as a lever in-be-
tween the edge of cover1 and the
dashboard cover at the position indi-
cated by the arrow.
Carefully pry cover1 away from the
dashboard using lever.
Using your hands, pull cover1 in di-
rection of the arrow and remove it.
Closing
Hook cover1 into the opening at the
front.
Press cover1 back on until it engag-
es.
Fuse box in trunk
2Cover
3Catches
Turn catches3 counter-clockwise
and remove cover2.!Do not use sharp objects such as a screw
driver to open the fuse box cover1 in the dash-
board, as this could damage it.
