227 Parking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Monitoring reach of sensors

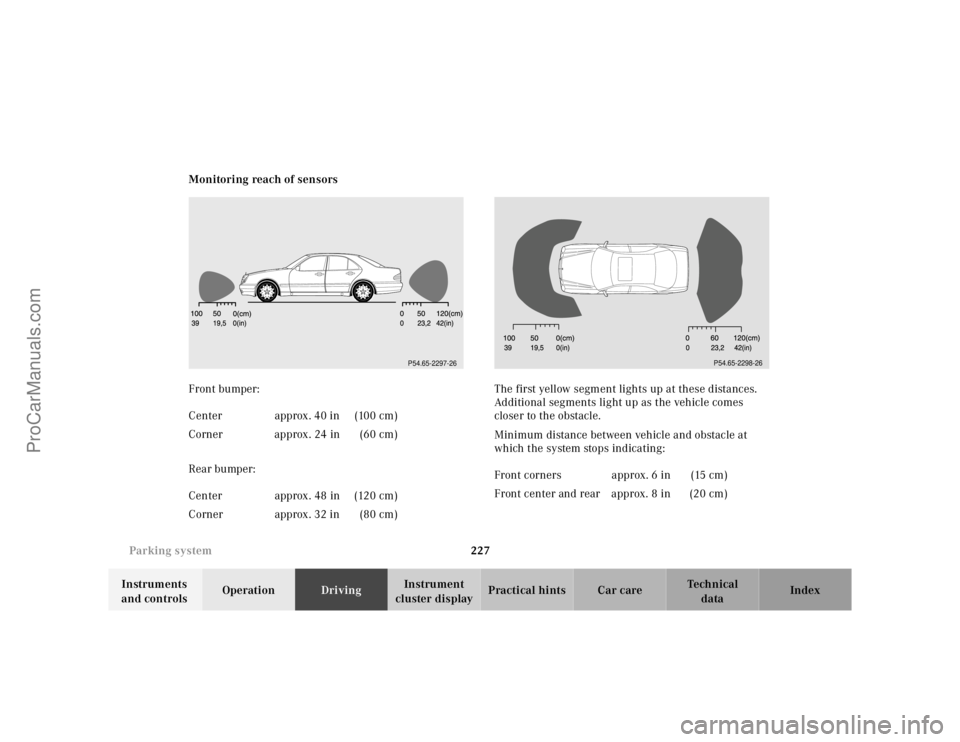

Front bumper:
Rear bumper:The first yellow segment lights up at these distances.
Additional segments light up as the vehicle comes
closer to the obstacle.
Minimum distance between vehicle and obstacle at
which the system stops indicating: Center approx. 40 in (100 cm)
Corner approx. 24 in (60 cm)
Center approx. 48 in (120 cm)
Corner approx. 32 in (80 cm)
P54.65-2297-26
Front corners approx. 6 in (15 cm)
Front center and rear approx. 8 in (20 cm)
P54.65-2298-26
ProCarManuals.com

228 Parking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
The obstacle may not be recognized if outside the
shaded sensor field, and no longer be indicated when
approaching it any closer (warning indicators go out).
Parktronic malfunction
All red segments of the warning indicators light up, and
a warning sounds for 3 seconds, if Parktronic does not
function properly.
A dirty sensor could be the reason. See page 303 for
instructions on cleaning the sensors in the bumpers.
After cleaning the sensors, turn electronic key in
steering lock to position 2. If the defect continues to be
displayed, have the system checked at your authorized
Mercedes-Benz Center.Parktronic switch

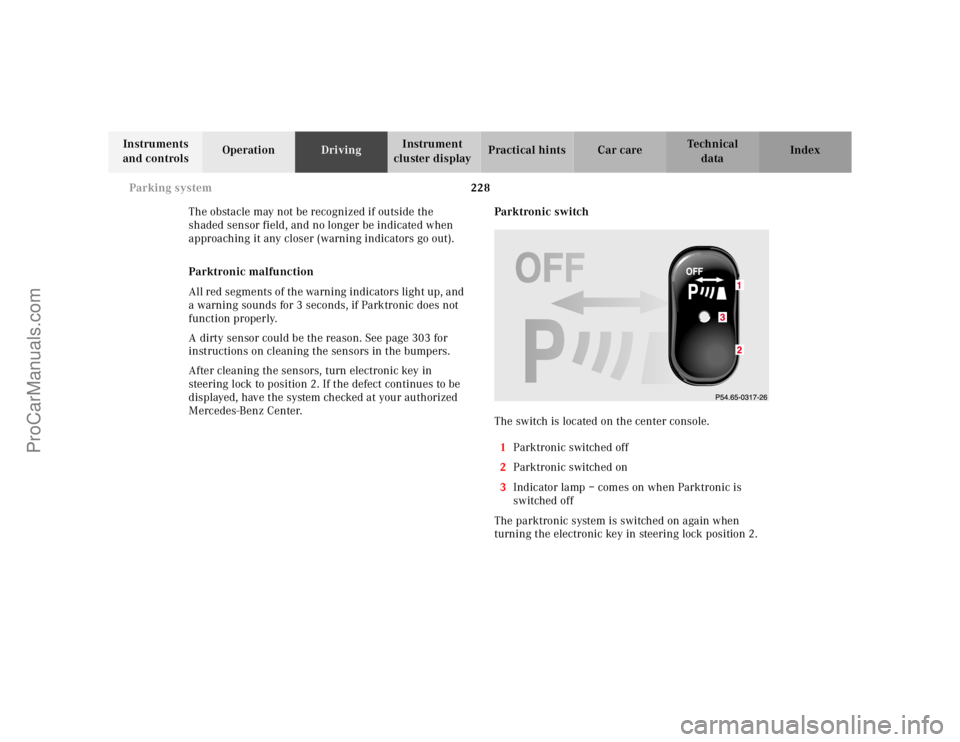

The switch is located on the center console.
1Parktronic switched off
2Parktronic switched on
3Indicator lamp – comes on when Parktronic is
switched off
The parktronic system is switched on again when
turning the electronic key in steering lock position 2.3
ProCarManuals.com

233 Contents - Instrument cluster display
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Instrument cluster displayMalfunction and
indicator lamps in the
instrument cluster ....................234
On-board diagnostic system .....234
Check engine malfunction
indicator lamp .............................234
Brake warning lamp ..................235
Supplemental restraint
system (SRS)
indicator lamp .............................236
Fuel reserve and fuel cap
placement warning ....................236
Electronic stability program
(ESP) — warning lamp ...............237BAS / ESP malfunction
indicator lamp ............................ 237
ABS malfunction
indicator lamp ............................ 237
Seat belt warning lamp ............. 238
Malfunction and indicator lamp
in the center console ............... 238
AIRBAG OFF
indicator lamp ............................ 238
Malfunction and warning
messages in the
multifunction display .............. 239
DISPLAY DEFECTIVE ................ 240
BATTERY / ALTERNATOR ........ 241
ABS-SYSTEM .............................. 242
BRAKE ASSIST ........................... 242BRAKE LINING WEAR ..............243
BRAKE FLUID .............................243
PARKING BRAKE .......................244
ENGINE FAN ...............................244
COOLANT (coolant level) ..........245
COOLANT TEMP. ........................246
LIGHTING SYSTEM ....................247
LIGHT SENSOR ...........................248
REMOVE KEY .............................248
TELE AID .....................................249
STEERING GEAR OIL .................249
ENGINE OIL LEVEL ...................250
WASHER FLUID ......................... 251
ELEC. STABIL. PROG.
(Electronic stability program) ..252
ProCarManuals.com

248 Malfunction and warning messages
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

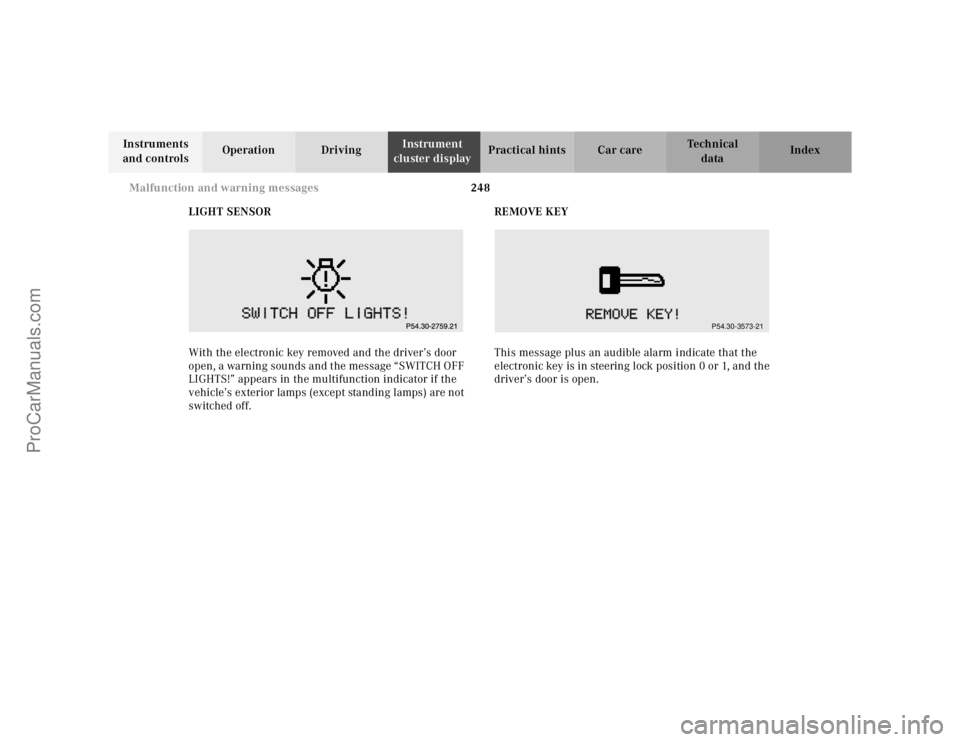

LIGHT SENSOR
With the electronic key removed and the driver’s door
open, a warning sounds and the message “SWITCH OFF
LIGHTS!” appears in the multifunction indicator if the
vehicle’s exterior lamps (except standing lamps) are not
switched off.REMOVE KEY
This message plus an audible alarm indicate that the
electronic key is in steering lock position 0 or 1, and the
driver’s door is open.
P54.30-3573-21
ProCarManuals.com

250 Malfunction and warning messages
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
ENGINE OIL LEVEL
1 The engine oil level must be checked immediately. See Engine oil
level indicator on page 117.
2 There is no oil in the engine. There is a danger of engine damage.3 There is a risk of damaging the engine or catalytic converter. The
engine oil level must be checked immediately. See Engine oil level
i n d i c a t o r o n p a g e 117 .
4 The engine oil level has dropped to a critical level.
Check the engine oil level immediately. See Engine oil level
indicator on page 117 and check the engine for visible leakage (loss
of oil).
5 The measuring system is malfunctioning.
6 It may be that there is water in the engine oil. Have the engine oil
che cked.
When the “ENGINE OIL LEVEL – CHECK LEVEL”
message appears while the engine is running and at
operating temperature, the engine oil level has dropped
to approximately the minimum mark on the dipstick.
When this occurs, the warning will first come on
intermittently and then stay on if the oil level drops
further.
If no oil leaks are noted, continue to drive to the nearest
service station where the engine oil should be topped to
the “full” mark on the dipstick with an approved oil.
The engine oil level warnings should not be ignored.
Extended driving with the symbol displayed could
result in serious engine damage that is not covered by
the Mercedes-Benz Limited Warranty.

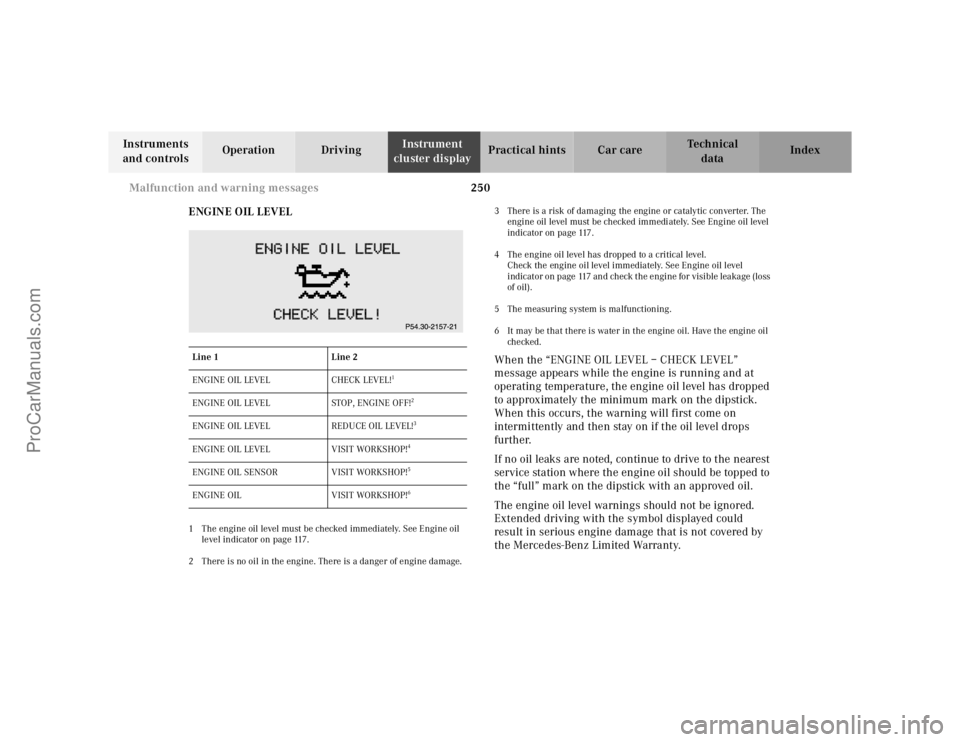

Line 1 Line 2
ENGINE OIL LEVEL CHECK LEVEL!
1
ENGINE OIL LEVEL STOP, ENGINE OFF!
2
ENG INE OIL LEVE L REDU CE OIL LEVEL!
3
ENGINE OIL LEVEL VISIT WORKSHOP!
4
ENGINE OIL SENSOR VISIT WORKSHOP!
5
ENGINE OIL VISIT WORKSHOP!
6
ProCarManuals.com

299 Contents - Vehicle care
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar careIndex
Vehicle careCleaning and care
of the vehicle .............................300
Power washer ..............................301
Tar stains .....................................301
Paintwork, painted body
components ................................. 301
Engine cleaning ..........................302
Vehicle washing .........................302
Ornamental moldings ................302
Headlamps, taillamps,
turn signal lenses ......................302
Cleaning the parktronic
system sensors ...........................303Window cleaning /
glass sunroof .............................. 303
Wiper blades .............................. 303
Light alloy wheels ..................... 304
Instrument cluster ..................... 304
Steering wheel and
gear selector lever ..................... 304
Cup holder .................................. 304
Seat belts ..................................... 304
Headliner and shelf
below rear window .................... 304
Upholstery .................................. 305
Hard plastic trim items ............. 305
Plastic and rubber parts ........... 305
ProCarManuals.com

303 Cleaning and care of the vehicle
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar careIndex Cleaning the parktronic system sensors

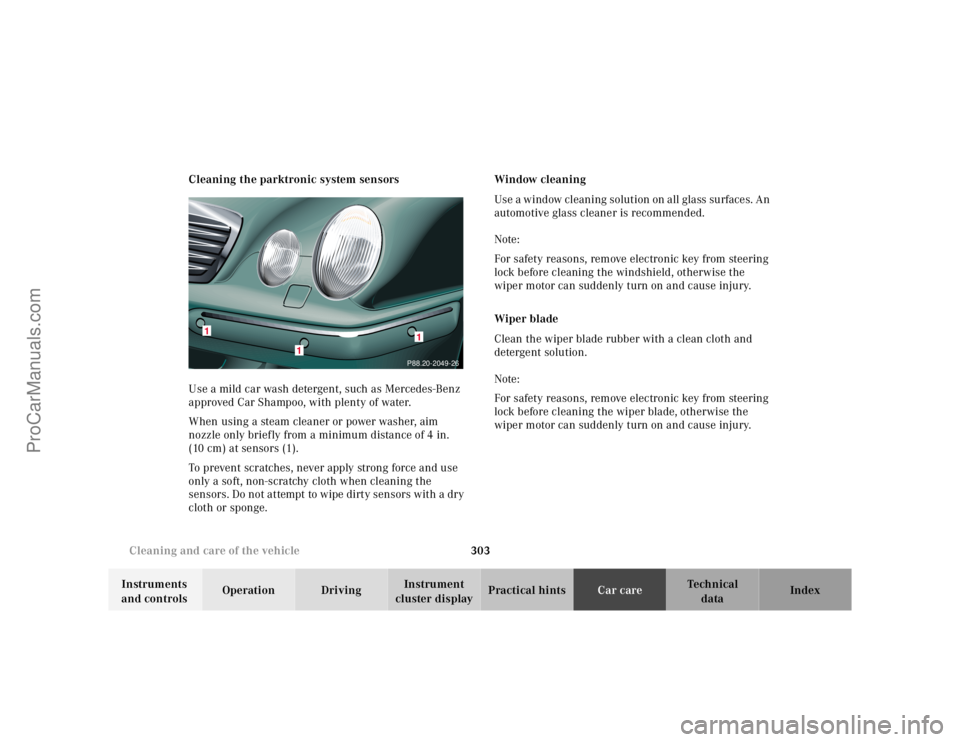

Use a mild car wash detergent, such as Mercedes-Benz
approved Car Shampoo, with plenty of water.
When using a steam cleaner or power washer, aim
nozzle only briefly from a minimum distance of 4 in.
(10 cm) at sensors (1).
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the
sensors. Do not attempt to wipe dirty sensors with a dry
cloth or sponge.Window cleaning
Use a window cleaning solution on all glass surfaces. An
automotive glass cleaner is recommended.
Note:
For safety reasons, remove electronic key from steering
lock before cleaning the windshield, otherwise the
wiper motor can suddenly turn on and cause injury.
Wiper blade
Clean the wiper blade rubber with a clean cloth and
detergent solution.
Note:
For safety reasons, remove electronic key from steering
lock before cleaning the wiper blade, otherwise the
wiper motor can suddenly turn on and cause injury.
P88.20-2049-261
1
1
ProCarManuals.com

331 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
IIdentification labels .......................................................309
Illuminated vanity mirrors ........................................... 161
Indicator lamps in the
instrument cluster ............................................. 88, 234
Individual settings ..........................................................110
Infant and child restraint systems ................................ 78
Information call
See Tele Aid ............................................................... 178
Instrument cluster ........................................................... 86
Activating ..................................................................... 89
Illumination ................................................................. 89
Indicator lamps ........................................................... 88
Instruments and controls ............................................... 18
Interior
General notes ............................................................. 162
Interior lighting ............................................................. 159JJump starting ..................................................................279
KKeys, vehicle .....................................................................24LLamps, exterior
Fog lamps ...........................................................119, 289
Headlamps ........................................ 119, 247, 286, 302
Parking lamps ...........................................119, 288, 289
Replacing bulbs ........................................................ 285
Side marker lamp, front ...................................119, 290
Standing lamps .........................................119, 288, 289
Taillamps .......................................... 119, 247, 289, 302
Layout of poly-V-belt drive ............................................ 311
LIGHT SENSOR -
malfunction and warning messages ..................... 248
Lighter ............................................................................. 168
LIGHTING SYSTEM -
malfunction and warning messages ..................... 247
Limp home mode ............................................................201
Locking and unlocking .................................................... 31
ProCarManuals.com

332 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
MMaintenance ................................................................... 177
Malfunction and indicator lamp
in the center console ................................................238
Malfunction and indicator lamps
in the instrument cluster .........................................234
Malfunction and warning messages ...........................239
ABS-SYSTEM .............................................................242
BATTERY / ALTERNATOR ....................................... 241
BRAKE ASSIST ..........................................................242
BRAKE FLUID ............................................................243
BRAKE LINING WEAR .............................................243
COOLANT (coolant level) .........................................245
COOLANT TEMP. .......................................................246
DISPLAY DEFECTIVE (engine control unit) .........240
DISPLAY DEFECTIVE (several systems) ...............240
ELEC. STABIL. PROG. ...............................................252
ENGINE FAN ..............................................................244
ENGINE OIL LEVEL ..................................................250
LIGHT SENSOR .........................................................248
LIGHTING SYSTEM ...................................................247
PARKING BRAKE ......................................................244
REMOVE KEY ............................................................248
STEERING GEAR OIL ...............................................249
TELE AID ....................................................................249WASHER FLUID ......................................................... 251
Malfunction message memory ....................................108
Manual release for fuel filler flap .............................. 296
Mechanical keys ............................................................... 34
Memory ................................................................ 49, 81, 84
Recalling ....................................................................... 50
Storing ........................................................................... 49
Mirror, exterior, adjusting ..............................................83
Mirror, exterior, rear view ..............................................83
Mirror, inside, rear view ................................................. 82
Multicontour seat ............................................................. 54
Multifunction display ...................................................... 92
Audio systems ..............................................................97
Engine oil level indicator ...........................................96
FSS (Flexible service system) ................................... 96
Individual settings .................................................... 110
Malfunction message memory ............................... 108
Navigation system .....................................................105
Telephone ...................................................................100
Trip and main odometer ............................................ 96
Trip computer ............................................................106
Vehicle speed ............................................................... 96
Multifunction steering wheel .........................................92
Setting the audio volume ......................................... 113
ProCarManuals.com

333 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
NNavigation system - Multifunction display ................ 105
Night security illumination ......................................... 120OOn-board diagnostic system .........................................234
Operator’s manual ............................................................. 8
Outside temperature indicator ...................................... 90
Overhead control panel ................................................... 21PPanic button ...................................................................... 34
Parcel net in front passenger footwell ....................... 169
Parking ............................................................................205
Parking assist (Parktronic) ..........................................224
Malfunction ...............................................................228
Parktronic switch ......................................................228
Sensors .......................................................................225
Warning indicators ...................................................226
Parking brake ............................. 202, 204, 205, 221, 235
PA R K I N G B R A K E -
malfunction and warning messages ......................244Power assistance ........................................................... 204
Power seats front ..............................................................46
Power windows ............................................................... 154
Blocking of rear door window operation ............... 155
Opening and closing ...................................................33
Synchronizing power windows ............................... 156
Problems with your vehicle ............................................ 14
Product information .......................................................... 7
RRadio transmitters ......................................................... 176
Rain sensor ..................................................................... 123
Rear seat cushion .......................................................... 294
Rear view mirrors ............................................................82
Antiglare night position .............................................82
Exterior ......................................................................... 83
Inside ............................................................................82
Parking position ..........................................................85
Storing mirror positions in memory ........................84
Rear window defroster .................................................. 130
Rear window sunshade ................................................. 160
Remote control .................................................................29
Battery replacement .................................................291
ProCarManuals.com
