Displaying the route list
Turn the right-hand rotary/pushbutton
to highlight
menu field (3) and press to confirm. The following
message will appear: “Compiling Route List...”.
The route list contains a list of streets which will be
travelled or which still lie ahead.Press
to display long entries in full in a window.
Press to remove the window from the screen.
Turn the right-hand rotary/pushbutton
to move to
the next/previous page, move the cursor past the
upper/lower scrolling symbol.
Press
twice to return to the symbol display or the
map.
Notes:
The route list is updated during the trip, the display
will indicate the streets which remain to be travelled.
If a longer route is calculated to avoid sections of the
freeway (page 160), these freeways may still appear on
the route list. As the vehicle approaches the freeway, it
will be deleted from the list.
P82.85-6137-26
09-NAVI2-20-US.pm507.06.2001, 12:38 Uhr 168

169
Route guidance
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Activating the location map
Turn the right-hand rotary/pushbutton
to menu
field “Location map” (page 167) and press to confirm.
The route map shows the general view for the whole
route.9Geographical latitude and longitude for your
current position
10Number of satellites received
11Scale of the last activation of the position map,
Altering the map scale, page 182
12Current vehicle position in the center of the screen
13Name of the street you are currently travelling on
Press
twice to return to the symbol display or the
map.
P82.85-6456-26
10
11
12
13
9
09-NAVI2-20-US.pm507.06.2001, 12:38 Uhr 169

170 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Displaying the current destination
Use the right-hand rotary/pushbutton
to highlight
the menu field “Current destination” in the menu (page
167) and press it to confirm.Press
to return to symbol display or the map.
P82.85-6109-26
09-NAVI2-20-US.pm507.06.2001, 12:38 Uhr 170

171
Route guidance
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings 14Indicates settings for the route calculation mode
selected for the current route
Selecting the route calculation mode, page 160
Selecting a detour during route guidance, page 186
Marking a way point, page 183
Press
to return to the symbol display or the map.
The screen will return to this display automatically
after 15 seconds. Requesting the route mode
Turn the right-hand rotary/pushbutton
to menu
field “Options” (page 167) and press to confirm.P82.85-6457-26
14
09-NAVI2-20-US.pm507.06.2001, 12:38 Uhr 171

172 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Activating the route map
Turn the right-hand rotary/pushbutton
to menu
field “Route map” (page 167) and press to confirm.
The route map shows the general view for the whole
route.15Current vehicle position
16Route displayed as a blue line
17Destination
The map scale selected depends on the route. The route
map faces north.
Press
to return to the symbol display or the map.
P82.85-6458-26
15
17
16
09-NAVI2-20-US.pm507.06.2001, 12:38 Uhr 172

173
Route guidance
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Displaying a stop-over
Use the right-hand rotary/pushbutton
to highlight
the menu field “Stop” in the menu (page 167) and press
it to confirm.18Stop-over
Place, type of stop-over and name
Note:
A stop-over will be displayed if this was previously
selected.
P82.85-6459-26
18
09-NAVI2-20-US.pm507.06.2001, 12:38 Uhr 173

174 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Voice output during route guidance
During the trip, along with the visual information –
symbol or map displays – COMAND also provides all of
the necessary spoken route information via voice output.
Warning!
Voice output is intended to direct you while driving
without diverting your attention from the road and
driving. Please always use this feature instead of
consulting the screen symbols or map for
directions while driving which may cause you to
divert your attention from driving which can
increase your risk of accident.
Spoken recommendations are given:
• when route guidance begins,
• after the route has been calculated,
• before and during a change in the driving direction,
• when the destination or a way point has been
reached.
If an audio source is switched on, e.g. the radio, the
voice output is mixed with that of the audio source. Beginning route guidance
After the route has been calculated, the symbol display
will appear. If you now are at the turn-off point, you
will also hear a voice telling you, e.g. “Please turn
right”.
You can select screen display during the journey:
• Symbol display
• Switch between symbol and map display, page 179
• Route guidance with a mixture of map and symbol
display, page 180

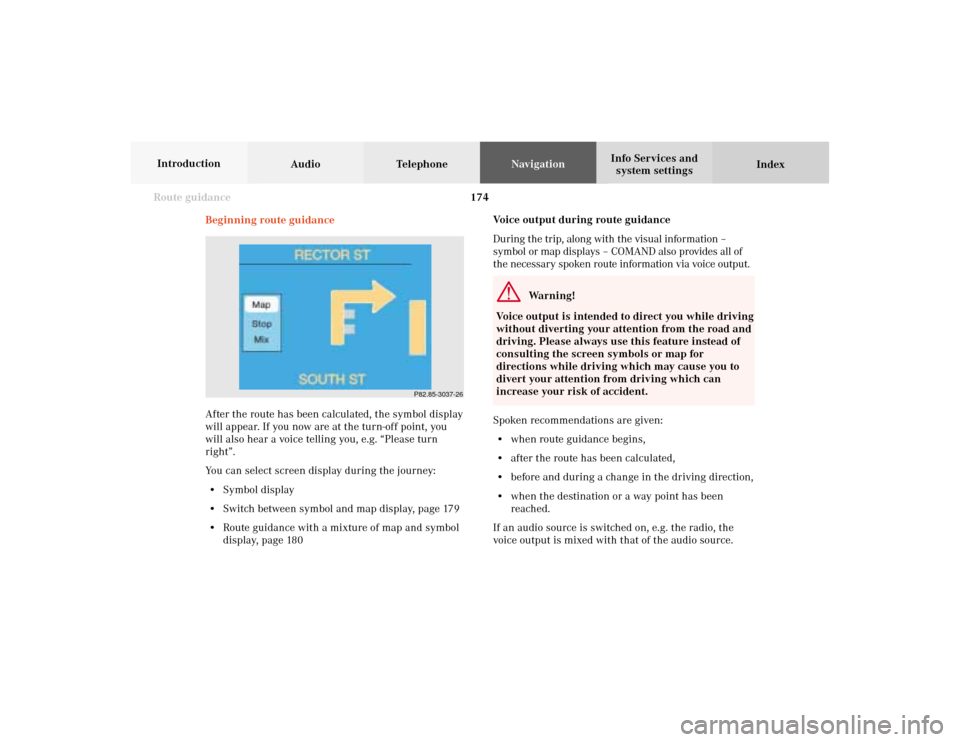

P82.85-3037-26
