Care
AIRCAP .......................................... 302
Carpets .......................................... 306
Car wash
........................................ 299
Display ........................................... 305
Exterior lights ................................ 304
Gear or selector lever ....................305
Interior ........................................... 305
Matte finish ................................... 301
Notes ............................................. 299
Paint .............................................. 301
Plastic trim .................................... 305
Power washer ................................ 300
Rear view camera .......................... 304
Roof lining ...................................... 306
Seat belt ........................................ 306
Seat cover ..................................... 306
Sensors ......................................... 304
Soft top .......................................... 302
Steering wheel ............................... 305
Tail pipes ....................................... 305
Trim pieces .................................... 306
Washing by hand ........................... 300
Wheels ........................................... 303
Wind deflector ............................... 302
Windows ........................................ 303
Wind screen ................................... 303
Wiper blades .................................. 304
Wooden trim .................................. 306
Cargo tie down rings .........................271
Car wash (care) ................................. 299
CD player/CD changer (on-board
computer) .......................................... 219
Center console ..................................... 32
Central locking Automatic locking (on-board
computer) ...................................... 225
Locking/unlocking (SmartKey) ........ 73
Changing bulbs
High-beam headlamps ...................131
Important safety notes .................. 129
Low-beam headlamps .................... 131
Overview of bulb types ..................130
Parking lamps ................................ 131
Standing lamps (front) ...................131
Turn signals (front) ......................... 132
Child-proof locks
Important safety notes .................... 63Children
In the vehicle ................................... 58
Restraint systems ............................ 58
Special seat belt retractor ............... 61
Child seat
LATCH-type (ISOFIX) child seat
anchors ............................................ 61
Top Tether ....................................... 62
Cigarette lighter ................................ 276
Cleaning Mirror turn signal ........................... 304
Climate control
Automatic climate control (3-
zone) .............................................. 139
Controlling automatically
............... 141
Cooling with air dehumidification ..140
Defrosting the windows ................. 144
Defrosting the windshield .............. 143
Dual-zone automatic climate
control ........................................... 137
Important safety notes .................. 136
Indicator lamp ................................ 141
Information on using 3-zone
automatic climate control .............. 140
Maximum cooling .......................... 144
Notes on using automatic climate
control ........................................... 138
Overview of systems ......................136
Problems with cooling with air
dehumidification ............................ 141
Problem with the rear window
defroster ........................................ 144
Rear control panel .........................139
Setting the air distribution .............142
Setting the airflow ......................... 143
Setting the air vents ......................146
Setting the climate mode ............... 141
Setting the temperature ................ 142
Switching air-recirculation mode
on/off ............................................ 144
Switching on/off ........................... 140
Switching residual heat on/off ...... 145
Switching the rear window
defroster on/off ............................ 144
Switching the ZONE function on/
off .................................................. 1436
Index

Switching the surround lighting
on/off (on-board computer)
..........225
Turn signals ................................... 124
see Changing bulbs

see Interior lighting
Light sensor (display message) .......239
Loading guidelines ............................268
Locking see Central locking
Locking (doors)
Automatic ........................................ 80
Emergency locking ........................... 81
From inside (central locking
button) ............................................. 79
Locking centrally
see Central locking
Locking verification signal (on-
board computer) ............................... 226
Low-beam headlamps Changing bulbs .............................. 131
Display message ............................ 236
Setting for driving abroad
(symmetrical) ................................. 120
Switching on/off ........................... 122
Luggage cover
see Trunk partition
Lumbar support
Adjusting the 4-way lumbar
support .......................................... 111M
M+S tires ............................................ 324
Malfunction message see Display messages


Matte finish (cleaning
instructions) ...................................... 301
mbrace Call priority .................................... 281
Display message ............................ 231
Downloading destinations
(COMAND) ..................................... 282
Downloading routes .......................285
Emergency call .............................. 279
Geo fencing ................................... 285
Important safety notes .................. 277
Locating a stolen vehicle ............... 284
MB info call button ........................ 281Remote vehicle locking ..................
283
Roadside Assistance button .......... 280
Search & Send ............................... 282
Self-test

......................................... 278
Speed alert .................................... 285
System .......................................... 278
Triggering the vehicle alarm ........... 286
Vehicle remote malfunction
diagnosis ....................................... 284
Vehicle remote unlocking .............. 283
Mechanical key
Function/notes ................................ 74
Locking vehicle ................................ 81
Unlocking the driver's door ..............80
Memory card (audio) ......................... 219
Memory function ............................... 117
Message memory (on-board
computer) .......................................... 228
Messages see Display messages
Mirrors
see Exterior mirrors
see Rear-view mirror
see Vanity mirror (in the sun visor)
Mobile phone
Menu (on-board computer) ............ 220
Modifying the programming
(SmartKey) ........................................... 74
MOExtended tires .............................. 309
Mounting wheels Lowering the vehicle ......................348
Mounting a new wheel ................... 348
Raising the vehicle ......................... 346
Removing a wheel ..........................347
Securing the vehicle against
rolling away ................................... 345
MP3
Operation ....................................... 219
see separate operating instructions
Multifunction display
Function/notes ............................. 215
Permanent display ......................... 224
Multifunction steering wheel
Operating the on-board computer . 214
Overview .......................................... 3112
Index

PARKTRONIC
Deactivating/activating .................193
Driving system ............................... 191
Function/notes ............................. 191
Important safety notes .................. 191
Problem (malfunction) ...................194
Range of the sensors ..................... 192
Warning display ............................. 193
PASSENGER AIR BAG OFF indicator
lamp ...................................................... 46
Pedals ................................................. 169
Plastic trim (cleaning instructions) . 305
Power washers .................................. 300
Power windows see Side windows
PRE-SAFE ®
(anticipatory occupant
protection) Display message ............................ 232
Operation ......................................... 52
PRE-SAFE ®
Brake
Activating/deactivating ................. 222
Display message ............................ 232
Function/notes ................................ 67
Warning lamp ................................. 264
Preventive occupant safety
system
see PRE-SAFE ®
(anticipatory
occupant protection)
Product information ............................21
Program selector button .................. 160
Pulling away Automatic transmission ................. 153Q
Qualified specialist workshop ...........24R
Radar sensor system Activating/deactivating

.................226
Display message ............................ 242
Radio
Selecting a station .........................219
see separate operating instructions
Reading lamp ..................................... 128Rear compartment
Setting the air vents
...................... 147
Setting the temperature ................ 142
Rear fog lamp
Display message ............................ 238
Switching on/off ........................... 123
Rear seats
Display message ............................ 252
Rear view camera
Cleaning instructions ..................... 304
Function/notes ............................. 197
Switching on/off ........................... 198
Rear-view mirror
Anti-glare (manual) ........................115
Dipping (automatic) .......................116
Rear window blind ............................ 275
Rear window defroster Problem (malfunction) ...................144
Switching on/off ........................... 144
Refueling
Fuel gauge ............................... 29, 213
Important safety notes .................. 165
Refueling process .......................... 165
see Fuel
Releasing the parking lock
manually (automatic
transmission) ..................................... 164
Remote control
Garage door opener .......................286
Programming (garage door
opener) .......................................... 287
Reporting safety defects .................... 25
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 241
Warning lamp ................................. 262
see Fuel
Residual heat (climate control) ........145
Restraint system see SRS (Supplemental Restraint
System)
Reverse gear
Engaging (automatic
transmission) ................................. 158
Reversing lamps (display
message) ............................................ 23814
Index

Roadside Assistance (breakdown)
....22
Roll bar Display message
............................ 232
Operation ......................................... 51
Roller sunblind
Panorama roof with power tilt/
sliding panel .................................. 101
Rear window .................................. 275
Roof
Overview .......................................... 89
see Soft top
Roof lining and carpets (cleaning
guidelines) ......................................... 306
Roof load (maximum) ........................367S
Safety Children in the vehicle .....................58
Child restraint systems ....................58
Occupant Classification System
(OCS) ............................................... 46
Safety systems
see Driving safety systems


Seat belts
Adjusting the driver's and front-
passenger seat belt .........................56
Automatic comfort-fit feature .......... 58
Belt force limiters ............................ 57
Cleaning ......................................... 306
Correct usage .................................. 54
Emergency Tensioning Devices ........ 57
Fastening ......................................... 55
Important safety guidelines .............53
Releasing ......................................... 56
Safety guidelines ............................. 40
Switching belt adjustment on/off
(on-board computer) ...................... 227
Warning lamp ................................. 257
Warning lamp (function) ................... 57
Seats
Adjusting (electrically) ...................108
Adjusting the 4-way lumbar
support .......................................... 111
Adjusting the head restraint .......... 109
Cleaning the cover ......................... 306
Correct driver's seat position ........ 106Folding the backrests forward/
back ...............................................

110
Important safety notes .................. 107
Overview ........................................ 107
Seat backrest display message .....253
Seat heating problem .................... 112
Seat ventilation problem ................ 112
Storing settings (memory
function) ........................................ 117
Switching AIRSCARF on/off ..........112
Switching seat heating on/off ....... 111
Switching seat ventilation on/off ..112
Selector lever
Cleaning ......................................... 305
Sensors (cleaning instructions) .......304
Service see ASSYST PLUS
Service menu (on-board computer) . 223
Service products Brake fluid ..................................... 366
Coolant (engine) ............................ 366
Engine oil ....................................... 365
Fuel ................................................ 362
Important safety notes .................. 362
Washer fluid ................................... 367
Service work
see ASSYST PLUS
Settings
Factory (on-board computer) ......... 227
On-board computer ....................... 223
Setting the air distribution ...............142
Setting the airflow ............................ 143
Side impact air bag ............................. 43
Side marker lamp (display
message) ............................................ 238
Side windows Cleaning ......................................... 303
Convenience closing feature ............ 87
Convenience opening feature .......... 86
Important safety information ........... 84
Opening/closing .............................. 85
Opening/closing all (Cabriolet) ........ 85
Problem (malfunction) .....................89
Resetting ......................................... 88
Sliding sunroof
see Panorama roof with power
tilt/sliding panel Index
15

tamper with electronic components or their
software.
In this section, you will learn the most
important facts about the restraint system
components of the vehicle.
The restraint system consists of:
R seat belts
R child restraint systems
R LATCH-type (ISOFIX) child seat anchors
Additional protection is provided by:
R SRS (Supplemental Restraint System)
R NECK-PRO head restraints
R PRE-SAFE ®
R Cabriolet: roll bar
R air bag system components with:
-PASSENGER
AIR BAG OFF indicator lamp
- front-passenger seat with Occupant
Classification System (OCS)
The different air bag systems work
independently of each other. The protective
functions of the system work in conjunction
with each other. Not all air bags are deployed
in an accident.
i See "Children in the vehicle" for
information on infants and children
traveling with you in the vehicle restraint
systems for infants and children
(Y page 58). SRS (Supplemental Restraint System)
Introduction SRS consists of:
R
6 SRS warning lamp
R Air bags
R Air bag control unit with crash sensors
R Emergency Tensioning Devices
R Belt force limiters
SRS reduces the risk of occupants coming
into contact with the vehicle's interior in the
event of an accident. It can also reduce the effect of the forces to which occupants are
subjected during an accident.
SRS warning lamp
G
WARNING
The SRS self-check has detected a
malfunction if the 6 SRS indicator lamp:
R does not light up at all
R does not go out after approximately four
seconds after the engine is started
R lights

up after the engine is started or while
the vehicle is in motion
For your safety, Mercedes-Benz strongly
recommends that you have the system
checked as soon as possible at a qualified
specialist workshop. SRS may otherwise fail
to activate when it is needed in the event of
an accident, which could lead to serious or
fatal injuries. SRS might also be activated
unexpectedly and unnecessarily, which could
also result in injury.
In addition, work carried out improperly on
SRS may render SRS inoperative or cause
unintended air bag deployment. Work on the
SRS system should only be carried out by
qualified specialist personnel. Consult a
qualified specialist workshop.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact an authorized Mercedes-Benz Center
for details. USA only: for further information,
contact our Customer Assistance Center at
1-800-FOR-MERCedes (1-800-367-6372).
SRS functions are checked regularly when
you switch on the ignition and when the
engine is running. Therefore, malfunctions
can be detected in good time.
The 6 SRS warning lamp in the instrument
cluster lights up when the ignition is switched
on. It goes out no later than a few seconds
after the engine is started.
The SRS components are in operational
readiness when the SRS 6 indicator lamp
goes out while the engine is running. Occupant safety
39
Safety Z

If the vehicle overturns, the front air bags are
generally
not deployed. If the system detects
high vehicle deceleration in a longitudinal
direction, the front air bags are deployed.
If a child restraint system is installed to the
front-passenger seat and the 4
PASSENGER AIRBAG OFF indicator lamp
does not light up on the center console:
R a child restraint system without
transponders for air bag deactivation
system is installed or
R a child restraint system with transponders
is not properly installed.
Your vehicle has adaptive, two-stage front air
bags. In the event of a collision, the air bag
control unit evaluates the vehicle
deceleration. In the first deployment stage,
the front air bag is filled with enough
propellant gas to reduce the risk of injuries.
The front air bag is fully deployed if a second
deployment threshold is exceeded within a
few milliseconds.
The deployment of the front-passenger front
air bag is also influenced by the weight
category of the front passenger, which is
determined by the Occupant Classification
System (OCS) ( Y page 46).
The lighter the passenger side occupant, the
higher the vehicle deceleration rate required
(predicted at the start of the impact) for
second-stage inflation of the front-passenger
front air bag. In the second stage, the front
air bags are inflated with the maximum
amount of propellant gas available.
The front air bags are not deployed in
situations where a low impact severity is
predicted. You will then be protected by the
fastened seat belt. Front-passenger front air bag will only deploy
if:
R
the system, based on the OCS weight
sensor readings, has detected that the
front-passenger seat is occupied.
R the 45
indicator lamp on the center
console is not lit (Y page 46).
R the air bag control unit predicts a high
impact severity.
Driver's knee bag Driver's knee bag : deploys under the
steering

column. It is deployed together with
the front air bags. The driver's knee bag is
designed to operate together with the front
air bags in frontal impacts if certain
thresholds are exceeded. The driver's knee
bag operates best in conjunction with
correctly positioned and fastened seat belts.
The driver's knee bag increases protection of
the driver against:
R knee injuries
R thigh injuries
R lower leg injuries
Side impact air bags G
WARNING
Only use seat covers which have been tested
and approved by Mercedes-Benz for your
vehicle

model. Using seat covers or other seat
coverings can cause a malfunction of the side
impact air bags and/or the pelvis air bags. Occupant safety
43
Safety
Z

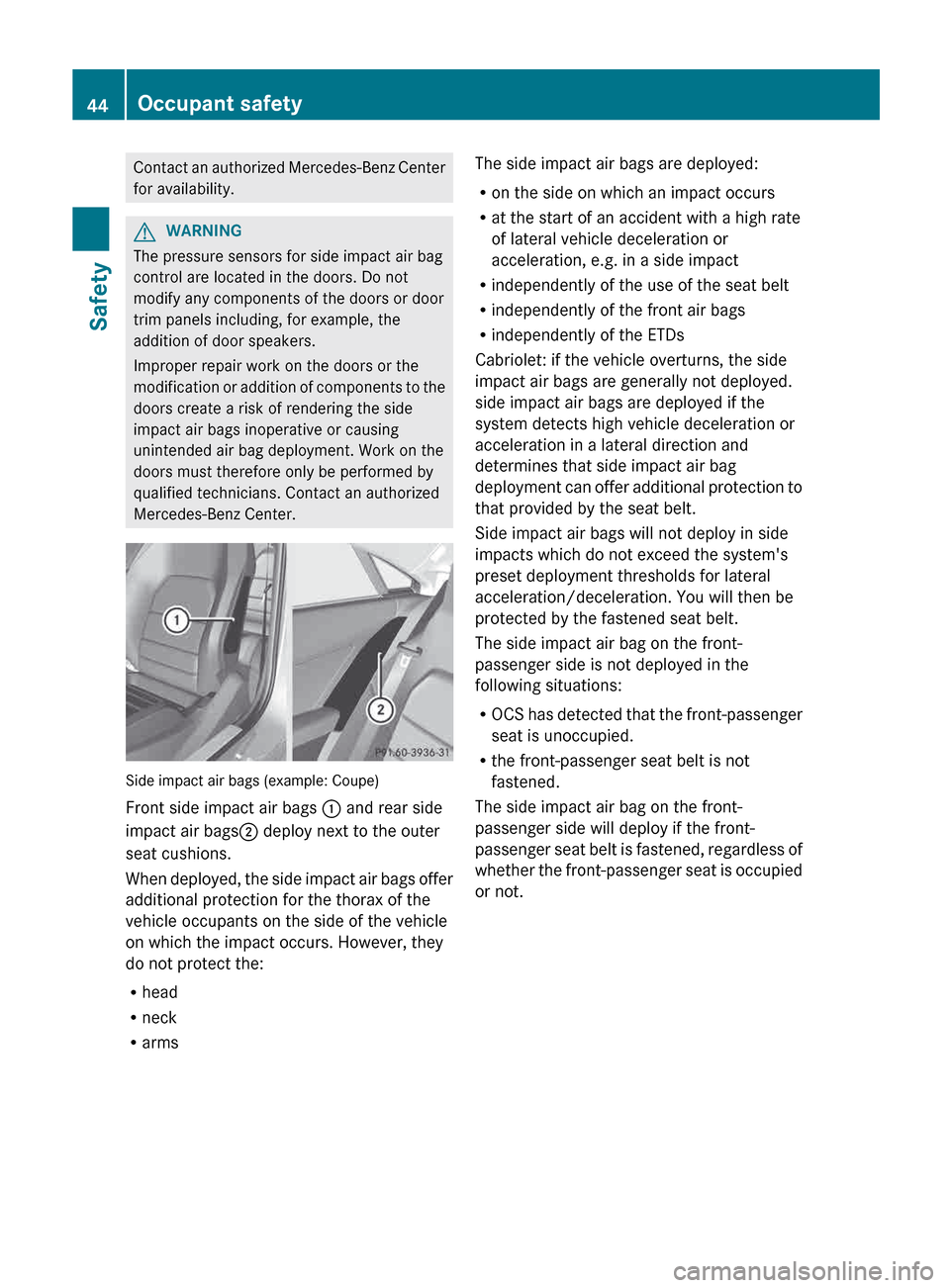

Contact an authorized Mercedes-Benz Center
for availability.
G
WARNING
The pressure sensors for side impact air bag
control are located in the doors. Do not
modify any components of the doors or door
trim panels including, for example, the
addition of door speakers.
Improper repair work on the doors or the
modification
or addition of components to the
doors create a risk of rendering the side
impact air bags inoperative or causing
unintended air bag deployment. Work on the
doors must therefore only be performed by
qualified technicians. Contact an authorized
Mercedes-Benz Center. Side impact air bags (example: Coupe)
Front side impact air bags
: and rear side
impact air bags ; deploy next to the outer
seat cushions.
When

deployed, the side impact air bags offer
additional protection for the thorax of the
vehicle occupants on the side of the vehicle
on which the impact occurs. However, they
do not protect the:
R head
R neck
R arms The side impact air bags are deployed:
R
on the side on which an impact occurs
R at the start of an accident with a high rate
of lateral vehicle deceleration or
acceleration, e.g. in a side impact
R independently of the use of the seat belt
R independently of the front air bags
R independently of the ETDs
Cabriolet: if the vehicle overturns, the side
impact air bags are generally not deployed.
side impact air bags are deployed if the
system detects high vehicle deceleration or
acceleration in a lateral direction and
determines that side impact air bag
deployment

can offer additional protection to
that provided by the seat belt.
Side impact air bags will not deploy in side
impacts which do not exceed the system's
preset deployment thresholds for lateral
acceleration/deceleration. You will then be
protected by the fastened seat belt.
The side impact air bag on the front-
passenger side is not deployed in the
following situations:
R OCS has detected that the front-passenger
seat is unoccupied.
R the front-passenger seat belt is not
fastened.
The side impact air bag on the front-
passenger side will deploy if the front-
passenger seat belt is fastened, regardless of
whether the front-passenger seat is occupied
or not. 44
Occupant safety
Safety

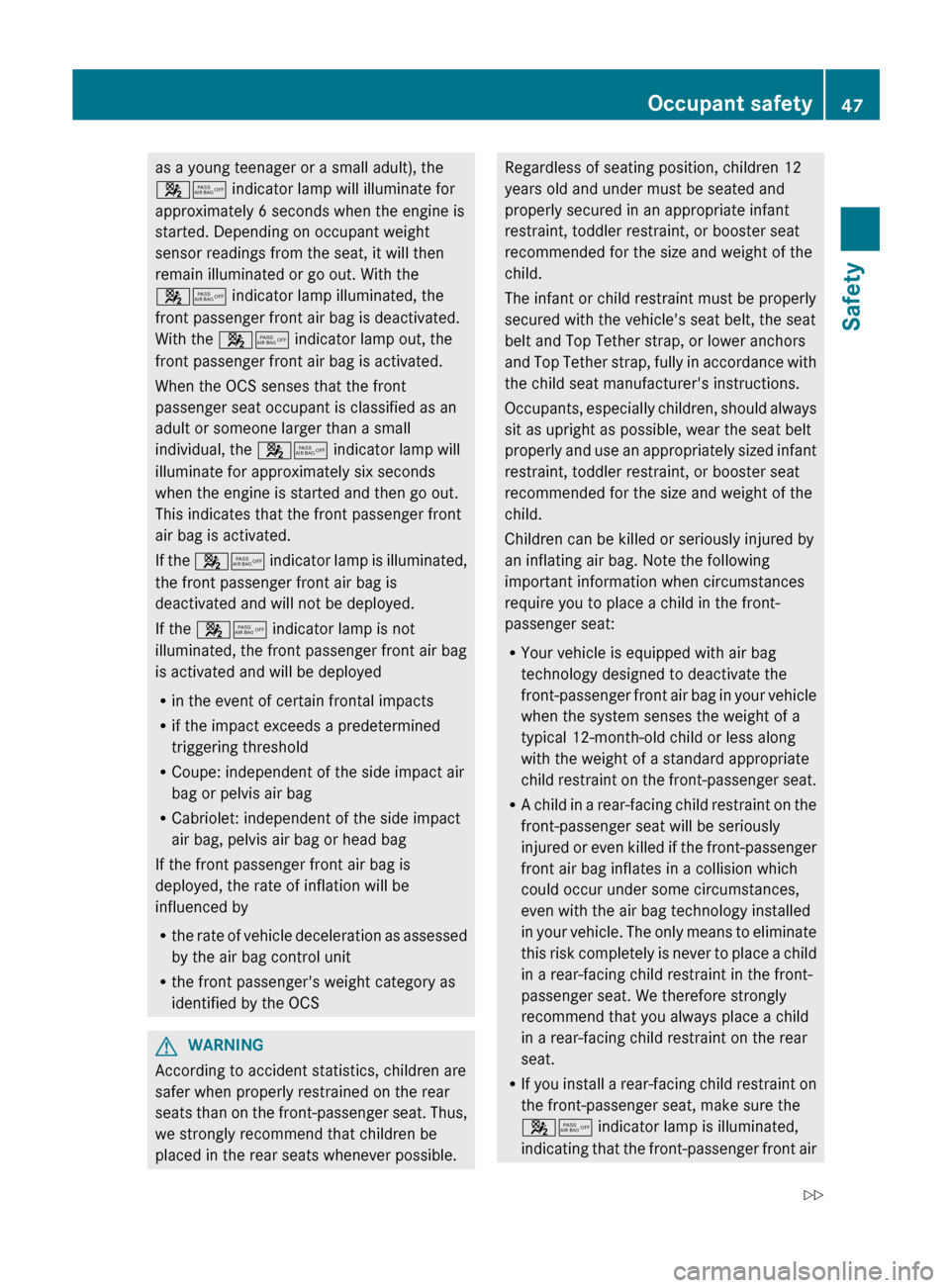

as a young teenager or a small adult), the
45 indicator lamp will illuminate for
approximately 6 seconds when the engine is
started. Depending on occupant weight
sensor readings from the seat, it will then
remain illuminated or go out. With the
45 indicator lamp illuminated, the
front passenger front air bag is deactivated.
With the 45 indicator lamp out, the
front passenger front air bag is activated.
When the OCS senses that the front
passenger seat occupant is classified as an
adult or someone larger than a small
individual, the
45 indicator lamp will
illuminate for approximately six seconds
when the engine is started and then go out.
This indicates that the front passenger front
air bag is activated.
If
the 45 indicator lamp is illuminated,
the front passenger front air bag is
deactivated and will not be deployed.
If the 45 indicator lamp is not
illuminated, the front passenger front air bag
is activated and will be deployed
R in the event of certain frontal impacts
R if the impact exceeds a predetermined
triggering threshold
R Coupe: independent of the side impact air
bag or pelvis air bag
R Cabriolet: independent of the side impact
air bag, pelvis air bag or head bag
If the front passenger front air bag is
deployed, the rate of inflation will be
influenced by
R the rate of vehicle deceleration as assessed
by the air bag control unit
R the front passenger's weight category as
identified by the OCS G
WARNING
According to accident statistics, children are
safer when properly restrained on the rear
seats

than on the front-passenger seat. Thus,
we strongly recommend that children be
placed in the rear seats whenever possible. Regardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriate infant
restraint, toddler restraint, or booster seat
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle's seat belt, the seat
belt and Top Tether strap, or lower anchors
and

Top Tether strap, fully in accordance with
the child seat manufacturer's instructions.
Occupants, especially children, should always
sit as upright as possible, wear the seat belt
properly and use an appropriately sized infant
restraint, toddler restraint, or booster seat
recommended for the size and weight of the
child.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when circumstances
require you to place a child in the front-
passenger seat:
R Your vehicle is equipped with air bag
technology designed to deactivate the
front-passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropriate
child restraint on the front-passenger seat.
R A child in a rear-facing child restraint on the
front-passenger seat will be seriously
injured or even killed if the front-passenger
front air bag inflates in a collision which
could occur under some circumstances,
even with the air bag technology installed
in your vehicle. The only means to eliminate
this risk completely is never to place a child
in a rear-facing child restraint in the front-
passenger seat. We therefore strongly
recommend that you always place a child
in a rear-facing child restraint on the rear
seat.
R If you install a rear-facing child restraint on
the front-passenger seat, make sure the
45 indicator lamp is illuminated,
indicating that the front-passenger front air Occupant safety
47
Safety
Z

bag is deactivated. Should the
45
indicator lamp not illuminate or go out while
the restraint is installed, please check
installation. Periodically check the
45 indicator lamp while driving to
make sure that the 45 indicator
lamp is illuminated. If the 45
indicator lamp goes out or remains out, do
not transport a child on the front-passenger
seat until the system has been repaired.
A child in a rear-facing child restraint on the
front-passenger seat will be seriously
injured or even killed if the front-passenger
front air bag inflates.
R If you place a child in a forward-facing child
restraint on the front-passenger seat:
-move the seat as far back as possible
- use the proper child restraint
recommended for the age, size and
weight of the child
- secure child restraint with the vehicle's
seat belt according to the child seat
manufacturer's instructions
R For children larger than the typical 12-
month-old child, the front-passenger front
air bag may or may not be activated. G
WARNING
If the red 6 SRS warning lamp in the
instrument cluster and the 45
indicator lamp light up simultaneously, the
OCS is malfunctioning. The front passenger
front air bag will be deactivated in this case.
Have the system checked by qualified
technicians as soon as possible. Contact an
authorized Mercedes-Benz Center.
Only

have the seat repaired or replaced at an
authorized Mercedes-Benz Center.
In order to ensure proper operation of the air
bag system and OCS:
R Sit with the seat belt properly fastened in a
position that is as upright as possible with
your back against the seat backrest.
R When seated, a passenger should not
position him/herself in such a way as to cause the passenger's weight to be lifted
from

the seat cushion as this may result in
the OCS being unable to correctly
approximate the passenger's weight
category.
R Read and observe all warnings in this
chapter. If the SmartKey has been removed from the
ignition lock or is in position 0, the
45 indicator lamp
: does not light
up.
The Occupant Classification System (OCS)
categorizes the occupant on the front-
passenger seat using a weight sensor. The
front-passenger front air bag is deactivated
automatically for certain weight categories.
45 indicator lamp : shows you the
current status. If
45 indicator lamp : lights up, the
front-passenger air bag is disabled.
The system does not deactivate:
R the side impact air bag
R the pelvis air bag
R the window curtain air bag (Coupe)
R the front-passenger head bag (Cabriolet)
R the Emergency Tensioning Devices
To

be classified correctly, the front passenger
must sit:
R with the seat belt fastened correctly
R in a position that is as upright as possible
with their back against the seat backrest
R with their feet on the floor48
Occupant safety
Safety

The OCS weight sensor reading is affected if
the occupant's weight is transferred, e.g. by
leaning on the armrest.
If
the front-passenger seat, the seat cover or
the seat cushion are damaged, have the
necessary repair work carried out at a
qualified specialist workshop.
For safety reasons, Mercedes-Benz
recommends that you only use seat
accessories that have been approved by
Mercedes-Benz.
Both the driver and the front passenger
should always observe the 45
indicator lamp to determine whether or not
the front passenger is positioned correctly.
Also observe the air bag display messages,
which appear in the instrument cluster
(Y page 235).
If the driver's air bag deploys, this does not
mean that the front-passenger front air bag
will also deploy.
The OCS may have detected that the seat:
R is empty or occupied by the weight of a
typical child up to twelve months old,
seated in a child restraint system
R is occupied by a small individual, such as a
young teenager or a small adult
R is occupied by a child in a child restraint
system whose weight is greater than that
of a typical twelve month old child.
These are examples of when the OCS
deactivates the front-passenger front air bag.
Deactivation takes place although the
collision fulfills the criteria for deploying the
driver's air bag.
For further information, see "Air bag display
messages" ( Y page 235).
System self-test G
WARNING
If the 4 5 indicator lamp does not
illuminate,
the system is not functioning. You
must contact an authorized Mercedes-Benz Center before seating any child on the front
passenger seat.
G
WARNING
Never place anything between seat cushion
and
child seat (e.g. a pillow), since it reduces
the effectiveness of the OCS. The underside
and rear side child restraint system must be
placed entirely on the seat cushion and the
backrest of the front-passenger seat
backrest.
If necessary, adjust the tilt of the passenger
seat backrest.
An incorrectly mounted child seat could cause
injuries to the child in case of an accident,
instead of increasing protection for the child.
Follow the manufacturer's instructions for
installation of child restraint systems.
The 45 indicator lamp lights up:
R if you turn the SmartKey in the ignition lock
to position 1 or 2
R if you press the KEYLESS-GO Start/Stop
button once or twice on vehicles with
KEYLESS-GO
R if an adult is seated properly on the front-
passenger seat and the OCS classifies the
occupant as an adult
The 45 indicator lamp goes out
after approximately six seconds.
If the seat is not occupied and the OCS
detects that the front-passenger seat is
empty, the 45 indicator lamp will
continue to light up. The 45 front-
passenger front air bag warning lamp then
stays lit continuously.
For more information about the OCS, see
"Problems with the Occupant Classification
System" ( Y page 50). Occupant safety
49
Safety Z
