Therear view camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe maneu vering and
pa rking remains with you. Make sure that there
are no persons, animals or objects in the maneu‐
ve ring area while maneu vering and pa rking in
parking spaces.
Yo u can select from thefo llowing vie ws:
RNo rmal view
RWide-angle view
RTrailer view
The area behind theve hicle is displa yed as a
mir ror image, as in the inside rearview mir ror.
Sy stem limitations
The rear view camera will not function or will
only pa rtially function in thefo llowing situations:
RIf th e trunk lid or tailgate is open.
RThere is heavy rain, snow or fog.
RThe light conditions are poor, e.g. at night.
RThe camera lens is obstructed, dirty or fog‐
ge d up. Obser vethe no tes on cleaning the
re ar view camera (
→page 327).
RThe camera or rear of your vehicle is dam‐
aged. In this case, ha vethe camera and its
position and setting checked at a qualified
specialist workshop.
The field of vision and other functions of there ar
view camera may be restricted due toadditional
accessori es onthere ar of theve hicle (e.g.
license plate brac ket or bicycle rack ).
00CE The display c
ontrast may be impaired due to
incident sunlight or other light sources. In
th is case, pay particular attention.
00CE Ifth e display operation is considerably
impaired due topixel er rors,fo rex ample,
ha ve the display repaired or replaced.
Ve hicles without Active Parking Assist
The following camera vie wsare available in the
multimedia sy stem:
Normal view
1Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
2Ye llow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
3Ye llow guide line at a dis tance of appr ox‐
imately 3.3 ft(1.0 m) from there ar area
4Bumper
5Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
Driving and parking 17
9
Page 182 of 498

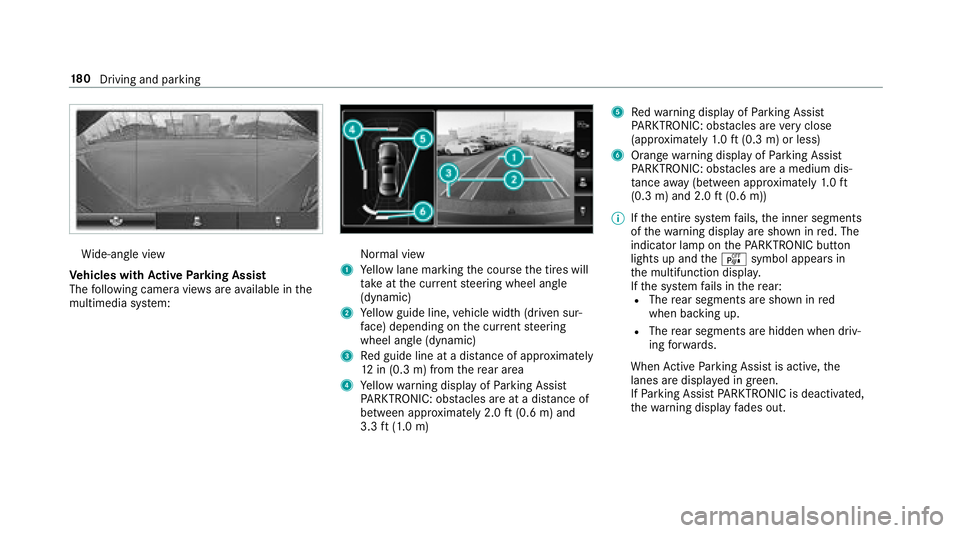

Wide-angle view
Ve hicles with Active Parking Assist
The following camera vie wsare available in the
multimedia sy stem:Normal view
1Ye llow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
2Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
3Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
4Ye llow warning display of Parking Assist
PA RKTRONIC: obstacles ar eat adis tance of
between appr oximately 2.0 ft(0.6 m) and
3.3 ft(1.0 m)
5Re dwa rning display of Parking Assist
PA RKTRONIC: obstacles ar eve ry close
(appr oximately 1.0 ft (0.3 m) or less)
6Orange warning display of Parking Assist
PA RKTRONIC: obstacles ar e amedium dis‐
ta nce away (between appr oximately 1.0 ft
(0.3 m) and 2.0 ft(0.6 m))
00CE Ifth e entire sy stem fails, the inner segments
of thewa rning display are shown in red. The
indicator lamp on thePA RKTRONI Cbut ton
lights up and theé symbol appears in
th e multifunction displa y.
If th e sy stem fails in there ar:
RThe rear segments are shown in red
when backing up.
RThe rear segments are hidden when driv‐
ing forw ards.
When Active Parking Assist is active, the
lanes are displa yed in green.
If Pa rking Assist PARKTRONI Cis deacti vate
d,
th ewa rnin
g display fades out.
18 0
Driving and pa rking
Page 183 of 498

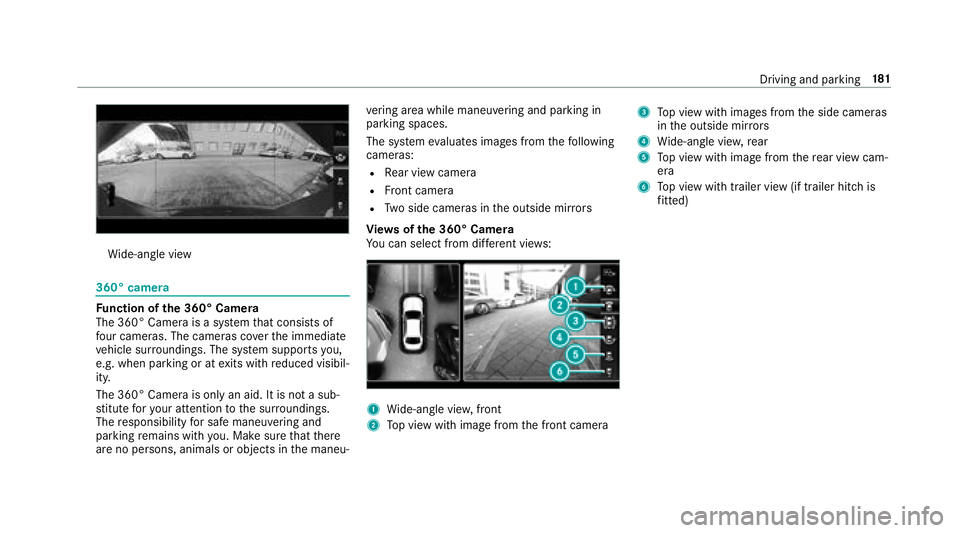

Wide-angle view
360° camera
Fu nction of the 360° Camera
The 360° Camera is a sy stem that consists of
fo ur cameras. The cameras co verth e immediate
ve hicle sur roundings. The sy stem supports you,
e.g. when parking or at exits with reduced visibil‐
ity.
The 360° Camera is only an aid. It is not a sub‐
st itute foryo ur attention tothe sur roundings.
The responsibility for safe maneu vering and
pa rking remains with you. Make sure that there
are no persons, animals or objects in the maneu‐ ve
ring area while maneu vering and pa rking in
parking spaces.
The sy stem evaluates images from thefo llowing
cameras:
RRe ar view camera
RFront camera
RTw o side cameras in the outside mir rors
Vi ew s of the 360° Camera
Yo u can select from dif fere nt vie ws:
1Wide-angle vie w,front
2Top view with image from the front camera
3To p view with images from the side cameras
in the outside mir rors
4Wi de-angle vie w,rear
5To p view with image from there ar view cam‐
era
6To p view with trailer view (if trailer hitch is
fi tted)
Driving and pa rking 18
1
Page 184 of 498

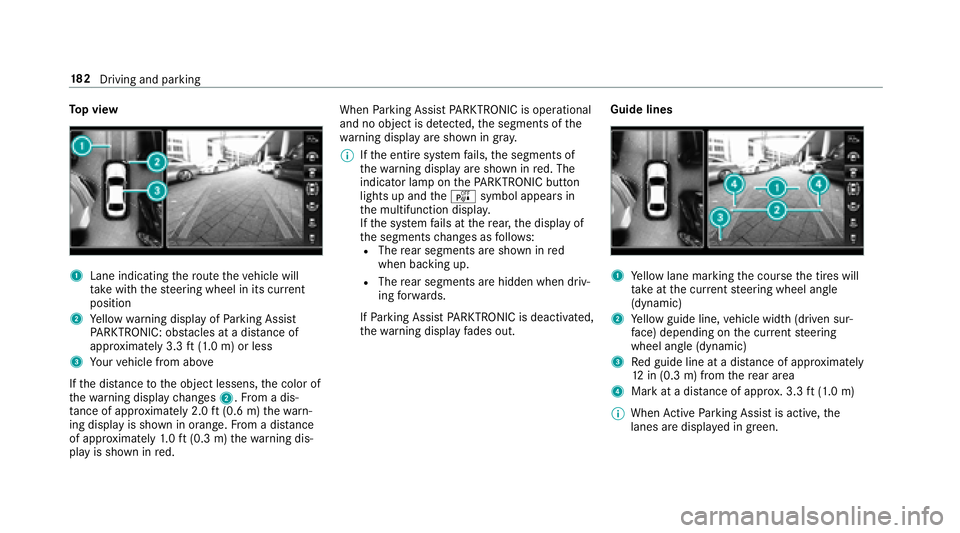

Top view
1Lane indicating thero ute theve hicle will
ta ke with thesteering wheel in its cur rent
position
2Ye llow warning display of Parking Assist
PA RKTRONIC: obstacles at adis tance of
appr oximately 3.3 ft(1.0 m) or less
3Yo ur vehicle from abo ve
If th e dis tance tothe object lessens, the color of
th ewa rning display changes 2.From a dis‐
ta nce of appr oximately 2.0 ft(0.6 m) thewa rn‐
ing display is shown in orange. From a dis tance
of appr oximately 1.0 ft (0.3 m) thewa rning dis‐
play is shown in red. When
Parking Assist PARKTRONI Cis operational
and no objec tis de tected, the segments of the
wa rning display are shown in gray .
00CE Ifth e entire sy stem fails, the segments of
th ewa rning display are shown in red. The
indicator lamp on thePA RKTRONI Cbut ton
lights up and theé symbol appears in
th e multifunction displa y.
If th e sy stem fails at there ar, the display of
th e segments changes as follo ws :
RThe rear segments are shown in red
when backing up.
RThe rear segments are hidden when driv‐
ing forw ards.
If Pa rking Assist PARKTRONI Cis deacti vated,
th ewa rning display fades out. Guide lines1Ye
llow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
2Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
3Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
4Mark at a distance of appr ox. 3.3 ft(1.0 m)
00CE When Active Parking Assist is active, the
lanes are displa yed in green.
18 2
Driving and pa rking
Page 185 of 498
The guide lines inthe multimedia sy stem dis‐
play show the dis tances toyour vehicle. The
dis tances only apply toroad le vel.
Side view of the mir ror cameras
The sides of theve hicle can be seen in this vie w.
1Guide line of extern al vehicle dimensions
with outside mir rors folded out
2Mar ker of the wheel conta ct points
Sy stem limitations
The 360° Camera will not function or will only
partially function in thefo llowing situations:
RIf th e doors are open.
RThe side mir rors are folded in.
RIf th e trunk lid or tailgate is open.
RThere is heavy rain, snow or fog.
RThe light conditions are poor, e.g. at night.
RThe camera lens is obstructed, dirty or fog‐
ge d up.
RCameras, or vehicle components in which
th e cameras are ins talled, are damaged. In
th is eve nt, ha vethe cameras, their positions
and their setting checked at a qualified spe‐
cialist workshop.
Do not use the 360° Camera under such circum‐
st ances. You could otherwise injure others or
collide with objects when parking theve hicle.
On vehicles with height-adjus table suspension or
if th eve hicle is car rying a heavy load, leaving the
st andard height can result in inaccuracies in the
guide lines and in the display of thege nerated
ima ges, depending on tech nical conditions.
The field of vision and other functions of the
came rasystem may be restricted due toaddi‐
tional accessori es onthere ar of theve hicle (e.g.
license plate brac ket, bicycle rack ). See
the no tes on cleaning the 360° Camera
(
→page 327).
Selecting a view for the 3
60° Camera
Requ irements
RThe $ X W R 5 H D U 9 L H Z & D P function is selec‐
te d in the multimedia sy stem.
00BBEn gage reve rsege ar.
00BBIn the multimedia sy stem, select the desired
vie w.
Opening the camera co ver of the reve rsing
camera
Multimedia sy stem:
0086 9 H K L F O H00CFk $ V V L V W D Q F H00CF & D P H U D
3 D U N L Q J
00BBSelect 2 S H Q & D P H U D & R Y H U .
00CE The camera co ver closes au tomatical lyafte r
some time or af ter an ignition cycle.
Assigning the camera as a favo rite
Yo u can call up the camera view directly in the
multimedia sy stem byassigning it as a favo rite .
Driving and pa rking 18
3
Page 186 of 498
00BBPressthe00E2 button on theto uchpad or
cont roller.
The main functions are displa yed.
00BBNa vigate down wards twice.
The Favorite s menu appears .
00BBSelect 1 H Z ) D Y R U L W H .
00BBSelect 9 H K L F O H .
00BBSelect & D P H U D .
Active Parking Assist
Fu nction of Active Parking Assist
Ac tive Parking Assist is an elect ronic pa rking
assis tance sy stem which uses ultrasound and is
automatically activated during forw ard tra vel.
The sy stem is operational at speeds of up to
appr oximately 22 mph (35 km/h). When all the
conditions are ful filled, thec symbol appears
in the multifunction display and the sy stem auto‐
matically sear ches for and measu res parking
spaces on bo thsides of theve hicle parallel and
perpendicular tothe direction of tra vel. If Active
Pa rking Assist is activated, suitable parking
spaces are displa yed in the multimedia sy stem. The
ë symbol appears in the multifunction
displa y.The ar rowsshow on which side of the
car riag ewa yfree parking spaces ar elocated.
The parking spac eand ,if necessar y,the parking
direction can be selected as desired. Active
Pa rking Assist calculates a suitable vehicle path
and assists youin parking and exiting the park‐
ing space.
Ac tive Parking Assist changes gear, accelerates,
brakes and steers theve hicle.
Ac tive Parking Assist is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe maneu vering and
pa rking remains with you. Make sure that no
persons, animals or objects etc. are in the
ma
neu vering range.
Ac tive Parking Assist is canceled if, among other
th ings, one of thefo llowing actions is car ried
out:
RYo u deactivate Parking Assist PARKTRONIC.
RYou deactivate Active Parking Assist.
RYo u begin steering.
RYo uappl yth e parking brake.
RYo u enga ge005D.
RESP®inter venes.
RYo u open theta ilgate.
Sy stem limitations of Active Parking Assist
Objects located abo veor below the de tection
ra nge of Active Parking Assist are not de tected
when the parking space is being measured.
These are also not take n into account when the
parking maneuver is calculated, e.g. overhanging
loads, overhangs or loading ramp s of truc ksor
th e boundaries of parking spaces. In some cir‐
cums tances, Active Parking Assist may therefore
guide you into the parking space prematurel y.
0071
WARNING Risk of accident due to
objects located abo veor below the
de tection range of Active Parking Assist
If th ere are objects abo veor below the
de tection range, thefo llowing situations may
arise:
RAc tive Parking Assist may steer too ear ly.
18 4
Driving and pa rking
Page 187 of 498

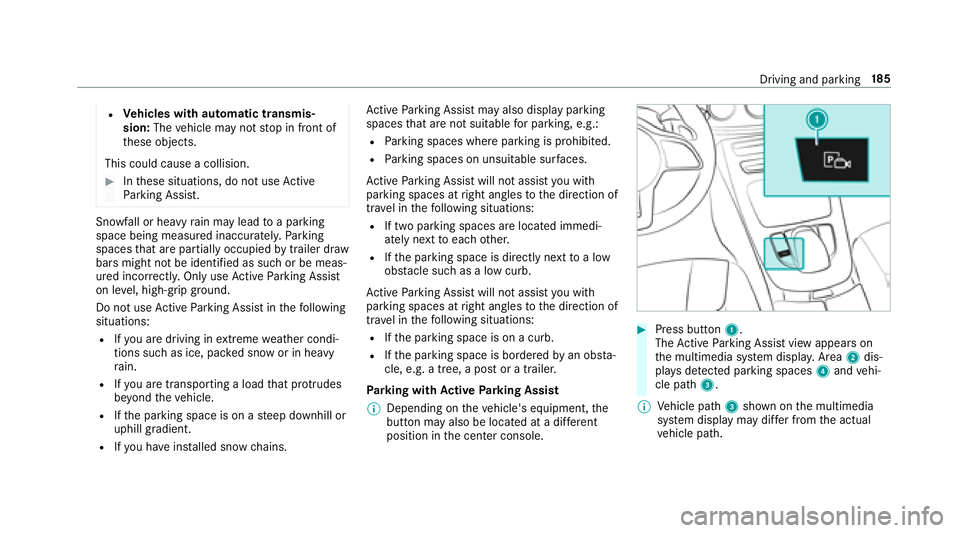

RVehicles with automatic transmis‐
sion: Thevehicle may not stop in front of
th ese objects.
This could cause a collision.
00BBIn these situations, do not use Active
Pa rking Assist.
Sn owfa ll or heavy rain may lead toa parking
space being measured inaccuratel y.Pa rking
spaces that are partial lyoccupied bytrailer dr aw
bars might not be identified as such or be meas‐
ured incor rectly. Only use Active Parking Assist
on le vel, high-grip ground.
Do not use Active Parking Assist in thefo llowing
situations:
RIf yo u are drivingin extreme weather condi‐
tions such as ice, pac ked snow or in heavy
ra in.
RIfyo u are transport ing a loadthat pr otru des
be yond theve hicle.
RIfth e parking space is on a steep downhill or
uphill gradient.
RIf yo u ha veinstalled snow chains. Ac
tive Parking Assist may also display parking
spaces that are not suitable for parking, e.g.:
RPa rking spaces where parking is prohibited.
RPa rking spaces on unsuitable sur faces.
Ac tive Parking Assist will not assist youwit h
parking spaces at right angles tothe direction of
tr av el in thefo llowing situations:
RIf two parking spaces are located immedi‐
ately next toeach other.
RIfth e parking space is directly next toa low
obs tacle such as a low curb.
Ac tive Parking Assist will not assist youwit h
parking spaces at right angles tothe direction of
tr ave l in the
fo llowin
g situations:
RIf th e parking space is on a curb.
RIfth e parking space is bordered byan obs ta‐
cle, e.g. a tree, a post or a traile r.
Park ing with Active Park ing Assist
00CE Depending on theve hicle's equipment, the
button may also be located at a dif fere nt
position in the center console.
00BBPress button 1.
The Active Parking Assist view appears on
th e multimedia sy stem displa y.Area 2dis‐
pl ay s de tected park ing spaces 4and vehi‐
cle path 3.
00CE Vehicle path 3shown on the multimedia
sy stem display may dif fer from the actual
ve hicle path.
Driving and parking 18
5
Page 188 of 498

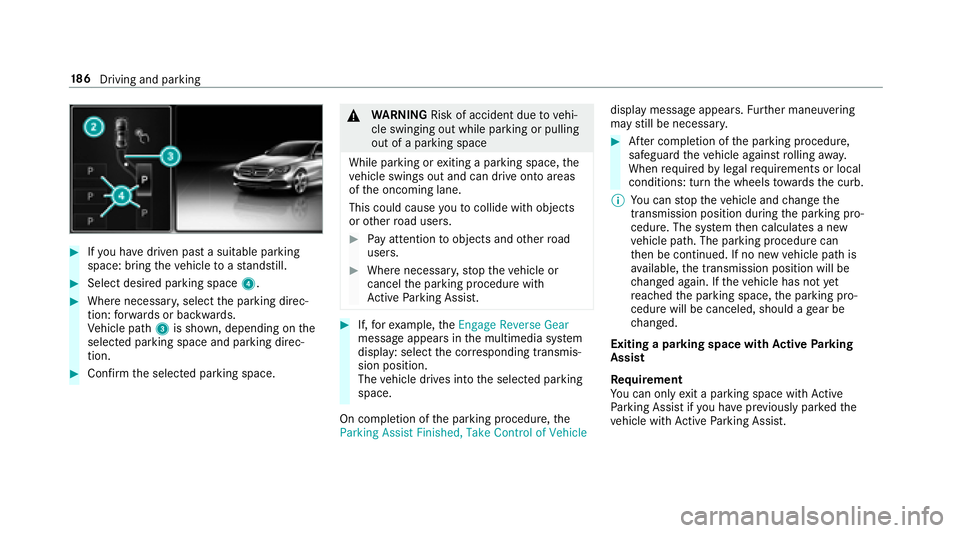

00BBIfyo u ha vedriven past a suitable parking
space: bring theve hicle toast andstill.
00BBSelect desired parking space 4.
00BBWhere necessary,select the parking direc‐
tion: forw ards or backwards.
Ve hicle path 3is shown, depending on the
selected parking space and parking direc‐
tion.
00BBConfirm the selected parking space.
0071
WARNING Risk of accident due tovehi‐
cle swinging out while parking or pulling
out of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas
of the oncoming lane.
This could cause youto collide wi thobjects
or other road users.
00BBPa yattention toobjects and other road
users.
00BBWhere necessar y,stop theve hicle or
cancel the parking procedure with
Ac tive Parking Assist.
00BBIf, forex ample, the ( Q J D J H 5 H Y H U V H * H D U
message appears in the multimedia sy stem
display: select the cor responding transmis‐
sion position.
The vehicle drives into the selected parking
space.
On completion of the parking procedure, the
3 D U N L Q J $ V V L V W ) L Q L V K H G 7 D N H & R Q W U R O R I 9 H K L F O H display message appears.
Further maneuvering
may still be necessar y.
00BBAfter completion of the parking procedure,
safeguard theve hicle against rolling away.
When requ ired bylegal requirements or local
conditions: turn the wheels towa rdsth e curb.
00CE You can stop theve hicle and change the
transmission position du ring the parking pro‐
cedure. The sy stem then calculates a new
ve hicle path. The parking procedure can
th en be continued. If no new vehicle path is
av ailable, the transmission position will be
ch anged again. If theve hicle has not yet
re ached the parking space, the parking pro‐
cedure will be canceled, should a gear be
ch anged.
Exiting a pa rking space with Active Parking
Assist
Re quirement
Yo u can only exit a parking space with Active
Pa rking Assist if you ha veprev iously par kedth e
ve hicle with Active Parking Assist.
18 6
Driving and pa rking
Page 189 of 498

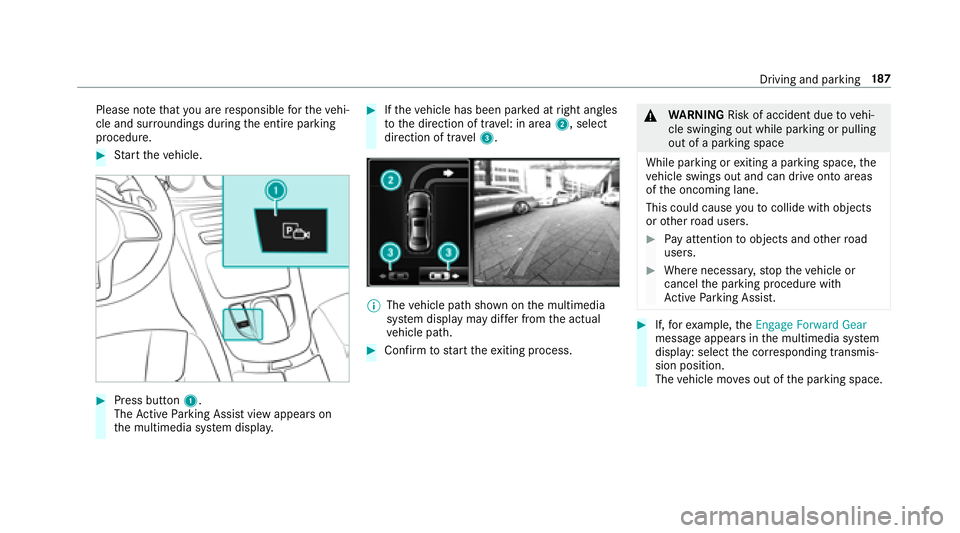

Please notethat you are responsible forth eve hi‐
cle and sur roundings during the entire parking
procedure.
00BBSt art theve hicle.
00BBPress button 1.
The Active Parking Assist view appears on
th e multimedia sy stem displa y.
00BBIfth eve hicle has been par ked at right angles
to the direction of tra vel: in area 2, select
direction of tra vel3.
00CE
The vehicle path shown on the multimedia
sy stem display may dif fer from the actual
ve hicle path.
00BBConfirm tostart theex iting process.
0071
WARNING Risk of accident due tovehi‐
cle swinging out while parking or pulling
out of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas
of the oncoming lane.
This could cause youto collide wi thobjects
or other road users.
00BBPa yattention toobjects and other road
users.
00BBWhere necessar y,stop theve hicle or
cancel the parking procedure with
Ac tive Parking Assist.
00BBIf, forex ample, the ( Q J D J H ) R U Z D U G * H D U
message appears in the multimedia sy stem
display: select the cor responding transmis‐
sion position.
The vehicle mo ves out of the parking space.
Driving and parking 18
7
Page 190 of 498

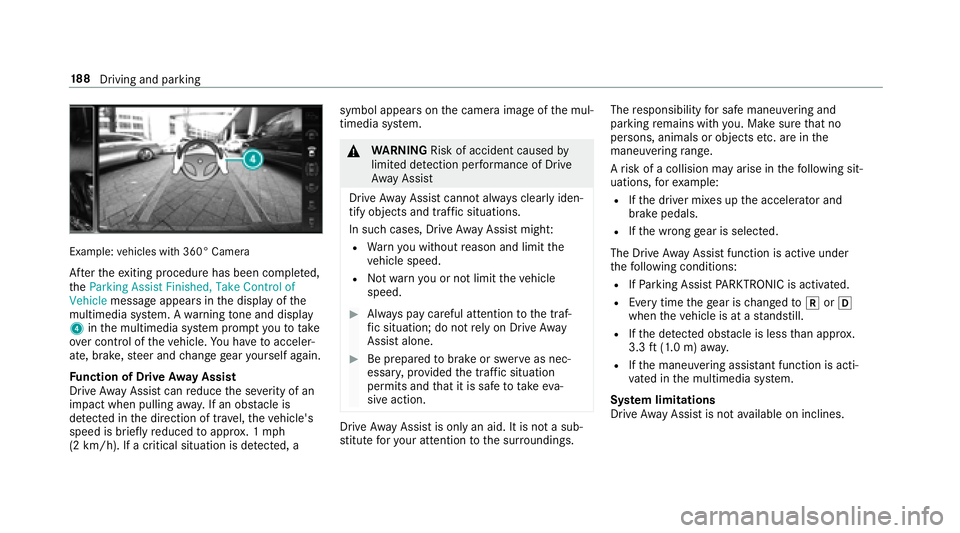

Example:vehicles with 360° Camera
Afterth eex iting procedure has been comple ted,
th e 3 D U N L Q J $ V V L V W ) L Q L V K H G 7 D N H & R Q W U R O R I
9 H K L F O H message appears in the display of the
multimedia sy stem. A warning tone and displ ay
4 inthe multimedia sy stem prom ptyouto take
ove r control of theve hicle. You ha vetoacceler‐
ate, brake, steer and change gear yourself again.
Fu nction of Drive Away Assist
Drive AwayAssist canreduce the se verity of an
impact when pulling away. If an obs tacle is
de tected in the direction of tra vel,th eve hicle's
speed is briefly reduced toappr ox. 1 mph
(2 km/h). If a critical situation is de tected, a symbol appea
rson the camera image of the mul‐
timedia sy stem.
0071
WARNING Risk of accident caused by
limited de tection per form ance of Drive
Aw ayAssist
Drive AwayAssist cannot al ways clearly iden‐
tify objects and traf fic situations.
In such cases, Drive AwayAssist might:
RWarnyou without reason and limit the
ve hicle speed.
RNot warnyou or not limit theve hicle
speed.
00BBAlw ays pay careful attention tothe traf‐
fi c situation; do not rely on Driv eAw ay
Assist alone.
00BBBe prepared tobrake or swer veas nec‐
essar y,prov ided the tra ffic situation
permits and that it is safe totake eva‐
sive action.
Drive AwayAssist is only an aid. It is not a sub‐
st itute foryo ur attention tothe sur roundings. The
responsibility for safe maneu vering and
pa rking remains with you. Make sure that no
persons, animals or objects etc. are in the
maneu vering range.
A risk of a collision may arise in thefo llowing sit‐
uations, forex ample:
RIfth e driver mixes up the accelera tor and
brake pedals.
RIf th e wrong gear is selecte d.
The Drive AwayAssist function is active under
th efo llowing conditions:
RIf Pa rking Assist PARKTRONI Cis activated.
REver ytime thege ar is changed to005E or005B
when theve hicle is at a standstill.
RIf th e de tected obs tacle is less than appr ox.
3.3 ft(1.0 m) away.
RIfth e maneuvering assis tant function is acti‐
va ted in the multimedia sy stem.
Sy stem limitations
Drive AwayAssist is notavailable on inclines.
18 8
Driving and pa rking
