sensor MERCEDES-BENZ E-CLASS CABRIOLET 2021 User Guide

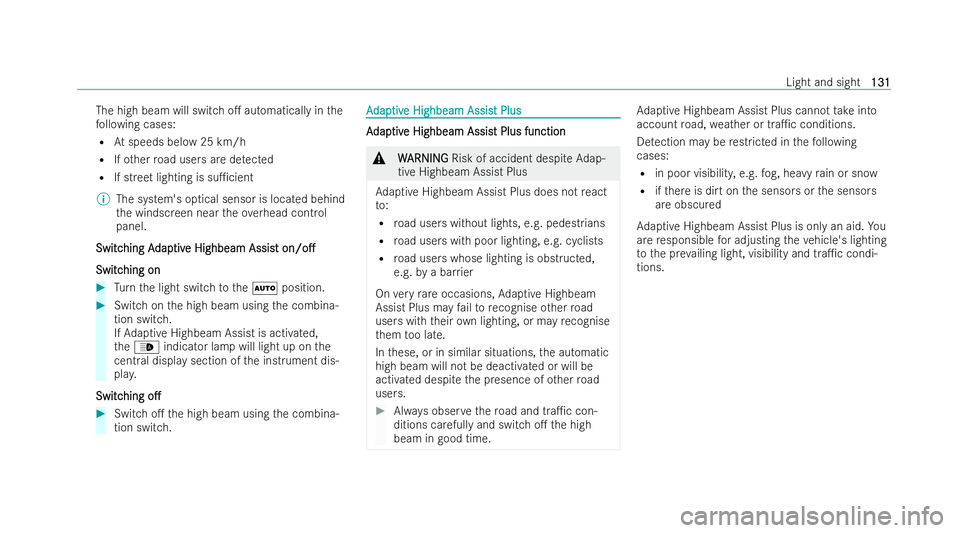

The high beam will switch o. automatically in
the
fo llowing cases:
R Atspeeds below 25 km/h
R Ifot her road users are de tected
R If st reet lighting is su1cient
% The system's optical sensor is located behind
th e windscreen near theove rhead control
panel.
Switc
Switc hing A
hing A dap
daptiv
tive Highbeam Assis
e Highbeam Assist ton/o.
on/o.
Switc
Switc hing on
hing on #
Turn the light switch totheà position. #
Switch on the high beam using the combina-
tion switch.
If Ad aptive Highbeam Assist is activated,
th e_ indicator lamp will light up on the
cent ral display section of the inst rument dis-
pla y.
Switc Switc hing
hingo.
o. #
Switch o. the high beam using the combina-
tion switch. A
A
dap
dap tiv
tive Highbeam Assis
e Highbeam Assist Plus t Plus A
A
dap
dap tiv
tive Highbeam Assis
e Highbeam Assist Plus function t Plus function &
W
WARNING
ARNING Risk of accident despite Adap-
tive Highbeam Assist Plus
Ad aptive Highbeam Assist Plus does not react
to:
R road users without lights, e.g. pedestrians
R road users with poor lighting, e.g. cyclists
R road users whose lighting is obstructed,
e.g. bya bar rier
On very rare occasions, Adaptive Highbeam
Assist Plus may failto recognise other road
users with their own lighting, or may recognise
th em too late.
In these, or in similar situations, the automatic
high beam will not be deactivated or will be
activated despite the presence of other road
users. #
Always obser vethero ad and tra1c con-
ditions carefully and switch o. the high
beam in good time. Ad
aptive Highbeam Assist Plus cann ottake into
account road, weather or tra1c conditions.
De tection may be restric ted in thefo llowing
cases:
R in poor visibility, e.g. fog, heavy rain or snow
R ifth ere is dirt on the sensors or the sensors
are obscured
Ad aptive Highbeam Assist Plus is only an aid. Yo u
are responsible for adjusting theve hicle's lighting
to the pr evailing light, visibility and tra1c condi-
tions. Light and sight
131 131

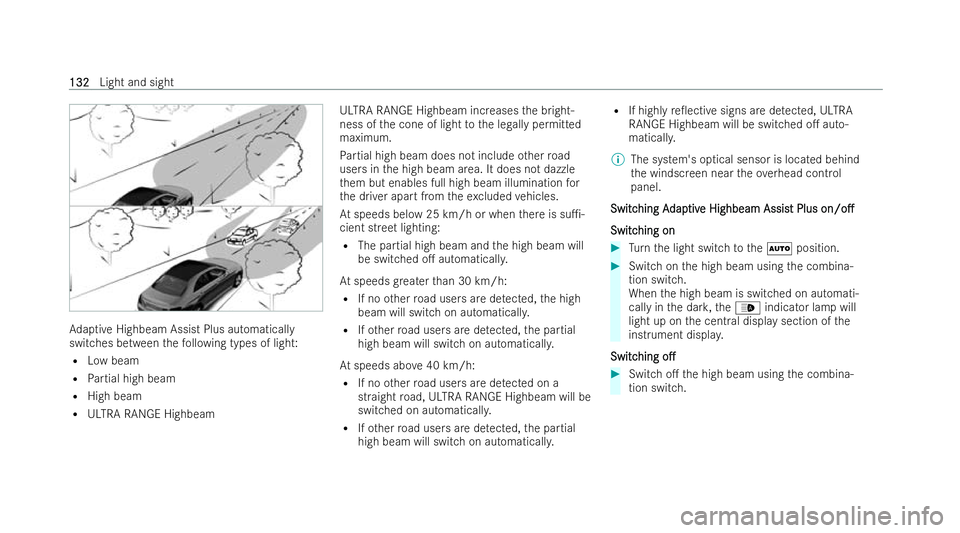

Ad
aptive Highbeam Assist Plus automatically
switches between thefo llowing types of light:
R Low beam
R Partial high beam
R High beam
R ULTRA RANGE Highbeam ULTRA RANGE Highbeam increases
the bright-
ness of the cone of light tothe legally permitted
maximum.
Pa rtial high beam does not include other road
users in the high beam area. It does not dazzle
th em but enables full high beam illumination for
th e driver apart from theex cluded vehicles.
At speeds below 25 km/h or when there is su1-
cient street lighting:
R The partial high beam and the high beam will
be switched o. automaticall y.
At speeds greater than 30 km/h:
R If no other road users are de tected, the high
beam will switch on automaticall y.
R Ifot her road users are de tected, the partial
high beam will switch on automaticall y.
At speeds abo ve40 km/h:
R If no other road users are de tected on a
st ra ight road, ULTRA RA NGE Highbeam will be
switched on automaticall y.
R Ifot her road users are de tected, the partial
high beam will switch on automaticall y.R
If high ly re0ective signs are de tected, ULTRA
RANGE Highbeam will be switched o. auto-
maticall y.
% The system's optical sensor is located behind
th e windscreen near theove rhead control
panel.
Switc Switc hing A
hing A dap
daptiv
tive Highbeam Assis
e Highbeam Assist Plus t Pluson/o.
on/o.
Switc
Switc hing on
hing on #
Turn the light switch totheà position. #
Switch on the high beam using the combina-
tion switch.
When the high beam is switched on automati-
cally in the dar k, the_ indicator lamp will
light up on the central display section of the
inst rument displa y.
Switc Switc hing
hingo.
o. #
Switch o. the high beam using the combina-
tion switch. 132
132
Light and sight

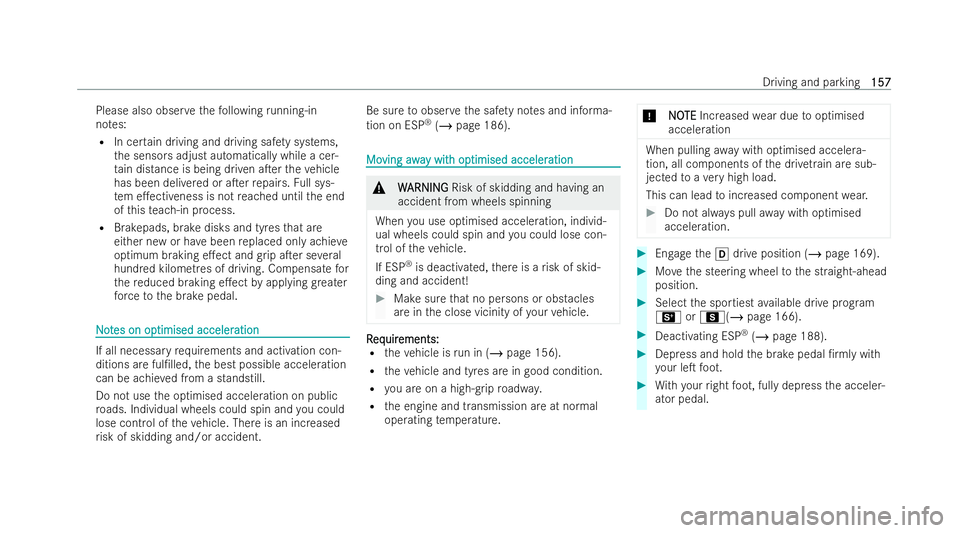

Please also obser
vethefo llowing running-in
no tes:
R In cer tain driving and driving saf ety sy stems,
th e sensors adjust automatically while a cer-
ta in distance is being driven aTer theve hicle
has been deli vered or aTer repairs. Full sys-
te m e.ectiveness is not reached until the end
of this teach-in process.
R Brakepads, brake disks and tyres that are
either new or ha vebeen replaced only achie ve
optimum braking e.ect and grip aTer se veral
hund red kilometres of driving. Compensate for
th ere duced braking e.ect byapplying greater
fo rc eto the brake pedal. N
No
ot
tes on op
es on op timised acceler
timised acceler ation
ation If all necessary
requ irements and activation con-
ditions are ful/lled, the best possible acceleration
can be achie ved from a standstill.
Do not use the optimised acceleration on public
ro ads. Individual wheels could spin and you could
lose control of theve hicle. There is an increased
ri sk of skidding and/or accident. Be sure
toobser vethe saf ety no tes and informa-
tion on ESP ®
(/ page 186). Mo
Mo
ving awa
ving away wit
y wit h op
h optimised acceler
timised acceler ation
ation &
W
WARNING
ARNING Risk of skidding and having an
accident from wheels spinning
When you use optimised acceleration, individ-
ual wheels could spin and you could lose con-
trol of theve hicle.
If ESP ®
is deactivated, there is a risk of skid-
ding and accident! #
Make sure that no persons or obs tacles
are in the close vicinity of your vehicle. R
R
eq
eq uir
uir ements:
ements:
R theve hicle is run in (/ page 156).
R theve hicle and tyres are in good condition.
R you are on a high-g rip ro adw ay.
R the engine and transmission are at normal
operating temp erature. *
N
NO OTE
TE Increased wear due tooptimised
acceleration When pulling
away with optimised accelera-
tion, all components of the driv etra in are sub-
jected toave ry high load.
This can lead toincreased component wear. #
Do not alw ays pull away with optimised
acceleration. #
Engage theh drive position (/ page 169). #
Movethe steering wheel tothe straight-ahead
position. #
Select the sportiest available drive prog ram
B orC(/ page 166). #
Deactivating ESP ®
(/ page 188). #
Depress and hold the brake pedal /rmly with
yo ur leT foot. #
With your right foot , fully depress the acceler-
ator pedal. Driving and parking
157
157

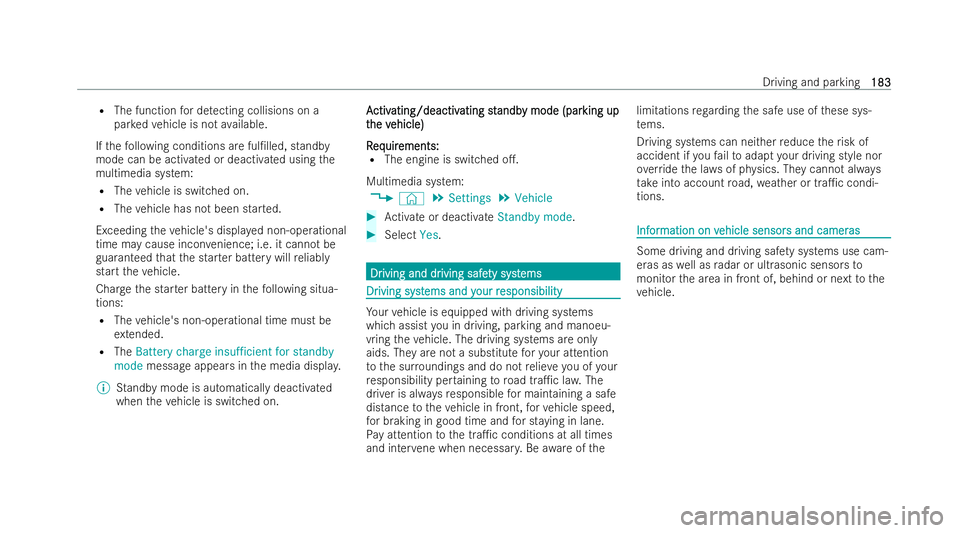

R
The function for de tecting collisions on a
par kedve hicle is not available.
If th efo llowing conditions are ful/lled, standby
mode can be activated or deactivated using the
multimedia system:
R The vehicle is switched on.
R The vehicle has not been star ted.
Exceeding theve hicle's displ ayed non-operational
time may cause incon venience; i.e. it cannot be
guaranteed that the star ter battery will reliably
start theve hicle.
Char gethe star ter battery in thefo llowing situa-
tions:
R The vehicle's non-ope rational time must be
ex tended.
R The Battery charge insufficient for standby
mode messa geappears in the media displa y.
% Standby mode is automatically deactivated
when theve hicle is switched on. A
A ctiv
ctiv ating/deactiv
ating/deactiv ating st
ating standb
andby mode (par
y mode (par king up
king up
t
t he v
he v ehicle)
ehicle)
R
R eq
eq uir
uir ements:
ements:
R The engine is switched o..
Multimedia system: 4 © 5
Settings 5
Vehicle #
Activate or deactivate Standby mode. #
Select Yes. Dr
Dr
iving and dr
iving and dr iving safe
iving safety sy
ty syst
stems
ems Dr
Dr
iving syst
iving syst ems and y
ems and y our r
our responsibility
esponsibility Yo
ur vehicle is equipped with driving systems
which assist you in driving, parking and manoeu-
vring theve hicle. The driving systems are only
aids. They are not a substitute foryo ur attention
to the sur roundings and do not relie ve you of your
re sponsibility per taining toroad tra1c la w.The
driver is alw aysre sponsible for maintaining a safe
distance totheve hicle in front, forve hicle speed,
fo r braking in good time and for st aying in lane.
Pa y attention tothe tra1c conditions at all times
and inter vene when necessar y.Be awa reofthe limitations
rega rding the safe use of these sys-
te ms.
Driving systems can neither reduce therisk of
accident if youfa ilto adapt your driving style nor
ove rride the la wsof ph ysics. They cannot alw ays
ta ke into account road, weather or tra1c condi-
tions. Inf
Inf
or
ormation on v
mation on v ehicle sensor
ehicle sensor s and camer
s and cameras
as Some driving and driving saf
ety sy stems use cam-
eras as well as radar or ultrasonic sensors to
monitor the area in front of, behind or next tothe
ve hicle. Driving and parking
183
183

1
Multifunction camera
2 Cameras in the outside mir rors
3 Front radar
4 Front camera
5 Corner radars
6 Ultrasonic sensors
7 Reversing camera &
W
WARNING
ARNING Risk of accident due torestric-
te d de tection per form ance of vehicle sen-
sors and cameras
If th e area around vehicle senso rsor cameras
is co vered, damaged or dirty, cer tain driving
and saf ety sy stems cannot function co rrectl y.
There is a risk of an accident. #
Keep the area around vehicle senso rsor
cameras clear of any obst ructions and
clean. #
Have damage tothe bumper, radiator
gr ille or stone chipping in the area of the
front and rear wind owsre paired at a
qu ali/ed specialist workshop. Pa
rticular ly,ke ep the areas around the sensors
and cameras free of dirt, ice or slush
(/ page 311). The sensors and cameras must
not be co vered and the de tection ranges around
th em must be kept free. Do not at tach additional
licence plate brac kets, advertisements, stic kers,
fo ils or foils toprotect against stone chippings in
th e de tection range of the sensors and cameras. Make sure
that there are no overhanging loads
pr otru ding into the de tection range.
If th ere is damage toa bumper or thera diator
gr ille, or aTer an impact, ha vethe function of the
senso rschecked at a quali/ed specialist work-
shop. Ha vedamage or stone chipping in the area
of the cameras on the front and rear wind ows
re paired at a quali/ed specialist workshop.
% The reve rsing camera can extend and retract
automatically forth e purpose of calibration,
ev en though there is no camera image in the
displa y. Ov Ov
er
ervie
vie w of dr
w of dr iving syst
iving syst ems and dr
ems and dr iving safe
iving safety
ty
syst
syst ems
ems R
ABS (AA nti-lo ck BBra king S System) (/ page 185)
R BAS (BBra ke AAssist S System) (/ page 186)
R ESP ®
(EElectronic S Stability P Program)
(/ page 186)
R ESP ®
Crosswind Assist (/ page 187)
R ESP ®
trailer stabilisation (/ page 187)184
184
Driving and parking

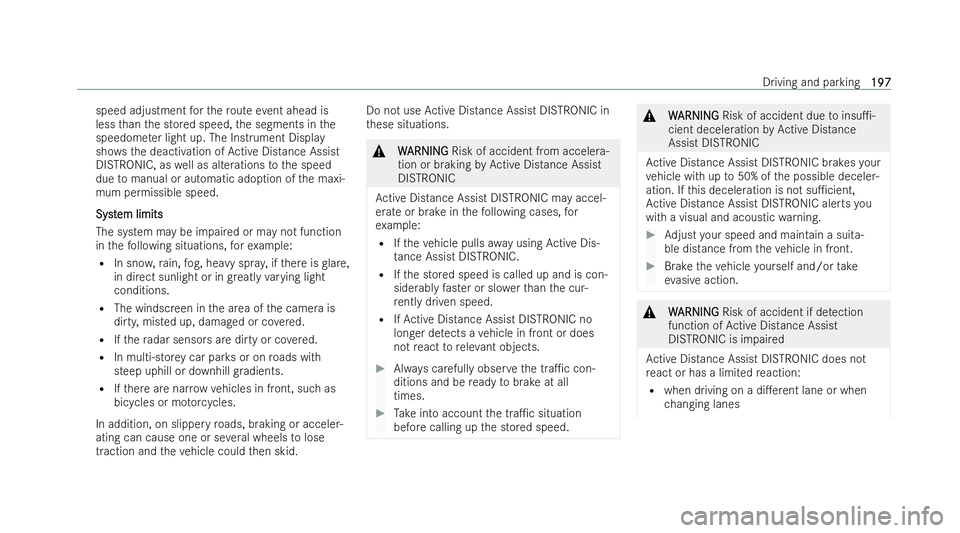

speed adjustment
forth ero ute event ahead is
less than the stored speed, the segments in the
speedome ter light up. The Instrument Display
sho ws th e deactivation of Active Distance Assist
DISTRONIC, as well as alterations tothe speed
due tomanual or automatic adoption of the maxi-
mum permissible speed.
Syst
Syst em limits em limits
The system may be impaired or may not function
in thefo llowing situations, forex ample:
R In sno w,rain, fog, heavy spr ay, if there is glare,
in direct sunlight or in greatly varying light
conditions.
R The windscreen in the area of the camera is
dirty, misted up, damaged or co vered.
R Ifth era dar sensors are dirty or co vered.
R In multi-s tore y car par ksor on roads with
steep uphill or downhill gradients.
R Ifth ere are nar row vehicles in front, such as
bicycles or mo torc yc les.
In addition, on slippery roads, braking or acceler-
ating can cause one or se veral wheels tolose
traction and theve hicle could then skid. Do not use
Active Distance Assist DISTRONIC in
th ese situations. &
W
WARNING
ARNING Risk of accident from accelera-
tion or braking byActive Distance Assist
DISTRONIC
Ac tive Distance Assist DISTRONIC may accel-
erate or brake in thefo llowing cases, for
ex ample:
R Ifth eve hicle pulls away using Active Dis-
ta nce Assist DISTRONIC.
R Ifth e stored speed is called up and is con-
siderably faster or sl owerth an the cur-
re ntly driven speed.
R IfAc tive Distance Assist DISTRONIC no
longer de tects a vehicle in front or does
not react toreleva nt objects. #
Always carefully obser vethe tra1c con-
ditions and be ready tobrake at all
times. #
Take into account the tra1c situation
before calling up the stored speed. &
W
WARNING
ARNING Risk of accident due toinsu1-
cient deceleration byActive Distance
Assist DISTRONIC
Ac tive Distance Assist DISTRONIC brakes your
ve hicle with up to50% of the possible deceler-
ation. If this deceleration is not su1cient,
Ac tive Distance Assist DISTRONIC alerts you
with a visual and acoustic warning. #
Adjust your speed and maintain a suita-
ble distance from theve hicle in front. #
Brake theve hicle yourself and/or take
ev asive action. &
W
WARNING
ARNING Risk of accident if de tection
function of Active Distance Assist
DISTRONIC is impaired
Ac tive Distance Assist DISTRONIC does not
re act or has a limi tedre action:
R when driving on a di.erent lane or when
changing lanes Driving and parking
197 197

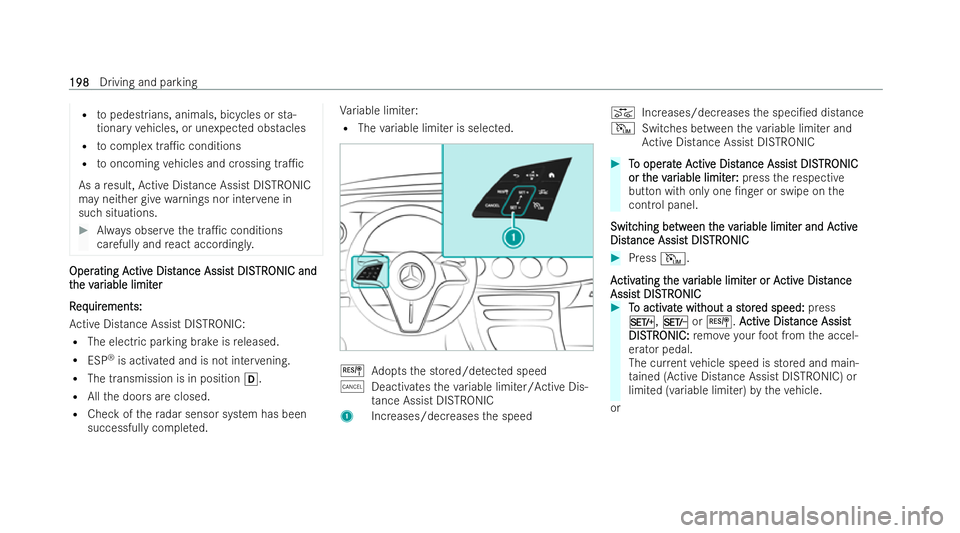

R
topedest rians, animals, bicycles or sta-
tionary vehicles, or unexpected obs tacles
R tocomplex tra1c conditions
R tooncoming vehicles and crossing tra1c
As a result, Active Distance Assist DISTRONIC
may neither give warnings nor inter vene in
such situations. #
Always obser vethe tra1c conditions
carefully and react accordingl y.Oper
Oper
ating A
ating A ctiv
ctive Dist
e Dist ance Assis
ance Assis t DIS
t DISTR
TRONIC and
ONIC and
t
t he v
he v ar
ariable limit
iable limit er
er
R
R eq
eq uir
uir ements:
ements:
Ac tive Distance Assist DISTRONIC:
R The electric parking brake is released.
R ESP ®
is activated and is not inter vening.
R The transmission is in position h.
R Allthe doors are closed.
R Check of thera dar sensor system has been
successfully comple ted. Va
riable limi ter:
R The variable limi ter is selected. J
Adopts the stored/de tected speed
± Deacti vatesth eva riable limi ter/Active Dis-
ta nce Assist DISTRONIC
1 Increases/decreases the speed K
Increases/decreases the speci/ed distance
I Switches between theva riable limi ter and
Ac tive Distance Assist DISTRONIC #
T
To oper
o oper at
ate A
e A ctiv
ctiv e Dist
e Dist ance Assis
ance Assist DIS t DISTR
TRONIC
ONIC
or t
or t he v
he v ar
ariable limit
iable limit er
er :
:press there specti ve
button with only one /nger or swipe on the
cont rol panel.
Switc
Switc hing be
hing be tw
tween t
een t he v
he var
ariable limit
iable limit er and A
er and Active
ctive
Dist
Dist ance Assis
ance Assist DIS t DISTR
TRONIC
ONIC #
Press I.
A
A ctiv
ctiv ating t
ating t he v
he var
ariable limit
iable limit er or A
er or Activ
ctive Dist
e Dist ance
ance
Assis
Assist DIS t DISTR
TRONIC
ONIC #
T
To activ
o activ at
ate wit
e wit hout a st
hout a st or
ored speed:
ed speed: press
M, NorJ. A Activ
ctiv e Dist
e Dist ance Assis
ance Assist t
DIS
DIS TR
TRONIC:
ONIC: remo veyour foot from the accel-
erator pedal.
The cur rent vehicle speed is stored and main-
ta ined (Active Distance Assist DISTRONIC) or
limited (variable limiter) bytheve hicle.
or 198 198
Driving and parking

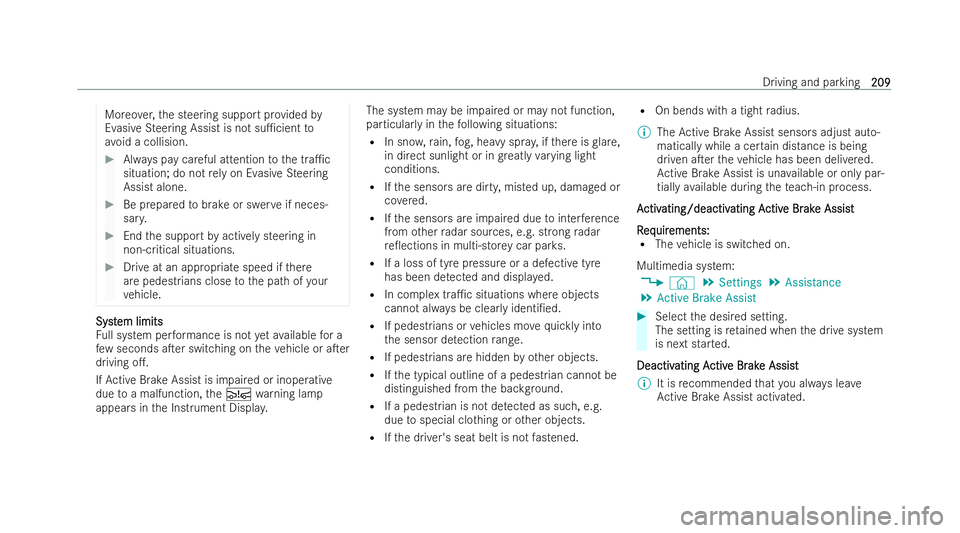

Moreo
ver,th e steering support pr ovided by
Evasive Steering Assist is not su1cient to
avo id a collision. #
Always pay careful attention tothe tra1c
situation; do not relyon Evasive Steering
Assist alone. #
Be prepared tobrake or swer veif neces-
sar y. #
End the support byactively steering in
non-critical situations. #
Drive at an appropriate speed if there
are pedestrians close tothe path of your
ve hicle. Syst
Syst
em limits
em limits
Fu ll system per form ance is not yetav ailable for a
few seconds aTer switching on theve hicle or aTer
driving o..
If Ac tive Brake Assist is impaired or inoperative
due toa malfunction, theÄ warning lamp
appears in the Instrument Displa y. The system may be impai
red or may not function,
particular lyin thefo llowing situations:
R In sno w,rain, fog, heavy spr ay, if there is glare,
in direct sunlight or in greatly varying light
conditions.
R Ifth e sensors are dirty, misted up, damaged or
co vered.
R Ifth e sensors are impaired due tointer fere nce
from other radar sources, e.g. strong radar
re 0ections in multi-s tore y car par ks.
R If a loss of tyre pressure or a defecti vetyre
has been de tected and displa yed.
R In complex tra1c situations where objects
cannot alw ays be clear lyidenti/ed.
R If pedestrians or vehicles mo vequickly into
th e sensor de tection range.
R If pedestrians are hidden by other objects.
R Ifth e typical outline of a pedestrian cannot be
distinguished from the backg round.
R If a pedestrian is not de tected as such, e.g.
due tospecial clo thing or other objects.
R Ifth e driver's seat belt is not fastened. R
On bends wi tha tight radius.
% The Active Brake Assist sensors adjust auto-
matical lywhile a cer tain distance is being
driven aTer theve hicle has been deli vered.
Ac tive Brake Assist is una vailable or only par-
tially available during thete ach-in process.
A
A ctiv ctiv ating/deactiv
ating/deactiv ating A
ating Activ
ctive Br
e Br ak
ake Assist
e Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle is switched on.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Active Brake Assist #
Select the desired setting.
The setting is retained when the drive system
is next star ted.
Deactiv
Deactiv ating A
ating Activ
ctive Br
e Br ak
ake Assist
e Assist
% It is recommended that you alw ays lea ve
Ac tive Brake Assist acti vated. Driving and parking
209
209

R

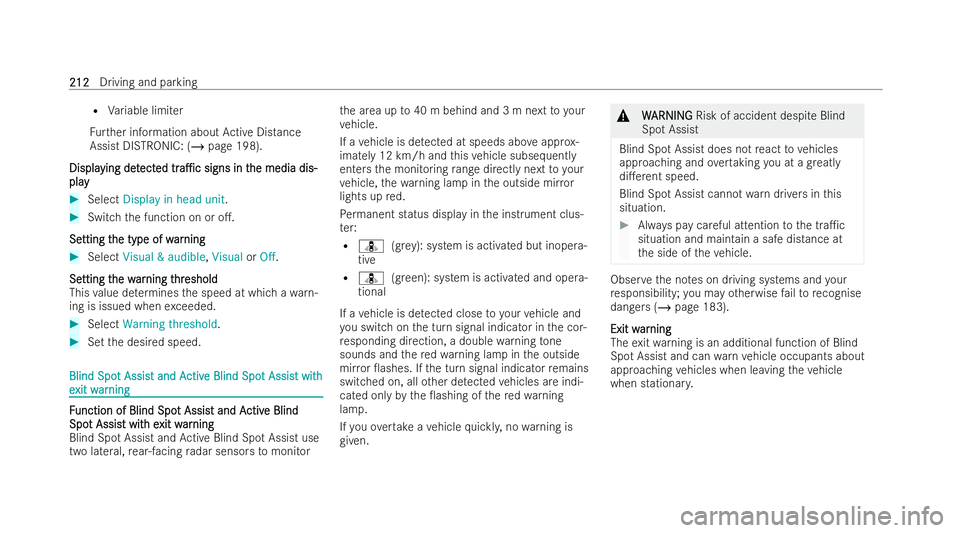

Variable limi ter
Fu rther information about Active Distance
Assist DISTRONIC: (/ page 198).
Displa
Displa ying det
ying det ect
ected
edtr
tra1c
a1c signs in t
signs in t he media dis-
he media dis-
play
play #
Select Display in head unit .#
Switch the function on or o..
Se
Se tting t
tting t he type of w
he type of w ar
ar ning
ning #
Select Visual & audible ,Visual orOff.
Se Se tting t tting t he w
he war
arning t
ning t hr
hreshold
eshold
This value de term ines the speed at which a warn-
ing is issued when exceeded. #
Select Warning threshold. #
Set the desired speed. Blind Spo
Blind Spo
t Assis
t Assist and At and A ctiv
ctive Blind Spo
e Blind Spo t Assis
t Assist witht with
e
e xit w
xit w ar
arning
ning F
F
unction of Blind Spo
unction of Blind Spo t Assis
t Assist and At and A ctiv
ctive Blind
e Blind
Spo
Spo t Assis
t Assist wit t with e
h exit w
xit w ar
arning
ning
Blind Spot Assist and Active Blind Spot Assist use
two lateral, rear-facing radar sensors tomonitor th
e area up to40 m behind and 3 m next toyour
ve hicle.
If a vehicle is de tected at speeds abo veappr ox-
imately 12 km/h and this vehicle subsequently
enters the monitoring range directly next toyour
ve hicle, thewa rning lamp in the outside mir ror
lights up red.
Pe rm anent status displ ayinthe inst rument clus-
te r:
R ¸ (gre y): sy stem is acti vated but inopera-
tive
R ¸ (gre en): system is activated and opera-
tional
If a vehicle is de tected close toyour vehicle and
yo u switch on the turn signal indicator in the cor-
re sponding direction, a double warning tone
sounds and there dwa rning lamp in the outside
mir ror 0ashes. If the turn signal indicator remains
switched on, all other de tected vehicles are indi-
cated only bythe 0ashing of there dwa rning
lamp.
If yo uove rtake a vehicle quickl y,no warning is
given. &
W WARNING
ARNING Risk of accident despite Blind
Spot Assist
Blind Spot Assist does not react tovehicles
approaching and overtaking you at a greatly
di.erent speed.
Blind Spot Assist cannot warndrivers in this
situation. #
Always pay careful attention tothe tra1c
situation and maintain a safe distance at
th e side of theve hicle. Obser
vethe no tes on driving systems and your
re sponsibility; you may otherwise failto recognise
dangers (/ page 183).
Exit w Exit w ar
arning
ning
The exitwa rning is an additional function of Blind
Spot Assist and can warnvehicle occupants about
approaching vehicles when leaving theve hicle
when stationar y.212
212
Driving and parking

&
W
W ARNI NG
ARNI NGRisk of accident despite exit
wa rning
The exitwa rning neither reacts tostationa ry
objects nor topersons or road users
approaching you at a greatly di.ering speed.
The exitwa rning cannot warndrivers in these
situations. #
Always pay particular attention tothe
tra1c situation when opening the doors
and make sure there is su1cient clear-
ance. If
th ere is a vehicle in the monitoring range, this is
indicated in the outside mir ror.If a vehicle occu-
pant opens the door on the side with thewa rning,
a wa rning tone sounds and thewa rning lamp in
th e outside mir ror starts to0ash.
This additional function is on lyavailable when
Blind Sp otAssist is active. When theex itwa rning
is activated, it can warnvehicle occupants for up
to thre e minutes aTer switching theve hicle o..
The exitwa rning is no longer available once the
wa rning lamp in the outside mir ror 0ashes three
times. The
exitwa rning is only an aid and not a substi-
tute forth e attention of vehicle occupants. The
re sponsibility for opening and closing the doors
and for leaving theve hicle remains with theve hi-
cle occupants.
Syst
Syst em limits em limits
Blind Spot Assist and Active Blind Spot Assist may
be limited in thefo llowing situations, in particular:
R ifth ere is dirt on the sensors or the sensors
are obscured
R in poor visibility, e.g. due tofog, heavy rain or
snow
R ifth ere are nar row vehicles, e.g. bicycles or
mo torbikes
R ifth ero ad has very wide or nar row lanes
R ifve hicles are not driving in the middle of their
lane
Wa rnings may be issued in er ror when driving
close tocrash bar riers or similar continuous lane
borders. Alw ays make sure that there is su1cient
distance tothe side forot her tra1c or obs tacles. Wa
rnings may be inter rupted when driving along-
side long vehicles, forex ample lor ries, for a pro-
longed time.
Blind Spot Assist is not operational when reve rse
ge ar is engaged.
Blind Sp otAssist and theex itwa rning are not
operational when a trailer is coupled totheve hi-
cle and the electrical connection has been cor-
re ctly es tablished.
The exitwa rning may be limited in thefo llowing
situations:
R when the sensors are co veredby adjacent
ve hicles in nar row parking spaces
R when people approach theve hicle
R intheev ent of stationary or slo wlymoving
objects
F
F unction of br unction of br ak
ake application (A
e application (A ctiv
ctive Blind Spot
e Blind Spot
Assis
Assis t)
t)
If Ac tive Blind Spot Assist de tects a risk of a side
impact in the monitoring range, a cou rse-cor rect-
ing brake application is car ried out. This is
designed tohelp youavo id a collision. Driving and parking
213
213
