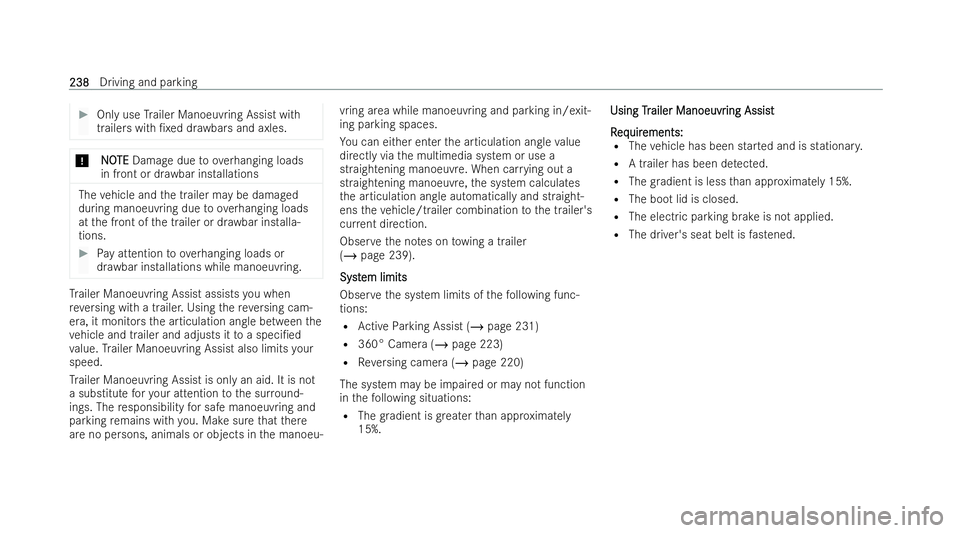

Only use Trailer Manoeuv ring Assist with
trailers with /xed dr awbars and axles. *
N
NOOTE
TE Damage due toove rhanging loads
in front or dr awbar ins tallations The
vehicle and the trailer may be damaged
during manoeuvring due toove rhanging loads
at the front of the trailer or dr awbar ins talla-
tions. #
Pay attention toove rhanging loads or
dr aw bar ins tallations while manoeuvring. Tr
ailer Manoeuv ring Assist assists you when
re ve rsing with a trailer. Using there ve rsing cam-
era, it monitors the articulation angle between the
ve hicle and trailer and adjusts it toa speci/ed
va lue. Trailer Manoeuv ring Assist also limits your
speed.
Tr ailer Manoeuv ring Assist is only an aid. It is not
a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu- vring area while manoeuvring and parking in/exit-
ing parking spaces.
Yo u can either enter the articulation angle value
directly via the multimedia system or use a
straightening manoeuvre. When car rying out a
straightening manoeuvre, the system calculates
th e articulation angle automatically and straight-
ens theve hicle/trailer combination tothe trailer's
cur rent direction.
Obser vethe no tes on towing a trailer
(/ page 239).
Syst
Syst em limits em limits
Obser vethe system limits of thefo llowing func-
tions:
R Active Parking Assist (/ page 231)
R 360° Camera (/ page 223)
R Reversing camera (/ page 220)
The system may be impaired or may not function
in thefo llowing situations:
R The gradient is greater than appr oximately
15%. Using
Tr
Using Trailer Manoeuvr ailer Manoeuvr ing Assist
ing Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been star ted and is stationar y.
R A trailer has been de tected.
R The gradient is less than appr oximately 15%.
R The boot lid is closed.
R The electric parking brake is not applied.
R The driver's seat belt is fastened. 238
238
Driving and pa
rking

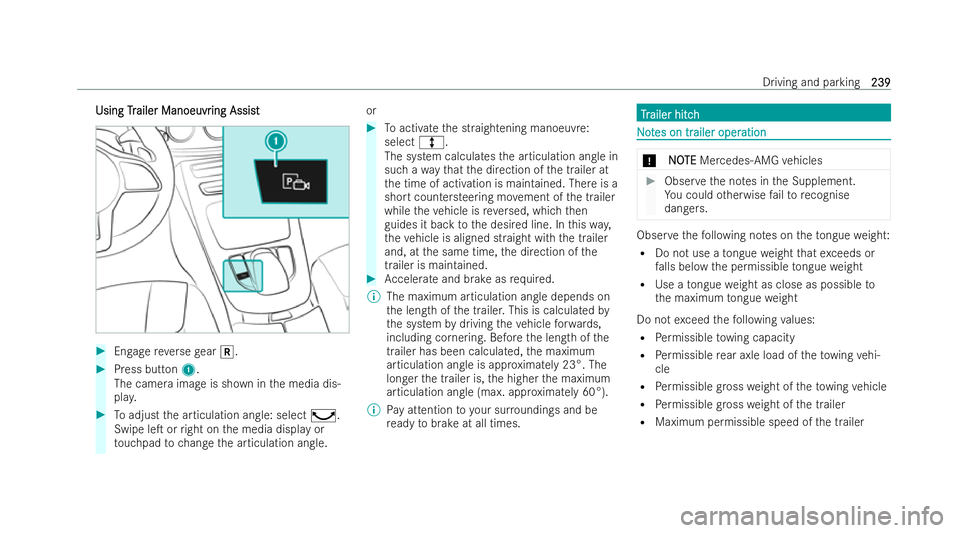

Using
Tr
Using Trailer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist #
Engage reve rsege ar k. #
Press but ton1.
The camera ima geis shown in the media dis-
pla y. #
Toadjust the articulation angle: select ¸.
Swipe leT or right on the media display or
to uchpad tochange the articulation angle. or #
Toactivate the straightening manoeuvre:
select º.
The system calculates the articulation angle in
such a wayth at the direction of the trailer at
th e time of activation is maintained. There is a
short countersteering mo vement of the trailer
while theve hicle is reve rsed, which then
guides it back tothe desired line. In this wa y,
th eve hicle is aligned st raight with the trailer
and, at the same time, the direction of the
trailer is maintained. #
Accelerate and brake as requ ired.
% The maximum articulation angle depends on
the length of the trailer. This is calculated by
th e system bydriving theve hicle forw ards,
including cornering. Before the length of the
trailer has been calcula ted, the maximum
articulation angle is appr oximately 23°. The
longer the trailer is, the higher the maximum
articulation angle (max. appr oximately 60°).
% Pay attention toyour sur roundings and be
re ady tobrake at all times. T T
r
railer hitch
ailer hitch N
No
ot
tes on tr
es on tr ailer oper
ailer oper ation
ation *
N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. Obser
vethefo llowing no tes on theto ngue weight:
R Do not use a tongue weight that exceeds or
fa lls below the permissible tongue weight
R Use a tongue weight as close as possible to
th e maximum tongue weight
Do not exceed thefo llowing values:
R Perm issible towing capacity
R Perm issible rear axle load of theto wing vehi-
cle
R Perm issible gross weight of theto wing vehicle
R Perm issible gross weight of the trailer
R Maximum permissible speed of the trailer Driving and parking
239
239

Ensure
thefo llowing before starting a journe y:
R The tyre pressure on there ar axle of theto w-
ing vehicle is set for a maximum load
R The lighting of the connected trailer is opera-
tional
R V
V ehicles wit
ehicles wit hout LED headlam
hout LED headlam ps or MUL
ps or MULTI-
TI-
BEAM LED headlam
BEAM LED headlam ps:
ps:the headlamps ha ve
been set cor rectly
In theev ent of increased rear axle load, the car/
trailer combination must not exceed a maximum
speed of 100 km/h forre asons conce rning the
operating permit. This also applies in countries in
which the permissible maximum speed for car/
trailer combinations is abo ve100 km/h.
% When you are reve rsing with a trailer, remem-
ber touse theTrailer Manoeuvering Assist
function (/ page 237). F
F
olding t
olding t he ball nec
he ball nec k out and in
k out and in &
W
WARNING
ARNING Risk of accident due tothe ball
neck not being engaged
If th e ball neck is not engaged, the trailer may
come loose. #
Always engage the ball neck as descri-
bed. &
W
WARNING
ARNING Risk of injury from ball neck
swinging outwards
The ball neck may swing outwards when
unlocking or when it has not been proper ly
engaged.
There is a risk of injury within the ball neck's
ra nge of mo vement! #
Unlock the ball neck only when its range
of mo vement is unobstructed. #
Always be sure the ball neck is engaged
when folding in wards. *
N NOOTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball
neck or, in the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE Damage totheve hicle due toincor-
re ct use of the trailer hitch When a trailer hitch is used
toreco ver a vehi-
cle, theve hicle may be damaged in the proc-
ess. #
Use the trailer hitch only for pulling a
trailer or attaching appr oved car rier sys-
te ms (e.g. a bicycle rack ). R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured against rolling away.
R The swivel range is clear.
R The trailer cables or ada pter plugs ha vebeen
re mo ved. 240
240
Driving and parking

F
F
olding t
olding t he ball nec
he ball nec k out
k out #
Pull switch 2until the ball neck unloc ks.
The ball neck will fold out from under there ar
bumper.
Indicator lamp 1will 0ash. #
Pull the ball neck in the direction of the ar row
until it engages audibly in a vertical position.
Indicator lamp 1onthe ball neck release
switch will go out.
If th e ball neck is not securely loc ked in place,
th eTrailer coupling Check lockmessage will
appear on the inst rument displa y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. Make sure
that the ball on the ball neck is clean.
Check that it is either greased or dry (g rease-
free), depending on the inst ructions forth e trailer.
F
F olding t olding t he ball nec
he ball nec k in
k in #
Pull switch 2until the ball neck unloc ks.
The ball neck will fold up under there ar
bumper.
Indicator lamp 1will 0ash. #
Push the ball neck in the direction of the
ar ro w until it engages audibly behind the
bumper.
Indicator lamp 1will go out and the message
on the inst rument display will disappear.
Obser vethe information about the displa yson the
inst rument cluster:
R Indicator and warning lamps (/ page 429)
R Display message s (/page 371) Driving and parking
241 241

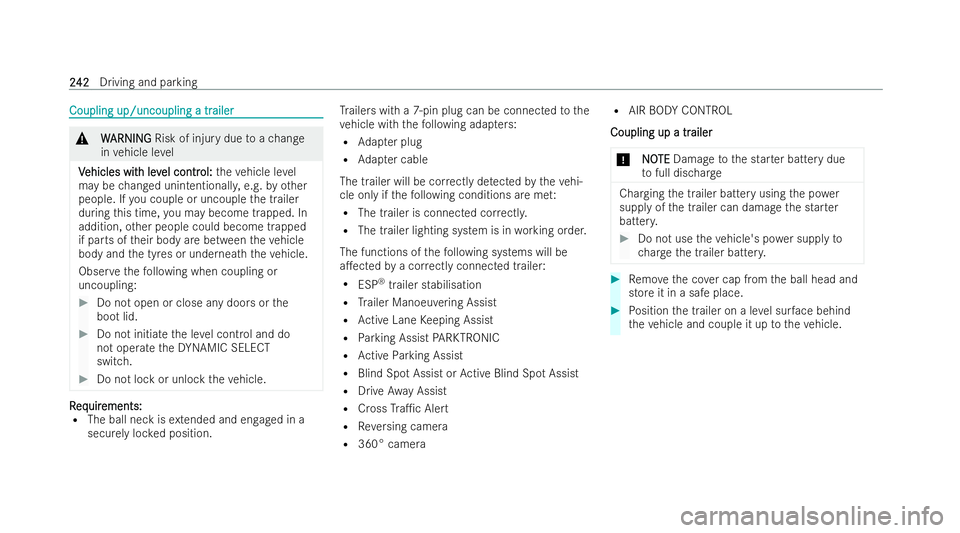

Coupling up/uncoupling a tr
Coupling up/uncoupling a tr
ailer
ailer&
W
WARNING
ARNING Risk of injury due toach ange
in vehicle le vel
V
V ehicles wit
ehicles wit h lev
h level contr
el contr ol:
ol:theve hicle le vel
may be changed unintentionall y,e.g. by ot her
people. If you couple or uncouple the trailer
during this time, you may become trapped. In
addition, other people could become trapped
if parts of their body are between theve hicle
body and the tyres or underneath theve hicle.
Obser vethefo llowing when coupling or
uncoupling: #
Do not open or close any doors or the
boot lid. #
Do not initiate the le vel control and do
not operate theDY NAMIC SELECT
switch. #
Do not lo ckor unlock theve hicle. R
R
eq
eq uir
uir ements:
ements:
R The ball neck is extended and engaged in a
securely loc ked position. Tr
ailers with a 7-pin plug can be connected tothe
ve hicle with thefo llowing adap ters:
R Adapter plug
R Adapter cable
The trailer will be cor rectly de tected bytheve hi-
cle only if thefo llowing conditions are met:
R The trailer is connected cor rectl y.
R The trailer lighting system is in working order.
The functions of thefo llowing systems will be
a.ec tedbya cor rectly connected trailer:
R ESP ®
trailer stabilisation
R Trailer Manoeuvering Assist
R Active Lane Keeping Assist
R Parking Assist PARKTRONIC
R Active Parking Assist
R Blind Spot Assist or Active Blind Spot Assist
R Drive Away Assist
R Cross Tra1c Ale rt
R Reversing camera
R 360° camera R
AIR BODY CONTROL
Coupling up a tr
Coupling up a tr ailer
ailer
* NO
NOTE
TEDamage tothe star ter battery due
to full dis charge Charging
the trailer battery using the po wer
supply of the trailer can damage the star ter
batter y. #
Do not use theve hicle's po wer supply to
ch arge the trailer batter y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. #
Position the trailer on a le vel sur face behind
th eve hicle and couple it up totheve hicle. 242
242
Driving and parking

#

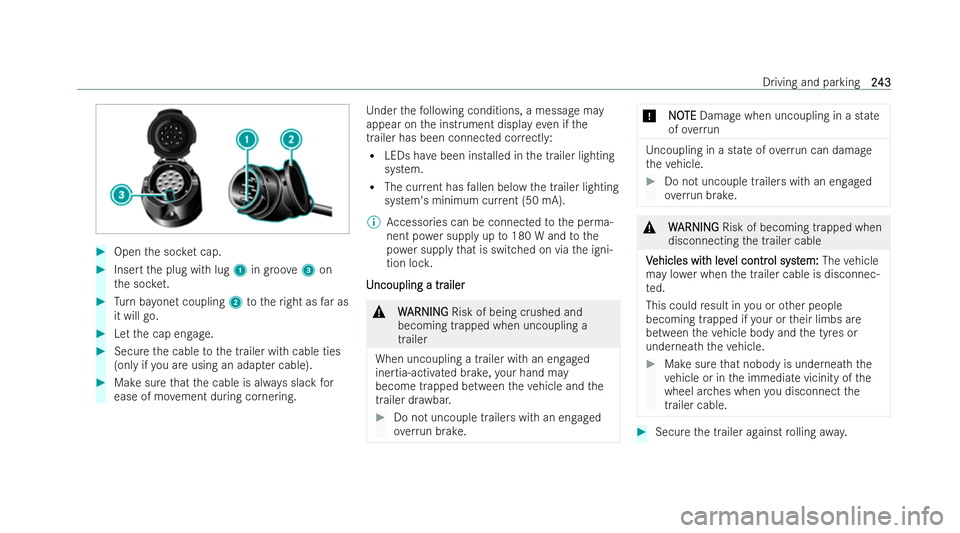

Open the soc ket cap. #
Inse rtthe plug with lug 1ingroo ve 3 on
th e soc ket. #
Turn bayonet coupling 2totheright as far as
it will go. #
Let the cap engage. #
Secure the cable tothe trailer with cable ties
(only if you are using an adap ter cable). #
Make sure that the cable is alw ays slack for
ease of mo vement during cornering. Under
thefo llowing conditions, a message may
appear on the inst rument display even if the
trailer has been connec ted cor rectl y:
R LEDs ha vebeen ins talled in the trailer lighting
system.
R The cur rent has fallen below the trailer lighting
system's minimum cur rent (50 mA).
% Accessories can be connected tothe perma-
nent po wer supply up to180 W and tothe
po we r supply that is switched on via the igni-
tion loc k.
U
U ncoupling a tr
ncoupling a tr ailer
ailer &
W
WARNI NG
ARNI NGRisk of being crushed and
becoming trapped when uncoupling a
trailer
When uncoupling a trailer with an engaged
inertia-activated brake, your hand may
become trapped between theve hicle and the
trailer dr awbar. #
Do not uncouple trailers with an engaged
ove rrun brake. *
N NOOTE
TE Damage when uncoupling in a state
of ove rrun Uncoupling in a state of
overrun can damage
th eve hicle. #
Do not uncouple trailers with an engaged
ove rrun brake. &
W
WARNING
ARNING Risk of becoming trapped when
disconnecting the trailer cable
V
V ehicles wit
ehicles wit h lev
h level contr
el contr ol syst
ol system:
em:Thevehicle
may lo wer when the trailer cable is disconnec-
te d.
This could result in you or other people
becoming trapped if your or their limbs are
between theve hicle body and the tyres or
underneath theve hicle. #
Make sure that nobody is underneath the
ve hicle or in the immediate vicinity of the
wheel ar ches when you disconnect the
trailer cable. #
Secure the trailer against rolling away. Driving and parking
243
243

#
Disconnect the electrical connection between
th eve hicle and the trailer. #
Uncouple the trailer. #
Place the co ver cap on the ball head. Bicy
Bicy
cle r
cle r ac
ack function
k function &
W
WARNING
ARNING Risk of an accident if the bicy-
cle rack is used incor rectly
The bicycle rack may become de tach ed from
th eve hicle in thefo llowing cases:
R the permissible load capacity of the trailer
hitch is exceeded.
R the bicycle rack is used incor rectl y.
R the bicycle rack is secured tothe ball neck
beneath the ball head.
Obser vethefo llowing foryo ur ow n sa fety and
th at of other road users:
R always adhere tothe permissible load
capacity of the trailer hitch. R
always obser vethe permissible rear axle
load of theto wing vehicle.
R use the bicycle rack only totransport bicy-
cles.
R always proper lysecure the bicycle rack by
attaching it tothe ball head.
R use only bicycle rack s appr ovedby
Mercedes-Benz.
R always obser vethe bicycle rack operating
instructions. *
N NOOTE TE Damage to, or crac kson, the trailer
hitch due tounsuitable bicycle rack s or
bicycle rack s being used inco rrectly #
use only bicycle rack s appr ovedby
Mercedes-Benz. *
N
NOOTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball neck or, in
the case of a fully electric
trailer hitch, retract the ball nec k. Depending on
the bicycle rack 's design, up to
th re e bicycles can be transpor ted on the bicycle
ra ck.
When mounted byattaching toball head 1,the
maximum load capacity is 75 kg. 244
244
Driving and parking

The maximum load capacity is calculated from
the
we ight of the bicycle rack and the bicycle rack
load.
Obser vethe no tes on driving with a roof load,
trailer or fully laden vehicle (/ page 158).
When using a bicycle rack , set the tyre pressure
fo r increased load on there ar axle of theve hicle.
Fu rther information on the tyre pressure can be
fo und in the tyre pressure table (/ page 338).
N
No ot tes on loading
es on loading
The lar gerth e distance between the load's centre
of grav ity and the ball head, thegr eater the load
on the trailer hitch.
Therefore, obser vethefo llowing no tes:
R mount heavy bicycles as close totheve hicle
as possible
R always distribute the load on the bicycle rack
as evenly as possible across theve hicle's lon-
gitudinal axis
Mercedes-Benz recommends removing all de tach-
able parts from bicycles (e.g. bask ets, ch ild seats,
re ch arge able batteries) before loading them onto
th e bicycle rack . This will impr ovethe aerody- namic
resis tance and centre of grav ity of the bicy-
cle rack.
Alw ays secure the bicycles toprev ent them from
moving around and check them at regular inter-
va ls to ensure that they are secure.
Do not use tarp aulins or other co vers. The driving
ch aracteristics and rear view may be impaired. In
addition, aerodynamic resis tance and the load on
th e trailer hitch will increase. Load distribution on
the bicycle rack
1 Vertical distance between centre of grav ity
and ball head 2
Horizontal distance between centre of grav ity
and ball head
3 The centre of grav ity is on theve hicle's cent re
axis
Obser vethefo llowing information when you are
loading the bicycle rack with up tothre e bicycles:
Loading t
Loading t he bicy
he bicycle r
cle rack
ack T
T
o
o t
tal w
al w eight
eight
of bicy
of bicy cle
cle
r
r ac
ac k and load
k and load Max. dist
Max. dist
ance
ance
1
1 Max. dist
Max. dist
ance
ance
2
2
Up to75 kg 420 mm 300 mm V
V
ehicle to
ehicle towing ins
wing ins tr
tr uctions
uctions
The vehicle is not suitable forth e use of tow bar
systems that are used for 0at towing or dinghy
to wing, forex ample. Attach ing and using tow bar
systems can result in damage totheve hicle.
When you are towing a vehicle with tow bar sys-
te ms, safe driving characteristics cann otbe guar-
anteed forth eto wing vehicle or theto we dve hicle.
The vehicle-trailer combination may swer vefrom
side toside. Driving and parking
245
245

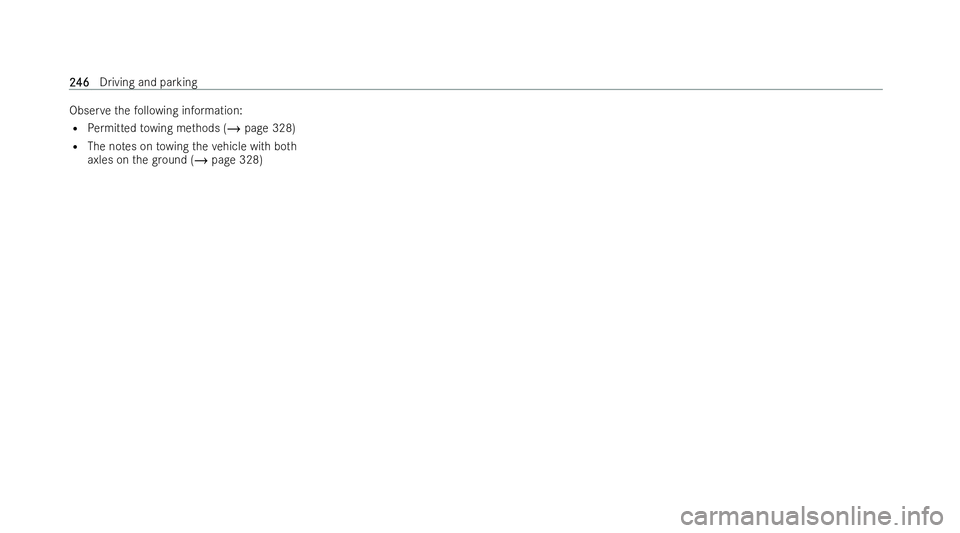

Obser
vethefo llowing information:
R Perm itted towing me thods (/ page 328)
R The no tes on towing theve hicle with bo th
axles on thegr ound (/ page 328) 246
246
Driving and parking

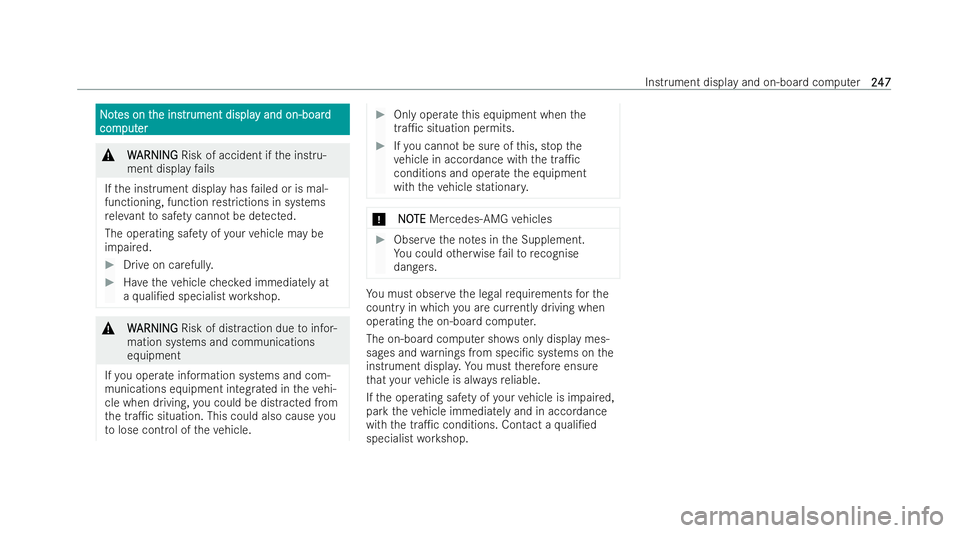

N
N
o
ot
tes on t
es on t he ins
he instrtrument displa
ument displa y and on-board
y and on-board
com
com put
puter
er &
W
WARNING
ARNING Risk of accident if the inst ru-
ment display fails
If th e inst rument display has failed or is mal-
functioning, function restrictions in systems
re leva nt tosaf ety cann otbe de tected.
The operating saf ety of your vehicle may be
impaired. #
Drive on carefull y. #
Have theve hicle checked immediately at
a qu ali/ed specialist workshop. &
W
W ARNING
ARNING Risk of distraction due toinfor-
mation systems and communications
equipment
If yo u operate information systems and com-
munications equipment integ rated in theve hi-
cle when driving, you could be distracted from
th e tra1c situation. This could also cause you
to lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle in accordance with the tra1c
conditions and operate the equipment
with theve hicle stationar y. *
N NO
OTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. Yo
u must obser vethe legal requ irements forthe
count ryin which you are cur rently driving when
ope rating the on-board computer.
The on-board computer sho wsonly display mes-
sages and warnings from speci/c systems on the
inst rument displa y.Yo u must therefore ensure
th at your vehicle is alw aysre liable.
If th e operating saf ety of your vehicle is impaired,
park theve hicle immediately and in accordance
with the tra1c conditions. Contact a quali/ed
specialist workshop. Instrument display and on-board computer
247
247
