1
Locating aid
2 Guide line at a distance of approximate ly
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
T
T op vie
op vie w tr
w trailer vie
ailer vie w — tr
w — trailer connect
ailer connect ed
ed
When the electrical connection is established
between theve hicle and the trailer, the display
ch anges tothe side camera vie w.
This view supports manoeuvring procedures with
a trailer. Syst
Syst
em limits
em limits
If th e system is not ready for operation, theSys-
tem inoperative message appears in the media
displa y.
The 360° Camera will not function or will only
partially function in thefo llowing situations:
R You are driving forw ards at a speed greater
th an appr oximately 16 km/h.
R The doors are open.
R An outside mir ror is not comple tely folded out.
R The boot lid is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay. R
The light conditions are poo r,e.g. at night.
R The camera lens is obstructed, dirty or misted
up.
R If cameras or vehicle components in which the
cameras are /tted are damaged. In this event,
ha ve the cameras, their positions and their
setting checked at a quali/ed specialist work-
shop.
% Do not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the
ve hicle.
Fo rte ch nical reasons, the standard height of the
ve hicle may be altered if theve hicle is car rying a
heavy load and can result in inaccu racies in the
guide lines and in the display of thege nerated
ima ges.
The /eld of vision and other functions of the cam-
era system may be restric ted due toadditional
attachments on theve hicle (e.g. licence plate
brac ket, bicycle rack ). 228
228
Driving and parking

%
The cont rast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage . In
th is case, pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict
its use.
See the no tes on cleaning the 360° Camera
(/ page 313).
Calling up t
Calling up t he vie
he view of t
w of the 360° Camer
he 360° Camer a using
a using
rev
rev er
erse g
se g ear
ear
R
R eq
eq uir
uir ements:
ements:
R The Auto reversing camera function is activa-
te d in the multimedia system (/ page 229).#
Engage reve rsege ar. #
Select the desired view in the multimedia sys-
te m (/ page 225). #
If, aTer shiTing toreve rsege ar, the image of
th ere ve rsing camera is not shown: switch o.
th eve hicle, press and hold thec button,
switch on theve hicle and engage reve rsege ar
again. Switc
Switc
hingrev
hing rever
ersing camer
sing camer a aut
a automatic mode
omatic mode
on/o.
on/o.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
ra nge. Pay attention toyour sur roundings and be
re ady tobrake at all times.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking #
Switch Auto reversing camera on or o..
Opening t Opening t he camer he camera cov
a cover of t
er of t herev
he rever
ersing cam-
sing cam-
era
era
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Select Open camera cover.
% The camera co ver closes automatically aTer
some time or aTer an ignition cycle. P P
ar
ar king Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC F
F
unction of P
unction of P ar
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
Pa rking Assist PARKTRONIC is an electronic par k-
ing assistance system which monitors the area
sur rounding your vehicle and sho wsyouth e dis-
ta nce between theve hicle and a de tected obs ta-
cle visual lyand audib ly.
Pa rking Assist PARKTRONIC is only an aid. It is
not a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
The passive side impact pr otection also warnsyou
of obstacles tothe side. During the parking proce-
dure or manoeuvring, objects are de tected as the
ve hicle drives past. If you steer in the direction of
a de tected obs tacle and there is a risk of a lateral
collision, a warning is issued. In order for an
object on the side tobe de tected, the sensors in
th e front and rear bumper must /r stdetect the
object while you are driving past it. Driving and parking
229 229

In order
for front or rear obs tacles tothe side to
be displa yed, theve hicle must /r sttrave l a dis-
ta nce of at least half a vehicle length. Once the
ve hicle has tr avelled one vehicle length, obs tacles
on all sides can be shown.
Display Display s in t
s in the media display
he media display Ve
hicles with 360° Camera Ve
hicles without 360° Camera
As soon as Parking Assist PARKTRONIC is ope ra-
tional, there specti veareas of the display are
shown in blue.
1 Operational, front and rear
2 Operational, all around
3 Obstacles de tected at the front leT and on
th eright-hand side
The colour of the display changes depending on
th e distance tothe de tected obstacle:
R Blue:
Blue: > 1 m (no obs tacles de tected)
R Y
Yellow
ellow :
:appr oximately 1 m - 0.7 m R
Or
Orang
ang e:
e:appr oximately 0.7 m - 0.4 m
R R
Red:
ed: < 0.4 m
V
V ehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a: the boundary line
shiTs dynamically depending on the position and
distance of the obstacles de tected.
Depending on the distance tothe obstacle de tec-
te d, an intermittent warning tone also sounds. Yo u
can set the timing of thewa rnings in the multime-
dia system (/ page 233).
St andard setting:
R Fr
Fr ont and sides:
ont and sides: < 0.4 m
R R
Rear
ear : <
: <1 m
Warn early all-round :
R Fr
Front
ont: :< 1 m
R Sides:
Sides: < 0.7 m
R R
Rear
ear : <
: <1 m
A continuous warning tone sounds from a dis-
ta nce of app roximately 0.2 m,rega rdless of the
selected setting. 230
230
Driving and parking

V
V
ehicles wit
ehicles wit h tr
h trailer hitc
ailer hitc h:
h:Parking Assist
PA RKTRONIC is deactivated forth ere ar zone
when you establish an electrical connection
between your vehicle and a trailer.
Pr
Pr oblems wit
oblems wit h P
h Par
arking Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC 1
Vehicles with 360° Camera
2 Vehicles without 360° Camera
If th ePa rking Assist PARKTRONIC display lights
up redfo r appr oximately thre e seconds then goes
out, and theé symbol appears in the inst ru-
ment clus ter,th e system may ha vebeen deactiva-
te d due tosignal inter fere nce. Start theve hicle again and
check if Parking Assist PARKTRONIC is
wo rking at a di.erent location.
If th eé symbol appears in the inst rument
clus ter and a warning tone sounds, it may be due
to one of thefo llowing causes:
R The sensor
The sensor s ar
s are dir
e dir ty
ty:
:clean the sensors and
obser vethe no tes on care of vehicle parts
(/ page 313).
R P
Par
ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC has been deacti-
ONIC has been deacti-
v
v at
at ed due t
ed due t o a malfunction:
o a malfunction: restart theve hi-
cle. If the problem persists, consult a quali/ed
specialist workshop.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC
ONIC
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. #
When parking or manoeuvring theve hi-
cle, pay particular attention toany
objects which are abo veor below the
senso rs, e.g. 0o werpots or dr awbars. The
vehicle or other objects could other-
wise be damaged. #
V
Vehicles wit
ehicles wit hout AIR BOD
hout AIR BOD Y C
Y CONTR
ONTR OL:
OL:press
th eé button in the centre console.
% V
Vehicles wit
ehicles wit h AIR BOD
h AIR BODY C
Y CONTR
ONTR OL:
OL:you can
activate or deactivate Parking Assist
PA RKTRONIC in the multimedia system
(/ page 232).
If th e indicator lamp in theé button is not lit,
Pa rking Assist PARKTRONIC is active. If the indi-
cator lamp is lit or theé symbol appears in
th e Instrument Displa y,Pa rking Assist
PA RKTRONIC is not active.
% Parking Assist PARKTRONIC is automatically
activated when theve hicle is star ted.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC using t
ONIC using t he multimedia syst
he multimedia syst em
em
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. 232
232
Driving and parking

R
Parking in parking spaces that can only be
de tected as such due tomarkings (for example
at thero adside)
R Exiting parking spaces if you ha vepar ked
using Active Parking Assist
As soon as all requ irements are met for sear ching
fo r parking spaces, theÇ display appears in
th e Instrument Displa y.
When Active Parking Assist has de tected parking
spaces, theÈ display appears in the Instru-
ment Displa y.The ar rows show on which side of
th e road de tected parking spaces are located.
They are then shown in the media displa y.
V
V ehicles wit
ehicles wit hrev
h rev er
ersing camer
sing camer a:
a:the parking space
can be selected as desired. The vehicle is par ked
in reve rse.
V
V ehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:the parking space
can be selected as desired. Depending on the
location of the parking space, the parking direc-
tion (rear wards or forw ards) can also be selected
as desired. When
Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
The parking procedu reis assisted byaccelerating,
braking, steering and gear changes.
Ac tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You engage transmission position j.
R ESP ®
inter venes.
R You open the driver's door.
R ATer activating Active Parking Assist, you
press thec button again (/ page 235).Syst
Syst em limits
em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ove rhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected
during measurement of the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circums tan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! 234
234 Driving and parking

#
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, suc has snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y.
Only use Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions suc has ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15 %.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high. R
Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, suc has:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces.
P
P ar
ar king wit
king wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist #
Press button 1. Pa
rking spaces de tected bythe system are shown
in the media displa y.When theve hicle is station-
ar y, indicated vehicle path 2into cur rently selec-
te d parking space 3also appears. #
If a parking space is displa yed: stop theve hi-
cle. #
If necessar y,select ano ther parking space. #
V
Vehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:if necessar y,
ch ange the parking direction. #
T
To st
o st ar
art t
t t he par
he par king pr
king pr ocedur
ocedur e:
e:con/ rmselec-
te d parking space 3. Driving and parking
235
235

The turn signal indicator is switched on automati-
cally when the parking procedure begins. You are
re sponsible for selecting the turn signal indicator
in accordance with the tra1c conditions. If neces-
sar y,select the turn signal indicator accordingl y.&
W
WARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,fore xamp le,thePlease engage reverse
gear message appears in the media displa y: select
the cor responding transmission posi-
tion.
The vehicle drives into the selected parking
space.
% During the parking procedure with Active
Pa rking Assist, the lane markings are dis-
pla yed in green in the camera image.
On completion of the parking procedure, the
Parking Assist finished, take control of vehicle
message appears. Further manoeuvring may still
be necessar y. #
Secure theve hicle against rolling away.When
re qu ired bylegal requ irements or local condi-
tions: turn the wheels towa rdsth eke rb.
% You can stop theve hicle and change the
transmission position during the parking pro-
cedure. The system then calculates a new
ve hicle path. If no new vehicle path is availa-
ble, the transmission position can be changed
again, or the process can be cancelled.
Exiting a par
Exiting a par king space wit king space wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle is equipped with a 360° Camera. R
The vehicle has been par ked with Active Park-
ing Assist.
Please no tethat you are responsible forth eve hi-
cle and sur roundings during the entire parking
procedure. #
Start theve hicle. #
Press but ton1.
The media display sh owsth e view of Active
Pa rking Assist. 236
236
Driving and parking

#
Select Exit space 2.
or #
Ifth eve hicle has been par ked perpendicular
to the direction of tr avel: select direction of
tr av el 3. #
If,fore xamp le,the message Please engage
forward gear appears inthe media displa y:
select the cor responding transmission posi-
tion.
The vehicle mo ves out of the parking space
and is brought toa standstill byActive Parking
Assist (at an angle tothe direction of tr avel).
The Ø Parking Assist finished, take con-
trol of vehicle message appears. #
Take cont rol of theve hicle and comple tethe
parking process.
% The vehicle path shown on the media display
may di.er from the actual vehicle path. The
turn signal indicator is switched on automati-
cally when theex iting procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y.
P
P ausing A ausing A ctiv
ctive P
e Par
arking Assist
king Assist
Yo u can inter rupt the parking or exiting procedure
of Active Parking Assist byper form ing one of the
fo llowing actions, fore xamp le: #
Depress the brake pedal. #
Open the front passenger door, a rear door,
th e boot or the bonnet. #
Apply the electric parking brake or activating
th e HOLD function. #
T
To r
o r esume t
esume t he par
he parking or e
king or e xiting pr
xiting procedur
ocedure:
e:
ge ntly dep ress the accelerator pedal.
% Ifth e electric parking brake was applied
before Active Parking Assist was activated, depress
the accelerator pedal lightly tostart
th e parking or exiting procedure.
Check the area around your vehicle again before
re suming a paused parking procedu re. Make sure
th at persons, animals or objects are no lon ger in
th e manoeuvring range. Also obser vethe system
limitations of Active Parking Assist.
A
A ut
ut omatic br
omatic br aking function of A
aking function of A ctiv
ctive P
e Par
arking
king
Assist
Assist
Pe rsons or objects de tected in the manoeuvring
ra nge could cause theve hicle tobrake sharply
and inter rupt the parking or exiting procedure.
The vehicle will then be held at a standstill. If you
depress the accelerator pedal, the parking or exit-
ing procedure is resumed.
Check the area around your vehicle again before
re suming the parking or exiting procedure. Make
sure that persons, animals or objects are no lon-
ge r in the manoeuvring range. Also obser vethe
system limi tations of Active Parking Assist. Driving and parking
237 237

Manoeuvr
Manoeuvr
ing assist
ing assistant
ant F
F
unction of Dr
unction of Dr iv
ive Awa
e Away Assi st
y Assi st
Drive Away Assist can reduce the se verity of an
impact when pulling away.If an obs tacle is de tec-
te d in the direction of tr avel, theve hicle's speed
is brie0y reduced toappr ox. 2 km/h. If a critical
situation is de tected, theÉ symbol appears in
th e media displa y.
Drive Away Assist can be deactivated or activated
in theManoeuvring assistance menu
(/ page 240).
% You can cancel an inter vention byDrive Away
Assist at any time bydeactivating Parking
Assist PARKTRONIC (/ page 232).&
W
WARNI NG
ARNI NGRisk of accident caused bylimi-
te d de tection per form ance of Drive Away
Assist
Drive Away Assist cannot alw ays clear lyiden-
tify objects and tra1c situations. #
Always pay careful attention tothe tra1c
situation; do not relyon Drive Away
Assist alone. #
Be prepa redto brake or swer veas nec-
essar y,prov ided the tra1c situation per-
mits and that it is safe totake evasive
action. Drive
Away Assist is only an aid. It is not a substi-
tute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
A risk of collision may occur in thefo llowing situa-
tions, fore xamp le:
R Ifth e accelerator and brake pedals are inter-
ch anged.
R If an inco rrect transmission position is
engaged.
Drive Away Assist is active under thefo llowing
conditions:
R IfPa rking Assist PARKTRONIC is activated.
R Ifyo u shiT the transmission position tok or
h when theve hicle is stationar y. R
Ifth e de tected obs tacle is less than appr ox.
1.0 m away.
R Ifth e manoeuvring assistance function is acti-
va ted in the multimedia system.
Syst
Syst em limits
em limits
The per form ance of Drive AwayAssist is limited
on inclines.
When driving with a trailer, Drive AwayAssist is
not available.
% Also obser vethe system limits of Parking
Assist PARKTRONIC (/ page 229).
F
F unction of Cr unction of Cr oss
ossTr
Tra1c
a1c Alert
Alert
% Cross Tra1c Ale rtis only available forve hicles
with Blind Spot Assist or Active Blind Spot
Assist.
Cross Tra1c Ale rtcan warndrivers of any cross-
ing tra1c when reve rsing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent totheve hicle. If a
critical situation is de tected, theL symbol
appears in the media display and theve hicle can
be braked automaticall y.238
238
Driving and parking

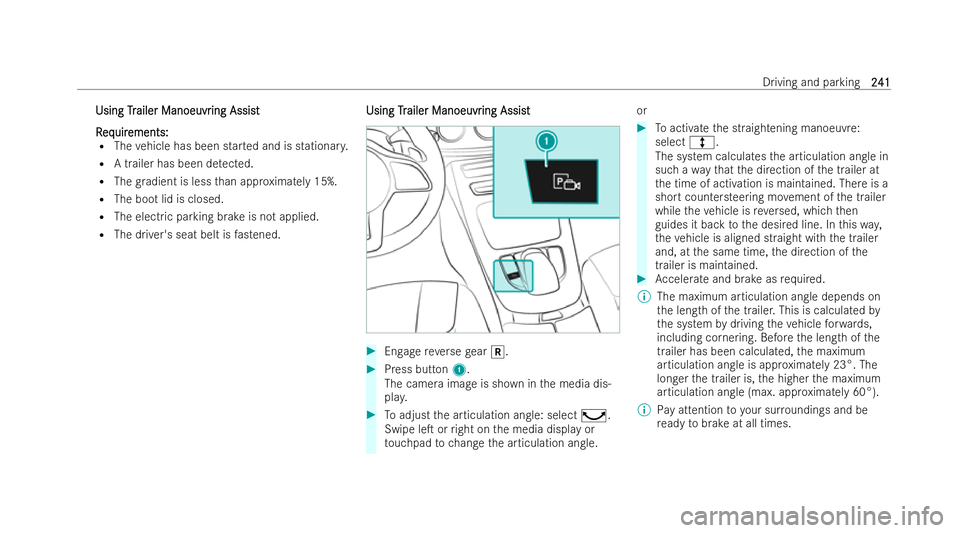

Using
Tr
Using Trailer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been star ted and is stationar y.
R A trailer has been de tected.
R The gradient is less than appr oximately 15%.
R The boot lid is closed.
R The electric parking brake is not applied.
R The driver's seat belt is fastened. Using
Tr
Using Trailer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist #
Engage reve rsege ar k. #
Press but ton1.
The camera ima geis shown in the media dis-
pla y. #
Toadjust the articulation angle: select ¸.
Swipe leT or right on the media display or
to uchpad tochange the articulation angle. or #
Toactivate the straightening manoeuvre:
select º.
The system calculates the articulation angle in
such a wayth at the direction of the trailer at
th e time of activation is maintained. There is a
short countersteering mo vement of the trailer
while theve hicle is reve rsed, which then
guides it back tothe desired line. In this wa y,
th eve hicle is aligned st raight with the trailer
and, at the same time, the direction of the
trailer is maintained. #
Accelerate and brake as requ ired.
% The maximum articulation angle depends on
the length of the trailer. This is calculated by
th e system bydriving theve hicle forw ards,
including cornering. Before the length of the
trailer has been calcula ted, the maximum
articulation angle is appr oximately 23°. The
longer the trailer is, the higher the maximum
articulation angle (max. appr oximately 60°).
% Pay attention toyour sur roundings and be
re ady tobrake at all times. Driving and parking
241 241
