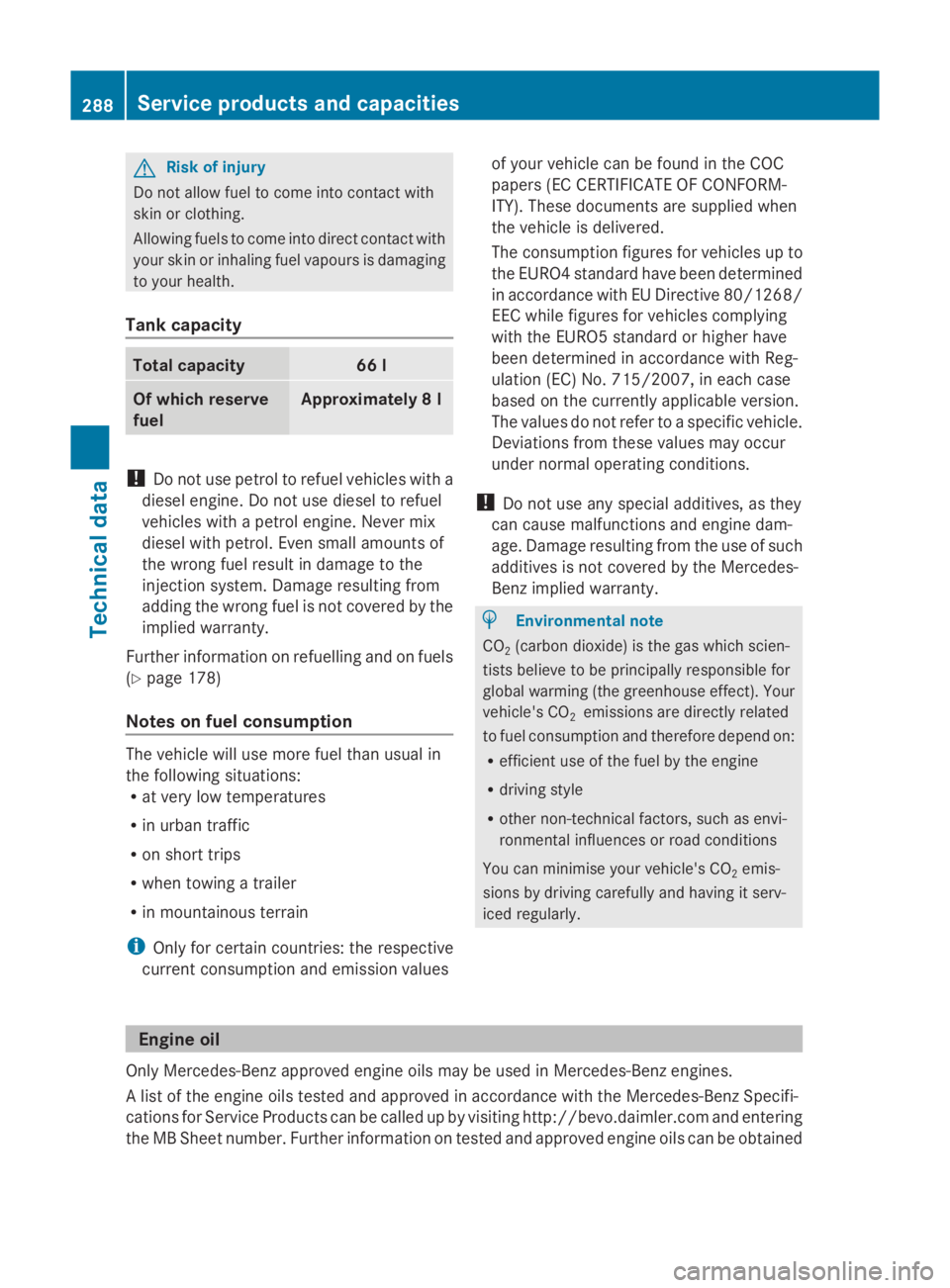

G
Risk of injury
Do not allow fue ltocome into contact with
skin or clothing.
Allowing fuels to come into direct contact with
your skin or inhaling fue lvapours is damaging
to your health.
Tank capacity Total capacity 66 l
Of which reserve
fuel Approximately
8l !
Do not us epetro ltor efuel vehicle switha
diese lengine. Do not us ediese ltor efuel
vehicle swithap etrolengine. Neve rmix
diese lwithp etrol. Even small amounts of
the wrong fue lresult in damag etothe
injection system. Damage resulting from
adding the wrong fue lisnot covered by the
implied warranty.
Further information on refuelling and on fuels
(Y page 178)
Note sonf uel consumption The vehicle will us
emore fue lthan usua lin
the following situations:
R at very low temperatures
R in urban traffic
R on short trips
R whe ntowing atrailer
R in mountainou sterrain
i Only for certain countries :the respective
current consumption and emission values of your vehicle can be found in the COC
paper
s(EC CERTIFICATE OF CONFORM-
ITY). These documents are supplie dwhen
the vehicle is delivered.
The consumption figure sfor vehicle supto
the EURO 4standard have bee ndetermined
in accordance with EU Directive 80/1268/
EEC while figure sfor vehicle scomplying
with the EURO 5standard or higher have
bee ndetermine dinaccordance with Reg-
ulation (EC )No. 715/2007, in each case
based on the currently applicabl eversion.
The value sdonot refe rtoaspecificvehicle.
Deviations from these value smay occur
under norma loperating conditions.
! Do not us eany specia laddit ives, as they
can cause malfunctions and engine dam-
age. Damage resulting from the us eofsuch
additive sisnot covered by the Mercedes-
Benz implied warranty. H
Environmental note
CO 2(carbo
ndioxide) is the ga swhich scien-
tists believe to be principall yresponsibl efor
globa lwarming (the greenhouse effect). Your
vehicle's CO 2emissions are directl
yrelated
to fue lconsumption and therefore depend on:
R efficient us eofthe fue lbythe engine
R driving style
R othe rnon-technical factors, such as envi-
ronmental influences or roa dconditions
You can minimis eyourv ehicle's CO
2emis-
sions by driving carefully and having it serv-
ice dregularly. Engine oil
Only Mercedes-Benz approved engine oil smay be used in Mercedes-Benz engines.
Al istoft he engine oil stested and approved in accordance with the Mercedes-Benz Specifi-
cations for Service Products can be calle dupbyvisiting http://bevo.daimler.com and entering
the MB Shee tnumber. Further information on tested and approved engine oil scan be obtained 288
Servic
eproducts and capacitiesTechnical data
207_AKB ;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 288

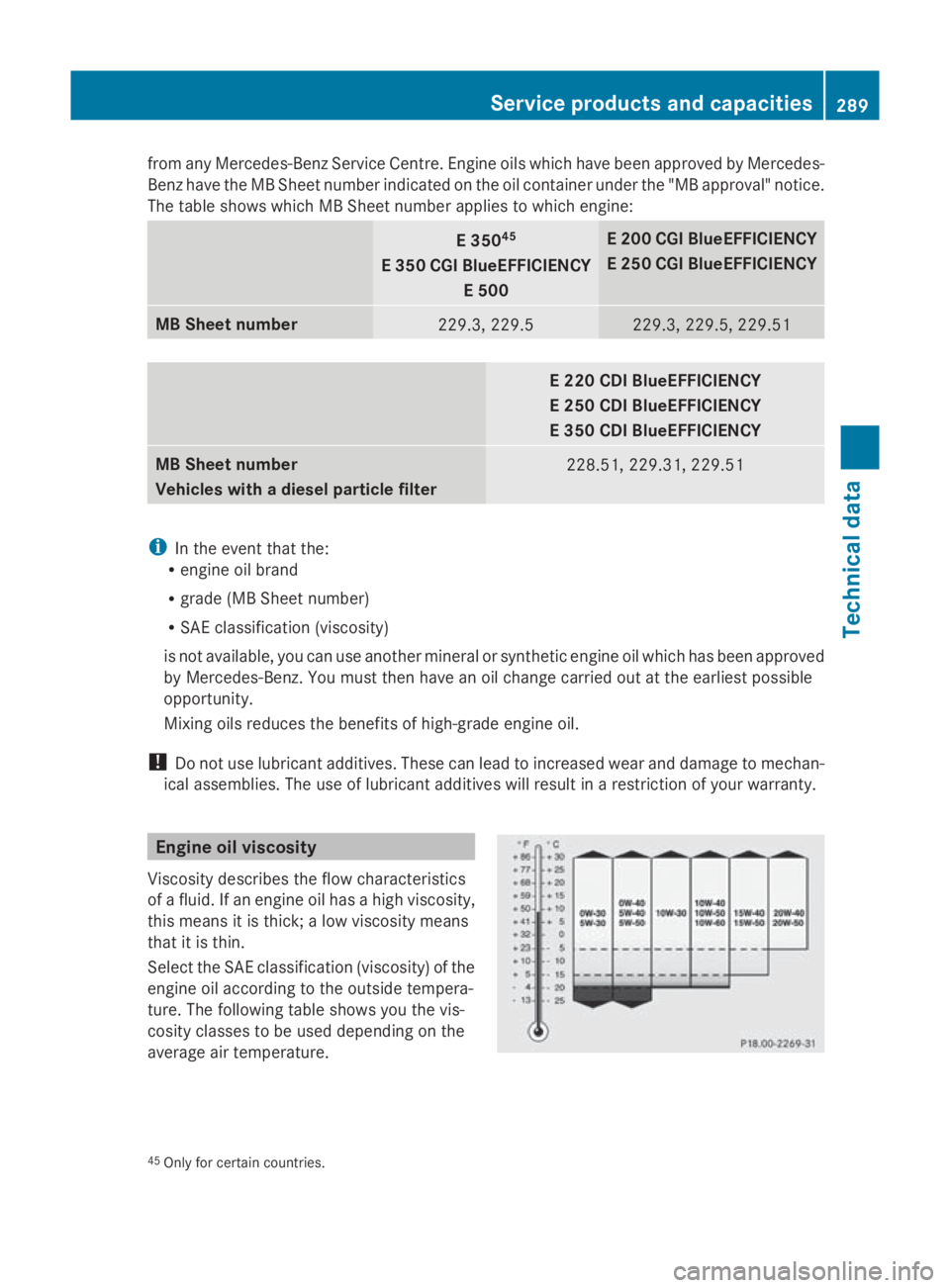

from any Mercedes-Benz Service Centre. Engine oil
swhich have been approved by Mercedes-
Benz have the MB Sheet numbe rindicated on the oil container unde rthe "MB approval "notice.
The tabl eshow swhich MB Sheet numbe rapplie stow hich engine: E3
5045
E3 50 CGI BlueEFFICIENCY
E500 E2
00 CGI BlueEFFICIENCY
E2 50 CGI BlueEFFICIENCY MB Shee
tnumber 229.3, 229.5 229.3, 229.5, 229.51
E2
20 CDIB lueEFFICIENCY
E2 50 CDIB lueEFFICIENCY
E3 50 CDIB lueEFFICIENCY MB Shee
tnumber
Vehicles with adiesel particle filter 228.51, 229.31, 229.51
i
In the event that the:
R engine oil brand
R grad e(MB Sheet number)
R SAE classification (viscosity)
is not available ,you can use another minera lorsyntheti cengine oil which has been approved
by Mercedes-Benz. You must then have an oil change carrie dout at the earliest possible
opportunity.
Mixing oil sreduces the benefits of high-grade engine oil.
! Do not use lubricant additives .These can lea dtoincreased wea rand damage to mechan-
ical assemblies. The use of lubricant additives wil lresult in arestrictio nofyourw arranty. Engine oil viscosity
Viscosity describes the flow characteristics
of afluid. If an engine oil has ahigh viscosity,
this means it is thick; alow viscosity means
that it is thin.
Select the SAE classification (viscosity )ofthe
engine oil according to the outside tempera-
ture. The following tabl eshow syou the vis-
cosity classes to be use ddepending on the
average airt emperature. 45
Only for certain countries. Service products and capacities
289Technical data
207_AKB; 2; 3, en-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 289 Z

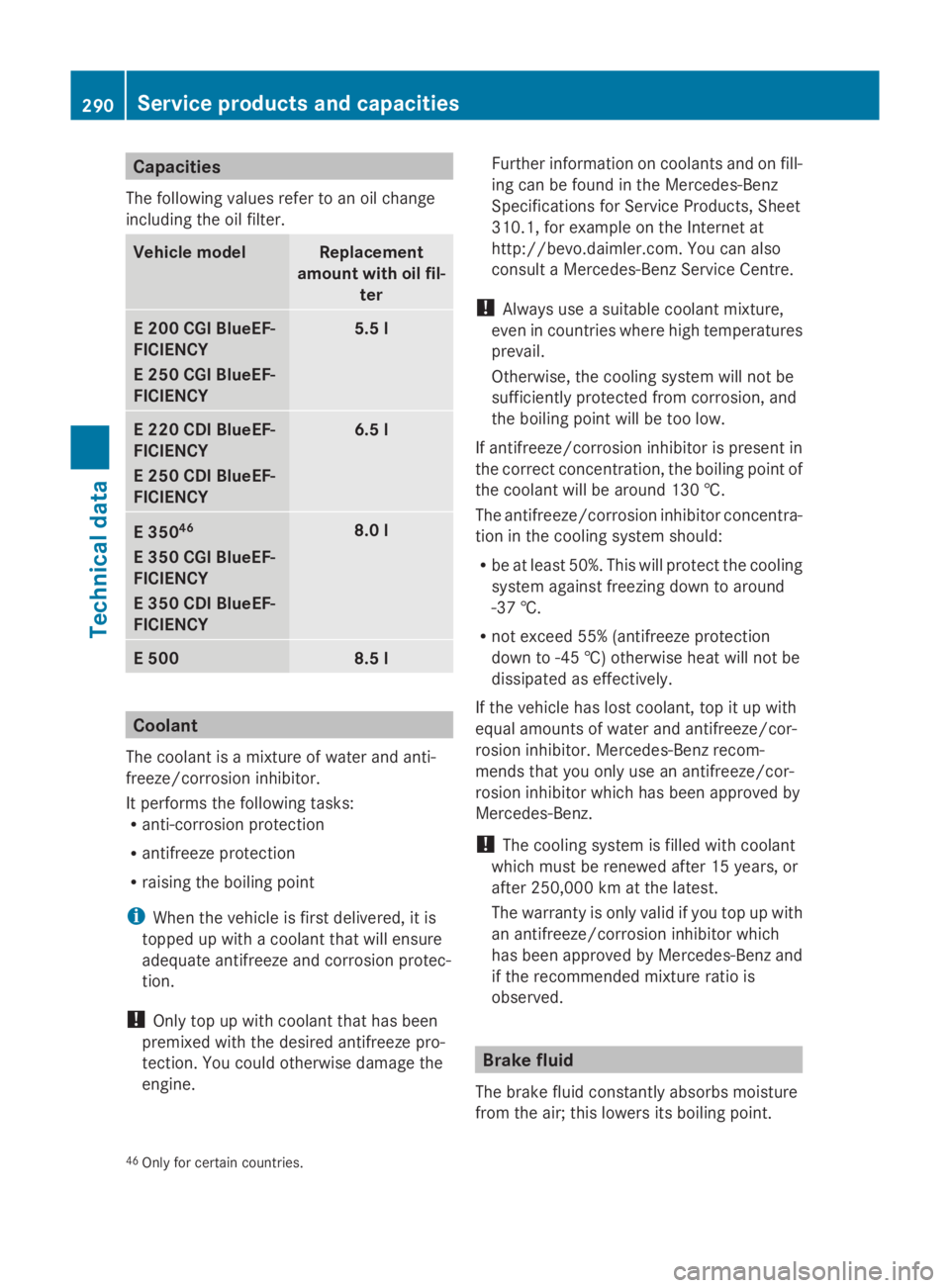

Capacities
The followin gvalues refer to an oil change
includin gthe oil filter. Vehicle model Replacement
amount with oil fil- ter E2
00 CGI BlueEF-
FICIENCY
E2 50 CGI BlueEF-
FICIENCY 5.
5l E2
20 CDI BlueEF-
FICIENCY
E2 50 CDI BlueEF-
FICIENCY 6.
5l E3
5046
E3 50 CGI BlueEF-
FICIENCY
E3 50 CDI BlueEF-
FICIENCY 8.
0l E5
00 8.
5l Coolant
The coolan tisamixtur eofwaterand anti-
freeze/corrosio ninhibitor.
It perform sthe followin gtasks:
R anti-corrosio nprotection
R antifreez eprotection
R raising th eboilin gpoint
i When th evehicle is first delivered, it is
topped up wit hacoolan ttha tw ill ensure
adequat eantifreez eand corrosio nprotec-
tion.
! Only to pupwithc oolan ttha th as been
premixe dwitht he desired antifreez epro-
tection .You could otherwise damag ethe
engine. Further informatio
noncoolants and on fill-
ing can be foun dintheMercedes-Benz
Specification sfor Servic eProducts, Sheet
310.1, for example on th eInterne tat
http://bevo.daimler.com. You can also
consult aMercedes-Ben zServic eCentre.
! Always use asuitable coolan tmixture,
eve ninc ountries wher ehigh temperatures
prevail.
Otherwise, th ecoolings ystem will no tbe
sufficiently protected from corrosion, and
th eb oilin gpointwill be to olow.
If antifreeze/corrosio ninhibitor is presen tin
th ec orrec tconcentrat ion, theboilin gpoin tof
th ec oolan tw ill be aroun d130 †.
The antifreeze/corrosio ninhibitor concentra-
tio nint hecoolin gsystem should:
R be at least 50%. This will protect th ecooling
system against freezing down to around
-3 7†.
R no te xcee d5 5% (antifreez eprotection
down to -4 5†)otherwise heat will no tbe
dissipated as effectively.
If th evehicle has lost coolant, to pitupwith
equal amounts of wate rand antifreeze/cor-
rosion inhibitor. Mercedes-Ben zrecom-
mends that you only use an antifreeze/cor-
rosion inhibitor whic hhas been approved by
Mercedes-Benz.
! The coolin gsystem is fille dwithc oolant
whic hmust be renewed after 15 years ,or
after 250,000 km at th elatest.
The warrant yisonlyv alid if you to pupwith
an antifreeze/corrosio ninhibitor which
has been approved by Mercedes-Ben zand
if th erecommended mixtur eratio is
observed. Brak
efluid
The brak efluid constantly absorbs moisture
from th eair; this lower sits boilin gpoint.
46 Only for certain countries. 290
Service products and capacitiesTechnical data
207_AKB
;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 290

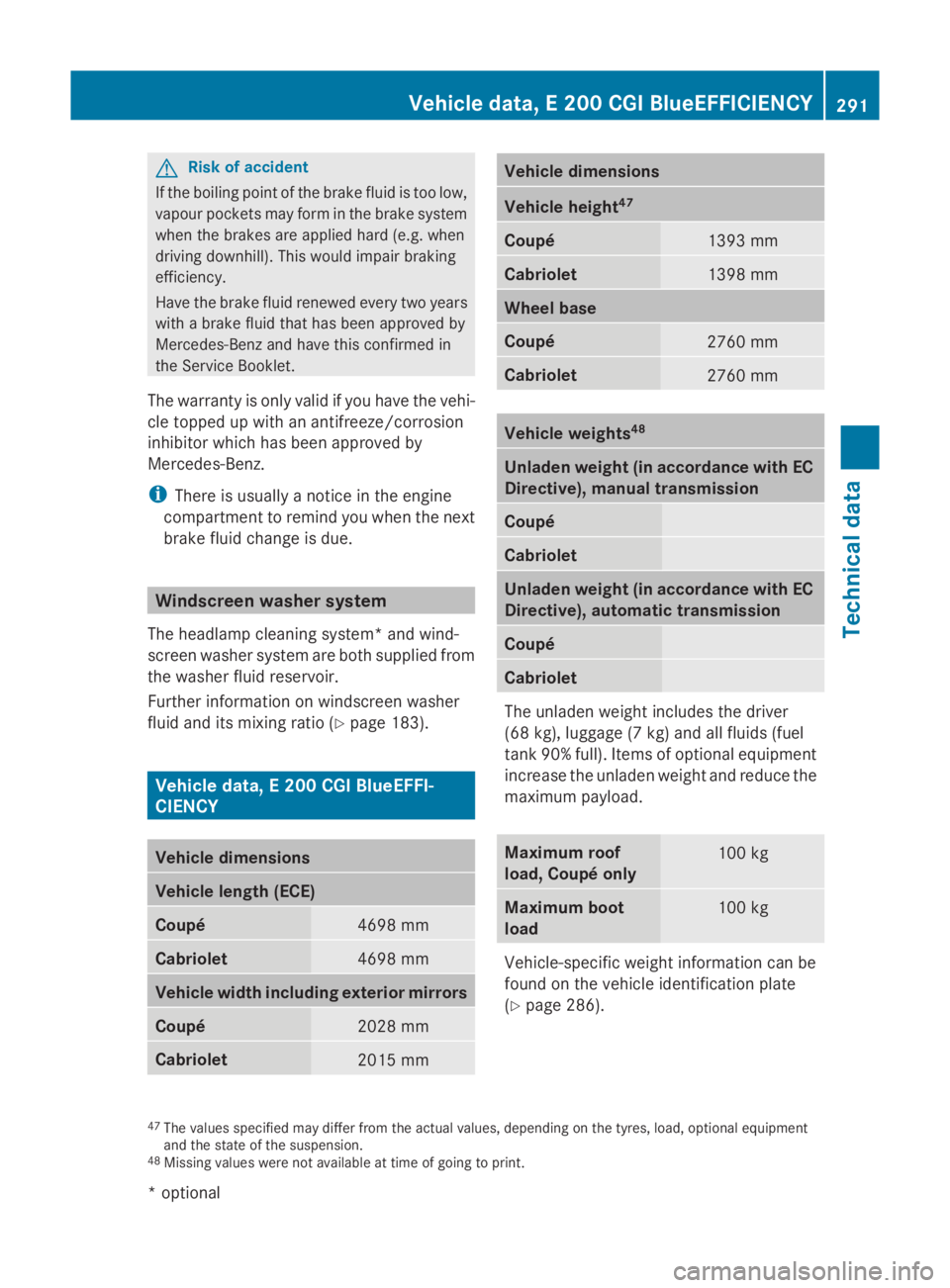

G
Risk of accident
If the boiling point of the brake fluid is too low,
vapou rpockets may form in the brake system
whe nthe brakes are applie dhard( e.g .when
driving downhill) .Thisw ould impai rbraking
efficiency.
Have the brake fluid renewed every two years
with abrake fluid that ha sbeena pproved by
Mercedes-Benz and have this confirmed in
the Service Booklet.
The warranty is only valid if yo uhavet he vehi-
cle topped up with an antifreeze/corrosion
inhibitor which ha sbeena pproved by
Mercedes-Benz.
i There is usuall yanotice in the engine
compartment to remind yo uwhent he next
brake fluid change is due. Windscree
nwasher system
The headlamp cleaning system* and wind-
scree nwashe rsystem are both supplie dfrom
the washe rfluid reservoir.
Further information on windscreen washer
fluid and its mixing rati o(Ypage 183). Vehicl
edata, E200 CGI BlueEFFI-
CIENCY Vehicl
edimensions Vehicl
elen gth (ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth including exterio rmirrors Coupé
2028 mm
Cabriolet
2015 mm Vehicl
edimensions Vehicl
eheight 47 Coupé
1393 mm
Cabriolet
1398 mm
Whee
lbase Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts48 Unladen weight (i
naccordance with EC
Directive), manual transmission Coupé
Cabriolet
Unladen weight (i
naccordance with EC
Directive), automati ctransmission Coupé
Cabriolet
The unladen weigh
tincludes the driver
(68 kg), luggage (7 kg) and al lfluid s(fuel
tank 90% full) .Items of optional equipment
increas ethe unladen weigh tand reduce the
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weigh
tinformation can be
found on the vehicle identification plate
(Y page 286). 47
The value sspecified may differ from the actual values, depending on the tyres, load, optional equipment
and the state of the suspension.
48 Missing value sweren ot available at time of going to print. Vehicled
ata,E200 CGI BlueEFFICIENCY
291Technical data
*optional
207_AKB
;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 291 Z

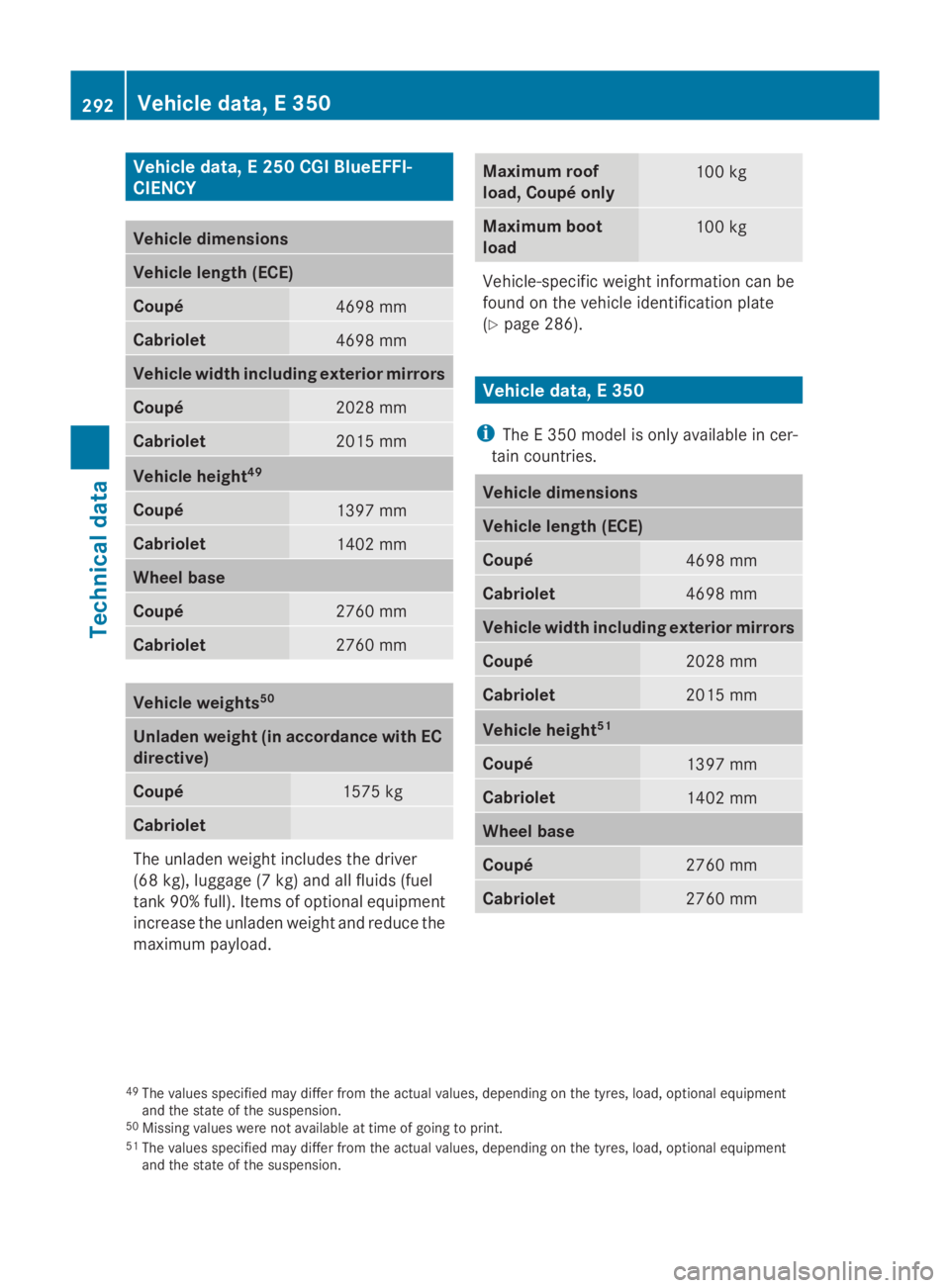

Vehicl
edata, E250 CGIBlueEFFI-
CIENCY Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
Cabriolet
2015 mm
Vehicl
eheight 49 Coupé
1397 mm
Cabriolet
1402 mm
Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts50 Unlade
nweigh t(in accordance with EC
directive) Coupé
1575 kg
Cabriolet
The unladen weight includes the driver
(68 kg) ,lug gage (7 kg) and al lfluid s(fuel
tank 90% full) .Items of optional equipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight informatio
ncan be
found on the vehicl eide ntificatio nplate
(Y page 286). Vehicl
edata, E350
i The E350 model is onl yavailable in cer-
tai nc ountries. Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
Cabriolet
2015 mm
Vehicl
eheight 51 Coupé
1397 mm
Cabriolet
1402 mm
Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
49
The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension.
50 Missing value sweren ot available at time of going to print.
51 The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension. 292
Vehicl
edata, E350Technica ldata
207_AKB; 2; 3, en-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 292

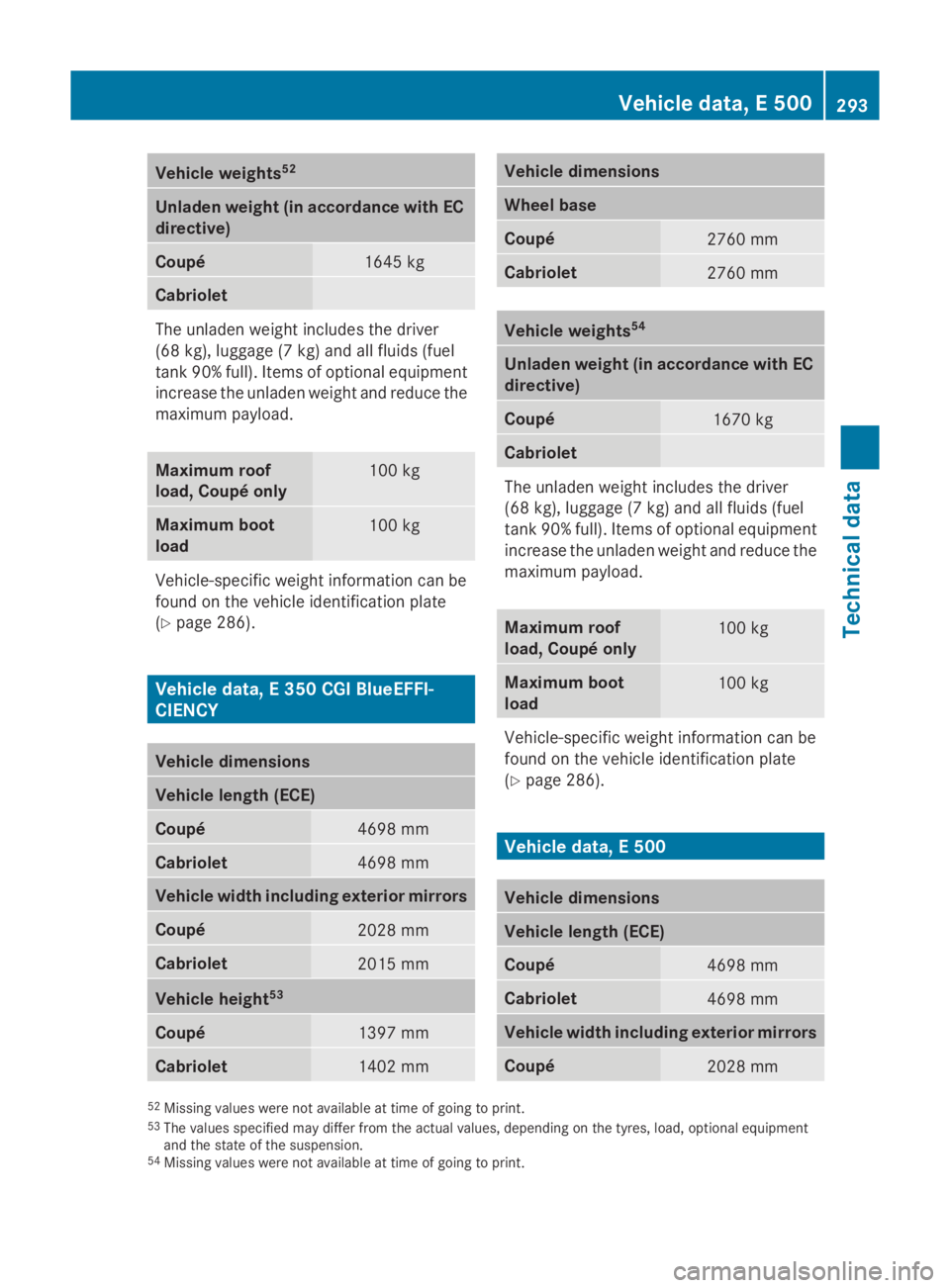

Vehicl
eweigh ts52 Unlade
nweigh t(in accordance with EC
directive) Coupé
1645 kg
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al
lfluid s(fuel
tank 90% full) .Items of optiona lequipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight information can be
found on the vehicl
eide ntification plate
(Y page 286). Vehicl
edata, E350 CGI BlueEFFI-
CIENCY Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
Cabriolet
2015 mm
Vehicl
eheight 53 Coupé
1397 mm
Cabriolet
1402 mm Vehicl
edimensions Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts54 Unlade
nweigh t(in accordance with EC
directive) Coupé
1670 kg
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al
lfluid s(fuel
tank 90% full) .Items of optiona lequipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight information can be
found on the vehicl
eide ntification plate
(Y page 286). Vehicl
edata, E500 Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
52
Missing value sweren ot available at time of going to print.
53 The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension.
54 Missing value sweren ot available at time of going to print. Vehicl
edata, E500
293Technical data
207_AKB; 2; 3, en-GB
mkalafa,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 293 Z

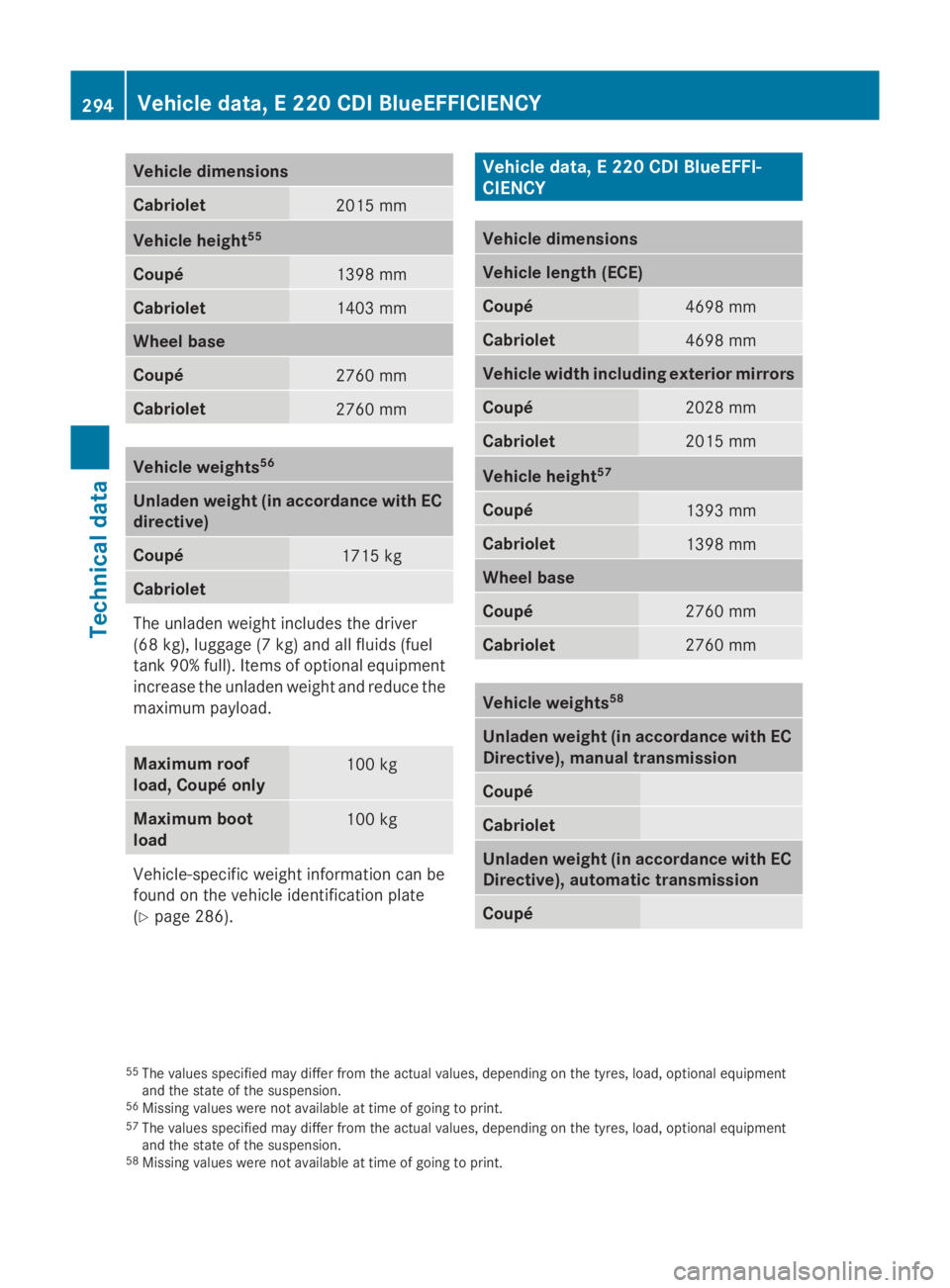

Vehicl
edimensions Cabriolet
2015 mm
Vehicl
eheight 55 Coupé
1398 mm
Cabriolet
1403 mm
Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts56 Unlade
nweigh t(in accordance with EC
directive) Coupé
1715 kg
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al lfluid s(fuel
tank 90% full) .Items of optiona lequipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only 100 kg
Maximum boot
load 100 kg
Vehicle-specific weight information can be
found on the vehicl
eide ntification plate
(Y page 286). Vehicl
edata, E220 CDIBlueEFFI-
CIENCY Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
Cabriolet
2015 mm
Vehicl
eheight 57 Coupé
1393 mm
Cabriolet
1398 mm
Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts58 Unlade
nweigh t(in accordance with EC
Directive), manual transmission Coupé
Cabriolet
Unlade
nweigh t(in accordance with EC
Directive), automatic transmission Coupé
55
The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension.
56 Missing value sweren ot available at time of going to print.
57 The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension.
58 Missing value sweren ot available at time of going to print. 294
Vehicl
edata, E220 CDIBlueEFFICIENCYTechnical data
207_AKB; 2; 3, en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 294

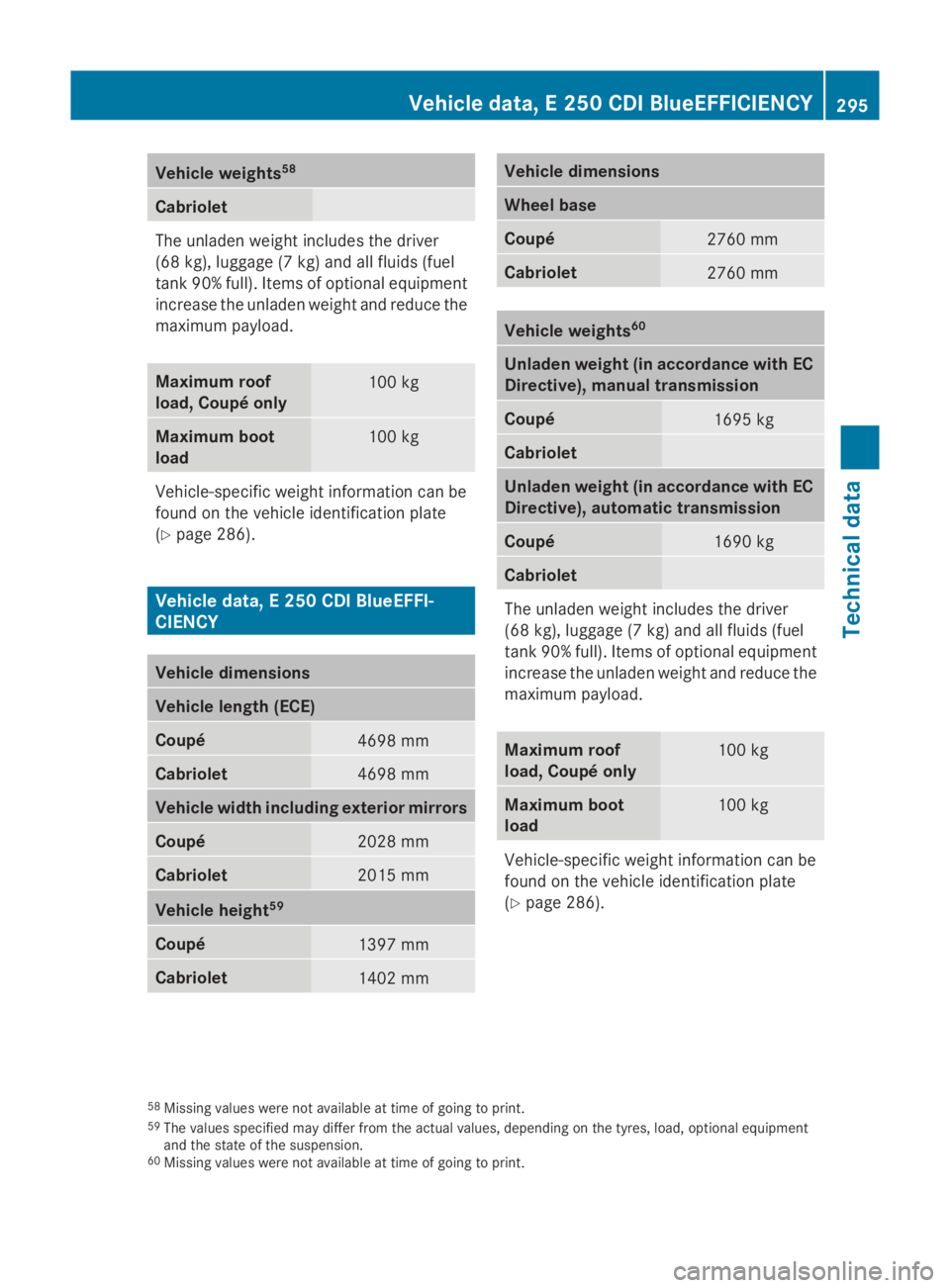

Vehicl
eweigh ts58 Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al
lfluid s(fuel
tank 90% full) .Items of optiona lequipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight information can be
found on the vehicl
eide ntification plate
(Y page 286). Vehicl
edata, E250 CDIBlueEFFI-
CIENCY Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
Cabriolet
2015 mm
Vehicl
eheight 59 Coupé
1397 mm
Cabriolet
1402 mm Vehicl
edimensions Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts60 Unlade
nweigh t(in accordance with EC
Directive), manual transmission Coupé
1695 kg
Cabriolet
Unlade
nweigh t(in accordance with EC
Directive), automatic transmission Coupé
1690 kg
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al
lfluid s(fuel
tank 90% full) .Items of optiona lequipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight information can be
found on the vehicl
eide ntification plate
(Y page 286). 58
Missing value sweren ot available at time of going to print.
59 The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension.
60 Missing value sweren ot available at time of going to print. Vehicl
edata, E250 CDIBlueEFFICIENCY
295Technical data
207_AKB; 2; 3, en-GB
mkalafa,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 295 Z

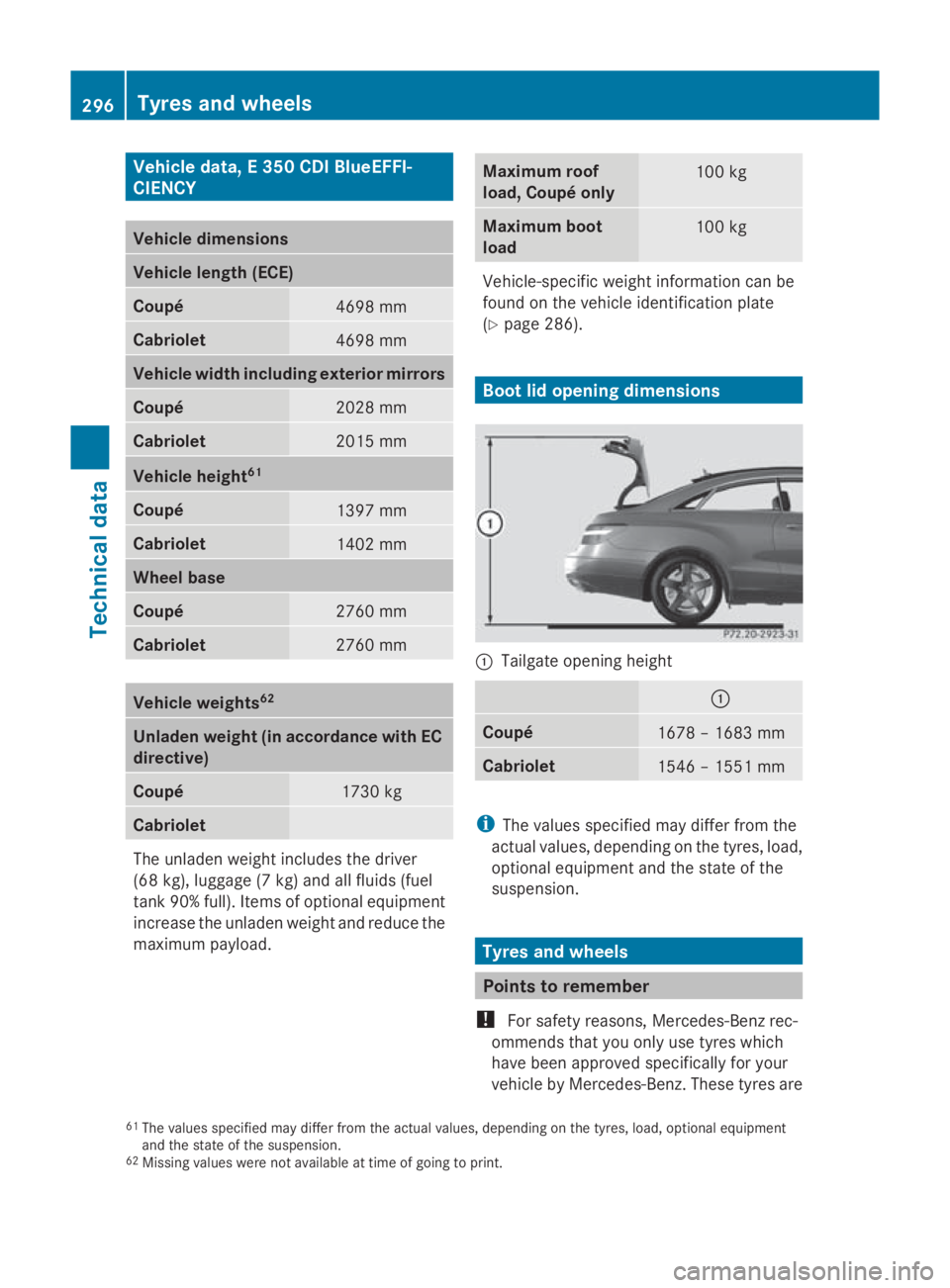

Vehicl
edata, E350 CDIBlueEFFI-
CIENCY Vehicl
edimensions Vehicl
elengt h(ECE) Coupé
4698 mm
Cabriolet
4698 mm
Vehicl
ewidth includin gexterior mirrors Coupé
2028 mm
Cabriolet
2015 mm
Vehicl
eheight 61 Coupé
1397 mm
Cabriolet
1402 mm
Wheel base
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts62 Unlade
nweigh t(in accordance with EC
directive) Coupé
1730 kg
Cabriolet
The unladen weight includes the driver
(68 kg) ,lug gage (7 kg) and al lfluid s(fuel
tank 90% full) .Items of optional equipment
increas ethe unladen weight and reduce the
maximu mpayload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight informatio
ncan be
found on the vehicl eide ntificatio nplate
(Y page 286). Boo
tlid opening dimensions 0046
Tailgate opening height 0046
Coupé
1678
–1683 mm Cabriolet
1546
–1551 mm i
The values specified ma ydiffer from the
actual values, depending on the tyres, load,
optional equipment and the state of the
suspension. Tyres and wheels
Points to remember
! For safety reasons ,Mercedes-Benz rec-
ommends tha tyou onlyusetyres which
have been approved specifically for your
vehicl ebyM ercedes-Benz. These tyres are
61 The value sspecified may differ from the actual values, depending on the tyres, load ,optiona lequipment
and the state of the suspension.
62 Missing value sweren ot available at time of going to print. 296
Tyres and wheelsTechnica
ldata
207_AKB; 2; 3, en-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 296

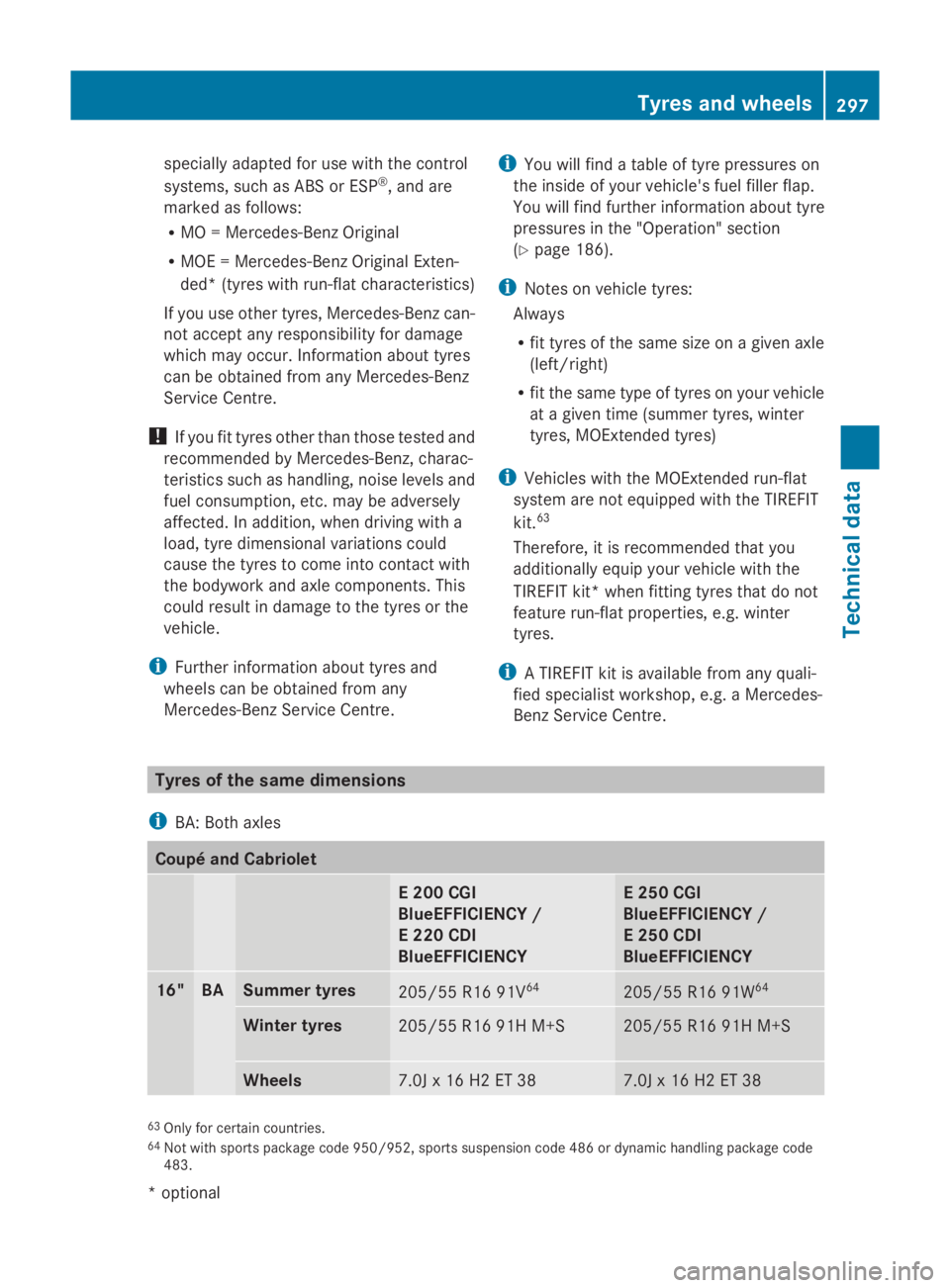

speciallya
dapted for use with the control
systems, such as ABS or ESP ®
,a nd are
marked as follows:
R MO =Mercedes-Benz Original
R MOE =Mercedes-Benz Original Exten-
ded* (tyres with run-flat characteristics)
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information aboutt yres
can be obtained from any Mercedes-Benz
Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz,c harac-
teristics such as handling, noise levels and
fuel consumption, etc. may be adversely
affected. In addition, when driving with a
load, tyre dimensional variations could
cause the tyres to come into contact with
the bodywork and axle components. This
could result in damage to the tyres or the
vehicle.
i Further information aboutt yres and
wheels can be obtained from any
Mercedes-Benz Service Centre. i
You will find atable of tyre pressures on
the inside of your vehicle's fuel filler flap.
You will find further information aboutt yre
pressures in the "Operation" section
(Y page 186).
i Notes on vehicle tyres:
Always
R fit tyres of the same size on agiven axle
(left/right)
R fit the same type of tyres on your vehicle
at ag iven time (summer tyres, winter
tyres, MOExtended tyres)
i Vehicles with the MOExtended run-flat
system are not equipped with the TIREFIT
kit. 63
Therefore, it is recommended that you
additionally equip your vehicle with the
TIREFIT kit* when fitting tyres that do not
feature run-flat properties, e.g. winter
tyres.
i ATIREFIT kit is available from any quali-
fied specialist workshop, e.g. aMercedes-
Benz Service Centre. Tyres of the same dimensions
i BA: Both axles Coupé and Cabriolet
E2
00 CGI
BlueEFFICIENCY /
E2 20 CDI
BlueEFFICIENCY E2
50 CGI
BlueEFFICIENCY /
E2 50 CDI
BlueEFFICIENCY 16" BA Summer tyres
205/55R
16 91V64 205/55R
16 91W64 Winter tyres
205/55R
16 91H M+S 004D 205/55 R16 91H M+S
004D
Wheels
7.0J
x16H2ET38 7.0J
x16H2ET38 63
Only for certai ncountries.
64 Not with sports package code 950/952, sports suspensio ncode 486 or dynamic handling package code
483. Tyres and wheels
297Technical data
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 297 Z
