MERCEDES-BENZ E-CLASS COUPE 2011 Owners Manual

Vehicl
eweigh ts Unlade
nweigh t(in accordance with EU
Directive), manual transmission 42Coupé
Cabriolet
Unlade
nweigh t(in accordance with EC
Directive), automatic transmission 42Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al lfluid s(fuel
tank 90% full) .Items of optional equipment
increase the unladen weight and reduc ethe
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specifi
cweight information can be
found on the vehicle identification plate
(Y page 333). Vehicle data,

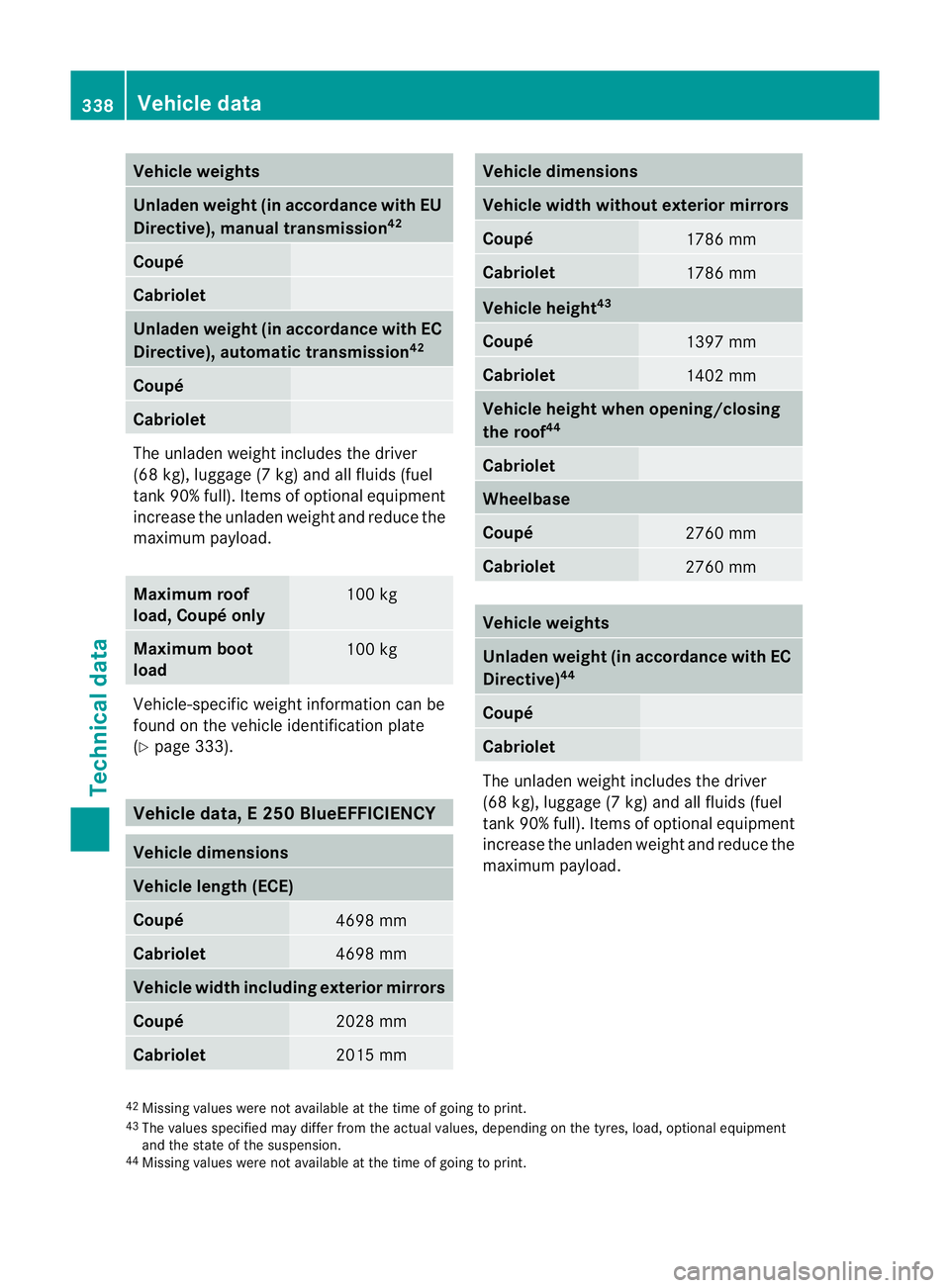

E250 BlueEFFICIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698mm
Cabriolet
4698mm
Vehicle width including exterior mirrors
Coupé
2028mm
Cabriolet
2015mm Vehicle dimensions
Vehicle width without exterior mirrors
Coupé
1786mm
Cabriolet
1786mm
Vehicle height
43 Coupé
1397mm
Cabriolet
1402mm
Vehicle height when opening/closing
the roof
44 Cabriolet
Wheelbase
Coupé
2760mm
Cabriolet
2760mm
Vehicle weights
Unladen weight (in accordance with EC
Directive)
44 Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Item
sofoptional equipment
increase the unladen weight and reduce the
maximum payload. 42
Missing values were not available at the time of going to print.
43 The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the stat eofthe suspension.
44 Missing values were not available at the time of going to print. 338
Vehicle dataTechnical data

Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight information can be
found on the vehicl eidentification plate
(Y page3 33). Vehicle data,

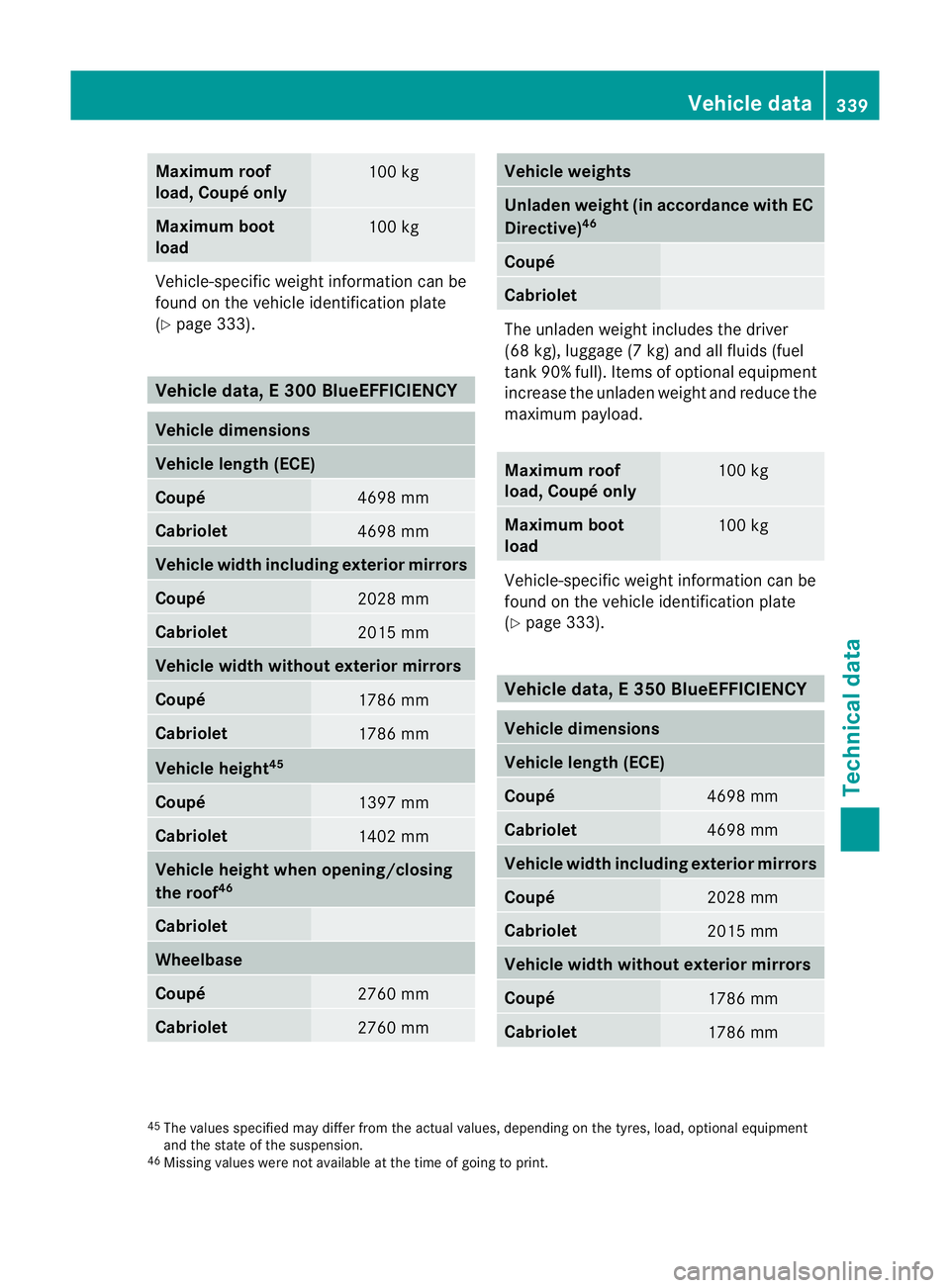

E300 BlueEFFICIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698 mm
Cabriolet
4698 mm
Vehicle width including exterio
rmirrors Coupé
202
8mm Cabriolet
201
5mm Vehicle width withou
texterior mirrors Coupé
178
6mm Cabriolet
178
6mm Vehicle height
45 Coupé
139
7mm Cabriolet
140
2mm Vehicle height when opening/closing
th
er oof 46 Cabriolet
Wheelbase
Coupé
276
0mm Cabriolet
276
0mm Vehicle weights
Unladen weight (in accordance with EC
Directive)
46 Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tan
k90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specifi
cweight information can be
found on the vehicle identification plate
(Y page 333). Vehicle data,
E350 BlueEFFICIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698mm
Cabriolet
4698mm
Vehicle width including exterior mirrors
Coupé
2028mm
Cabriolet
2015mm
Vehicle width without exterior mirrors
Coupé
1786mm
Cabriolet
1786mm
45
The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the stat eofthe suspension.
46 Missing values were not available at the time of going to print. Vehicle data
339Technical data Z

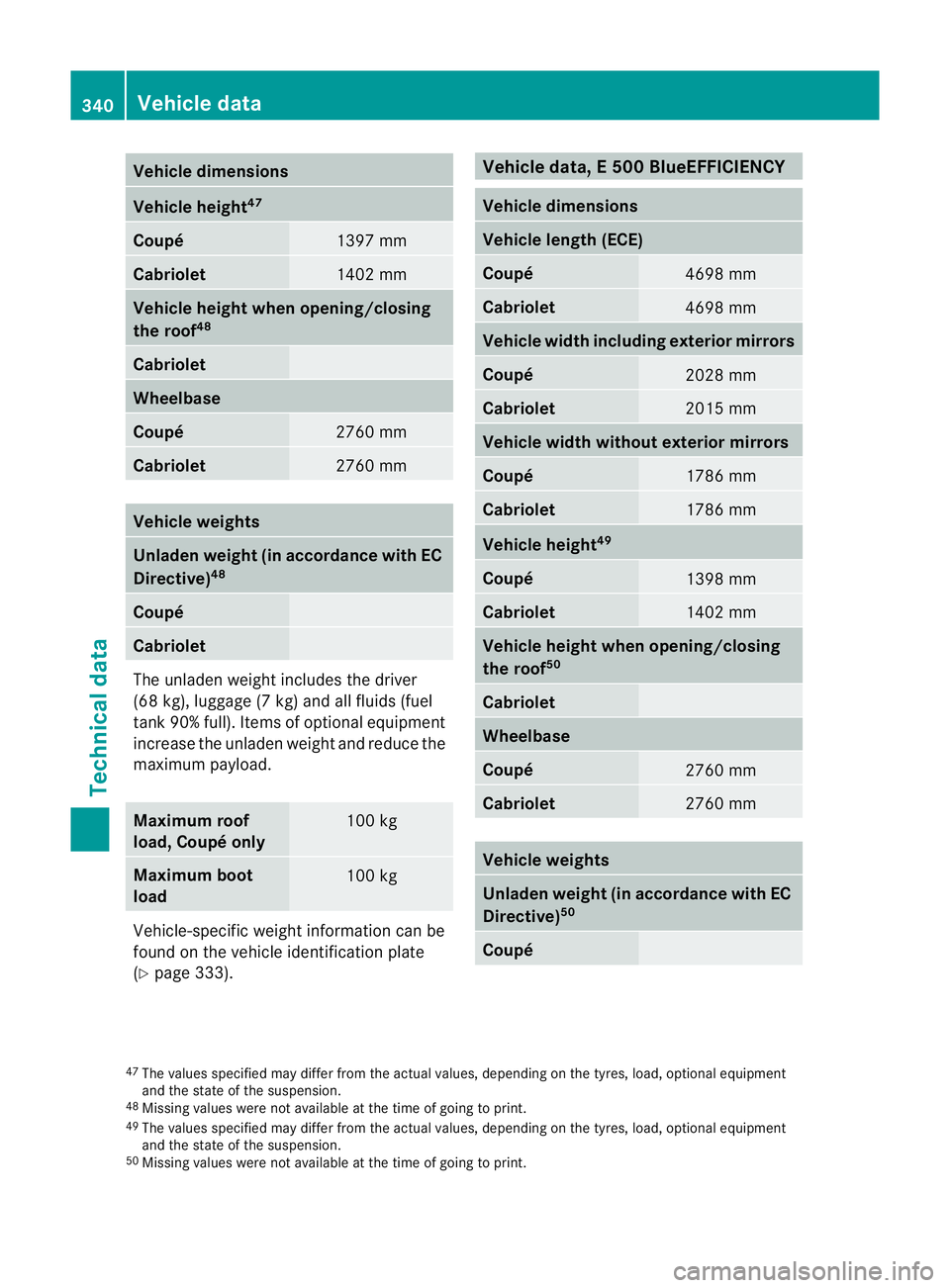

Vehicl
edimensions Vehicl
eheight 47 Coupé
1397 mm
Cabriolet
1402 mm
Vehicl
eheight when opening/closing
the roof 48 Cabriolet
Wheelbase
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts Unlade
nweigh t(in accordance with EC
Directive) 48 Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al lfluid s(fuel
tank 90% full) .Items of optional equipment
increase the unladen weight and reduc ethe
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specifi
cweight information can be
found on the vehicle identification plate
(Y page 333). Vehicle data,
E500 BlueEFFICIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698mm
Cabriolet
4698mm
Vehicle width including exterior mirrors
Coupé
2028mm
Cabriolet
2015mm
Vehicle width without exterior mirrors
Coupé
1786mm
Cabriolet
1786mm
Vehicle height
49 Coupé
1398mm
Cabriolet
1402mm
Vehicle height when opening/closing
the roof
50 Cabriolet
Wheelbase
Coupé
2760mm
Cabriolet
2760mm
Vehicle weights
Unladen weight (in accordance with EC
Directive)
50 Coupé
47
The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the stat eofthe suspension.
48 Missing values were not available at the time of going to print.
49 The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the stat eofthe suspension.
50 Missing values were not available at the time of going to print. 340
Vehicle dataTechnical data

Vehicl
eweigh ts Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al
lfluid s(fuel
tank 90% full) .Items of optional equipment
increase the unladen weight and reduc ethe
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specifi
cweight information can be
found on the vehicle identification plate
(Y page 333). Vehicle data,

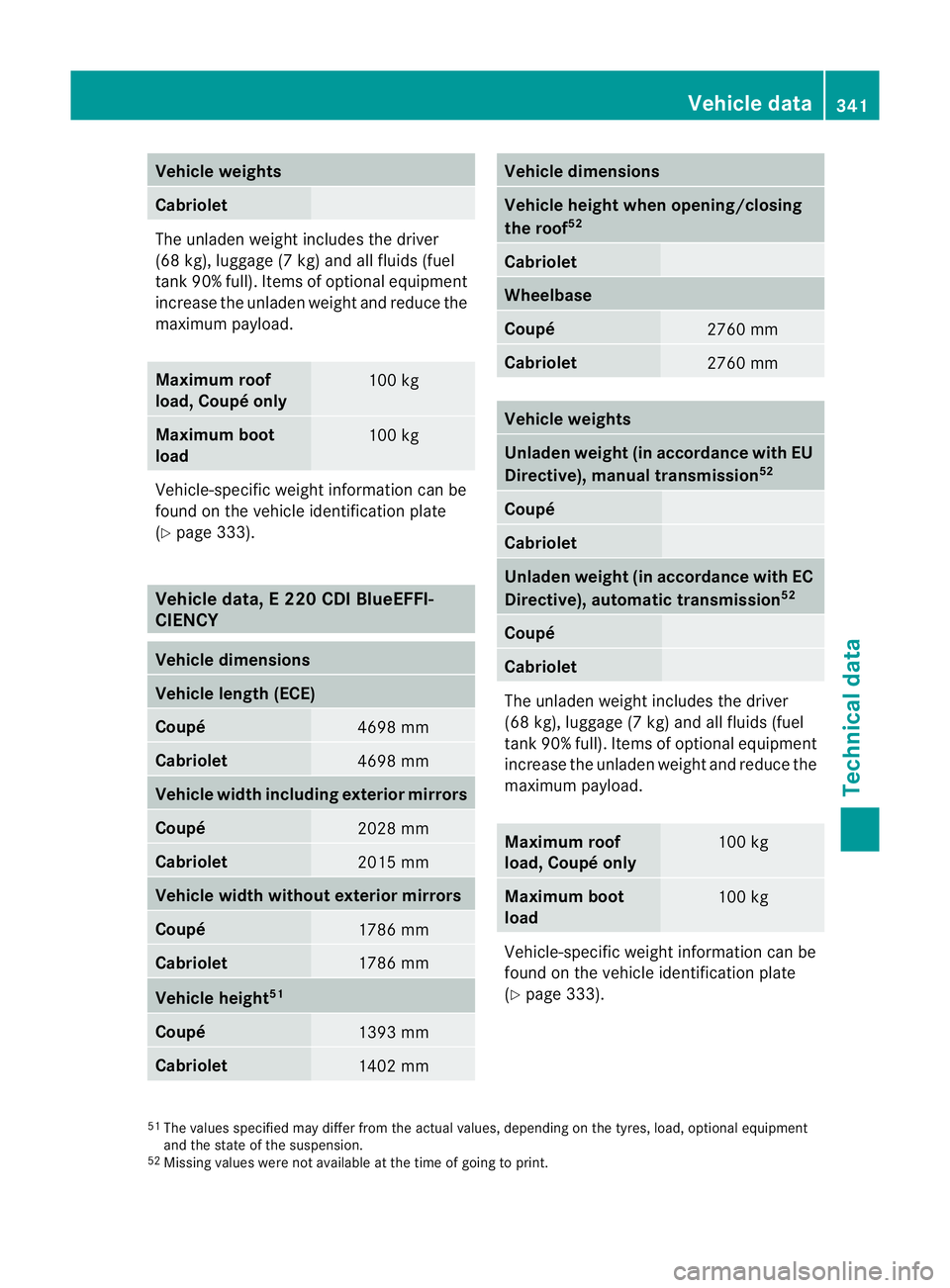

E220 CDI BlueEFFI-
CIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698mm
Cabriolet
4698mm
Vehicle width including exterior mirrors
Coupé
2028mm
Cabriolet
2015mm
Vehicle width without exterior mirrors
Coupé
1786mm
Cabriolet
1786mm
Vehicle height
51 Coupé
1393mm
Cabriolet
1402mm Vehicle dimensions
Vehicle height when opening/closing
the roof
52 Cabriolet
Wheelbase
Coupé
2760mm
Cabriolet
2760mm
Vehicle weights
Unladen weight (in accordance with EU
Directive), manual transmission
52 Coupé
Cabriolet
Unladen weight (in accordance with EC
Directive), automatic transmission
52 Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Item
sofoptional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specific weight information can be
found on the vehicle identification plate
(Y page 333). 51
The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the stat eofthe suspension.
52 Missing values were not available at the time of going to print. Vehicle data
341Technical data Z

Vehicl

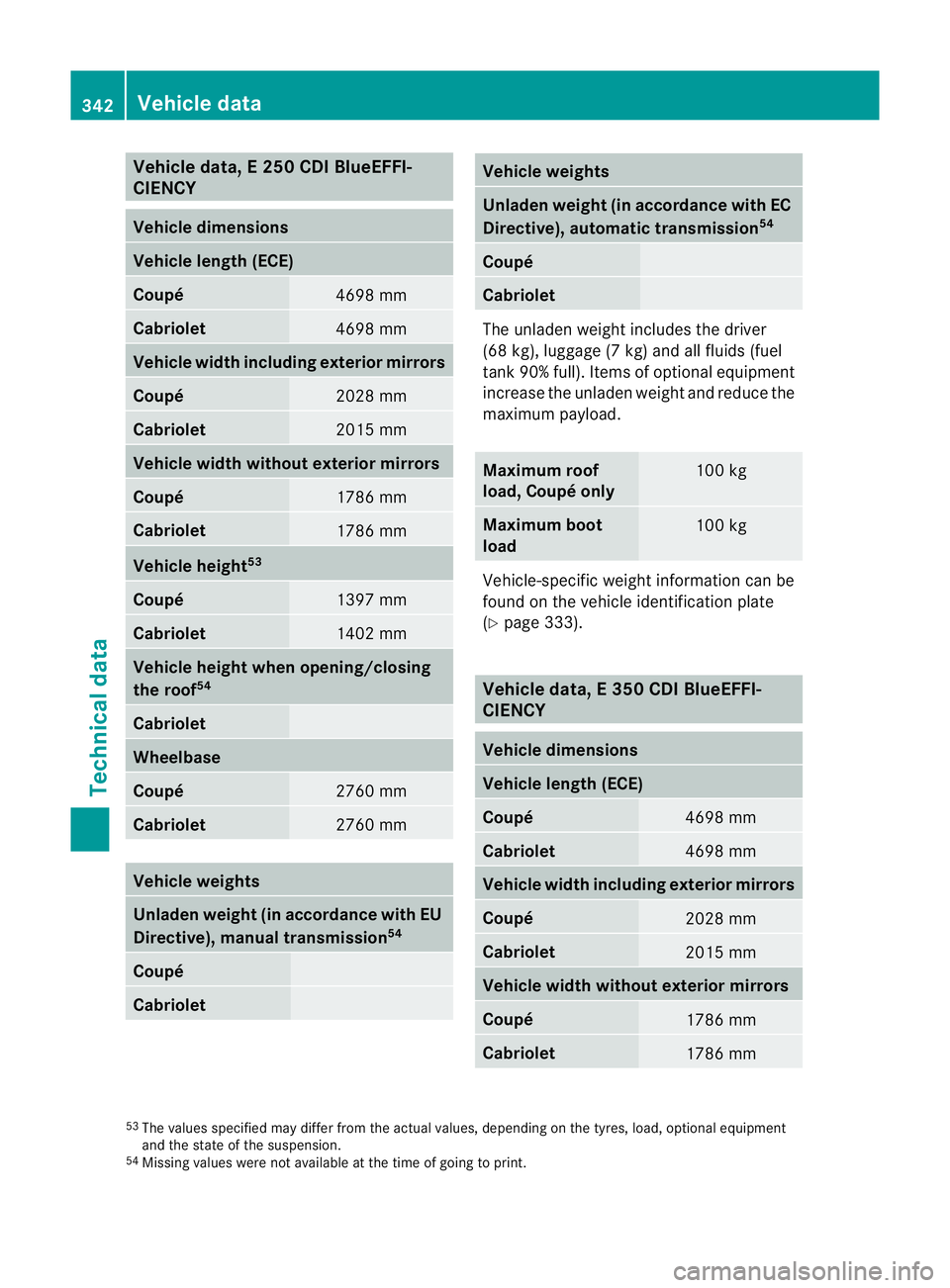

edata, E250 CDI BlueEFFI-
CIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698 mm
Cabriolet
4698 mm
Vehicle width including exterior mirrors
Coupé
2028 mm
Cabriolet
2015 mm
Vehicle width withou
texterior mirrors Coupé
1786 mm
Cabriolet
1786 mm
Vehicle height
53 Coupé
1397 mm
Cabriolet
1402 mm
Vehicle height when opening/closing
th
er oof 54 Cabriolet
Wheelbase
Coupé
2760 mm
Cabriolet
2760 mm
Vehicle weights
Unladen weigh
t(in accordance with EU
Directive), manual transmission 54Coupé
Cabriolet Vehicle weights
Unladen weight (in accordance with EC
Directive), automatic transmission
54 Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tan
k90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specifi
cweight information can be
found on the vehicle identification plate
(Y page 333). Vehicle data,
E350 CDI BlueEFFI-
CIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698mm
Cabriolet
4698mm
Vehicle width including exterior mirrors
Coupé
2028mm
Cabriolet
2015mm
Vehicle width without exterior mirrors
Coupé
1786mm
Cabriolet
1786mm
53
The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the stat eofthe suspension.
54 Missing values were not available at the time of going to print. 342
Vehicle dataTechnical data

Vehicl
edimensions Vehicl
eheight 55 Coupé
1397 mm
Cabriolet
1402 mm
Vehicl
eheight when opening/closing
the roof 56 Cabriolet
Wheelbase
Coupé
2760 mm
Cabriolet
2760 mm
Vehicl
eweigh ts Unlade
nweigh t(in accordance with EC
Directive) 56 Coupé
Cabriolet
The unladen weight includes the driver
(68 kg), luggage (7 kg) and al
lfluid s(fuel
tank 90% full) .Items of optional equipment
increase the unladen weight and reduc ethe
maximum payload. Maximum roof
load, Coupé only
100 kg
Maximum boot
load
100 kg
Vehicle-specifi
cweight information can be
found on the vehicle identification plate
(Y page 333). Boot lid opening dimensions
:
Openin gheight :
Coupé
1678–1
683mm Cabriolet
1550mm
i
The values specified may differ from the
actual values, depending on the tyres, load,
optional equipment and the stat eofthe
suspension. Trailer tow hitch
Mounting dimensions
G
WARNING
Only have atrailer tow hitc hretrofitted at a
qualified specialist worksho pwhich has the
necessary specialist knowledge and tools to
carry out the work required. Mercedes-Benz
recommends that you use aMercedes-Benz
Service Centr efor this purpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at aqualified
specialist workshop.
! If you have atrailer tow hitc hretrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
55 The values specified may differ from the actual values, depending on the tyres, load, optional equipment
and the state of the suspension.
56 Missing values were not available at the time of going to print. Trailer tow hitch
343Technical data Z

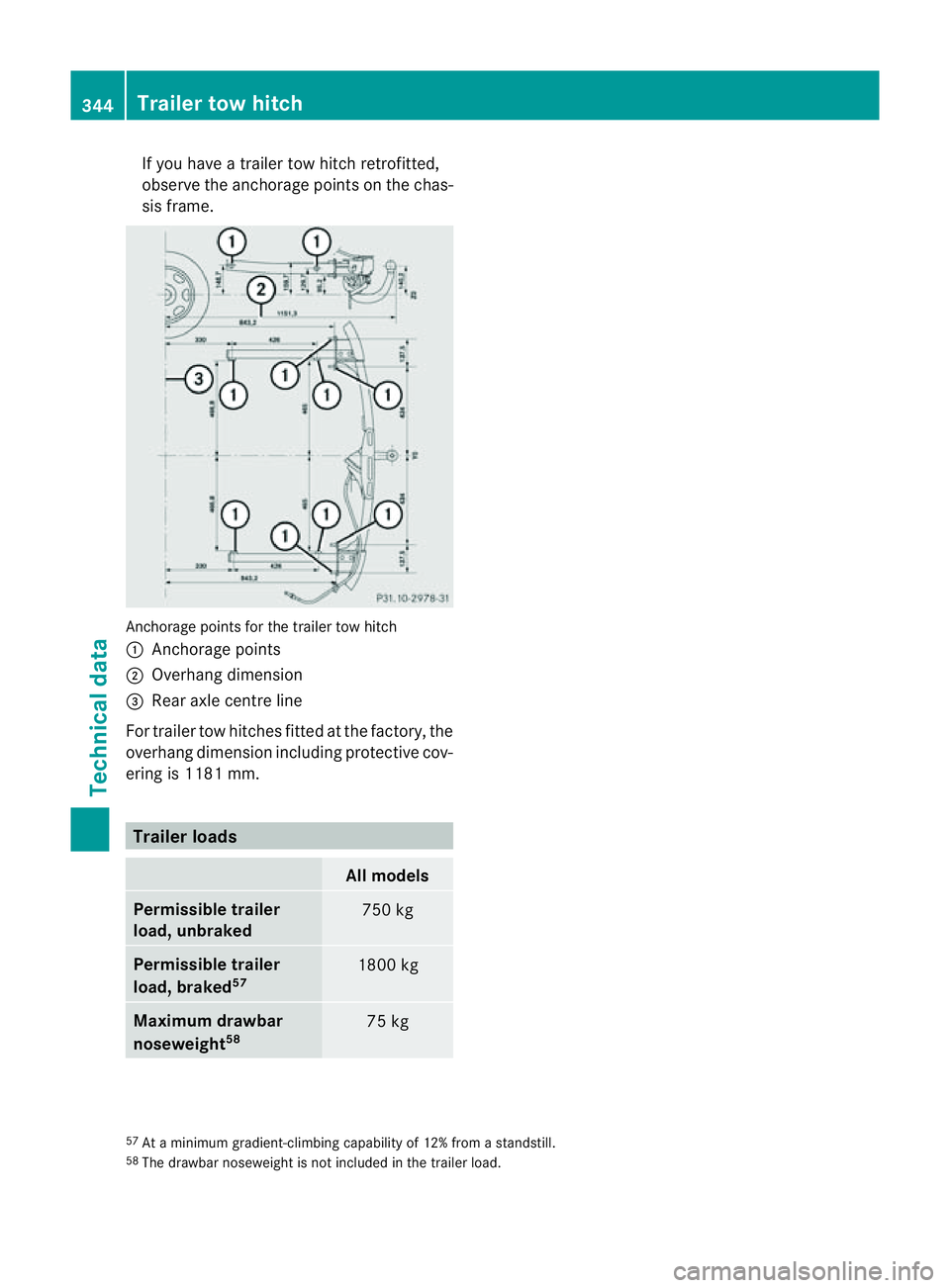

If you have
atrailert ow hitch retrofitted,
observe the anchorage points on the chas-
sis frame. Anchorage points for the trailer tow hitch
:
Anchorage points
; Overhang dimension
= Reara xle centre line
For traile rtow hitches fitted at the factory, the
overhang dimension including protective cov-
ering is 1181 mm. Trailer loads
All models
Permissible trailer
load, unbraked
750 kg
Permissible trailer
load, braked
57 1800 kg
Maximu
mdrawbar
noseweight 58 75 kg
57
At am inimum gradient-climbing capability of 12% from astandstill.
58 The drawbar noseweight is not included in the trailer load. 344
Trailer tow hitchTechnical data

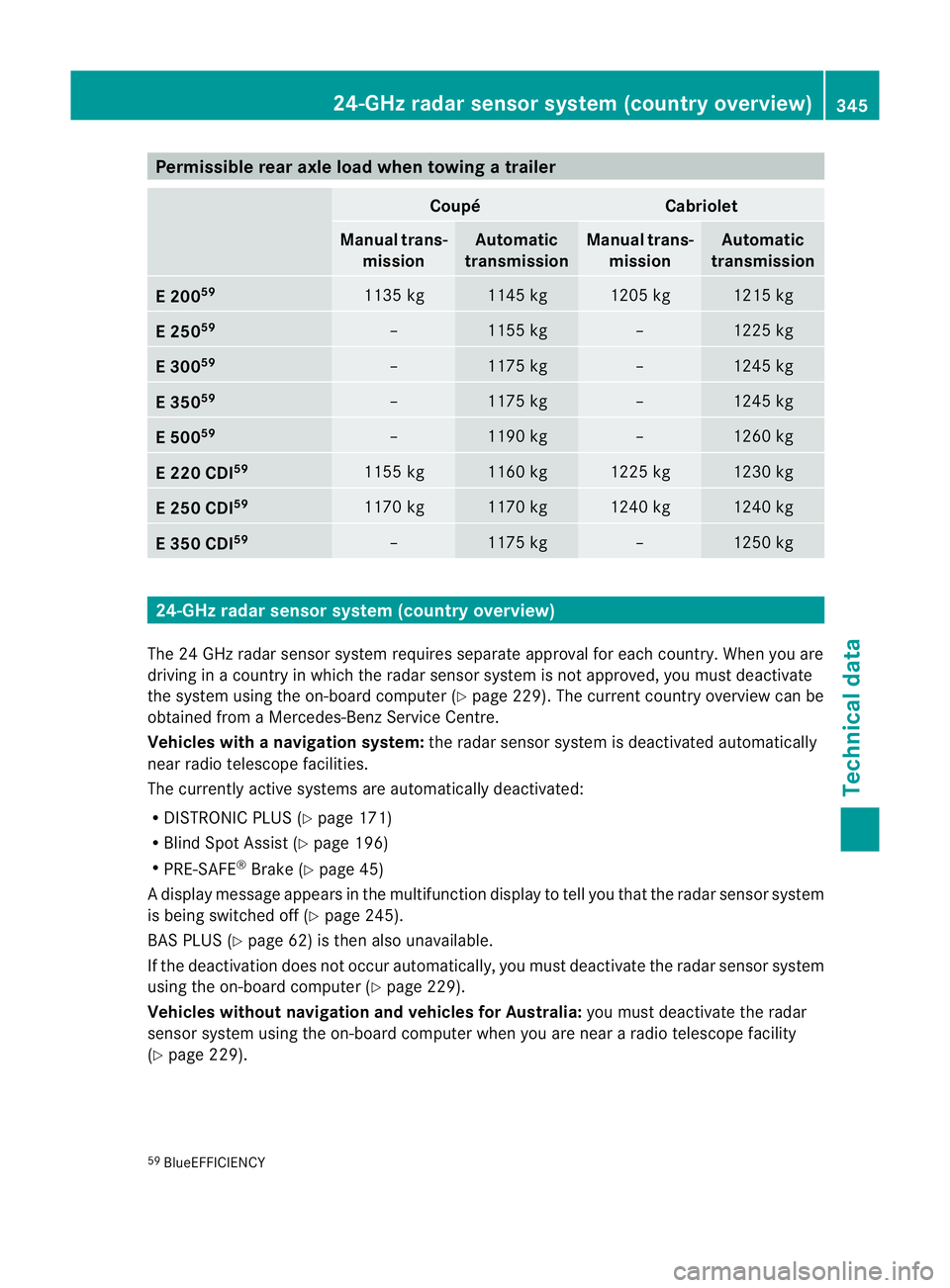

Permissible rear axle load when towing
atrailer Coupé Cabriolet
Manual trans-
mission Automatic
transmission Manual trans-
mission Automatic
transmission E2
0059 1135 kg 1145 kg 1205 kg 1215 kg
E2
5059 – 1155 kg – 1225 kg
E3
0059 – 1175 kg – 1245 kg
E3
5059 – 1175 kg – 1245 kg
E5
0059 – 1190 kg – 1260 kg
E2
20 CDI 59 1155 kg 1160 kg 1225 kg 1230 kg
E2
50 CDI 59 1170 kg 1170 kg 1240 kg 1240 kg
E3
50 CDI 59 – 1175 kg – 1250 kg

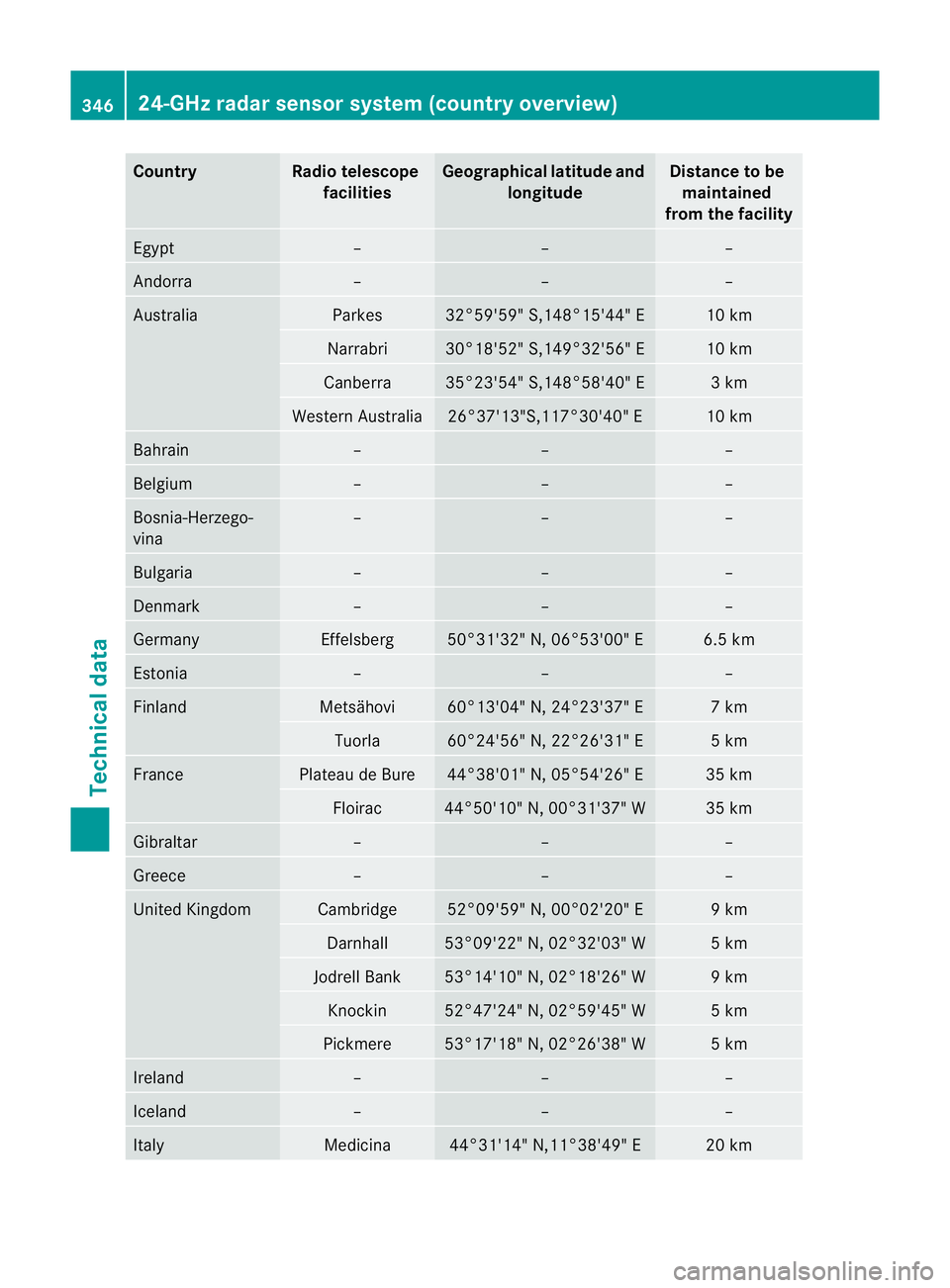

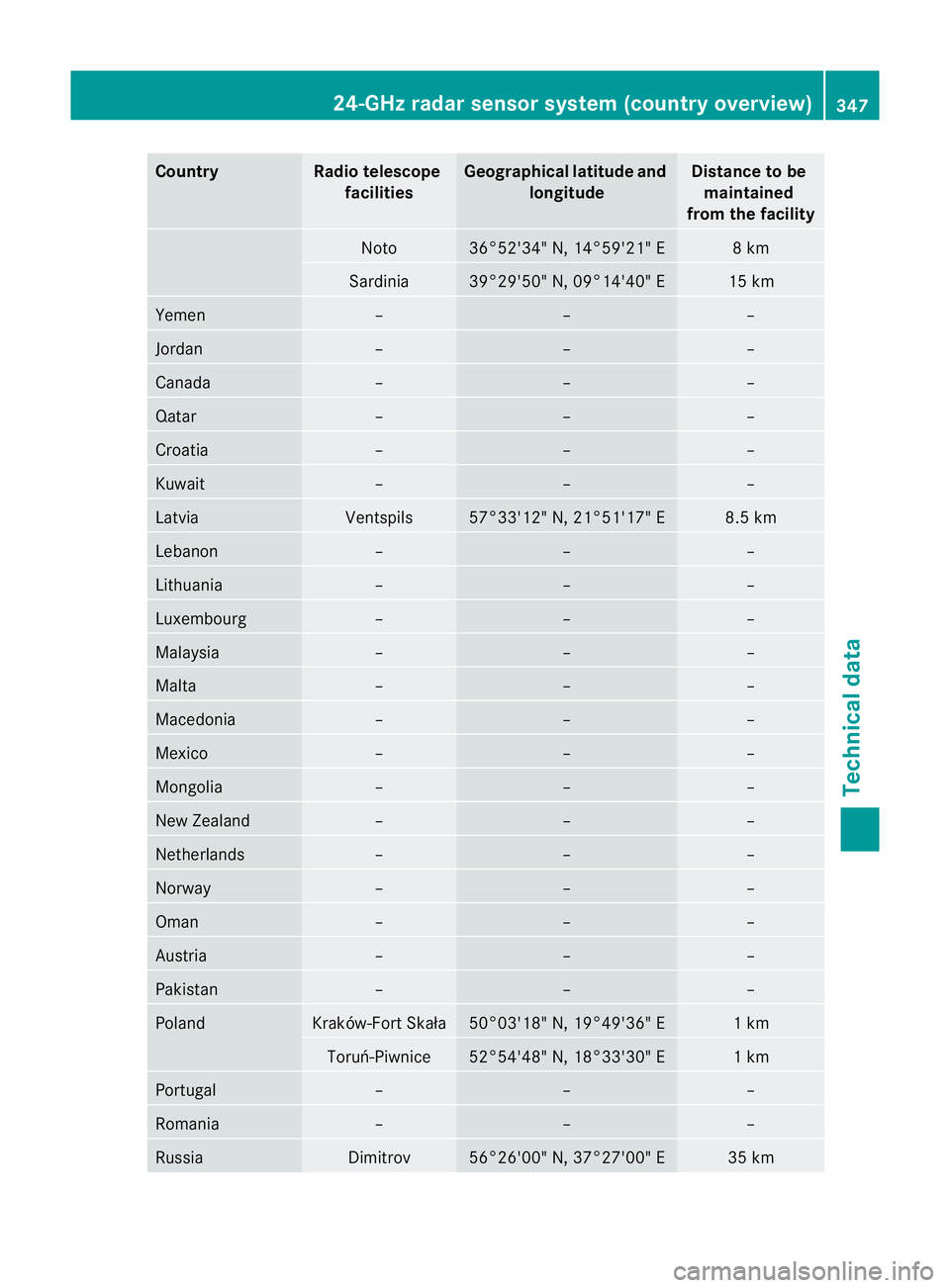

24-GHz radar sensor syste
m(coun try overview)
Th e24G Hz radar sensor system requires separate approval for each country. When you are
driving in acountry in whic hthe radar sensor system is no tapproved, you must deactivate
the system using the on-board computer (Y page 229). The currentcountry overview can be
obtaine dfrom aMercedes-Benz Service Centre.
Vehicles with anavigation system: the radar sensor system is deactivated automatically
near radio telescope facilities.
The currently active systems are automatically deactivated:
R DISTRONI CPLUS (Y page171)
R Blind Spot Assist (Y page196)
R PRE-SAFE ®
Brake (Y page45)
Ad isplay message appears in the multifunction display to tell you that the radar sensor system
is being switched off (Y page 245).
BA SP LUS (Y page 62) is the nalso unavailable.
If the deactivation does not occur automatically, you must deactivat ethe radar sensor system
using the on-board computer (Y page 229).
Vehicles withou tnavigation and vehicles for Australia: you must deactivate the radar
sensor system using the on-board computer whe nyou are near aradio telescope facility
(Y page 229).
59 BlueEFFICIENCY 24-GHz radar sensor system (countryo
verview)
345Technical data Z

Country Radio telescope
facilities Geographica
llatitude and
longitude Distanc
etobe
maintained
from the facility Egypt – – –
Andorra – – –
Australia Parkes 32°59'59" S,148°15'44" E 10 km
Narrabri 30°18'52" S,149°32'56" E 10 km
Canberra 35°23'54" S,148°58'40" E 3km
Wester
nAustralia 26°37'13"S,117°30'40
"E 10 km
Bahrain – – –
Belgium – – –
Bosnia-Herzego-
vina – – –
Bulgaria – – –
Denmark – – –
Germany Effelsberg 50°31'32
"N,06°53'00" E 6.
5km Estonia – – –
Finland Metsähovi 60°13'04
"N,24°23'37" E 7km
Tuorla 60°24'56
"N,22°26'31" E 5km
France Plateau de Bure 44°38'01
"N,05°54'26" E 35 km
Floirac 44°50'10
"N,00°31'37" W 35 km
Gibraltar – – –
Greece – – –
United Kingdom Cambridge 52°09'59
"N,00°02'20" E 9km
Darnhall 53°09'22
"N,02°32'03" W 5km
Jodrell Bank 53°14'10
"N,02°18'26" W 9km
Knockin 52°47'24
"N,02°59'45" W 5km
Pickmere 53°17'18
"N,02°26'38" W 5km
Ireland – – –
Iceland – – –
Italy Medicina 44°31'14
"N,11°38'49" E 20 km346
24-GH
zradar sensor system (country overview)Technical data

Country Radio telescope
facilities Geographica
llatitude and
longitude Distanc
etobe
maintained
from the facility Noto 36°52'34" N, 14°59'21" E 8km
Sardinia 39°29'50" N, 09°14'40" E 15 km
Yemen – – –
Jordan – – –
Canada – – –
Qatar – – –
Croatia – – –
Kuwait – – –
Latvia Ventspils 57°33'12" N, 21°51'17" E 8.5 km
Lebanon – – –
Lithuania – – –
Luxembourg – – –
Malaysia – – –
Malta – – –
Macedonia – – –
Mexico – – –
Mongolia – – –
New Zealand – – –
Netherlands – – –
Norway – – –
Oman – – –
Austria – – –
Pakistan – – –
Poland Kraków-Fort Skała 50°03'18" N, 19°49'36" E 1km
Toruń-Piwnice 52°54'48" N, 18°33'30" E 1km
Portugal – – –
Romania – – –
Russia Dimitrov 56°26'00" N, 37°27'00" E 35 km24-GHz radar sensor syste
m(country overview)
347Technical data Z
