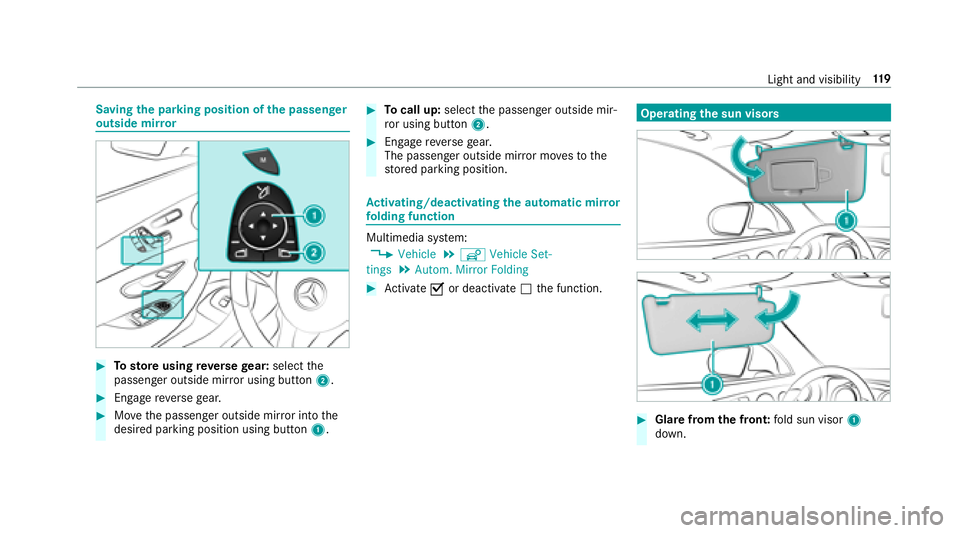

Savingthe pa rking position of the passenger
outside mir ror
#To sto reusing reve rsege ar: select the
passenger outside mir ror using button 2.
#Engagereve rsege ar.
#Mo vethe passenger outside mir ror into the
desired parking position using button 1.
#Tocall up: selectthe passenger outside mir‐
ro r using button 2.
#Engagereve rsege ar.
The passenger outside mir ror mo vesto the
st ored parking position.
Ac tivating/deactivating the automatic mir ror
fo lding function
Multimedia sy stem:
,9HKLFOH.î 9HKLFOH 6HW
WLQJV.$XWRP 0LUURU )ROGLQJ
#Ac tivate Oor deacti vate ª the function.
Operating the sun visors
#Glare fromthe front: fold sun visor 1
down.
Light and visibility 11
9

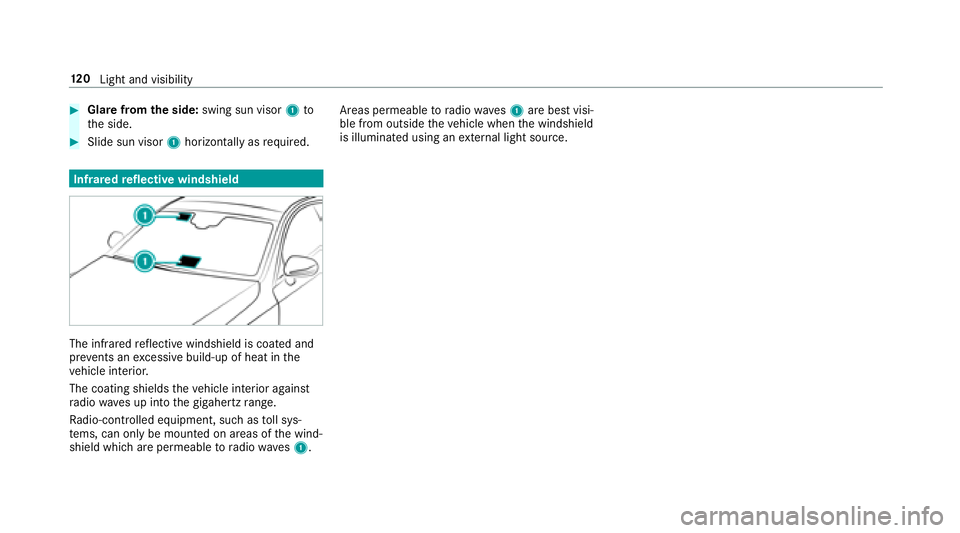

#Glare fromthe side: swing sun visor 1to
th e side.
#Slide sun visor 1horizon tally as required.
Infrared reflective windshield
The inf rare dre flective windshield is coated and
pr eve nts an excessive build-up of heat in the
ve hicle interior.
The coating shields theve hicle interior against
ra dio waves up into the gigahertz range.
Ra dio-cont rolled equipment, such as toll sys‐
te ms, can only be mounted on areas of the wind‐
shield which are permeable toradio wav es1. Areas permeable
toradio wav es1 are best visi‐
ble from outside theve hicle when the windshield
is illuminated using an extern al light source.
12 0
Light and visibility

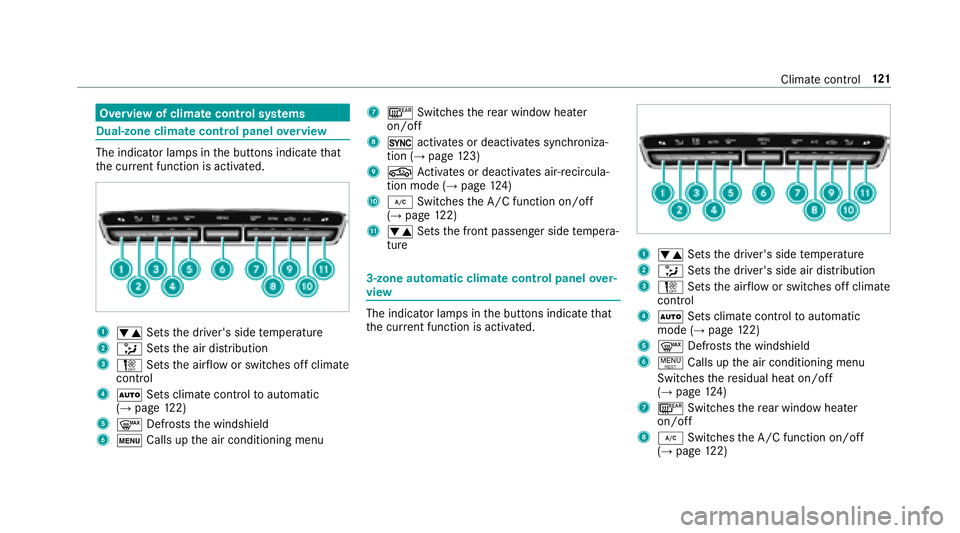

Overview of climate control systems
Dual-zone clima tecontro l panel overview
The indicator lamps in the buttons indicate that
th e cur rent function is acti vated.
1w Setsthe driver's side temp erature
2_ Setsthe air distribution
3H Setsthe air flow or switches off climate
contro l
4ÃSets climate control toautomatic
(→page 122)
5¬ Defrosts the windshield
6t Calls up the air conditioning menu
7¤ Switches there ar wind owheater
on/off
80 activates or deactivates synchroniza‐
tion (→page 123)
9g Activates or deacti vates air-recircula‐
tion mode (→page 124)
A¿ Switches the A/C function on/off
(→page 122)
Bw Setsthe front passenger side temp era‐
ture
3-zone automatic climate control panel over‐
view
The indicator lamps in the buttons indicate that
th e cur rent function is acti vated.
1w Setsthe driver's side temp erature
2_ Setsthe driver's side air distribution
3H Setsthe air flow or switches off climate
contro l
4ÃSets climate control toautomatic
mode (→page 122)
5¬ Defrosts the windshield
6! Calls up the air conditioning menu
Switches there sidual heat on/off
(
→page 124)
7¤ Switches there ar wind owheater
on/off
8¿ Switches the A/C function on/off
(→page 122)
Climate control 12
1

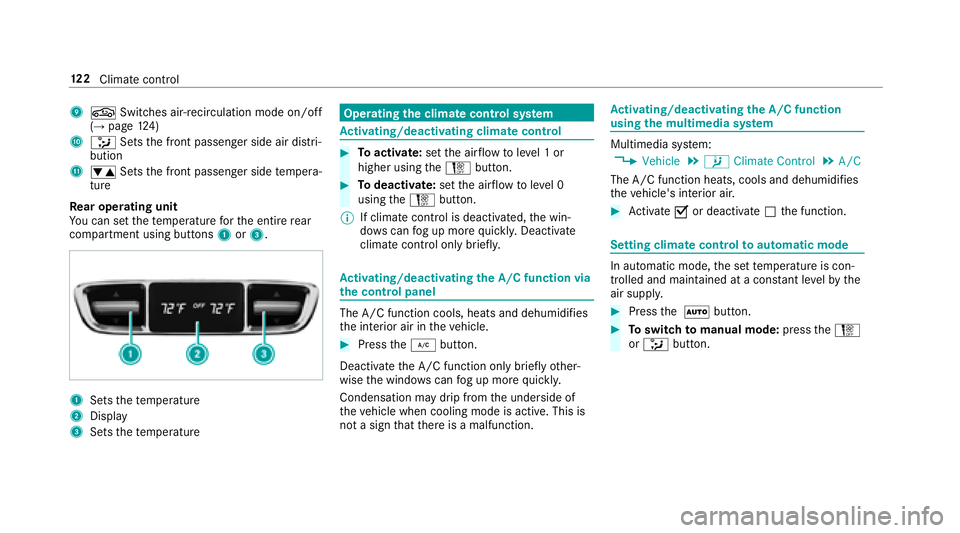

9gSwitches ai r-re circulation mode on/off
(→page 124)
A_ Setsthe front passenger side air distri‐
bution
Bw Setsthe front passenger side temp era‐
ture
Re ar operating unit
Yo u can set thete mp erature forth e entire rear
compartment using buttons 1or3.
1Sets thete mp erature
2Display
3Sets thete mp erature
Operating the clima tecontro l system
Ac tivating/deactivating climate control
#To activate: setthe air flow toleve l 1 or
higher using theH button.
#Todeactivate: setthe air flow toleve l 0
using theH button.
% If climate control is deactivated, the win‐
do ws can fog up more quickl y.Deactivate
climate control only brie fly.
Ac tivating/deactivating the A/C function via
the control panel
The A/C function cools, heats and dehumidifies
th e interior air in theve hicle.
#Press the¿ button.
Deactivate the A/C function only briefly other‐
wise the windo wscan fog up more quickl y.
Condensation may drip from the underside of
th eve hicle when cooling mode is active. This is
not a sign that there is a malfunction.
Ac tivating/deactivating the A/C function
using the multimedia sy stem
Multimedia sy stem:
,9HKLFOH.b &OLPDWH &RQWURO.$&
The A/C function heats, cools and dehumidifies
th eve hicle's interior air.
#Ac tivate Oor deacti vate ª the function.
Setting climate control toautomatic mode
In au tomatic mode, the set temp erature is con‐
trolled and maintained at a const ant levelby the
air suppl y.
#Pressthe à button.
#Toswitch tomanual mode: presstheH
or _ button.
122
Climat e control

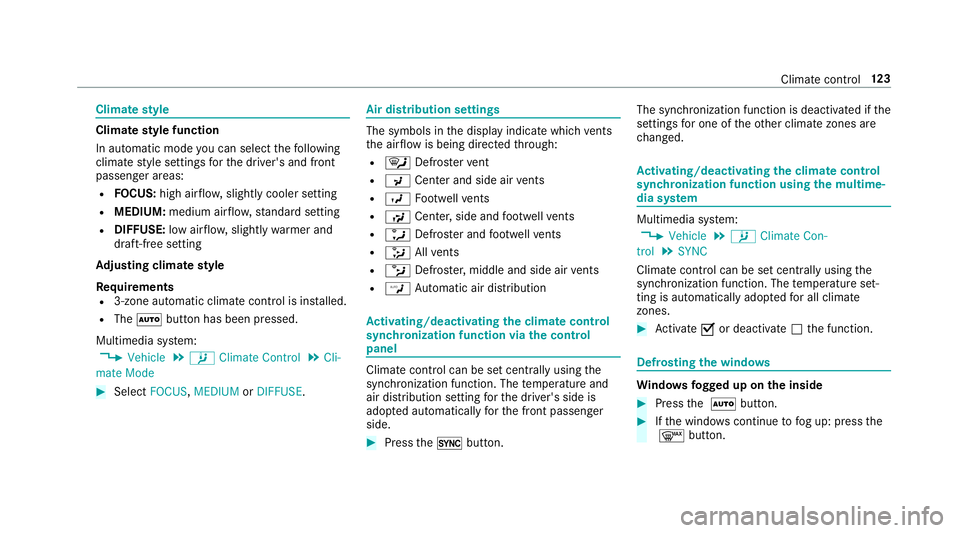

Climatestyle
Climate style function
In automatic mode you can select thefo llowing
climate style settings forth e driver's and front
passenger areas:
RFO CUS: high air flow , slightly cooler setting
RMEDIUM: medium air flow ,st andard setting
RDIFFUSE: low airflow , slightly warmer and
draft-free setting
Ad justing climate style
Requ irements
R3-zone automatic climate control is ins talled.
RThe à button has been pressed.
Multimedia sy stem:
,9HKLFOH.b &OLPDWH &RQWURO.&OL
PDWH 0RGH
#Select )2&86, 0(',80 or',))86( .
Air distribution settings
The symbols in the display indicate which vents
th e air flow is being directed thro ugh:
R¯ Defros terve nt
RP Center and side air vents
RO Footwe llve nts
RS Center, side and foot we llve nts
Ra Defros ter and foot we llve nts
R_ Allvents
Rb Defros ter,middle and side air vents
RW Automatic air distribution
Ac tivating/deactivating the climate control
syn chro nization function via the control
panel
Climate control can be set centrally using the
synchronization function. The temp erature and
air distribution setting forth e driver's side is
adop ted automatically forth e front passenger
side.
#Press the0 button. The synchronization function is deactivated if
the
settings for one of theot her climate zones are
ch anged.
Ac tivating/deactivating the climate control
syn chro nization function using the multime‐
dia sy stem
Multimedia sy stem:
,9HKLFOH.b &OLPDWH &RQ
WURO.6<1&
Climate control can be set cent rally using the
synchronization function. The temp erature set‐
ting is automatically adop tedfo r all climate
zones.
#Ac tivate Oor deacti vate ª the function.
Defrosting the windo ws
Windo ws fo gged up on the inside
#Press the à button.
#Ifth e windo wscontinue tofog up: press the
¬ button.
Climate control 12
3

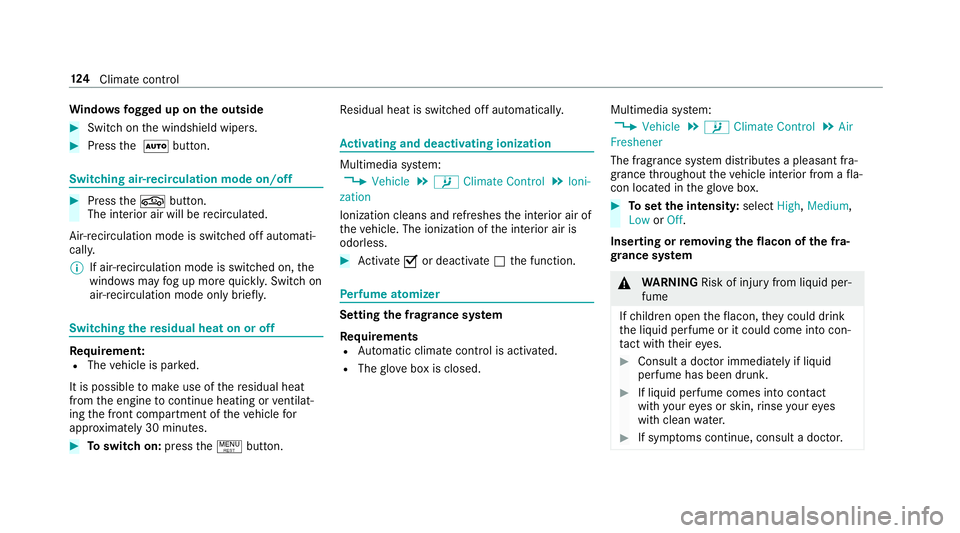

Windo ws fo gged up on the outside
#Swit chon the windshield wipers.
#Press the à button.
Switching air-recirculation mode on/off
#Press theg button.
The interior air will be recirculated.
Air-recirc ulation mode is switched off automati‐
cally.
% If air-recirculation mode is switched on, the
windo wsmay fog up more quickl y.Switch on
ai r-re circulation mode only brie fly.
Switching there sidual heat on or off
Re quirement:RThe vehicle is par ked.
It is possible tomake use of there sidual heat
from the engine tocontinue heating or ventilat‐
ing the front compartment of theve hicle for
appr oximately 30 minutes.
#To switch on: pressthe! button. Re
sidual heat is switched off automaticall y.
Activating and deactivating ionization
Multimedia sy stem:
,9HKLFOH.b &OLPDWH &RQWURO.,RQL
]DWLRQ
Ionization cleans and refreshes the interior air of
th eve hicle. The ionization of the interior air is
odorless.
#Ac tivate Oor deacti vate ª the function.
Pe rfume atomizer
Setting the frag rance sy stem
Re quirements
RAutomatic climate control is activated.
RThe glov e box is closed. Multimedia sy
stem:
,9HKLFOH.b &OLPDWH &RQWURO.$LU
)UHVKHQHU
The fragrance sy stem distributes a pleasant fra‐
grance thro ughout theve hicle interior from a fla‐
con located in theglov e box.
#To set the intensity: select+LJK,0HGLXP,
/RZ or2II.
Inserting or removing the flacon ofthe fra‐
gr ance sy stem
&
WARNING Risk of injury from liquid per‐
fume
If ch ildren open theflacon, they could drink
th e liquid perfume or it could come into con‐
ta ct wi th theireyes.
#Consult a doctor immediately if liquid
perfume has been drunk.
#If liquid perfume comes into conta ct
wi th your eyes or skin, rinse your eyes
with clean water.
#If sym ptoms continue, consult a doctor.
12 4
Climat e control

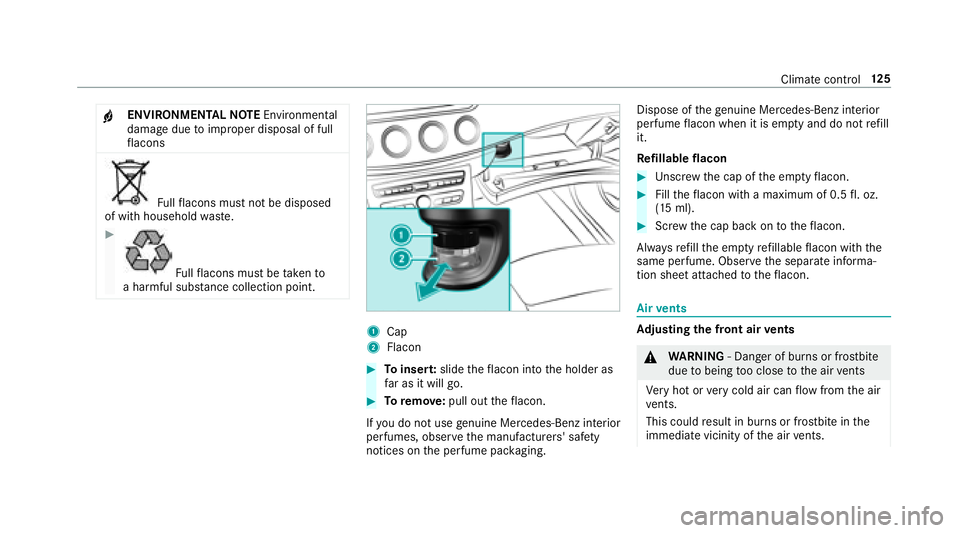

+ENVIRONMENTALNOTEEnvironmental
damage duetoimproper disposal of full
fl acons
Fu llflacons must not be disposed
of with household waste.
#
Fu llflacons must be take nto
a harmful subs tance collection point.
1Cap
2Flacon
#To inser t:slide theflacon into the holder as
fa r as it will go.
#To remo ve:pull out theflacon.
If yo udo not use genuine Mercedes-Benz interior
pe rfumes, observ eth e manufacturers' saf ety
notices on the perfume pac kaging. Dispose of
thege nuine Mercedes-Benz interior
pe rfume flacon when it is em ptyand do no tre fill
it.
Re fillable flacon
#Un scr ew the cap of the em ptyflacon.
#Fill theflacon with a maximum of 0.5 fl. oz.
(15 ml).
#Scr ew the cap back on totheflacon.
Alw aysre fill th e em ptyre fillable flacon with the
same perfume. Obser vethe separate informa‐
tion sheet attached totheflacon.
Air vents
Ad justing the front air vents
&
WARNING ‑ Danger of burn s or frostbite
due tobeing too close tothe air vents
Ve ry hot or very cold air can flow from the air
ve nts.
This could result in burns or frostbite in the
immediate vicinity of the air vents.
Clima tecontrol 12
5

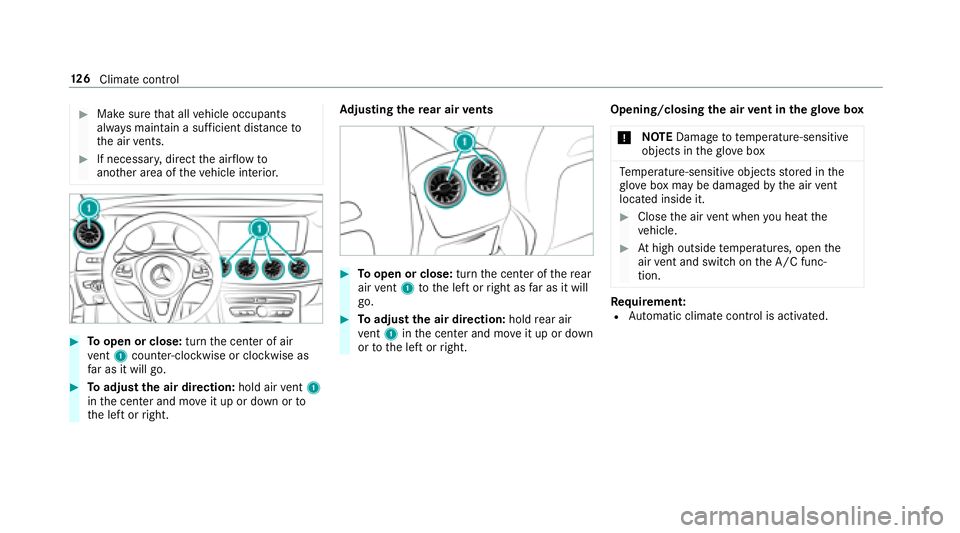

#Make surethat all vehicle occupants
alw ays maintain a suf ficient dist anceto
th e air vents.
#If necessary , directthe air flow to
ano ther area of theve hicle interior.
#To open or close: turnthe center of air
ve nt 1 counter-clo ckwise or clockwise as
fa r as it will go.
#To adjust the air direction: hold airvent 1
in the center and mo veit up or down or to
th e left or right. Ad
justing the rear air vents
#To open or close: turnthe center of there ar
air vent 1 tothe left or right as far as it will
go.
#To adjust the air direction: holdrear air
ve nt 1 inthe center and mo veit up or down
or tothe left or right. Opening/closing
the air vent in thegl ove box
* NO
TEDama geto te mperature-sensitive
objects in theglove box
Temp erature-sensitive objects stored in the
gl ove box may be damaged bythe air vent
located inside it.
#Close the air vent when you heat the
ve hicle.
#At high outside temp eratures, open the
air vent and switch on the A/C func‐
tion.
Re quirement:RAutomatic climate control is activated.
12 6
Climat e control

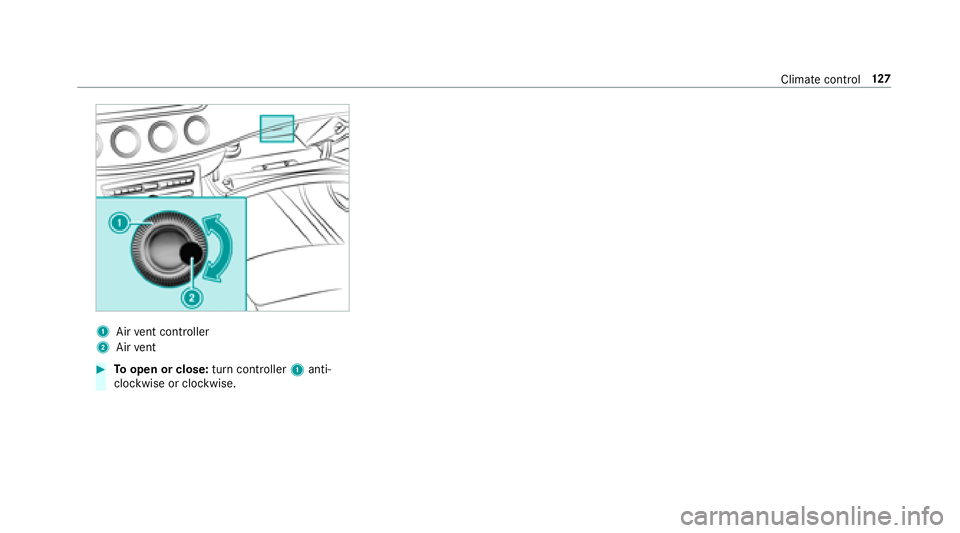

1Airvent controller
2Air vent
#To open or close: turn controller1anti-
clockwise or clockwise.
Climate control 12
7

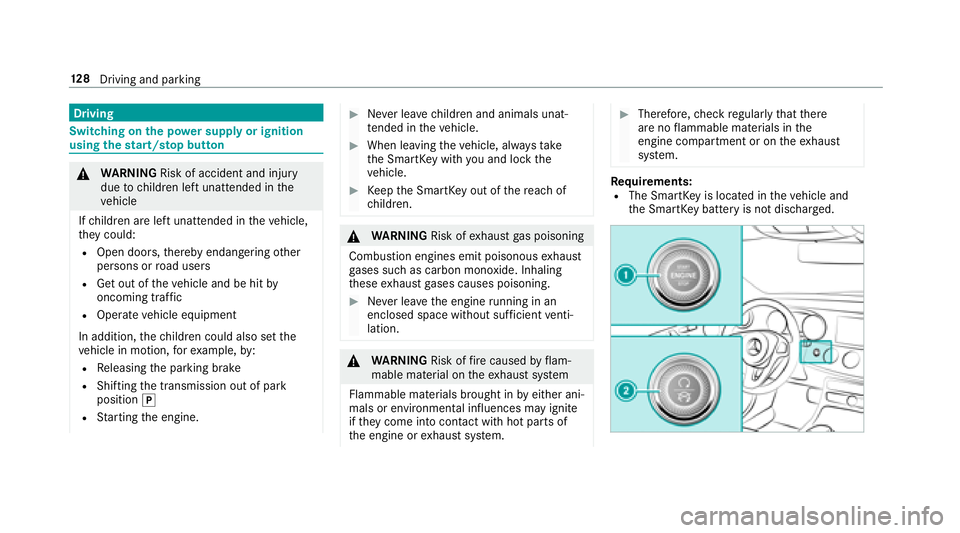

Driving
Switching on the po wer supp lyor ignition
using thest art/s top button
&
WARNING Risk of accident and injury
due tochildren left unatte nded inthe
ve hicle
If ch ildren are left unatte nded intheve hicle,
th ey could:
ROpen doo rs,th ereby endangering other
persons or road users
RGet out of theve hicle and be hit by
oncoming traf fic
ROperate vehicle equipment
In addition, thech ildren could also set the
ve hicle in motion, forex ample, by:
RRe leasing the parking brake
RShifting the transmission out of park
position j
RStarting the engine.
#Ne ver lea vechildren and animals unat‐
te nded in theve hicle.
#When leaving theve hicle, alw aysta ke
th e SmartK eywith you and lock the
ve hicle.
#Ke ep the SmartK eyout of there ach of
ch ildren.
&
WARNING Risk ofexhaust gas poisoning
Combustion engines emit poisonous exhaust
ga ses such as carbon monoxide. Inhaling
th ese exhaust gases causes poisoning.
#Ne ver lea vethe engine running in an
enclosed space wi thout suf ficient venti‐
lation.
& WARNING Risk offire caused byflam‐
mable material on theex haust sy stem
Flammable materials brought in byeither ani‐
mals or environmen tal influences may ignite
if th ey come into contact wi thhot parts of
th e engine or exhaust sy stem.
#Therefore, check regularly that there
are no flammable materials in the
engine compartment or on theex haust
sy stem.
Re quirements:RThe SmartK eyis located in theve hicle and
th e SmartK eybattery is not dischar ged.
12 8
Driving and pa rking
