MERCEDES-BENZ E-CLASS COUPE 2022 Owners Manual

animals or objects
etc., in the manoeuvring area
while manoeuvring and parking.
The system evaluates images from thefo llowing
cameras:
R Reversing camera
R Front camera
R Two side cameras in the outside mir rors
V
View iew s of t
s of t he 360° Camera
he 360° Camera 1
Wide-angle vie w,front
2 Top view with image from the front camera
3 Top view with images from the side cameras
in the outside mir rors 4
Wide-angle vie w,rear
5 Top view with image from there ve rsing cam-
era
6 Top view with trailer view (vehicles with a
trailer hitch)
F
F unction of t
unction of t he guide lines
he guide lines
Guide lines are also displa yed in the camera
images of theto p vie ws. These are based on the
cur rent steering angle and sh owthe distance to
objects and other vehicles. 1
Guide lines at a dis tance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
2 Yellow lanes marking the course the tyres will
ta ke with the cur rent steering angle (dynamic)
3 Driven sur face depending on the cur rent
steering angle (dynamic)
4 Guide line at a distance of app roximately
0.3 m from there ar area
% When Active Parking Assist is active, paths
2 are displa yed in green.
The guide lines show the distances toyour
ve hicle. The dis tances app lyto road le vel. 228
228
Driving and parking

In trailer mode,
the guide lines are shown at
th e le vel of the trailer hitch.
In all vie ws,th ePa rking Assist PARKTRONIC warn-
ing display is also shown (/ page 232).
The colour of warning display changes dynami-
cally and is based on the distance tothe de tected
obs tacle:
R Blue:
Blue: no obs tacles de tected at a dis tance less
th an 1.0 m
R Y
Yellow
ellow :
:obs tacles at a dis tance between
approximately 0.7 m and 1.0 m
R Or
Or ang
ang e:
e:obstacles at a distance between
app roximately 0.4 m and 0.7 m
R R
R ed:
ed: obstacles at a very short dis tance of
app roximately 0.4 m or less
% When Parking Assist PARKTRONIC is opera-
tional and no object is de tected, thewa rning
display is shown here in blue. W
W ide-angle view
ide-angle view , fr
, front
ont 1
Warning display of Parking Assist
PA RKTRONIC T
T
op vie
op vie w wit
w with imag
h imag e fr
e from t
om t he fr
he fr ont camera
ont camera 1
Warning display of Parking Assist
PA RKTRONIC (/ page 232, 242)
2 Your vehicle from abo ve
3 Lane indicating thero ute theve hicle will take
at the cur rent steering angle
T
T op vie
op vie w wit
w with imag
h imag es fr
es from t
om t he side camer
he side camer as in
as in
t
t he outside mirr
he outside mirr ors
ors
The front and rear sides of theve hicle can be
seen in this vie w. Driving and parking
229
229

T
T
op vie
op vie w tr
w trailer vie
ailer vie w — no tr
w — no tr ailer connect
ailer connect ed
ed

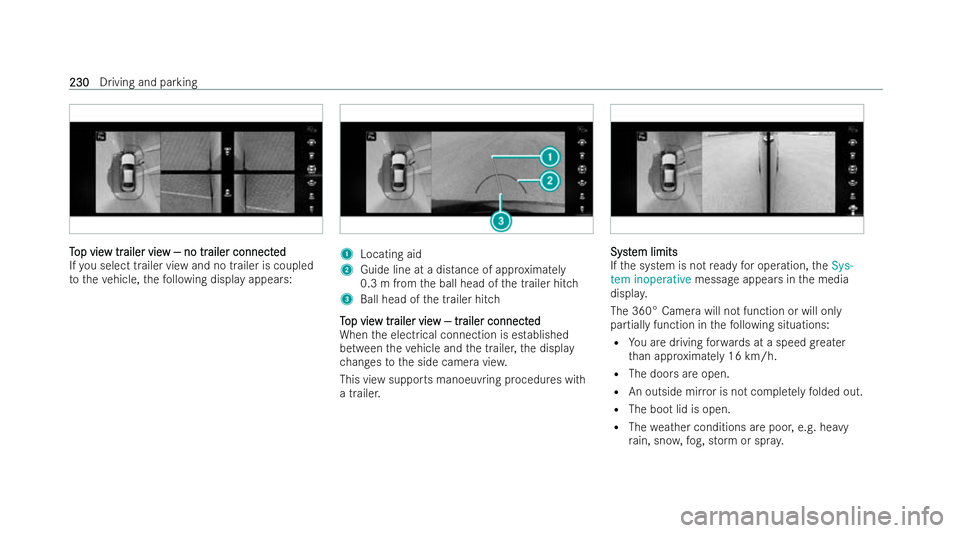

If yo u select trailer view and no trailer is coupled
to theve hicle, thefo llowing display appears: 1
Locating aid
2 Guide line at a distance of appr oximately
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
T
T op vie
op vie w tr
w trailer vie
ailer vie w — tr
w — trailer connect
ailer connect ed
ed
When the electrical connection is established
between theve hicle and the trailer, the display
ch anges tothe side camera vie w.
This view supports manoeuvring procedures with
a trailer. Syst Syst
em limits
em limits
If th e system is not ready for operation, theSys-
tem inoperative message appears in the media
displa y.
The 360° Camera will not function or will only
partially function in thefo llowing situations:
R You are driving forw ards at a speed greater
th an appr oximately 16 km/h.
R The doors are open.
R An outside mir ror is not comple tely folded out.
R The boot lid is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay.230 230
Driving and parking

R
The light conditions are poo r,e.g. at night.
R The camera lens is obstructed, dirty or misted
up.
R If cameras or vehicle components in which the
cameras are /tted are damaged. In this eve nt,
ha ve the cameras, their positions and their
setting checked at a quali/ed specialist work-
shop.
% Do not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the
ve hicle.
Fo rte ch nical reasons, the standard height of the
ve hicle may be altered if theve hicle is car rying a
heavy load and can result in inaccu racies in the
guide lines and in the display of thege nerated
ima ges.
The /eld of vision and other functions of the cam-
era system may be restric ted due toadditional
attachments on theve hicle (e.g. licence plate
brac ket, bicycle rack ).
% The contrast of the display may be impaired
by abrupt, direct sunlight or by other light sources, e.g. when driving out of a
garage . In
th is case, pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict
its use.
See the no tes on cleaning the 360° Camera
(/ page 315).
Calling up t
Calling up t he vie he view of t
w of the 360° Camer
he 360° Camer a using
a using
rev
rev er
erse g
se g ear
ear
R
R eq
eq uir
uir ements:
ements:
R The Auto reversing camera function is activa-
te d in the multimedia system (/ page 231). #
Engage reve rsege ar. #
Select the desired view in the multimedia sys-
te m (/ page 227). #
If, aTer shiTing toreve rsege ar, the image of
th ere ve rsing camera is not shown: switch o.
th eve hicle, press and hold thec button,
switch on theve hicle and engage reve rsege ar
again. Switc
Switc hingrev
hing rever
ersing camer
sing camer a aut
a automatic mode
omatic mode
on/o.
on/o.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
ra nge. Pay attention toyour sur roundings and be
re ady tobrake at all times.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking #
Switch Auto reversing camera on or o..
Opening t Opening t he camer
he camera cov
a cover of t
er of t herev
he rever
ersing cam-
sing cam-
era
era
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Select Open camera cover.
% The camera co ver closes automatically aTer
some time or aTer an ignition cycle. Driving and parking
231 231

P
P
ar
ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC F
F
unction of P
unction of P ar
arking Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC
Pa rking Assist PARKTRONIC is an electronic par k-
ing assistance system which monitors the area
sur rounding your vehicle and sho wsyouth e dis-
ta nce between theve hicle and a de tected obs ta-
cle visual lyand audib ly.
Pa rking Assist PARKTRONIC is only an aid. It is
not a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
The passive side impact pr otection also warnsyou
of obstacles tothe side. During the parking proce-
dure or manoeuvring, objects are de tected as the
ve hicle drives past. If you steer in the direction of
a de tected obs tacle and there is a risk of a lateral
collision, a warning is issued. In order for an
object on the side tobe de tected, the sensors in
th e front and rear bumper must /r stdetect the
object while you are driving past it. In order
for front or rear obs tacles tothe side to
be displa yed, theve hicle must /r sttrave l a dis-
ta nce of at least half a vehicle length. Once the
ve hicle has tr avelled one vehicle length, obs tacles
on all sides can be shown.
Display
Display s in t s in the media display
he media display Ve
hicles with 360° Camera Ve
hicles without 360° Camera
As soon as Parking Assist PARKTRONIC is ope ra-
tional, there specti veareas of the display are
shown in blue.
1 Operational, front and rear
2 Operational, all around
3 Obstacles de tected at the front leT and on
th eright-hand side
The colour of the display changes depending on
th e distance tothe de tected obstacle:
R Blue:
Blue: > 1 m (no obs tacles de tected)
R Y
Yellow
ellow :
:appr oximately 1 m - 0.7 m 232
232
Driving and parking

R
Or
Orang
ang e:
e:appr oximately 0.7 m - 0.4 m
R R
Red:
ed: < 0.4 m
V
V ehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:the boundary line
shiTs dynamically depending on the position and
distance of the obstacles de tected.
Depending on the distance tothe obstacle de tec-
te d, an intermittent warning tone also sounds. Yo u
can set the timing of thewa rnings in the multime-
dia system (/ page 235).
St andard setting:
R Fr
Fr ont and sides:
ont and sides: < 0.4 m
R R
Rear
ear : <
: <1 m
Warn early all-round :
R Fr
Front
ont: :< 1 m
R Sides: Sides: < 0.7 m
R R Rear
ear : <
: <1 m
A continuous warning tone sounds from a dis-
ta nce of app roximately 0.2 m, rega rdless of the
selected setting. Ve
hicles with 360° Camera Ve
hicles without 360° Camera If an obs
tacle in theve hicle path is de tected and
th eCamera & parking menu is not open in the
media displa y,pop-up window 1appears:
R v
vehicles wit
ehicles wit hout A
hout Activ
ctive P
e Par
arking Assist
king Assist: :at
speeds below 12 km/h
R v
vehicles wit
ehicles wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist: :at speeds
below 18 km/h Optionall
y,obstacles de tected byParking Assist
PA RKTRONIC from a distance of app roximately
1.0 m in front 2and 0.7 m on the side 3can
also be displa yed in the head-up displa y. Driving and parking
233
233

Syst
Syst
em limits
em limits
Pa rking Assist PARKTRONIC does not necessarily
ta ke into account thefo llowing obstacles:
R Obstacles below the de tection range, e.g. per-
sons, animals or objects.
R Obstacles abo vethe de tection range, e.g.
ov erhanging loads, overhangs or loading
ra mp s of lor ries.
R Pedest rians or animals approaching theve hi-
cle from the side.
R Objects placed next totheve hicle
Obs tacles on the sides are not shown in thefo l-
lowing situations, forex ample:
R You park theve hicle and switch it o..
R You open the doors.
ATer an engine start, obstacles must be de tected
again bydriving past them before a warning can
be issued.
Obser vethe information on vehicle senso rsand
cameras; the system otherwise cann otfunction
proper ly (/ page 188). V
V ehicles wit ehicles wit h tr
h trailer hitc
ailer hitc h:
h:Parking Assist
PA RKTRONIC is deactivated forth ere ar zone
when you establish an electrical connection
between your vehicle and a trailer.
Pr
Pr oblems wit
oblems wit h P
h Par
ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC 1
Vehicles with 360° Camera
2 Vehicles without 360° Camera
If th ePa rking Assist PARKTRONIC display lights
up redfo r appr oximately thre e seconds then goes
out, and theé symbol appears in the inst ru-
ment cluster, the system may ha vebeen deactiva-
te d due tosignal inter fere nce. Start theve hicle again and
check if Parking Assist PARKTRONIC is
wo rking at a di.erent location.
If th eé symbol appears in the inst rument
cluster and a warning tone sounds, it may be due
to one of thefo llowing causes:
R The sensor
The sensor s ar
s are dir
e dir ty
ty:
:clean the sensors and
obser vethe no tes on care of vehicle parts
(/ page 315).
R P
P ar
ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC has been deacti-
ONIC has been deacti-
v
v at
at ed due t
ed due t o a malfunction:
o a malfunction: restart theve hi-
cle. If the problem persists, consult a quali/ed
specialist workshop.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TR ONIC
ONIC
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. #
When parking or manoeuvring theve hi-
cle, pay particular attention toany
objects which are abo veor below the
senso rs, e.g. 0o werpots or dr awbars. 234
234
Driving and parking

The
vehicle or other objects could other-
wise be damaged. #
V
Vehicles wit
ehicles wit hout AIR BOD
hout AIR BOD Y C
Y CONTR
ONTR OL:
OL:press
th eé button in the centre console.
% V
Vehicles wit
ehicles wit h AIR BOD
h AIR BODY C
Y CONTR
ONTR OL:
OL:you can
activate or deactivate Parking Assist
PA RKTRONIC in the multimedia system
(/ page 235).
If th e indicator lamp in theé button is not lit,
Pa rking Assist PARKTRONIC is active. If the indi-
cator lamp is lit or theé symbol appears in
th e Instrument Displa y,Pa rking Assist
PA RKTRONIC is not active.
% Parking Assist PARKTRONIC is automatically
activated when theve hicle is star ted.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC using t
ONIC using t he multimedia syst
he multimedia syst em
em
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. #
When parking or manoeuvring theve hi-
cle, pay particular attention toany
objects which are abo veor below the
senso rs, e.g. 0o werpots or dr awbars.
The vehicle or other objects could other-
wise be damaged. R
R
eq
eq uir
uir ements:
ements:
R The camera menu is open.
R Or: Active Parking Assist is active.
R Or: thePA RKTRONIC pop-up wind owappears. #
Tap= onthe media displa y.
If th e indicator lamp in theé button is not lit,
Pa rking Assist PARKTRONIC is active. If the indi-
cator lamp is lit or theé symbol appears in
th e inst rument cluster, Parking Assist
PA RKTRONIC is not active.
% Parking Assist PARKTRONIC is automatically
activated when theve hicle is star ted.
Alternativel y,Pa rking Assist PARKTRONIC can be
activated or deactivated in thequ ick access
menu. Se Se
tting t tting t he w
he war
arning t
ning t ones of P
ones of P ar
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC
ONIC
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking
A
A djus
djusting t ting t he v
he volume of t
olume of t he w
he war
arning t
ning t ones
ones #
Select Warning tone volume. #
Set a value.
A
A djus
djusting t ting t he pitc
he pitc h of t
h of the w
he war
arning t
ning t ones
ones #
Select Warning tone pitch. #
Set a value.
Specifying t Specifying t he st he star
arting point f
ting point f or t
or t he w
he w ar
arning t
ning t ones
ones
Yo u can specify whe ther thePa rking Assist
PA RKTRONIC warning tones should commence
when theve hicle is fu rther awa y from an obs tacle. #
Select Warn early all-round . #
Activate or deactivate the function.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating audio f
ating audio fadeout
adeout
Yo u can specify whe ther thevo lume of a media
source in the multimedia system is tobe reduced Driving and parking
235
235

when
Parking Assist PARKTRONIC sounds a warn-
ing tone. #
Select Audio fadeout during warning tones .#
Activate or deactivate the function. A
A
ctiv
ctiv e P
e Par
arking Assist
king Assist F
F
unction of A
unction of A ctiv
ctive P
e Par
arking Assist
king Assist
Ac tive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
th e assistance of there ve rsing camera and 360°
Camera. When you are driving forw ards up to
appr oximately 35 km/h, the system automatically
measures parking spaces on bo thsides of the
ve hicle.
Ac tive Parking Assist o.ers thefo llowing func-
tions:
Ve hicles with reve rsing camera
R Parking in parking spaces parallel tothero ad
Ve hicles with 360° Camera
R Parking in parking spaces parallel tothero ad
R Parking in parking spaces perpendicular tothe
ro ad (optionally either forw ards or reve rse) R
Parking in parking spaces that can only be
de tected as such due tomarkings (for example
at thero adside)
R Exiting parking spaces if you ha vepar ked
using Active Parking Assist
As soon as all requ irements are met for sear ching
fo r parking spaces, theÇ display appears in
th e Instrument Displa y.
When Active Parking Assist has de tected parking
spaces, theÈ display appears in the Instru-
ment Displa y.The ar rows show on which side of
th ero ad de tected parking spaces are located.
They are then shown in the media displa y.
V
V ehicles wit ehicles wit hrev
h rev er
er sing camer
sing camer a:
a:the parking space
can be selected as desired. The vehicle is par ked
in reve rse.
V
V ehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:the parking space
can be selected as desired. Depending on the
location of the parking space, the parking direc-
tion (rear wards or forw ards) can also be selected
as desired. When
Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
The parking procedu reis assisted byaccelerating,
braking, steering and gear changes.
Ac tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe surroundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You engage transmission position j.
R ESP ®
inter venes.
R You open the driver's door.
R ATer activating Active Parking Assist, you
press thec button again (/ page 237).236
236
Driving and parking

Syst
Syst
em limits
em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ove rhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected
during measurement of the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! #
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, suc has snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y.
Only use Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions suc has ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15 %.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high. R
Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, suc has:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces.
P
P ar
ar king wit
king wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist Driving and parking
237
237
