MERCEDES-BENZ E-CLASS ESTATE 2017 User Guide

Right-hand driv
evehicles 8

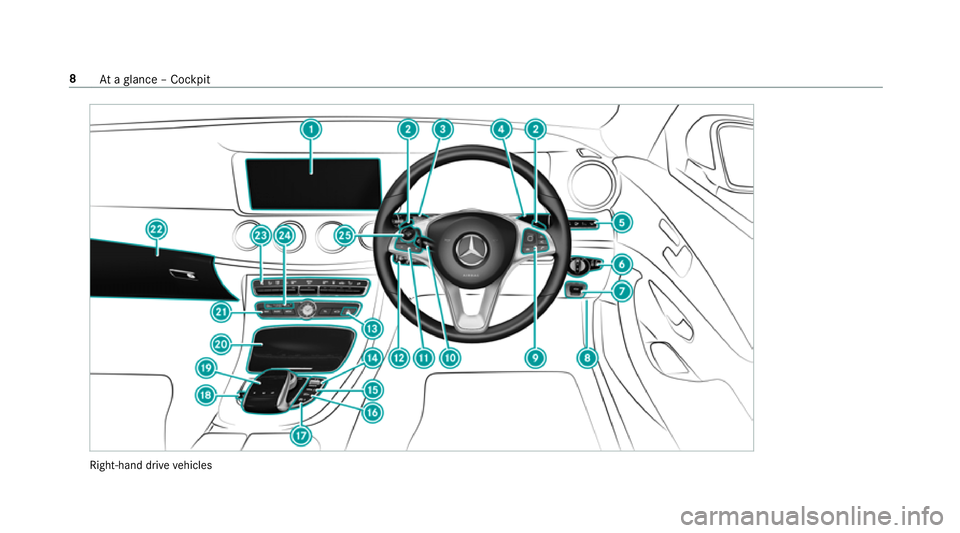

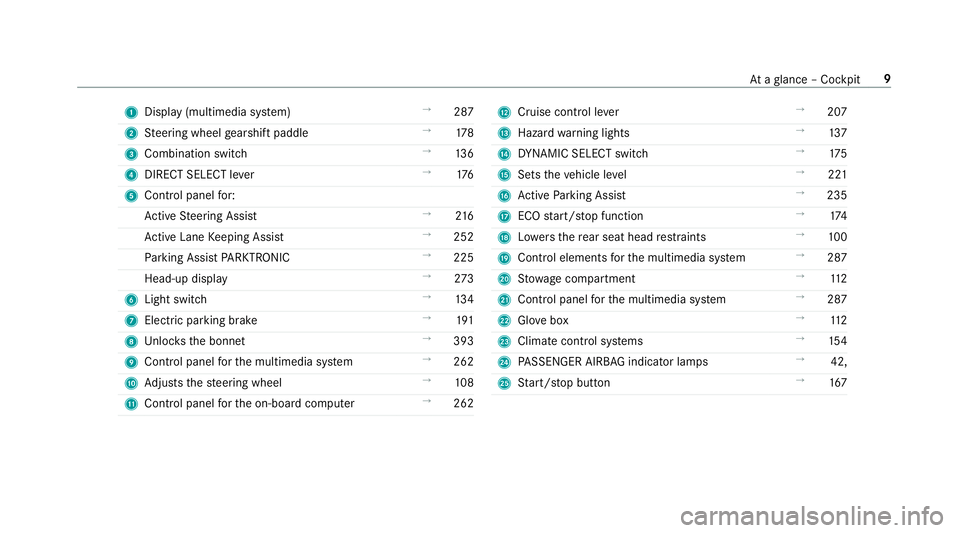

Atag lanc e–Cockpit

1
Displ ay(multimedia sy stem) →
287
2 Steering wheel gearshif tpaddle →
178
3 Combination swit ch →
13 6
4 DIRECT SELEC Tlever →
176
5 Control panel for:
Ac tiveS teering Assist →
216
Ac tiveL aneK eeping Assist →
252
Pa rking Assis tPARKTRONIC →
225
Head-u pdisplay →
273
6 Light switch →
13 4
7 Electric pa rking brake →
191
8 Unloc kstheb onnet →
393
9 Control pane lfor them ultimedia sy stem →
262
A Adjusts thes teering wheel →
108
B Control panel fort he on-boar dcomputer →
262 C
Cruise control le ver →
207
D Hazard warning lights →
137
E DYNA MIC SELECT switch →
175
F Sets thev ehicle le vel →
221
G ActiveP arking Assist →
235
H ECOs tart/s topf unction →
174
I Lowe rsther ear seat head restra ints →
100
J Control elements fort he multimedia sy stem →
287
K Stow agec ompartment →
11 2
L Control panel fort he multimedia sy stem →
287
M Glovebox →
11 2
N Climat econtrol sy stems →
154
O PASSENGER AIRB AGindicator lamps →
42,
P Start/ stop button →
167 At
ag lanc e–C ockpit 9

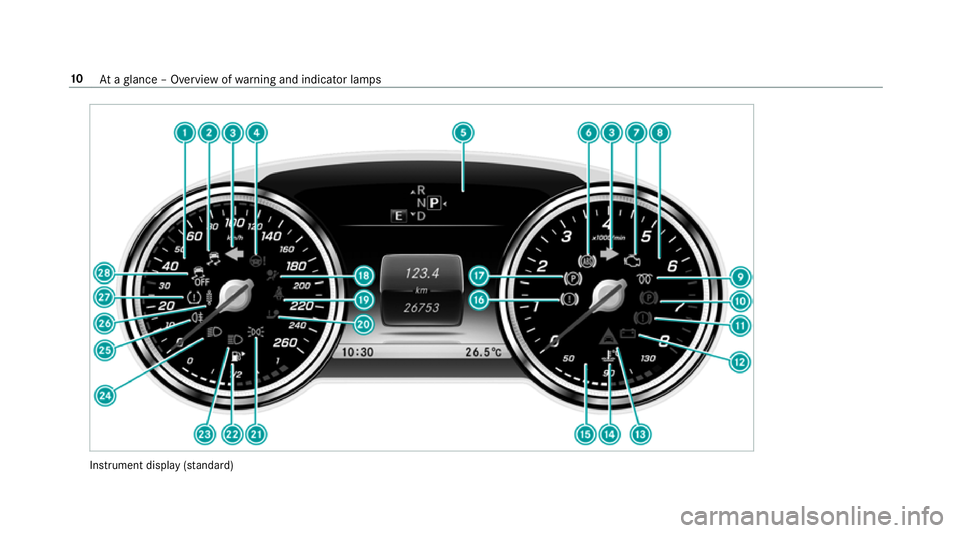

Instrument display
(sta nda rd) 10
Atag lanc e–Overvie wofwarning and indicator lamps

1
Speedom eter →
261
2 ÷ ESP®
→
524
3 #! Turn signal light →
13 6
4 Ð Steering assis tance malfunction →
533
5 Multifunctio ndispl ay →
264
6 ! ABS malfunction →
524
7 ; Engine diagnosis →
535
8 Revc ounter →
261
9 % Diesel engine: preglow
A ! Electric parking brak eapplied( red) →
524
B J Brakes (red) →
524
C # Electrical fault →
535
D · Distance warning →
531
E ? Coolant tooh ot/cold →
535
F Coolant temp eratur edisplay →
261
G J Brakes (yellow) →
524 H
! Electricp arkin gb rake (yellow) →
524
I 6 Restra int sy stem →
32
J ü Seat belt is no tfas tened →
530
K j Trailer hit chis no toperational or is swivel‐
ling →
533
L T Standing lights →
13 4
M Fuel le veld isplay
8 Fuelreser vewit hfuel filler flap location
indicator →
535
N K Main beam →
13 6
O L Dippe dbeam →
13 4
P R Rear fogl ight →
13 5
Q AIR BOD YCONTROL/DYNAMIC BODY CONTROL
malfunctioning →
531
R h Tyre pressur emonitoring sy stem →
538
S å ESP®
OFF →
524 At
ag lanc e–O verviewofw arning and indicator lamps 11

Instrument display
inthew idescreen cockpit 12

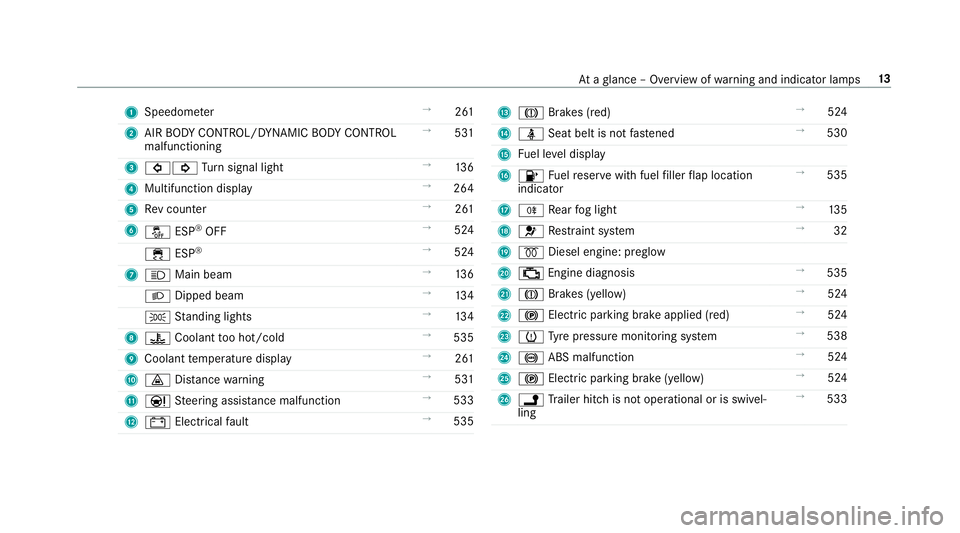

Atag lanc e–Overvie wofwarning and indicator lamps

1
Speedom eter →
261
2 AIR BODY CONTROL/DYNAMIC BODY CONTROL
malfunctioning →
531
3 #! Turn signal light →
13 6
4 Multifunction display →
264
5 Revc ounter →
261
6 å ESP®
OFF →
524
÷ ESP®
→
524
7 K Mainb eam →
13 6
L Dippe dbeam →
13 4
T Standing lights →
13 4
8 ? Coolan ttoo hot/cold →
535
9 Coolant temp eratur edisplay →
261
A · Distance warning →
531
B Ð Steering assis tance malfunction →
533
C # Electrica lfault →
535 D
J Brakes (red) →
524
E ü Seat belt is no tfas tened →
530
F Fuel le veld isplay
G 8 Fuelreser vewit hfuel filler flap location
indicator →
535
H R Rear fogl ight →
13 5
I 6 Restra int sy stem →
32
J % Diesel engine: preglow
K ; Engine diagnosis →
535
L J Brakes (yellow) →
524
M ! Electricp arkin gb rake applied (red) →
524
N h Tyre pressur emonitoring sy stem →
538
O ! ABS malfunction →
524
P ! Electricp arkin gb rake (yellow) →
524
Q j Trailer hit chis no toperational or is swivel‐
ling →
533 At
ag lanc e–O verviewofw arning and indicator lamps 13

14

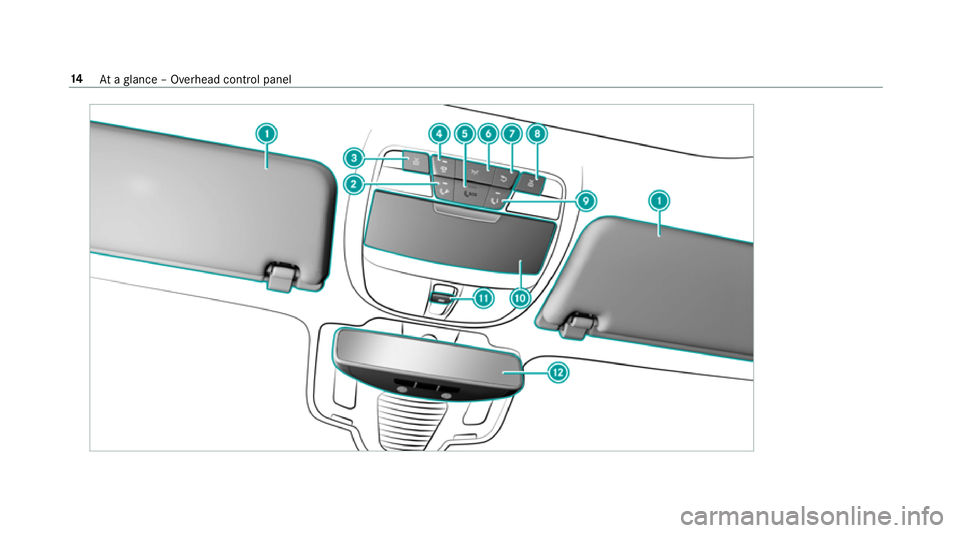

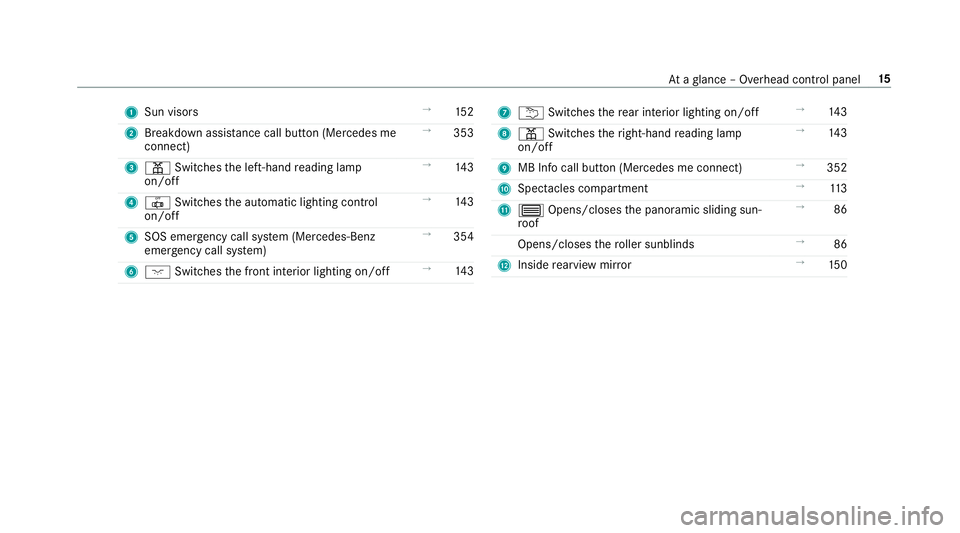

Atag lanc e–Overhead control panel

1
Sun visors →
15 2
2 Breakdown assis tance cal lbutton( Me rcedes me
connect) →
353
3 p Switches thel eft-hand readin glamp
on/off →
14 3
4 | Switches thea utomatic lighting control
on/off →
14 3
5 SOS emergency cal lsystem( Mercedes-Benz
emer gency cal lsyst em) →
354
6 c Switches thef ront interior lighting on/off →
14 3 7
u Switches ther ear interior lighting on/off →
14 3
8 p Switches ther ight-hand readin glamp
on/off →
14 3
9 MB Inf ocall button (Mercedes me connect) →
352
A Spectacles compartment →
11 3
B 3 Opens/closes thep anoramic sliding sun‐
ro of →
86
Opens/closes ther oller sunblinds →
86
C Inside rearvie wmirror →
15 0 At
ag lanc e–O verhead control panel 15

16

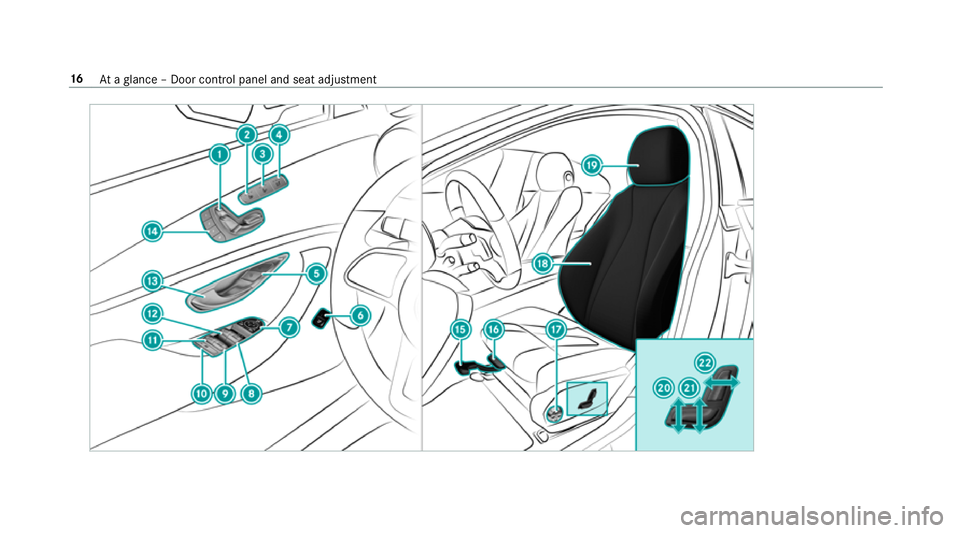

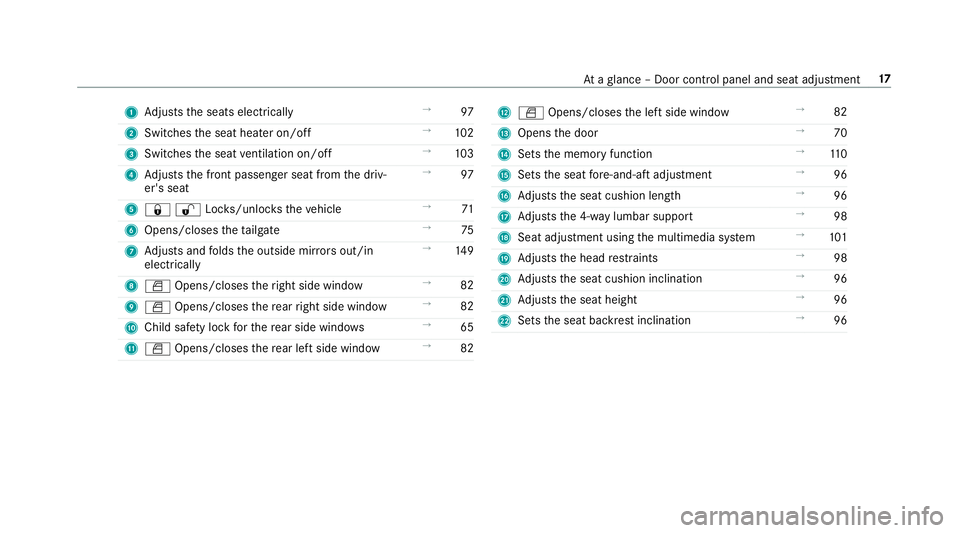

Atag lanc e–Door control pane land seat adjustment

1
Adjusts thes eats electrically →
97
2 Switches thes eat heater on/off →
102
3 Switches thes eat ventilation on/o ff →
103
4 Adjusts thef ront passenger seat from thed riv‐
er's seat →
97
5 &%Loc ks/unloc ksthev ehicle →
71
6 Opens/closes thet ailgate →
75
7 Adjusts and folds theo utside mir rors out/in
electrically →
14 9
8 W Opens/closes ther ight side window →
82
9 W Opens/ closes ther ear right side window →
82
A Child saf etyl oc kf or ther ear side windo ws→
65
B W Opens/closes ther ear lef tside wind ow →
82 C
W Opens/closes thel efts ide window →
82
D Opens thed oor →
70
E Sets them emor yfunction →
11 0
F Sets thes eat fore -and-af tadjustment →
96
G Adjusts thes eat cushion length →
96
H Adjusts the4 -way lumbar support →
98
I Seat adjustment using them ultimedia sy stem →
101
J Adjusts theh ead restra ints →
98
K Adjusts thes eat cushion inclination →
96
L Adjusts thes eat height →
96
M Sets thes eat backres tinclination →
96 At
ag lanc e–Door control pane land seat adjustment 17
