MERCEDES-BENZ E-CLASS ESTATE 2020 Owners Manual

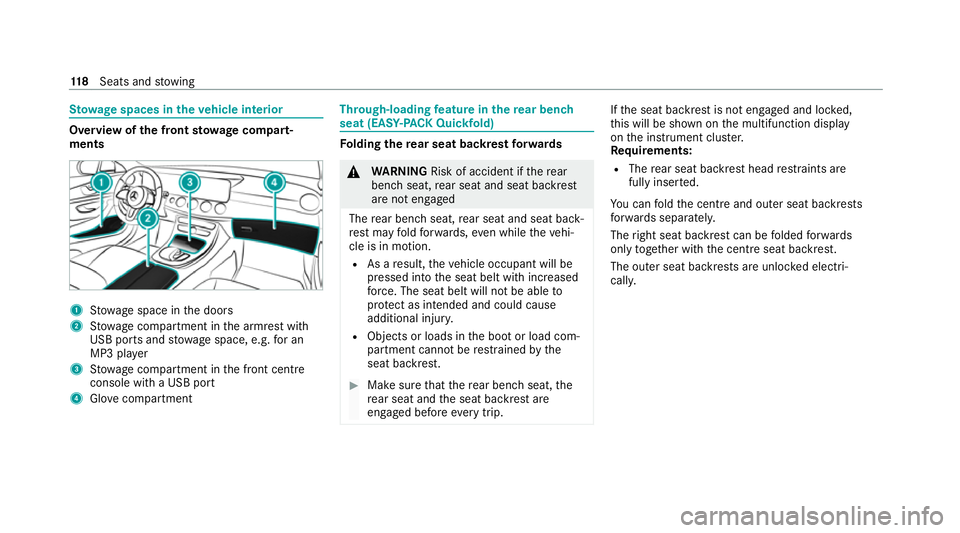

St
ow age spaces in theve hicle interior Overview of
the front stowage compa rt‐
ments 1
Stow age space in the doors
2 Stow age compartment in the armrest with
USB ports and stowage space, e.g. for an
MP3 pla yer
3 Stow age compartment in the front cent re
console wi tha USB port
4 Glovecompa rtment Through-loading
feature in there ar ben ch
seat (EAS Y-PA CK Quickfold) Fo
lding there ar seat backrest forw ards &
WARNING Risk of accident if there ar
ben chseat, rear seat and seat backrest
are not engaged
The rear ben chseat, rear seat and seat back‐
re st may fold forw ards, even while theve hi‐
cle is in motion.
R As a result, theve hicle occupant will be
pressed into the seat belt with increased
fo rc e. The seat belt will not be able to
pr otect as intended and could cause
additional injur y.
R Objects or loads in the boot or load com‐
partment cann otbe restra ined bythe
seat backrest. #
Make sure that there ar ben chseat, the
re ar seat and the seat backrest are
engaged before everytrip. If
th e seat backrest is not engaged and loc ked,
th is will be shown on the multifunction display
on the instrument clus ter.
Re quirements:
R The rear seat backrest head restra ints are
fully inse rted.
Yo u can fold the cent reand outer seat backrests
fo rw ards separatel y.
The right seat backrest can be folded forw ards
on lytoge ther with the cent reseat backrest.
The outer seat backrests are unloc ked elect ri‐
cally. 11 8
Seats and stowing

#
Vehicles without a memory function:
mo vethe driver's or front passenger seat for‐
wa rds, if necessar y. #
Vehicles with a memory function: if at
lea stone section of there ar seat backrest is
fo lded forw ards, the cor responding front seat
will mo veforw ards slightl y,if necessar y,to
av oid a collision. #
Tofold the left and right seat backrests
fo rw ard: pullright or left button 1. #
Tofold the centre seat backrest for‐
wa rds: pull release cat ch3 of seat back‐
re st 2 forw ards. #
Fold seat backrest 2forw ards. Fo
lding back there ar seat backrest
* NO
TEDama gecaused bytrapping the
seat belt when folding back the seat
backrest The seat belt could become trapped and
thus
be damaged when the seat backrest is folded
bac k. #
Make sure that the seat belt is not trap‐
ped when folding back the seat back‐
re st. #
Vehicles without a memory function:
mo vethe driver's or front passenger seat for‐
wa rds, if necessar y. #
Vehicles with a memory function: if at
lea stone part of the seat backrest in there ar
is folded bac k,the cor responding front seat
will automatically return tothe most recent
original position. Seats and
stowing 11 9

#

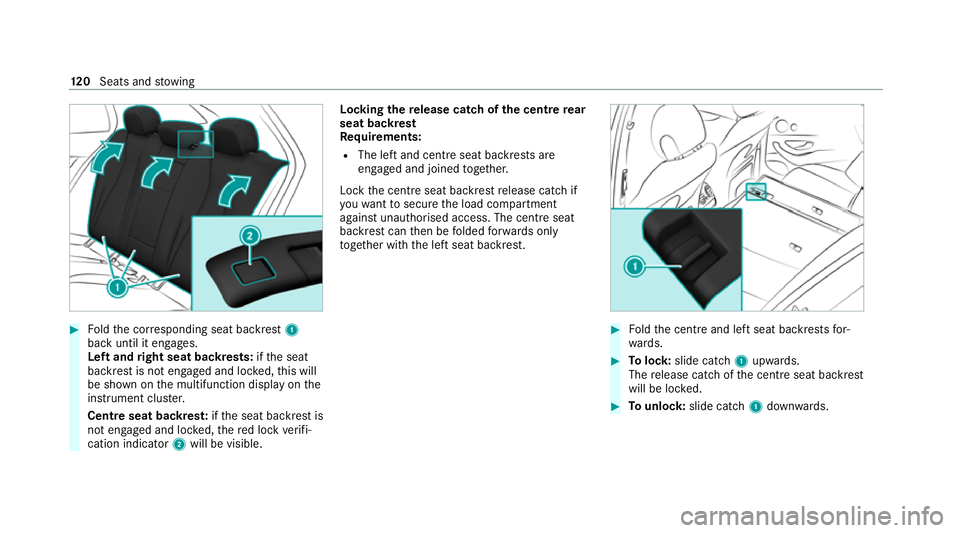

Foldthe cor responding seat backrest 1
back until it engages.
Left and right seat backrests: ifth e seat
backrest is not engaged and loc ked, this will
be shown on the multifunction display on the
instrument clus ter.
Centre seat backres t:ifth e seat backrest is
not engaged and loc ked, there d lock verifi‐
cation indicator 2will be visible. Lo
cking there lease catch of the centre rear
seat backrest
Re quirements:
R The left and centre seat backrests are
engaged and joined toge ther.
Lock the cent reseat backrest release cat chif
yo uwa nttosecure the load compartment
against unauthorised access. The cent reseat
backrest can then be folded forw ards on ly
to get her with the left seat backrest. #
Foldthe cent reand left seat backrests for‐
wa rds. #
Tolock: slide cat ch1 upwards.
The release cat chofthe cent reseat backrest
will be loc ked. #
Tounlo ck:slide catch 1down wards. 12 0
Seats and stowing

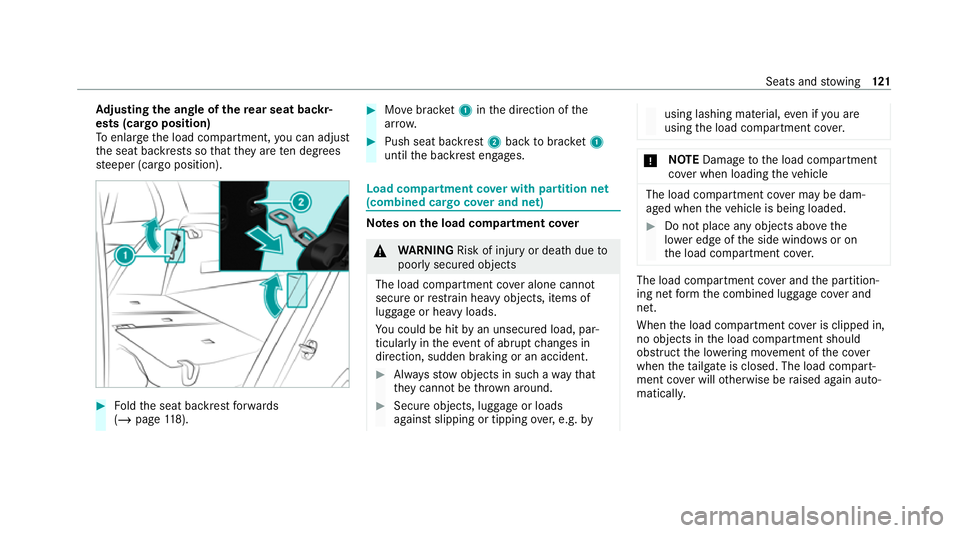

Ad
justing the angle of the rear seat backr‐
ests (cargo position)
To enlar gethe load compartment, you can adjust
th e seat backrests so that they are ten degrees
st eeper (cargo position). #
Foldthe seat backrest forw ards
(/ page 118). #
Movebrac ket1 inthe direction of the
ar row. #
Push seat backrest 2back tobrac ket1
until the backrest engages. Load compartment co
ver with partition net
(combined ca rgo co ver and net) Note
s onthe load compa rtment co ver &
WARNING Risk of inju ryor death due to
poorly secured objects
The load compartment co ver alone cannot
secure or restra in heavy objects, items of
luggage or heavy loads.
Yo u could be hit byan unsecured load, par‐
ticular lyin theev ent of abrupt changes in
direction, sudden braking or an accident. #
Alw aysstow objects in such a wayth at
th ey cannot be thro wn around. #
Secure objects, luggage or loads
against slipping or tipping over,e.g. by using lashing material,
even if you are
using the load compartment co ver. *
NO
TEDama getothe load compartment
co ver when loading theve hicle The load compartment co
ver may be dam‐
aged when theve hicle is being loaded. #
Do not place any objects abo vethe
lo we r edge of the side windo wsor on
th e load compartment co ver. The load compartment co
ver and the partition‐
ing net form the combined luggage co ver and
net.
When the load compartment co ver is clipped in,
no objects in the load compartment should
obstruct the lo wering mo vement of the co ver
when theta ilgate is closed. The load compart‐
ment co ver will otherwise be raised again auto‐
matically. Seats and
stowing 121

Extending/r
etra cting the load compa rtment
co ver #
Toextend: pull load compartment co ver1
back byhandle 2and clip it into the brack‐
et s on the left and right.
The load compartment co verra ises automat‐
ically when theta ilgate is opened and lo wers
again when theta ilgate is closed.
Re tracting #
Remo veload compartment co ver1 from
th e brac kets on the left and right. #
Guide load compartment co ver1 forw ards
by handle 2until it is fully retracted. The handle
strip of there tracted load compa rt‐
ment co ver1 can be used in thefo llowing posi‐
tions: 1
Folded up by45° (loading position)
2 Horizontal position (driving position)
3 Folded down and loc ked in place (rattle-free
position when driving)
Installing/removing the combined luggage
co ver and net
Requ irements:
R The load compartment co ver and partition
net are retracted. Re
moving
Re mo vethe combined luggage co ver and net
from the load compartment, or from the left-
hand rear door if the seat backrests are folded
fo rw ards. #
Press button 2. #
Foldthe combined luggage co ver and net
backwards with the seat backrest folded up. 12 2
Seats and stowing

#

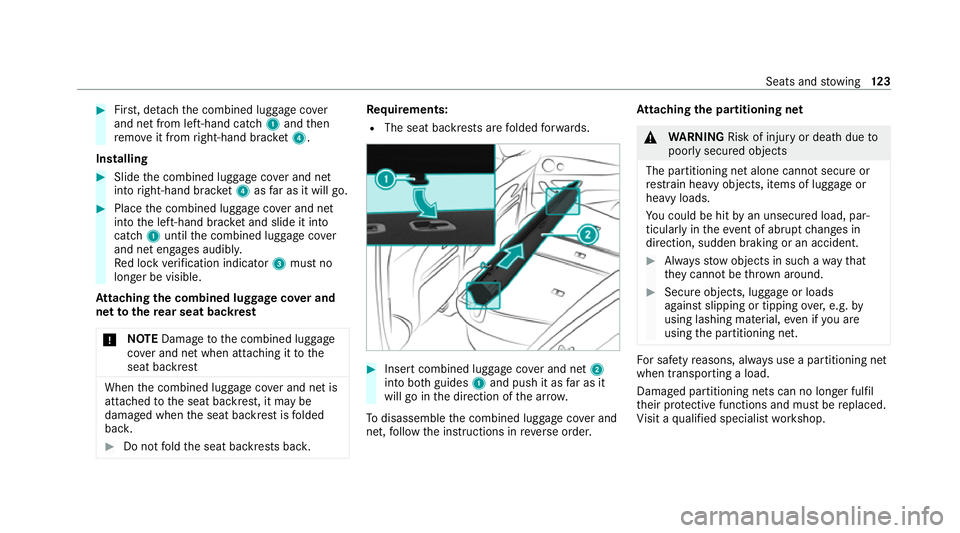

First, de tach th e combined luggage co ver
and net from left-hand cat ch1 and then
re mo veit from right-hand brac ket4.
In stalling #
Slide the combined luggage co ver and net
into right-hand brac ket4 asfar as it will go. #
Place the combined luggage co ver and net
into the left-hand brac ket and slide it into
catch 1until the combined luggage co ver
and net engages audibl y.
Re d lock verification indicator 3must no
longer be visible.
At taching the combined luggage co ver and
net tothere ar seat backrest
* NO
TEDama getothe combined luggage
co ver and net when attaching it tothe
seat backrest When
the combined luggage co ver and net is
attached tothe seat backrest, it may be
damaged when the seat backrest is folded
bac k. #
Do not fold the seat backrests bac k. Re
quirements:
R The seat backrests are folded forw ards. #
Insert combined luggage co ver and net 2
into bo thguides 1and push it as far as it
will go in the direction of the ar row.
To disassemble the combined luggage co ver and
net, follow the instructions in reve rse order. At
taching the pa rtitioning net &
WARNING Risk of inju ryor death due to
poorly secured objects
The partitioning net alone cann otsecure or
re stra in heavy objects, items of luggage or
heavy loads.
Yo u could be hit byan unsecured load, par‐
ticular lyin theev ent of abrupt changes in
direction, sudden braking or an accident. #
Alw aysstow objects in such a wayth at
th ey cannot be thro wn around. #
Secure objects, luggage or loads
against slipping or tipping over,e.g. by
using lashing material, even if you are
using the partitioning net. Fo
r saf etyre asons, alw ays use a partitioning net
when transporting a load.
Damaged partitioning nets can no longer fulfil
th eir pr otective functions and must be replaced.
Vi sit a qualified specialist workshop. Seats and
stowing 12 3

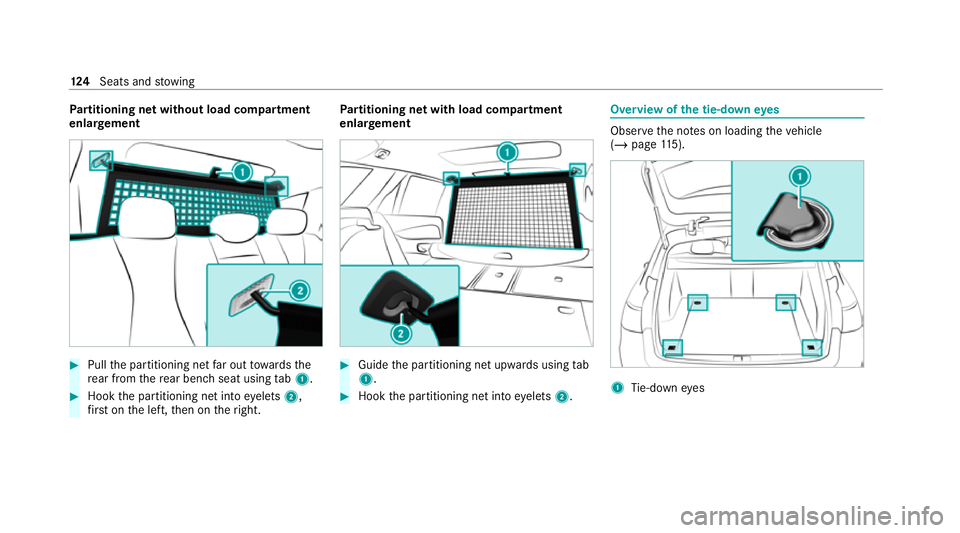

Pa
rtitioning net without load compartment
enlar gement #
Pull the partitioning net far out towa rdsthe
re ar from there ar ben chseat using tab1. #
Hook the partitioning net into eyelets 2,
fi rs t on the left, then on theright. Pa
rtitioning net with load compartment
enlar gement #
Guide the partitioning net upwards using tab
1 . #
Hook the partitioning net into eyelets 2. Overview of
the tie-down eyes Obser
vethe no tes on loading theve hicle
(/ page 115). 1
Tie-down eyes 124
Seats and stowing

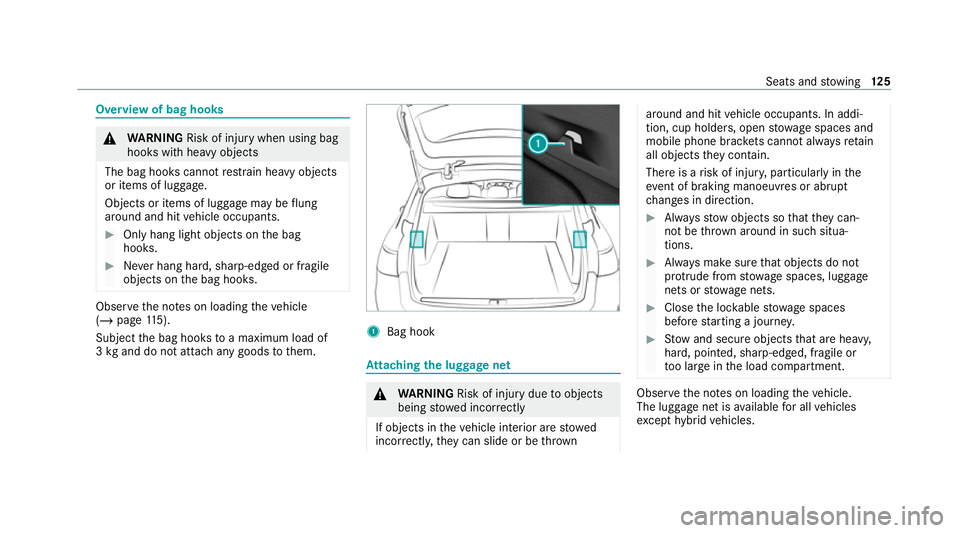

Overview of bag hooks
&
WARNING Risk of inju rywhen using bag
hooks with heavy objects
The bag hooks cannot restra in heavy objects
or items of luggage.
Objects or items of luggage may be flung
around and hit vehicle occupants. #
Only hang light objects on the bag
hooks. #
Never hang hard, sharp-edged or fragile
objects on the bag hooks. Obser
vethe no tes on loading theve hicle
(/ page 115).
Subject the bag hooks toa maximum load of
3 kg and do not attach any goods tothem. 1
Bag hook At
taching the luggage net &
WARNING Risk of inju rydue toobjects
being stowed incor rectly
If objects in theve hicle interior are stowed
incor rectly, they can slide or be thrown around and hit
vehicle occupants. In addi‐
tion, cup holders, open stowage spaces and
mobile phone brac kets cann otalw aysre tain
all objects they contain.
The reis a risk of injur y,particularly in the
ev ent of braking manoeuvres or abrupt
ch anges in direction. #
Alw aysstow objects so that they can‐
not be throw n around in su chsitua‐
tions. #
Alw ays make sure that objects do not
pr otru de from stowage spaces, luggage
nets or stowage nets. #
Close the loc kable stow age spaces
before starting a journe y. #
Stow and secure objects that are heavy,
hard, poin ted, sharp-edged, fragile or
to o lar geinthe load compartment. Obser
vethe no tes on loading theve hicle.
The luggage net is available for all vehicles
exc ept hybrid vehicles. Seats and
stowing 12 5

#

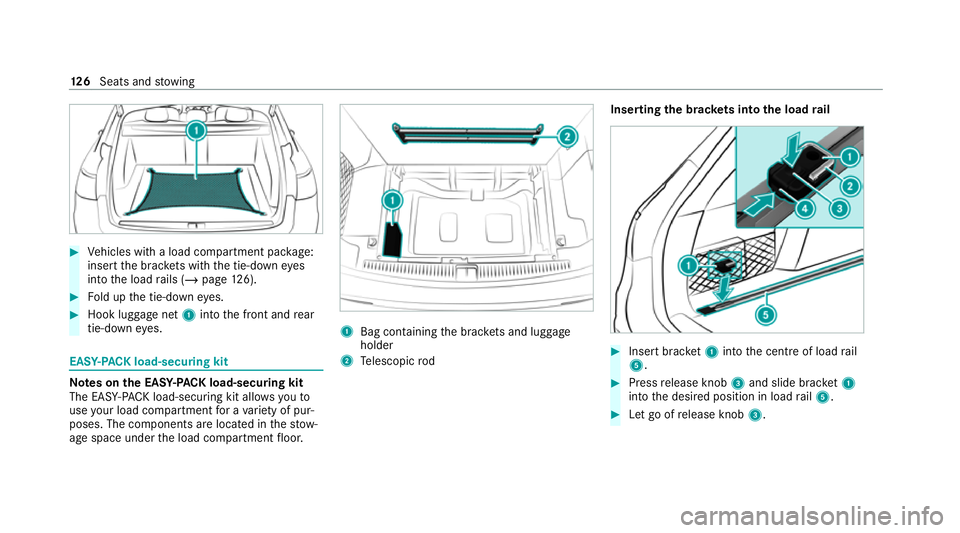

Vehicles with a load compartment pac kage:
inse rtthe brac kets wi th the tie-down eyes
into the load rails (/ page126). #
Fold up the tie-down eyes. #
Hook luggage net 1into the front and rear
tie-down eyes. EAS
Y-PA CK load-securing kit Note
s onthe EAS Y-PA CK load-securing kit
The EA SY-PAC K load-securing kit allows youto
use your load co mpartment for a variet y of pur‐
poses. The co mponents are located in thestow‐
age space under the load compartment floor. 1
Bag containing the brac kets and luggage
holder
2 Telescopic rod Inserting
the brac kets in tothe load rail #
Insert brac ket1 into the cent reof load rail
5. #
Press release knob 3and slide brac ket1
into the desired position in load rail5. #
Let go of release knob 3. 12 6
Seats and stowing

#
Press locking button 4.
The brac ket1 has been secured in the
selected position in the load rail5. #
If necessar y,fold tie-down eye2 upwards.

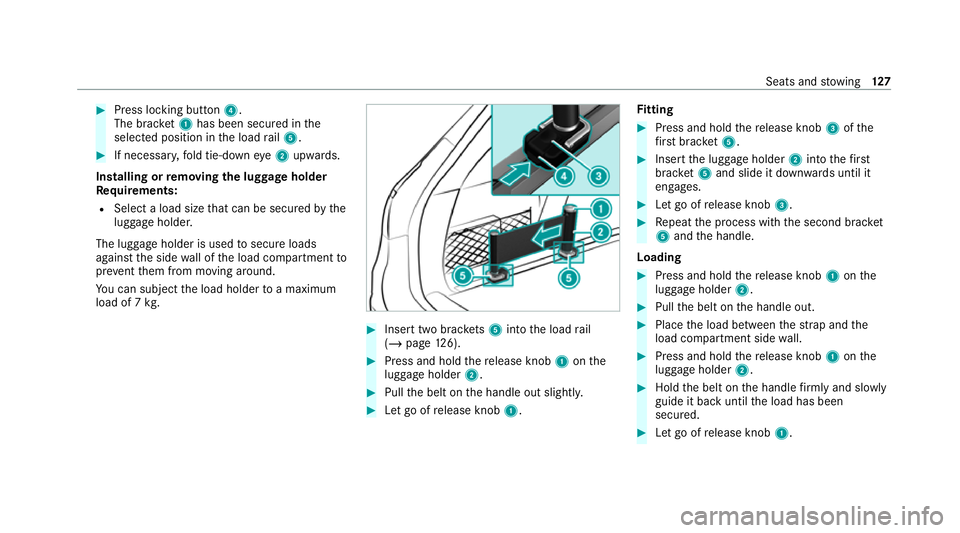

Installing or removing the lug gage holder
Re quirements:
R Select a load size that can be secured bythe
luggage holder.
The luggage holder is used tosecure loads
against the side wall of the load compartment to
pr ev ent them from moving around.
Yo u can subject the load holder toa maximum
load of 7 kg. #
Insert two brac kets 5 into the load rail
(/ page 126). #
Press and hold there lease knob 1onthe
luggage holder 2. #
Pull the belt on the handle out slightl y. #
Let go of release knob 1. Fi
tting #
Press and hold there lease knob 3ofthe
fi rs t brac ket5. #
Inse rtthe luggage holder 2into thefirst
brac ket5 and slide it down wards until it
engages. #
Let go of release knob 3. #
Repeat the process with the second brac ket
5 and the handle.
Loading #
Press and hold there lease knob 1onthe
luggage holder 2. #
Pull the belt on the handle out. #
Place the load between thest ra p and the
load compartment side wall. #
Press and hold there lease knob 1onthe
luggage holder 2. #
Hold the belt on the handle firm lyand slowly
guide it back until the load has been
secured. #
Let go of release knob 1. Seats and
stowing 127
