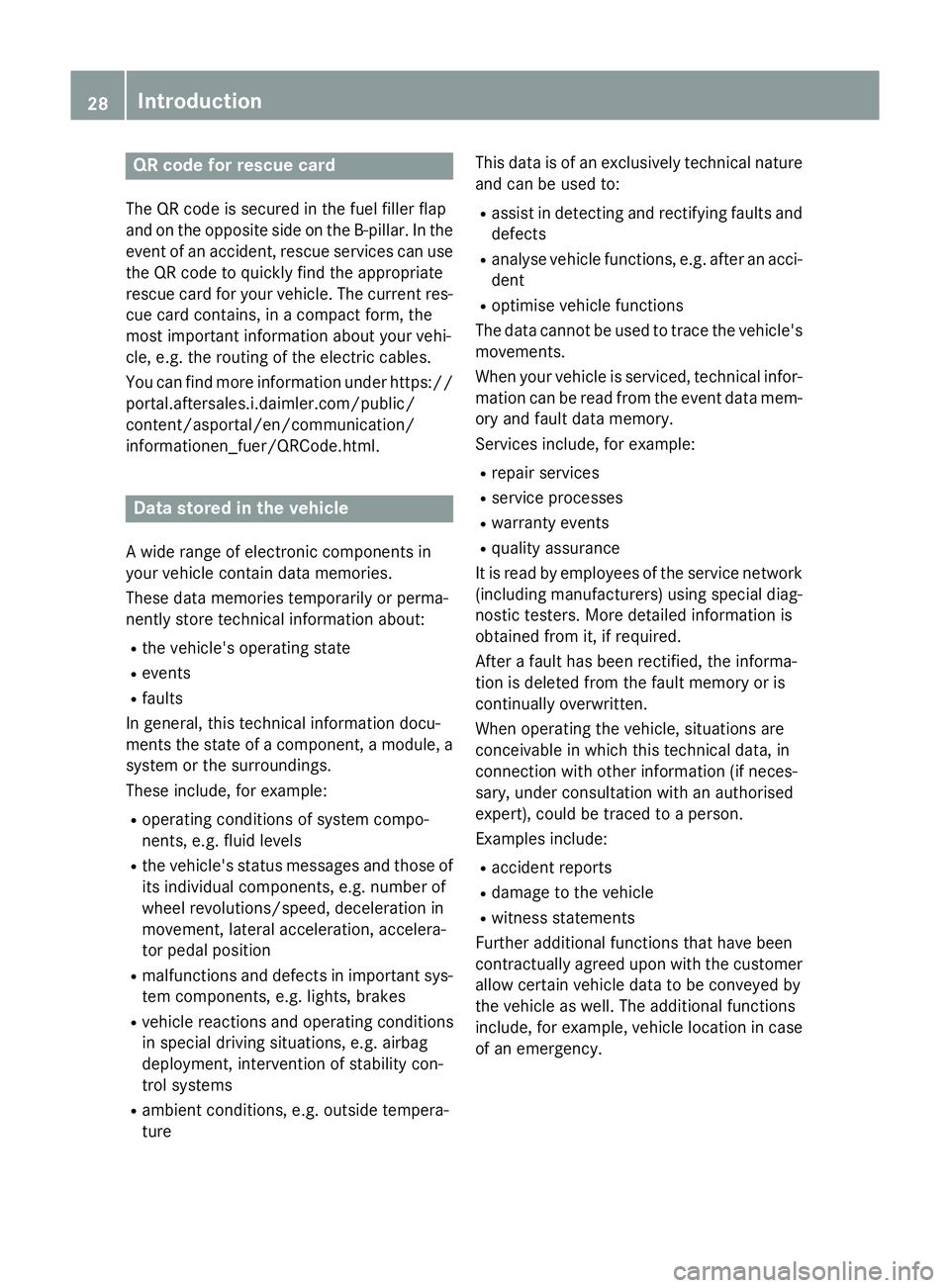

QR code for rescue card
The QR code is secured in the fuel filler flap
and on the opposite side on the B-pillar. In the
event of an accident ,rescue services can use
the QR code to quickly find the appropriate
rescue card for your vehicle. The curren tres-
cue card contains, in acompact form, the
most importan tinformation about your vehi-
cle, e.g. the routing of the electric cables.
You can find more information under https:// portal.aftersales.i.daimler.com/public/
content/asportal/en/communication/
informationen_fuer/QRCode.html. Data stored in the vehicle
Aw ide range of electronic componentsin
your vehicle contain data memories.
These data memories temporarily or perma-
nently stor etechnical information about:
R the vehicle's operating state
R events
R faults
In general, this technical information docu-
ment sthe stat eofac omponent,am odule, a
system or the surroundings.
These include, for example:
R operating conditions of system compo-
nents, e.g. fluid levels
R the vehicle's status messages and those of
its individual components, e.g. number of
wheel revolutions/speed, deceleration in
movement, lateral acceleration, accelera-
tor pedal position
R malfunctions and defect sinimportan tsys-
tem components, e.g. lights, brakes
R vehicle reactions and operating conditions
in special driving situations ,e.g. airbag
deployment, intervention of stability con-
trol systems
R ambient conditions, e.g. outside tempera-
ture This data is of an exclusively technical nature
and can be used to:
R assist in detecting and rectifying faults and
defects
R analyse vehicle functions, e.g. after an acci-
dent
R optimise vehicle functions
The data cannot be used to trac ethe vehicle's
movements.
When your vehicle is serviced, technical infor-
mation can be read from the event data mem- ory and fault data memory.
Services include, for example:
R repair services
R service processes
R warranty events
R quality assurance
It is read by employees of the service network (including manufacturers) using special diag-
nostic testers. More detailed information is
obtained from it, if required.
After afault has been rectified, the informa-
tion is deleted from the fault memory or is
continually overwritten.
When operating the vehicle, situations are
conceivable in which this technical data, in
connection with other information (if neces-
sary, under consultation with an authorised
expert), could be traced to aperson.
Examples include:
R accident reports
R damage to the vehicle
R witness statements
Further additional functions that have been
contractually agreed upon with the customer
allow certain vehicle data to be conveyed by
the vehicle as well. The additional functions
include, for example, vehicle location in case of an emergency. 28
Introduction
Page 32 of 497

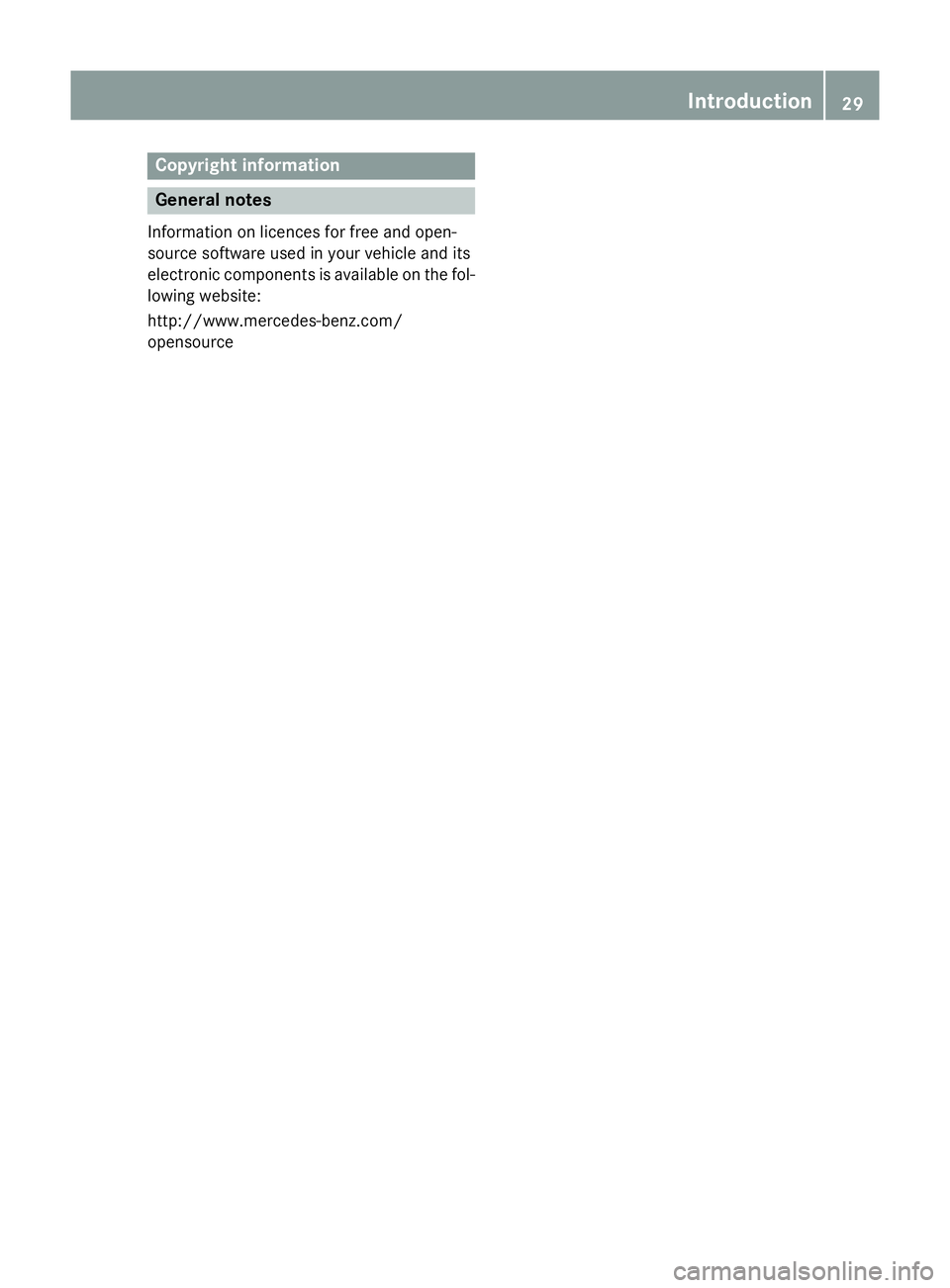

Copyright information
General notes
Information on licences for free and open-
source softwar eused in your vehicle and its
electronic component sisavailabl eonthefol-
lowin gwebsite:
http://www.mercedes-benz.com/
opensource Introduction
29 Z
Page 33 of 497
30
Page 34 of 497
Cockpit
................................................. 32
Instrumen tcluster .............................. 34
Multifunction steering wheel .............36
Centre console .................................... 38
Overhea dcontrol panel ...................... 41
Door control panel .............................. 42 31At
ag lance
Page 35 of 497

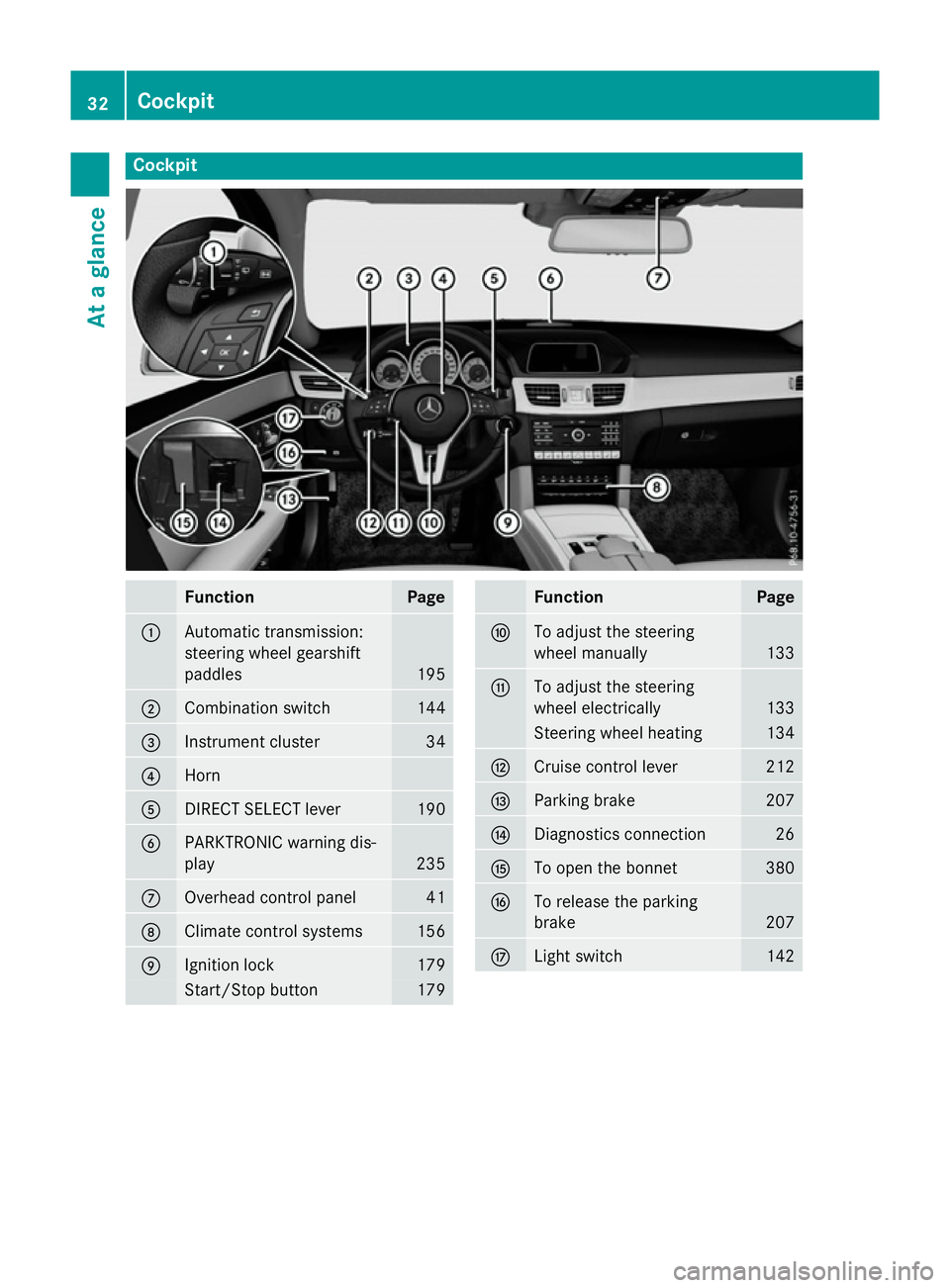

Cockpit
Function Page
:
Automatic transmission:
steering wheel gearshift
paddles
195
;
Combination switch 144
=
Instrumen
tcluster 34
?
Horn
A
DIRECT SELECT lever 190
B
PARKTRONIC warning dis-
play
235
C
Overhead control panel 41
D
Climat
econtro lsystems 156
E
Ignition lock 179
Start/Sto
pbutton 179 Function Page
F
To adjust th
esteering
wheel manually 133
G
To adjust th
esteering
wheel electrically 133
Steering wheel heating 134
H
Cruise control lever 212
I
Parking brake 207
J
Diagnostics connection 26
K
To open th
ebonnet 380
L
To release th
eparking
brake 207
M
Ligh
tswitch 14232
CockpitAt
ag lance
Page 36 of 497
Function Page
:
Overhead control panel 41
;
PARKTRONIC warning dis-
play 235
=
Combination switch 144
?
Instrumen
tcluster 34
A
Horn
B
DIRECT SELECT lever 190
C
Steering wheel gearshift
paddles
195
D
Ligh
tswitch 142
E
To open th
ebonnet 380
F
Diagnostics connection 26 Function Page
G
To release th
eparking
brake 207
H
Ignition lock 179
Start/Sto
pbutton 179
I
To adjust th
esteering
wheel manually J
To adjust th
esteering
wheel electrically 133
Steering wheel heating 134
K
Cruis
econtro llever 212
L
Parking brake 207
M
Climat
econtro lsystems 156Cockpit
33Atag lance
Page 37 of 497

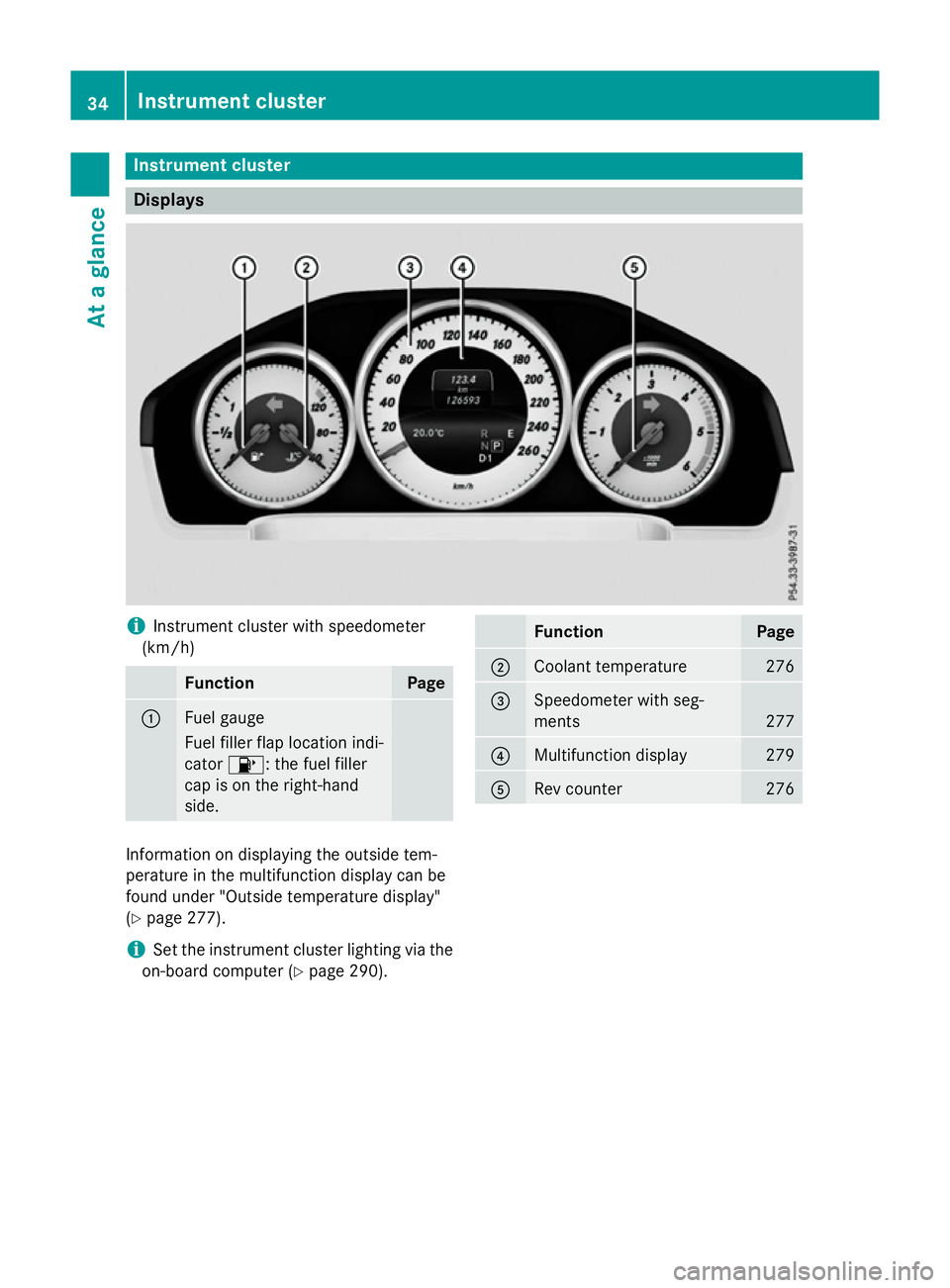

Instrumen
tcluster Displays
i
Instrumen
tcluste rwiths peedometer
(km/h) Function Page
:
Fuel gauge
Fuel filler flap location indi-
cator
8:t hefuel filler
cap is on th eright-hand
side. Function Page
;
Coolan
ttem perature 276
=
Speedometer wit
hseg-
ments 277
?
Multifunction display 279
A
Rev counter 276
Information on displayin
gthe outside tem-
peratur einthemultifunction display can be
foun dunder "Outside temperature display"
(Y page 277).
i Se
tthe instrumen tcluste rlighting via the
on-board computer (Y page 290).34
Instrumen
tclusterAt ag lance
Page 38 of 497

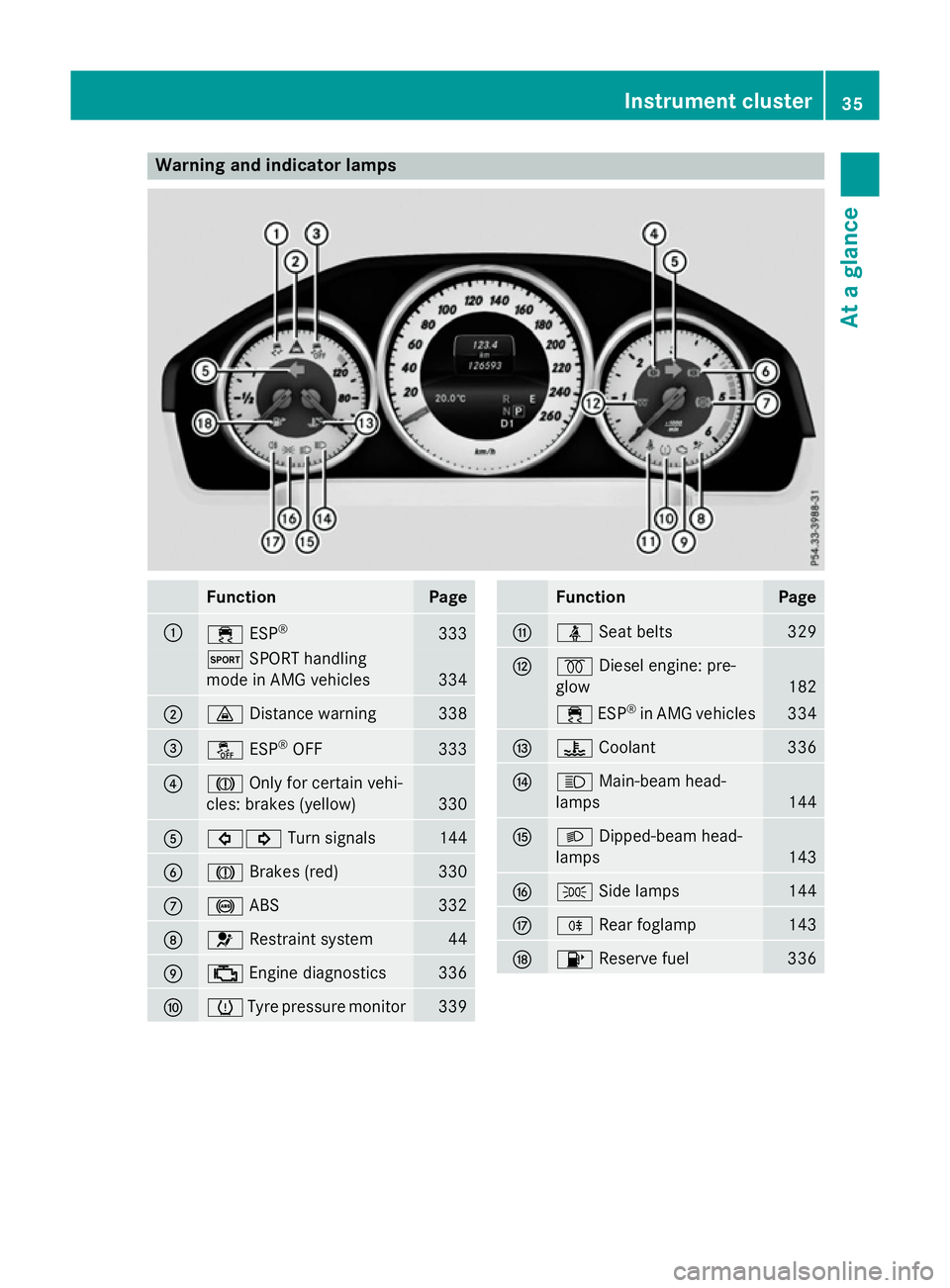

Warning and indicator lamps
Function Page
:
÷
ESP® 333
M
SPORT handling
mode in AMG vehicles 334
;
·
Distance warning 338
=
å
ESP®
OFF 333
?
J
Only for certain vehi-
cles: brakes (yellow) 330
A
#!
Turn signals 144
B
J
Brakes (red) 330
C
!
ABS 332
D
6
Restraint system 44
E
;
Engine diagnostics 336
F
h
Tyre pressure monitor 339 Function Page
G
ü
Seat belts 329
H
%
Diesel engine: pre-
glow 182
÷
ESP®
in AMG vehicles 334
I
?
Coolant 336
J
K
Main-beam head-
lamps 144
K
L
Dipped-bea mhead-
lamps 143
L
T
Side lamps 144
M
R
Rearfoglamp 143
N
8
Reserve fuel 336Instrument cluster
35Atag lance
Page 39 of 497

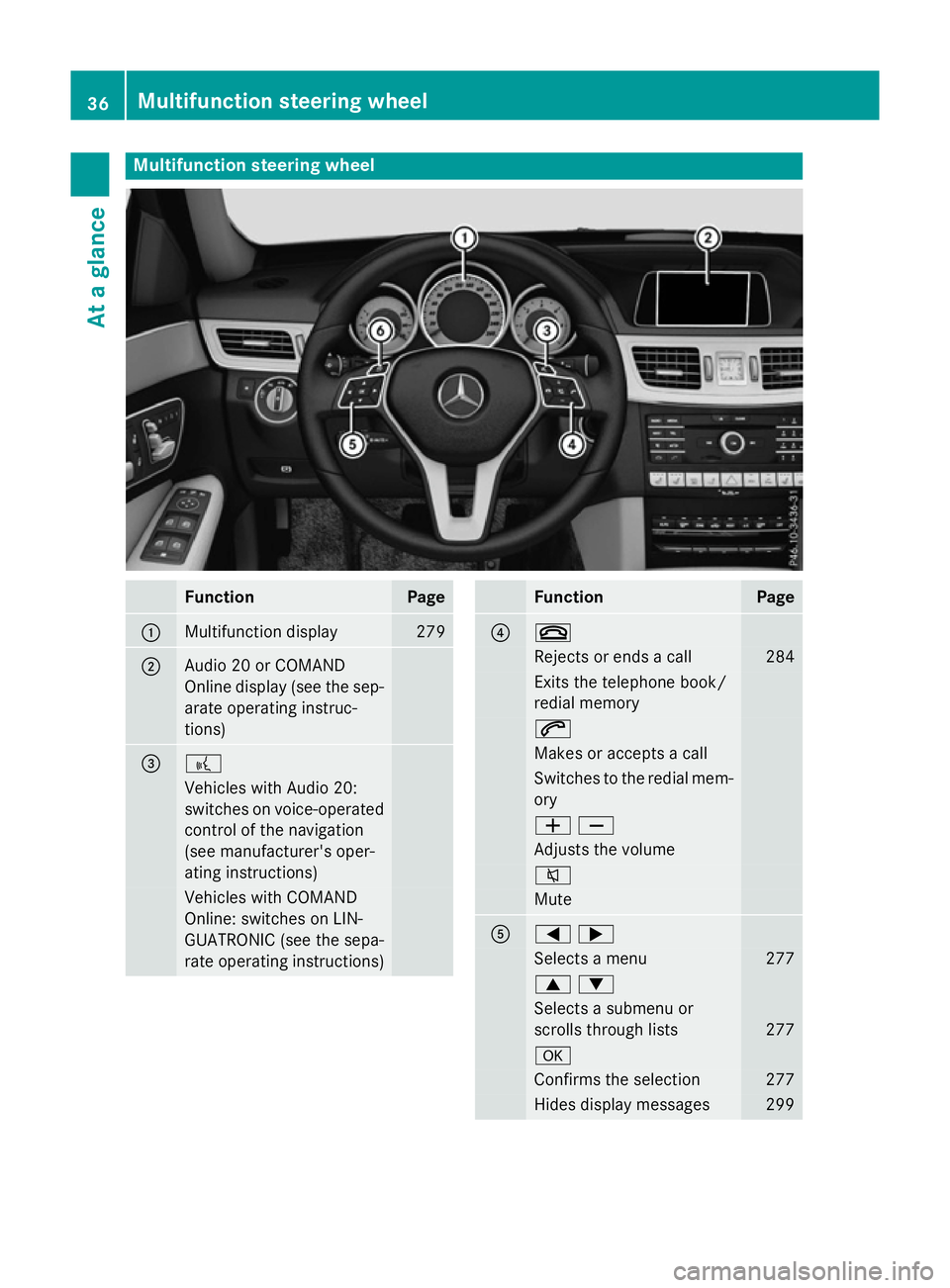

Multifunction steering wheel
