Page 121 of 396

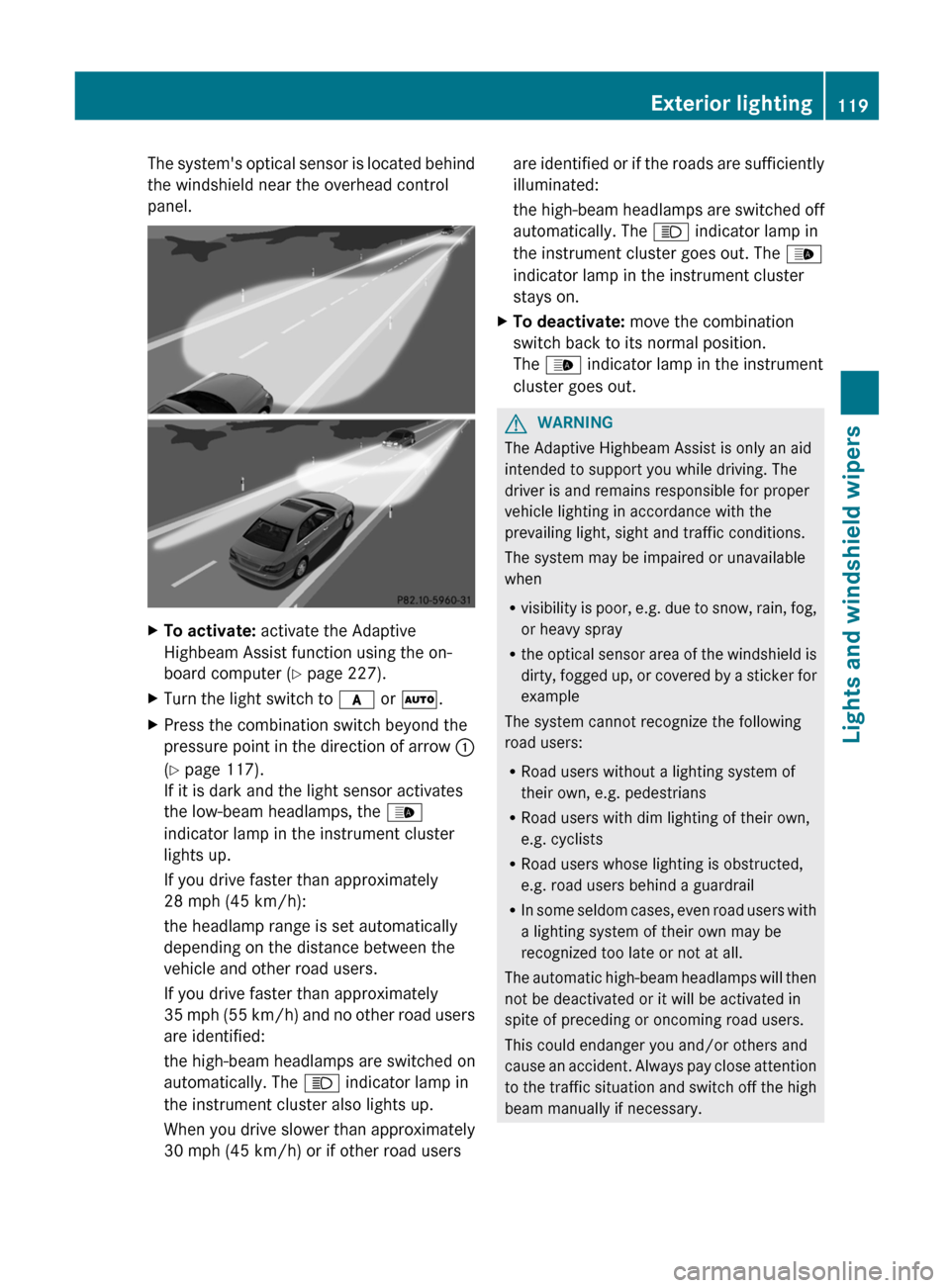

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual The systems optical sensor is located behind
the windshield near the overhead control
panel.XTo activate:  activate the Adaptive
Highbeam Assist function using the on-
board computer ( Y page 227).XT

Page 122 of 396

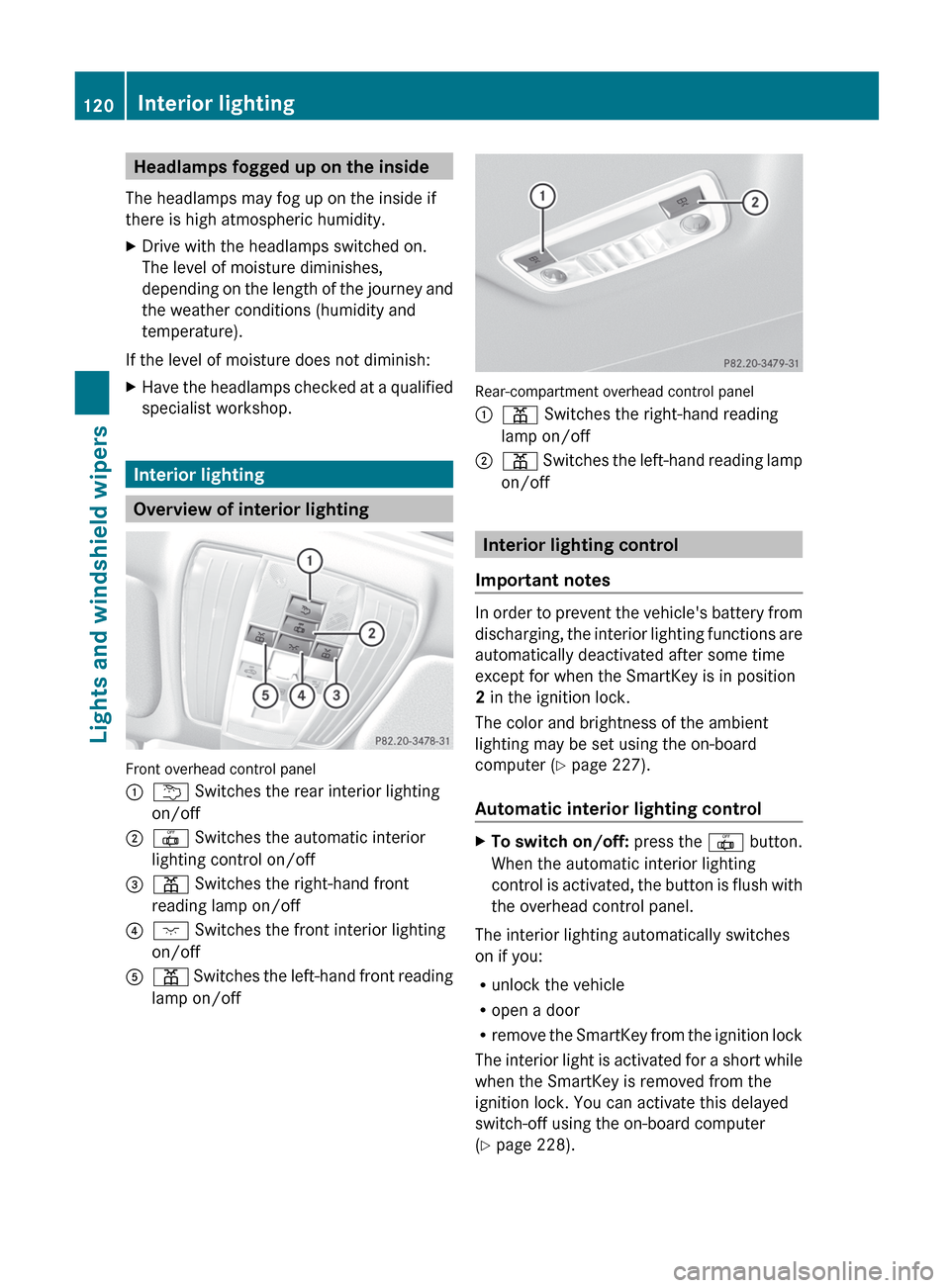

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual Headlamps fogged up on the inside
The headlamps may fog up on the inside if
there is high atmospheric humidity.XDrive with the headlamps switched on.
The level of moisture diminishes,
depending on the

Page 123 of 396

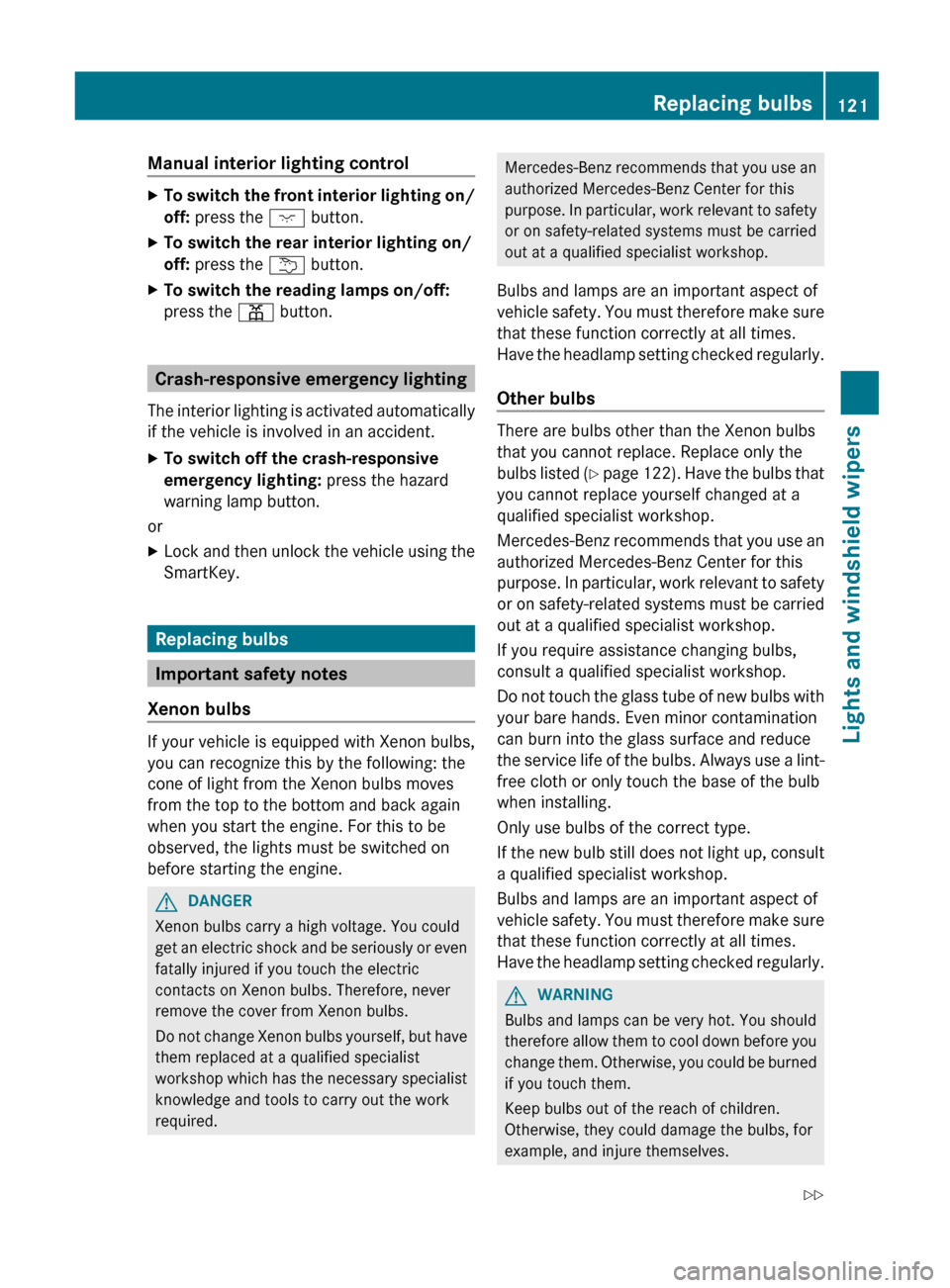

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual Manual interior lighting controlXTo switch the front interior lighting on/
off:  press the  c button.XTo switch the rear interior lighting on/
off:  press the  u button.XTo switch the reading lamps on

Page 124 of 396

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual Never use a bulb which has been dropped.
Such a bulb may break or even explode and
injure you.
Halogen bulbs are pressurized and can
explode when you change them, particularly
if they are very hot. Yo

Page 125 of 396

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual XInsert bulb holder ; into the lamp and turn
it clockwise.XAlign housing cover  : and turn it
clockwise until it engages.
High-beam headlamps (halogen
headlamps)/cornering lamps (Bi-Xenon
headlamps)
X

Page 126 of 396

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual XInsert new bulb ; and turn it clockwise.XAlign housing cover  : and turn it
clockwise until it engages.
Turn signal lamp (halogen headlamps)
Due to their location, have the bulbs in the
left-hand hea

Page 127 of 396

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers

Page 128 of 396

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual XRemove the wiper blade from the retaining
pin on the wiper arm in the direction of the
arrow.
Installing the wiper blades
XPush the new wiper blade onto the
retaining pin on the wiper arm in the
oppo

Page 129 of 396

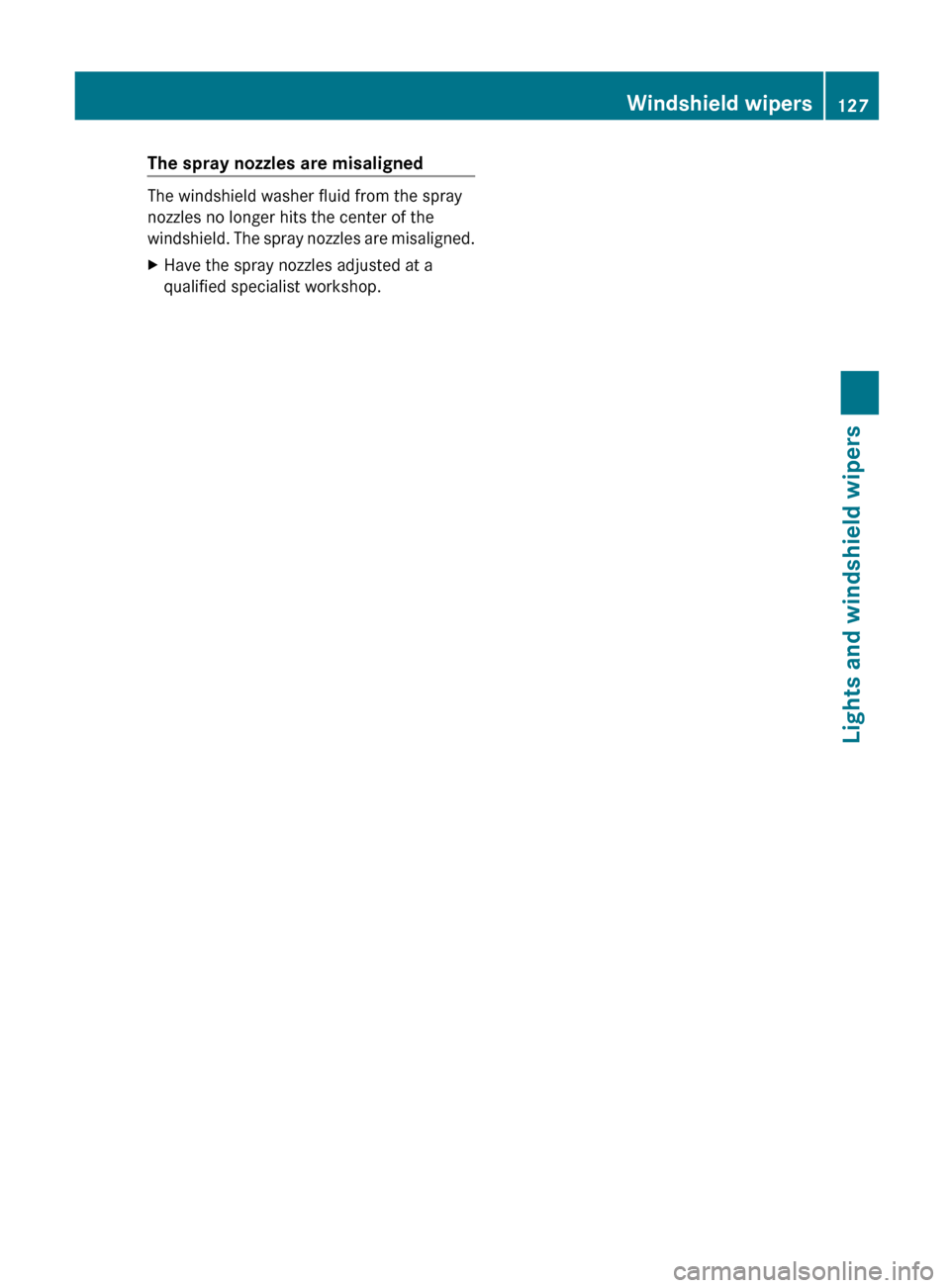

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual The spray nozzles are misaligned
The windshield washer fluid from the spray
nozzles no longer hits the center of the
windshield. The spray nozzles are misaligned.
XHave the spray nozzles adjusted at a

Page 130 of 396

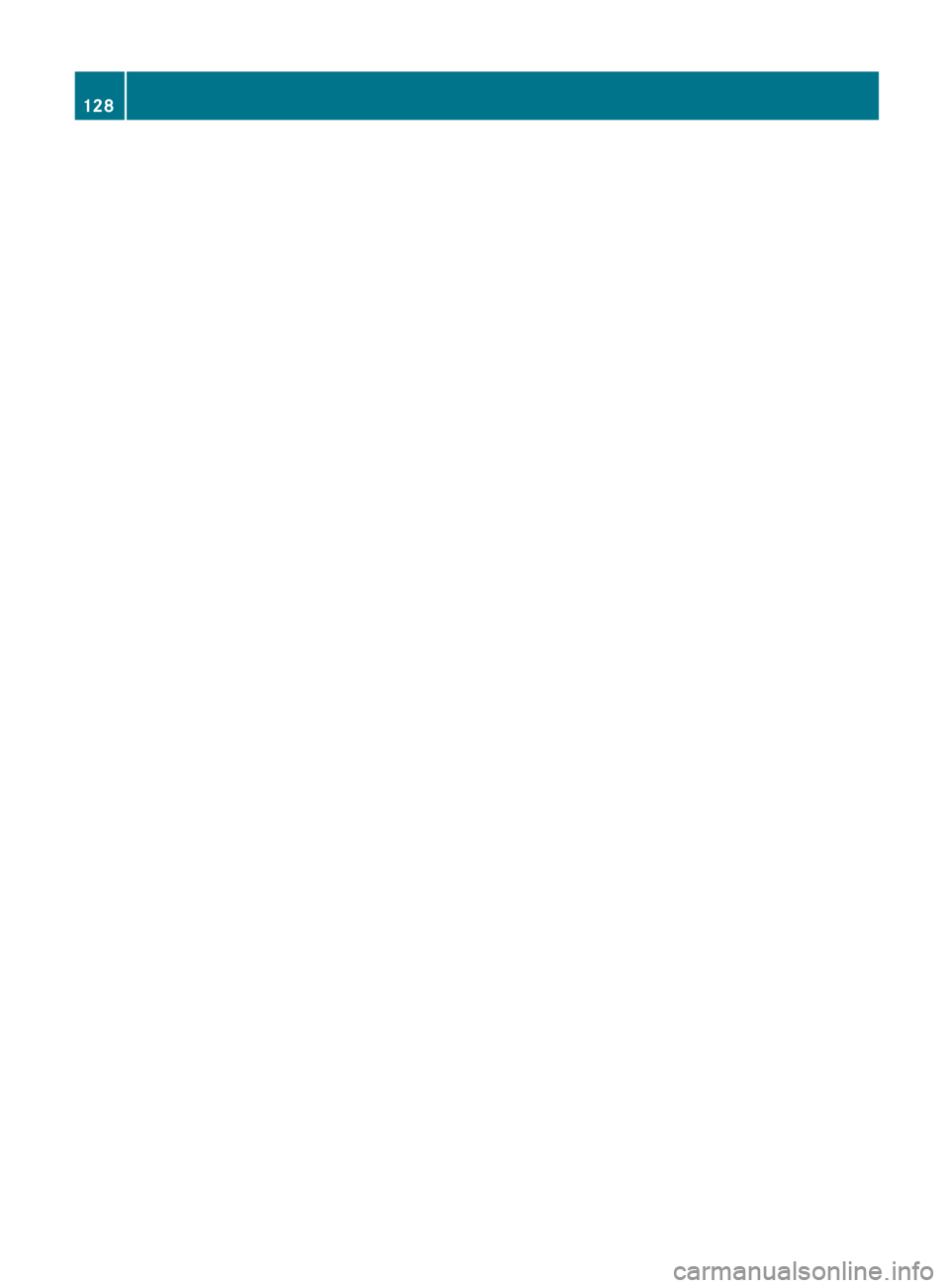

MERCEDES-BENZ E-Class SEDAN 2012 W212 Owners Manual 128
