MERCEDES-BENZ E-Class SEDAN 2016 W213 Service Manual

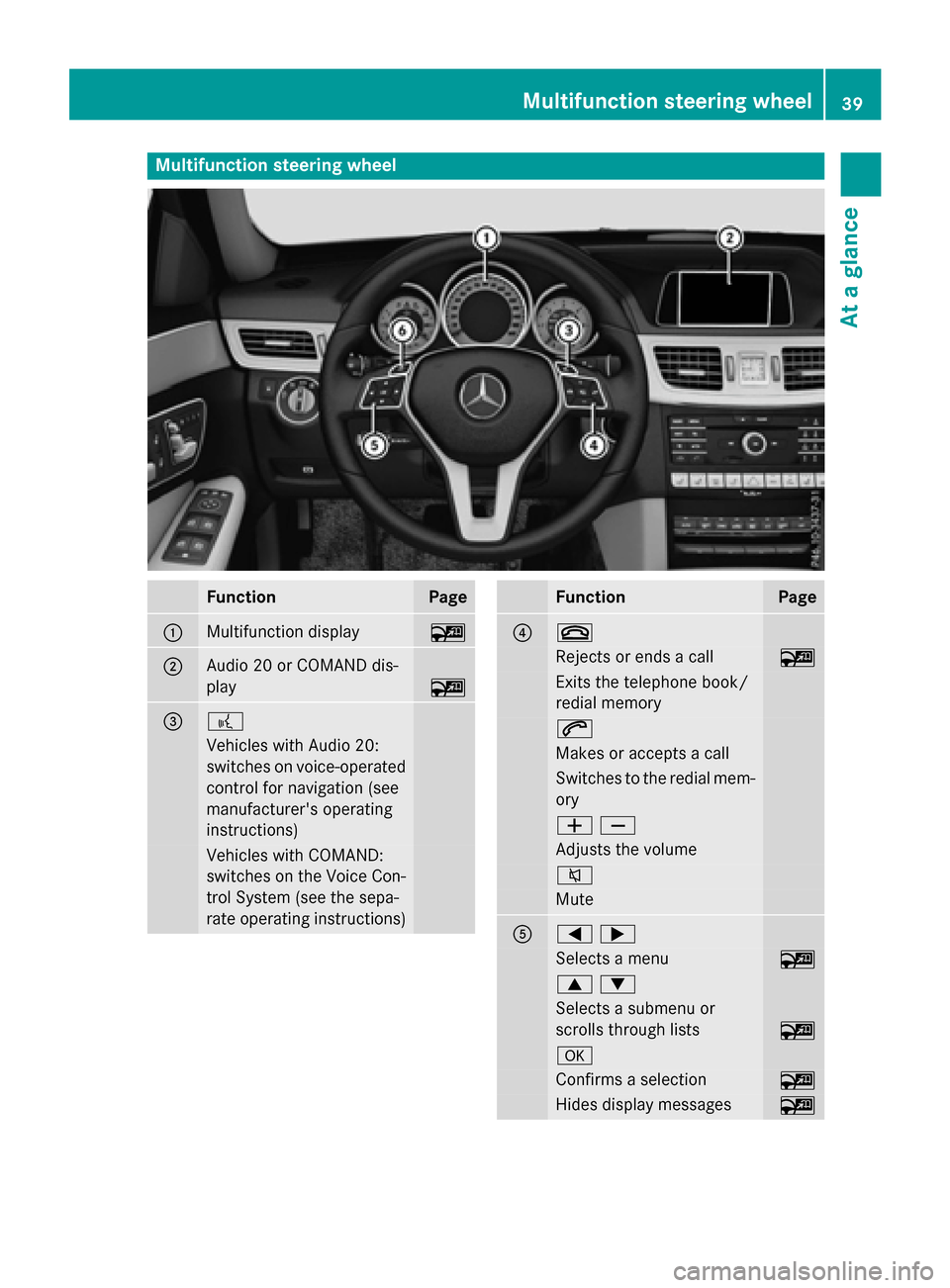

Multifunction steering wheel
FunctionPage
:Multifunction display~
;Audio 20 or COMAND dis-
play
~
=?
Vehicles with Audio 20:
switches on voice-operated
control for navigation (see
manufacturer's operating
instructions)
Vehicles with COMAND:
switches on the Voice Con-
trol System (see the sepa-
rate operating instructions)
FunctionPage
?~
Rejects or ends a call~
Exits the telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory
WX
Adjusts the volume
8
Mute
A=;
Selects a menu~
9:
Selects a submenu or
scrolls through lists
~
a
Confirms a selection~
Hides display messages~
Multifunction steering wheel39
At a glance

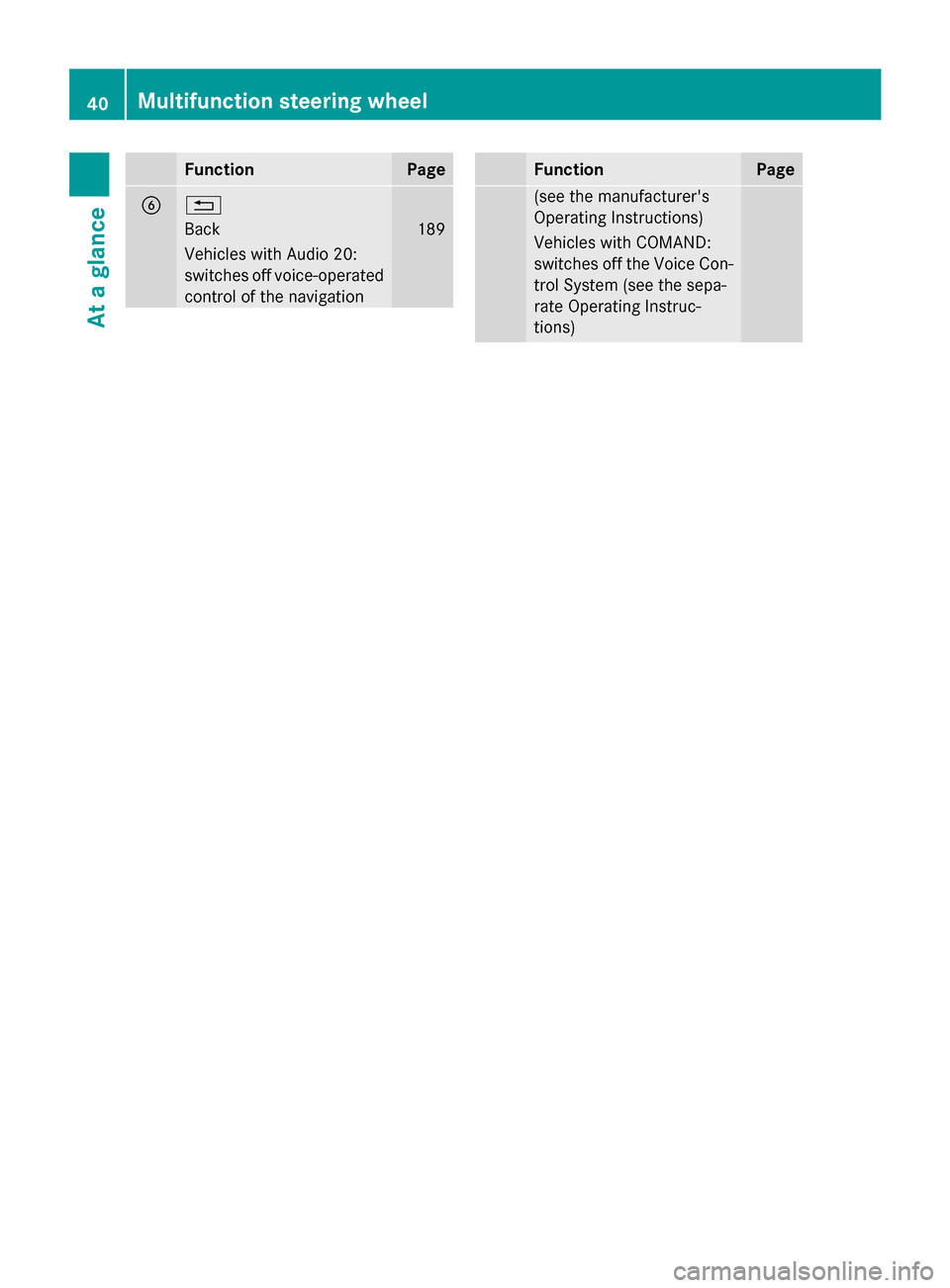

FunctionPage
B%
Back189
Vehicles with Audio 20:
switches off voice-operated
control of the navigation
FunctionPage
(see the manufacturer's
Operating Instructions)
Vehicles with COMAND:
switches off the Voice Con-
trol System (see the sepa-
rate Operating Instruc-
tions)
40Multifunction steering wheel
At a glance

Center console
Center console, upper section
FunctionPage
:Audio system or COMAND~
;cSeat heating116
=sSeat ventilation~
?cPARKTRONIC168
A¤ECO start/stop func-
tion (AMG vehicles)
~
B£ Hazard warning
lamps
120
FunctionPage
C45Indicator lamp58
DATA indicator lamp87
EÜ Retracts the rear seat
head restraints (Wagon)
~
Fu Sedan: rear window
roller sunblind
~
Center console41
At a glance

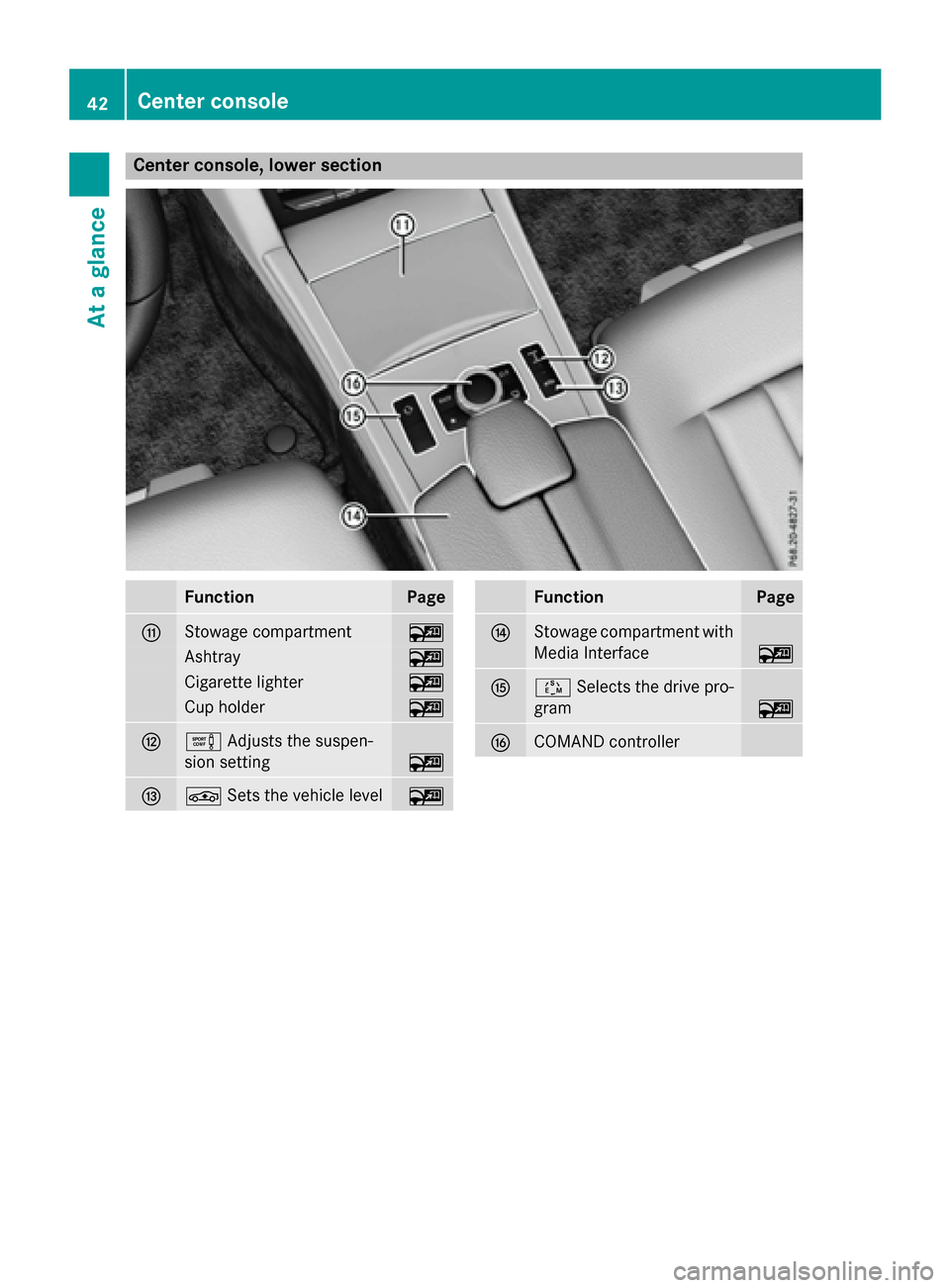

Center console, lower section
FunctionPage
GStowage compartment~
Ashtray~
Cigarette lighter~
Cup holder~
HeAdjusts the suspen-
sion setting
~
IÉ Sets the vehicle level~
FunctionPage
JStowage compartment with
Media Interface
~
KÚSelects the drive pro-
gram
~
LCOMAND controller
42Center console
At a glance

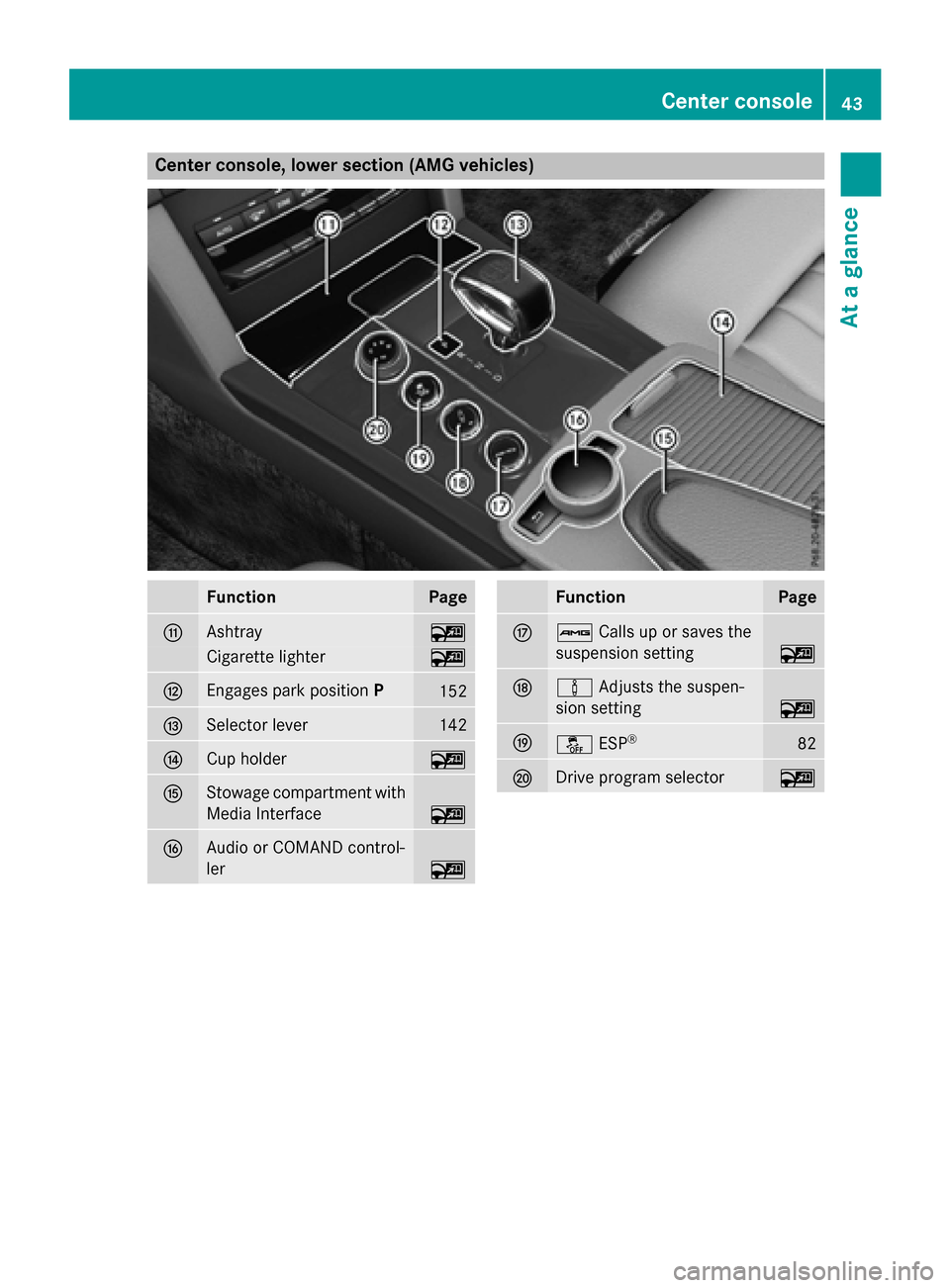

Center console, lower section (AMG vehicles)
FunctionPage
GAshtray~
Cigarette lighter~
HEngages park positionP152
ISelector lever142
JCup holder~
KStowage compartment with
Media Interface
~
LAudio or COMAND control-
ler
~
FunctionPage
MßCalls up or saves the
suspension setting
~
Nà Adjusts the suspen-
sion setting
~
Oå ESP®82
PDrive program selector~
Center console43
At a glance

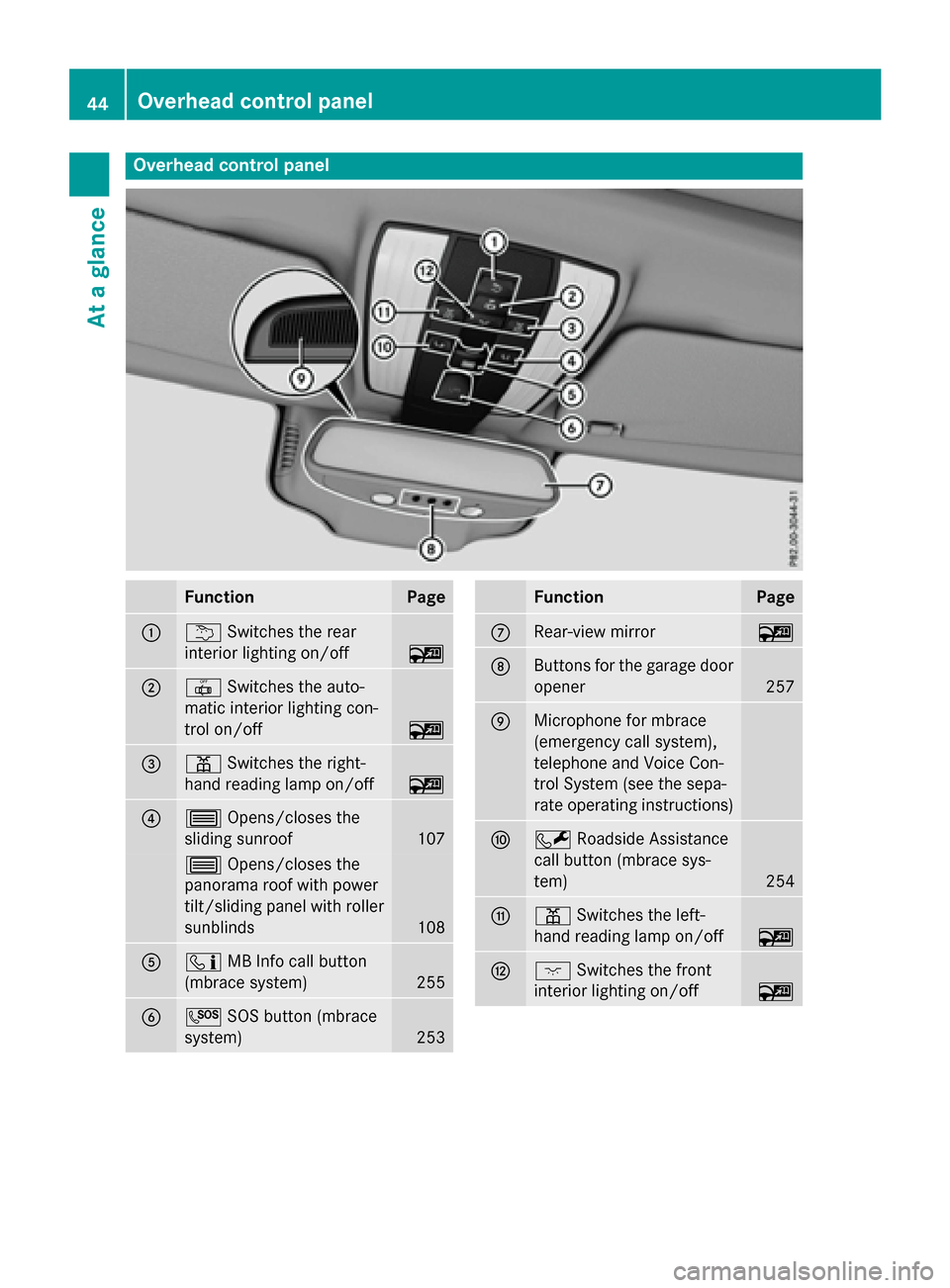

Overhead control panel
FunctionPage
:uSwitches the rear
interior lighting on/off
~
;| Switches the auto-
matic interior lighting con-
trol on/off
~
=p Switches the right-
hand reading lamp on/off
~
?3 Opens/closes the
sliding sunroof
107
3 Opens/closes the
panorama roof with power
tilt/sliding panel with roller
sunblinds
108
Aï MB Info call button
(mbrace system)
255
BG SOS button (mbrace
system)
253
FunctionPage
CRear-view mirror~
DButtons for the garage door
opener
257
EMicrophone for mbrace
(emergency call system),
telephone and Voice Con-
trol System (see the sepa-
rate operating instructions)
FF Roadside Assistance
call button (mbrace sys-
tem)
254
Gp Switches the left-
hand reading lamp on/off
~
Hc Switches the front
interior lighting on/off
~
44Overhead control panel
At a glance

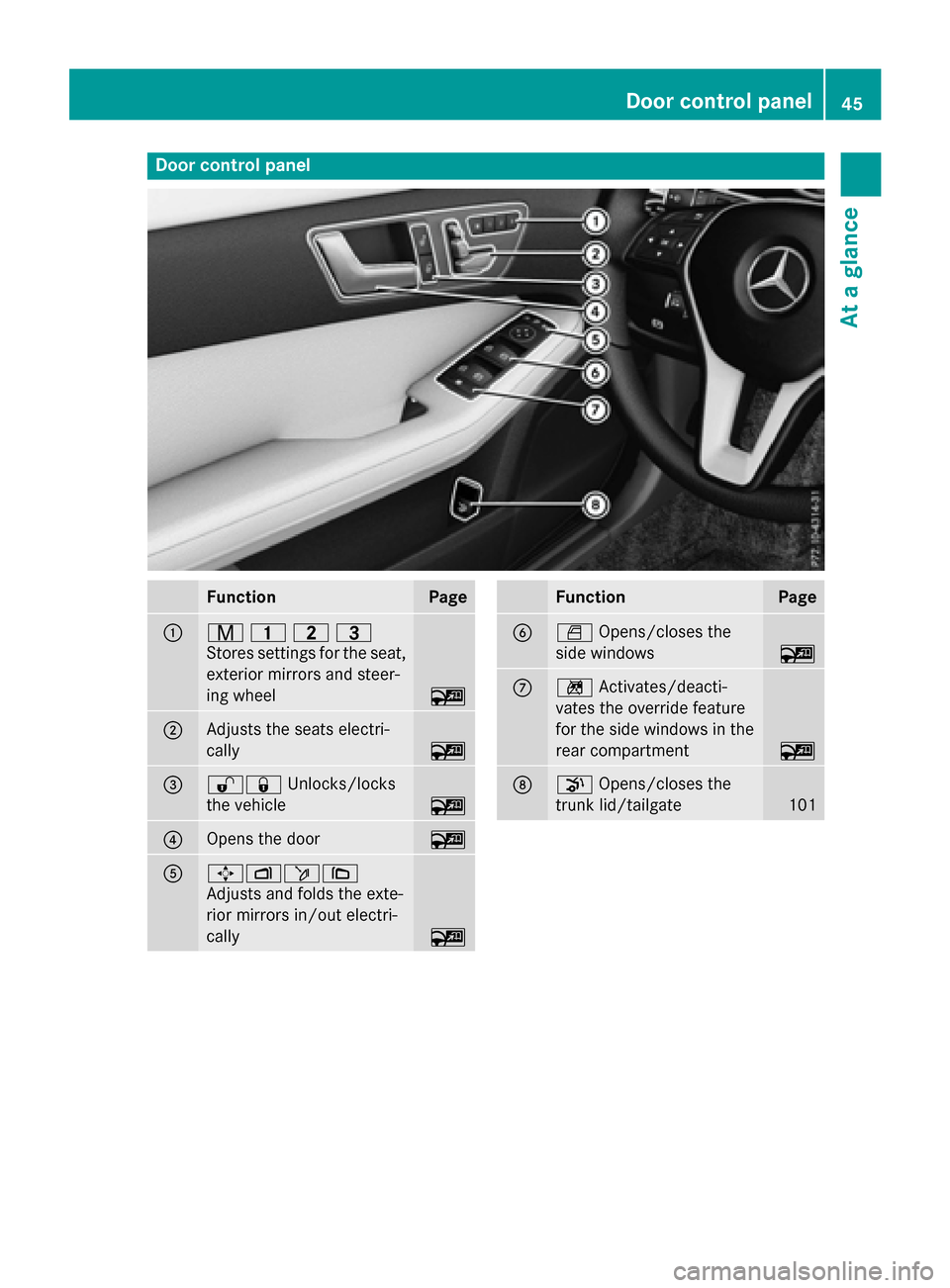

Door controlpanel
FunctionPage
:r 45=
Stores settings for the seat,
exterior mirrors and steer-
ing wheel
~
;Adjusts the seats electri-
cally
~
=%& Unlocks/locks
the vehicle
~
?Opens the door~
A7Zö\
Adjusts and folds the exte-
rior mirrors in/out electri-
cally
~
FunctionPage
BW Opens/closes the
side windows
~
Cn Activates/deacti-
vates the override feature
for the side windows in the
rear compartment
~
Dp Opens/closes the
trunk lid/tailgate
101
Door control panel45
At a glance

46

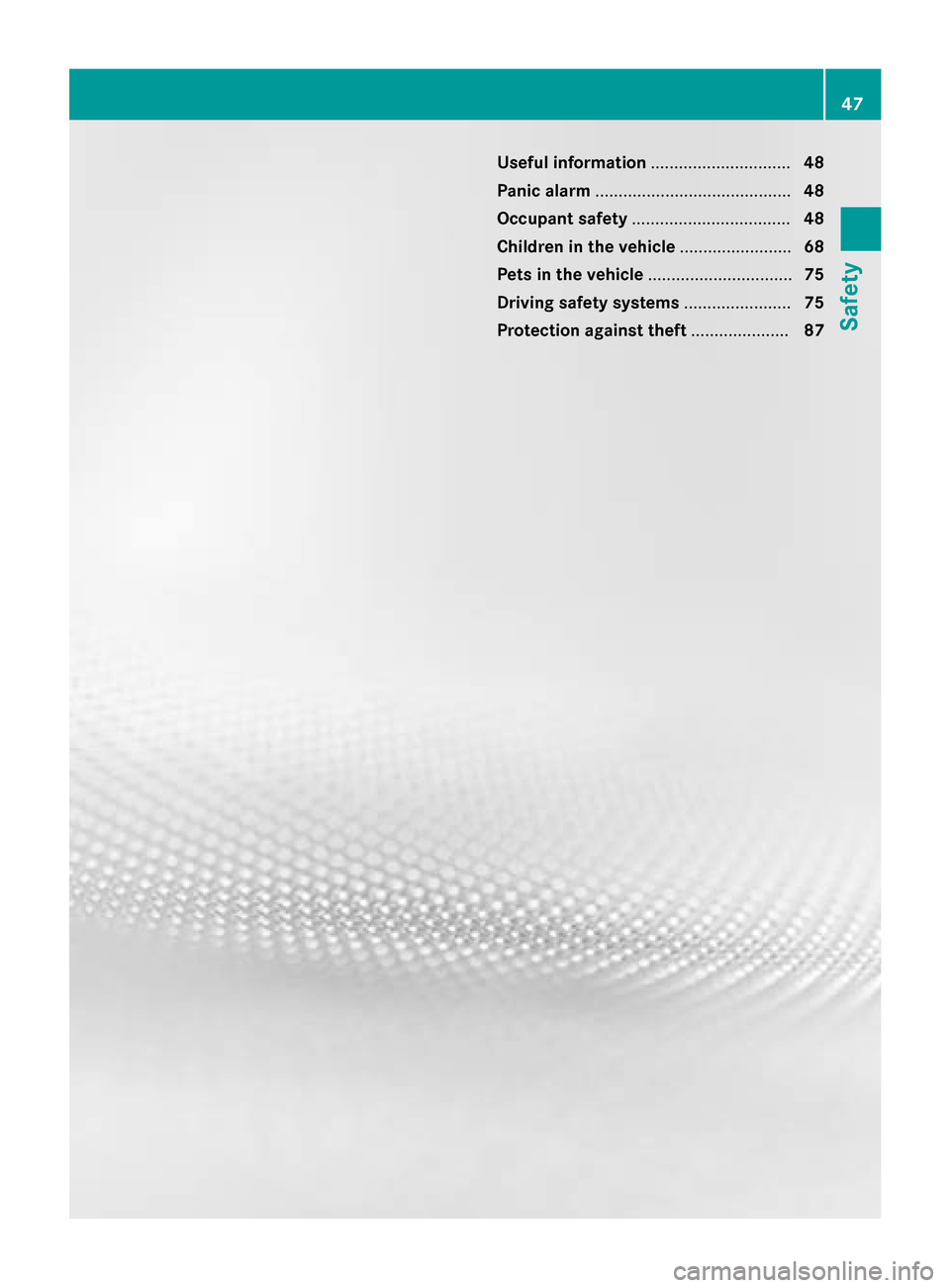

Useful information..............................48
Panic alarm .......................................... 48
Occupant safety .................................. 48
Children in the vehicle ........................68
Pets in the vehicle ............................... 75
Driving safety systems .......................75
Protection against theft .....................87
47
Safety

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 31).
Panic alarm
XTo activate: press the!button :for
approximately one second.
A visual and audible alarm is triggered if the
alarm system is armed.
XTo deactivate: press the!button :
again.
or
XInsert the SmartKey into the ignition lock.
or, on vehicles with KEYLESS ‑GO:
XPress the Start/Stop button.
The SmartKey must be in the vehicle.
Occupant safety
Restraint system: introduction
The restraint system can reduce the risk of
vehicle occupants coming into contact with
parts of the vehicle's interior in the event of
an accident. The restraint system can also
reduce the forces to which vehicle occupants
are subjected during an accident.
The restraint system comprises:
RSeat belt system
RAir bags
RChild restraint system
RChild seat securing systems
The components of the restraint system work
in conjunction with each other. They can only
deploy their protective function if, at all times,
all vehicle occupants:
Rhave fastened their seat belts correctly
(
Ypage 51)
Rhave adjusted their seat and head restraint
properly (
Ypage 115).
As the driver, you also have to make sure that
the steering wheel is adjusted correctly.
Observe the information relating to the cor-
rect driver's seat position (
Ypage 114).
You also have to make sure that an air bag can inflate properly if deployed (
Ypage 54).
An air bag supplements a correctly worn seat
belt. As an additional safety device, the air
bag increases the level of protection for vehi-
cle occupants in the event of an accident. For
example, if, in the event of an accident, the
protection offered by the seat belt is suffi-
cient, the air bags are not deployed. When an
accident occurs, only the air bags that
increase protection in that particular accident
situation are deployed. However, seat belts
and air bags generally do not protect against objects penetrating the vehicle from the out-
side.
Information on restraint system operation
can be found under "Triggering of the Emer-
gency Tensioning Devices and air bags"
(
Ypage 63).
48Occupant safety
Safety
