Page 7 of 350
Anti-Theft Alarm systemsee ATA (Anti-Theft Alarm system)
Asht ray.............................................. .251
Assistance display (on-board com-
puter) ..................................................1 90
Assistance menu (on-board com-
puter) ..................................................1 90
ASSYST PLUS
Displaying a service message ........2 66
Hiding a service message .............. 266
Notes ............................................. 266
Resetting the service interval dis-
play ................................................ 266
Service message ............................ 266
Special service requirements ......... 266
ATA (Anti-Theft Alarm system)
Activating/deactivating ................... 87
Function ...........................................8 7
Switching off the alarm .................... 87
ATTENTION ASSIST
Activating/deactivating ................. 190
Display message ............................ 191
Function/notes ............................. 175
Audio 20
Components .................................. 216
Controller ...................................... 222
Display ........................................... 217
Functions ....................................... 216
Authorized Mercedes-Benz Center
see Qualified specialist workshop
Authorized workshop
see Qualified specialist workshop
AUTO lights
Display message ............................ 191
Automatic car wash (care) ............... 267
Automatic engine start (ECO start/
stop function) .................................... 141
Automatic engine switch-off (ECO
start/stop function) .......................... 141
Automatic headlamp mode .............. 121
Automatic transmission
Accelerator pedal position ............. 144
Automatic drive program ............... 144
Changing gear ............................... 144
DIRECT SELECT lever ..................... 142
Display message ............................ 191
Drive program display .................... 143 Driving tip
s .................................... 144
Eme
rgency running mode .............. 144
Engaging drive position .................. 143
Engaging neutral ............................ 143
Engaging park position (AMG vehi-
cles) ............................................... 142
Engaging park position automati-
cally ............................................... 143
Engaging reverse gear ................... 143
Engaging the park position ............ 143
Kickdown ....................................... 144
Manual drive program .................... 144
Manual drive program (AMG vehi-
cles) ............................................... 144
Overview ........................................ 142
Problem (malfunction) ................... 144
Program selector button ................ 144
Pulling away ................................... 140
Selector lever ................................ 142
Starting the engine ........................ 140
Steering wheel paddle shifters ...... 144
Transmission position display ........ 142
Transmission position display
(DIRECT SELECT lever) ................... 143
Transmission positions .................. 144
Automatic transmission emer-
gency mode ....................................... 144
B
Back button ....................................... 222
BAS (Brake Assist System) ................. 76
BAS PLUS (Brake Assist System
PLUS) with Cross-Traffic Assist
Function/notes ................................ 76
Important safety notes .................... 77
Battery (SmartKey)
Checking .......................................... 93
Replacing ......................................... 93
Battery (vehicle)
Charging ........................................ 278
Important safety notes .................. 275
Jump starting ................................. 279
Belt
see Seat belts
Blind Spot Assist
Activating/deactivating ................. 190
Index5
Page 17 of 350
Menu (on-board computer) ............ 190
Transmission output (maximum) ....334
Modifying the programming
(SmartKey) ...........................................9 2
MOExtended tires .............................. 272
Mounting wheels
Lowering the vehicle ...................... 313
Mounting a new wheel ................... 313
Preparing the vehicle .....................3 09
Raising the vehicle ......................... 310
Removing a wheel .......................... 312
Securing the vehicle against roll-
ing away ........................................ 310
MP3
Operation ....................................... 190
see also Digital Operator's Man-
ual ..................................................2 14
see separate operating instructions
Multifunction display
Function/notes .............................1 88
Permanent display ......................... 190
Multifunction steering wheel
Operating the on-board computer .. 189
Overview .......................................... 39
Music files
see also Digital Operator's Man-
ual ..................................................2 14
N
Navigation
Menu (on-board computer) ............ 190
see also Digital Operator's Man-
ual ..................................................2 14
Showing/hiding the menu ............. 225
Switching to ................................... 225
see separate operating instructions

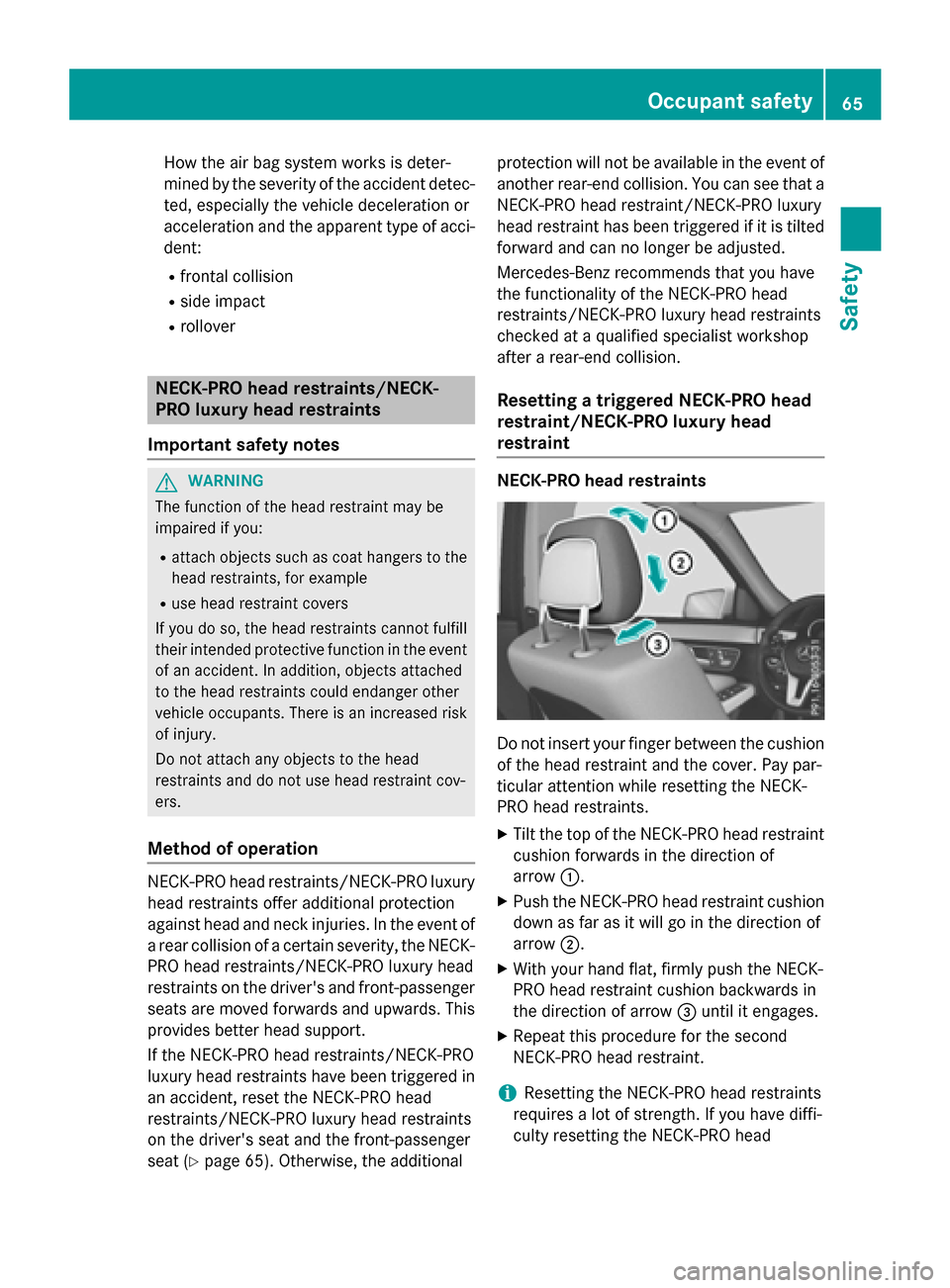

NECK-PRO head restraints
Operation ......................................... 65
Resetting triggered .......................... 65
NECK-PRO luxury head restraints
Important safety notes .................... 65
Operation ......................................... 65
Resetting when triggered ................. 66
Notes on breaking-in a new vehi-
cle ....................................................... 136
O
Occupant Classification System
(OCS)
Conditions ....................................... 58
Faults ............................................... 62
Operation ......................................... 58
System self-test ............................... 60
Occupant safety
Automatic measures after an acci-
dent ................................................. 67
Children in the vehicle ..................... 68
Important safety notes .................... 49
Introduction to the restraint sys-
tem ..................................................4 8
Occupant Classification System
(OCS) ............................................... 58
PASSENGER AIR BAG indicator
lamps ............................................... 49
Pets in the vehicle ........................... 75
PRE-SAFE
®(anticipatory occu-
pant protection) ...............................6 6
PRE-SAFE
®PLUS (anticipatory
occupant protection PLUS) .............. 67
Restraint system warning lamp ........ 49
OCS
Conditions ....................................... 58
Faults ............................................... 62
Operation ......................................... 58
System self-test ...............................6 0
Odometer .......................................... .190
Oil
see Engine oil
On-board computer
AMG menu ..................................... 190
Assistance menu ........................... 190
Audio menu ................................... 190
Convenience submenu .................. 190
Display messages .......................... 191
Displaying a service message ........2 66
DISTRONIC PLUS ........................... 161
Factory settings submenu ............. 190
Important safety notes .................. 188
Instrument cluster submenu .......... 190
Lighting submenu .......................... 190
Menu overview ..................... ......... 190
Message memory .......................... 191
Na
vigation menu ............................ 190
Index15
Page 18 of 350
Operation ....................................... 189
RACETIMER ................................... 190
Service menu ................................. 190
Settings menu ...............................190
Standard display ............................ 190
Telephone menu ............................ 190
Trip menu ...................................... 190
Vehicle submenu ........................... 190
Video DVD operation ..................... 190
Online and Internet functions
Enabling a mobile phone for Inter-
net access ..................................... 233
Manually setting the access data
of the mobile phone network pro-
vider .............................................. 233
Selecting the access data of the
mobile phone network provider ..... 233
Setting up an Internet connection .. 232
Operating safety
Declaration of conformity ................ 31
Important safety notes .................... 30
Operating system
see On-board computer
Operation
Digital Operator's Manual ................ 25
Operator's Manual
Vehicle equipment ........................... 28
Outside temperature display ........... 188
Overhead control panel ...................... 44
Override feature
Rear side windows ........................... 74
P
Paint code number ............................ 336
Paintwork (cleaning instructions) ... 268
Panic alarm .......................................... 48
Panorama roof with power tilt/
sliding panel
Important safety notes .................. 106
Opening/closing ............................ 108
Opening/closing the roller sun-
blind ............................................... 109
Problem (malfunction) ................... 111
Resetting ....................................... 109
Parking
Important safety notes .................. 151
Parking brake ................................ 152 Position of exterior mirror, front-
passenger side ............................... 117
Rear view camera .......................... 171
see PARKTRONIC
Parking aid
Active Parking Assist ..................... 170
see Exterior mirrors
see PARKTRONIC
Parking assistance
see PARKTRONIC
Parking brake
Display message ............................ 191
Notes/function .............................. 152
PARKTRONIC
Deactivating/activating ................. 170
Driving system ............................... 168
Function/notes ............................. 168
Important safety notes .................. 168
Problem (malfunction) ................... 170
Range of the sensors ..................... 169
Warning display ............................. 170
PASSENGER AIR BAG
Display message ............................ 198
Problems (malfunction) .................. 198
PASSENGER AIR BAG OFF
Indicator lamp .................................. 49
Pets in the vehicle ............................... 75
Phone book
see also Digital Operator's Man-
ual .................................................. 214
Phone call
Dialing ........................................... 232
Plastic hooks ..................................... 242
Plastic trim (cleaning instruc-
tions) .................................................. 268
Power washers .................................. 268
Power windows
see Side windows
PRE-SAFE
®(anticipatory occupant
protection)
Display message ............................ 191
Operation ......................................... 66
PRE-SAFE
®Brake
Activating/deactivating ................. 190
Display message ............................ 191
Function/notes ................................ 84
Important safety notes .................... 85
16Index
Page 21 of 350
Setting the timesee also Digital Operator's Man-
ual .................................................. 214
Settings
Factory (on-board computer) ......... 190
On-board computer ....................... 190
SETUP (on-board computer) .............190
Side impact air bag .............................5 6
Side marker lamp (display mes-
sage) ................................................... 191
Side windows
Cleaning ......................................... 268
Important safety information ......... 104
Opening/closing (all) ..................... 105
Opening/closing (front) ................. 105
Problem (malfunction) ................... 106
Resetting ....................................... 105
SIRIUS services
see also Digital Operator's Man-
ual .................................................. 214
Sliding sunroof
Important safety notes .................. 106
Opening/closing ............................ 107
Problem (malfunction) ................... 111
Resetting ....................................... 108
see Panorama roof with power
tilt/sliding panel
SmartKey
Changing the battery ....................... 93
Changing the programming ............. 92
Checking the battery ....................... 93
Display message ............................ 191
Door central locking/unlocking ....... 90
Important safety notes .................... 90
Loss ................................................. 94
Mechanical key ................................ 92
Overview .......................................... 90
Positions (ignition lock) ................. 137
Problem (malfunction) ..................... 94
Starting the engine ........................ 140
SMS
see also Digital Operator's Man-
ual .................................................. 214
Snow chains ...................................... 291
Sockets
Center console .............................. 251
General notes ................................ 251
Luggage compartment ................... 251 Rear compartment ......................... 251
Spare wheel
Stowing .......................................... 330
Special seat belt retractor .................. 69
Specialist workshop ............................ 31
Speed, controlling
see Cru ise co
ntrol
Speedometer
In the Instrument cluster ................. 37
Segments ...................................... 188
Selecting the unit of measure-
ment .............................................. 190
see Instrument cluster
SPORT handling mode
Activating/deactivating (AMG
vehicles) .......................................... 82
Warning lamp ................................. 207
Standing lamps
Display message ............................ 191
Switching on/off ........................... 121
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 139
STEER CONTROL .................................. 86
Steering (display message) .............. 201
Steering Assist and Stop&Go Pilot
(DISTRONIC PLUS)
Activating/deactivating ................. 190
Display message ............................ 191
Steering assistant STEER CON-
TROL
see STEER CONTROL
Steering wheel
Adjusting (electrically) ................... 117
Button overview ............................... 39
Buttons (on-board computer) ......... 189
Important safety notes .................. 117
Paddle shifters ............................... 144
Steering wheel heating .................. 117
Storing settings (memory func-
tion) ............................................... 117
Steering wheel (cleaning instruc-
tions) .................................................. 268
Steering wheel heating
Switching on/off ........................... 117
Steering wheel paddle shifters ........ 144
Stopwatch (RACETIMER) ................... 190
Index19
Page 24 of 350
Towing a trailerCleaning the trailer tow hitch ......... 268
ESP
®(Electronic Stability Pro-
gram) ...............................................8 4
Towing away
Important safety guidelines ........... 281
Installing the towing eye ................ 282
Removing the towing eye ............... 283
With both axles on the ground ....... 283
With the rear axle raised ................ 283
Towing eye ......................................... 270
Traffic reports
see also Digital Operator's Man-
ual .................................................. 214
Traffic Sign Assist
Activating/deactivating the warn-
ing function .................................... 190
Function/notes ............................. 176
Important safety notes .................. 177
Instrument cluster display ............. 177
Transfer case ..................................... 145
Transmission
see Automatic transmission
Transmission position display ......... 143
Transmission position display
(DIRECT SELECT lever) ...................... 143
Transporting the vehicle .................. 283
Trim pieces (cleaning instruc-
tions) .................................................. 268
Trip computer (on-board com-
puter) .................................................. 190
Trip odometer
Calling up ....................................... 190
Resetting (on-board computer) ...... 190
Trunk
Emergency release ........................ 103
Important safety notes .................... 96
Locking separately ......................... 102
Opening/closing (automatically
from inside) ................................... 101
Opening/closing (automatically
from outside) ................................... 98
Opening/closing (from outside,
HANDS-FREE ACCESS) .................... 99
Opening/closing (manually from
outside) ............................................ 97 Trunk lid
Display message ............................ 191
Opening dimensions ...................... 344
Trunk load (maximum) ...................... 344
Turn signals
Changing bulbs (front) ................... 125
Display mes sage ............................ 191
Sw
itching on/off ........................... 121
Two-way radio
Frequencies ................................... 334
Installation ..................................... 334
Transmission output (maximum) .... 334
Type identification plate
see Vehicle identification plate
U
UnlockingEmergency unlocking ....................... 96
From inside the vehicle (central
unlocking button) ............................. 95
V
Vanity mirror (in the sun visor) ........ 252
Vehicle
Correct use ...................................... 32
Data acquisition ............................... 33
Display message ............................ 201
Equipment ....................................... 28
Individual settings .......................... 190
Limited Warranty ............................. 32
Loading .......................................... 298
Locking (in an emergency) ............... 96
Locking (SmartKey) .......................... 90
Lowering ........................................ 313
Maintenance .................................... 29
Parking for a long period ................ 153
Pulling away ................................... 140
Raising ........................................... 310
Reporting problems ......................... 32
Securing from rolling away ............ 310
Towing away .................................. 281
Transporting .................................. 283
Unlocking (in an emergency) ........... 96
Unlocking (SmartKey) ...................... 90
Vehicle data ................................... 344
Vehicle data ....................................... 344
22Index
Page 33 of 350
an accident, no longer withstand the strain
they are designed to.
If the underbody paneling is damaged,
combustible materials such as leaves,
grass or twigs can gather between the
underbody and the underbody paneling. If
these materials come in contact with hot
parts of the exhaust system, they can catch
fire.
In such situations, have the vehicle
checked and repaired immediately at a
qualified specialist workshop. If on con-
tinuing your journey you notice that driving
safety is impaired, pull over and stop the
vehicle immediately, paying attention to
road and traffic conditions. In such cases,
consult a qualified specialist workshop.
Declarations of conformity
Vehicle components which receive
and/or transmit radio waves
USA: "The wireless devices of this vehicle
comply with Part 15 of the FCC Rules. Oper-
ation is subject to the following two condi-
tions: 1) These devices may not cause harm-
ful interference, and 2) These devices must
accept any interference received, including
interference that may cause undesired oper-
ation. Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment."
Canada: "The wireless devices of this vehicle
comply with Industry Canada license-exempt
RSS standard(s). Operation is subject to the
following two conditions: (1) These devices
may not cause interference, and (2) These
devices must accept any interference, includ-
ing interference that may cause undesired
operation of the device."
Diagnostics connection
The diagnostics connection is only intended
for the connection of diagnostic equipment at
a qualified specialist workshop.
GWARNING
If you connect equipment to the diagnostics
connection in the vehicle, itmay affect the
operation of the vehicle systems. As a result,
the operating safety of the vehicle could be
affected. There isa risk of an accident.
Do not connect any equipment to a diagnos-
tics connection inthe vehicle.
GWARNING
Objects in the driver's footwell can restrict the pedal travel or obstruct a depressed pedal.
The operating and road safety of the vehicle is
je opardized. There is a risk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficient clearance for the pedals. Do not use
loose floormats and do not place floormats on
top of one another.
!If the engine is switched off and equip-
ment on the diagnostics connection is
used, the starter battery may discharge.
Connecting equipment to the diagnostics
connection can lead to emissions monitoring
information being reset, for example. This
may lead to the vehicle failing to meet the
requirements of the next emissions test dur-
ing the main inspection.
Qualified specialist workshop
An authorized Mercedes-Benz Center is a
qualified specialist workshop. It has the nec-
essary specialist knowledge, tools and quali-
fications to correctly carry out the work
required on your vehicle. This is especially the
case for work relevant to safety.
Introduction31
Z
Page 67 of 350
How the air bag system works is deter-
mined by the severity of the accident detec-
ted, especially the vehicle deceleration or
acceleration and the apparent type of acci-
dent:
Rfrontal collision
Rside impact
Rrollover
NECK-PRO head restraints/NECK-
PRO luxury head restraints
Important safety notes
GWARNING
The function of the head restraint may be
impaired if you:
Rattach objects such as coat hangers to the
head restraints, for example
Ruse head restraint covers
If you do so, the head restraints cannot fulfill
their intended protective function in the event of an accident. In addition, objects attached
to the head restraints could endanger other
vehicle occupants. There is an increased risk
of injury.
Do not attach any objects to the head
restraints and do not use head restraint cov-
ers.
Method of operation
NECK-PRO head restraints/NECK-PRO luxury
head restraints offer additional protection
against head and neck injuries. In the event of
a rear collision of a certain severity, the NECK-
PRO head restraints/NECK-PRO luxury head
restraints on the driver's and front-passenger
seats are moved forwards and upwards. This
provides better head support.
If the NECK-PRO head restraints/NECK-PRO
luxury head restraints have been triggered inan accident, reset the NECK-PRO head
restraints/NECK-PRO luxury head restraints
on the driver's seat and the front-passenger
seat (
Ypage 65). Otherwise, the additional protection will not be available in the event of
another rear-end collision. You can see that a
NECK-PRO head restraint/NECK-PRO luxury
head restraint has been triggered if it is tilted
forward and can no longer be adjusted.
Mercedes-Benz recommends that you have
the functionality of the NECK-PRO head
restraints/NECK-PRO luxury head restraints
checked at a qualified specialist workshop
after a rear-end collision.
Resetting a triggered NECK-PRO head
restraint/NECK-PRO luxury head
restraint
NECK-PRO head restraints
Do not insert your finger between the cushion
of the head restraint and the cover. Pay par-
ticular attention while resetting the NECK-
PRO head restraints.
XTilt the top of the NECK-PRO head restraint
cushion forwards in the direction of
arrow
:.
XPush the NECK-PRO head restraint cushion
down as far as it will go in the direction of
arrow ;.
XWith your hand flat, firmly push the NECK-
PRO head restraint cushion backwards in
the direction of arrow =until it engages.
XRepeat this procedure for the second
NECK-PRO head restraint.
iResetting the NECK-PRO head restraints
requires a lot of strength. If you have diffi-
culty resetting the NECK-PRO head
Occupant safety65
Safety
Z
Page 68 of 350
restraints, have this work carried out at a
qualified specialist workshop.
NECK-PRO luxury head restraints
Do not insert your finger between the cushion
of the head restraint and the cover. Pay par-
ticular attention while resetting the NECK-
PRO luxury head restraints.
XRemove resetting tool :from the vehicle
document wallet.
XSlide resetting tool :into guide ;
between the NECK-PRO luxury head
restraint and the rear cover of the head
restraint.
XPush resetting tool :downwards until you
hear the head restraint deployment mech-
anism engage.
XPull out resetting tool :.
XWith your hand flat, firmly push the NECK-
PRO luxury head restraint cushion back-
wards in the direction of arrow =until it
engages.
XRepeat this procedure for the second
NECK-PRO luxury head restraint.
XPut resetting tool :back into the vehicle
document wallet.
iIf you have difficulty resetting the NECK-
PRO luxury head restraints, have this work
carried out at a qualified specialist work-
shop.
PRE-SAFE®(anticipatory occupant
protection system)
Introduction
In certain hazardous situations, PRE-SAFE®
takes pre-emptive measures to protect the
vehicle occupants.
Important safety notes
!Make sure that there are no objects in the
footwell or behind the seats. There is a dan-
ger that the seats and/or objects could be
damaged when PRE-SAFE
®is activated.
Although your vehicle is equipped with PRE-
SAFE
®, the possibility of injury in the event of
an accident cannot be ruled out. Always
adapt your driving style to suit the prevailing
road and weather conditions and maintain a
safe distance from the vehicle in front. Drive
carefully.
Function
PRE-SAFE®intervenes:
Rin emergency braking situations, e.g. when
BAS is activated
Rin critical driving situations, e.g. when phys-
ical limits are exceeded and the vehicle
understeers or oversteers severely
Ron vehicles with the Driving Assistance
package: if BAS PLUS intervenes power-
fully or the radar sensor system detects an
imminent danger of collision in certain sit-
uations
PRE-SAFE
®takes the following measures
depending on the hazardous situation detec-
ted:
Rthe front seat belts are pre-tensioned.
Rthe front-passenger seat is adjusted if it is
in an unfavorable position.
Rif the vehicle skids, the sliding sunroof and
the side windows are closed so that only a
small gap remains. The panorama roof with
66Occupant safety
Safety
Page 106 of 350
Opening
XFold the rear seat backrest forwards
(
Ypage 241).
XRemove cargo compartment cover
(
Ypage 243).
XTake the mechanical key out of the Smart-
Key (
Ypage 92).
XInsert mechanical key;into the opening
in paneling :.
XTurn mechanical key ;90° clockwise.
XPush mechanical key ;in the direction of
the arrow and open the tailgate.
XInsert the mechanical key into the Smart-
Key.
Side windows
Important safety notes
GWARNING
While opening the side windows, body parts
could become trapped between the side win-
dow and the door frame as the side window
moves. There is a risk of injury.
Make sure that nobody touches the side win-
dow during the opening procedure. If some-
body becomes trapped, release the switch or
pull the switch to close the side window again.
GWARNING
While closing the side windows, body parts in
the closing area could become trapped. There is a risk of injury.
When closing make sure that no parts of the
body are in the closing area. If somebody
becomes trapped, release the switch or press
the switch to open the side window again.
GWARNING
If children operate the side windows they
could become trapped, particularly if they are left unsupervised. There is a risk of injury.
Activate the override feature for the rear side
windows. When leaving the vehicle, always
take the SmartKey with you and lock the vehi-
cle. Never leave children unsupervised in the
vehicle.
Side window reversing feature
The side windows are equipped with an auto-
matic reversing feature. If a solid object
blocks or restricts a side window during the
closing process, the side window opens again
automatically. However, the automatic
reversing feature is only an aid and does not
relieve you of the responsibility of paying
attention when closing a side window.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small fin-
gers
Rover the last 1/6 in(4 mm) of the closing
movement
Rduring resetting
Rwhen closing the side window again man-
ually immediately after automatic reversing
This means that the reversing feature cannot
prevent someone being trapped in these sit-
uations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
someone becomes trapped, press the switch
to open the side window again.
104Side windows
Opening and closing
Page 107 of 350
Information in the Digital Operator's
Manual
Inthe Digital Operator's Manual you willfind
information on the following topics:
ROpening and closing the side windows
RConvenience opening
RConvenience closing feature
RResetting the side windows
Side windows105
Opening and closing
Z
