MERCEDES-BENZ E-SEDAN 2016 Owners Manual

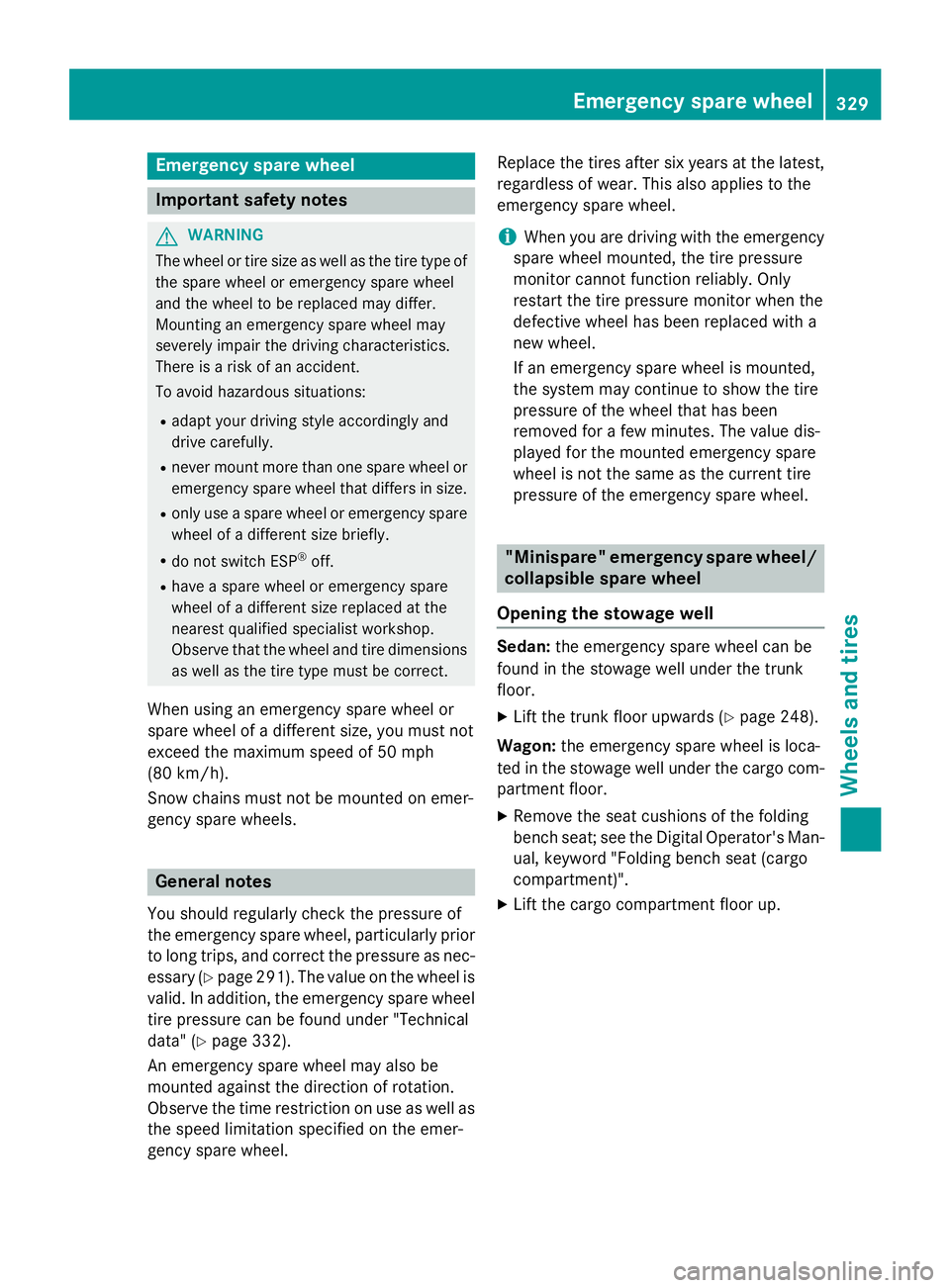

Emergency spare wheel
Important safety notes
GWARNING
The wheel or tire size as well as the tire type of the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations:
Radapt your driving style accordingly and
drive carefully.
Rnever mount more than one spare wheel or
emergency spare wheel that differs in size.
Ronly use a spare wheel or emergency spare
wheel of a different size briefly.
Rdo not switch ESP®off.
Rhave a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 50 mph
(80 km/h).
Snow chains must not be mounted on emer-
gency spare wheels.
General notes
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as nec-
essary (
Ypage 291). The value on the wheel is
valid. In addition, the emergency spare wheel
tire pressure can be found under "Technical
data" (
Ypage 332).
An emergency spare wheel may also be
mounted against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the emer-
gency spare wheel. Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
iWhen you are driving with the emergency
spare wheel mounted, the tire pressure
monitor cannot function reliably. Only
restart the tire pressure monitor when the
defective wheel has been replaced with a
new wheel.
If an emergency spare wheel is mounted,
the system may continue to show the tire
pressure of the wheel that has been
removed for a few minutes. The value dis-
played for the mounted emergency spare
wheel is not the same as the current tire
pressure of the emergency spare wheel.
"Minispare" emergency spare wheel/ collapsible spare wheel
Opening the stowage well
Sedan: the emergency spare wheel can be
found in the stowage well under the trunk
floor.
XLift the trunk floor upwards (Ypage 248).
Wagon: the emergency spare wheel is loca-
ted in the stowage well under the cargo com-
partment floor.
XRemove the seat cushions of the folding
bench seat; see the Digital Operator's Man-
ual, keyword "Folding bench seat (cargo
compartment)".
XLift the cargo compartment floor up.
Emergency spare wheel329
Wheels and tires
Z

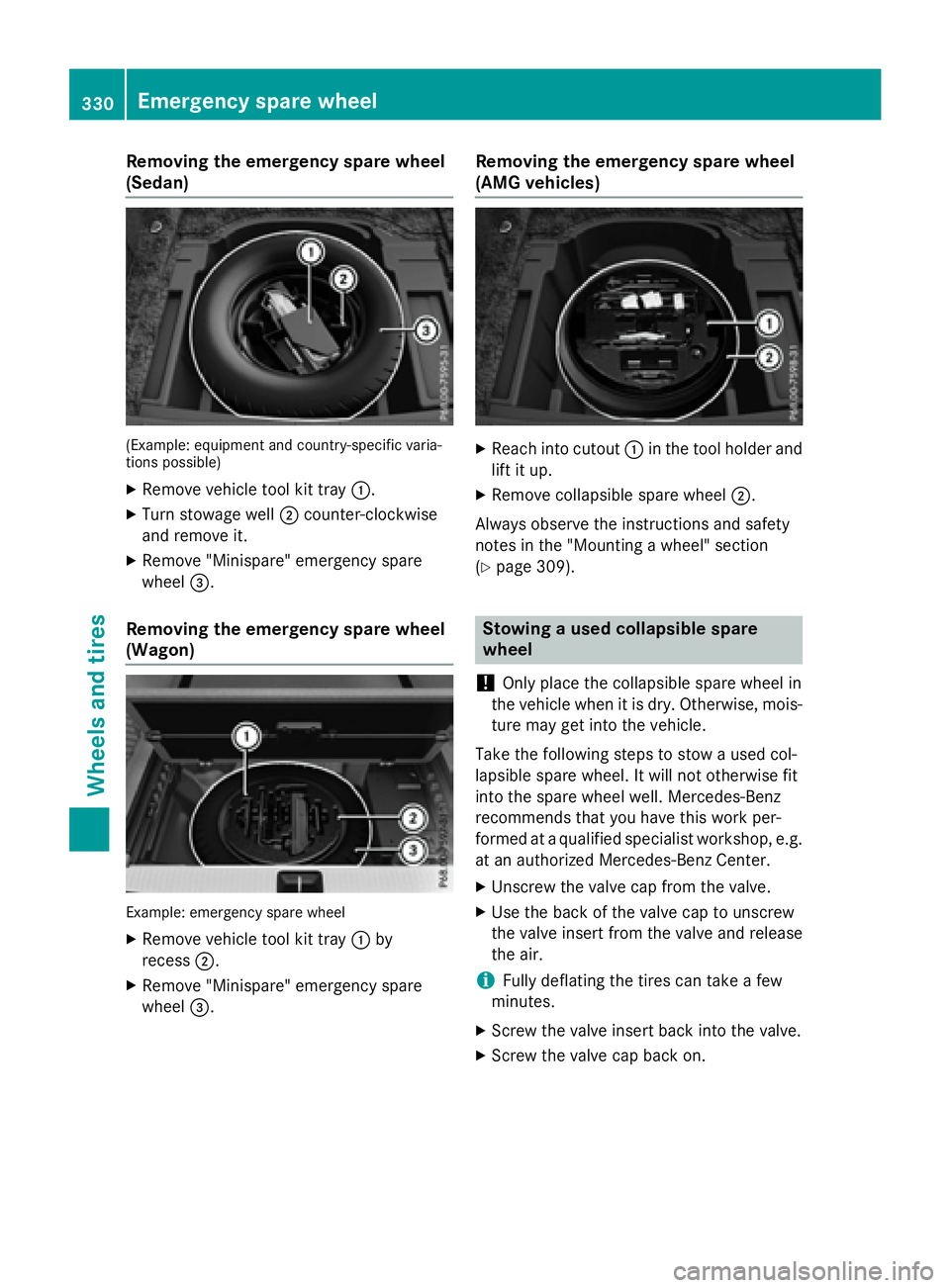

Removing the emergency spare wheel
(Sedan)
(Example: equipment and country-specific varia-
tions possible)
XRemove vehicle tool kit tray:.
XTurn stowage well;counter-clockwise
and remove it.
XRemove "Minispare" emergency spare
wheel =.
Removing the emergency spare wheel
(Wagon)
Example: emergency spare wheel
XRemove vehicle tool kit tray :by
recess ;.
XRemove "Minispare" emergency spare
wheel=.
Removing the emergency spare wheel
(AMG vehicles)
XReach into cutout :in the tool holder and
lift it up.
XRemove collapsible spare wheel ;.
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Ypage 309).
Stowing a used collapsible spare
wheel
!
Only place the collapsible spare wheel in
the vehicle when it is dry. Otherwise, mois-
ture may get into the vehicle.
Take the following steps to stow a used col-
lapsible spare wheel. It will not otherwise fit
into the spare wheel well. Mercedes-Benz
recommends that you have this work per-
formed at a qualified specialist workshop, e.g.
at an authorized Mercedes-Benz Center.
XUnscrew the valve cap from the valve.
XUse the back of the valve cap to unscrew
the valve insert from the valve and release
the air.
iFully deflating the tires can take a few
minutes.
XScrew the valve insert back into the valve.
XScrew the valve cap back on.
330Emergency spare wheel
Wheels and tires

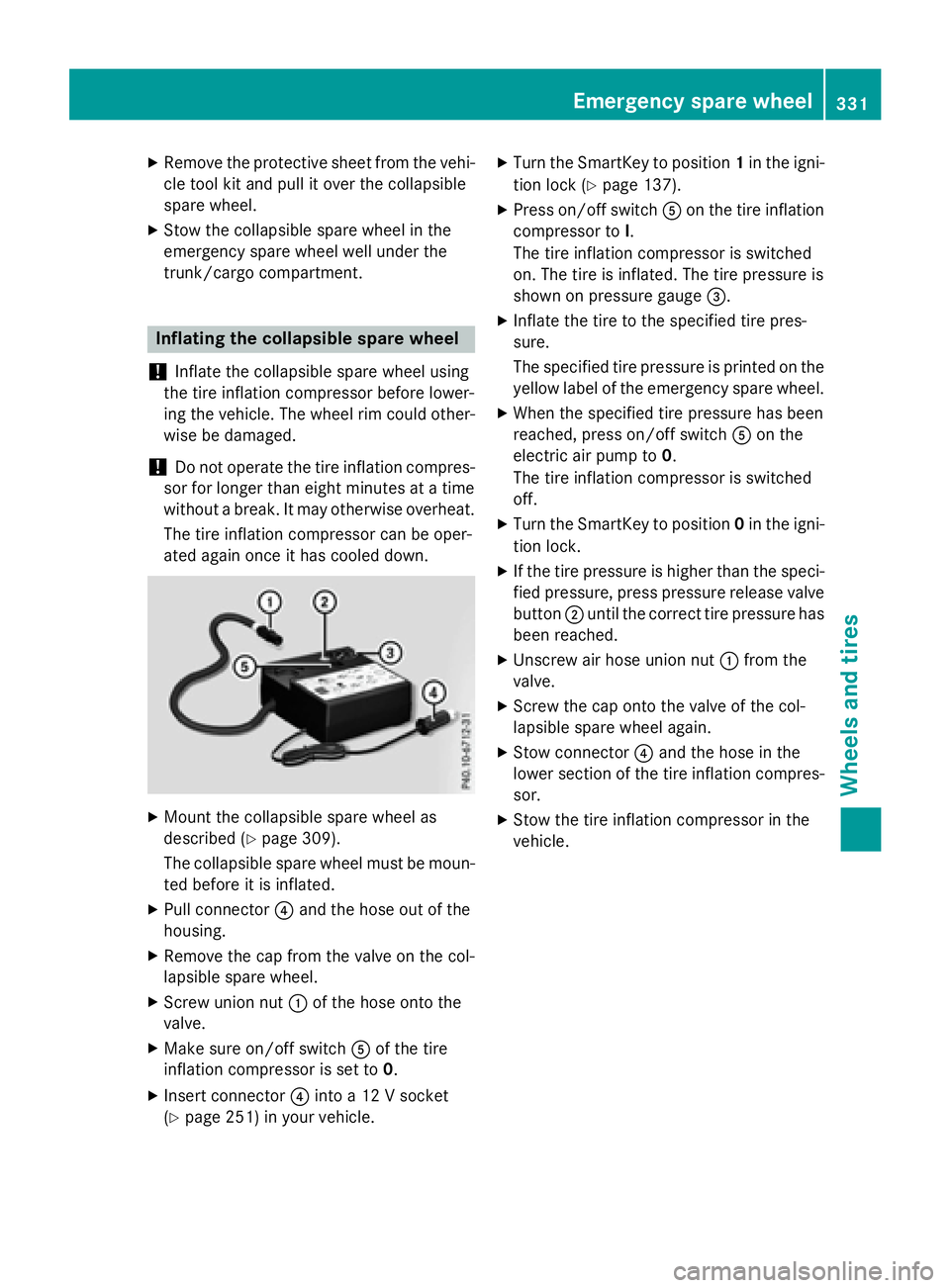

XRemove theprotective sheet from th evehi-
cle tool ki tand pull it ove rth ecollapsible
spar ewheel.
XStow th ecollapsible spar ewhee lin th e
emergenc yspar ewhee lwell under th e
trunk/carg ocompartment.
Inflating th ecollapsible spar ewheel
!
Inflat eth ecollapsible spar ewhee lusin g
th etire inflation compressor before lower -
in g th evehicle. The whee lrim could other -
wise be damaged.
!Do no toperate th etire inflation compres-
sor for longer than eigh tminute sat atime
without abreak. It may otherwise overheat .
The tire inflation compressor can be oper -
ate dagain once it has cooled down .
XMountth ecollapsible spar ewhee las
described (
Ypage 309).
The collapsible spar ewhee lmus tbe moun -
te dbefore it is inflated.
XPull connecto r? and th ehos eout of th e
housing.
XRemove th ecap from th evalv eon th ecol-
lapsible spar ewheel.
XScrew union nut :of th ehos eonto th e
valve.
XMak esur eon/off switch Aof th etire
inflation compressor is set to 0.
XInsertconnecto r? into a12 Vsocke t
(
Ypage 251) in your vehicle.
XTurn th eSmartKey to position 1in th eigni-
tion loc k (
Ypage 137).
XPress on/off switch Aon th etire inflation
compressor to I.
The tire inflation compressor is switched
on .The tire is inflated. The tire pressur eis
shown on pressur egauge =.
XInflateth etire to th especified tire pres-
sure.
The specified tire pressur eis printed on th e
yellow label of th eemergenc yspar ewheel.
XWhe nth especified tire pressur ehas been
reached, press on/off switch Aon th e
electric air pump to 0.
The tire inflation compressor is switched
off .
XTurn th eSmartKey to position 0in th eigni-
tion lock.
XIf th etire pressur eis higher than th especi-
fie dpressure, press pressur erel ease va
lv e
butto n; until th ecorrec ttire pressur ehas
been reached.
XUnscrew air hos eunion nut :from th e
valve.
XScrew th ecap onto th evalv eof th ecol-
lapsible spar ewhee lagain .
XStow connecto r? and th ehos ein th e
lower section of th etire inflation compres-
sor .
XStow th etire inflation compressor in th e
vehicle.
Emergency spare wheel331
Wheels and tires
Z

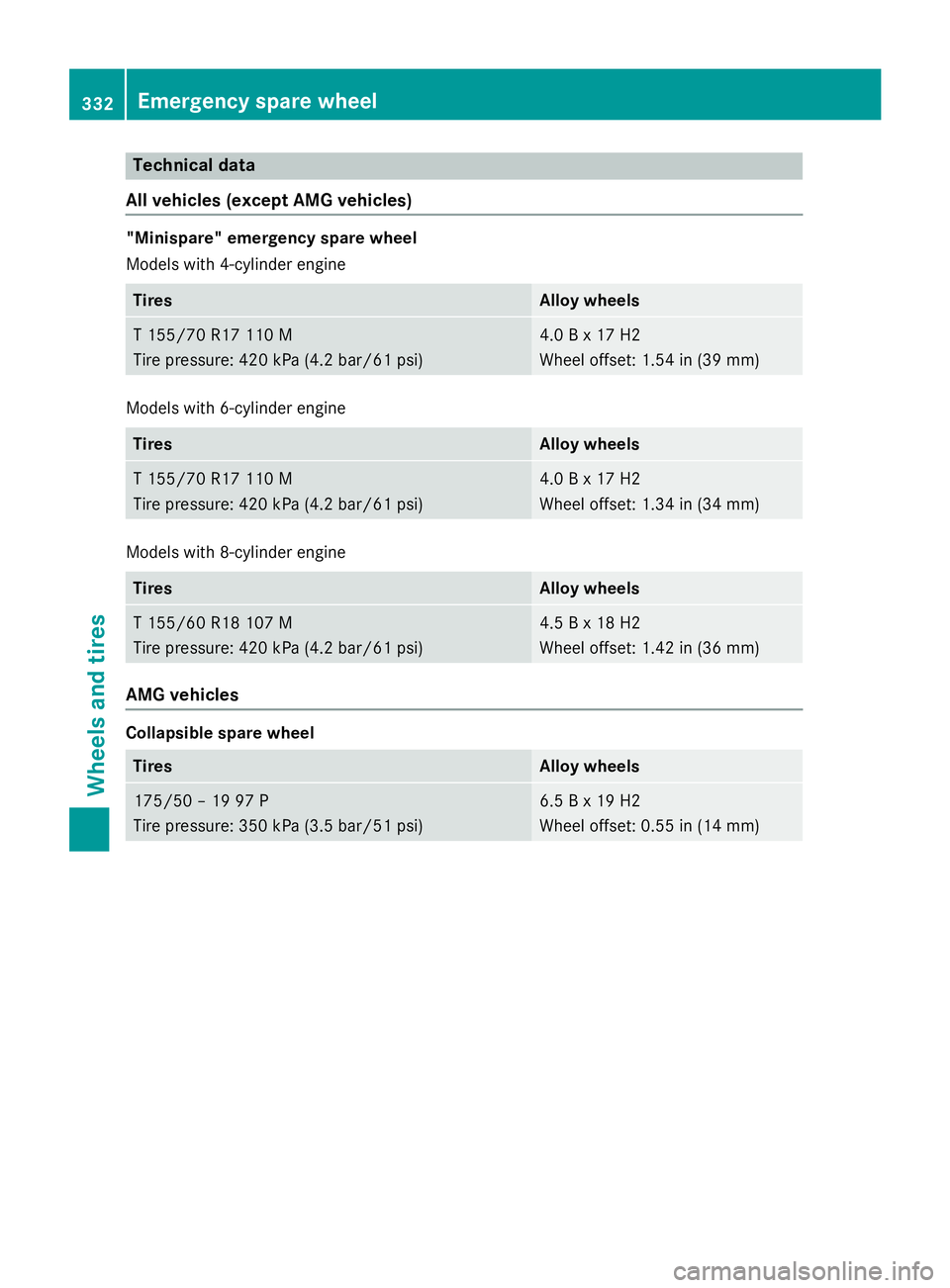

Technical data
All vehicles (except AMG vehicles)
"Minispare" emergency spare wheel
Models with 4-cylinder engine
TiresAlloy wheels
T 155/70 R1711 0 M
Tire pressure : 420 kPa (4.2 bar/61 psi)4.0 B x 17 H2
Wheel offset: 1.54 in (39 mm)
Models with 6-cylinder engine
TiresAlloy wheels
T 155/70 R17 110 M
Tire pressure: 420 kPa (4.2 bar/61 psi)4.0 B x 17 H2
Wheel offset: 1.34 in (34 mm)
Models with 8-cylinder engine
TiresAlloy wheels
T 155/60 R18 107 M
Tire pressure: 420 kPa (4.2 bar/61 psi)4.5 B x 18 H2
Wheel offset: 1.42 in (36 mm)
AMG vehicles
Collapsible spare wheel
TiresAlloy wheels
175/50 – 19 97 P
Tire pressure: 350 kPa (3.5 bar/51 psi)6.5 B x 19 H2
Wheel offset: 0.55 in (14 mm)
332Emergency spare wheel
Wheels and tires

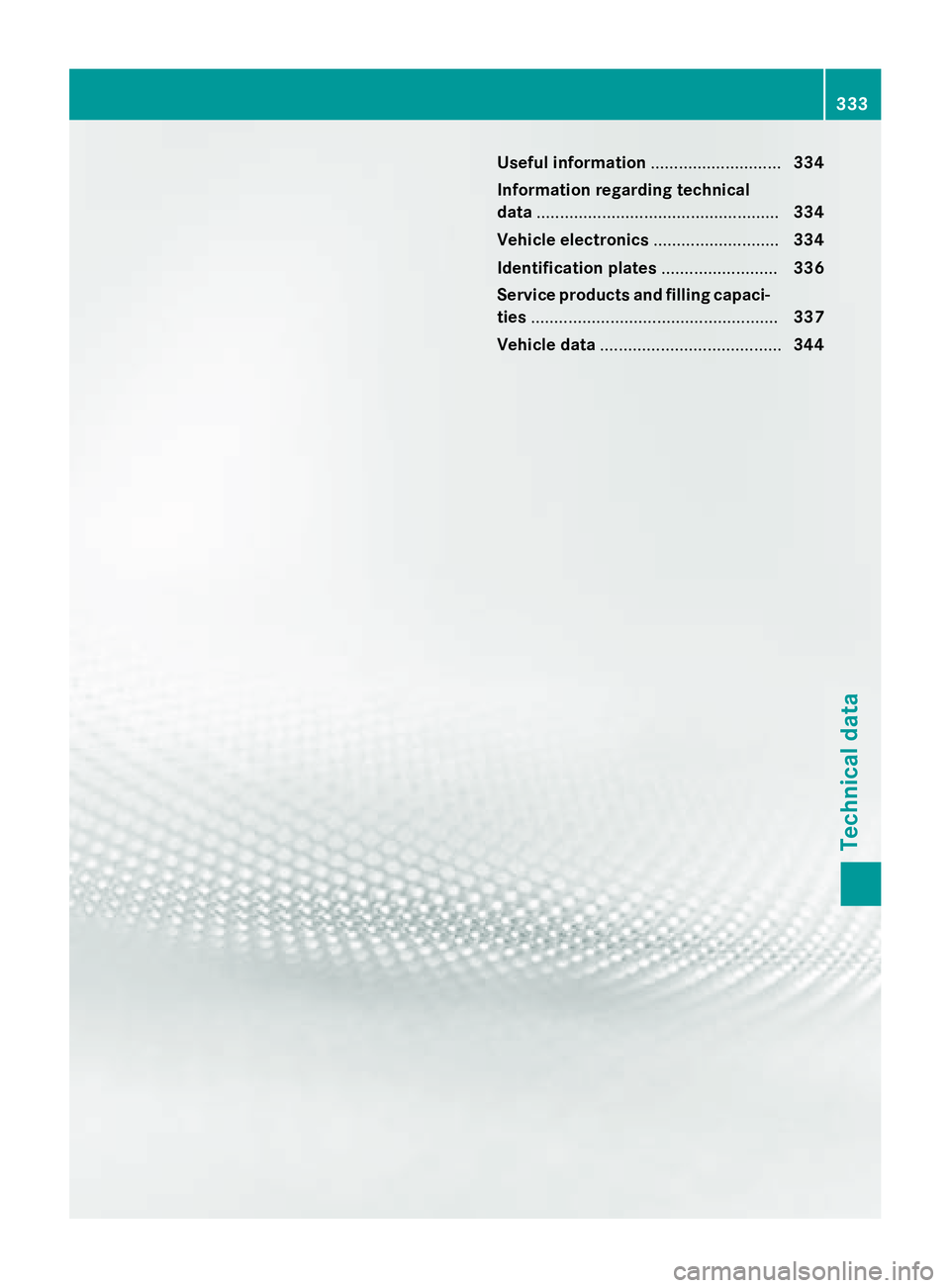

Useful information............................334
Information regarding technical
data .................................................... 334
Vehicle electronics ...........................334
Identification plates .........................336
Service products and filling capaci-
ties ..................................................... 337
Vehicle data ....................................... 344
333
Technical data

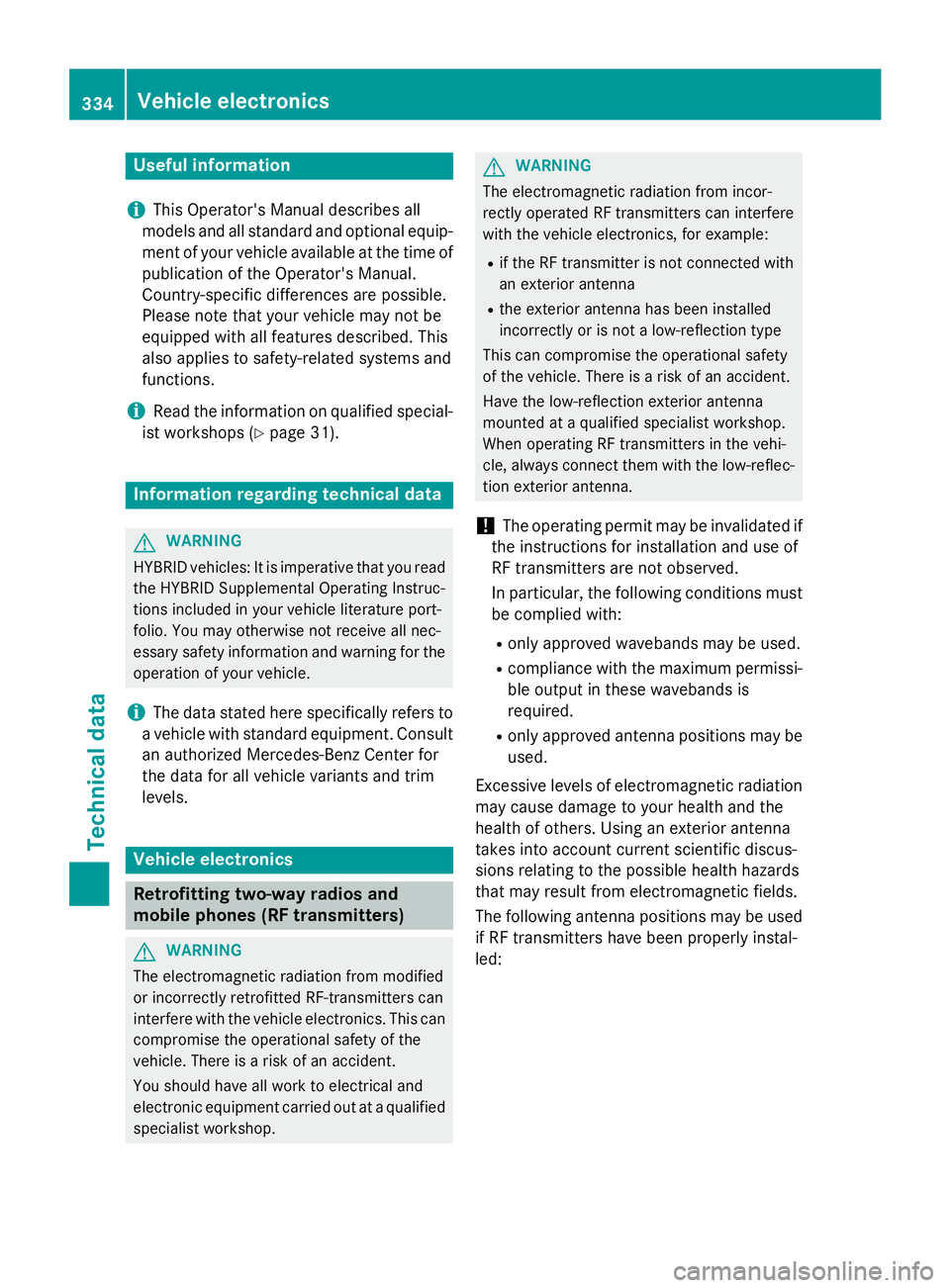

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 31).
Information regarding technical data
GWARNING
HYBRID vehicles: It is imperative that you read
the HYBRID Supplemental Operating Instruc-
tions included in your vehicle literature port-
folio. You may otherwise not receive all nec-
essary safety information and warning for the
operation of your vehicle.
iThe data stated here specifically refers to
a vehicle with standard equipment. Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels.
Vehicle electronics
Retrofitting two-way radios and
mobile phones (RF transmitters)
GWARNING
The electromagnetic radiation from modified
or incorrectly retrofitted RF-transmitters can
interfere with the vehicle electronics. This can compromise the operational safety of the
vehicle. There is a risk of an accident.
You should have all work to electrical and
electronic equipment carried out at a qualified
specialist workshop.
GWARNING
The electromagnetic radiation from incor-
rectly operated RF transmitters can interfere
with the vehicle electronics, for example:
Rif the RF transmitter is not connected with
an exterior antenna
Rthe exterior antenna has been installed
incorrectly or is not a low-reflection type
This can compromise the operational safety
of the vehicle. There is a risk of an accident.
Have the low-reflection exterior antenna
mounted at a qualified specialist workshop.
When operating RF transmitters in the vehi-
cle, always connect them with the low-reflec-
tion exterior antenna.
!The operating permit may be invalidated if
the instructions for installation and use of
RF transmitters are not observed.
In particular, the following conditions must
be complied with:
Ronly approved wavebands may be used.
Rcompliance with the maximum permissi-
ble output in these wavebands is
required.
Ronly approved antenna positions may be used.
Excessive levels of electromagnetic radiation
may cause damage to your health and the
health of others. Using an exterior antenna
takes into account current scientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.
The following antenna positions may be used if RF transmitters have been properly instal-
led:
334Vehicle electronics
Technical data

Sedan: approved antenna positions
:
Front roof area
;Rear roof area
=Rear fender
?Trunk lid
Wagon: approved antenna positions
:
Front roof area
;Rear roof area
=Rear fender
iWhen installing an antenna on the front
roof area of vehicles with a sliding sunroof,
observe the sweeping range of the roof.
On vehicles with panorama roof with power
tilt/sliding panel, installing an antenna to
the front or rear roof area is not permitted.
On the rear fenders, it is recommended to
position the antenna on the side of the
vehicle closest to the center of the road.
Use the Technical Specification ISO/TS
21609 when retrofitting RF transmitters
(Road Vehicles - EMC guidelines for installa-
tion of aftermarket radio frequency transmit-
ting equipment). Observe the legal require-
ments for retrofittings. If your vehicle has installations for two-way
radio equipment, use the power supply or
antenna connections intended for use with
the basic wiring. Be sure to observe the man-
ufacturer's additional instructions when
installing.
Deviations with respect to wavebands, maxi-
mum transmission outputs or antenna posi-
tions must be approved by Mercedes-Benz.
The maximum transmission output (PEAK) at
the base of the antenna must not exceed the
following values:
WavebandMaximum
transmission output
Short wave
3 - 54 MHz100 W
4 m waveband
74 - 88 MHz30 W
2 m waveband
144 - 174 MHz50 W
Trunked radio/Tetra
380 - 460 MHz10 W
70 cm waveband
400 - 460 MHz35 W
Mobile communications
(2G/3G/4G)10 W
The following can be used in the vehicle with-
out restrictions:
RRF transmitters with a maximum transmis-
sion output of up to 100 mW
RRF transmitters with transmission frequen-
cies in the range 380-410 MHz and a max-
imum transmission output of 2 W (Tetra)
RMobile telephones (2G/3G/4G)
Vehicle electronics335
Technical data
Z

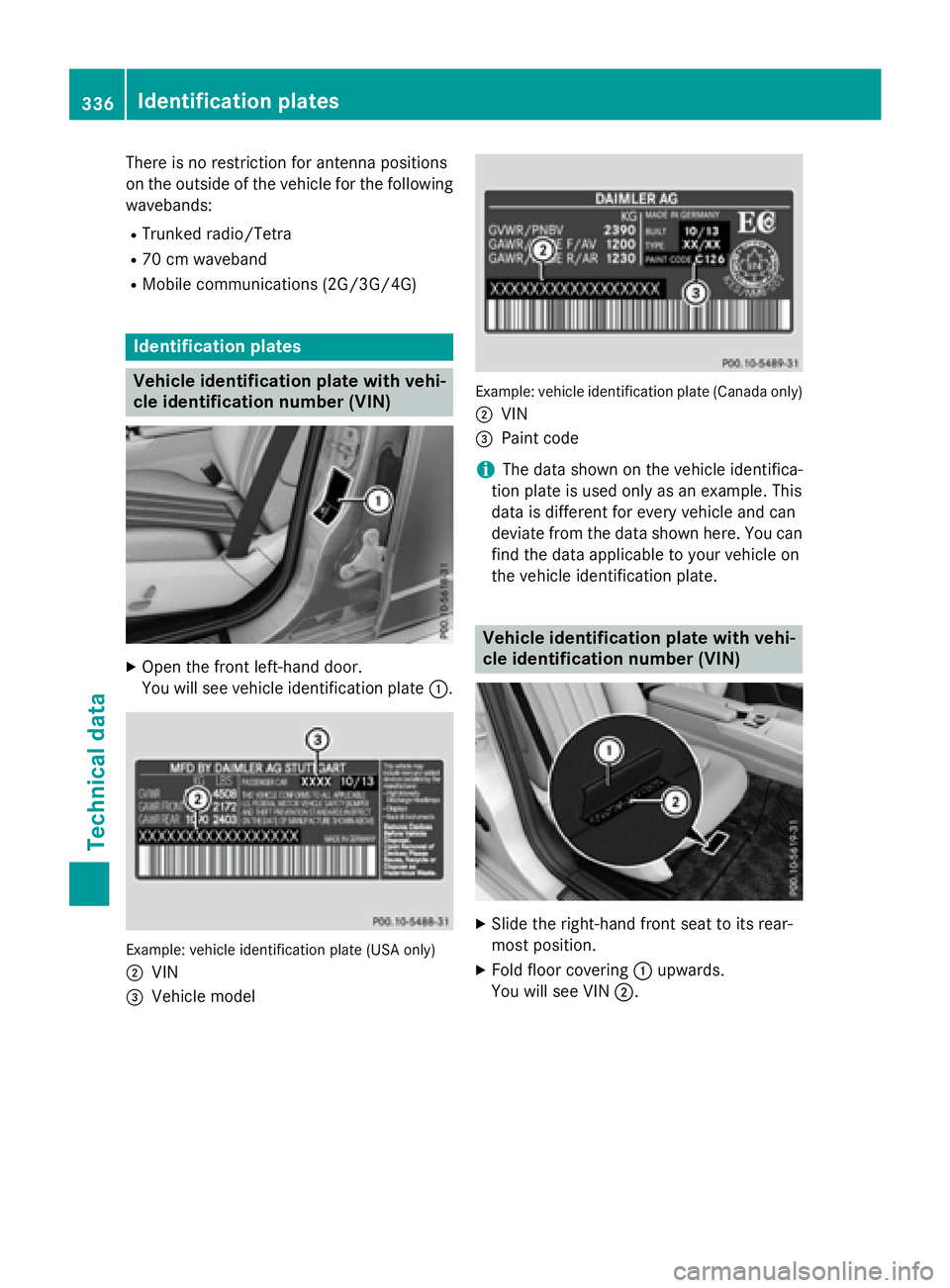

There is no restriction for antenna positions
on the outside of the vehicle for the following
wavebands:
RTrunked radio/Tetra
R70 cm waveband
RMobile communications (2G/3G/4G)
Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
XOpen the front left-hand door.
You will see vehicle identification plate:.
Example: vehicle identification plate (USA only)
;
VIN
=Vehicle model
Example: vehicle identification plate (Canada only)
;
VIN
=Paint code
iThe data shown on the vehicle identifica-
tion plate is used only as an example. This
data is different for every vehicle and can
deviate from the data shown here. You can
find the data applicable to your vehicle on
the vehicle identification plate.
Vehicle identification plate with vehi-
cle identification number (VIN)
XSlide the right-hand front seat to its rear-
most position.
XFold floor covering :upwards.
You will see VIN ;.
336Identification plates
Technical data

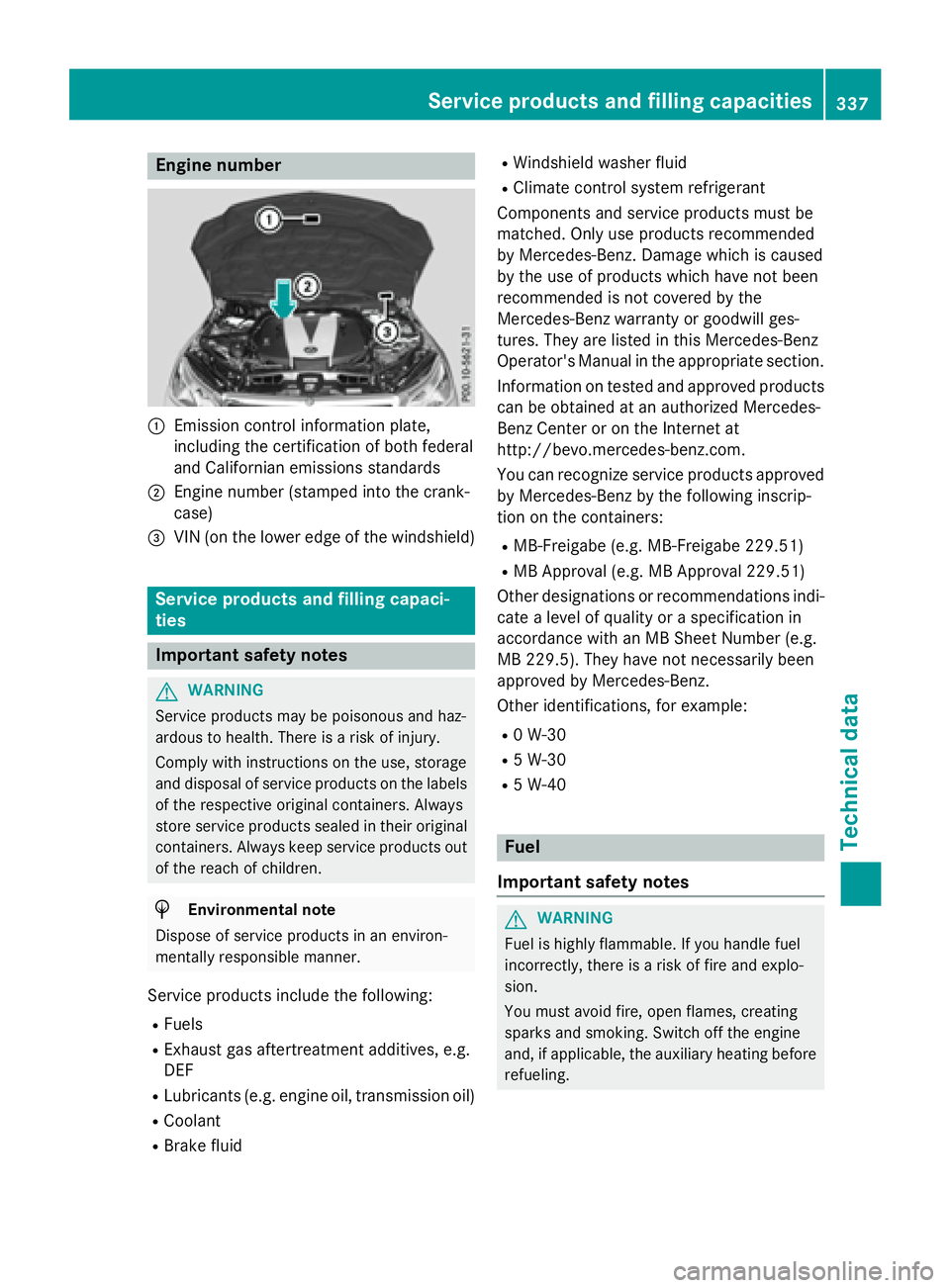

Engine number
:Emission control information plate,
including the certification of both federal
and Californian emissions standards
;Engine number (stamped into the crank-
case)
=VIN (on the lower edge of the windshield)
Service products and filling capaci-
ties
Important safety notes
GWARNING
Service products may be poisonous and haz-
ardous to health. There is a risk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels
of the respective original containers. Always
store service products sealed in their original
containers. Always keep service products out
of the reach of children.
HEnvironmental note
Dispose of service products in an environ-
mentally responsible manner.
Service products include the following:
RFuels
RExhaust gas aftertreatment additives, e.g.
DEF
RLubricants (e.g. engine oil, transmission oil)
RCoolant
RBrake fluid
RWindshield washer fluid
RClimate control system refrigerant
Components and service products must be
matched. Only use products recommended
by Mercedes-Benz. Damage which is caused
by the use of products which have not been
recommended is not covered by the
Mercedes-Benz warranty or goodwill ges-
tures. They are listed in this Mercedes-Benz
Operator's Manual in the appropriate section.
Information on tested and approved products
can be obtained at an authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com.
You can recognize service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
RMB-Freigabe (e.g. MB-Freigabe 229.51)
RMB Approval (e.g. MB Approval 229.51)
Other designations or recommendations indi-
cate a level of quality or a specification in
accordance with an MB Sheet Number (e.g.
MB 229.5). They have not necessarily been
approved by Mercedes-Benz.
Other identifications, for example:
R0 W-30
R5 W-30
R5 W-40
Fuel
Important safety notes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before refueling.
Service products and filling capacities337
Technical data
Z

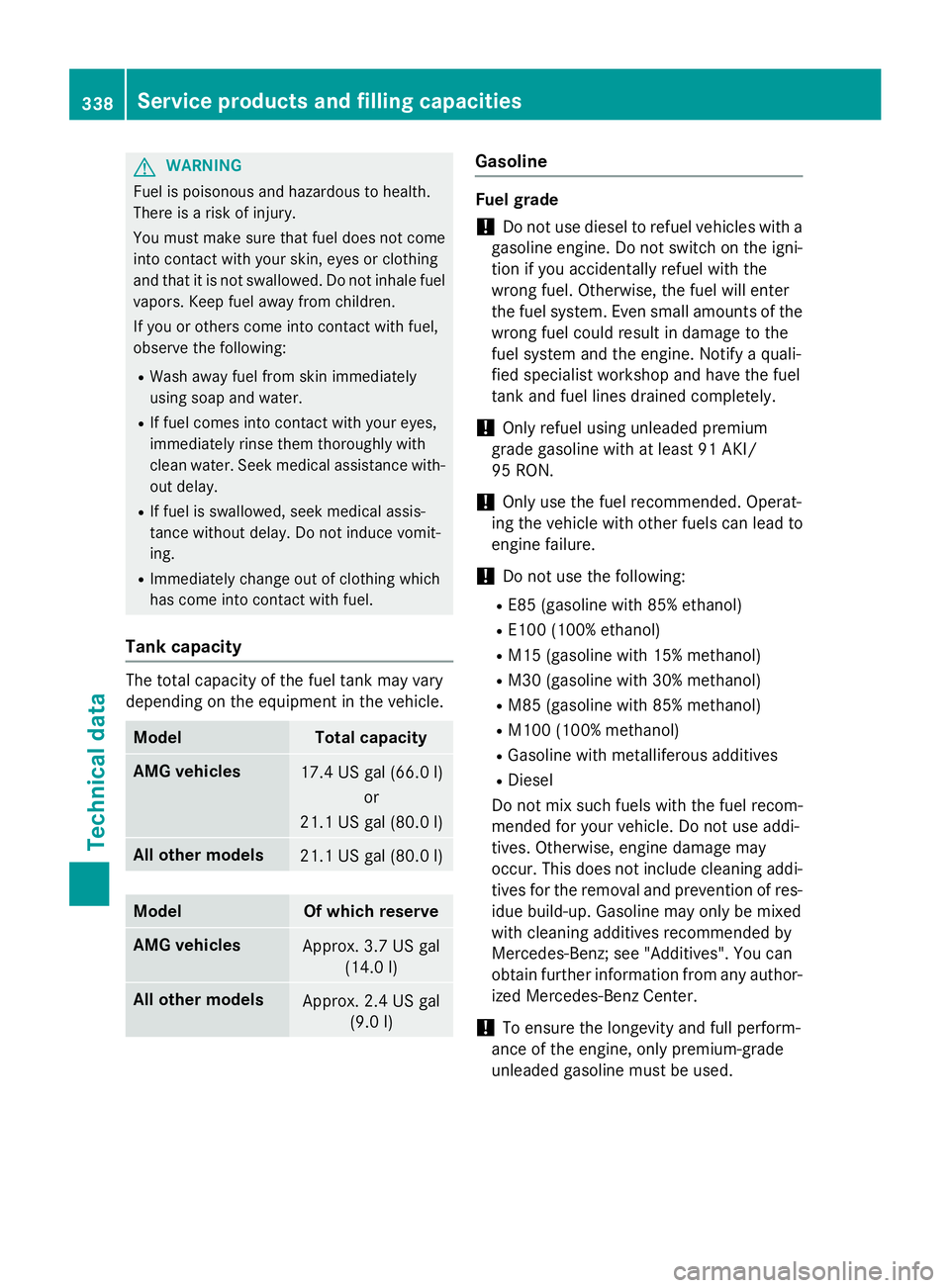

GWARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay.
RIf fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing.
RImmediately change out of clothing which
has come into contact with fuel.
Tank capacity
The total capacity of the fuel tank may vary
depending on the equipment in the vehicle.
ModelTotal capacity
AMG vehicles17.4 US gal (66.0 l)
or
21.1 US gal (80.0 l)
Allot her models21.1 US gal (80.0 l)
ModelOf which reserve
AMG vehiclesApprox. 3.7 US gal
(14.0 l)
Allot her modelsApprox. 2.4 US gal
(9.0l)
Gasoline
Fuel grade
!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni-
tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
!Only refuel using unleaded premium
grade gasoline with at least 91 AKI/
95 RON.
!Only use the fuel recommended. Operat-
ing the vehicle with other fuels can lead to
engine failure.
!Do not use the following:
RE85 (gasoline with 85% ethanol)
RE100 (100% ethanol)
RM15 (gasoline with 15% methanol)
RM30 (gasoline with 30% methanol)
RM85 (gasoline with 85% methanol)
RM100 (100% methanol)
RGasoline with metalliferous additives
RDiesel
Do not mix such fuels with the fuel recom-
mended for your vehicle. Do not use addi-
tives. Otherwise, engine damage may
occur. This does not include cleaning addi-
tives for the removal and prevention of res- idue build-up. Gasoline may only be mixed
with cleaning additives recommended by
Mercedes-Benz; see "Additives". You can
obtain further information from any author-
ized Mercedes-Benz Center.
!To ensure the longevity and full perform-
ance of the engine, only premium-grade
unleaded gasoline must be used.
338Service products and filling capacities
Technical data
