charging MERCEDES-BENZ E WAGON 2006 S211 Owner's Manual

Contents
Maximum tire inflation pressure .. 347
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 348
Tire ply material ........................... 350
Tire and loading terminology ........ 350
Rotating tires ............................... 353
Winter driving .................................... 355
Winter tires .................................. 355
Block heater* (Canada only) ........ 356
Snow chains................................. 356
Maintenance...................................... 358
Maintenance service indicator
message....................................... 358
Calling up the maintenance
service indicator display............... 360
Resetting the maintenance
service indicator........................... 361
Vehicle care ....................................... 362
Cleaning and care of vehicle ........ 362
Practical hints.................................. 371
What to do if … ................................... 372
Lamps in instrument cluster ......... 372
Lamp in center console................. 381
Vehicle status messages in the
multifunction display..................... 383
Where will I find ...? ............................ 419
First aid kit.................................... 419
Vehicle tool kit, jack and
spare wheel .................................. 419
Unlocking/locking in an emergency... 424
Unlocking the vehicle.................... 424
Locking the vehicle ....................... 425
Fuel filler flap emergency release . 425
Manually unlocking the gear
selector lever ................................ 426
Opening/closing in an emergency ..... 427
Power tilt/sliding sunroof* ........... 427
Resetting activated head restraints .... 428
Replacing SmartKey batteries ............ 429
SmartKey ...................................... 429
SmartKey with KEYLESS-GO* ....... 430Replacing bulbs .................................. 431
Bulbs............................................. 431
Replacing bulbs for front lamps .... 434
Replacing bulbs for rear lamps ..... 436
Replacing wiper blades ...................... 437
Removing front wiper blades ........ 437
Installing front wiper blades ......... 438
Removing rear wiper blade ........... 438
Installing rear wiper blade ............ 439
Flat tire............................................... 440
Preparing the vehicle .................... 440
Sealing tires with TIREFIT ............. 440
Mounting the spare wheel ............ 445
MOExtended system* ................... 451
Batteries............................................. 452
Disconnecting the battery ............ 453
Removing the battery ................... 454
Charging and reinstalling the
battery .......................................... 454
Reconnecting the battery ............. 455
Jump starting...................................... 456
Towing the vehicle.............................. 458
Installing towing eye bolt .............. 461

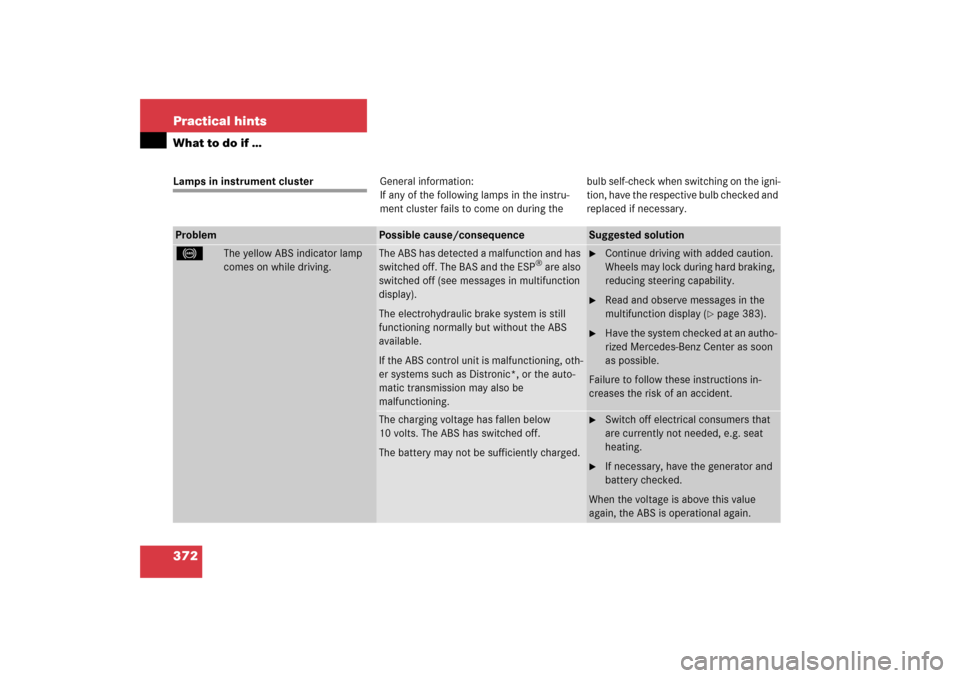

372 Practical hintsWhat to do if …Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow ABS indicator lamp
comes on while driving.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP
® are also
switched off (see messages in multifunction
display).
The electrohydraulic brake system is still
functioning normally but without the ABS
available.
If the ABS control unit is malfunctioning, oth-
er systems such as Distronic*, or the auto-
matic transmission may also be
malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the
multifunction display (
page 383).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery may not be sufficiently charged.

Switch off electrical consumers that
are currently not needed, e.g. seat
heating.

If necessary, have the generator and
battery checked.
When the voltage is above this value
again, the ABS is operational again.

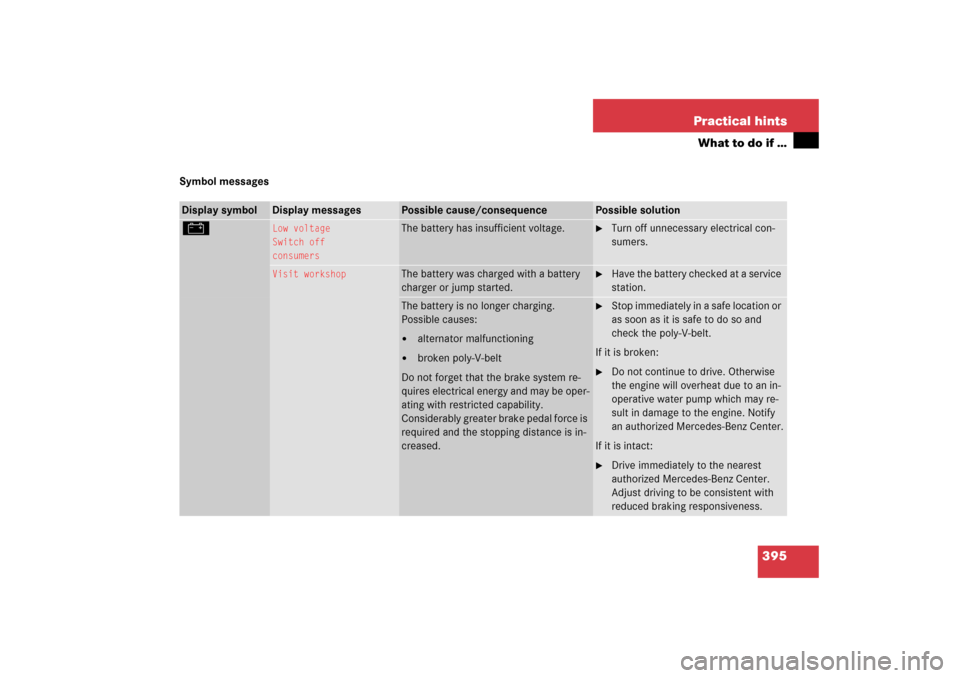

395 Practical hints
What to do if …
Symbol messagesDisplay symbol
Display messages
Possible cause/consequence
Possible solution
#
Low voltage
Switch off
consumers
The battery has insufficient voltage.

Turn off unnecessary electrical con-
sumers.
Visit workshop
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be oper-
ating with restricted capability.
Considerably greater brake pedal force is
required and the stopping distance is in-
creased.

Stop immediately in a safe location or
as soon as it is safe to do so and
check the poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest
authorized Mercedes-Benz Center.
Adjust driving to be consistent with
reduced braking responsiveness.

454 Practical hintsBatteries
Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Press the start/stop button until
the engine shuts off.

Open the driver’s door.

Open the cargo compartment.

Read and observe safety instructions
and precautions (
page 452).

Access the cargo compartment under-
neath the third row seat cushions and
footwell (
page 420).

Remove cover to access battery
(page 452).

Disconnect battery negative lead1.

Remove cover2 from the positive ter-
minal.

Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.

Remove the battery bracket.

Pull out the battery ventilation tube
from the battery (depending on battery
arrangement in your vehicle model, the
ventilation tube is located either on the
left or right side of the battery).

Take out the battery.
Charging and reinstalling the battery
Charge battery in accordance with the
instructions of the battery charger
manufacturer.Warning!
G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit* approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit* specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the bat-
tery in its installed position. Contact an au-
thorized Mercedes-Benz Center for
information and availability. Charge battery
in accordance with the separate instruc-
tions for the accessory battery charger*.


498 Index
Shift program mode selector
switch 189
Shift program mode selector switch,
Manual shift program E 55
AMG 194
Starting engine 50
Steering wheel gearshift control
one-touch gearshifting E 55
AMG 191
Winter program mode 189
B
Backrest 260
Folding rearward 261
Seat 41
Seat, multicontour 133
Backup lamps
Messages in display 409
Replacing bulbs 431
Bar 350
BAS 93, 491
Batteries, SmartKey
Changing 429, 430
Checking battery condition 110, 117
Batteries, SmartKey with KEYLESS-GO*
Changing 429, 430
Checking battery condition 117Batteries, Vehicle
Charging 454
Disconnecting 453
Installing 454
Jump starting 456
Messages in display 386, 395, 396
Reconnecting 455
Removing 454
Bead 350
Beverage holder see Cup holders
Bi-Xenon headlamps* see Headlamps
Block heater* (Canada only) 356
Brake Assist System see BAS
Brake fluid
Checking 313
Messages in display 399
Brake lamp
Cleaning lenses 365
Messages in display 409
Replacing bulbs 431
Brake pads
Message in display 397
Brakes 302
Warning lamp 374
Break-in period 300
Bulbs see Replacing bulbsC
CAC 491
California retail buyers and lessees, impor-
tant notice for 11
Can holder see Cup holders
CAN system 491
Capacities and recommended
fuel/lubricants 482
Cargo compartment
Fuse box 463
Tie-down rings 264
Cargo compartment cover 270
Cargo management system* 265
Belt reel 267
Cargo tie-down ring 266
Mounting elements 265
Telescoping rod 267
Cargo net 269
Cargo tie-down rings 264
Carpets, cleaning 368
Catalytic converter 310
CD player 162
