MERCEDES-BENZ E320 2005 W211 Owner's Manual

409 Practical hints
Where will I find ...?
Install luggage box
Insert luggage box into trunk so that
fastening clips are in line with fastening
bolts.

Push front edge of luggage box in direc-
tion of arrow under cover of trunk sill.

Press fastening clips onto fastening
bolts until they lock into place.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor
(page 407).
The vehicle tool kit includes:


One pair of universal pliers


One towing eye bolt


One wheel wrench


One alignment bolt


One fuse extractor


Spare fuses

410 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey, open the driver’s door and
the trunk using the mechanical key.
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in the direction of
the arrow and slide mechanical key2
out of the housing.Unlocking the driver’s door
3Unlocking
4Locking

Unlock the door with the mechanical
key. To do so, push the mechanical key
in the lock until it stops and turn it to
the left.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.


Press the KEYLESS-GO* start/stop
button (
page 35).

411 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
A minimum height clearance of 5.90 ft
(1.80 m) is required to open the trunk lid.
If you are unable to unlock the trunk with
the SmartKey or KEYLESS-GO*, open the
trunk with the mechanical key.
The handle is located above the rear li-
cense plate recess.
1Unlocking in an emergency
2Handle
Insert the mechanical key into the
trunk lid lock.

Turn the mechanical key counterclock-
wise to position1 and hold it in this
position.

Pull trunk lid handle2 and lift the
trunk lid.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, lock it with the mechanical
key as follows:
Close the passenger doors and the
trunk.

Press the central locking switch in the
cockpit (
page 119).

Check to see whether the locking
knobs on the passenger doors are still
visible. If necessary, push them down
manually.

Slide mechanical key2 out of the
SmartKey.

Lock the driver’s door with the me-
chanical key (
page 411).

Check if the trunk is locked.
!Always make sure there is sufficient
overhead clearance.iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press buttonŒ or‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:


Grasp the outside door handle.


Press the start/stop button.

412 Practical hintsUnlocking/locking in an emergencyFuel filler flap emergency release
In case the central locking system does
not release the fuel filler flap, you can open
it manually.
1Release knob
Open trunk lid.

Remove right-side tail trim.

Turn release knob1 clockwise (ar-
row).
The fuel filler flap can know be opened.Manually unlocking the transmission
selector lever
In the case of power failure, the transmis-
sion selector lever can be manually un-
locked, e.g. to tow the vehicle.
Depending on production date, your vehi-
cle is equipped with cup holders in either
the center console or in the center arm-
rest.
Cup holder in the center console
1Pin
Open the storage compartment in the
center console (
page 265).

Take out the cup holder (
page 266).

Hold the cover at a 45° angle.

Insert a suitable object1 (e.g. a pin)
through the hole and press the pin
downward.

Remove pin1. iThe selector lever is locked again when
moving it to positionP.

413 Practical hints
Unlocking/locking in an emergency
Cup holder in the center armrest
1Pin
Open the storage compartment in the
center armrest (
page 266).

Take out the cup holder (
page 266).

Insert a suitable object1 (e.g. a pin)
through the hole and press the pin
downward.

Remove pin1. iThe selector lever is locked again when
moving it to positionP.

414 Practical hintsOpening/closing in an emergencyPower tilt/sliding sunroof* or panora-ma roof with power tilt/sliding panel*
You can open or close the tilt/sliding sun-
roof or tilt/sliding panel manually should
an electrical malfunction occur.
The tilt/sliding sunroof or tilt/sliding panel
drive is located behind lens1 of the inte-
rior overhead light.
1Cover
Remove the SmartKey from the starter
switch.

Press on cover1 in direction of the ar-
row to release it.2Hole
3Crank

Take crank3 out of the glove box.

Insert crank3 through hole2.

Turn crank3 clockwise to:

slide roof panel/sunroof closed


raise roof panel/sunroof at the rear

Turn crank3 counterclockwise to:

slide roof panel/sunroof open


lower roof panel/sunroof at the
rear
iTurn crank3 slowly and smoothly.
The tilt/sliding sunroof or tilt/sliding
panel must be synchronized after being
operated manually (
page 225) or
(
page 229).

415 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
SmartKey
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key1
(page 410).
1Mechanical key
2Battery compartment

Insert the mechanical key1 in side
opening and push gray slide.
Battery compartment2 is unlatched.

Pull battery compartment2 out of the
housing in direction of arrow.

Remove the batteries.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make
sure they are clean and free of lint.iWhen replacing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz Cen-
ter.

416 Practical hintsReplacing SmartKey batteries3Battery
4Contact spring
Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.
SmartKey with KEYLESS-GO*
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove mechanical key (
page 410).
1Battery
2Tilt battery up
3Mechanical key

Insert the mechanical key3 in side
opening and push grey slide.
Battery compartment is unlatched.

Pull battery compartment out of the
housing in direction of arrow.

Using mechanical key3 apply pres-
sure to position2.
Battery1 tilts up slightly.

Pull out batteries1 in direction of ar-
row.

Using a lint-free cloth, insert new bat-
teries with the plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.

417 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.
iSubstitute bulbs will be brought into
use when lamps malfunction. Observe
the messages in the multifunction dis-
play (
page 392).

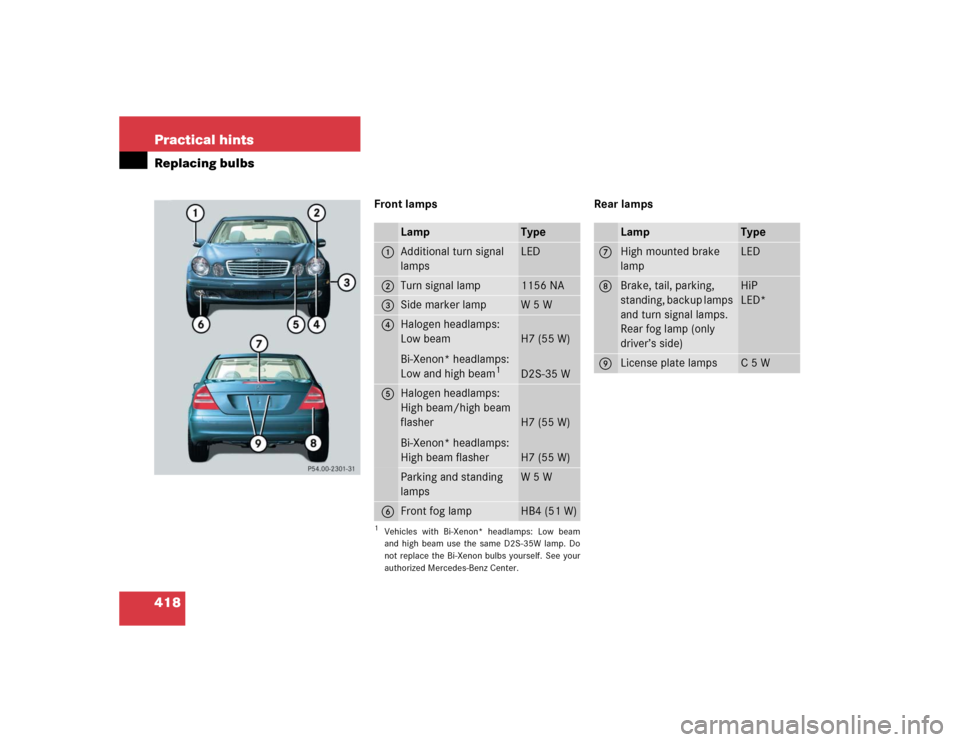

418 Practical hintsReplacing bulbs
Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
lamps
LED
2
Turn signal lamp
1156 NA
3
Side marker lamp
W 5 W
4
Halogen headlamps:
Low beam
Bi-Xenon* headlamps:
Low and high beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Bi-Xenon bulbs yourself. See your
authorized Mercedes-Benz Center.
H7 (55 W)
D2S-35 W
5
Halogen headlamps:
High beam/high beam
flasher
Bi-Xenon* headlamps:
High beam flasher
H7 (55 W)
H7 (55 W)
Parking and standing
lamps
W 5 W
6
Front fog lamp
HB4 (51 W)
Lamp
Type
7
High mounted brake
lamp
LED
8
Brake, tail, parking,
standing, backup lamps
and turn signal lamps.
Rear fog lamp (only
driver’s side)
HiP
LED*
9
License plate lamps
C5W
