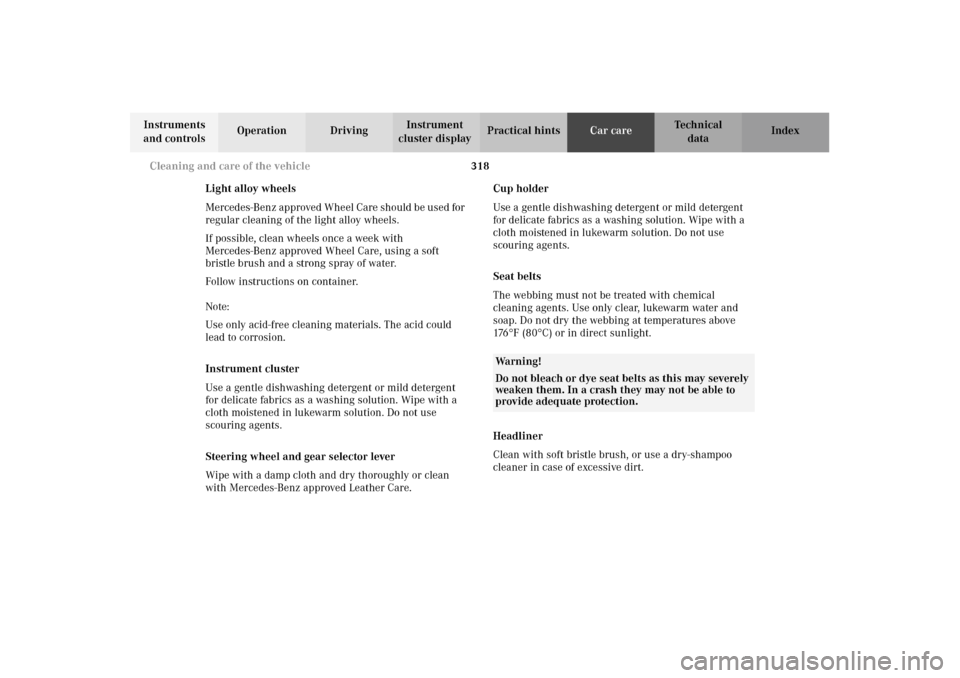

318 Cleaning and care of the vehicle
Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints IndexTe ch n i c a l
data Car care
Light alloy wheels
Mercedes-Benz approved Wheel Care should be used for
regular cleaning of the light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, using a soft
bristle brush and a strong spray of water.
Follow instructions on container.
Note:
Use only acid-free cleaning materials. The acid could
lead to corrosion.
Instrument cluster
Use a gentle dishwashing detergent or mild detergent
for delicate fabrics as a washing solution. Wipe with a
cloth moistened in lukewarm solution. Do not use
scouring agents.
Steering wheel and gear selector lever
Wipe with a damp cloth and dry thoroughly or clean
with Mercedes-Benz approved Leather Care.Cup holder
Use a gentle dishwashing detergent or mild detergent
for delicate fabrics as a washing solution. Wipe with a
cloth moistened in lukewarm solution. Do not use
scouring agents.
Seat belts
The webbing must not be treated with chemical
cleaning agents. Use only clear, lukewarm water and
soap. Do not dry the webbing at temperatures above
176
°F (80
°C) or in direct sunlight.
Headliner
Clean with soft bristle brush, or use a dry-shampoo
cleaner in case of excessive dirt.
Wa r n i n g !
Do not bleach or dye seat belts as this may severely
weaken them. In a crash they may not be able to
provide adequate protection.

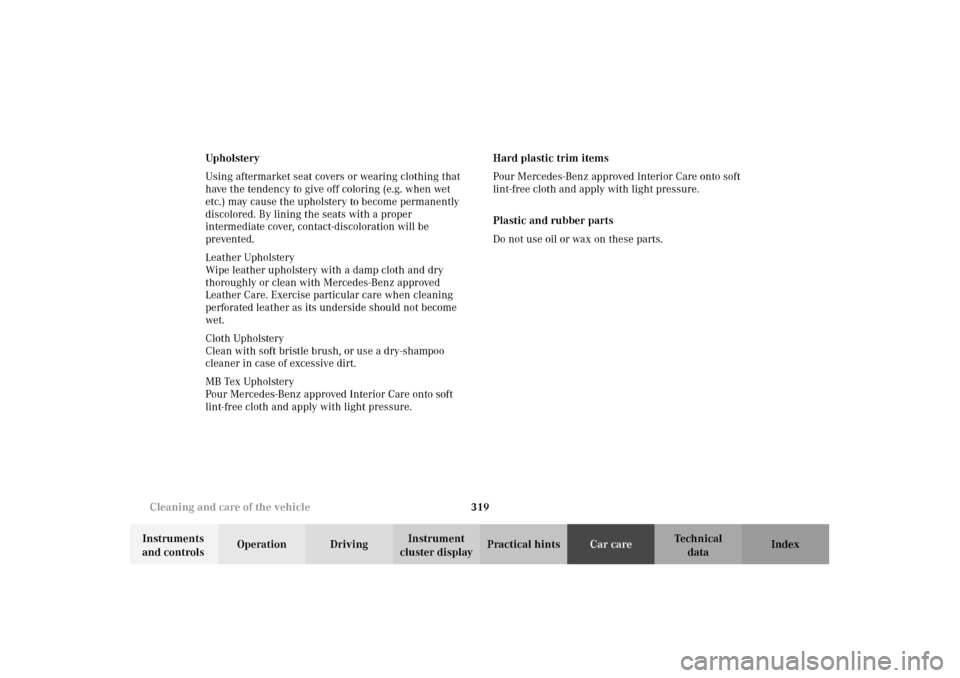

319 Cleaning and care of the vehicle
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar careIndex Upholstery
Using aftermarket seat covers or wearing clothing that
have the tendency to give off coloring (e.g. when wet
etc.) may cause the upholstery to become permanently
discolored. By lining the seats with a proper
intermediate cover, contact-discoloration will be
prevented.
Leather Upholstery
Wipe leather upholstery with a damp cloth and dry
thoroughly or clean with Mercedes-Benz approved
Leather Care. Exercise particular care when cleaning
perforated leather as its underside should not become
wet.
Cloth Upholstery
Clean with soft bristle brush, or use a dry-shampoo
cleaner in case of excessive dirt.
MB Tex Upholstery
Pour Mercedes-Benz approved Interior Care onto soft
lint-free cloth and apply with light pressure.Hard plastic trim items
Pour Mercedes-Benz approved Interior Care onto soft
lint-free cloth and apply with light pressure.
Plastic and rubber parts
Do not use oil or wax on these parts.

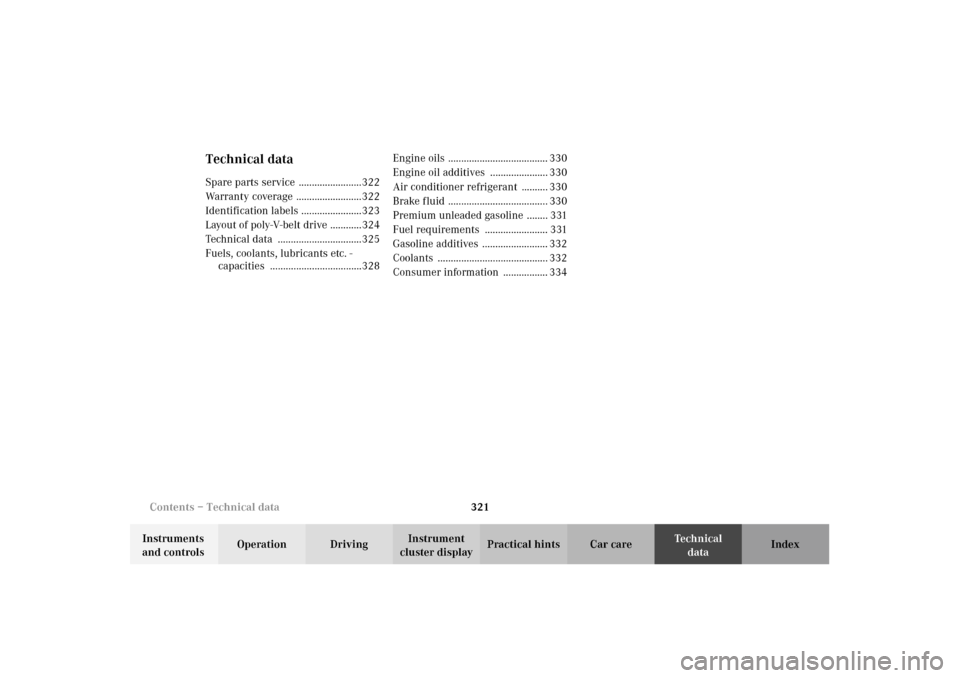

321 Contents – Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Technical dataSpare parts service ........................322
Warranty coverage .........................322
Identification labels .......................323
Layout of poly-V-belt drive ............324
Technical data ................................325
Fuels, coolants, lubricants etc. -
capacities ...................................328Engine oils ...................................... 330
Engine oil additives ...................... 330
Air conditioner refrigerant .......... 330
Brake fluid ...................................... 330
Premium unleaded gasoline ........ 331
Fuel requirements ........................ 331
Gasoline additives ......................... 332
Coolants .......................................... 332
Consumer information ................. 334

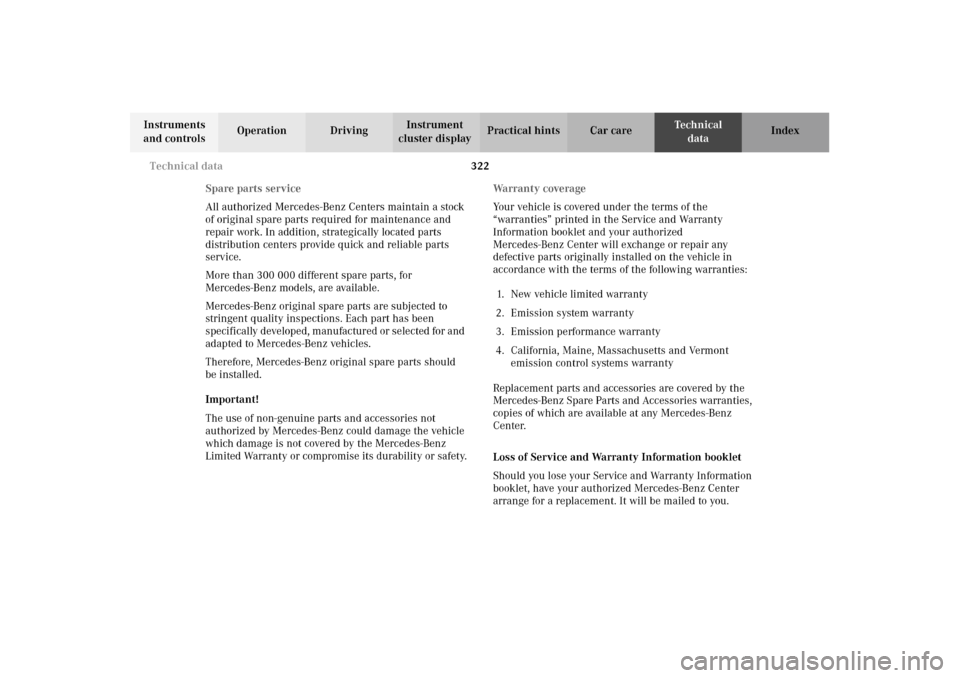

322 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
which damage is not covered by the Mercedes-Benz
Limited Warranty or compromise its durability or safety.Warranty coverage
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission system warranty
3. Emission performance warranty
4. California, Maine, Massachusetts and Vermont
emission control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.

323 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Identification labels
1Certification label2Vehicle Identification Number (VIN)
P63.20-2368-26

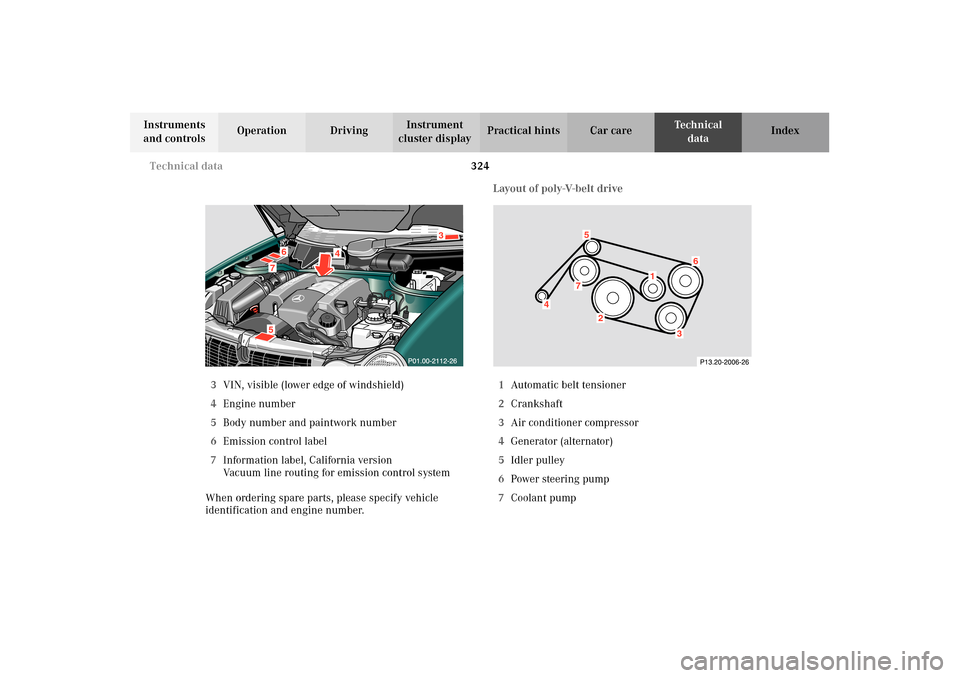

324 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
3VIN, visible (lower edge of windshield)
4Engine number
5Body number and paintwork number
6Emission control label
7Information label, California version
Vacuum line routing for emission control system
When ordering spare parts, please specify vehicle
identification and engine number.Layout of poly-V-belt drive
1Automatic belt tensioner
2Crankshaft
3Air conditioner compressor
4Generator (alternator)
5Idler pulley
6Power steering pump
7Coolant pump
6
7
4
3
5
6
5
1
2
3
7
4

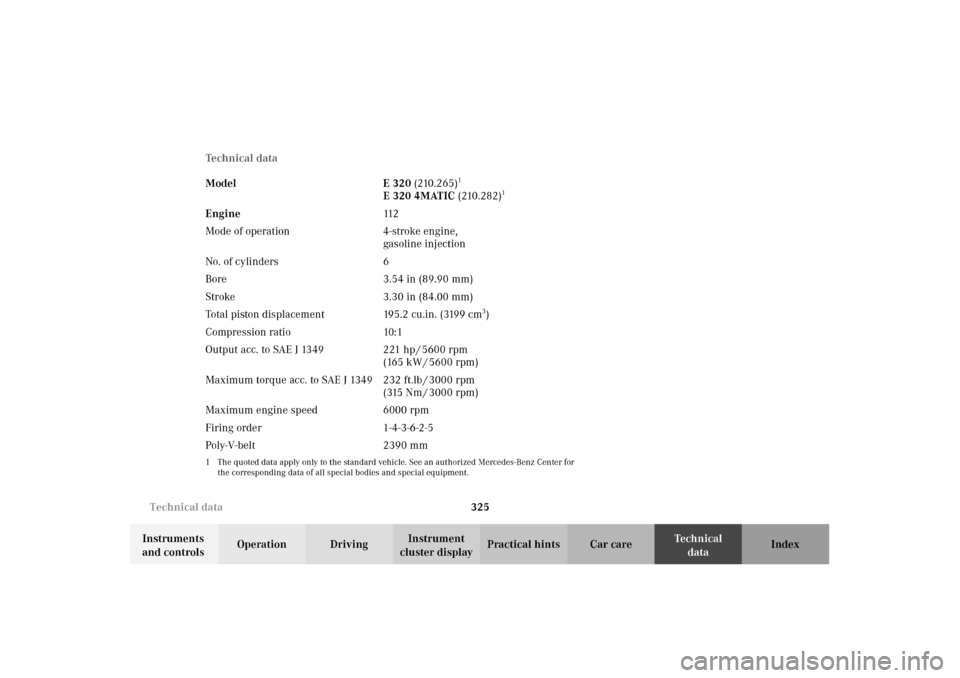

325 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Te ch n i c a l d a t a
Model E 320 (210.265)
1
E 320 4MATIC (210.282)
1
Engine11 2
Mode of operation 4-stroke engine,
gasoline injection
No. of cylinders 6
Bore 3.54 in (89.90 mm)
Stroke 3.30 in (84.00 mm)
Total piston displacement 195.2 cu.in. (3199 cm
3)
Compression ratio 10:1
Output acc. to SAE J 1349 221 hp / 5600 rpm
(165 kW / 5600 rpm)
Maximum torque acc. to SAE J 1349 232 ft.lb / 3000 rpm
(315 Nm / 3000 rpm)
Maximum engine speed 6000 rpm
Firing order 1-4-3-6-2-5
Poly-V-belt 2390 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for
the corresponding data of all special bodies and special equipment.

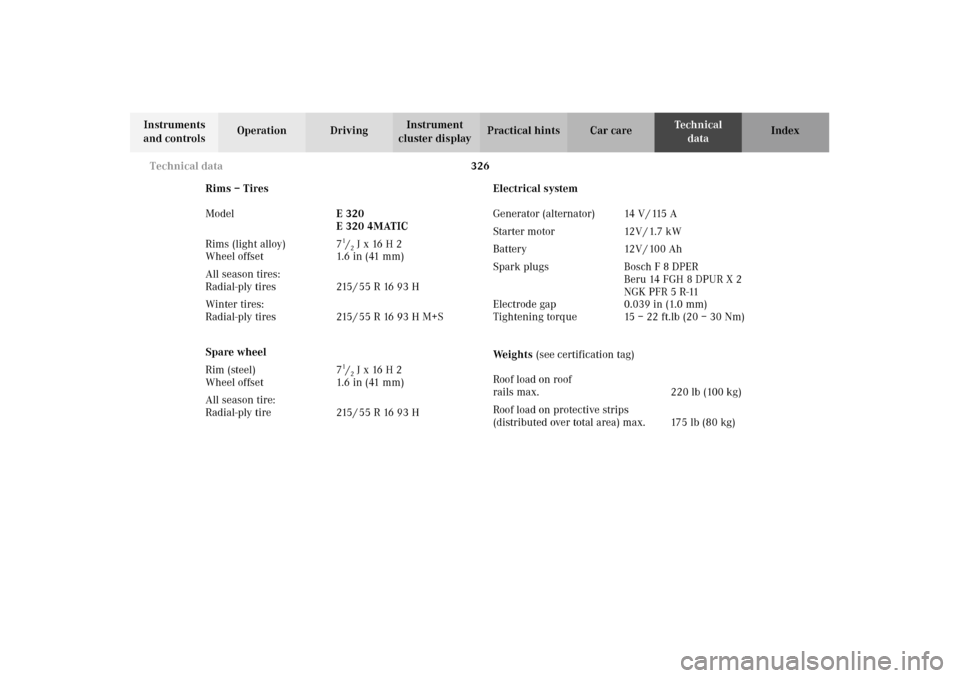

326 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Rims – Tires Electrical system
We i g h t s (see certification tag) ModelE 320
E 320 4MATIC
Rims (light alloy)
Wheel offset7
1/2 J x 16 H 2
1. 6 i n ( 41 m m )
All season tires:
Radial-ply tires 215 / 55 R 16 93 H
Winter tires:
Radial-ply tires 215 / 55 R 16 93 H M+S
Spare wheel
Rim (steel)
Wheel offset7
1/2 J x 16 H 2
1. 6 i n ( 41 m m )
All season tire:
Radial-ply tire 215 / 55 R 16 93 HGenerator (alternator) 14 V / 115 A
Starter motor 12V / 1.7 kW
Battery 12V / 100 Ah
Spark plugs
Electrode gap
Tightening torqueBosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5 R-11
0.039 in (1.0 mm)
15 – 22 ft.lb (20 – 30 Nm)
Roof load on roof
rails max. 220 lb (100 kg)
Roof load on protective strips
(distributed over total area) max. 175 lb (80 kg)

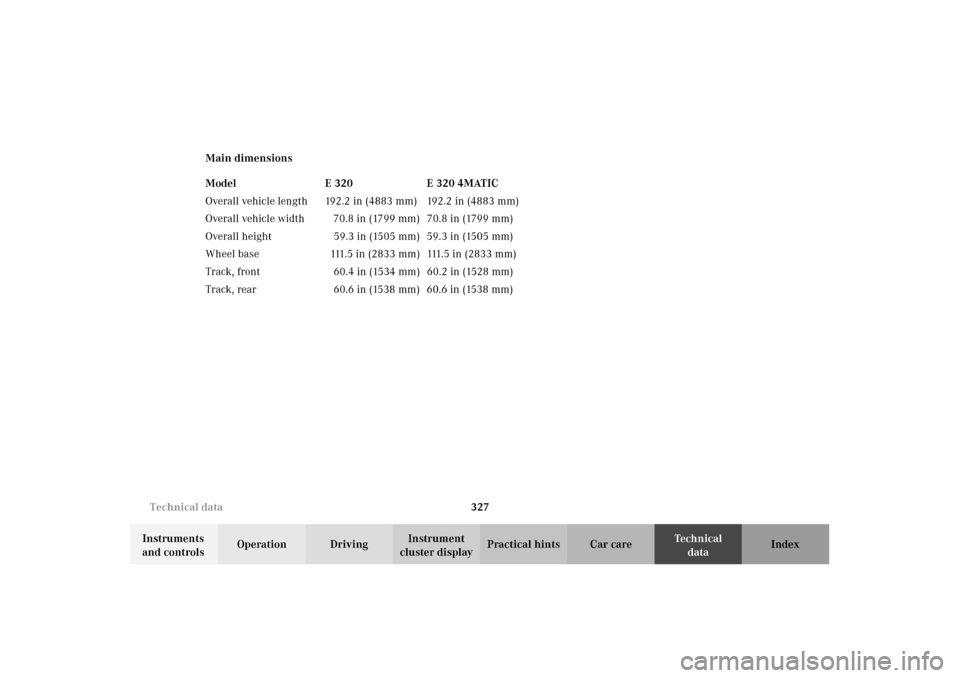

327 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Main dimensions
Model E 320 E 320 4MATIC
Overall vehicle length 192.2 in (4883 mm) 192.2 in (4883 mm)
Overall vehicle width 70.8 in (1799 mm) 70.8 in (1799 mm)
Overall height 59.3 in (1505 mm) 59.3 in (1505 mm)
Wheel base 111.5 in (2833 mm) 111.5 in (2833 mm)
Track, front 60.4 in (1534 mm) 60.2 in (1528 mm)
Track, rear 60.6 in (1538 mm) 60.6 in (1538 mm)
