MERCEDES-BENZ E320 BLUETEC 2007 W211 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2007, Model line: E320 BLUETEC, Model: MERCEDES-BENZ E320 BLUETEC 2007 W211Pages: 522
Page 421 of 522

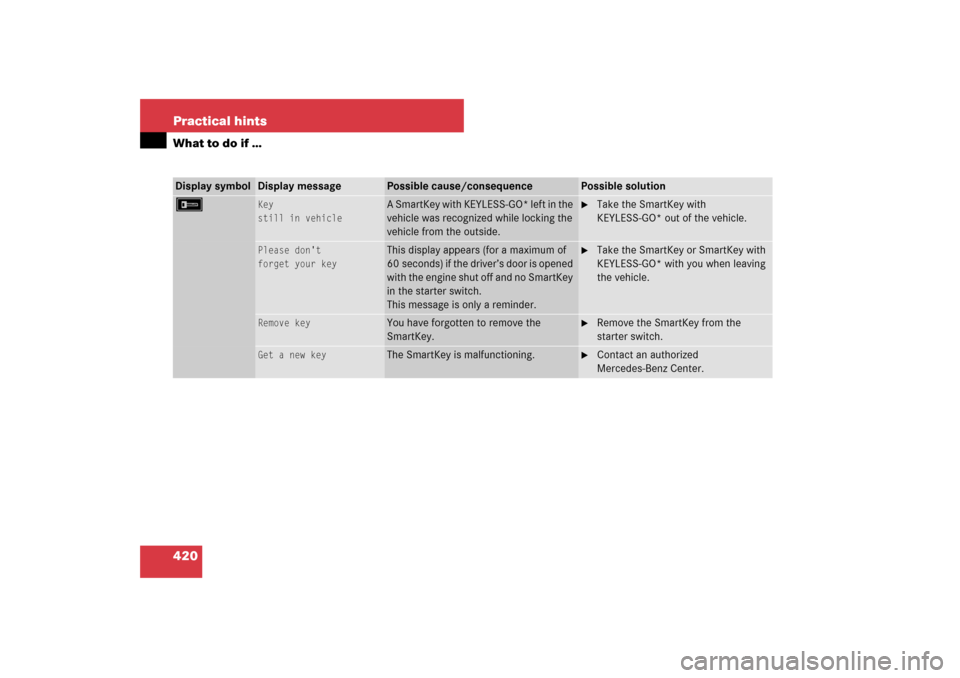

420 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
F
Key
still in vehicle
A SmartKey with KEYLESS-GO* left in the
vehicle was recognized while locking the
vehicle from the outside.
Take the SmartKey with
KEYLESS-GO* out of the vehicle.
Please don't
forget your key
This display appears (for a maximum of
60 seconds) if the driver’s door is opened
with the engine shut off and no SmartKey
in the starter switch.
This message is only a reminder.
Take the SmartKey or SmartKey with
KEYLESS-GO* with you when leaving
the vehicle.
Remove key
You have forgotten to remove the
SmartKey.
Remove the SmartKey from the
starter switch.
Get a new key
The SmartKey is malfunctioning.
Contact an authorized
Mercedes-Benz Center.
Page 422 of 522

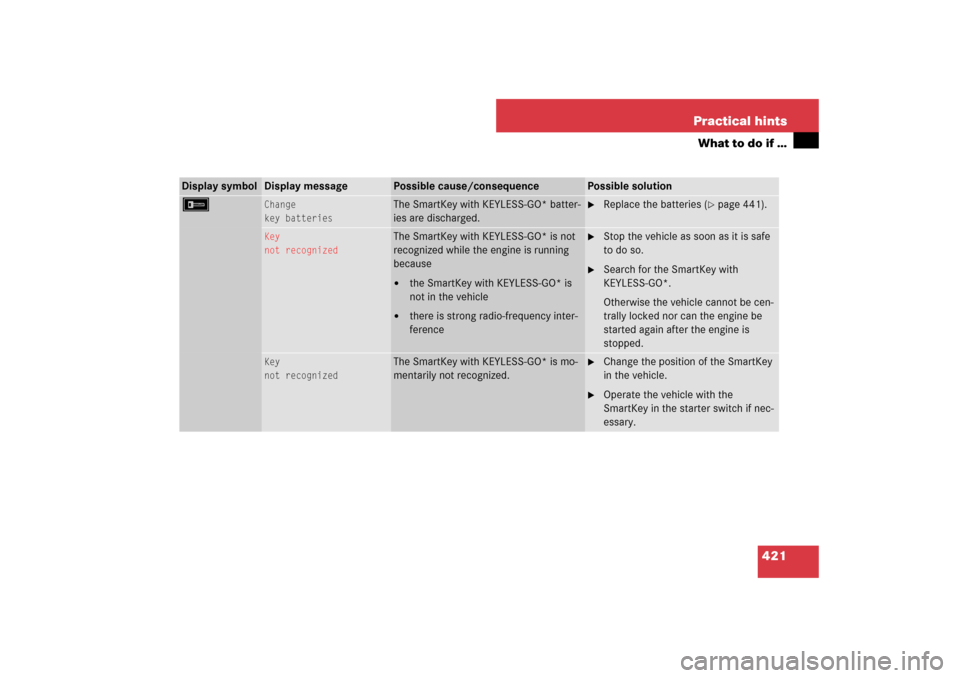

421 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
F
Change
key batteries
The SmartKey with KEYLESS-GO* batter-
ies are discharged.
Replace the batteries (
page 441).
Key
not recognized
The SmartKey with KEYLESS-GO* is not
recognized while the engine is running
because
the SmartKey with KEYLESS-GO* is
not in the vehicle
there is strong radio-frequency inter-
ference
Stop the vehicle as soon as it is safe
to do so.
Search for the SmartKey with
KEYLESS-GO*.
Otherwise the vehicle cannot be cen-
trally locked nor can the engine be
started again after the engine is
stopped.
Key
not recognized
The SmartKey with KEYLESS-GO* is mo-
mentarily not recognized.
Change the position of the SmartKey
in the vehicle.
Operate the vehicle with the
SmartKey in the starter switch if nec-
essary.
Page 423 of 522

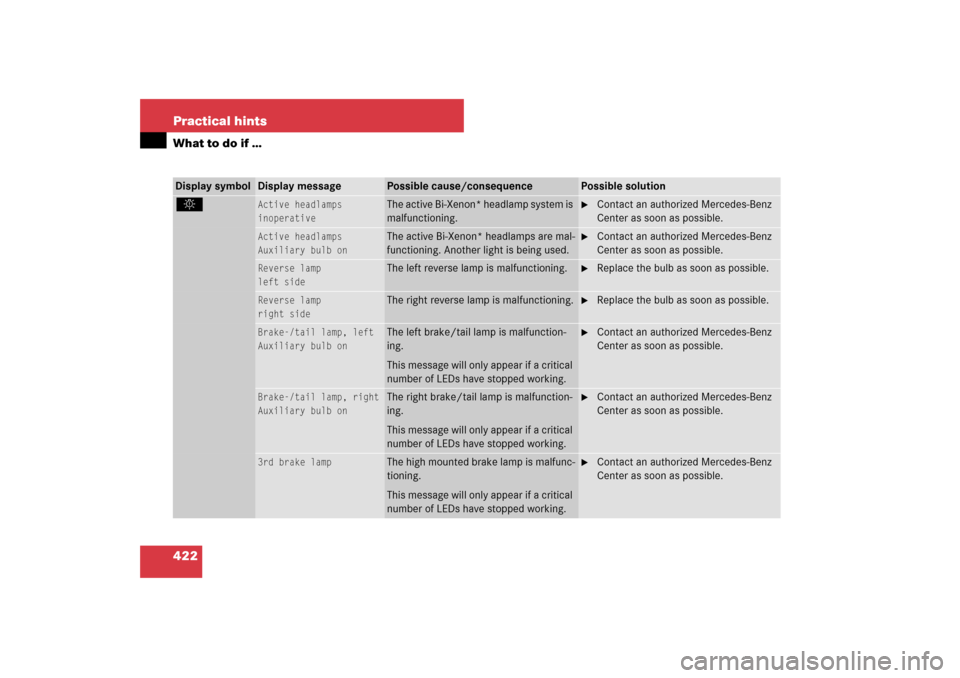

422 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
.
Active headlamps
inoperative
The active Bi-Xenon* headlamp system is
malfunctioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Active headlamps
Auxiliary bulb on
The active Bi-Xenon* headlamps are mal-
functioning. Another light is being used.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Reverse lamp
left side
The left reverse lamp is malfunctioning.
Replace the bulb as soon as possible.
Reverse lamp
right side
The right reverse lamp is malfunctioning.
Replace the bulb as soon as possible.
Brake-/tail lamp, left
Auxiliary bulb on
The left brake/tail lamp is malfunction-
ing.
This message will only appear if a critical
number of LEDs have stopped working.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Brake-/tail lamp, right
Auxiliary bulb on
The right brake/tail lamp is malfunction-
ing.
This message will only appear if a critical
number of LEDs have stopped working.
Contact an authorized Mercedes-Benz
Center as soon as possible.
3rd brake lamp
The high mounted brake lamp is malfunc-
tioning.
This message will only appear if a critical
number of LEDs have stopped working.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Page 424 of 522

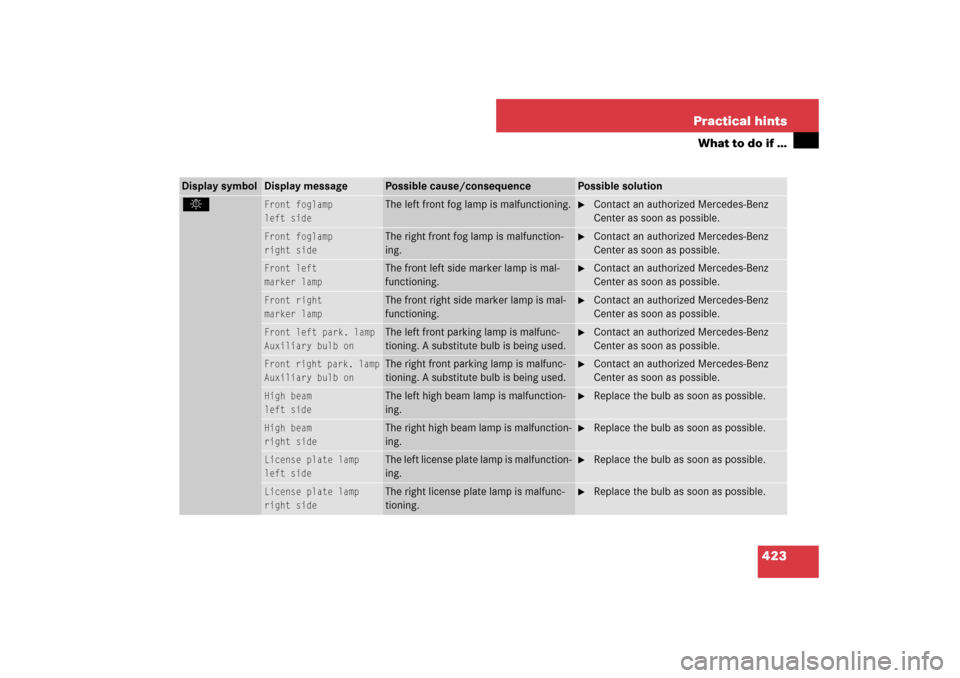

423 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
.
Front foglamp
left side
The left front fog lamp is malfunctioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp
right side
The right front fog lamp is malfunction-
ing.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Front left
marker lamp
The front left side marker lamp is mal-
functioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Front right
marker lamp
The front right side marker lamp is mal-
functioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Front left park. lamp
Auxiliary bulb on
The left front parking lamp is malfunc-
tioning. A substitute bulb is being used.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Front right park. lamp
Auxiliary bulb on
The right front parking lamp is malfunc-
tioning. A substitute bulb is being used.
Contact an authorized Mercedes-Benz
Center as soon as possible.
High beam
left side
The left high beam lamp is malfunction-
ing.
Replace the bulb as soon as possible.
High beam
right side
The right high beam lamp is malfunction-
ing.
Replace the bulb as soon as possible.
License plate lamp
left side
The left license plate lamp is malfunction-
ing.
Replace the bulb as soon as possible.
License plate lamp
right side
The right license plate lamp is malfunc-
tioning.
Replace the bulb as soon as possible.
Page 425 of 522

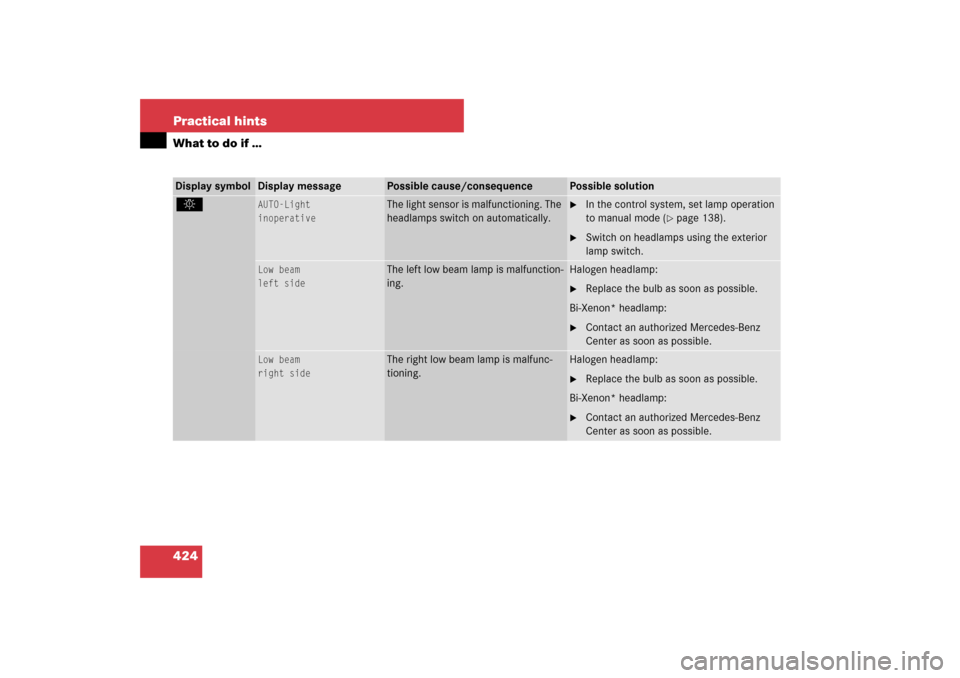

424 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
.
AUTO-Light
inoperative
The light sensor is malfunctioning. The
headlamps switch on automatically.
In the control system, set lamp operation
to manual mode (
page 138).
Switch on headlamps using the exterior
lamp switch.
Low beam
left side
The left low beam lamp is malfunction-
ing.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Center as soon as possible.
Low beam
right side
The right low beam lamp is malfunc-
tioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Center as soon as possible.
Page 426 of 522

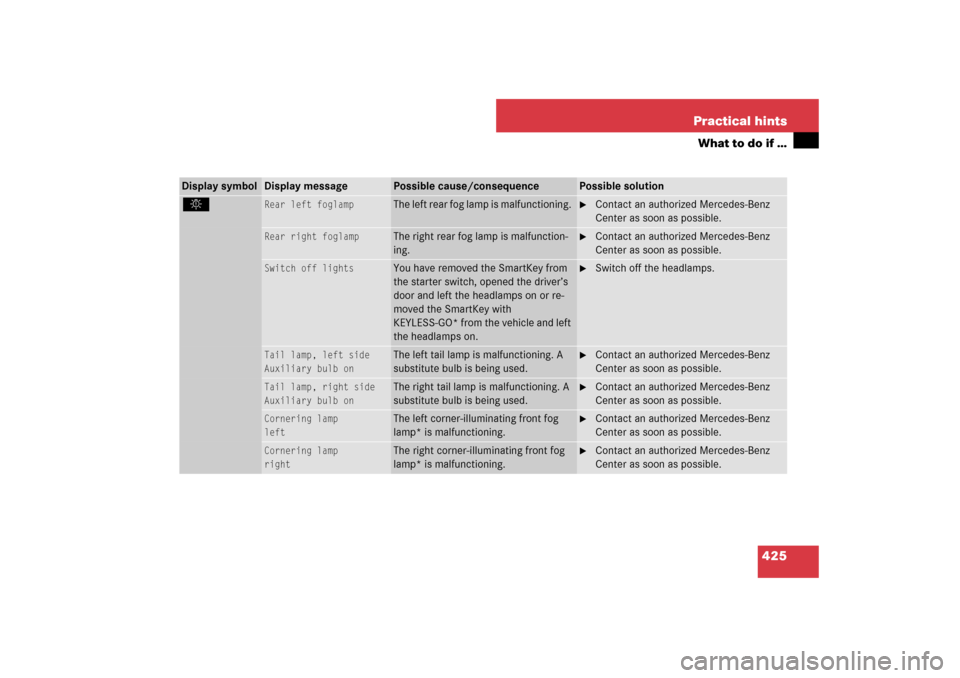

425 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
.
Rear left foglamp
The left rear fog lamp is malfunctioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Rear right foglamp
The right rear fog lamp is malfunction-
ing.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Switch off lights
You have removed the SmartKey from
the starter switch, opened the driver’s
door and left the headlamps on or re-
moved the SmartKey with
KEYLESS-GO* from the vehicle and left
the headlamps on.
Switch off the headlamps.
Tail lamp, left side
Auxiliary bulb on
The left tail lamp is malfunctioning. A
substitute bulb is being used.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, right side
Auxiliary bulb on
The right tail lamp is malfunctioning. A
substitute bulb is being used.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Cornering lamp
left
The left corner-illuminating front fog
lamp* is malfunctioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Cornering lamp
right
The right corner-illuminating front fog
lamp* is malfunctioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Page 427 of 522

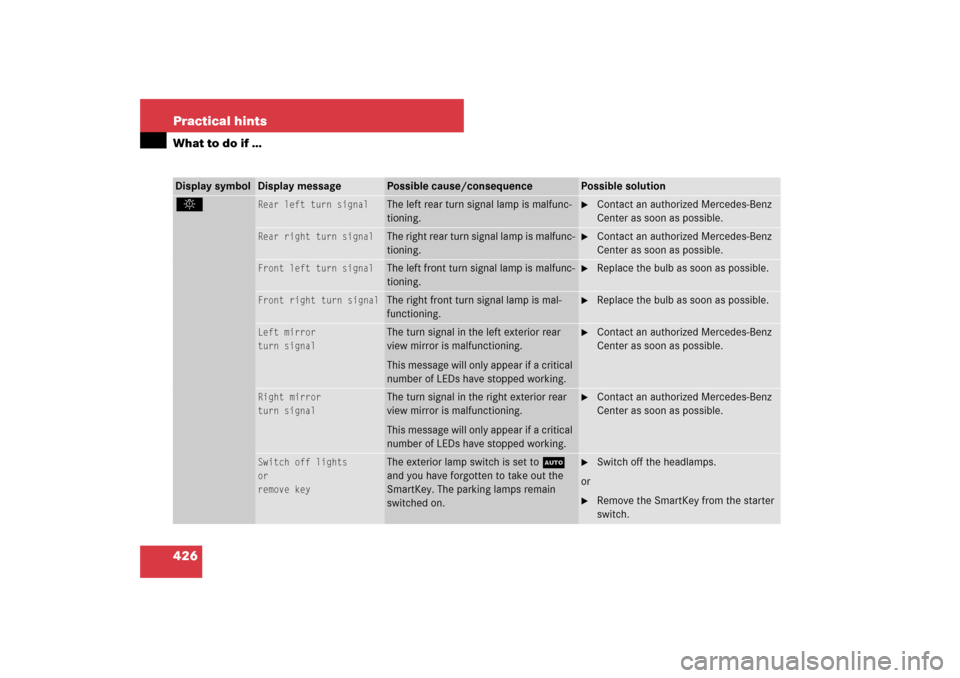

426 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
.
Rear left turn signal
The left rear turn signal lamp is malfunc-
tioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Rear right turn signal
The right rear turn signal lamp is malfunc-
tioning.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Front left turn signal
The left front turn signal lamp is malfunc-
tioning.
Replace the bulb as soon as possible.
Front right turn signal
The right front turn signal lamp is mal-
functioning.
Replace the bulb as soon as possible.
Left mirror
turn signal
The turn signal in the left exterior rear
view mirror is malfunctioning.
This message will only appear if a critical
number of LEDs have stopped working.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Right mirror
turn signal
The turn signal in the right exterior rear
view mirror is malfunctioning.
This message will only appear if a critical
number of LEDs have stopped working.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Switch off lights
or
remove key
The exterior lamp switch is set toU
and you have forgotten to take out the
SmartKey. The parking lamps remain
switched on.
Switch off the headlamps.
or
Remove the SmartKey from the starter
switch.
Page 428 of 522

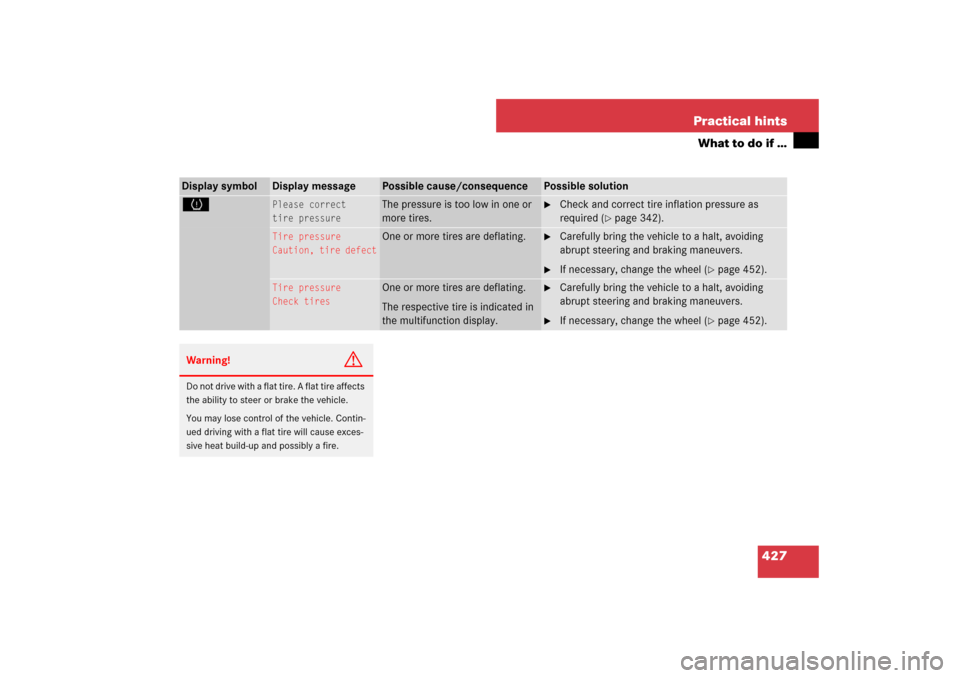

427 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
H
Please correct
tire pressure
The pressure is too low in one or
more tires.
Check and correct tire inflation pressure as
required (
page 342).
Tire pressure
Caution, tire defect
One or more tires are deflating.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel (
page 452).
Tire pressure
Check tires
One or more tires are deflating.
The respective tire is indicated in
the multifunction display.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel (
page 452).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 429 of 522

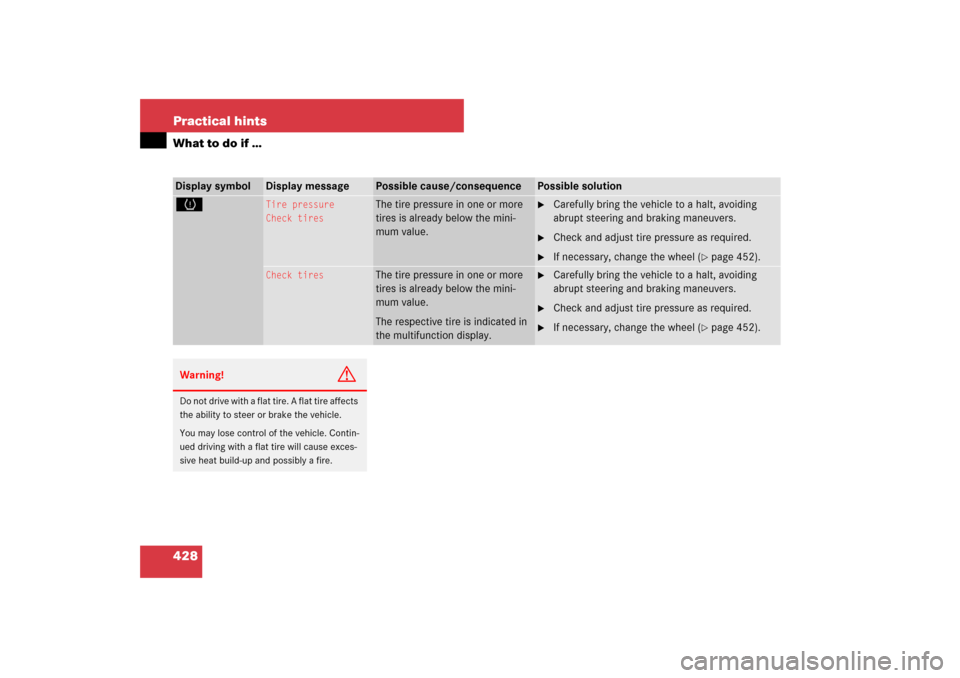

428 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
H
Tire pressure
Check tires
The tire pressure in one or more
tires is already below the mini-
mum value.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Check and adjust tire pressure as required.
If necessary, change the wheel (
page 452).
Check tires
The tire pressure in one or more
tires is already below the mini-
mum value.
The respective tire is indicated in
the multifunction display.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Check and adjust tire pressure as required.
If necessary, change the wheel (
page 452).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 430 of 522

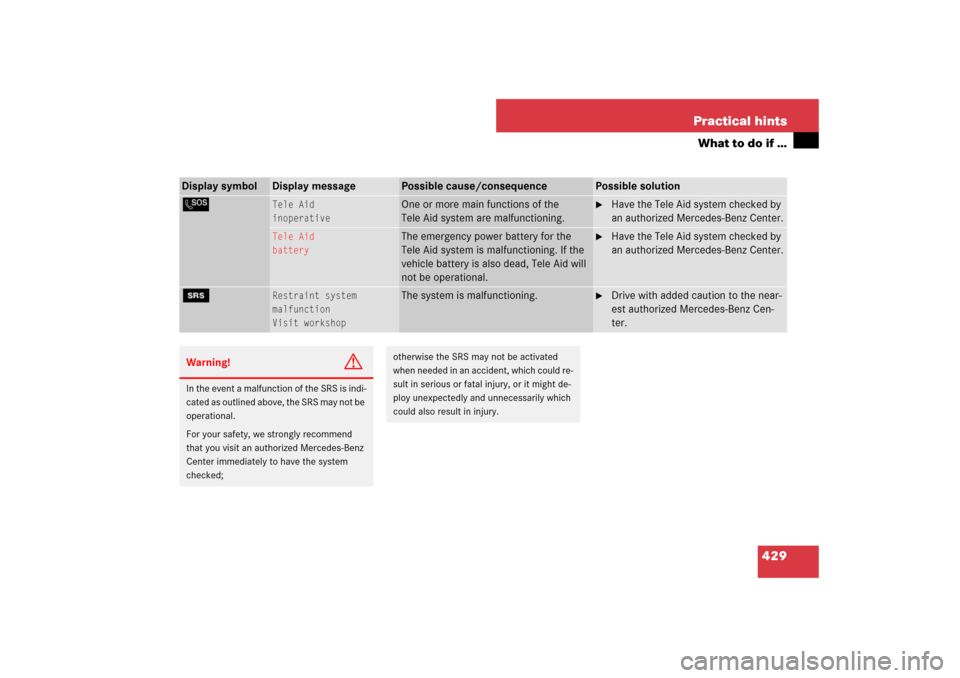

429 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
L
Tele Aid
inoperative
One or more main functions of the
Tele Aid system are malfunctioning.
Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
Tele Aid
battery
The emergency power battery for the
Tele Aid system is malfunctioning. If the
vehicle battery is also dead, Tele Aid will
not be operational.
Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
malfunction
Visit workshop
The system is malfunctioning.
Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked;
otherwise the SRS may not be activated
when needed in an accident, which could re-
sult in serious or fatal injury, or it might de-
ploy unexpectedly and unnecessarily which
could also result in injury.
