4-zone automatic climate control*
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the AC
OFF
mode is activated or
AC mode is deactivated (
page 206).Deactivating the 4-zone automatic cli-
mate control system
Deactivating
It is possible to deactivate the climate con-
trol system.
Press buttonM (
page 206) or
button´ (
page 207) until the dis-
play is cleared.
The climate control system is deacti-
vated.
Reactivating

Press buttonM (
page 206) or
button´ (
page 207) again.

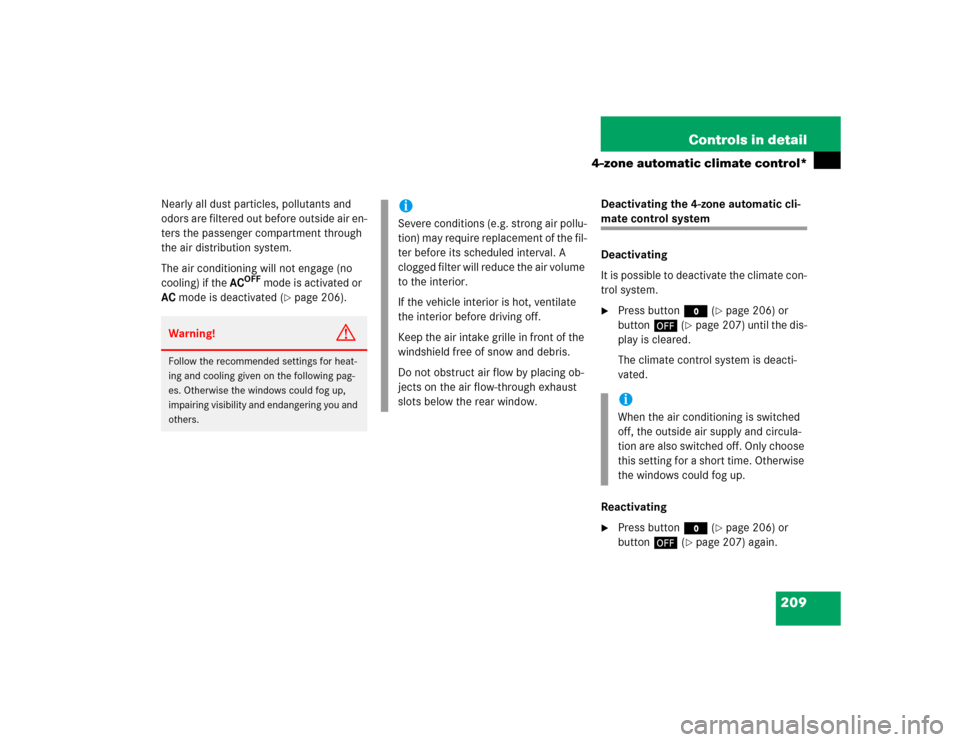

Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval. A
clogged filter will reduce the air volume
to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.
iWhen the air conditioning is switched
off, the outside air supply and circula-
tion are also switched off. Only choose
this setting for a short time. Otherwise
the windows could fog up.

210 Controls in detail4-zone automatic climate control*Setting the temperature
Use temperature control rocker
switches3 and5 (
page 206) or
(
page 207) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).Increasing

Push top of temperature control rocker
switch3 and/or5 (
page 206) or
(
page 207).
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Decreasing

Push bottom of temperature control
rocker switch3and/or 5
(page 206) or (
page 207).
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Adjusting air distribution
Use the air distribution controls1 and7
(page 206) or (
page 207) or to sepa-
rately adjust the air distribution on each
side of the passenger compartment. The
following symbols are found on the con-
trols:
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.
Symbol
Function
a
Directs air through the center,
side and rear passenger com-
partment air vents
Z
Directs air to the windows
X
Directs air into the entire vehi-
cle interior
Y
Directs air to the footwells

211 Controls in detail
4-zone automatic climate control*
Adjusting manually
Turn air distribution controls on each
side of the passenger compartment to
the desired symbol.
The indicator lamp in theU button
goes out.
Adjusting automatically

Press left or rightU button
(page 206) or (
page 207).
The indicator lamp in theU button
illuminates. The air distribution is ad-
justed automatically.
Windshield fogged on the outside

Switch the windshield wipers on.

Press the left or rightU button
(page 206) or (
page 207).
Adjusting air volume
Adjusting manually
Nine blower speeds are available.
Press
to decrease or Q
(page 206) or (
page 207) to in-
crease air volume to the desired level.
The
AUTO
display disappears and the
automatic mode is switched off. The
selected blower speed is shown in the
display.
Adjusting automatically

Press left or right U button
(page 206) or (
page 207).
The
AUTO
display appears and the air
volume is adjusted automatically.
Defrosting
Activating
Press buttonP(
page 206) or
button0 (
page 207).
The indicator lamp on the button
comes on.
The air conditioning switches
automatically to the following functions:


maximum blowing and heating
power


air flows onto the windshield and
the front side windows


the air recirculation mode is
switched off
iThese settings should only be selected
for a short time.

212 Controls in detail4-zone automatic climate control*Deactivating
Press buttonP(
page 206) or
button0 (
page 207).
The indicator lamp on the button goes
out. Defrosting is turned off.
Maximum cooling MAX COOL
If the left and right air distribution controls
as well as the airflow volume control are
set toU and there is a high need for
cooling, the display “MAX COOL” appears
in the front and rear display.
This provides the fastest possible cooling
of the vehicle interior (when windows and
tilt/sliding sunroof* or tilt/sliding panel*
are closed).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press buttonO(
page 206) or
(
page 207).
The indicator lamp on the button
comes on.

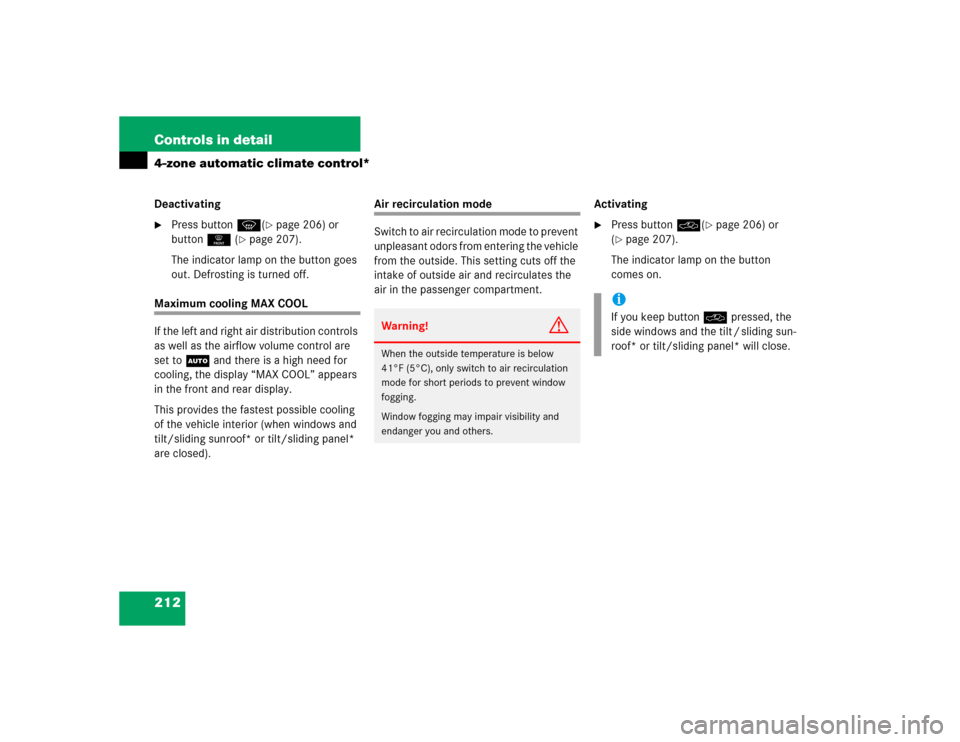

Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
Window fogging may impair visibility and
endanger you and others.
iIf you keep buttonO pressed, the
side windows and the tilt / sliding sun-
roof* or tilt/sliding panel* will close.

213 Controls in detail
4-zone automatic climate control*
Deactivating
Press buttonO (
page 206) or
(
page 207).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:


after five minutes if the outside temper-
ature is below approximately 41°F
(5°C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5°C)
At outside temperatures above 79°F
(26°C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.

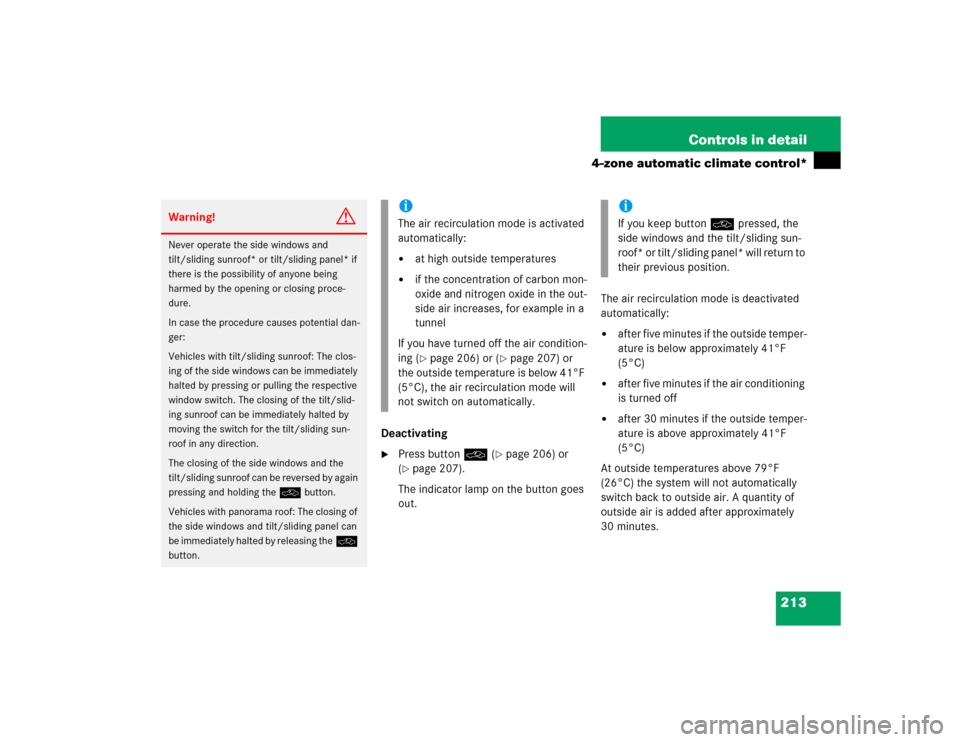

Warning!
G
Never operate the side windows and
tilt/sliding sunroof* or tilt/sliding panel* if
there is the possibility of anyone being
harmed by the opening or closing proce-
dure.
In case the procedure causes potential dan-
ger:
Vehicles with tilt/sliding sunroof: The clos-
ing of the side windows can be immediately
halted by pressing or pulling the respective
window switch. The closing of the tilt/slid-
ing sunroof can be immediately halted by
moving the switch for the tilt/sliding sun-
roof in any direction.
The closing of the side windows and the
tilt/sliding sunroof can be reversed by again
pressing and holding theO button.
Vehicles with panorama roof: The closing of
the side windows and tilt/sliding panel can
be immediately halted by releasing theO
button.
iThe air recirculation mode is activated
automatically:

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel
If you have turned off the air condition-
ing (page 206) or (
page 207) or
the outside temperature is below 41°F
(5°C), the air recirculation mode will
not switch on automatically.
iIf you keep buttonO pressed, the
side windows and the tilt/sliding sun-
roof* or tilt/sliding panel* will return to
their previous position.

214 Controls in detail4-zone automatic climate control*Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.
Climate control design A

Press button± (
page 206).
The indicator lamp on the button
comes on.
AC
OFF
in the display comes on.
The cooling function and heater boost-
er system (Diesel engine) (
page 217)
are switched off.
Climate control design B

Press button2 (
page 207).
The indicator lamp on the button goes
out.
The cooling function (page 217) is
switched off.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Climate control design A

Press button± (
page 206) again.
The indicator lamp on the button goes
out.
AC
OFF
in the display goes out.
Climate control design B

Press button2 (
page 207) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip out from under-
neath the vehicle. This is normal and

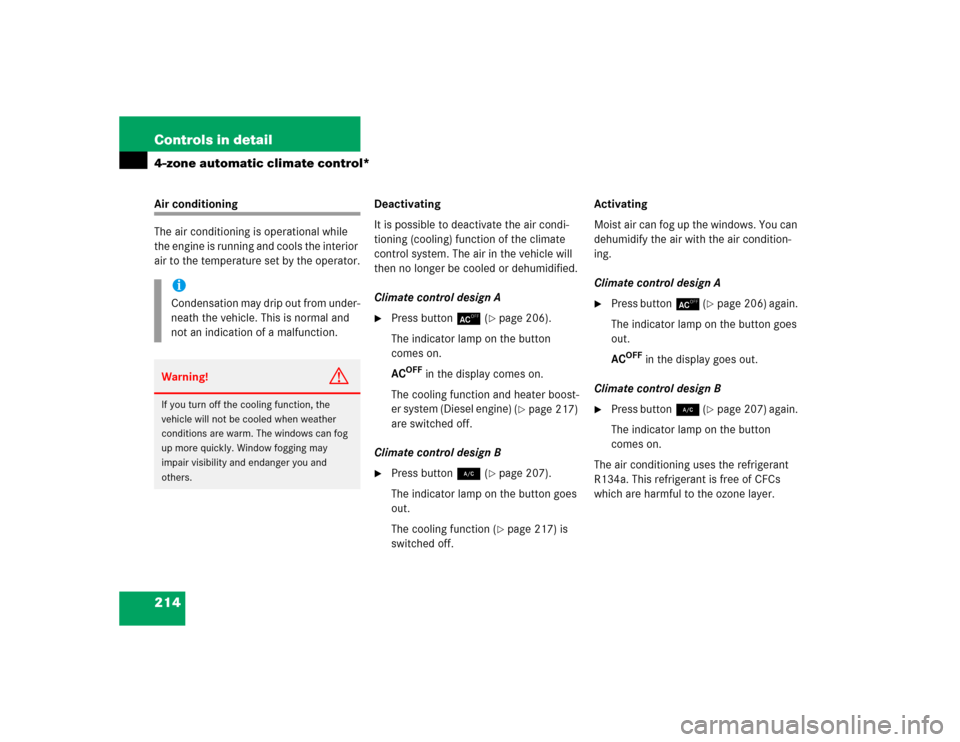

not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.

215 Controls in detail
4-zone automatic climate control*
Residual heat and ventilation (available on climate control panel design A only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position0 or1, or remove it from
the starter switch.

Press buttonT(
page 206).
REST in the display comes on.
Deactivating

Press buttonT(
page 206).
REST in the display goes out.The residual heat is automatically turned
off


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
!If the air conditioning cannot be turned
on again, this indicates that the air con-
ditioning is losing refrigerant. The com-
pressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting 1 regardless of the air distribu-
tion control setting.

216 Controls in detail4-zone automatic climate control*Rear air conditioning
1Left rear center air vent, adjustable
2Right rear center air vent, adjustable
3Thumbwheel for air volume control for
right rear center air vent
4Temperature rocker switch, right
5Display
6Temperature rocker switch, left
7Thumbwheel for air volume control for
left rear center air vent
Display1Temperature, left
2Temperature, right
Basic settings
We recommend setting the temperature
on both the left- and right-hand sides to
72°F (22°C). This ensures a pleasant tem-
perature in the rear of the vehicle.
The temperatures for the left- and
right-hand sides can be set using tempera-
ture rocker switches4 and6.Adjusting the rear settings with the
front control panel
Display
Press the™ button (
page 206) or
the5 button (
page 207).
The display switches over.
The temperature for the rear left- and
right-hand sides of the vehicle can be set
with temperature rocker switches3
and5.
The temperature display disappears ap-
proximately five seconds after the last
SmartKey confirmation and switches back
to the normal display.

217 Controls in detail
4-zone automatic climate control*
Heater booster system (Diesel engine)
Your vehicle is equipped with a heater
booster system. A PTC heating element
(page 475) ensures that the vehicle inte-
rior is warmed up as quickly as possible
when the engine has not reached its nor-
mal operating temperature yet.
The heater booster system switches on au-
tomatically if required.iThe normal display will appear when
the™ button or the button5 is
pressed again.iIf the cooling function for the air condi-
tioning is switched off with the
±button (
page 206), the heater
booster system is deactivated too.

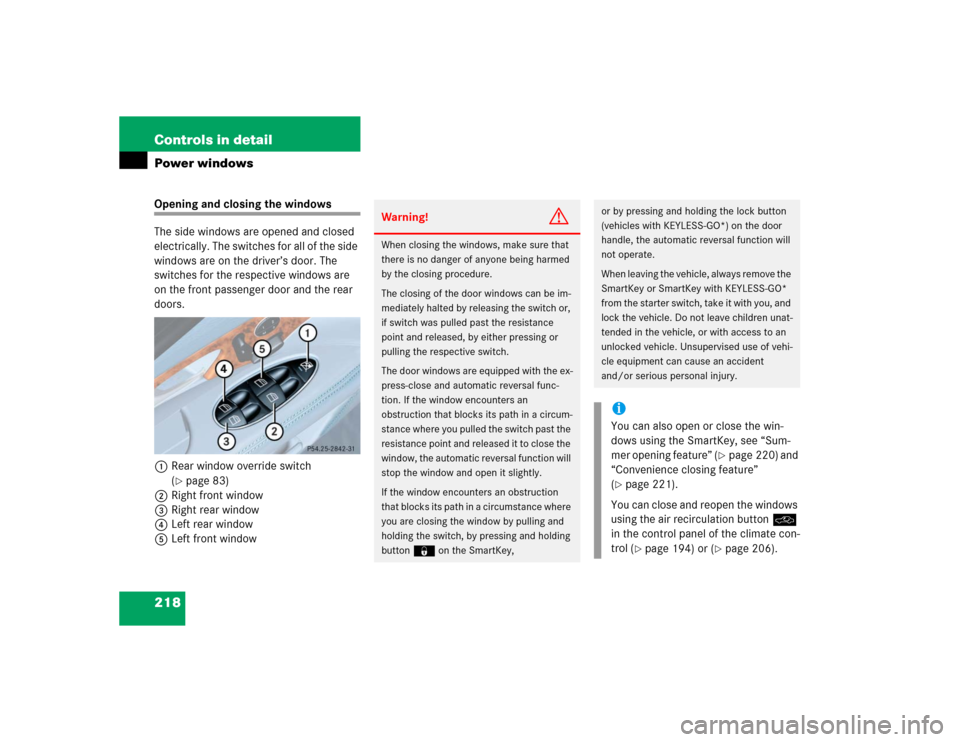

218 Controls in detailPower windowsOpening and closing the windows
The side windows are opened and closed
electrically. The switches for all of the side
windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
doors.
1Rear window override switch
(
page 83)
2Right front window
3Right rear window
4Left rear window
5Left front window
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If the window encounters an
obstruction that blocks its path in a circum-
stance where you pulled the switch past the
resistance point and released it to close the
window, the automatic reversal function will
stop the window and open it slightly.
If the window encounters an obstruction
t h a t b l o c k s i t s p a t h i n a c i r c u m s t a n c e w h e r e
you are closing the window by pulling and
holding the switch, by pressing and holding
button ‹ on the SmartKey,
or by pressing and holding the lock button
(vehicles with KEYLESS-GO*) on the door
handle, the automatic reversal function will
not operate.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.iYou can also open or close the win-
dows using the SmartKey, see “Sum-
mer opening feature” (
page 220) and
“Convenience closing feature”
(
page 221).
You can close and reopen the windows
using the air recirculation buttonO
in the control panel of the climate con-
trol (page 194) or (
page 206).
