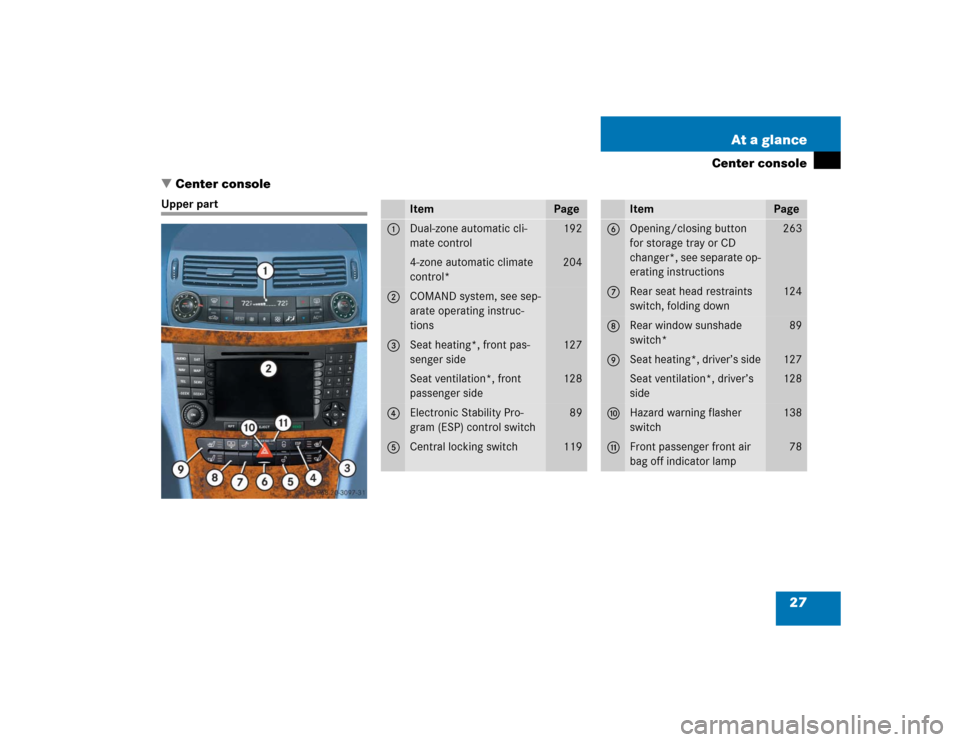

Center console
Center console
Upper part
Item
Page
1
Dual-zone automatic cli-
mate control
192
4-zone automatic climate
control*
204
2
COMAND system, see sep-
arate operating instruc-
tions
3
Seat heating*, front pas-
senger side
127
Seat ventilation*, front
passenger side
128
4
Electronic Stability Pro-
gram (ESP) control switch
89
5
Central locking switch
119
Item
Page
6
Opening/closing button
for storage tray or CD
changer*, see separate op-
erating instructions
263
7
Rear seat head restraints
switch, folding down
124
8
Rear window sunshade
switch*
89
9
Seat heating*, driver’s side
127
Seat ventilation*, driver’s
side
128
a
Hazard warning flasher
switch
138
b
Front passenger front air
bag off indicator lamp
78
Page 99 of 506
97 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Dual-zone automatic climate control
4-zone automatic climate control*
Power windows
Power tilt /sliding sunroof*
Panorama roof with power tilt/sliding panel*
Driving systems
Loading
Useful features
Page 193 of 506
191 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press buttonF (
page 194) or
(
page 195) or button1
(page 206) or (
page 207) on the
respective climate control panel.
The indicator lamp on the button
comes on.Deactivating
Press buttonF or button1
again.
The indicator lamp on the button goes
out.Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.
Page 194 of 506
192 Controls in detailDual-zone automatic climate control
Page 195 of 506
193 Controls in detail
Dual-zone automatic climate control

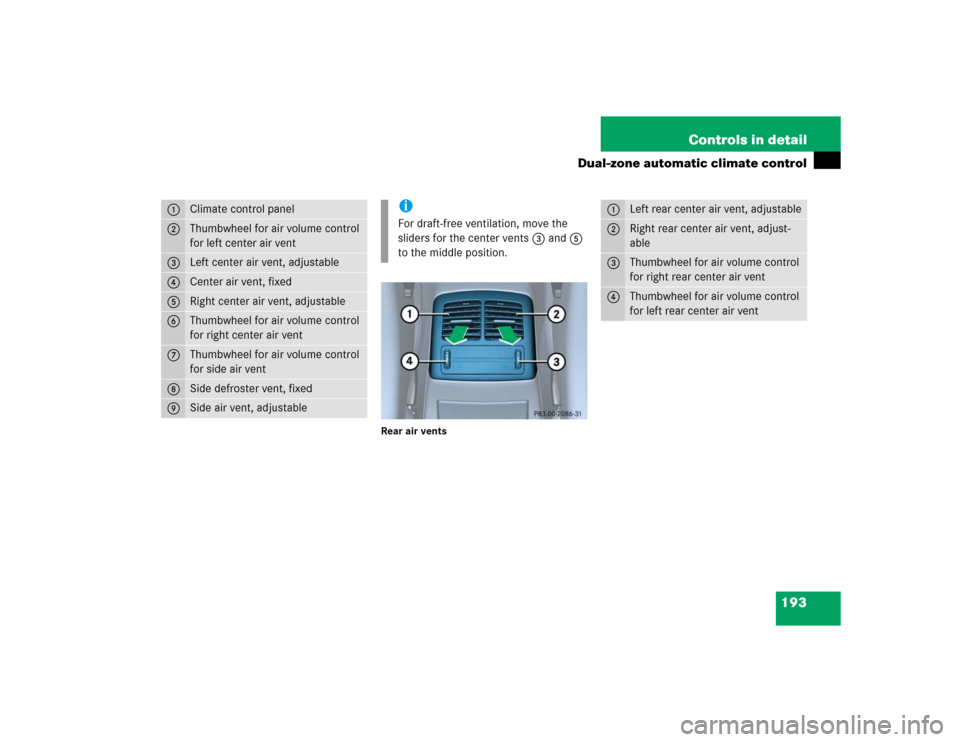

Rear air vents
1
Climate control panel
2
Thumbwheel for air volume control
for left center air vent
3
Left center air vent, adjustable
4
Center air vent, fixed
5
Right center air vent, adjustable
6
Thumbwheel for air volume control
for right center air vent
7
Thumbwheel for air volume control
for side air vent
8
Side defroster vent, fixed
9
Side air vent, adjustable

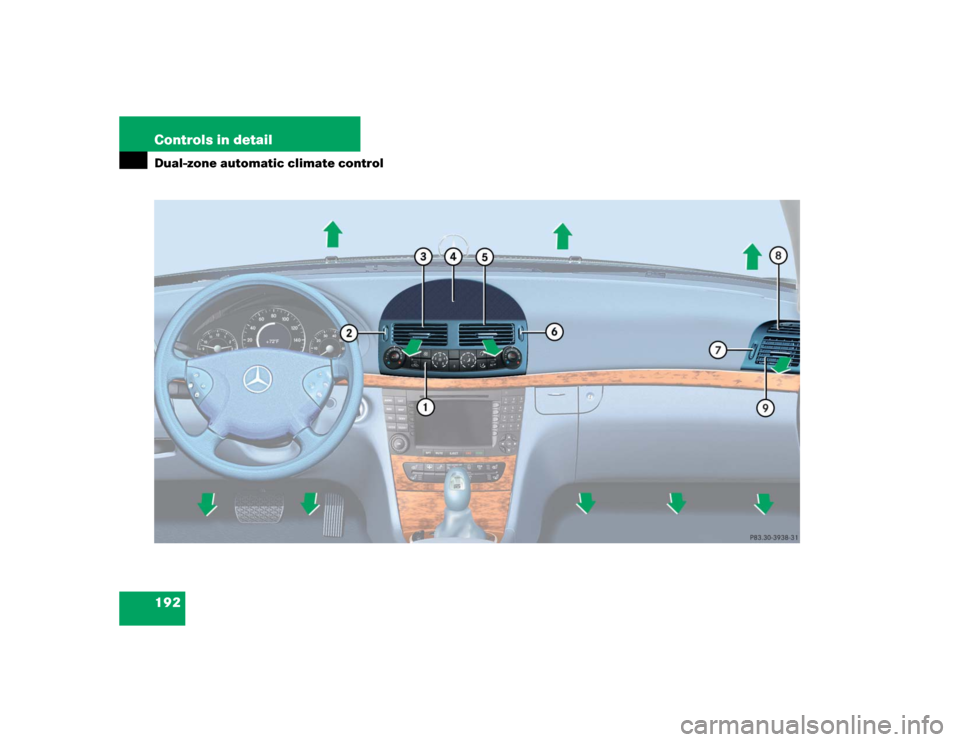

iFor draft-free ventilation, move the
sliders for the center vents 3 and 5
to the middle position.
1
Left rear center air vent, adjustable
2
Right rear center air vent, adjust-
able
3
Thumbwheel for air volume control
for right rear center air vent
4
Thumbwheel for air volume control
for left rear center air vent
Page 196 of 506
194 Controls in detailDual-zone automatic climate controlDepending on production date, your vehi-
cle is equipped with either climate control

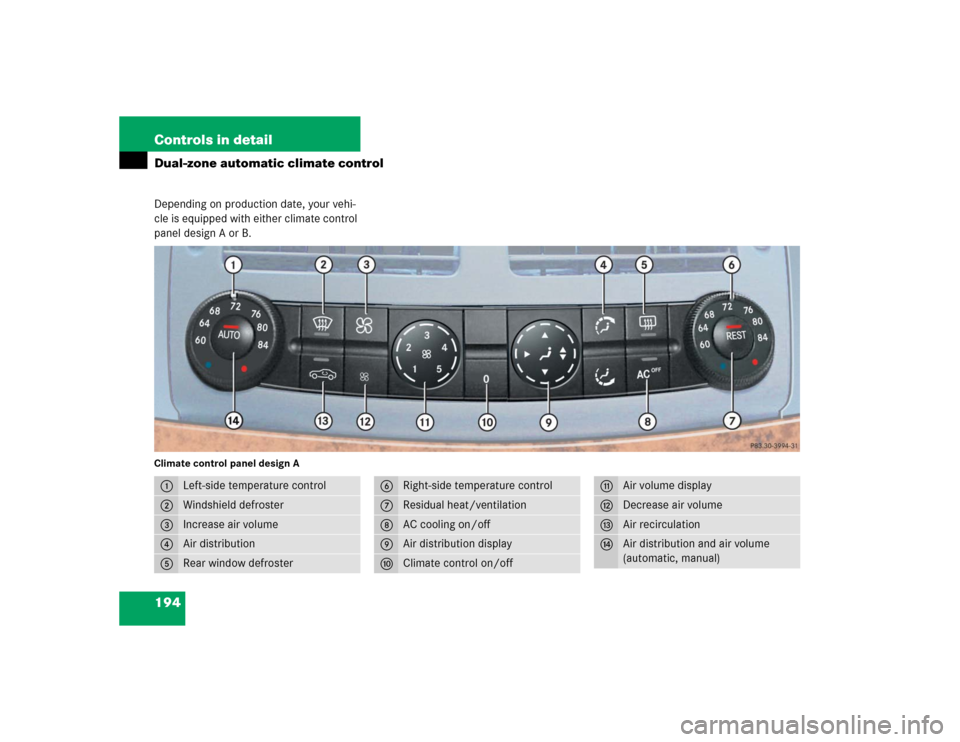

panel design A or B.Climate control panel design A1
Left-side temperature control
2
Windshield defroster
3
Increase air volume
4
Air distribution
5
Rear window defroster
6
Right-side temperature control
7
Residual heat/ventilation
8
AC cooling on/off
9
Air distribution display
a
Climate control on/off
b
Air volume display
c
Decrease air volume
d
Air recirculation
e
Air distribution and air volume
(automatic, manual)
Page 197 of 506
195 Controls in detail
Dual-zone automatic climate control

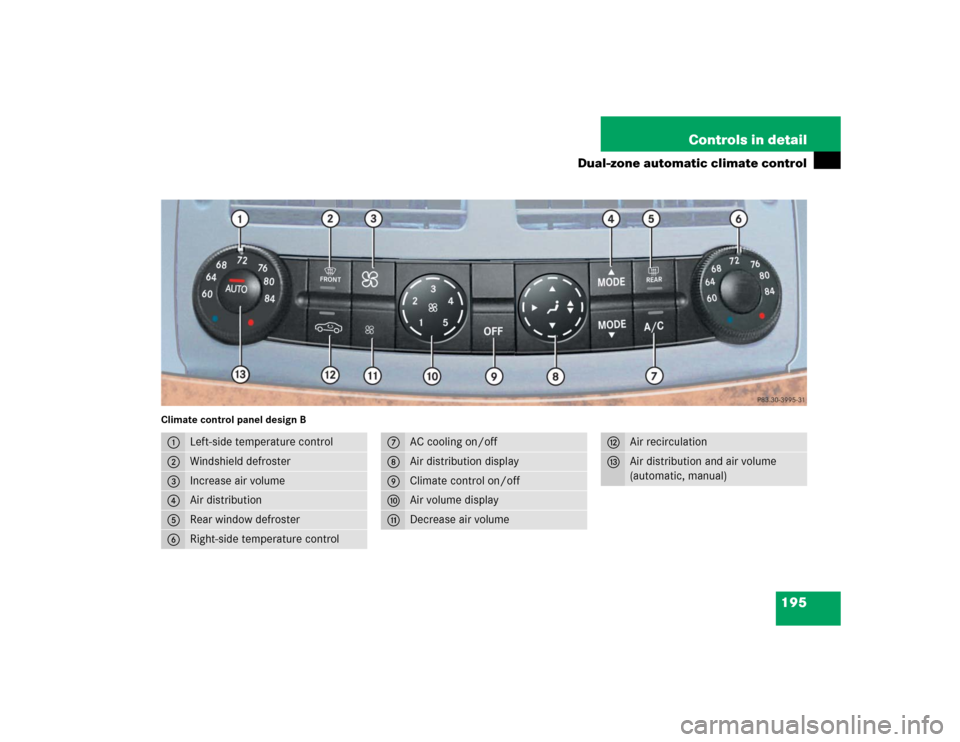

Climate control panel design B1
Left-side temperature control
2
Windshield defroster
3
Increase air volume
4
Air distribution
5
Rear window defroster
6
Right-side temperature control
7
AC cooling on/off
8
Air distribution display
9
Climate control on/off
a
Air volume display
b
Decrease air volume
c
Air recirculation
d
Air distribution and air volume
(automatic, manual)
Page 198 of 506
196 Controls in detailDual-zone automatic climate controlThe climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the au-
tomatic or manual mode. The system cools
or heats the interior depending on the se-
lected interior temperature and the cur-
rent outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the AC
OFF
mode is activated or
AC mode is deactivated (
page 201).
Warning!
G
When operating the climate control, the air
that enters the passenger compartment
through the air vents in the footwell can be
very hot or very cold (depending on the set
temperature). This may cause burns or frost-
bite to unprotected skin in the immediate
area of the air vents. Always keep sufficient
distance between unprotected parts of the
body and the footwell air vents. If necessary
change the air flow using the air distribution
controls (
page 194) to direct the air away
from the footwell air vents.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval. A
clogged filter will reduce the air volume
to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.
Page 199 of 506
197 Controls in detail
Dual-zone automatic climate control
Deactivating the dual-zone automatic climate control system
Deactivating
Press button M (
page 194) or
button´ (
page 195).
Reactivating
Press button M (
page 194) or
button´ (
page 195) again.
or
Press any button on the climate control
panel (
page 194) or (
page 195).
Setting the temperature
Use temperature controls1 and6
(page 194) or (
page 195) to separate-
ly adjust the air temperature on each side
of the passenger compartment. You
should raise or lower the temperature set-
ting in small increments, preferably start-
ing at 72°F (22°C).
Increasing
Turn the temperature control1or 6
(page 194) or (
page 195) slightly
to the right.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.Decreasing
Turn the temperature control1 or6
(page 194) or (
page 195) slightly
to the left.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
iWhen the air conditioning is switched
off, the outside air supply and circula-
tion are also switched off. Only choose
this setting for a short time. Otherwise
the windows could fog up.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.
