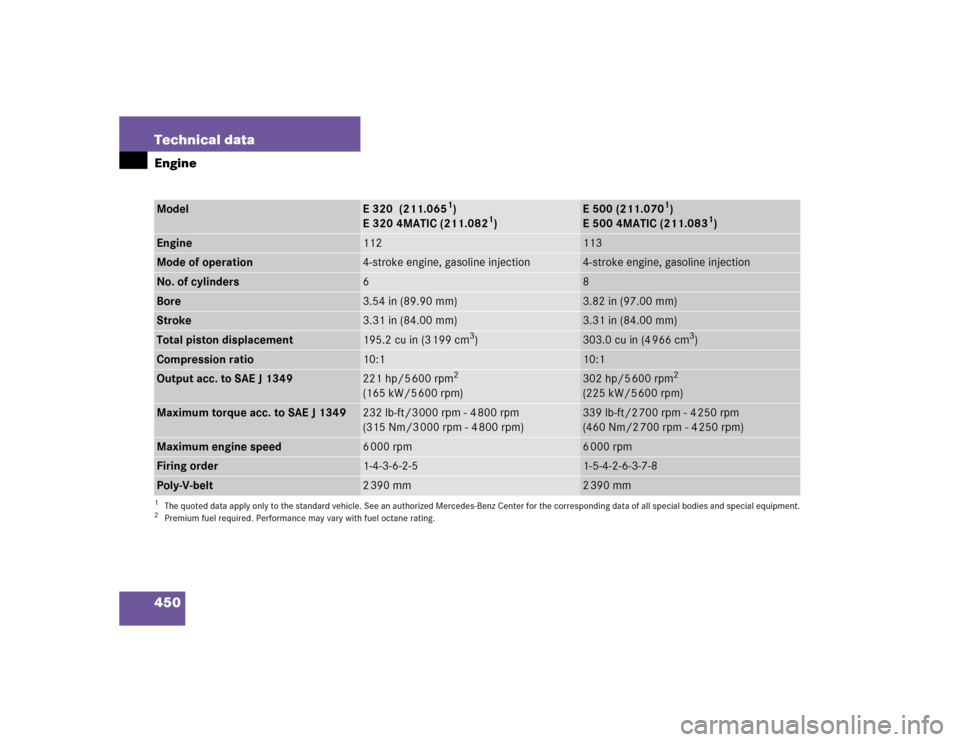

450 Technical dataEngineModel
E 320 (211.065
1)
E 320 4MATIC (211.082
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 500 (211.070
1)
E 500 4MATIC (211.083
1)
Engine
112
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
195.2 cu in (3 199 cm
3)
303.0 cu in (4 966 cm
3)
Compression ratio
10:1
10:1
Output acc. to SAE J 1349
221 hp/5 600 rpm
2
(165 kW/5 600 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp/5 600 rpm
2
(225 kW/5 600 rpm)
Maximum torque acc. to SAE J 1349
232 lb-ft/3 000 rpm - 4 800 rpm
(315 Nm/3 000 rpm - 4 800 rpm)
339 lb-ft/2 700 rpm - 4 250 rpm
(460 Nm/2 700 rpm - 4 250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2390 mm
2390 mm

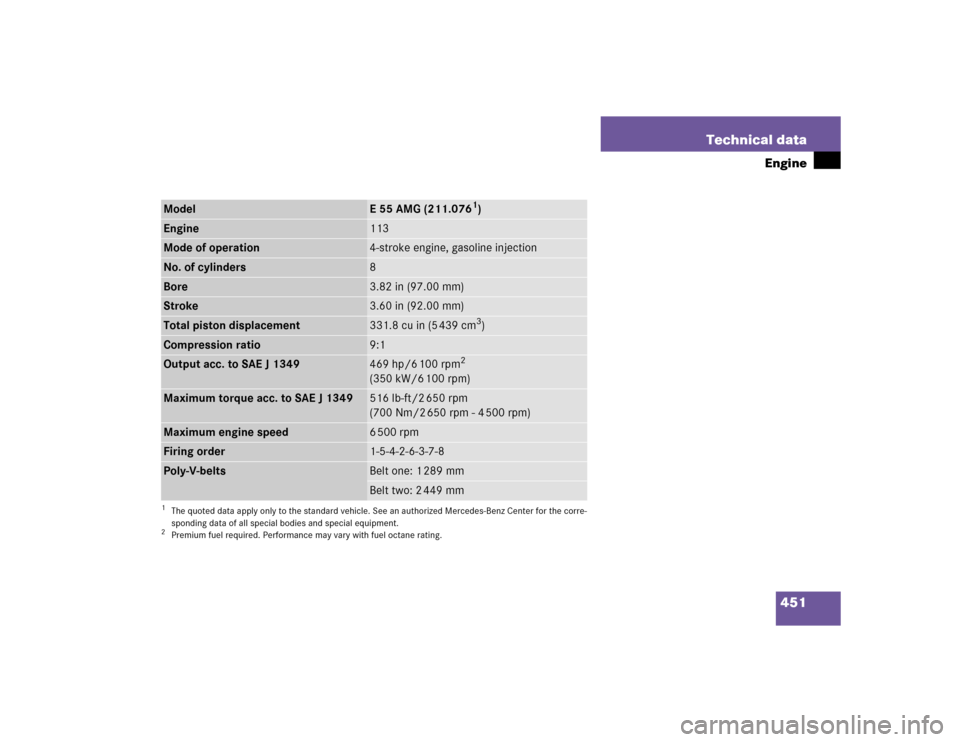

451 Technical data
Engine
Model
E55AMG (211.076
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre-
sponding data of all special bodies and special equipment.Engine
113
Mode of operation
4-stroke engine, gasoline injection
No. of cylinders
8
Bore
3.82 in (97.00 mm)
Stroke
3.60 in (92.00 mm)
Total piston displacement
331.8 cu in (5 439 cm
3)
Compression ratio
9:1
Output acc. to SAE J 1349
469 hp/6 100 rpm
2
(350 kW/6 100 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
516 lb-ft/2 650 rpm
(700 Nm/2 650 rpm - 4 500 rpm)
Maximum engine speed
6500 rpm
Firing order
1-5-4-2-6-3-7-8
Poly-V-belts
Belt one: 1 289 mmBelt two: 2 449 mm

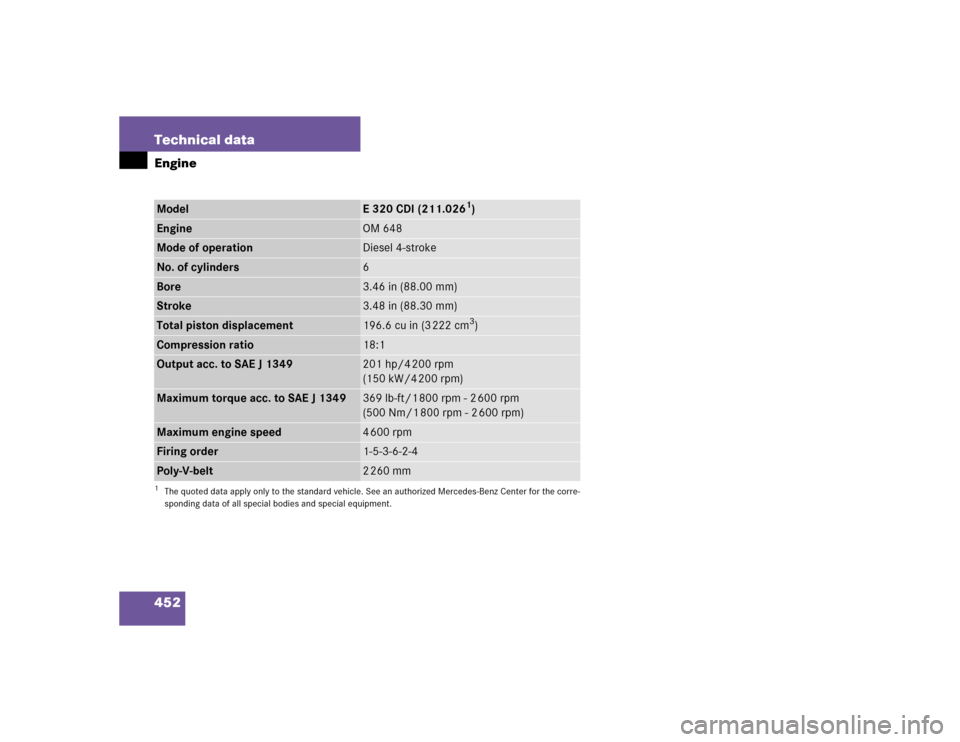

452 Technical dataEngineModel
E 320 CDI (211.026
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre-
sponding data of all special bodies and special equipment.Engine
OM 648
Mode of operation
Diesel 4-stroke
No. of cylinders
6
Bore
3.46 in (88.00 mm)
Stroke
3.48 in (88.30 mm)
Total piston displacement
196.6 cu in (3 222 cm
3)
Compression ratio
18:1
Output acc. to SAE J 1349
201 hp/4 200 rpm
(150 kW/4 200 rpm)
Maximum torque acc. to SAE J 1349
369 lb-ft/1 800 rpm - 2 600 rpm
(500 Nm/1 800 rpm - 2 600 rpm)
Maximum engine speed
4600 rpm
Firing order
1-5-3-6-2-4
Poly-V-belt
2260 mm
