MERCEDES-BENZ E350 2006 W211 Owner's Manual

140 Controls in detailMemory functionStoring exterior rear view mirror park-ing position
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position, see “Activating exterior rear view
mirror parking position” (
page 198).
1Passenger side, exterior rear view mir-
ror
2Adjustment button

Stop the vehicle.

Switch on the ignition (
page 36).

Press button1.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the road curb.

Press memory button M.

Within 3 seconds, press bottom of ad-
justment button2.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored,
you can move the mirror again.

141 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 54)
and see “Turn signals” (
page 55).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switchMOff
Daytime running lamp mode
(
page 142)
UAutomatic headlamp mode
Daytime running lamp mode
(page 142)
CParking lamps (also tail lamps, li-
cense plate lamps, side marker
lamps, instrument panel lamps)BLow beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
‡Indicator lamp for front fog lamps
†Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Center.iVehicles equipped with active Bi-Xe-
non* headlamps:
The active Bi-Xenon headlamps moni-
tor your steering angle and driving
speed, then automatically shift their
beams to either side to better follow
the curvature of the road ahead, in-
creasing usable illumination over con-
ventional headlamps.
iWith the SmartKey removed from the
starter switch or the engine turned off
with KEYLESS-GO* and the driver’s
door open, a warning sounds if the
parking lamps or low beam headlamps
are switched on.
The message
Switch off lamps

appears in the multifunction display.

142 Controls in detailLightingManual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
exterior lamp switch.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:

Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps

Turn exterior lamp switch to
positionU.
With the SmartKey in starter switch
position1 or the KEYLESS-GO* start/stop
button pressed once, only the parking
lamps will switch on and off automatically.When the engine is running, the low beam
headlamps, the tail and parking lamps, the
license plate lamps, and the side marker
lamps will switch on and off automatically.
Daytime running lamp mode

Turn the exterior lamp switch to
positionM orU.
When the engine is running, the low
beam headlamps are automatically
switched on.
In low ambient light conditions, the fol-
lowing lamps will switch on additional-
ly:

Tail and parking lamps


License plate lamps


Side marker lamps
For nighttime driving you should turn the
exterior lamp switch to positionB to
permit activation of the high beam head-
lamps.
Warning!
G
If the exterior lamp switch is set toU,

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to B when driving or when traffic
and/or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position U to B with the
vehicle at a standstill in a safe location.
Switching from U to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.

143 Controls in detail
Lighting
Canada only:
The daytime running lamp mode is manda-
tory and therefore in a constant mode.
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three-minute delay.
When the engine is running, and you

turn the exterior lamp switch to
positionC, the parking lamps
switch on additionally.


turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime run-
ning lamp mode.
The corresponding exterior lamps
switch on (
page 54).USA only:
By default, the daytime running lamp mode
is deactivated. Activate the daytime run-
ning lamp mode using the control system,
see “Setting daytime running lamp mode
(USA only)” (
page 170).
When the engine is running, and you turn
the exterior lamp switch to
positionCorB, the manual head-
lamp mode has priority over the daytime
running lamp mode.
The corresponding exterior lamps switch
on (
page 54).
iWith the daytime running lamp mode
activated and the exterior lamp switch
in positionM, the high beam head-
lamps cannot be switched on.
The high beam flasher is available at all
times.

144 Controls in detailLightingLocator lighting and night security illu-
mination
Locator lighting and night security illumi-
nation are described in the “Control sys-
tem” section, see (
page 171) and
(
page 172).
Fog lampsFront fog lamps

Switch on the low beam headlamps
(page 141).

Pull out the exterior lamp switch to first
stop.
The front fog lamps are switched on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(page 141).

Push in the exterior lamp switch.
The front fog lamps are switched off.
The green indicator lamp‡ in the
exterior lamp switch goes out.
Warning!
G
In low ambient lighting or foggy conditions,
only switch from position U to B with
the vehicle at a standstill in a safe location.
Switching from U to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
iFog lamps will operate with the parking
lamps and/or the low beam headlamps
on. Fog lamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding permis-
sible lamp operation.iFog lamps cannot be switched on with
the exterior lamp switch in
positionU. For switching on the fog
lamps, turn the exterior lamp switch to
positionB.

145 Controls in detail
Lighting
Rear fog lamp (driver’s side only)
Switch on the front fog lamps
(page 144).

Pull out the exterior lamp switch to sec-
ond stop.
The rear fog lamp is switched on.
The yellow indicator lamp† in the
exterior lamp switch comes on
(page 141).

Push in the exterior lamp switch to first
stop.
The rear fog lamp is switched off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.

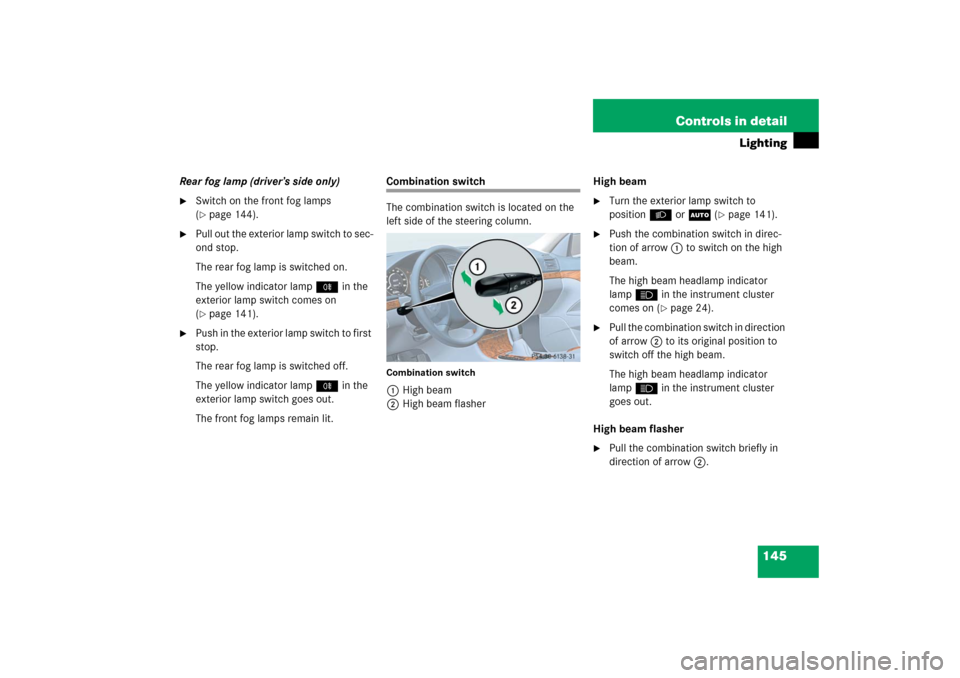

Combination switch
The combination switch is located on the
left side of the steering column.Combination switch1High beam
2High beam flasherHigh beam

Turn the exterior lamp switch to
positionB orU (
page 141).

Push the combination switch in direc-
tion of arrow1 to switch on the high
beam.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).

Pull the combination switch in direction
of arrow2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lampA in the instrument cluster
goes out.
High beam flasher

Pull the combination switch briefly in
direction of arrow2.

146 Controls in detailLightingHazard warning flasher
The hazard warning flasher can be
switched on at all times, even with the
SmartKey removed from the starter switch
or with the SmartKey with KEYLESS-GO*
removed from the vehicle.
The hazard warning flasher switches on au-
tomatically when an air bag deploys.
The hazard warning flasher switch is locat-
ed on the upper part of the center console.
1Hazard warning flasher switchSwitching on hazard warning flasher

Press the hazard warning flasher
switch1.
All turn signals are flashing.Switching off hazard warning flasher

Press hazard warning flasher switch1
again.
iWith the hazard warning flasher acti-
vated and the combination switch set
for either left or right turn, only the re-
spective left or right turn signals will
operate when the ignition is switched
on.
iIf the hazard warning flasher has been
activated automatically, press hazard
warning flasher switch1 once to
switch it off.

147 Controls in detail
Lighting
Interior lighting in the front
1Left front reading lamp on/off
2Rear interior lighting on/off
3Automatic control on/off
4Front interior lighting on/off
5Right front reading lamp on/off
6Ambient lighting
7Interior lighting
8Front reading lampsThe controls are located in the overhead
control panel.
Automatic control
Activating

Press automatic control switch3.
The interior lighting switches on in
darkness when you:

unlock the vehicle


remove the SmartKey from the
starter switch


open a door


open the trunk
The interior lighting switches off automati-
cally following an adjustable time delay.For more information, see “Setting interior
lighting delayed shut-off” (
page 173).
Deactivating

Press automatic control switch3
again.
The interior lighting remains switched
off in darkness, even when you:

unlock the vehicle


remove the SmartKey from the
starter switch


open a door


open the trunk
iLeaving an interior light switch in the
ON position for extended periods of
time with the engine turned off could
result in a discharged battery.
iIf the door remains open, the interior
lighting switches off automatically after
approximately 5 minutes.

148 Controls in detailLightingManual control
Front interior lighting
Press front interior lighting switch4.
The front interior lighting switches on.

Press front interior lighting switch4
again.
The front interior lighting switches off.
Rear interior lighting

Press rear interior lighting switch2.
The rear interior lighting switches on.

Press rear interior lighting switch2
again.
The rear interior lighting switches off.Front reading lamps
The front reading lamps are located in the
lower edge of the interior rear view mirror.

Press front reading lamp
switch1or5 to switch on the de-
sired front reading lamp.

Press front reading lamp
switch1or5 again to switch off the
respective front reading lamp.
Door entry lamps
For better orientation in the dark, the cor-
responding door entry lamps will switch on
in the darkness when you open a door and
the automatic control is activated.
The door entry lamps will switch off when
the corresponding door is closed.
iThe setting selected for the interior
lighting is used for the trunk lighting as
well.
If the trunk remains open, the trunk
lighting switches off automatically after
approximately 10 minutes.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the
headlamps, the door entry lamps will
remain lit for approximately 5 minutes.

149 Controls in detail
Lighting
Interior lighting in the rear
The overhead control panel is located
above the rear seat bench.
1Ambient lighting switch, to brighten
2Rear reading lamp
3Rear reading lamp on/off
4Rear interior lamp
5Ambient lighting
6Ambient lighting switch, to dimRear reading lamps

Press respective rear reading lamp
switch3 to switch on the correspond-
ing rear reading lamp.

Press respective rear reading lamp
switch3 again to switch off the corre-
sponding rear reading lamp.
Ambient lighting

Press ambient lighting switch1or6
repeatedly until ambient lighting5
has reached the desired intensity.
You can switch the ambient lighting on and
off, using the Control system
(
page 172).
Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If the trunk remains open, the trunk lamp
switches off automatically after approxi-
mately 10 minutes.
