Memory function MERCEDES-BENZ E350 2006 W211 Owner's Manual

ContentsSafety and Security........................... 65
Occupant safety................................... 66
Air bags .......................................... 67
Seat belts ....................................... 73
Active head restraints .................... 77
Children in the vehicle .................... 78
Blocking of rear door window
operation ........................................ 89
Panic alarm .......................................... 91
Activating ....................................... 91
Deactivating ................................... 91
Driving safety systems ......................... 92
ABS ................................................ 92
BAS ................................................ 94
ESP
®.............................................. 94
Electrohydraulic brake system ....... 97
Four wheel electronic traction
system (4MATIC) with the ESP
®... 100
Anti-theft systems.............................. 101
Immobilizer................................... 101
Anti-theft alarm system ................ 101
Tow-away alarm ........................... 103
Controls in detail............................. 105
Locking and unlocking ....................... 106
SmartKey ..................................... 106
SmartKey with KEYLESS-GO* ...... 111
Opening the doors
from the inside ............................. 119
Opening the trunk ........................ 120
Closing the trunk.......................... 121
Trunk emergency release ............. 127
Valet locking ................................ 128
Automatic central locking ............ 129
Locking and unlocking
from the inside ............................. 129
Seats ................................................ 131
Front seat active head restraints . 131
Rear seat head restraints ............. 131
Lumbar support............................ 133
Drive - Dynamic seat* with
multicontour features................... 134
Seat heating* ............................... 135
Seat ventilation* .......................... 136Memory function ............................... 138
Storing positions into memory ..... 139
Recalling positions from memory . 139
Storing exterior rear view mirror
parking position ........................... 140
Lighting ............................................. 141
Exterior lamp switch .................... 141
Combination switch ..................... 145
Hazard warning flasher ................ 146
Interior lighting in the front .......... 147
Door entry lamps ......................... 148
Interior lighting in the rear ........... 149
Trunk lamp ................................... 149
Instrument cluster ............................. 150
Instrument cluster illumination .... 150
Coolant temperature indicator ..... 151
Trip odometer .............................. 151
Tachometer .................................. 152
Outside temperature indicator ..... 152

Contents
Control system .................................. 153
Multifunction display .................... 153
Multifunction steering wheel ........ 154
Menus .......................................... 156
Standard display menu ................ 159
AUDIO menu ................................ 159
NAV* menu .................................. 161
Distronic* menu........................... 161
Vehicle status message memory
menu ............................................ 162
Settings menu .............................. 163
Trip computer menu..................... 178
TEL menu* ................................... 180
Automatic transmission ..................... 183
Gear selector lever position ......... 185
Driving tips ................................... 186
Gear ranges ................................. 188
Automatic shift program .............. 189
Gear selector lever one-touch
gearshifting .................................. 190
Steering wheel gearshift control
one-touch gearshifting E 55 AMG 191
Manual shift program E 55 AMG .. 193
Emergency operation
(Limp Home Mode) ...................... 196Good visibility ..................................... 197
Headlamp cleaning system* ......... 197
Rear view mirrors.......................... 197
Sun visors ..................................... 199
Rear window sunshade* ............... 200
Roller sunblind* in the rear doors . 201
Rear window defroster .................. 201
Dual-zone automatic climate control
(USA only) .......................................... 202
Deactivating the climate control
system .......................................... 206
Operating the climate control
system in automatic mode............ 206
Setting the temperature................ 207
Adjusting air distribution............... 208
Adjusting air volume ..................... 209
Front defroster.............................. 209
Air recirculation mode .................. 210
Air conditioning............................. 212
Rear passenger compartment
adjustable air vents....................... 2134-zone automatic climate control* ..... 214
Deactivating the climate control
system .......................................... 219
Operating the climate control
system in automatic mode ........... 220
Setting the temperature ............... 221
Adjusting air distribution .............. 222
Adjusting air volume ..................... 223
Front defroster ............................. 223
Maximum cooling MAX COOL ....... 224
Air recirculation mode .................. 224
Air conditioning ............................ 227
Residual heat and ventilation
(Canada only)................................ 228
Rear climate control ..................... 229
Power windows .................................. 231
Opening and closing the windows 231
Synchronizing power windows ...... 233
Summer opening feature .............. 234
Convenience closing feature......... 235
Power tilt/sliding sunroof* ................ 236
Opening and closing the power
tilt/sliding sunroof........................ 236
Synchronizing the power
tilt/sliding sunroof........................ 238

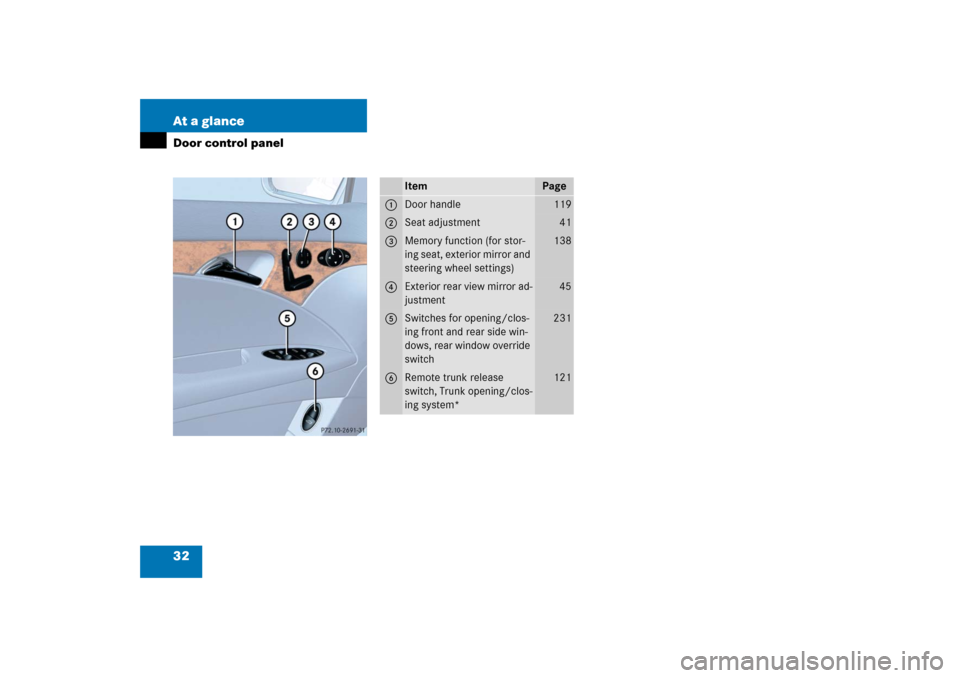

32 At a glanceDoor control panel
Item
Page
1
Door handle
119
2
Seat adjustment
41
3
Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)
138
4
Exterior rear view mirror ad-
justment
45
5
Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch
231
6
Remote trunk release
switch, Trunk opening/clos-
ing system*
121

41 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
on the front doors.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Switch on the ignition (
page 36).
or

Open the respective door.Seat fore and aft adjustment

Press the switch forward or backward
in direction of arrow4.
Adjust a comfortable seating position
that still allows you to reach the accel-
erator/brake pedal safely. The position
should be as far to the rear as possible,
consistent with ability to properly oper-
ate controls.Seat cushion tilt

Press the switch up or down in direc-
tion of arrow3 until your upper legs
are lightly supported.
Backrest tilt

Press the switch forward or backward
in direction of arrow5 until your arms
are slightly angled when holding the
steering wheel.
Seat height

Press the switch up or down in direc-
tion of arrow2.
iThe memory function (
page 138) lets
you store the settings for the seat posi-
tion together with the settings for the
steering wheel and the exterior rear
view mirrors.
!When moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.

43 Getting started
Adjusting
Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the lower left of the steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (
page 36).
or

Open the driver’s door.Adjusting steering column in or out

Move stalk in direction of arrows1
until a comfortable steering wheel posi-
tion is reached with your arms slightly
bent at the elbow.
Adjusting steering column up or down

Move stalk in direction of arrows2.
Make sure your legs can move freely
and all the displays (incl. malfunction
and indicator lamps) on the instrument
cluster are clearly visible.Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be activat-
ed or deactivated in the
Convenience
sub-
menu of the control system (
page 175).
iThe memory function (
page 138) lets
you store the settings for the steering
wheel together with the settings for the
exterior rear view mirrors and the
driver’s seat position.
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move steering column stalk.


Press one of the memory buttons or the
memory button M (
page 139).


46 Getting startedAdjusting
Switch on the ignition (
page 36).

Press button3 for the driver’s side ex-
terior rear view mirror or button1 for
the passenger-side exterior rear view
mirror.

Push adjustment button2 up, down,
left or right according to the desired
setting.For more information, see “Activating exte-
rior rear view mirror parking position”
(
page 198).
For more information, see “Rear view mir-
rors” (
page 197).
!If an exterior rear view mirror was forc-
ibly pushed forward (hit from the rear)
or forcibly pushed rearward (hit from
the front), reposition it by applying firm
pressure until it snaps into place. The
mirror housing is now properly posi-
tioned and you can adjust the mirror
normally.iThe memory function (
page 138) lets
you store the setting for the seat posi-
tion together with the setting for the
steering wheel and the exterior rear
view mirrors.
At low ambient temperatures, the exte-
rior rear view mirrors will be heated au-
tomatically.

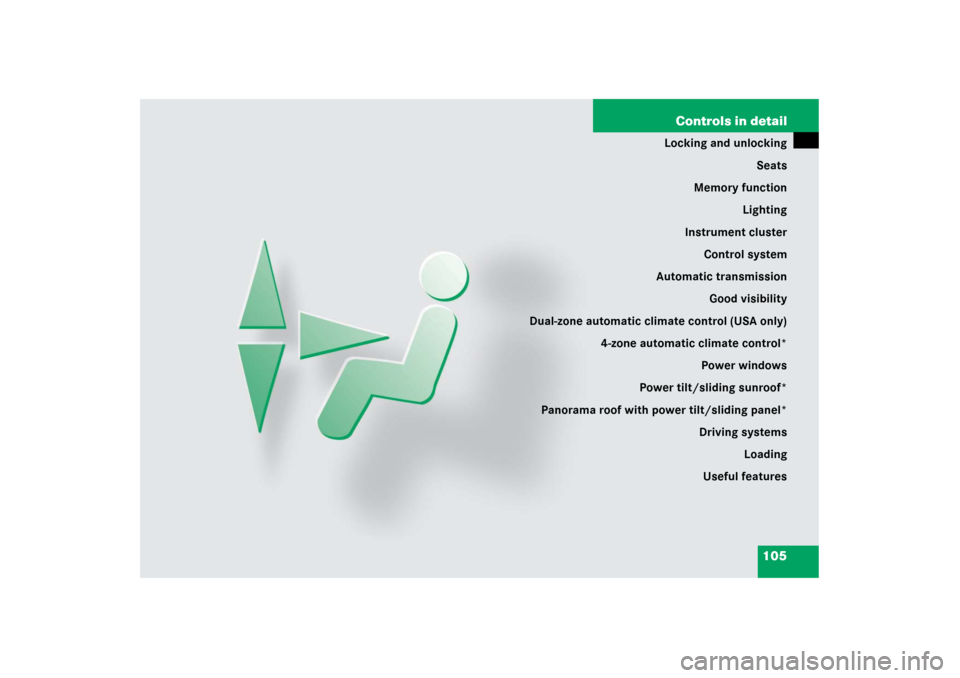

105 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Dual-zone automatic climate control (USA only)
4-zone automatic climate control*
Power windows
Power tilt/sliding sunroof*
Panorama roof with power tilt/sliding panel*
Driving systems
Loading
Useful features

135 Controls in detailSeats
Drive-dynamic features
Activating
Press button4 (
page 134).
The indicator lamp on the button
comes on and the following display ap-
pears in the multifunction display for
about 5 seconds.
Deactivating

Press button4 (
page 134) again.
The indicator lamp on the button goes
out.Massage function (PULSE)
The massage function can help prevent
muscle tension during long drives.

Press button6 (
page 134).
The indicator lamp on the button
comes on. The air cushions in the lum-
bar area pulsate.
Seat heating*
Both switches for the front seats are locat-
ed in the center console. The red indicator
lamps in the switch come on to show
which heating level you have selected:
iYou can adjust the characteristics of
the Drive - Dynamic seat using the con-
trol system (
page 177).
iWhen the engine is turned off, the last
cushion setting is retained in memory.
The cushion is automatically adjusted
to this setting when the engine is re-
started.iThe massage function turns off auto-
matically after approximately
5 minutes.
Level3
Three indicator lamps on
(highest level)
The seat heating automatically
switches to level2 after approxi-
mately 5 minutes.
2
Two indicator lamps on
The seat heating automatically
switches to level1 after approxi-
mately 10 minutes.
1
One indicator lamp on
(lowest level)
The seat heating automatically
switches off after approximately
20 minutes.
off
No indicator lamp on

138 Controls in detailMemory functionPrior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach and comfort. The head re-
straint should also be adjusted for proper
height. See also the section on air bags
(page 67) for more information on prop-
er seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the interior and exterior
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety Stan-
dards 213 and 225 and Canadian Motor
Vehicle Safety Standards 213 and 210.2.The following settings are stored when us-
ing the buttons on the driver’s door:


Driver’s seat, backrest, head restraint
position and settings for multicontour
seat


Steering wheel position


Exterior rear view mirror positions
The following settings are stored when us-
ing the buttons on the front passenger
door:


Front passenger seat, backrest, head
restraint position and settings for mul-
ticontour seat
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

139 Controls in detail
Memory function
The memory button and memory position
buttons are located on the door.
MMemory button
1, 2, 3Memory position button
Switch on the ignition (
page 36).
or

Open the respective door.
Storing positions into memory
Adjust the seats, steering wheel and
exterior rear view mirrors to the de-
sired position (
page 40).

Press memory buttonM.

Release memory buttonM and press
memory position button 1, 2 or 3 with-
in 3 seconds.
All the settings are stored to the select-
ed position.
Recalling positions from memory
Press and hold memory position
button1, 2 or3 until the seat, steering
wheel and exterior rear view mirrors
have completely moved to the stored
positions.!Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.iReleasing the memory position button
stops movement to the stored posi-
tions immediately.
