Telephone MERCEDES-BENZ E350 4MATIC 2007 W211 Owner's Manual

ContentsPower windows .................................. 237
Opening and closing the windows 237
Synchronizing power windows ..... 239
Summer opening feature .............. 239
Convenience closing feature ........ 240
Power tilt/sliding sunroof .................. 242
Opening and closing the power
tilt/sliding sunroof ....................... 242
Synchronizing the power
tilt/sliding sunroof ....................... 244
Panorama roof with power
tilt/sliding panel* .............................. 245
Opening and closing the roller
sunblinds for the panorama roof
with power tilt/sliding panel ........ 245
Opening and closing the
panorama roof with power
tilt/sliding panel........................... 246
Synchronizing the panorama
roof with power tilt/sliding panel . 248
Driving systems ................................. 249
Cruise control............................... 249
Distronic*..................................... 252
Airmatic DC (Dual Control)
(only available on E 550,
E 550 4MATIC, E 63 AMG) ........... 265Parktronic system
(Parking assist)*........................... 269
Loading .............................................. 273
Roof rack*.................................... 273
Ski bag* (Canada only) ................ 274
Split rear bench seat* .................. 276
Expanding the cargo area*........... 279
Loading instructions..................... 279
Cargo tie-down rings* .................. 280
Retaining hooks ........................... 281
Useful features .................................. 282
Storage compartments ................ 282
Cup holders.................................. 284
Ashtrays ....................................... 287
Cigarette lighter ........................... 288
Power outlet................................. 289
Heated steering wheel
(Canada only) ............................... 289
Floormats ..................................... 290
Telephone* .................................. 291
Tele Aid ........................................ 294
Garage door opener ..................... 301
Operation......................................... 307
The first 1 000 miles (1 500 km) ........ 308
Driving instructions ........................... 309
Drive sensibly – save fuel............. 309
Drinking and driving ..................... 309
Pedals .......................................... 309
Power assistance ......................... 310
Brakes.......................................... 310
Driving off .................................... 312
Parking......................................... 313
Tires ............................................. 313
Hydroplaning................................ 314
Tire traction ................................. 314
Tire speed rating .......................... 315
Winter driving instructions ........... 316
Standing water............................. 317
Passenger compartment .............. 317
Driving abroad ............................. 317
Control and operation of radio
transmitter ................................... 318
Catalytic converter
(gasoline engine).......................... 318
Oxidation catalyst (diesel engine) 319
Emission control .......................... 319
Coolant temperature.................... 320

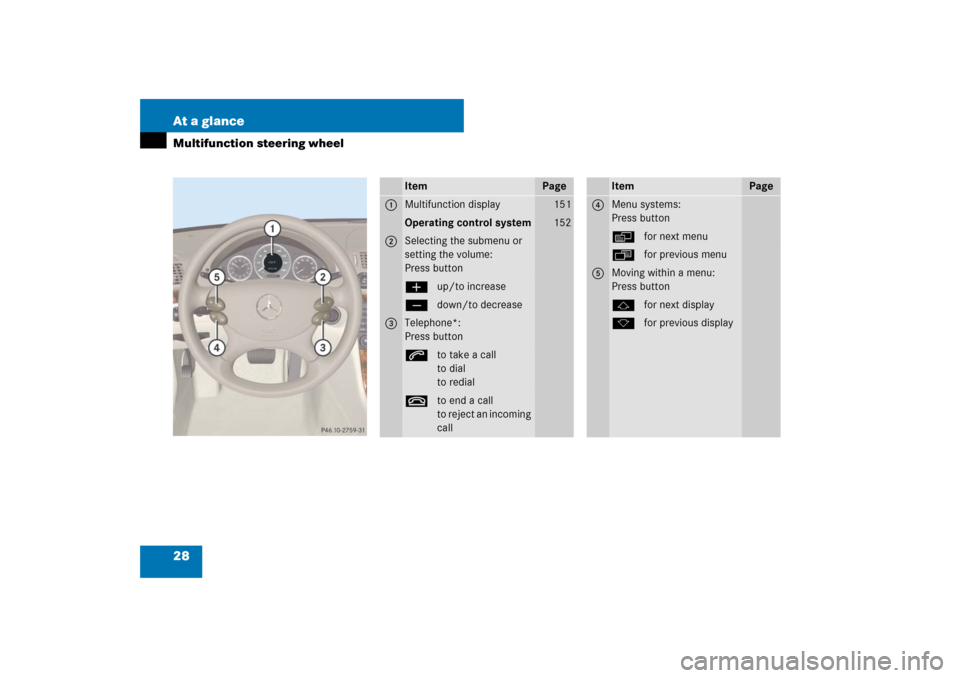

28 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
151
Operating control system
152
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial
to redialtto end a call
to reject an incoming
call
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

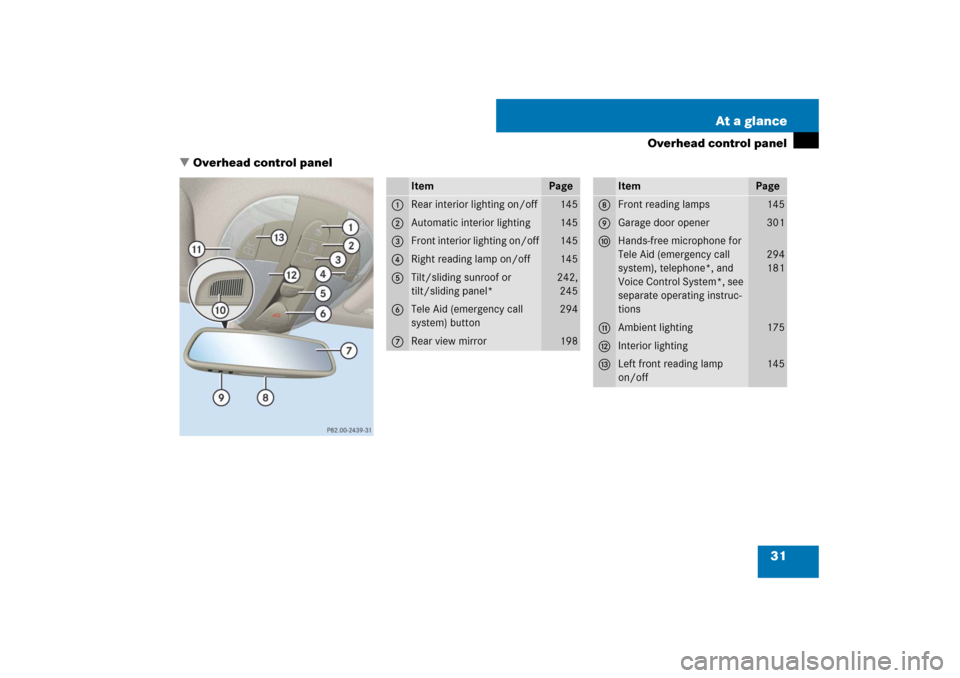

31 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting on/off
145
2
Automatic interior lighting
145
3
Front interior lighting on/off
145
4
Right reading lamp on/off
145
5
Tilt/sliding sunroof or
tilt/sliding panel*
242,
245
6
Tele Aid (emergency call
system) button
294
7
Rear view mirror
198
Item
Page
8
Front reading lamps
145
9
Garage door opener
301
a
Hands-free microphone for
Tele Aid (emergency call
system), telephone*, and
Voice Control System*, see
separate operating instruc-
tions
294
181
b
Ambient lighting
175
c
Interior lighting
d
Left front reading lamp
on/off
145

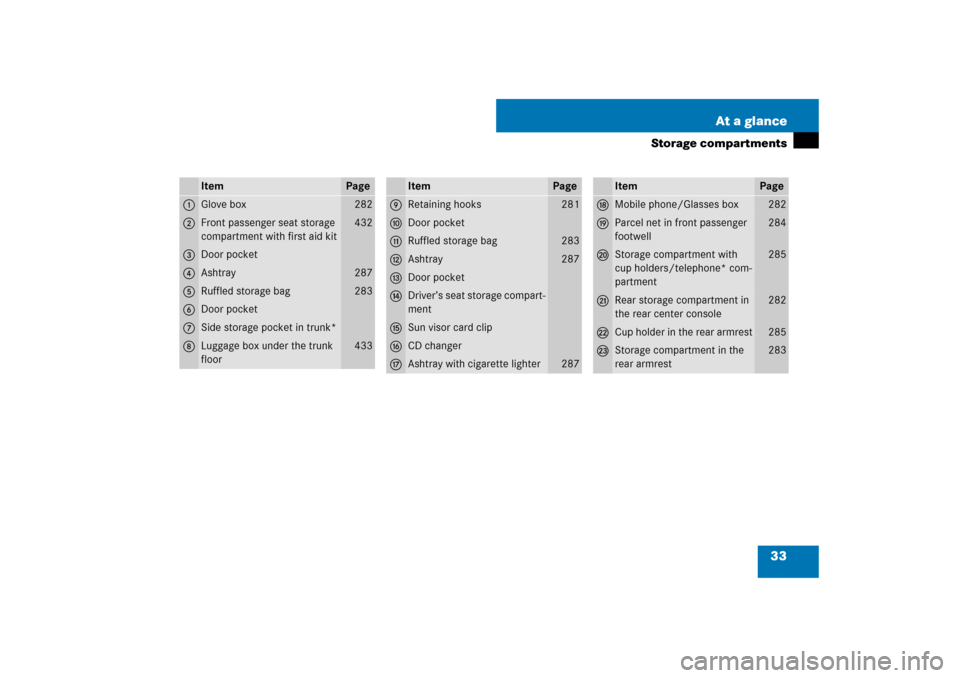

33 At a glance
Storage compartments
Item
Page
1
Glove box
282
2
Front passenger seat storage
compartment with first aid kit
432
3
Door pocket
4
Ashtray
287
5
Ruffled storage bag
283
6
Door pocket
7
Side storage pocket in trunk*
8
Luggage box under the trunk
floor
433
Item
Page
9
Retaining hooks
281
a
Door pocket
b
Ruffled storage bag
283
c
Ashtray
287
d
Door pocket
e
Driver’s seat storage compart-
ment
f
Sun visor card clip
g
CD changer
h
Ashtray with cigarette lighter
287
Item
Page
j
Mobile phone/Glasses box
282
k
Parcel net in front passenger
footwell
284
l
Storage compartment with
cup holders/telephone* com-
partment
285
m
Rear storage compartment in
the rear center console
282
n
Cup holder in the rear armrest
285
o
Storage compartment in the
rear armrest
283

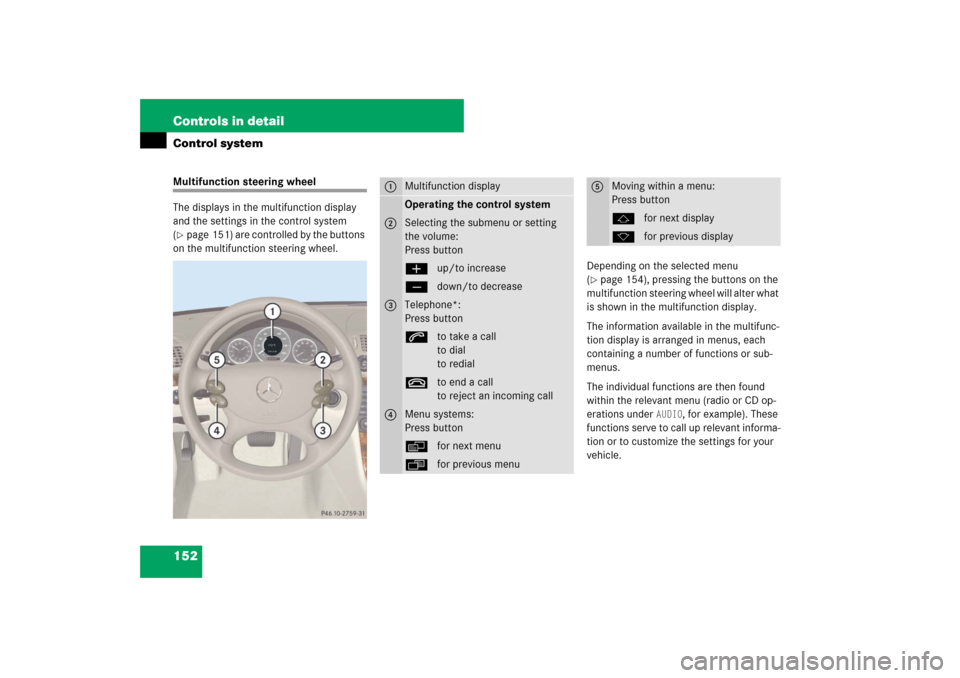

152 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system
(page 151) are controlled by the buttons
on the multifunction steering wheel.
Depending on the selected menu
(
page 154), pressing the buttons on the
multifunction steering wheel will alter what
is shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
AUDIO
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
1
Multifunction displayOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial
to redialtto end a call
to reject an incoming call
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

181 Controls in detail
Control system
Distance to empty
Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until the message
Range:
appears in
the multifunction display.
The calculated remaining driving range
based on the current fuel tank level ap-
pears in the multifunction display.
TEL* menu
You can use the functions in the
Tel
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and COMAND.

Press buttonÿ orè on the
steering wheel repeatedly until the
Tel

menu appears in the multifunction dis-
play.
Which messages will appear in the multi-
function display depends on whether your
telephone is switched on or off:


If the telephone is off, the message in
the multifunction display is:
TEL off
.
i
If only very little fuel is left in the tank, a ve-
hicle at the fuel pump is shown instead of the
range.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.

182 Controls in detailControl system

If the telephone is on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network,
READY
appears in the multi-
function display.
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will then see
the message, or if available, the caller ID
(number and name):

Press buttons.
You have answered the call. In the mul-
tifunction display you see the length of
the call.Ending a call or rejecting an incoming
call

Press buttont.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press buttonÿ orè repeatedly
until you see the
Tel
menu in the mul-
tifunction display.

183 Controls in detail
Control system

Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take several minutes. In the
multifunction display you will see the
message
Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
The stored names are displayed in as-
cending or descending alphabetical or-
der.

Press buttons.
The system dials the selected phone
number.

If the connection is successful, the
name of the party you are calling
and the duration of the call will ap-
pear in the multifunction display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press buttonÿ orè repeatedly
until you see the
Tel
menu in the mul-
tifunction display.

Press buttons.
In the multifunction display you see the
first number in the redial memory.

Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.

Press buttons.
The control system dials the selected
phone number.
i
If you press and hold buttonj ork
for longer than 1 second, the system scrolls rap-
idly through the list of names until you release
the button again.
Cancel the quick search mode by pressing
buttont.

285 Controls in detail
Useful features
Storage compartment with cup holder
in the center armrest/telephone* com-
partment
The storage compartment in the center
armrest contains a removable dual cup
holder.
Opening storage compartment
1Cover
Slide cover1 in direction of arrow.2Dual cup holder
3Telephone* compartment
Closing storage compartment

Slide cover1 back.
Keep in mind that objects placed in the cup
holder may come loose during braking, vehi-
cle maneuvers, or in an accident and be
thrown around in the vehicle interior. Ob-
jects thrown around in the vehicle interior
may cause an accident and/or serious per-
sonal injury.
i
The Roadside Assistance button• and
the Information button¡ are located below
the cover1.
i
The dual cup holder can be removed to in-
crease storage space and for cleaning. Clean the
dual cup holder only with clear, lukewarm water.
Make sure to insert the dual cup holder in the
guides when reinstalling it (
page 286).

291 Controls in detail
Useful features
Removing
Pull floormat off of retainer pins1.

Remove the floormat.
Installing

Lay down the floormat.

Press the floormat eyelets2 onto re-
tainer pins1.
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.
Before driving off, check that the floormats
are securely in place and adjust them if nec-
essary. A loose floormat could slip and
hinder proper functioning of the pedals.
Do not place several floormats on top of
each other as this may impair pedal move-
ment.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Only operate the COMAND
1 (Cockpit Man-
agement and Data System) if road, weather
and traffic conditions permit.
1Observe all legal requirements.
